Steering bearing 30.15 × 41 × 6.5 mm for Kugoo G2 Pro

Steering bearing 30.15 × 41 × 6.5 mm

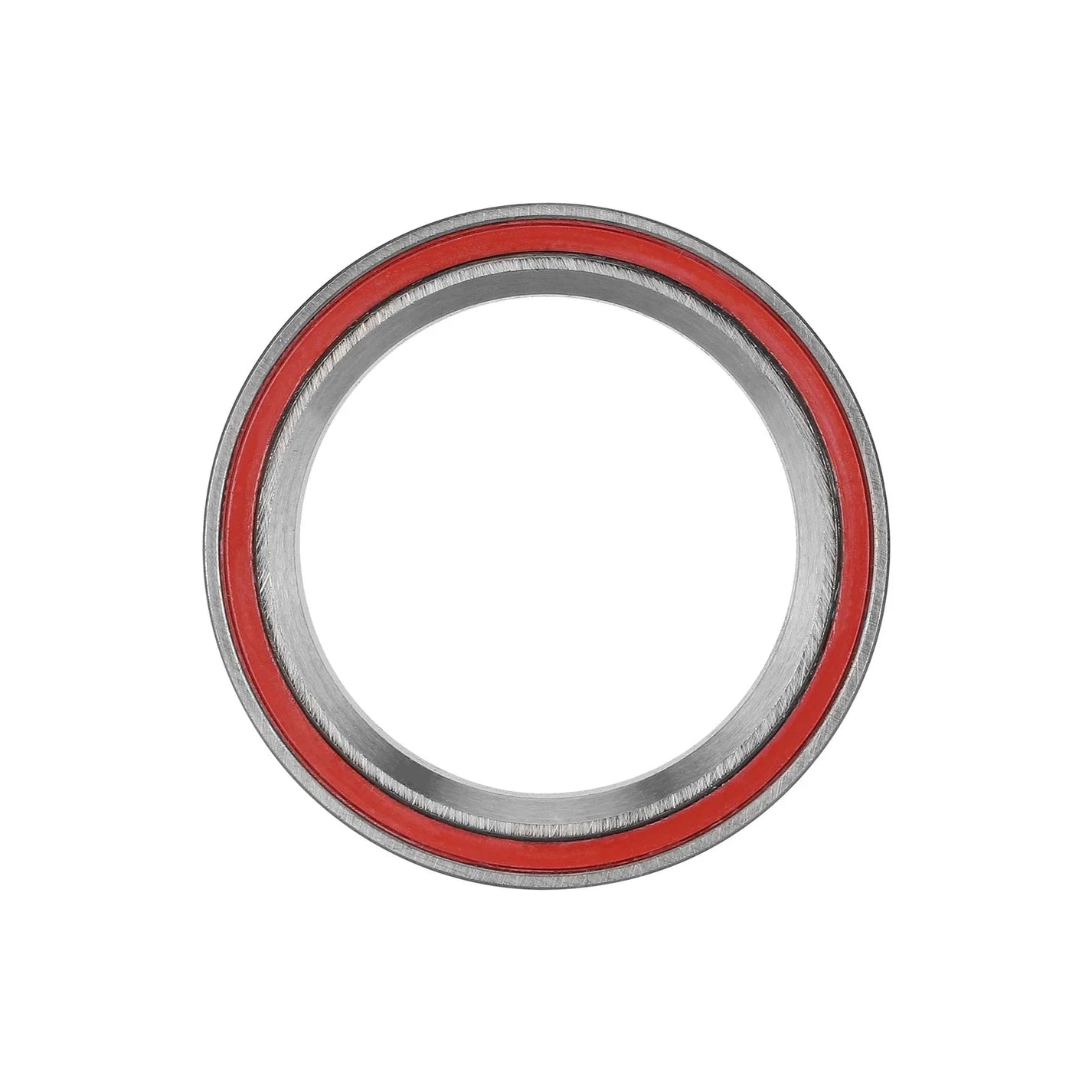

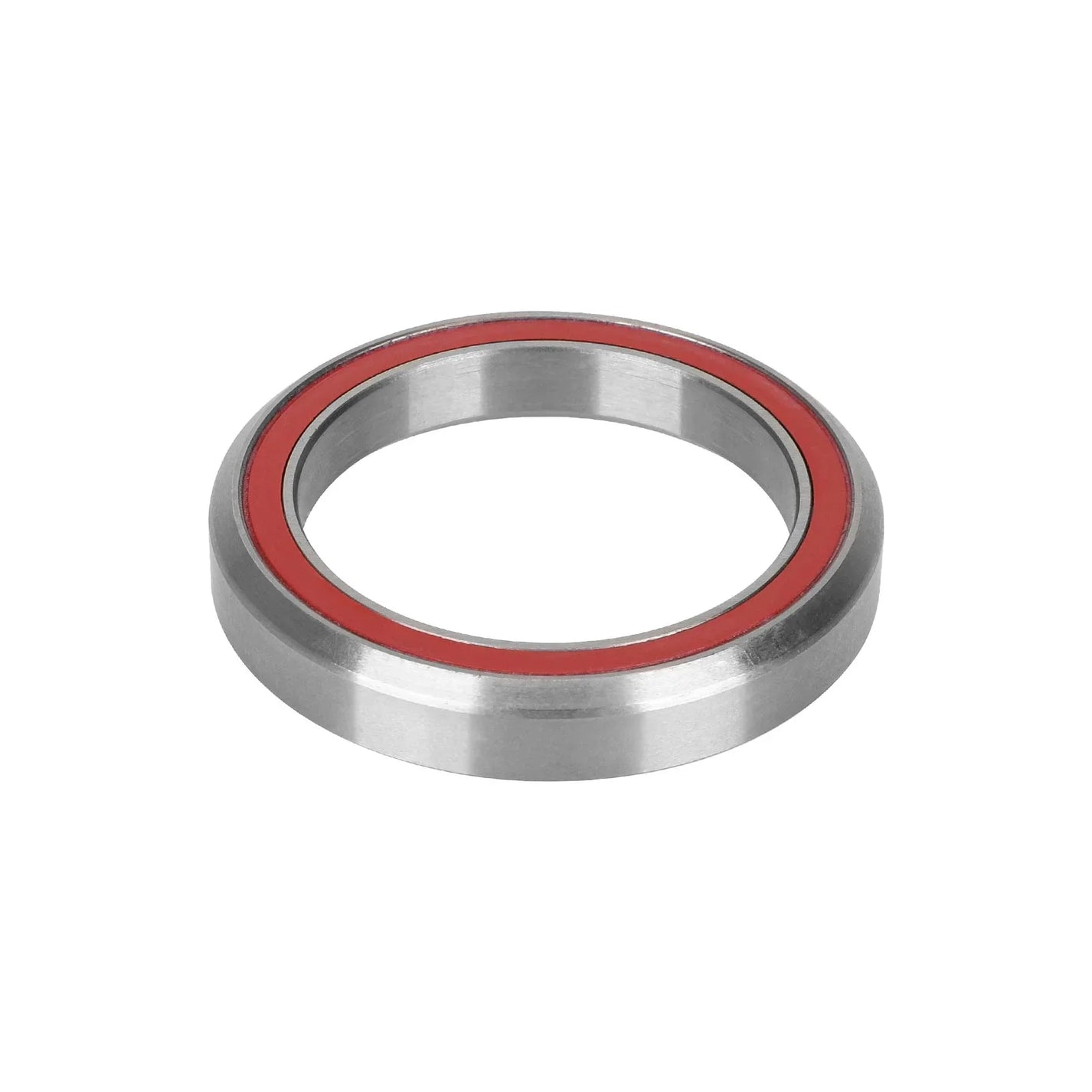

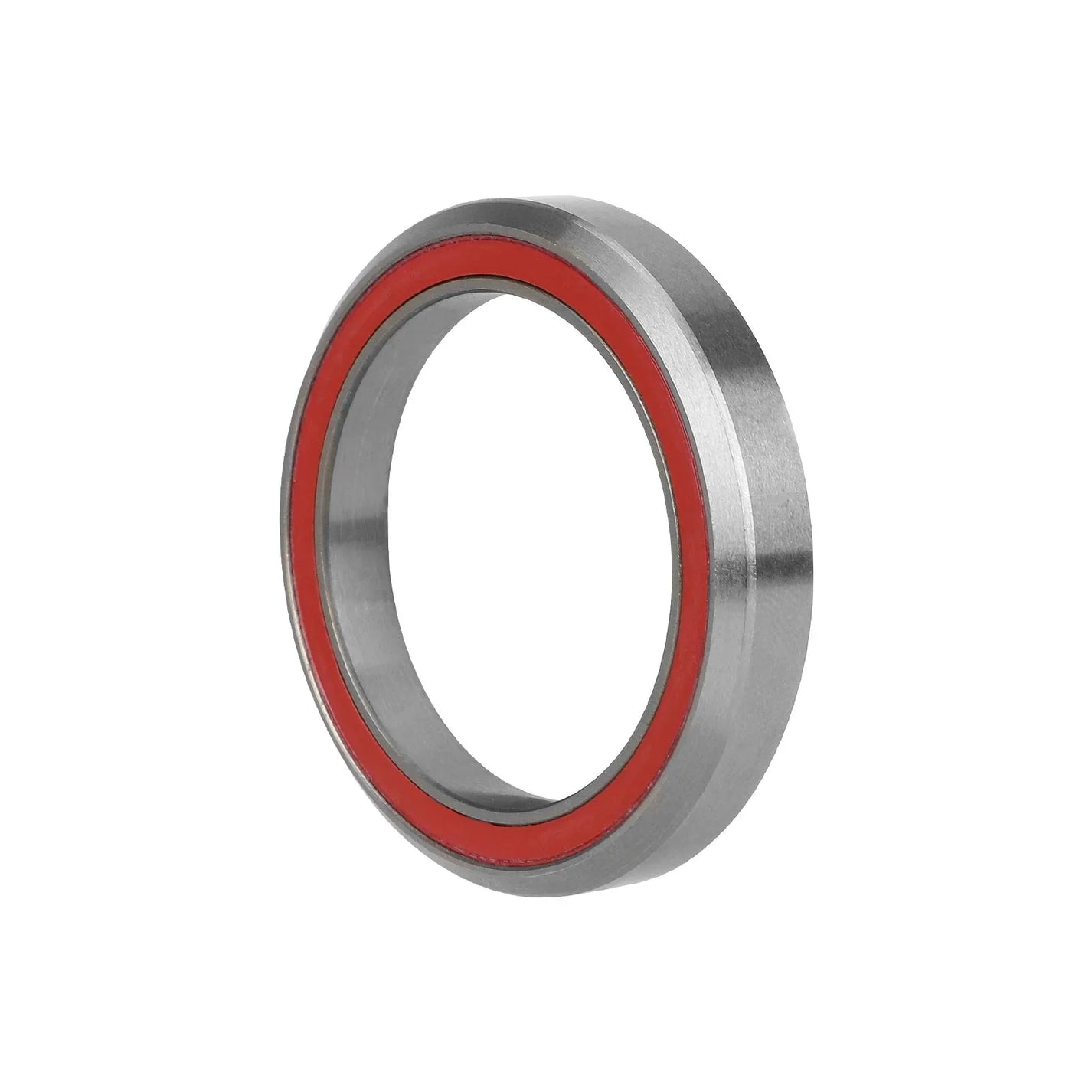

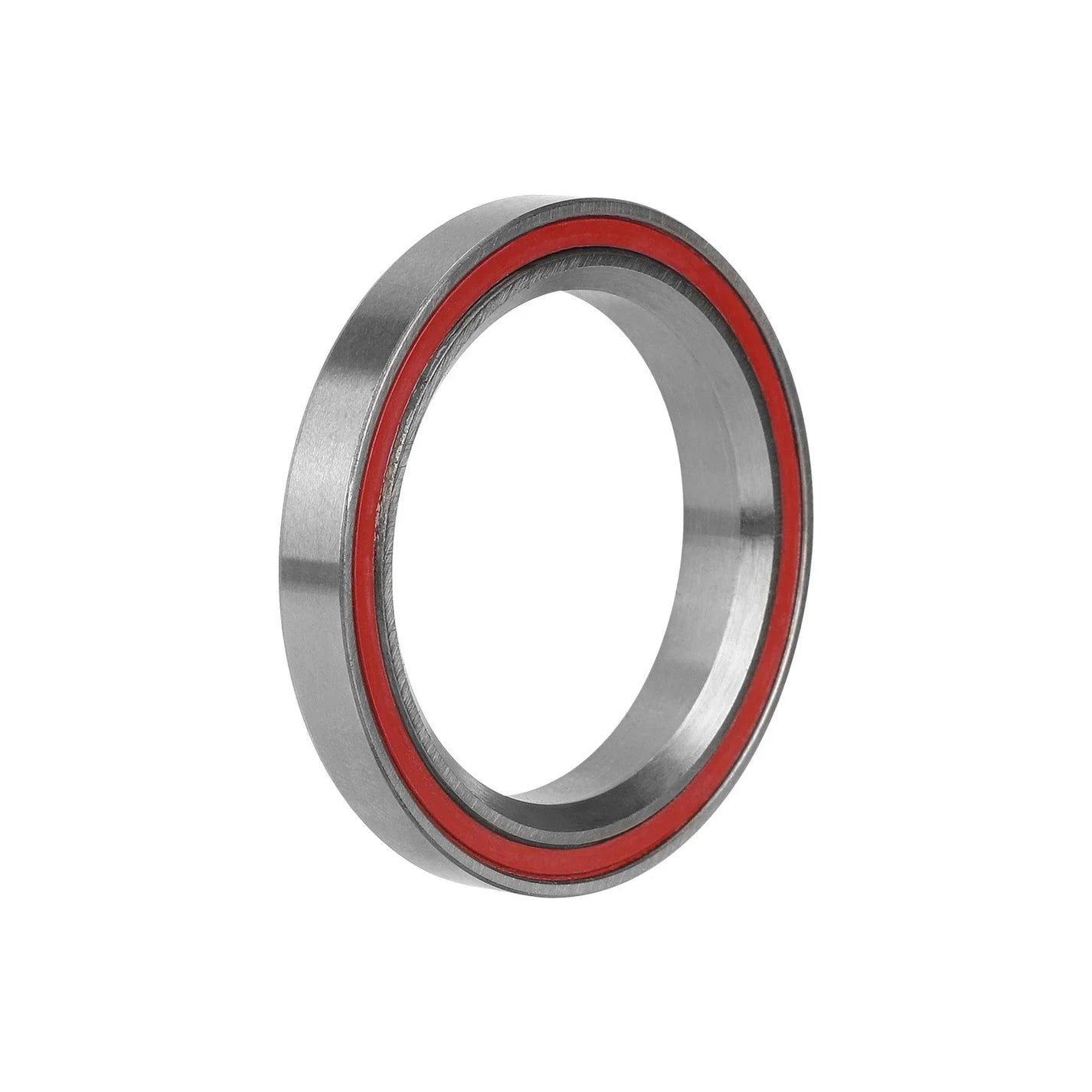

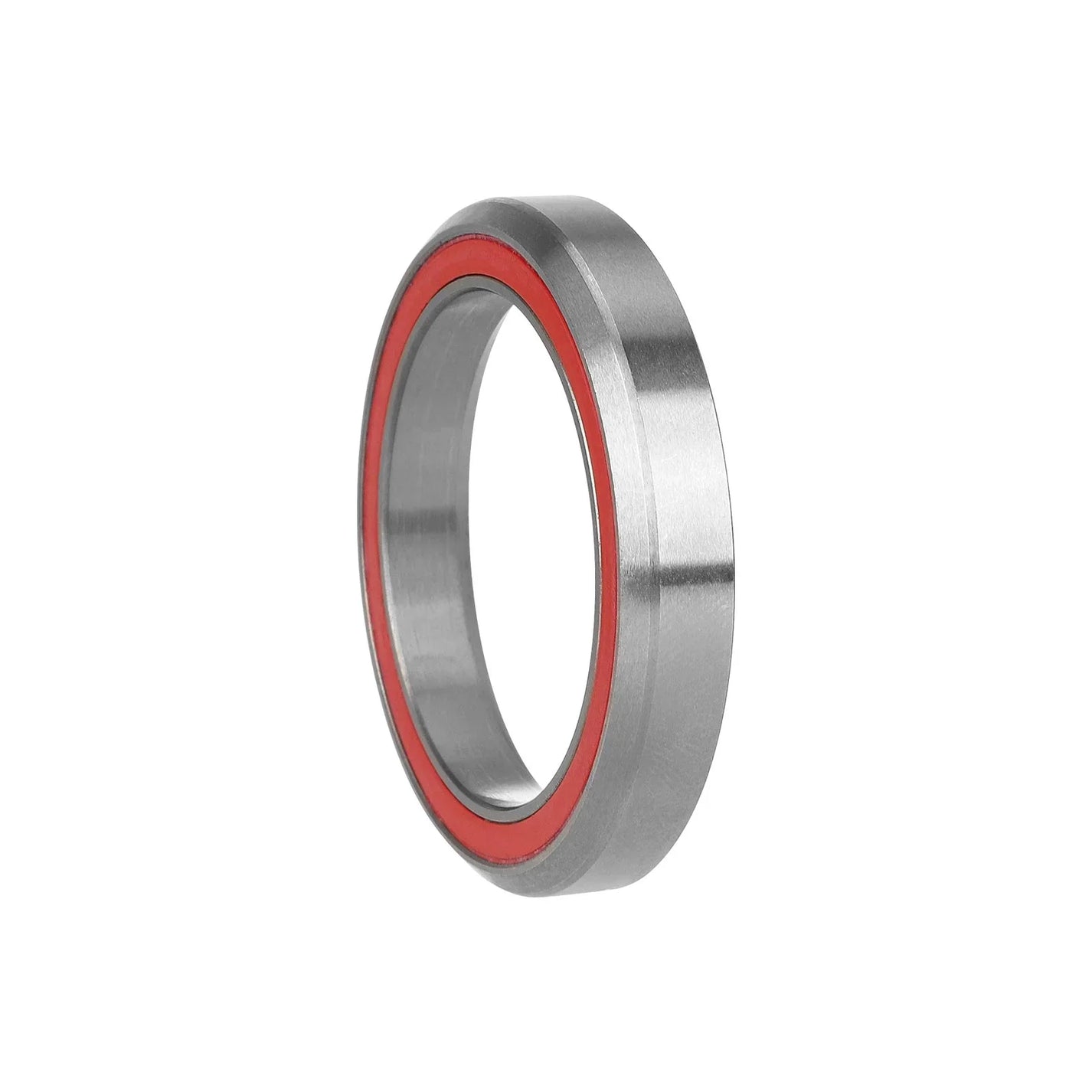

The metal steering bearing features a red seal and a compact ring design. It is intended for a steering assembly housing with the same matching dimensions.

Features and fitment

• Model: Kugoo G2 Pro.
• Steering bearing with red seal; 30.15 × 41 × 6.5 mm.

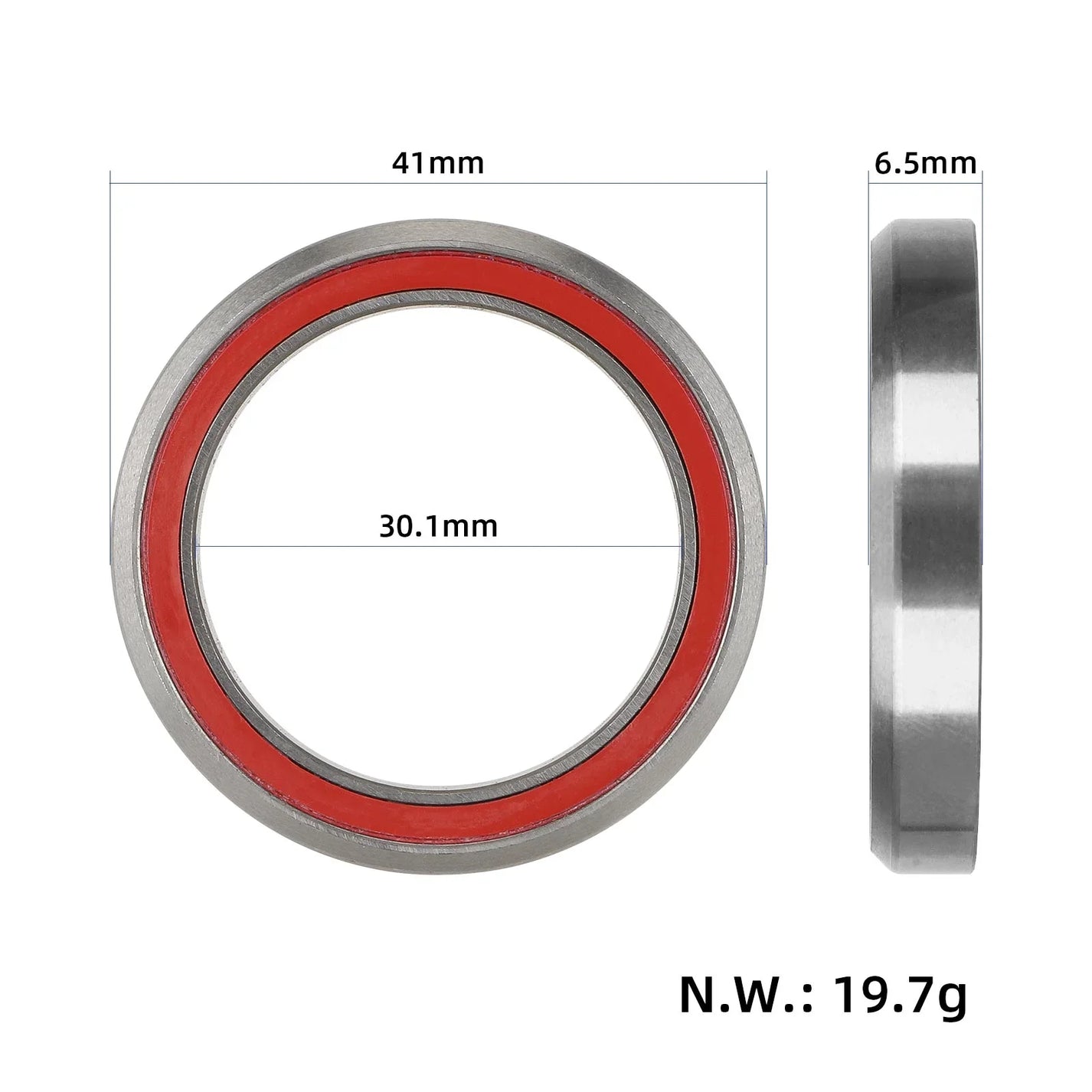

Approximate dimensions

• Bearing: inner diameter approximately 30.1 mm, nominal 30.15 mm.
• Outer diameter: 41 mm.
• Thickness: 6.5 mm.

Nominal dimensions are 30.15 mm inner diameter, 41 mm outer diameter, and 6.5 mm height. In addition to the dimensions, check the contact angles and mounting of the old bearing; similar versions may differ in height.

Steering assembly refurbishment

• First check for play or sticking in conjunction with the adjustment and contact surfaces. Replace a damaged bearing without striking the rolling parts.
• Clean the housing and assemble the parts in the correct order. Transfer force when inserting to the ring that fits the housing, and observe the prescribed lubrication.
• After adjustment, check for smooth steering operation and the absence of play. Excessive tightening will not fix a worn bearing.
