160 mm brake disc with 6 bolts – 44 mm mounting pattern

160 mm brake disc for 6-bolt hub

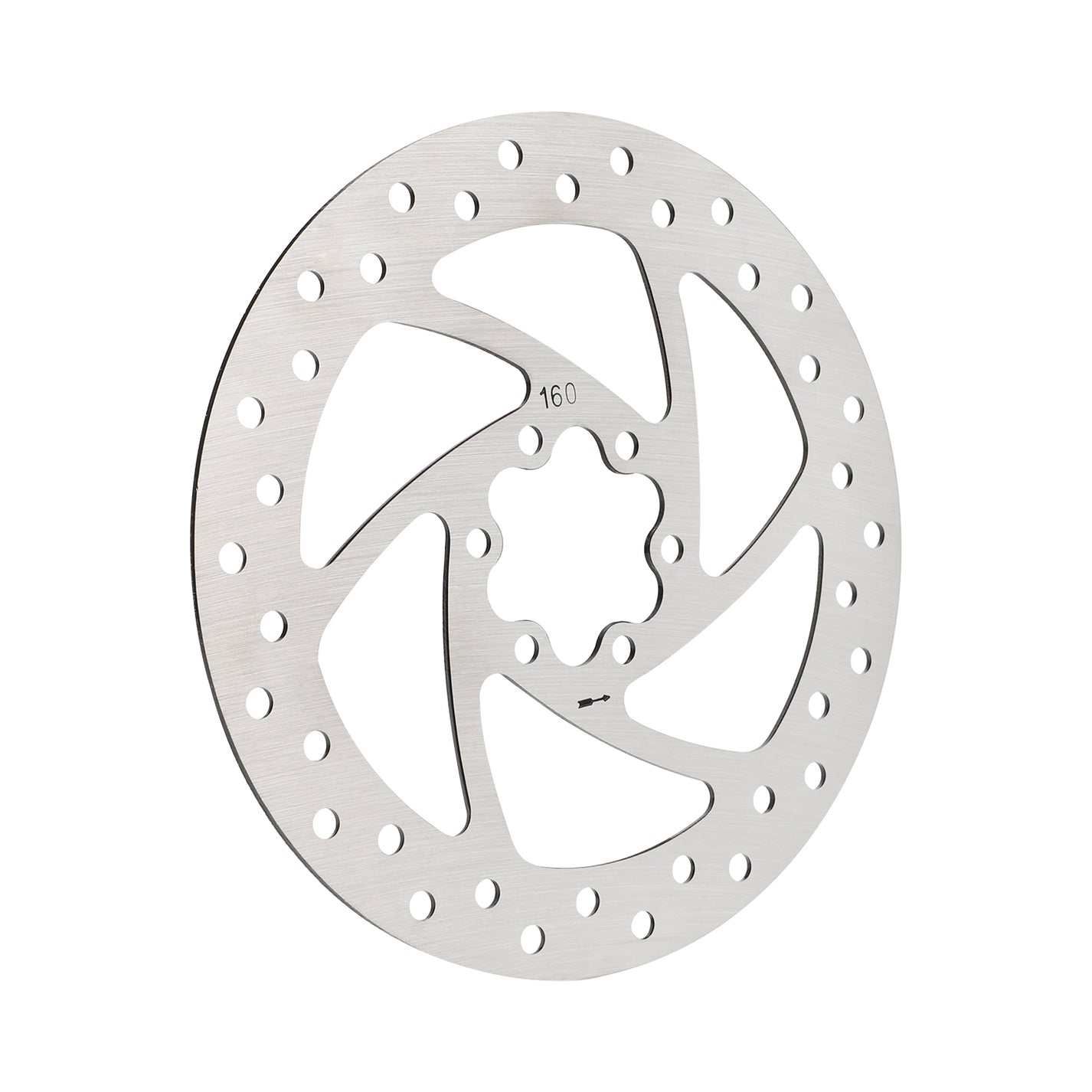

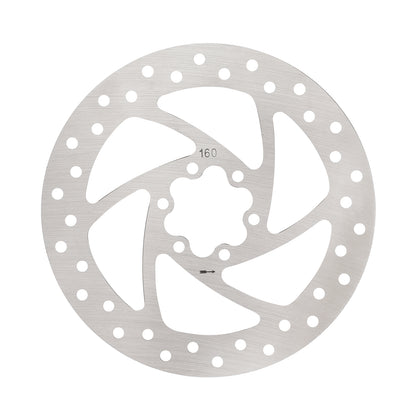

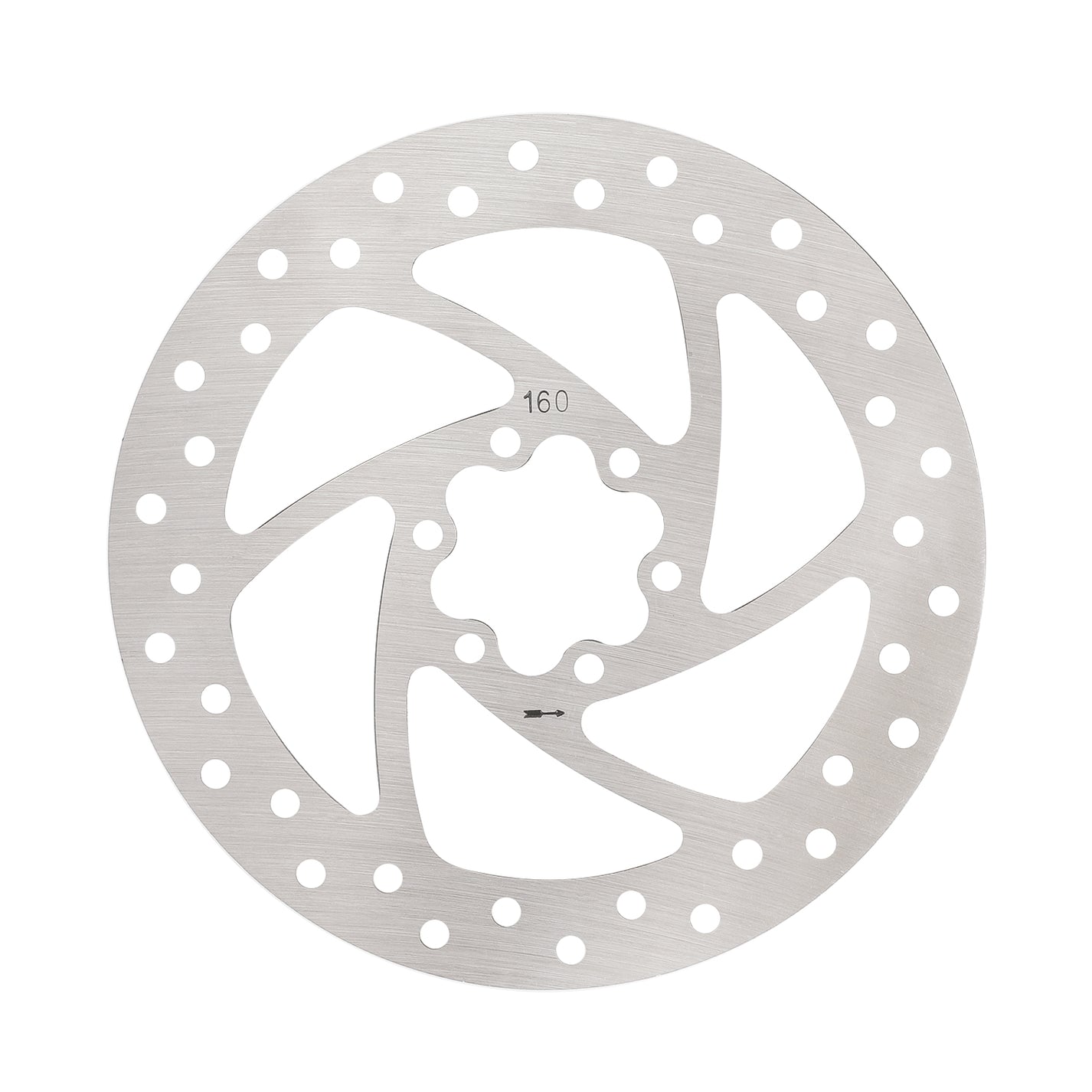

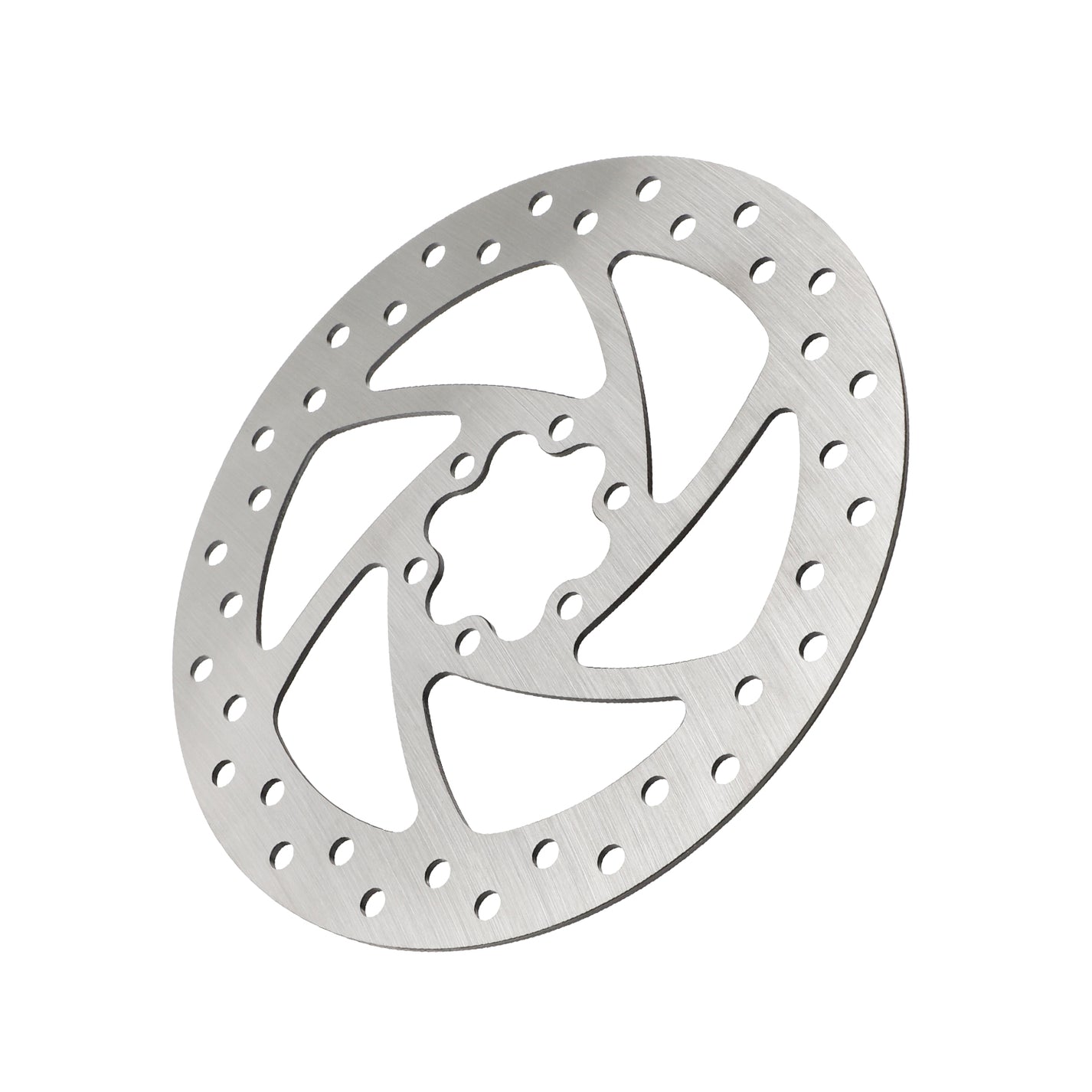

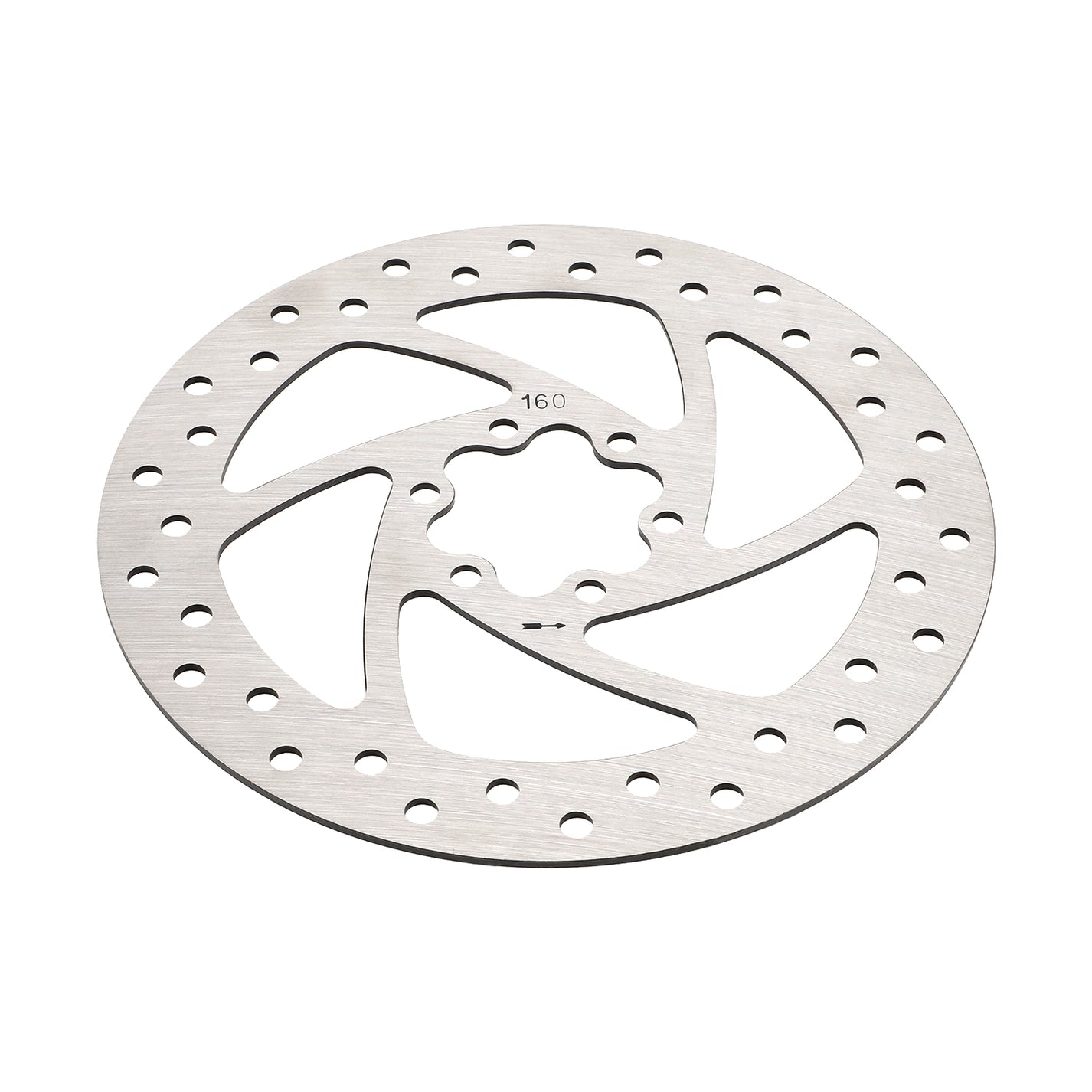

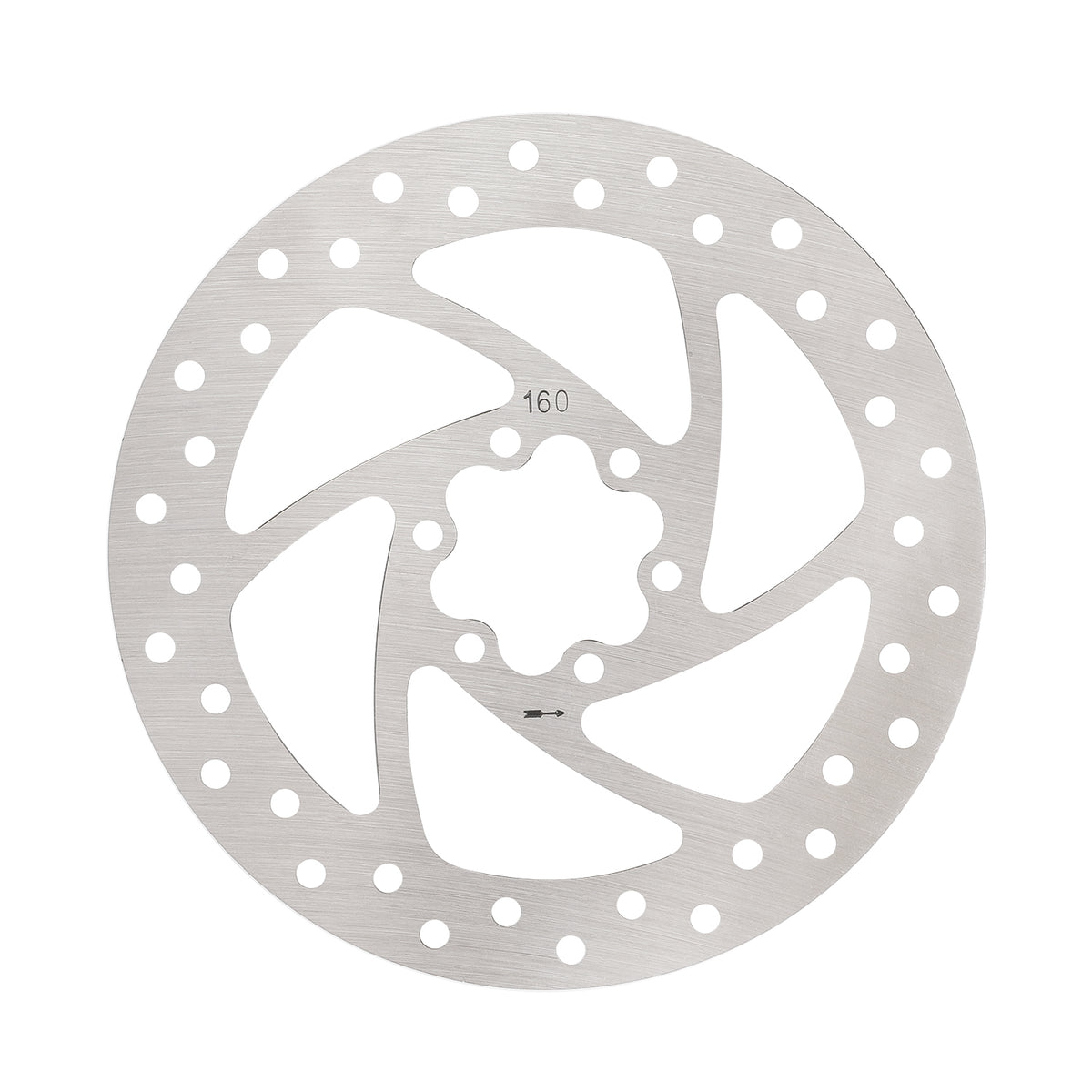

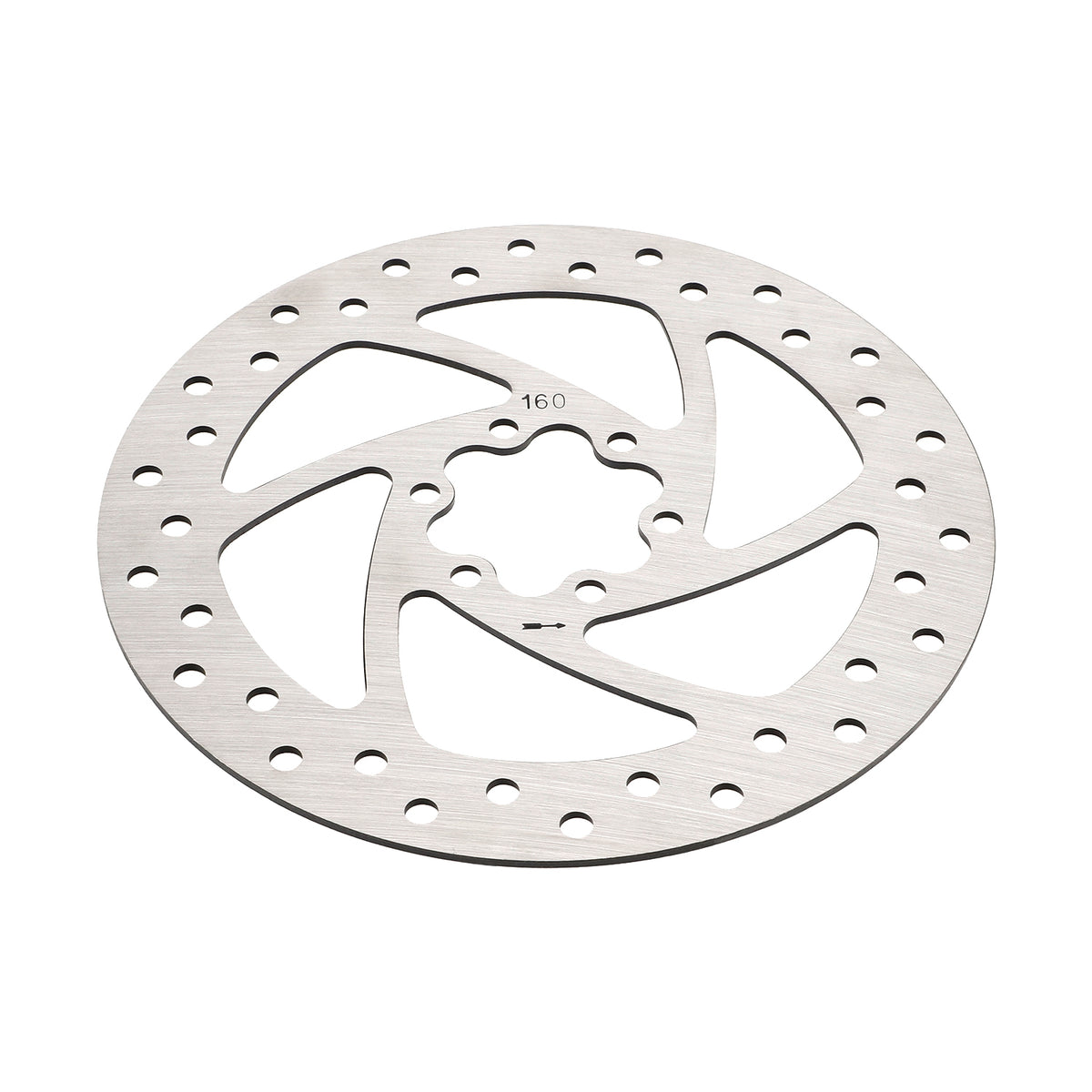

The 160 mm diameter brake disc features six mounting points on a 44 mm circle. The silver braking surface is perforated, and inner spokes connect it to the mounting section.

Features and Compatibility

• Diameter 160 mm; 6 holes; 44 mm bolt circle diameter.
• Six bolts.

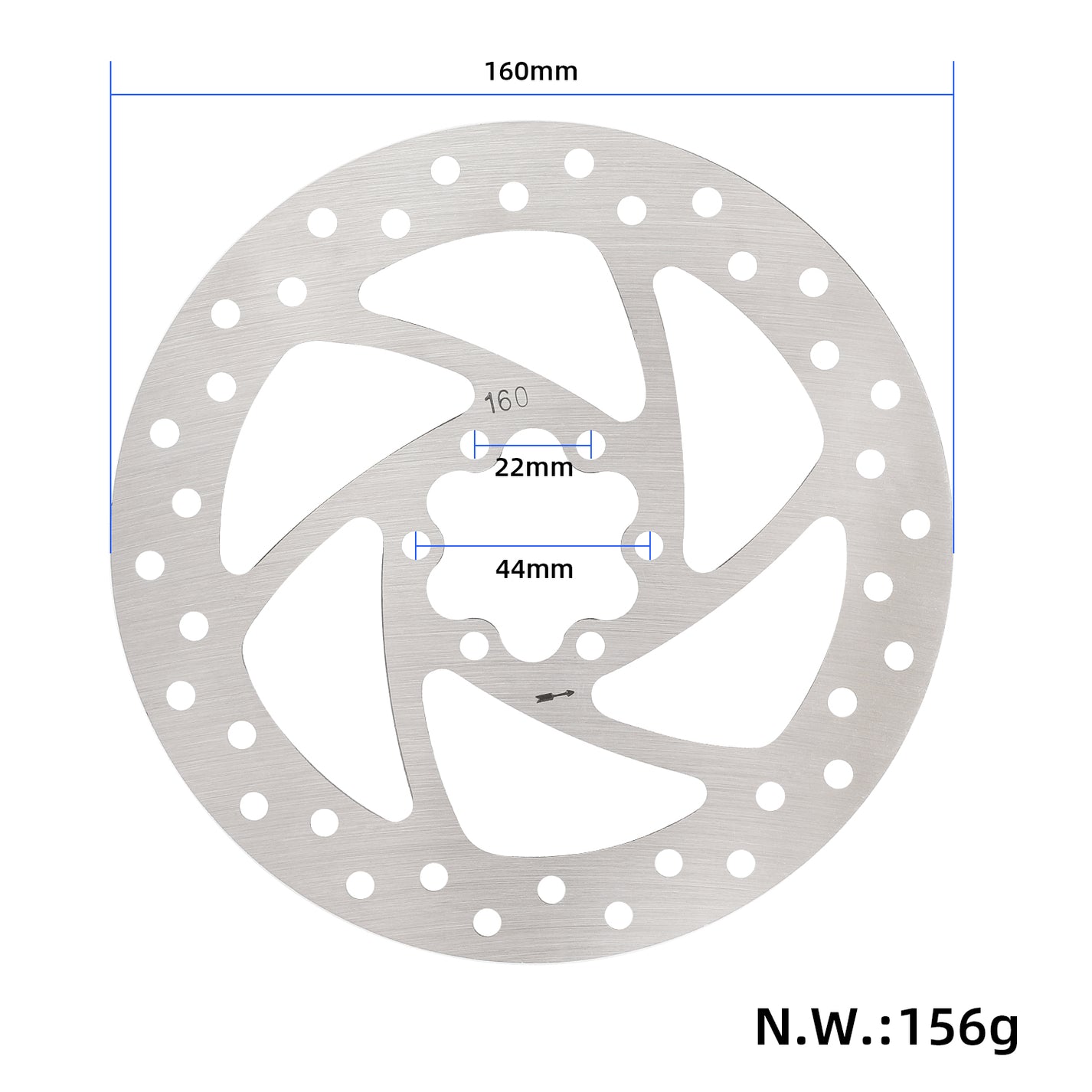

Approximate Dimensions

• Disc diameter: 160 mm.
• Mounting bolt circle: 44 mm.
• Distance between adjacent holes: 22 mm.

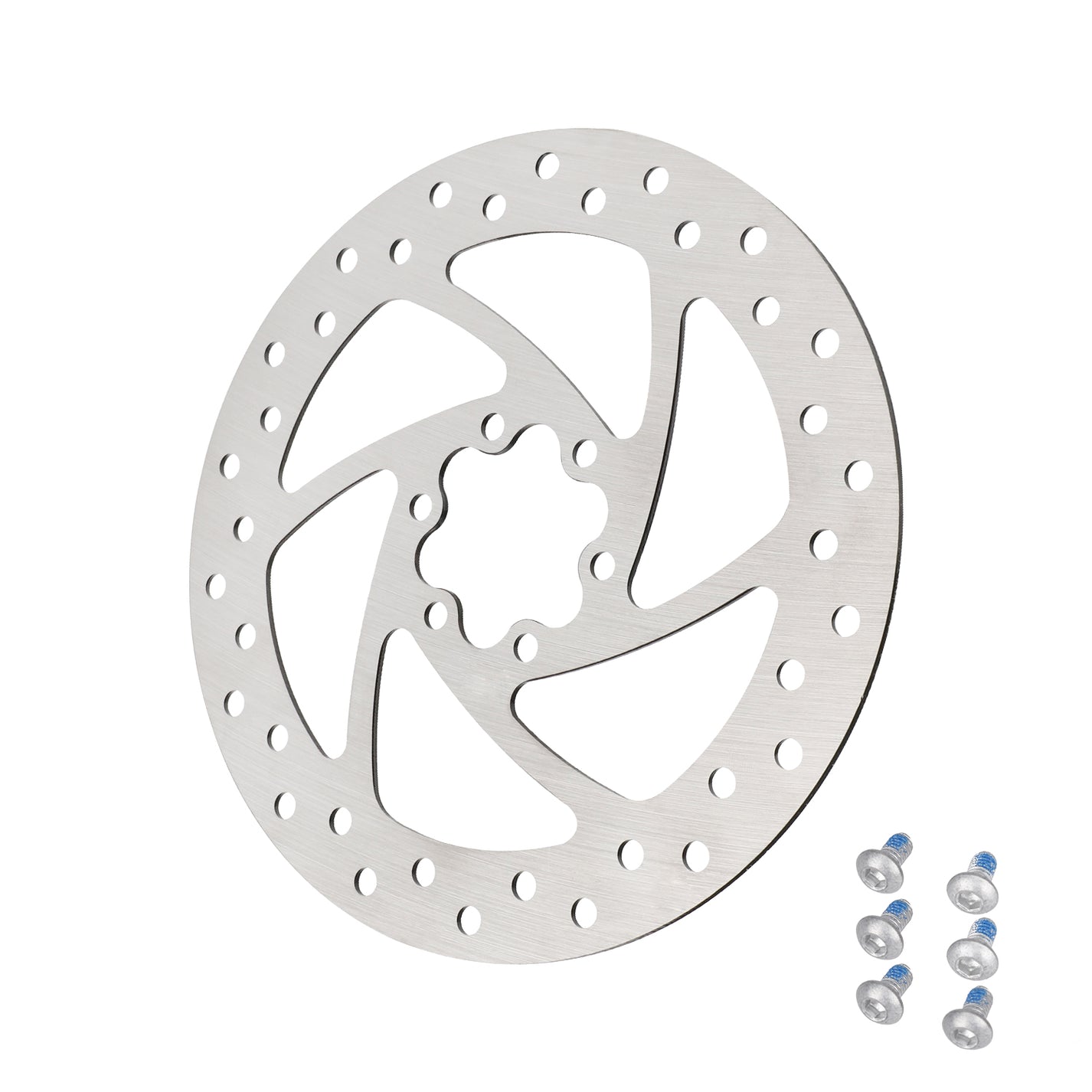

The set includes six bolts. When selecting, compare the disc diameter, bolt circle, and caliper position; a larger disc also requires appropriate brake adjustment.

Disc Replacement and Alignment

• Replace the disc if there are cracks, permanent deformation, or wear below the minimum thickness. If rubbing occurs, also check caliper alignment first.
• Clean the hub mating surface and mount the disc in the marked direction of rotation. Tighten the bolts gradually in a cross pattern to the specified torque.
• Keep the braking surface clean and free of grease. After assembly, check for free rotation and braking performance; a new disc and pads require proper bedding-in.
