Set of four-piston hydraulic brakes NUTT Y5

NUTT Y5 4-piston hydraulic brake set

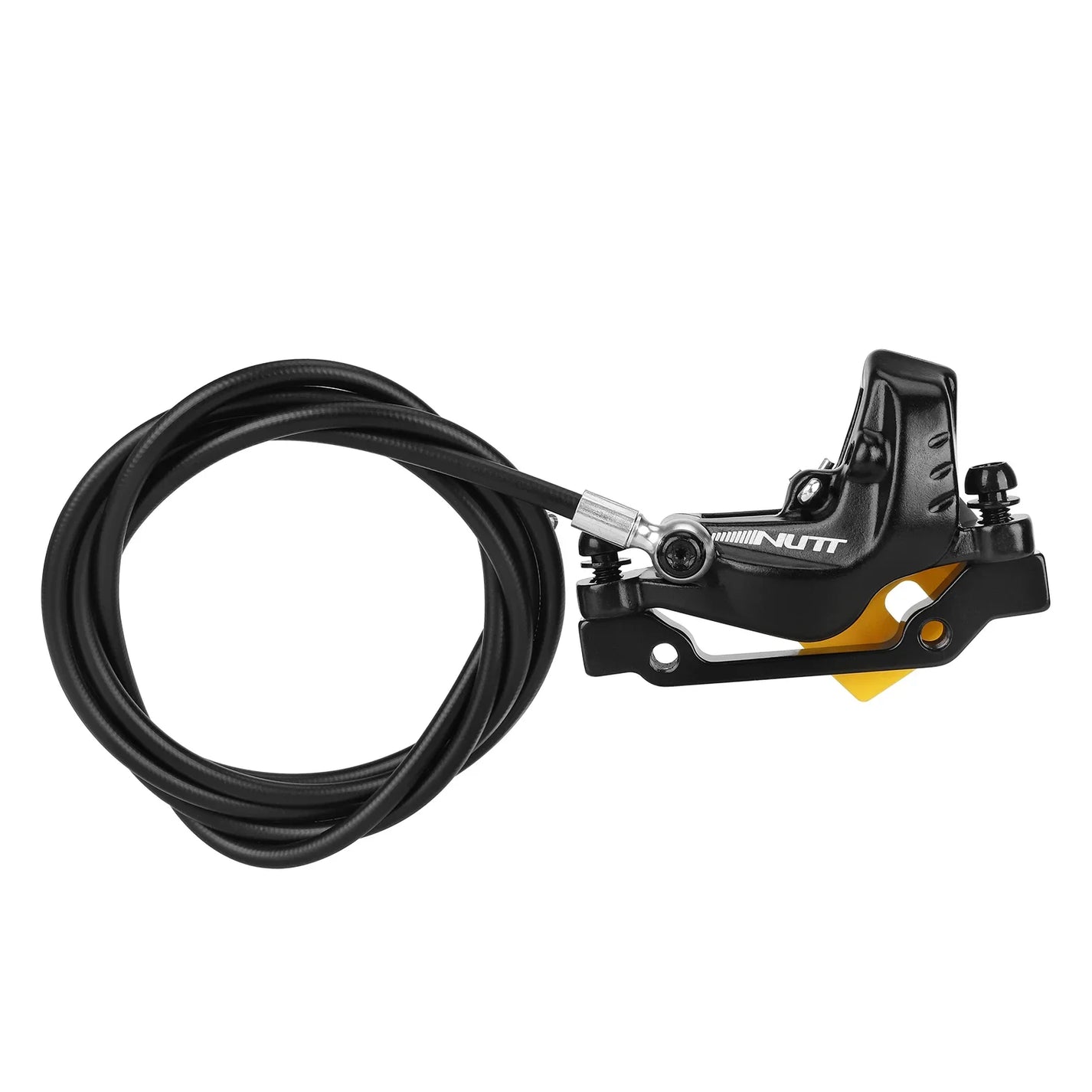

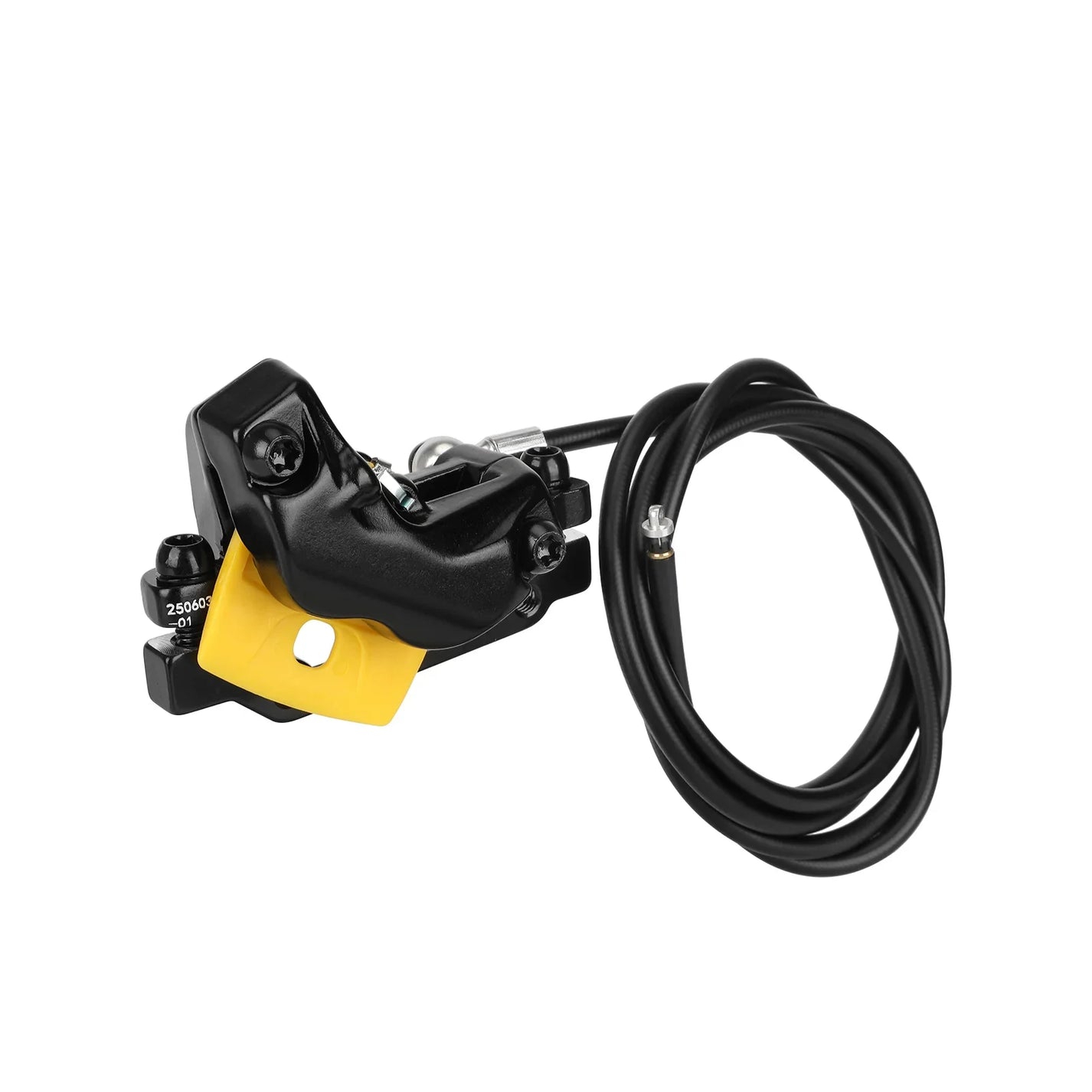

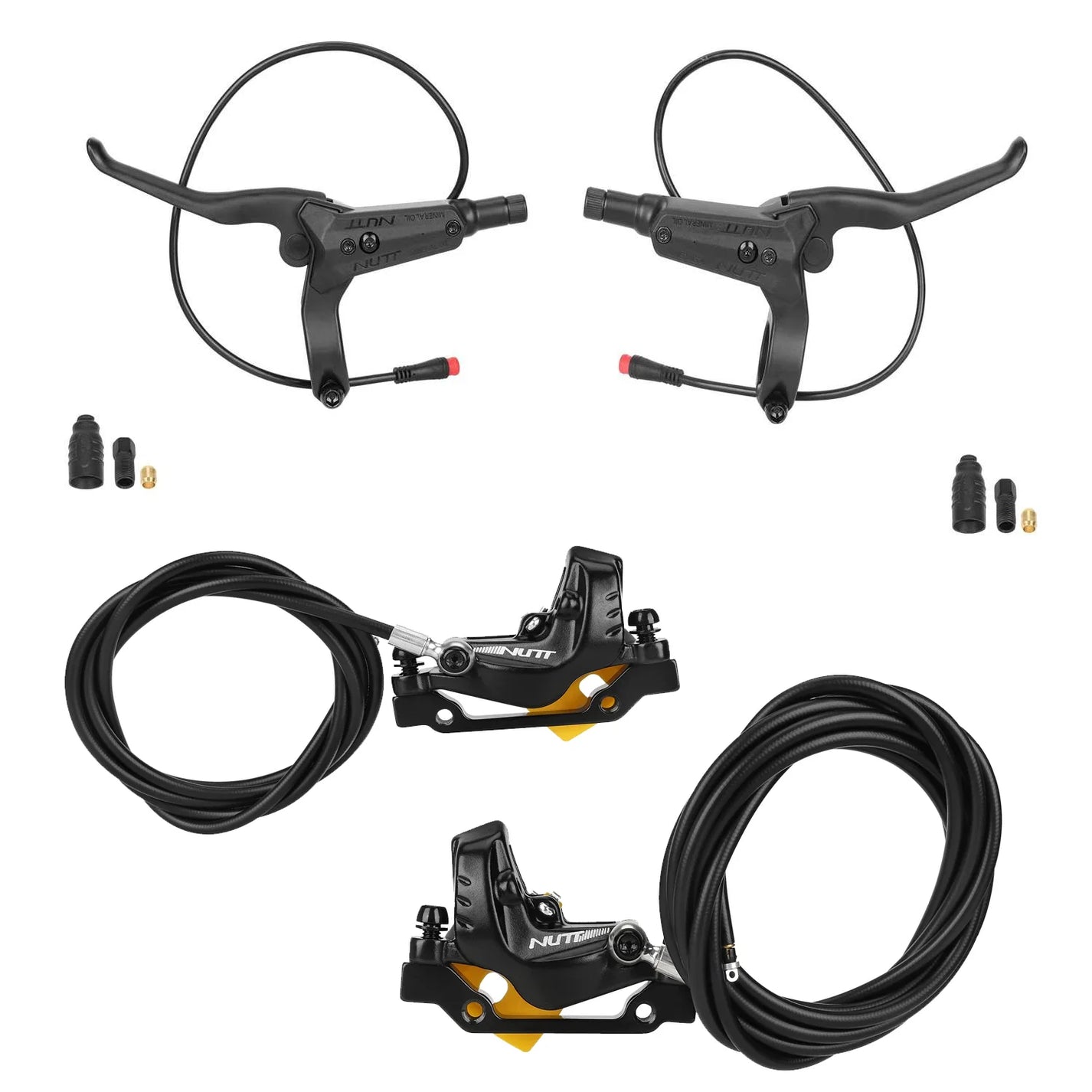

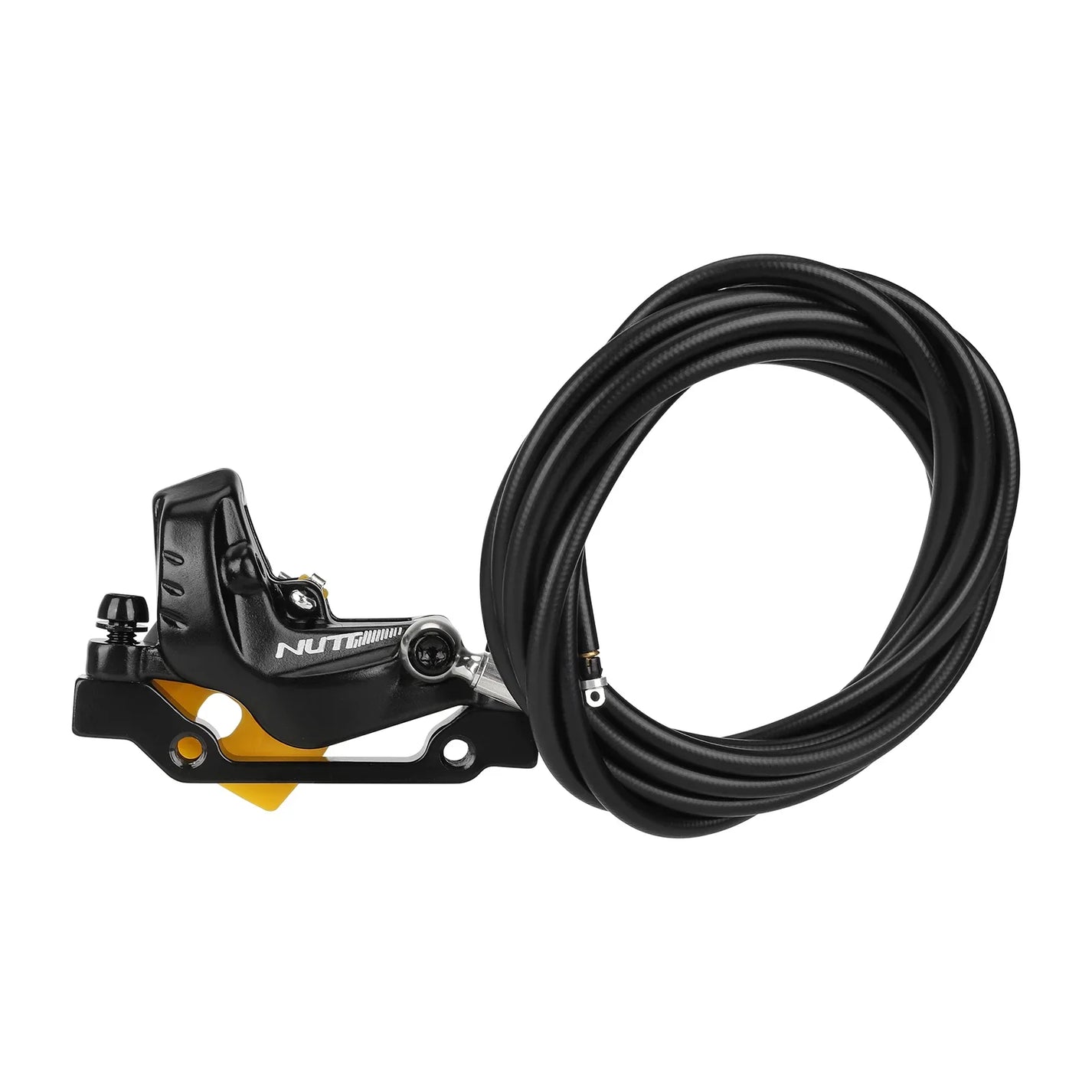

The NUTT Y5 set includes two black brake levers, two 4-piston calipers, and the corresponding hydraulic hoses. The calipers feature black housings with a white logo and include transport spacers between the pads.

Features and fitment

• NUTT Y5 hydraulic brake set with 4-piston calipers.
• Includes two levers, two calipers, hydraulic hoses, and signal connectors.
• Black finish with transport spacers.
• Configuration: left lever for front brake, right lever for rear brake.

Approximate dimensions

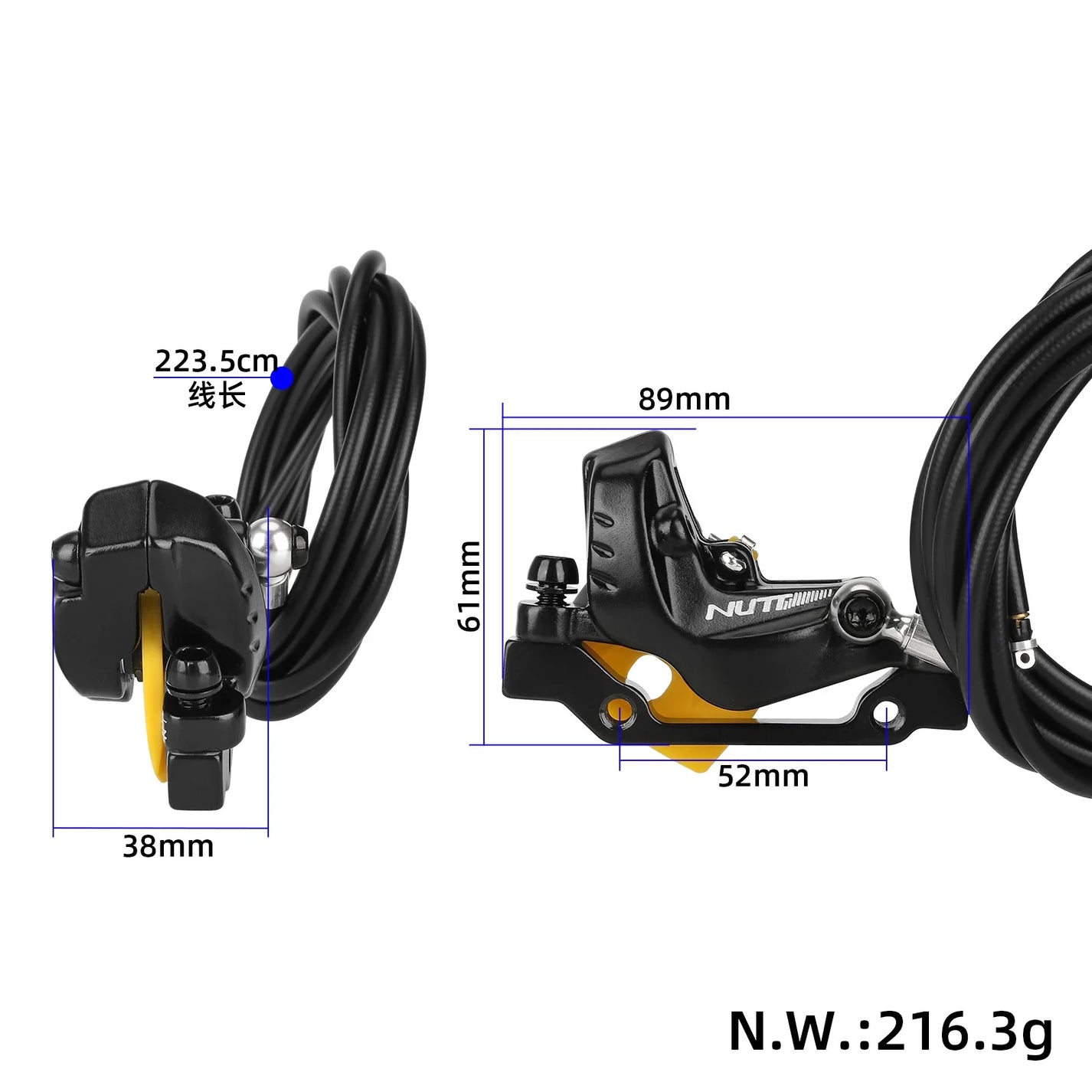

• Rear caliper: 89 × 61 × 38 mm.
• Front caliper: 89 × 60.5 × 38.7 mm.
• Mounting hole spacing for both calipers: 52 mm.
• Front hose length: approximately 139 cm.
• Rear hose length: approximately 223.5 cm.

Before installation, check both hose lengths, caliper mounting, disc thickness, and brake cutoff connection. Converting existing brakes requires synchronizing the entire system, not just changing mounting bolts.

Installation and use

Installation requires hydraulic brake servicing, proper fluid, and bleeding according to NUTT guidelines. After routing the hoses, check brake switches, sealing, and pad alignment. Installation should be performed by a technician who can verify caliper fit, hose routing, and bleeding. Gradually bed in the pads after installation.
