Organic brake pads for Dualtron Ultra 2 with Magura MT5/MT7 calipers

Organic pads for Magura MT5/MT7 brakes

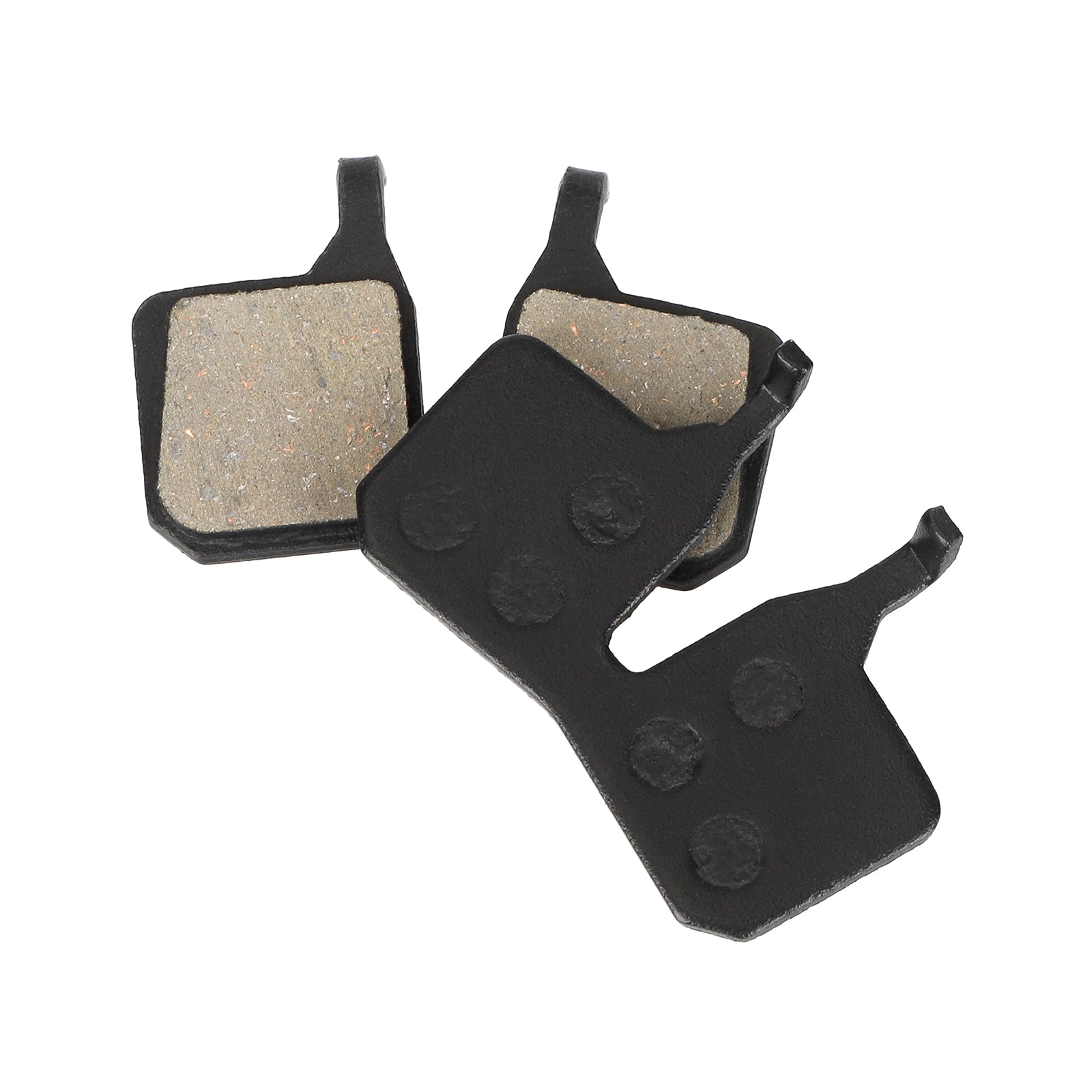

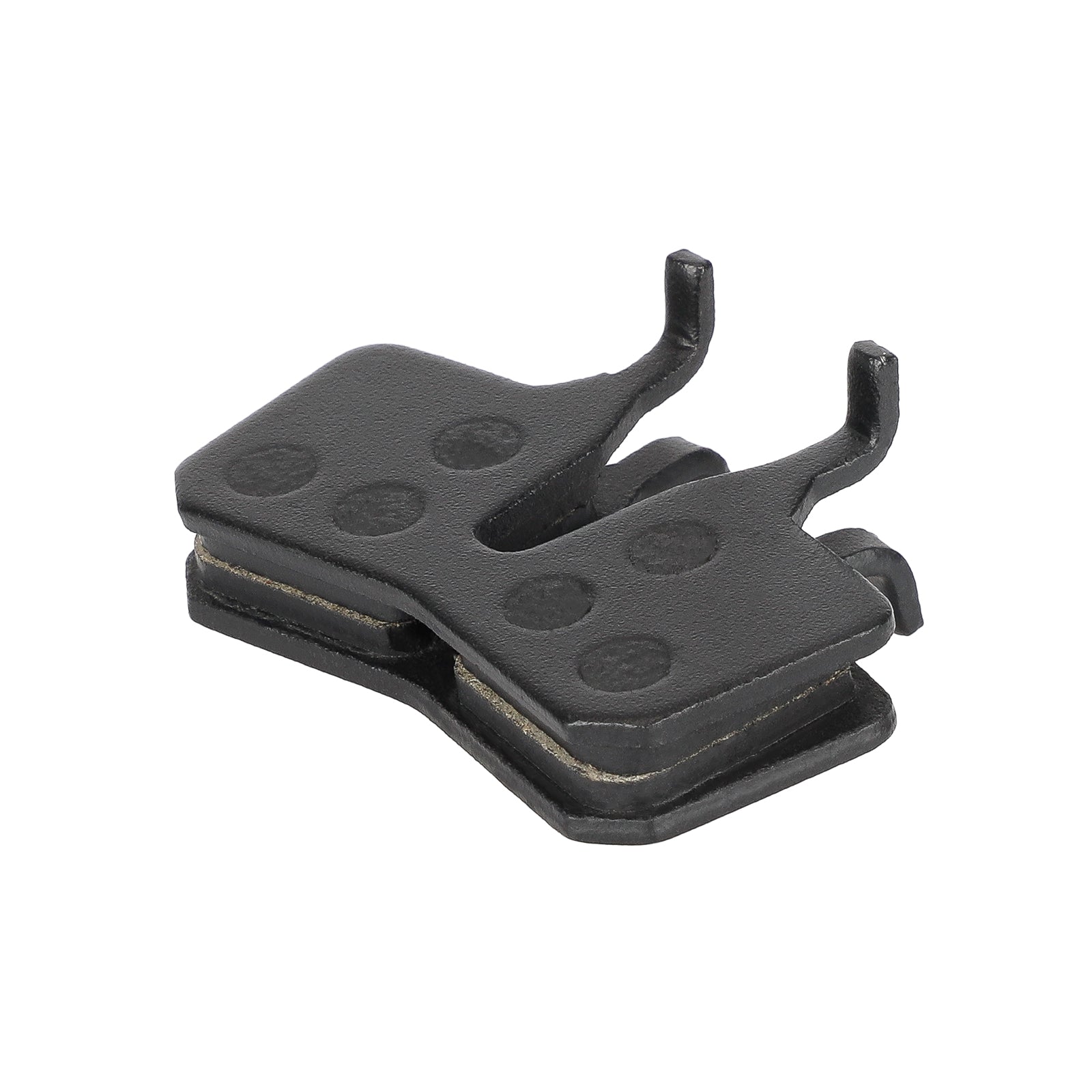

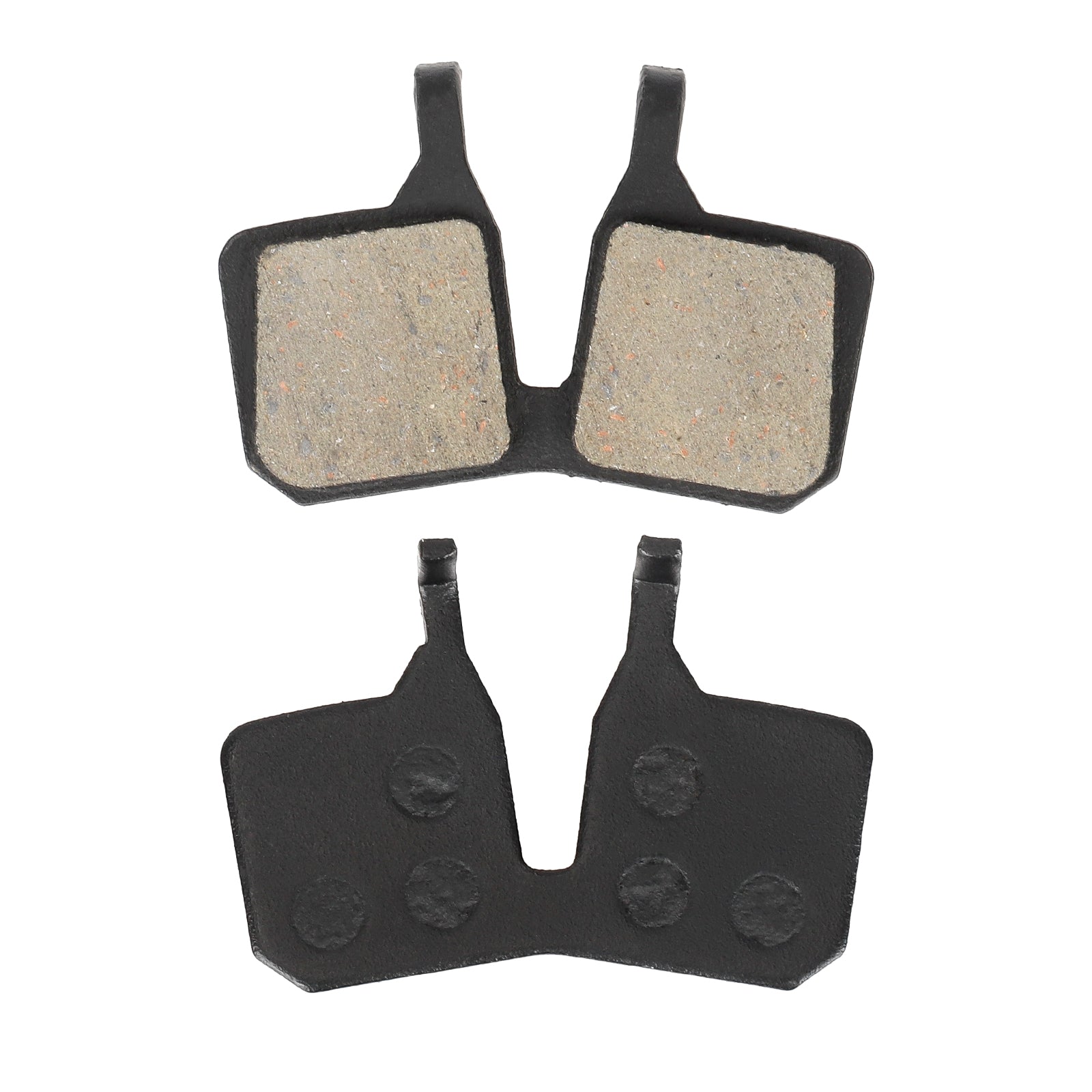

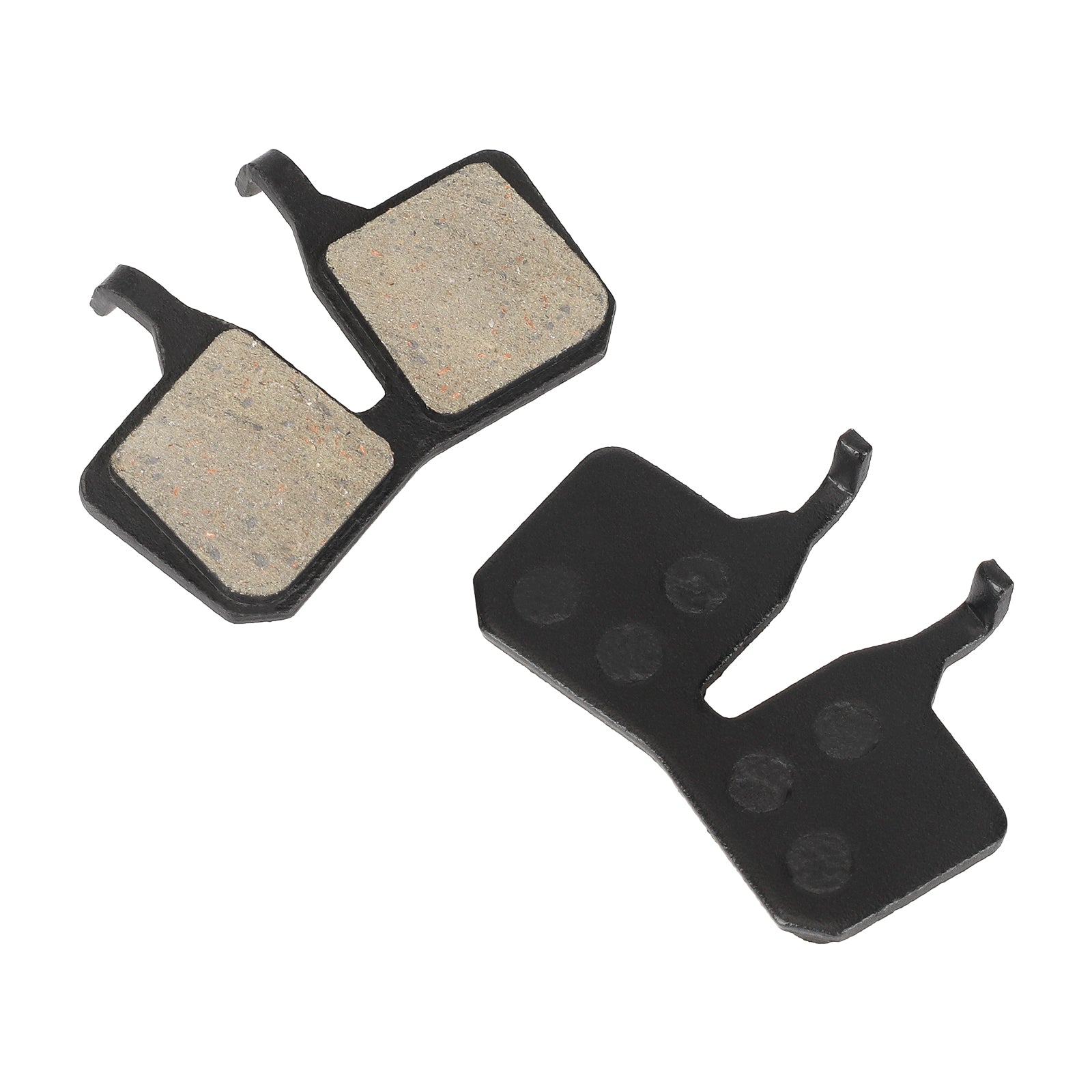

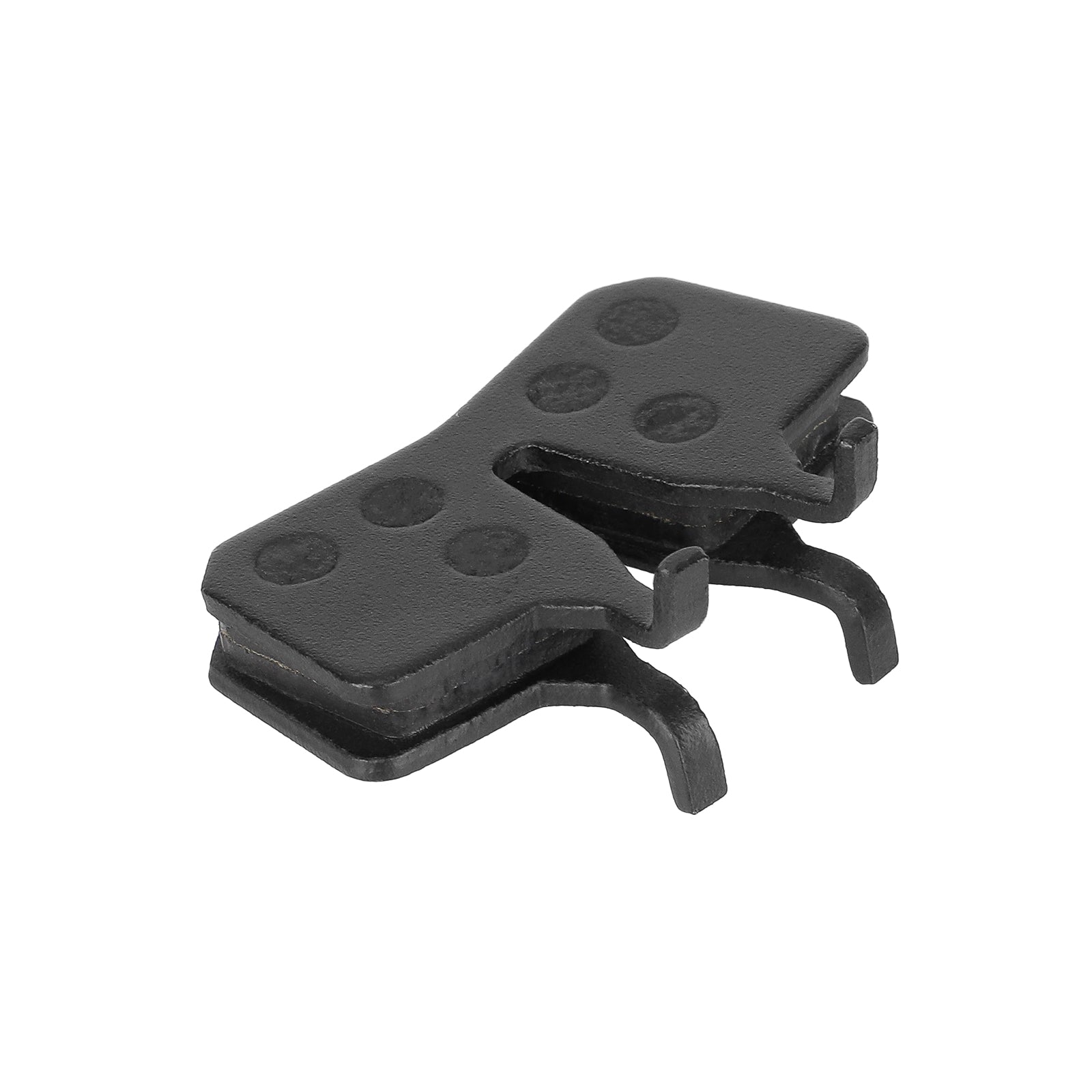

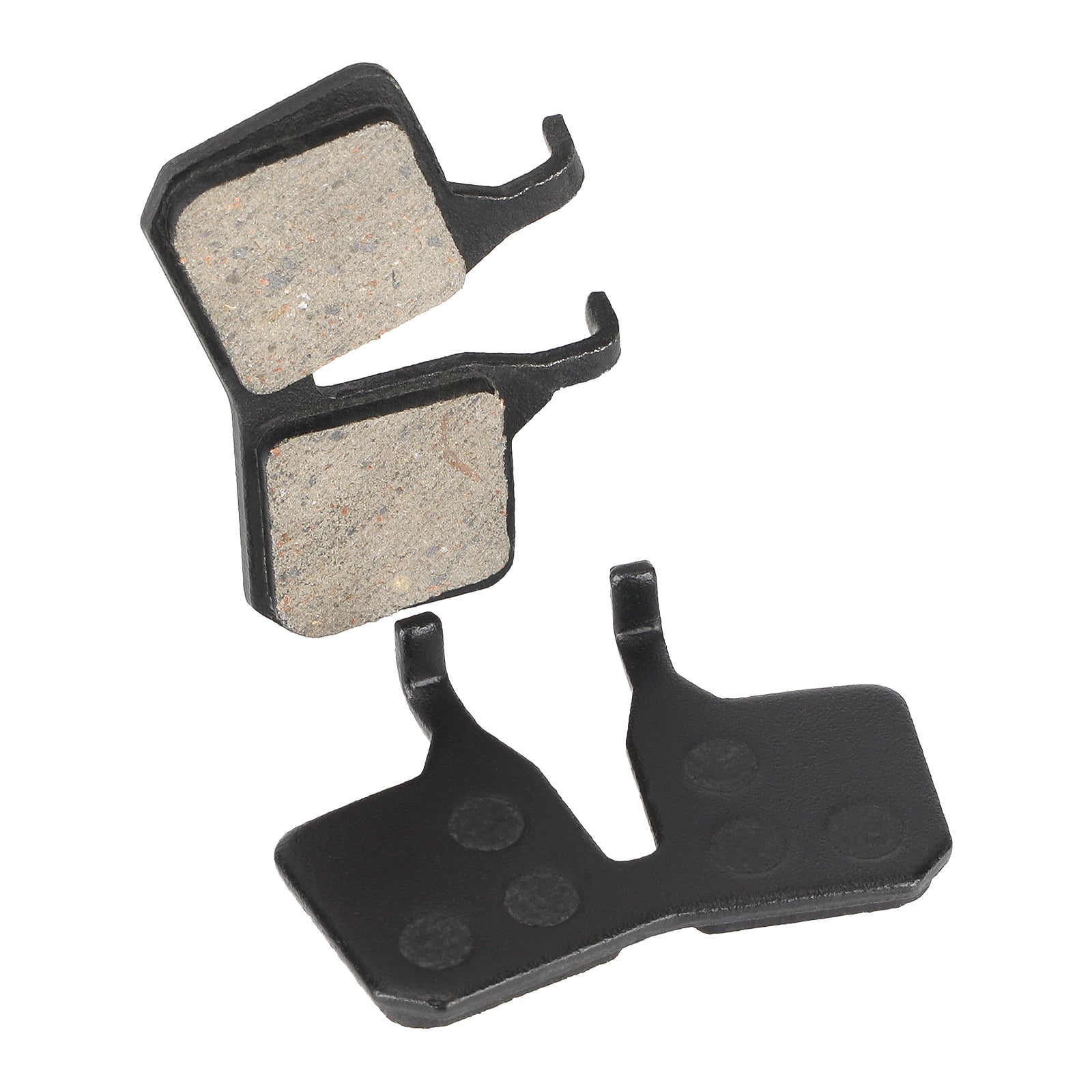

The pair of organic brake pads is designed for the Dualtron Ultra 2 electric scooter equipped with a compatible Magura MT5, MT5e, or MT7 caliper. Each black carrier plate features two friction areas and an upper mounting tab.

Features and dimensions

• Brake compound: organic, resin-based.
• Vehicle: Dualtron Ultra 2 with compatible Magura MT5/MT5e/MT7 brake.
• Two carrier plates; two friction surfaces on each.
• Black backing plate and extended mounting tabs.

Fitment is determined by the installed caliper. Before selecting, compare the brake designation, the shape of the old pads, and the attachment method. For customized scooters, observe the installed brake; pads for a different stock caliper are not interchangeable simply due to the same vehicle model.

Replacement and bedding in

• Replace the pair when the pad material is worn, damaged, or contaminated with oil. Also check the disc condition and the minimum allowed pad thickness according to the brake's instructions.
• Remove the retainer and the old pads. Following the caliper service procedure, prepare the space for the new pair, install the pads with the appropriate spring, and secure the attachment again. Do not touch friction surfaces with greasy hands.
• Adjust the caliper position or pad gap. Check the lever response and free wheel rotation, then bed in the brakes with multiple gradual stops on a safe surface.
