Organic brake pads for Dualtron Victor with Magura MT5/MT7 calipers

Organic brake pads for Magura MT5/MT7

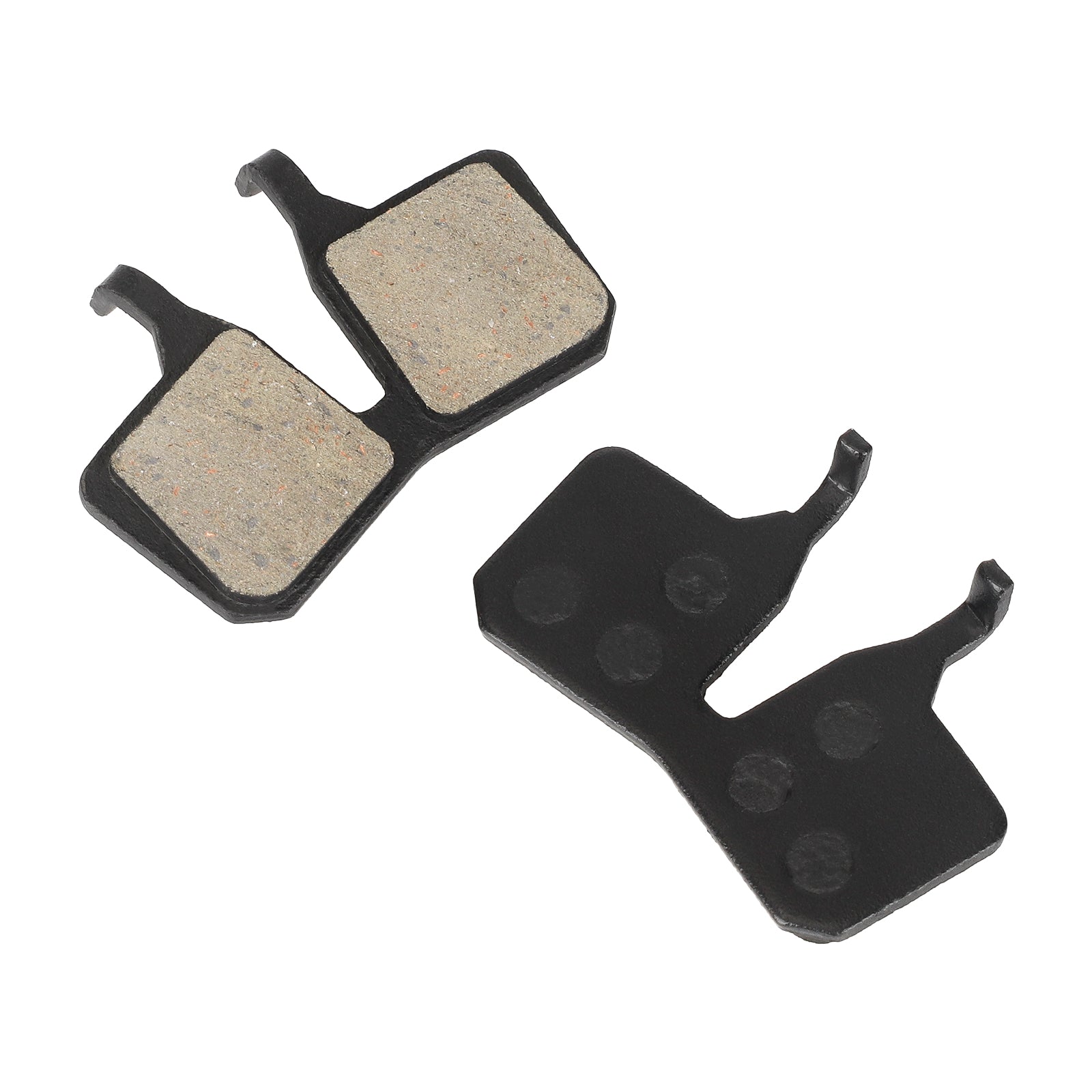

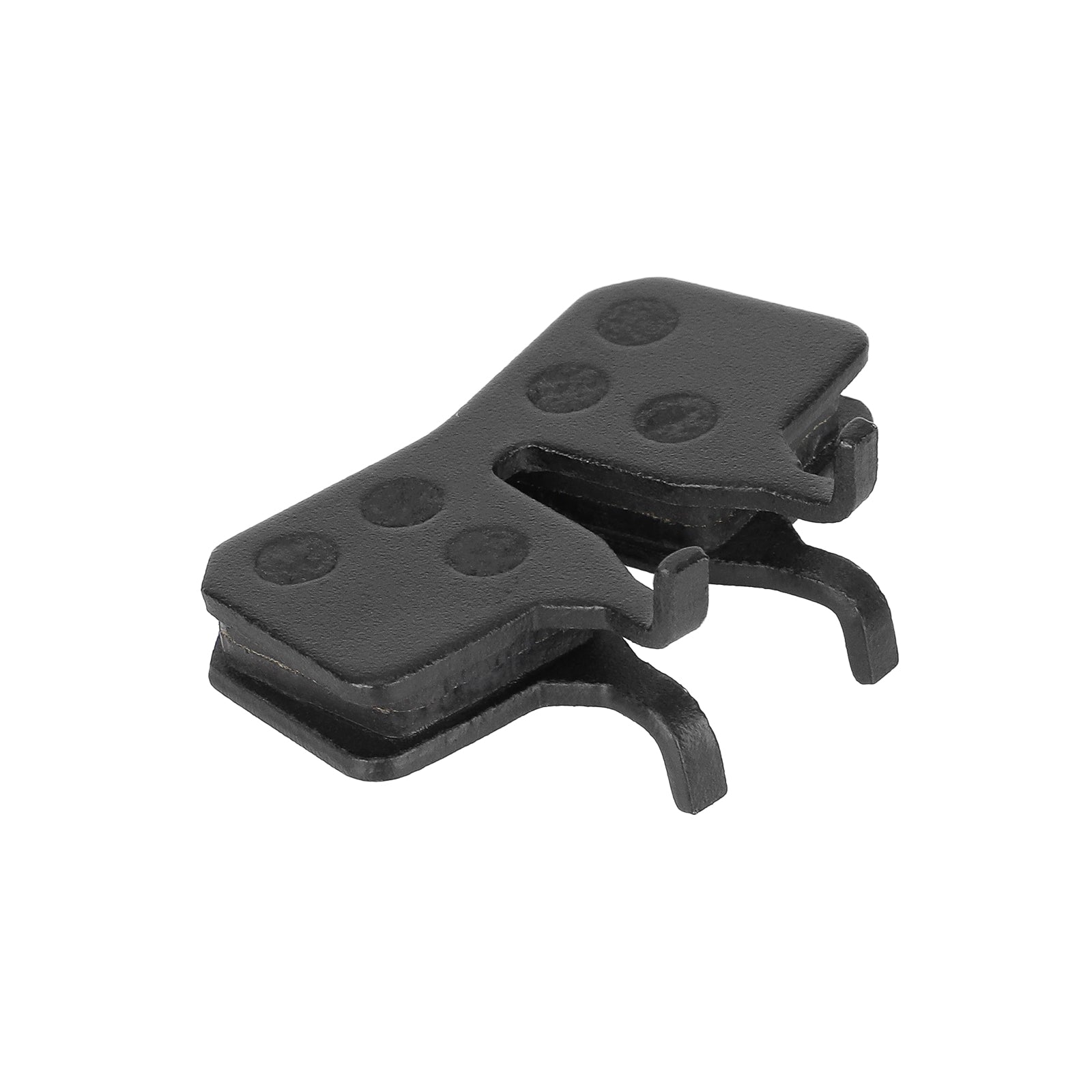

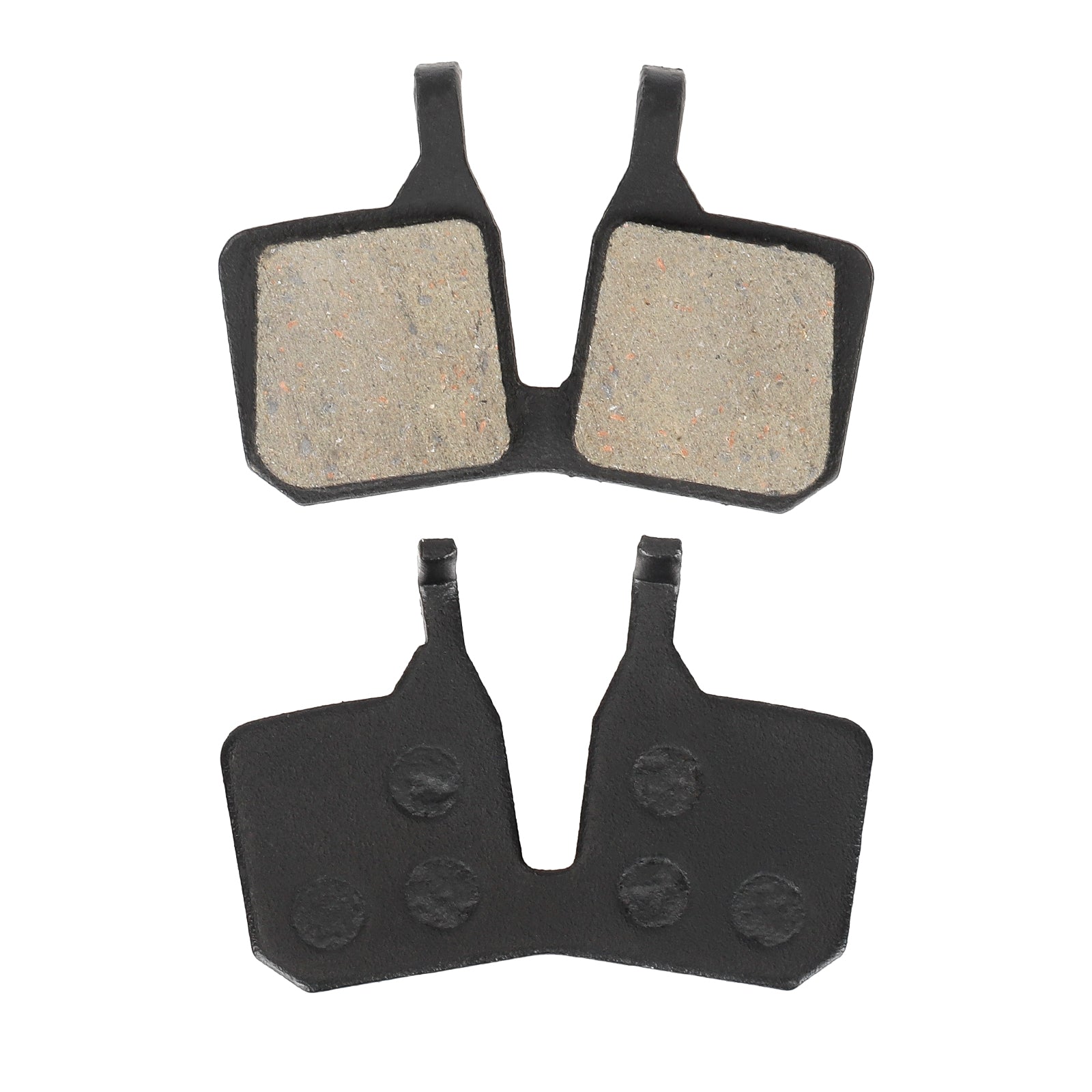

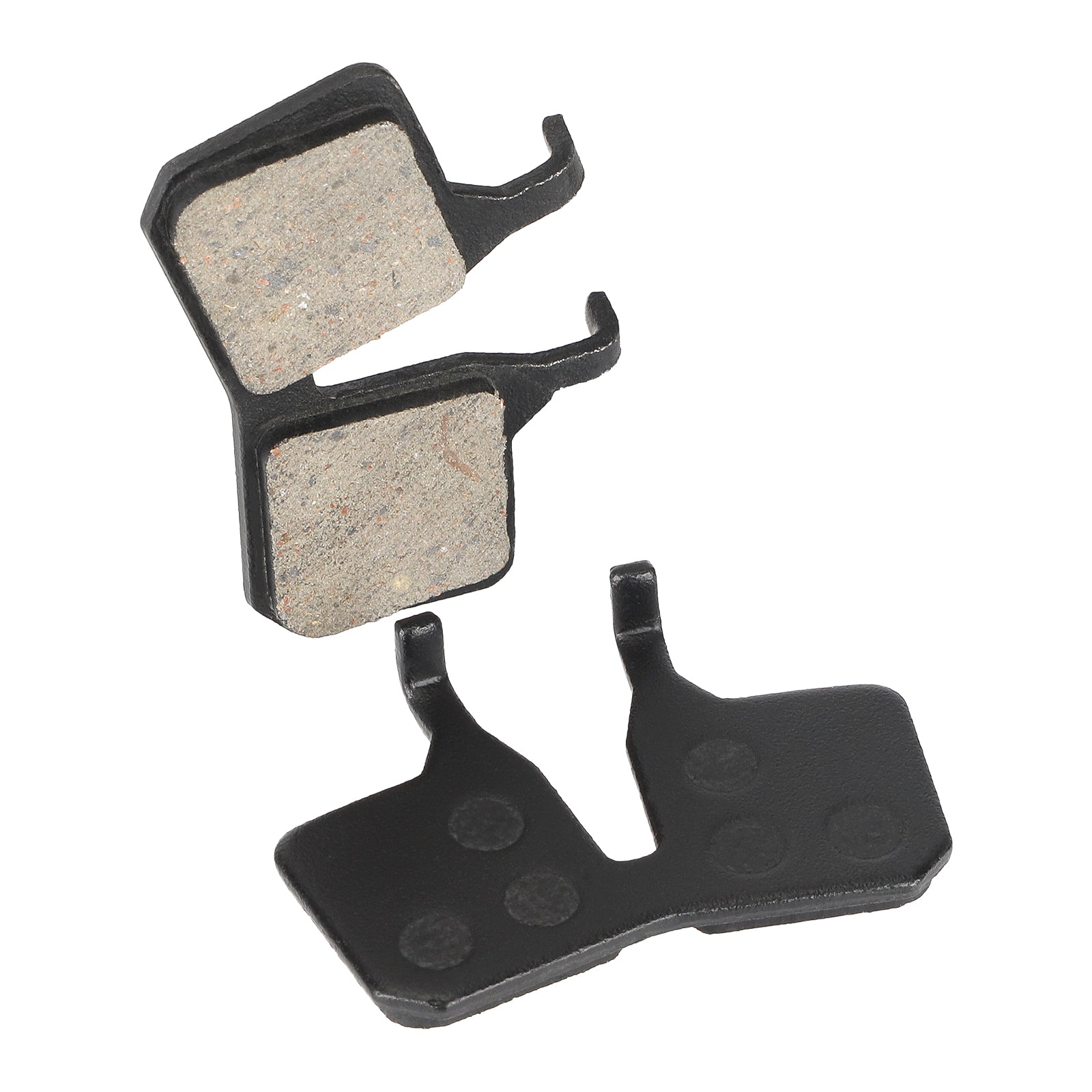

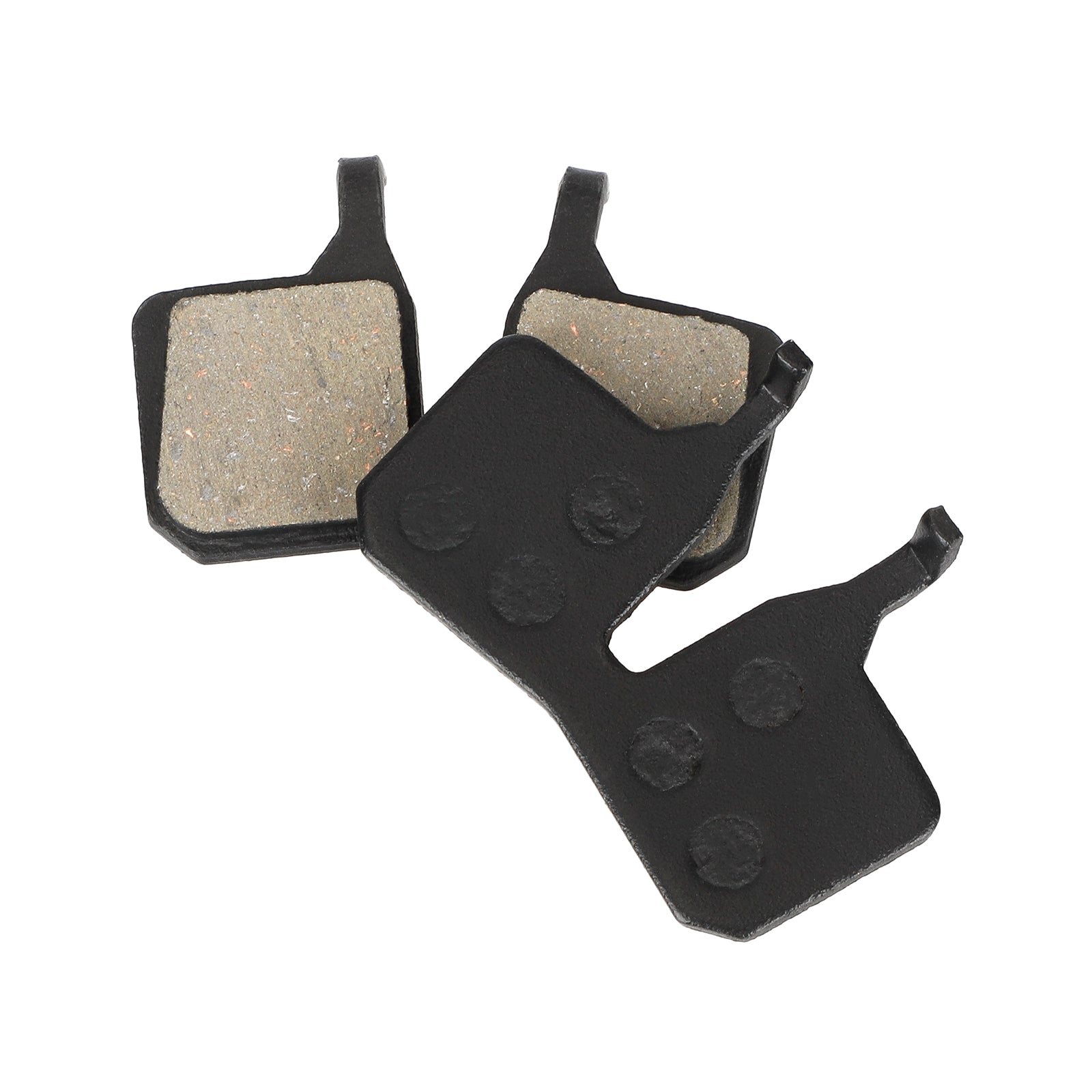

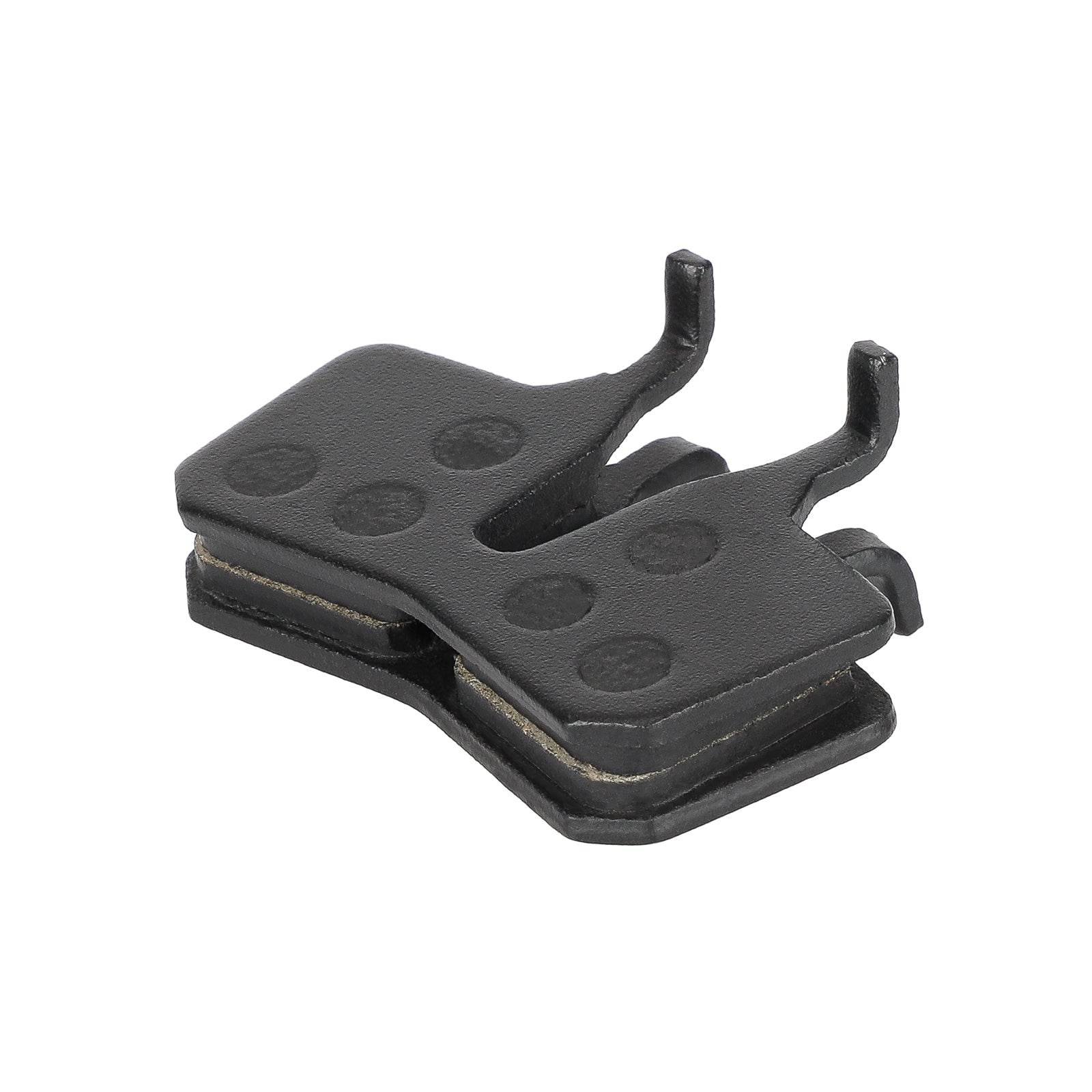

The pair of organic brake pads is intended for the Dualtron Victor electric scooter, equipped with the compatible Magura MT5, MT5e, or MT7 brake caliper. Each black backing plate features two braking surfaces and a top mounting tab.

Features and dimensions

• Brake compound: organic, resin-based.
• Vehicle: Dualtron Victor with compatible Magura MT5/MT5e/MT7 brake.
• Two backing plates; two braking surfaces each.
• Black backing and extended mounting tabs.

Fitment is determined by the installed caliper. Before selecting, compare the brake designation, the shape of the old pads, and the mounting method. If the scooter has been modified, consider the installed brake; pads for a different standard caliper are not interchangeable just because the vehicle model is the same.

Replacement and break-in

• Replace the pair when the pad material is worn, damaged, or contaminated with oil. Also, check the condition of the brake disc and the minimum allowable pad thickness according to the brake instructions.
• Remove the retaining clip and the old pads. After servicing the caliper, clear space for the new pair, install the pads with the appropriate spring, and re-secure the mounting. Do not touch the braking surfaces with oily hands.
• Adjust the caliper position or pad clearance. Check the lever response and the wheel's free rotation, then break in the brakes with several gradual stops on a safe surface.
