Set of 22 mm anti-slip handlebar grips for ZERO 11X / ECO Speed 11X electric scooter

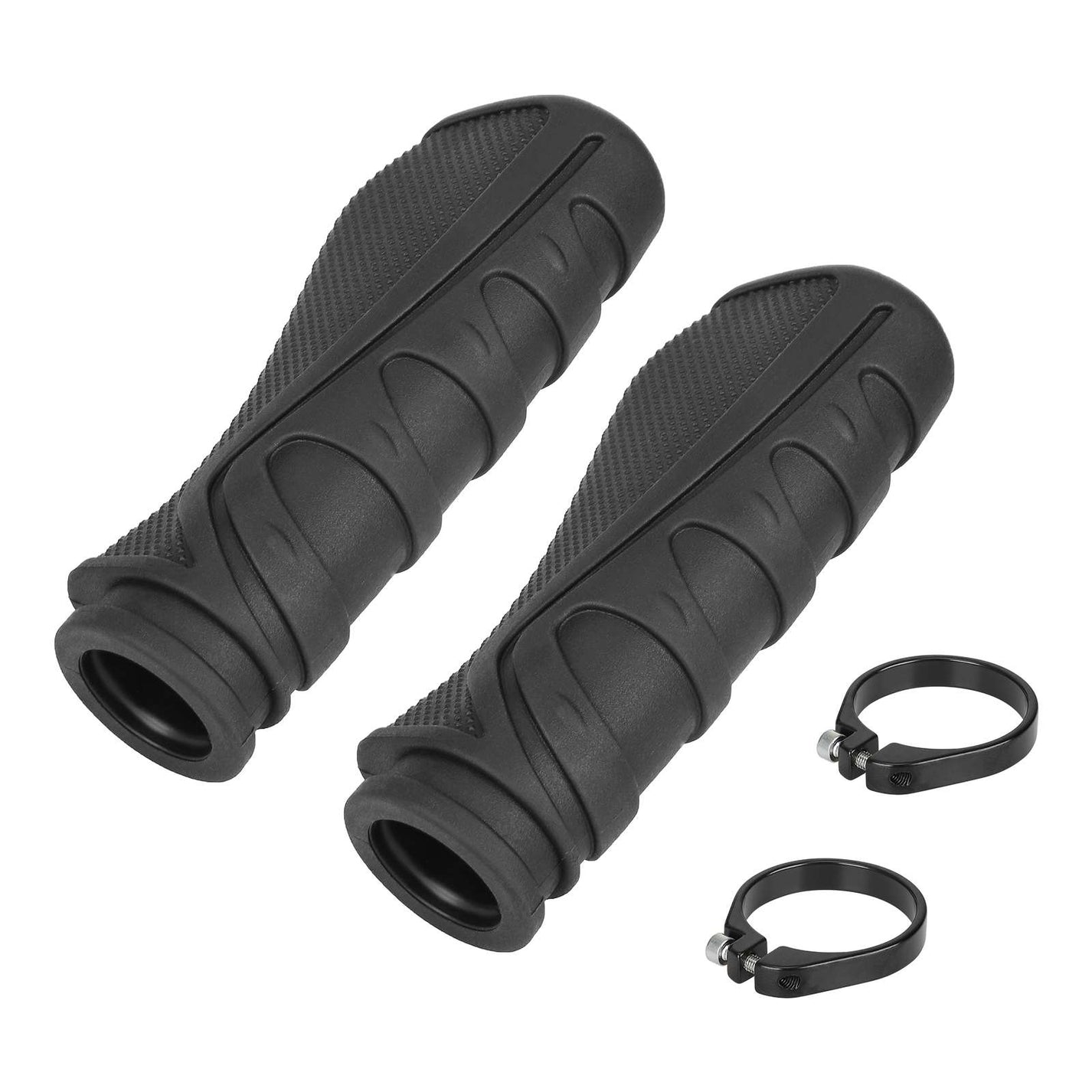

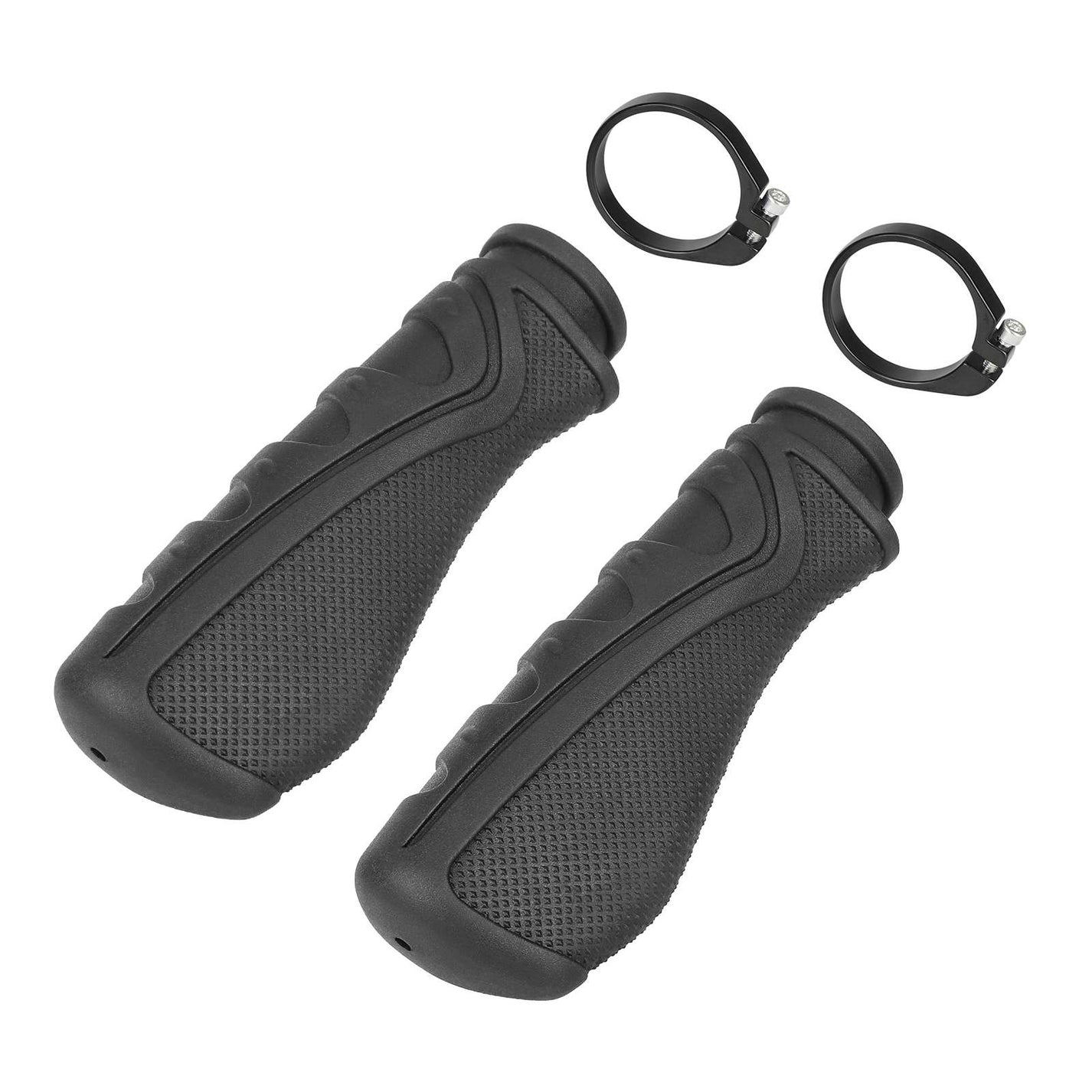

Ergonomic palm rest and mounting clamps

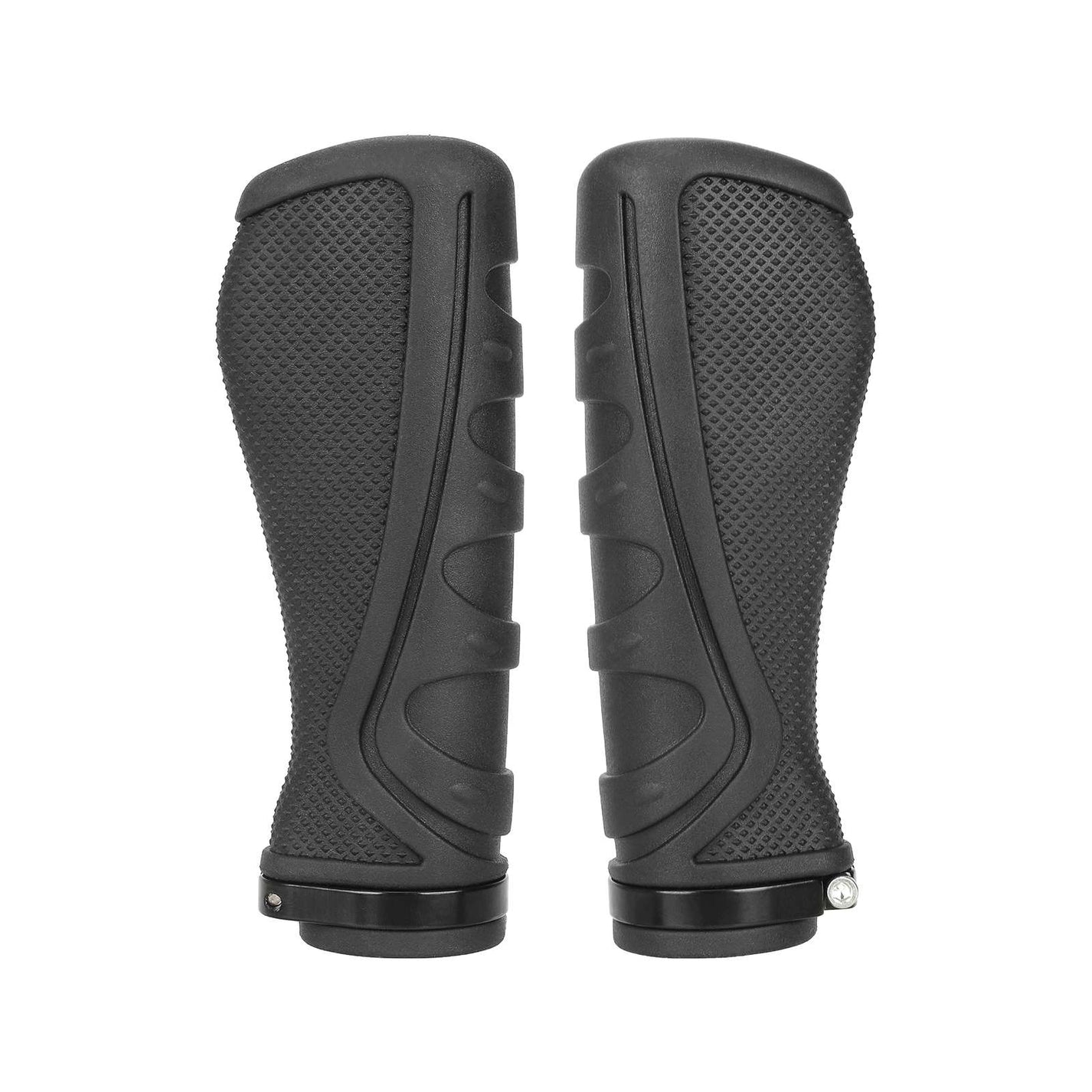

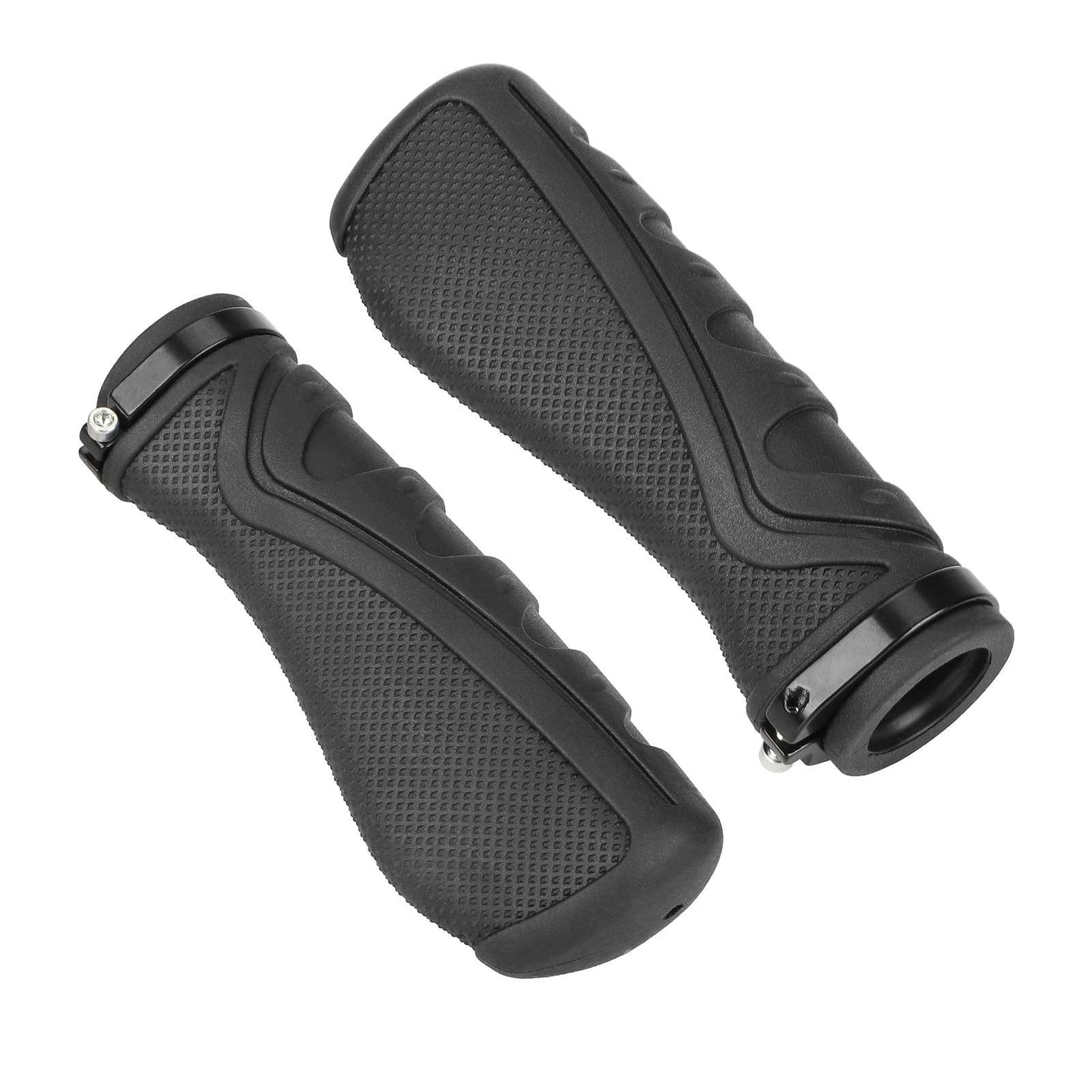

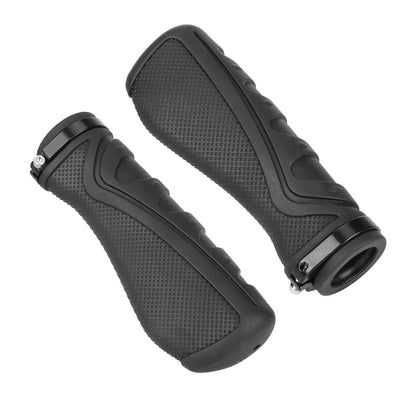

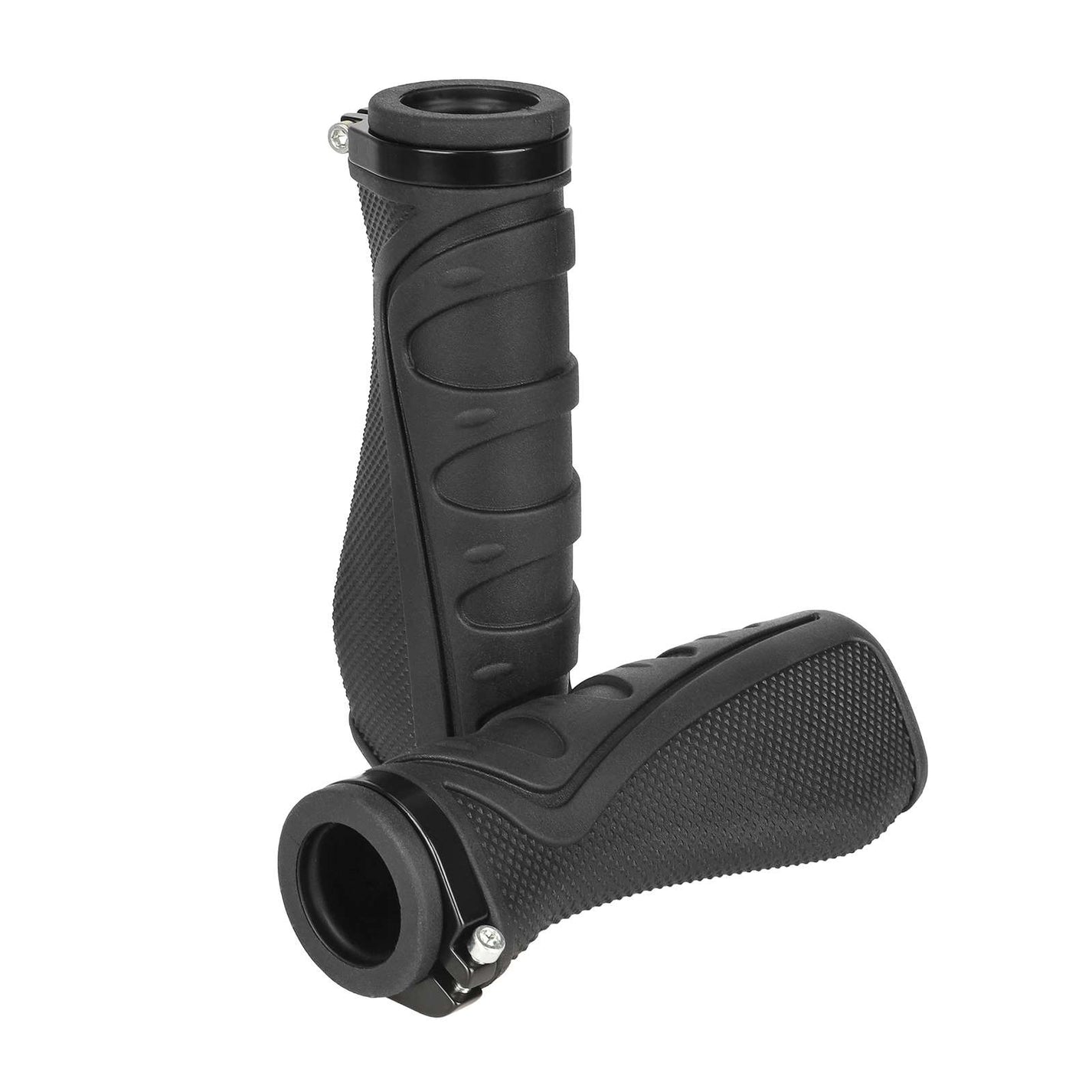

The pair of black grips features an extended palm rest and a textured grip surface. Each grip attaches to the compatible handlebar using a locking ring.

Features and Compatibility

• Model: ZERO 11X / ECO Speed 11X.
• Pair of black ergonomic grips with clamps; length approximately 127 mm; 22 mm handlebar.

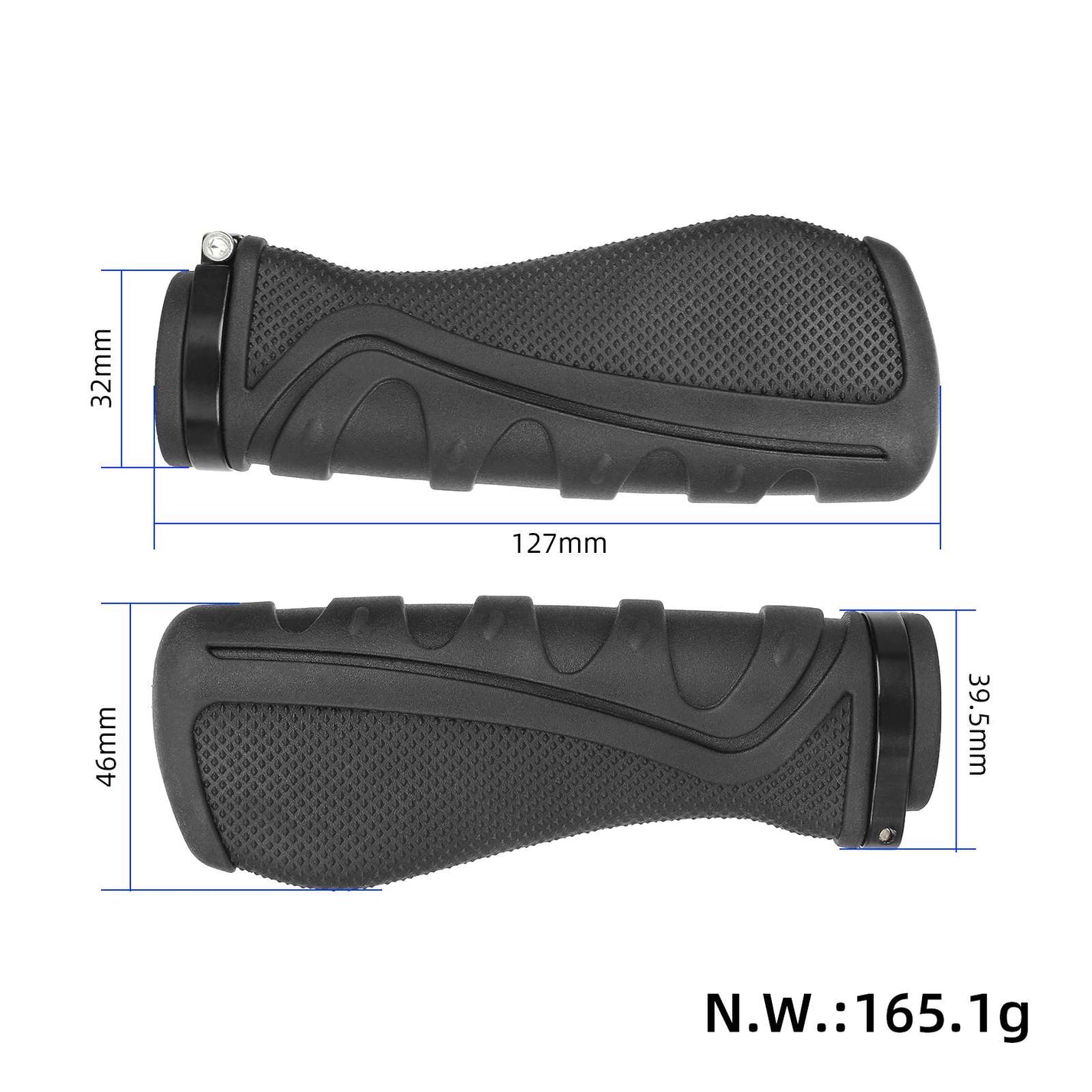

Approximate dimensions

• Grip length: 127 mm.
• Diameter at the inner end: 32 mm.
• Palm rest width: 46 mm.
• Width at the clamp: 39.5 mm.
• Nominal handlebar mount: 22 mm.

The length is approximately 127 mm, and the nominal handlebar diameter is 22 mm. Before selecting, measure the available length next to the throttle and brake. Adjust the angle of the palm rest according to your natural wrist position and ensure the grip does not rotate.

Adjusting the Rest and Grip

• Remove the old grips, then clean and dry the handlebar. Before tightening, ensure the new grip is fully seated on the designated part of the bar.
• Adjust the position for a relaxed wrist and reach to the brake lever. Tighten the locking parts (where present) according to the instructions and verify that the grip does not rotate.
• Check for free throttle return. Replace torn, hardened, or slippery grips; do not apply lubricant to the grip surface.
