Full-metal ZOOM brake pads for Kugoo M4 Pro

ZOOM full-metal brake pads with gold-colored mounts

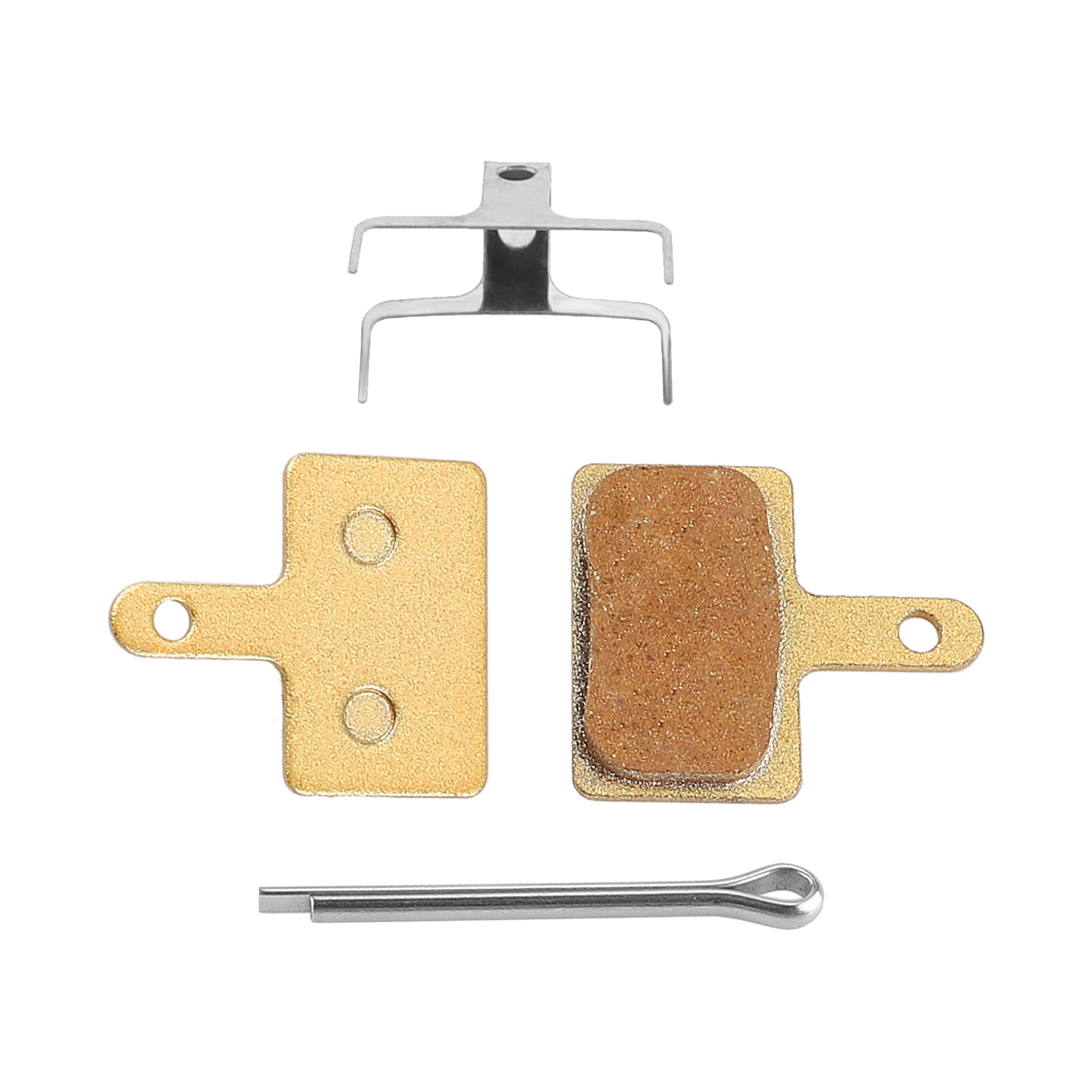

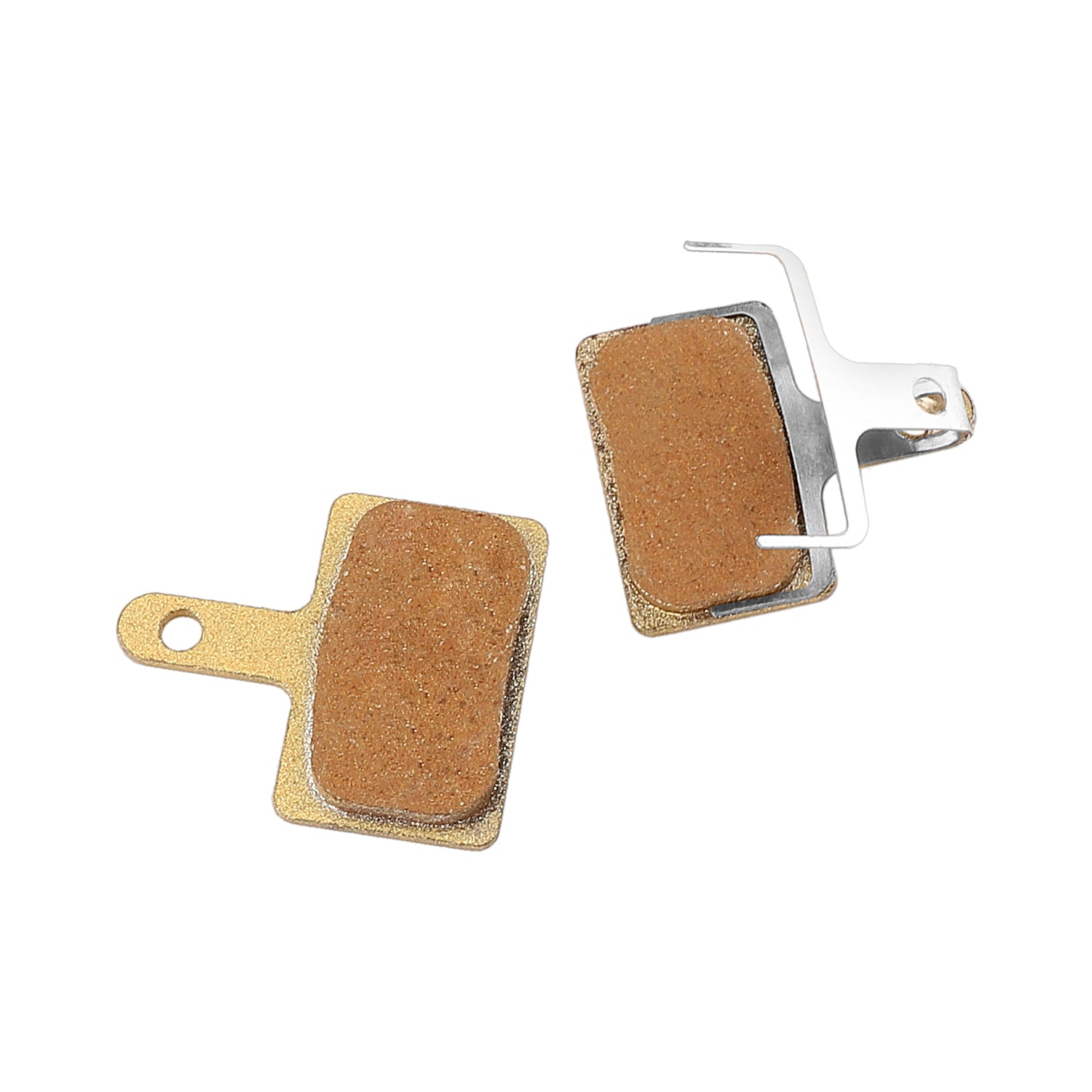

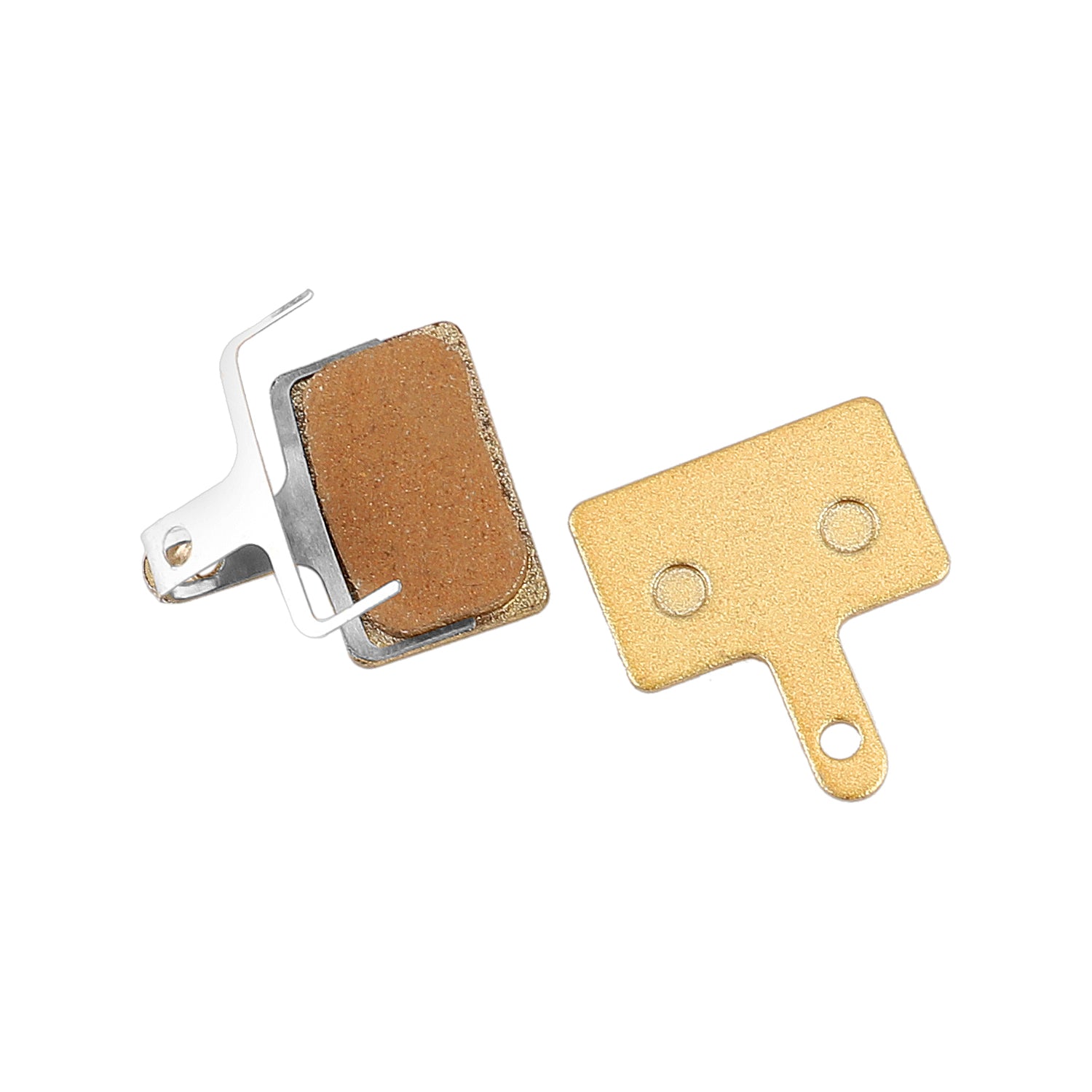

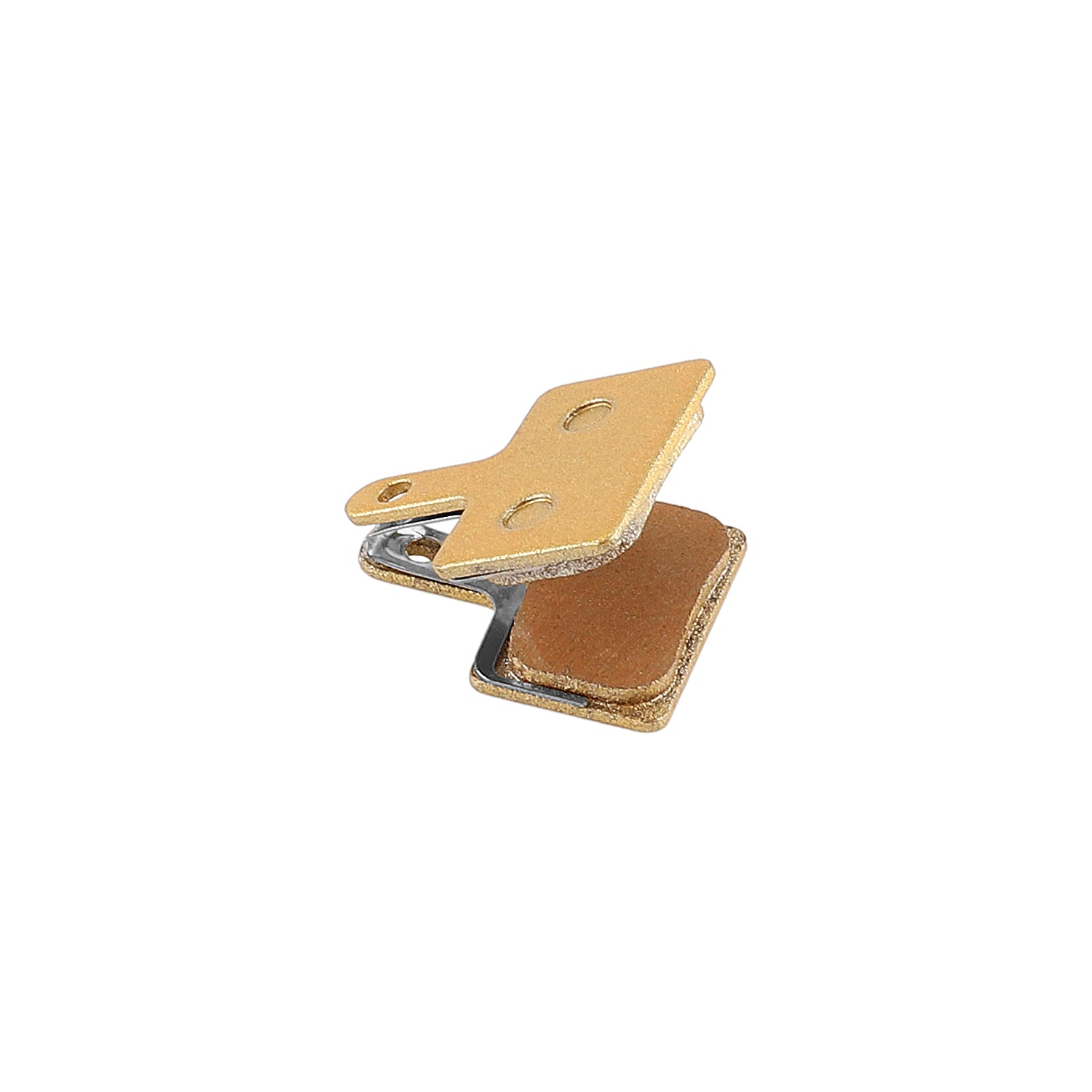

The pair of full-metal brake pads features a wide ZOOM shape and gold-colored mounts. A tension spring and safety cotter pin complete the pair for one compatible brake caliper.

Features and fitment

• Model: Kugoo M4 Pro.
• Brake compound: full-metal.

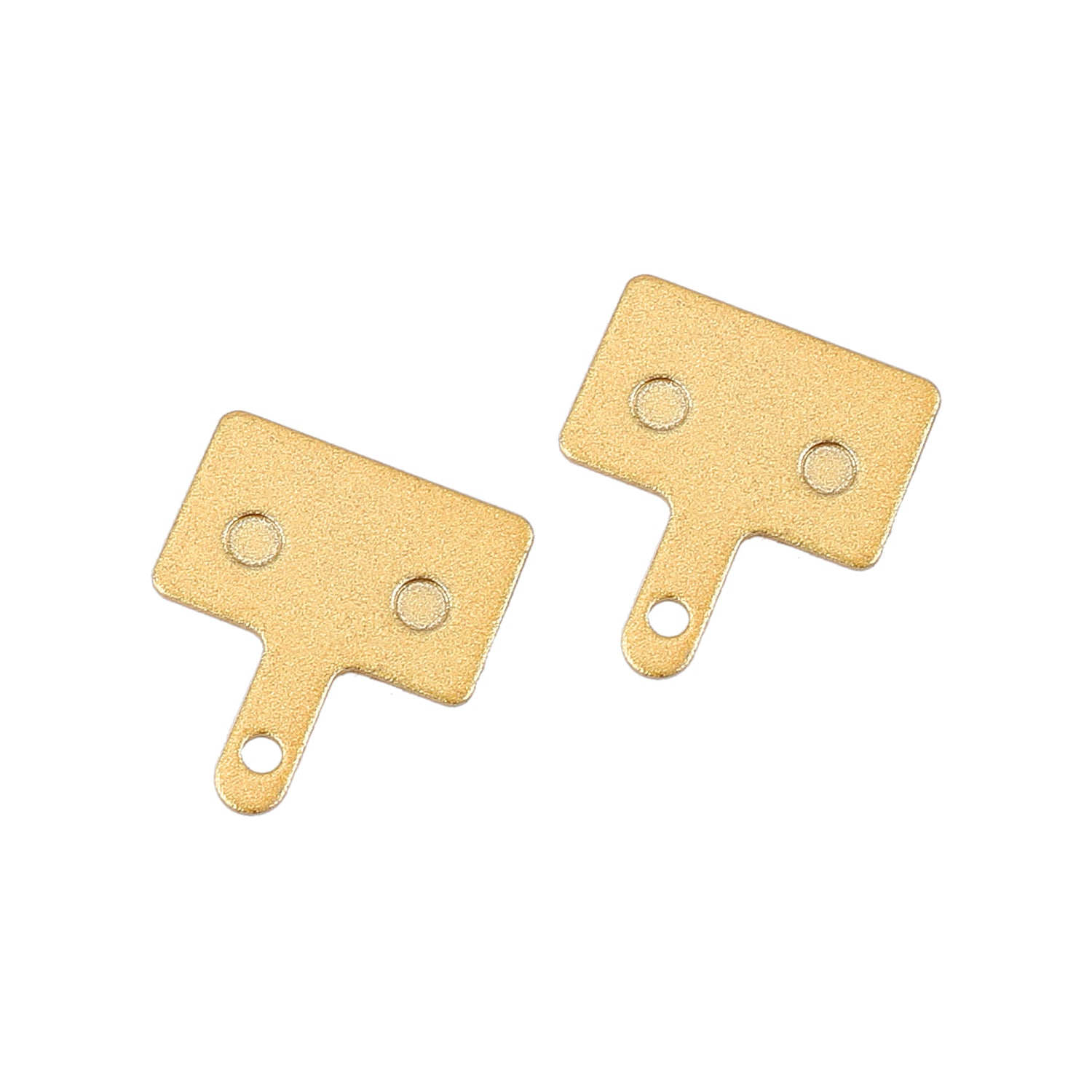

• Metal pads with gold-colored back; pair with spring and cotter pin.

Approximate dimensions

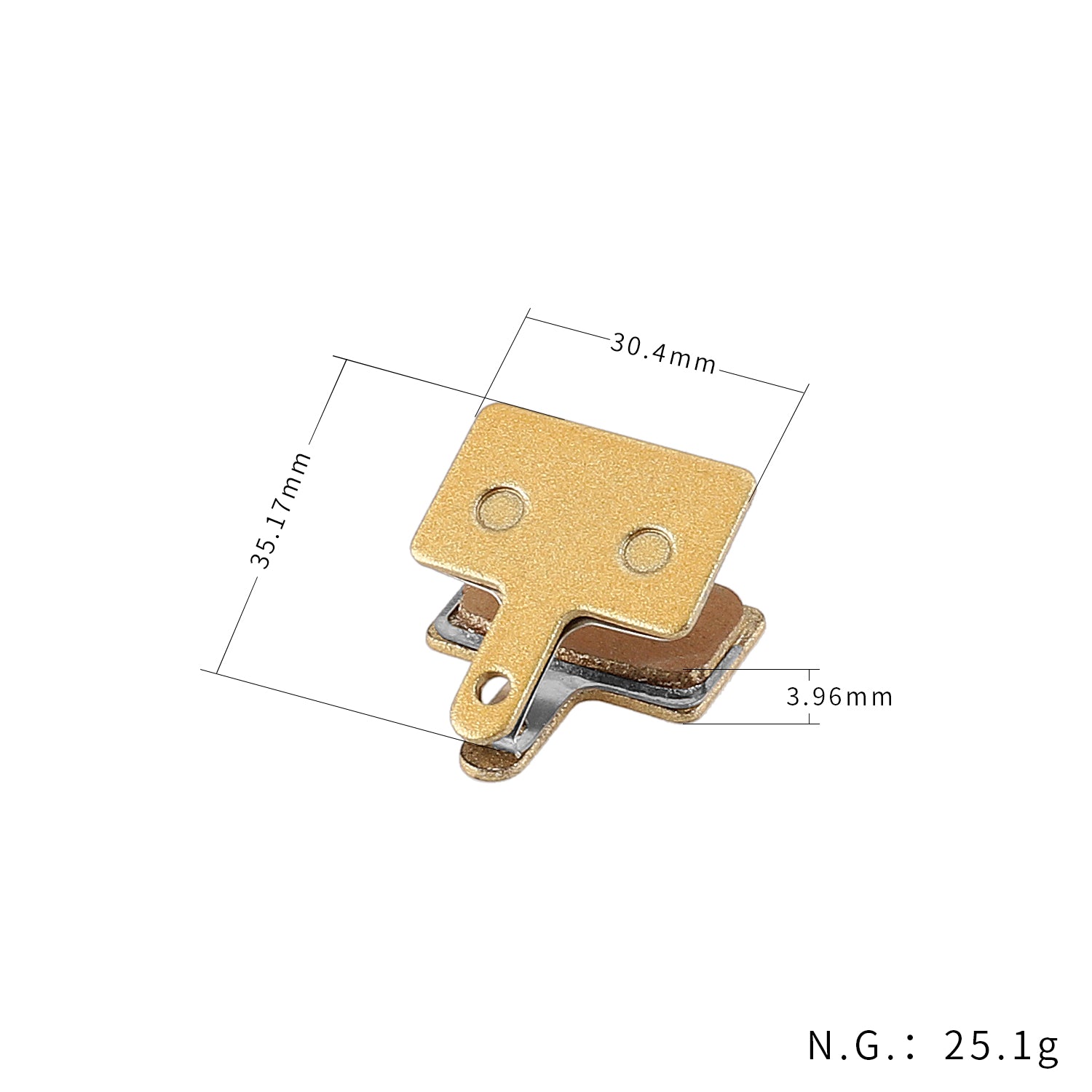

• Pad dimensions: 30.4 × 35.1 mm.
• Thickness: 3.96 mm.

Full-metal pads can exert more strain on the brake disc; use them only with discs that permit such a compound.

Only for brake calipers using the ZOOM pad shape specified for this product. Always compare your old pad before choosing; the same vehicle model may be equipped with a different caliper.

Brake compound

The full-metal compound is suitable for compatible discs that permit metal pads. It handles higher heat loads well, though it may be louder and cause more disc wear compared to organic pads. Bed in the new pair gradually after adjusting the brake.

When to replace and how to start

• Inspect pads in case of poor braking, uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manual.
• Remove the safety device and the old pair. Following the procedure for your specific caliper, prepare space for the new pads, then insert the spring, the new pair, and the safety device. Do not lubricate the friction surfaces.
• Check for free wheel rotation and lever operation. Bed in new pads with several gradual slows in a safe area, without locking the wheel.
