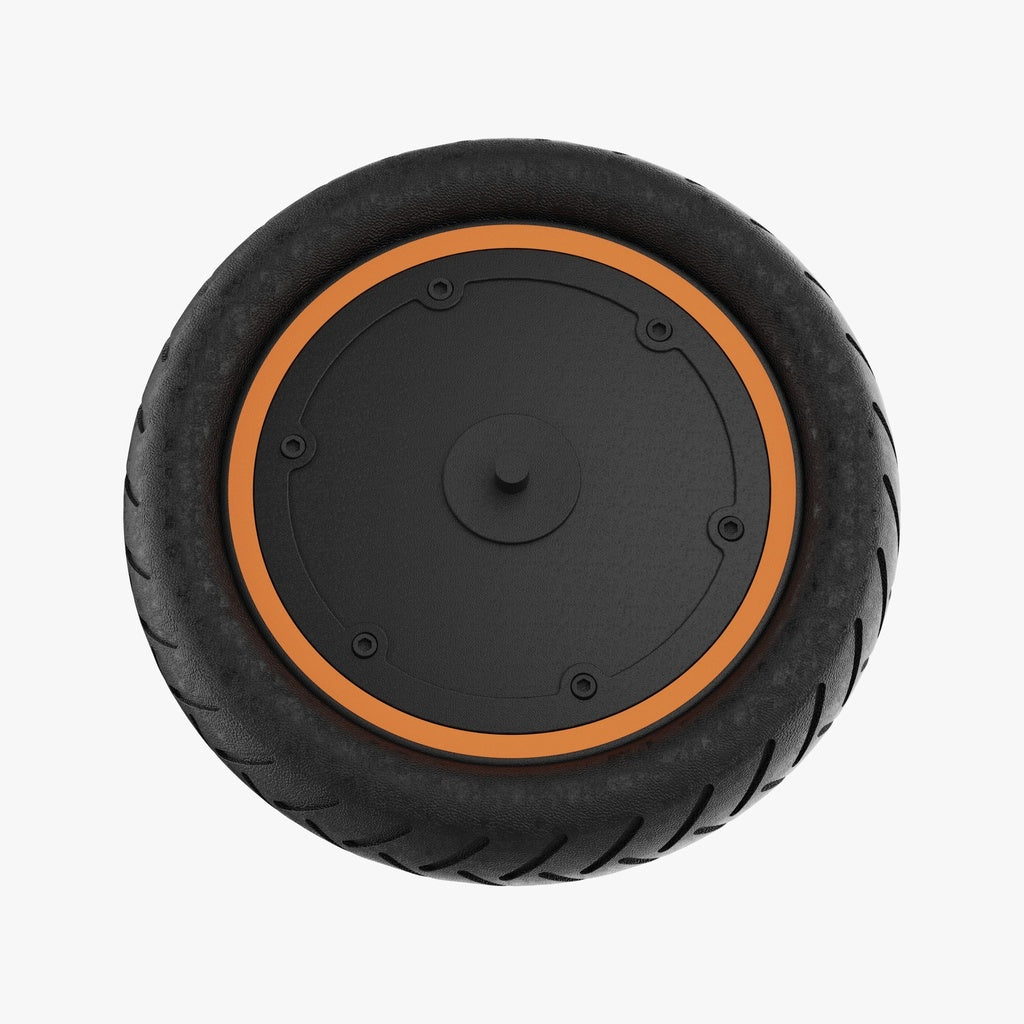

Motor for KingSong E1 with tires

KingSong E1 Motor with Tires

Looking to upgrade your KingSong E1 or replace its motor? This precision-engineered motor comes equipped with tires and ensures a perfect fit for your ride, combining exceptional quality and performance.

Specifications to spark your curiosity:

• Tire Dimensions: 8.5 inches
• Pneumatic Tire: Wanda 8.5 A5001 50/75-6.1 outer tire
• Inner Tube: Wanda 8.5*2.0 with a thick straight valve
• Motor Phase Wire: 1.5MM thickness, 700MM length, bullet connector (solder terminal)
• Hall Wire: 5P with color-coded wires (red, green, blue, yellow, black), HY5P2.0 buckle plug
• Power and Voltage: 108 iron core magnetic cylinder, 30*16 magnetic steel, 350W, 37V
• Precise Frame Opening: 81.5MM
• Axle Length: 120MM
• Thread Length: 23*M12*1.5 on both ends
• Flat Width: 23*10MM on both sides, 10MM flat width
• Washers and Nut: 3MM flat washer, 3MM Q washer, flange nut
• Side Cover: Orange-brown 165C trim (6MM width), all black
• Outlet End: Semi-open design

This part is compatible with the following models:

• KingSong E1

Enhance your KingSong E1 with this top-tier motor and experience reliable performance. Don't just ride; glide effortlessly with a robust and dependable upgrade!
