Power cable with XT30 male connector, 14 AWG

Pre-wired XT30 cable with male connectors

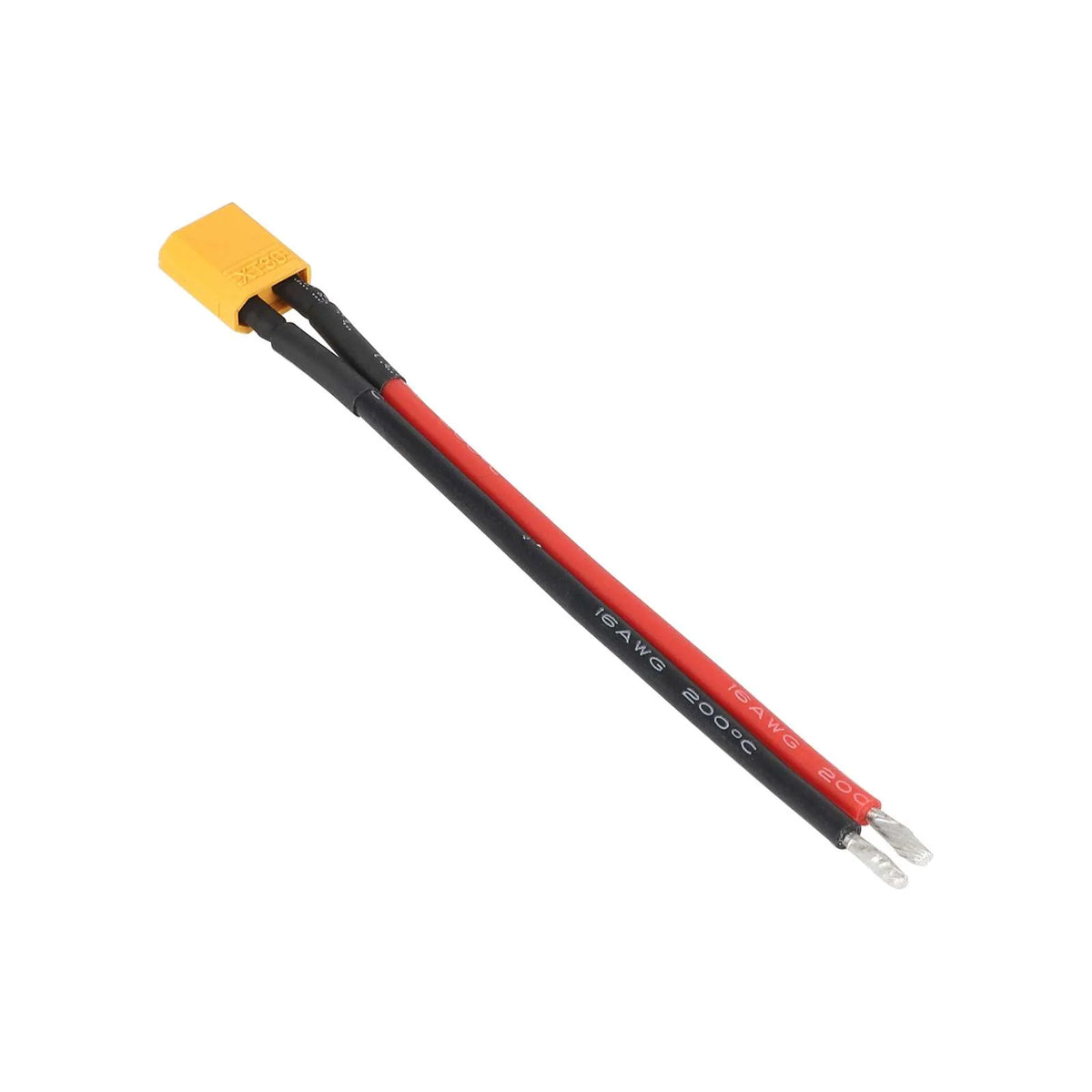

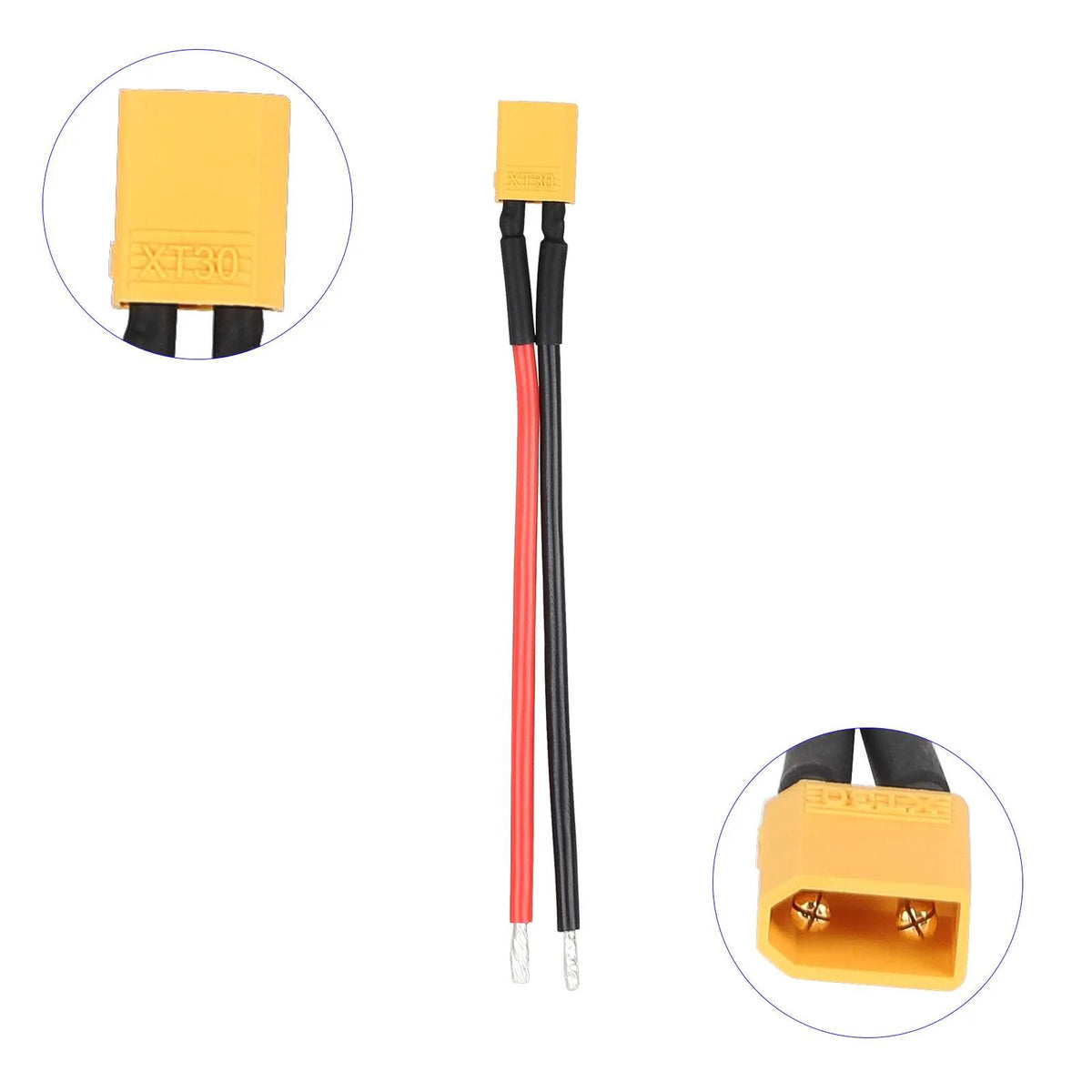

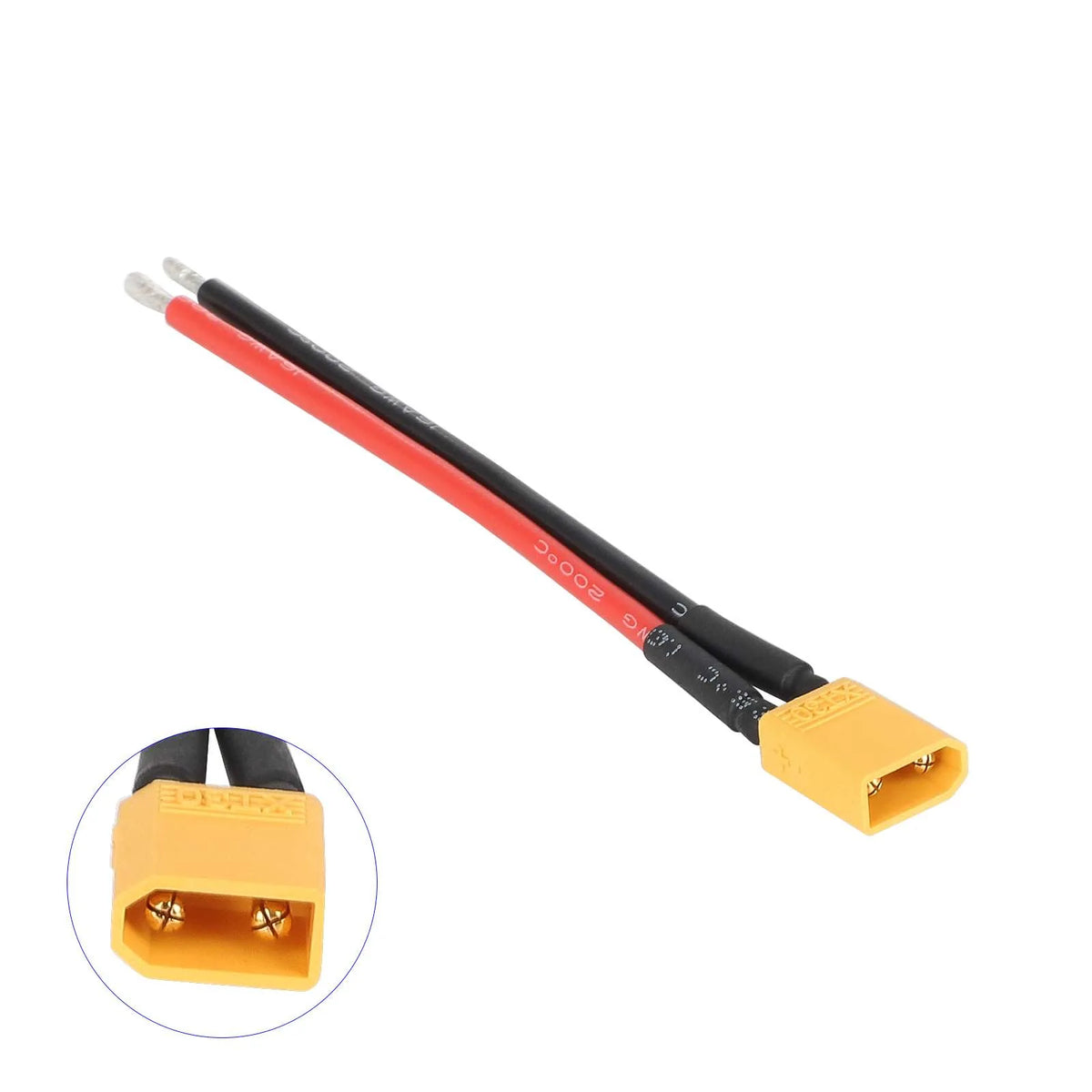

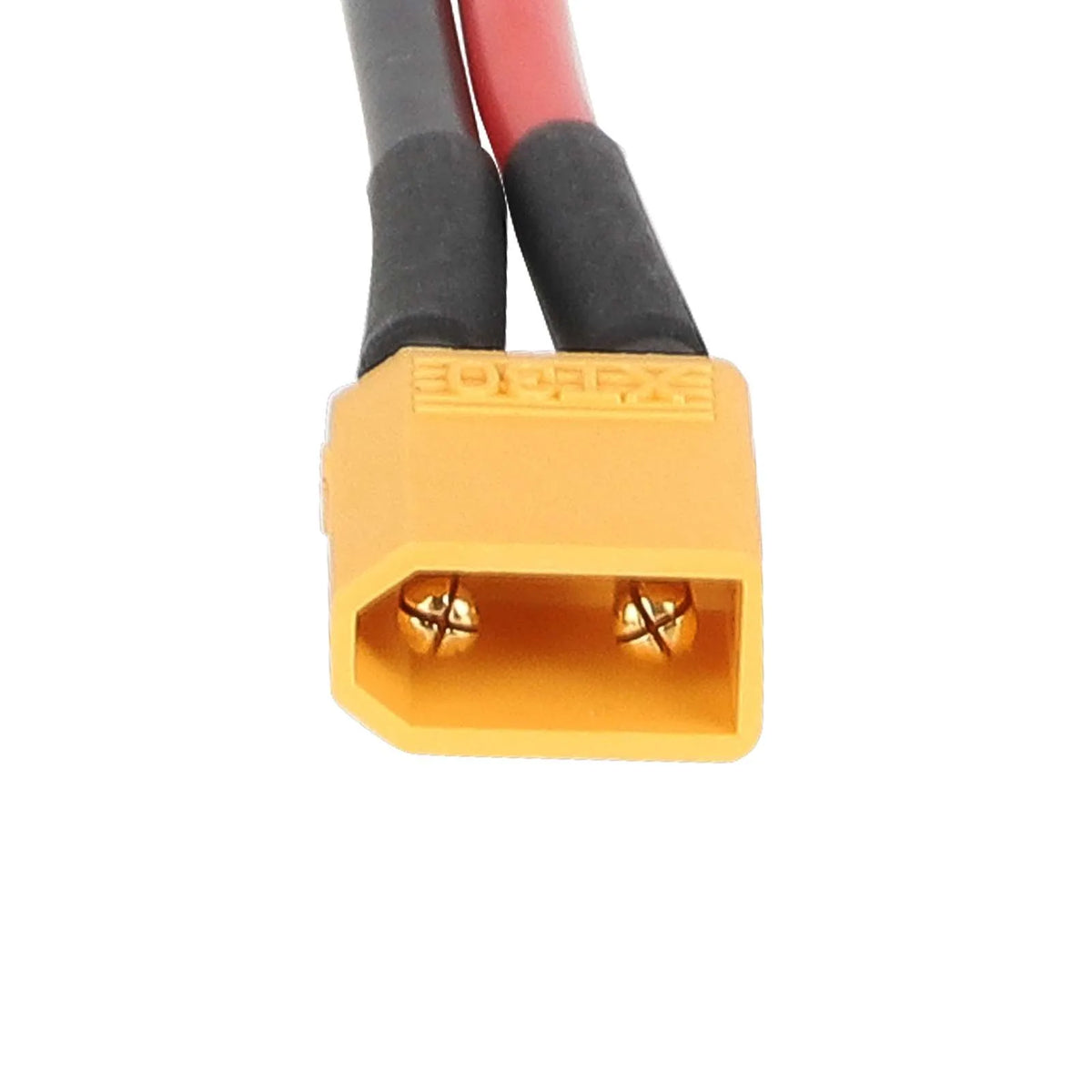

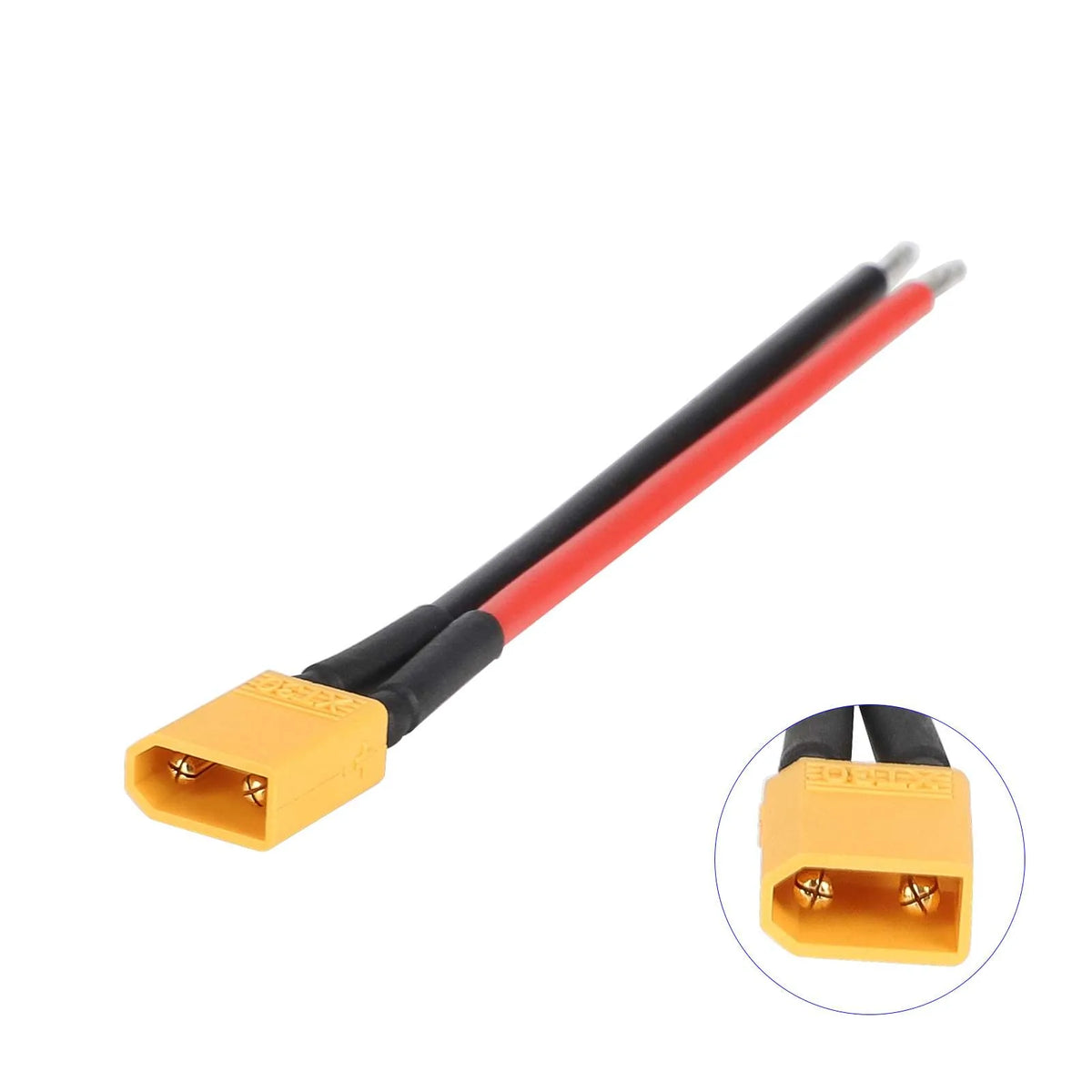

The yellow XT30 male connector is wired with 14 AWG red and black leads. The wires are approximately 100 mm long and have prepared open ends for integration into the appropriate wiring system.

Features and fitment

• XT30 with male connectors; 14 AWG red and black wire; approx. 100 mm wire length.

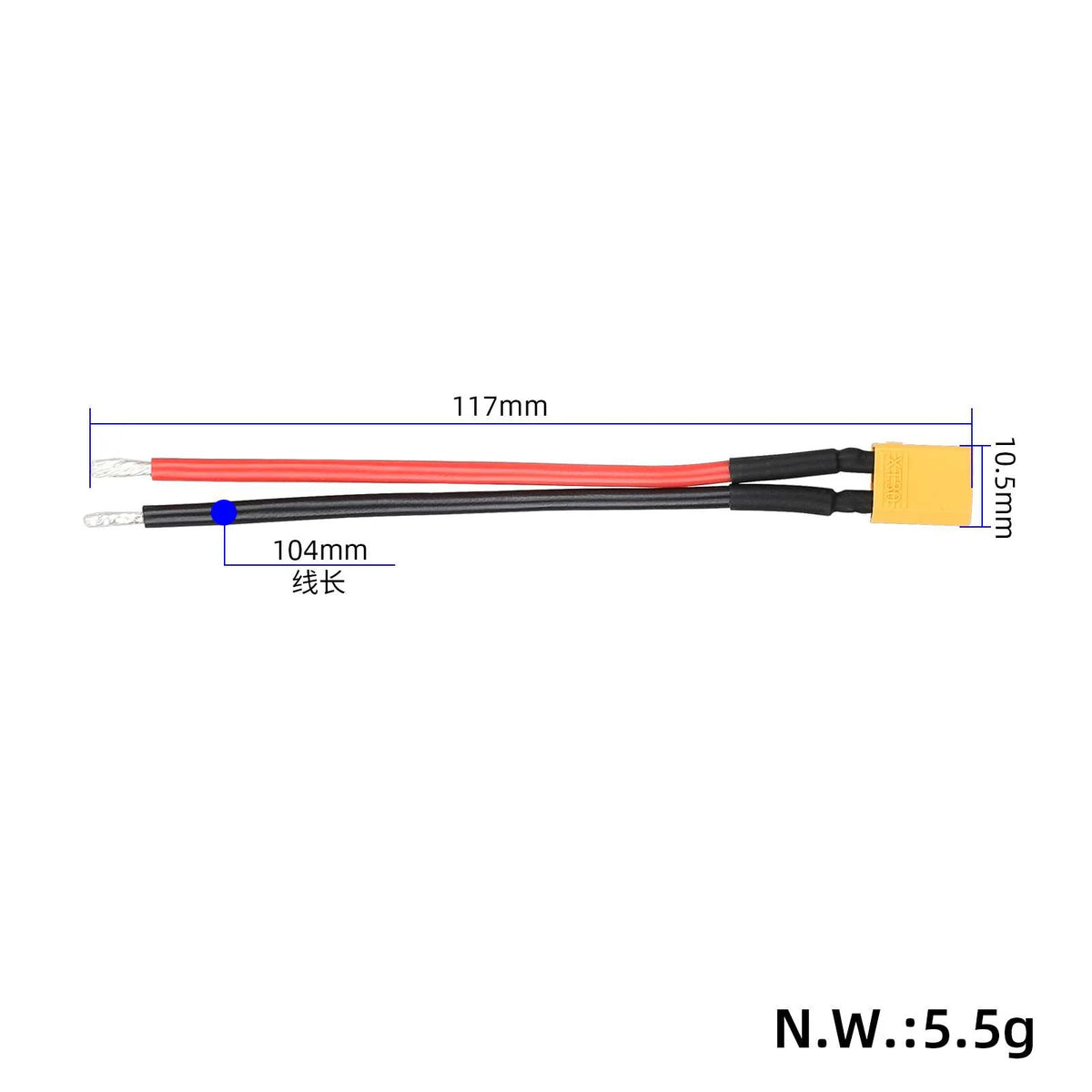

Approximate dimensions

• Total length: 117 mm.
• Wire length: 104 mm.
• Connector width: 10.5 mm.
• Wire gauge: 14 AWG.

Before connecting, check the polarity and the maximum permissible load of the entire connection. Properly insulate the joints and provide mechanical strain relief. Perform work with the battery disconnected; do not leave open ends unprotected.

Connecting and protecting the wiring

• Before any intervention, disconnect the power supply according to the device's manual. Compare the connector shape, polarity, or signal layout and contact condition.
• Connect the joints without force and protect them based on the installation location. Route the cable away from sharp edges and moving parts.
• Ensure the wiring does not get pinched during steering or folding. Before switching on, check the polarity and signal contact layout.
