Red adjustable steering damper for ZERO 10X / ECO Speed 10X electric scooter

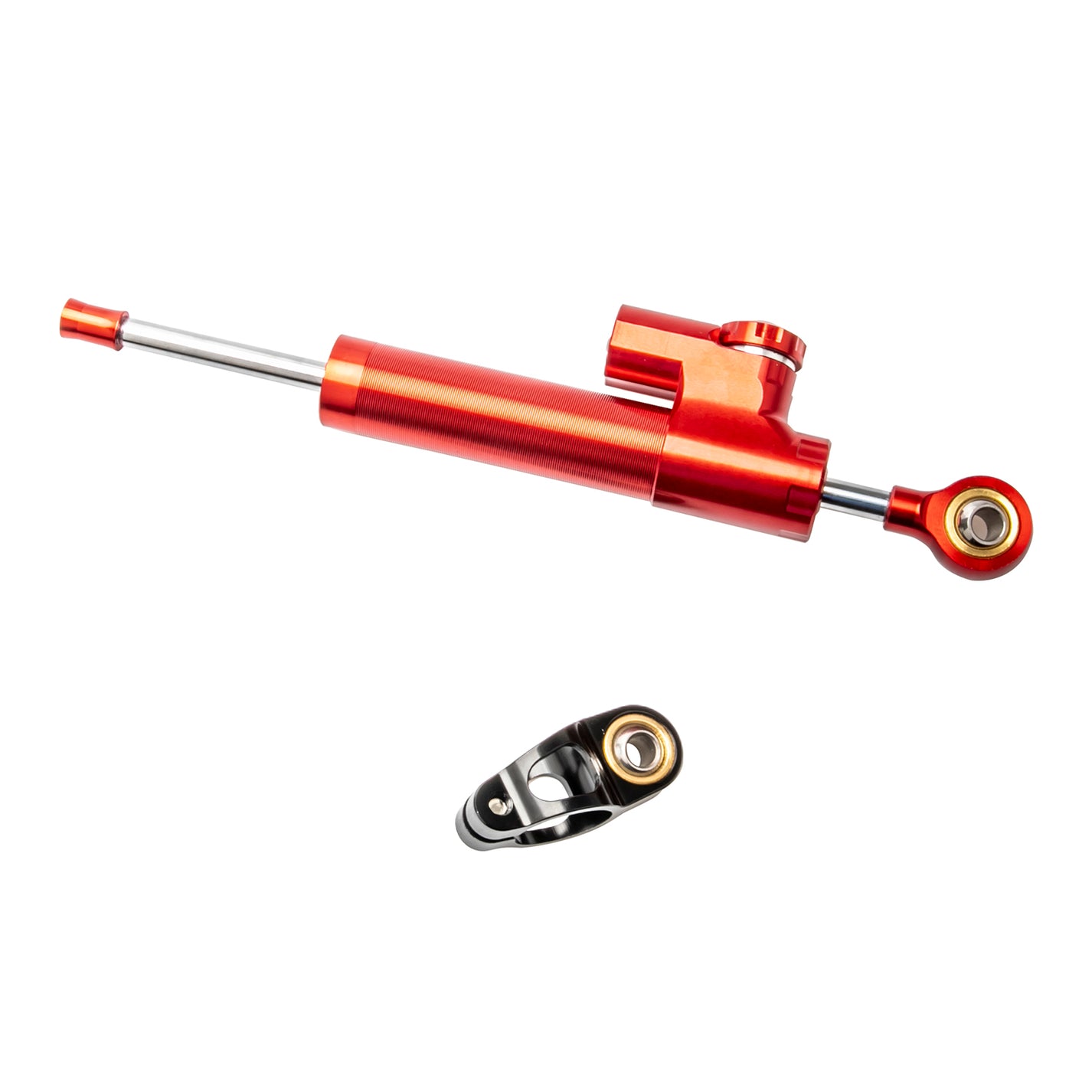

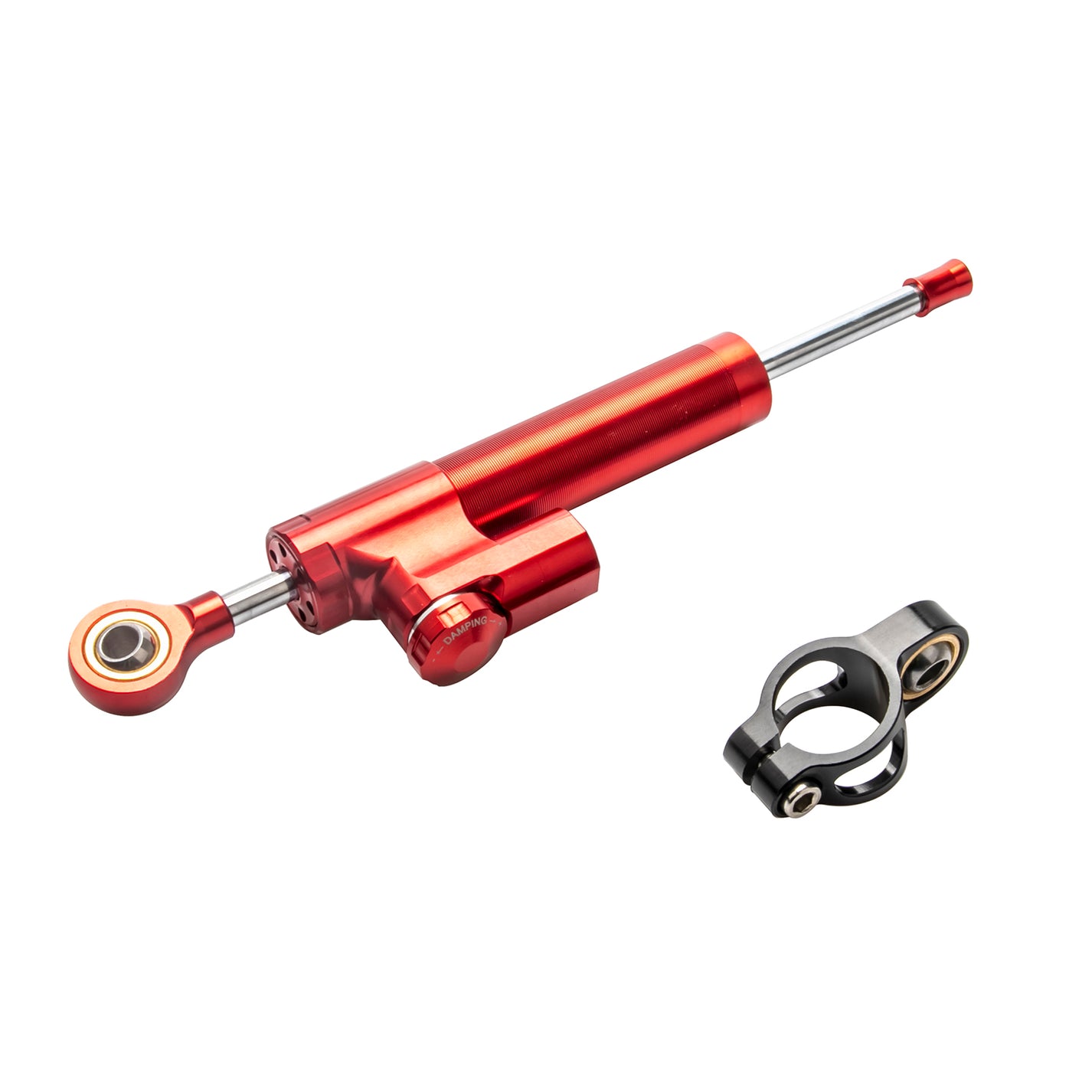

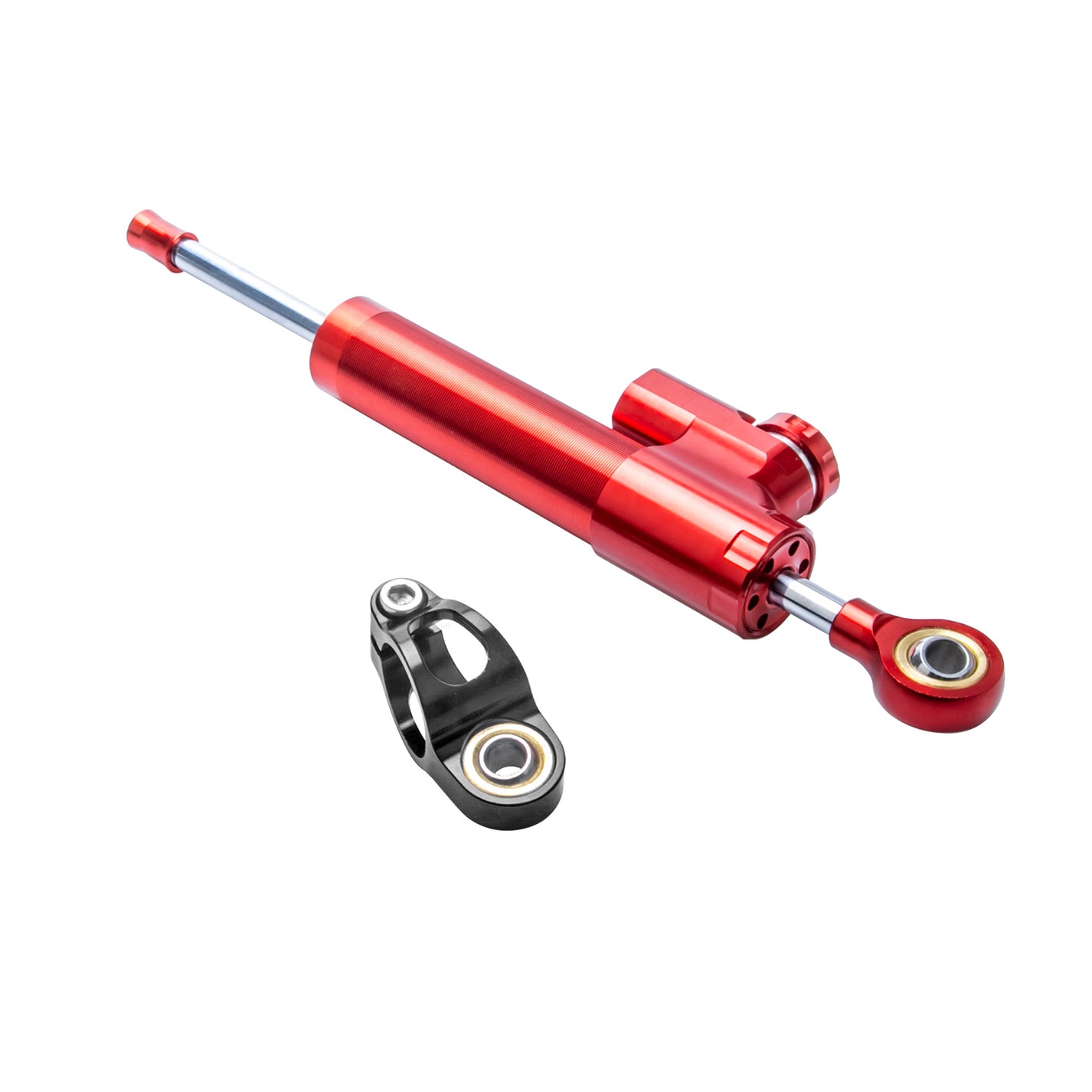

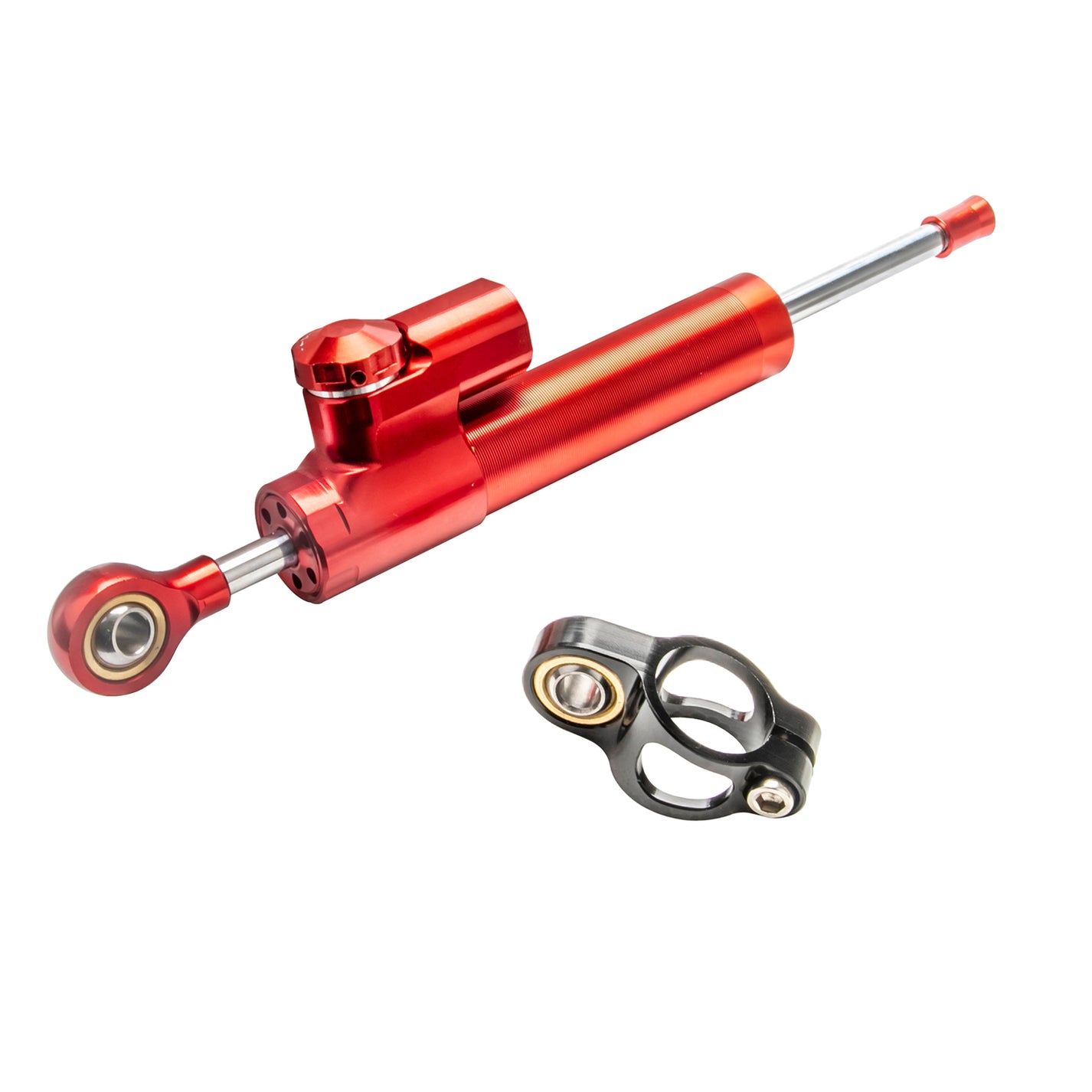

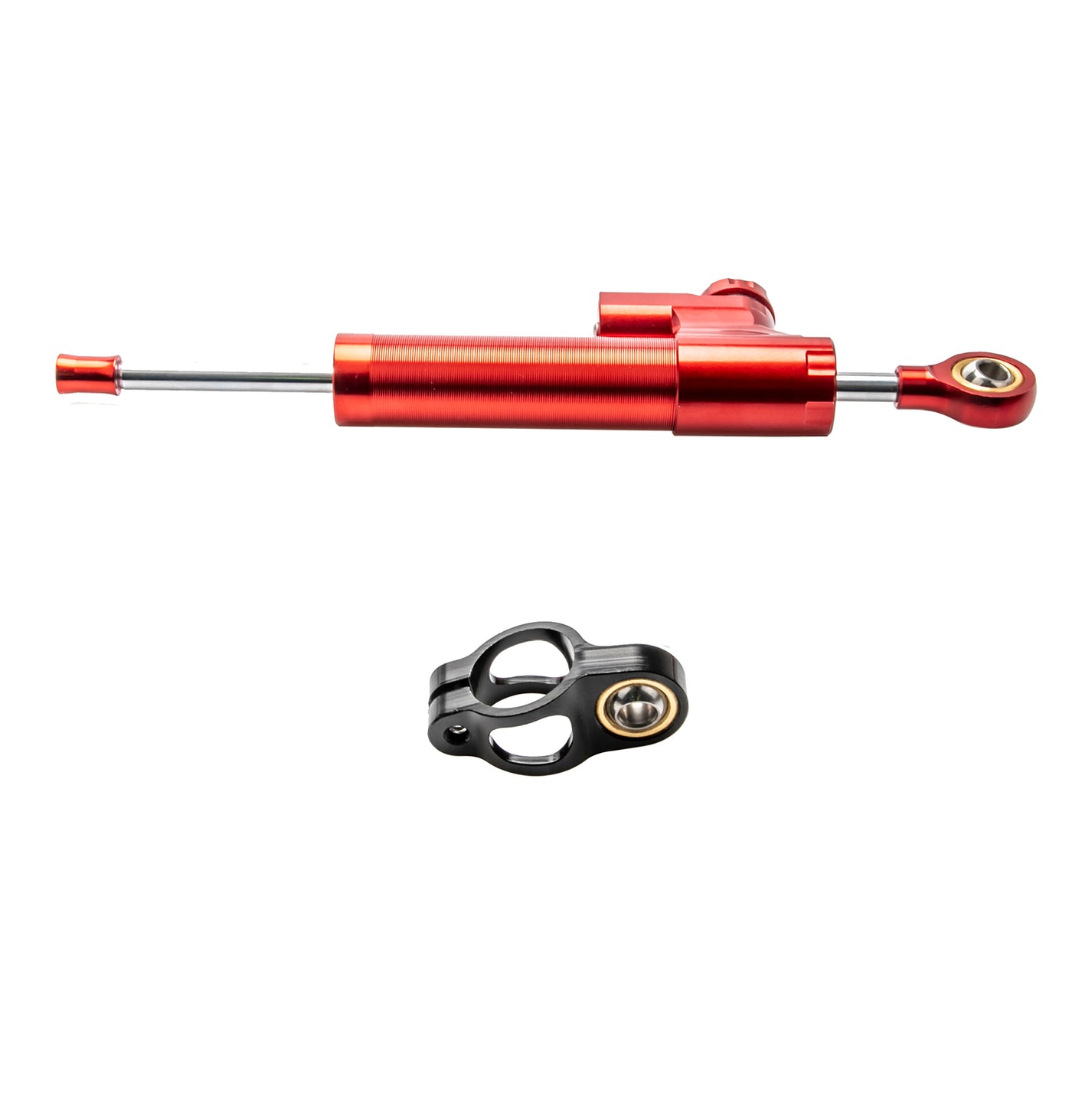

Adjustable steering damper in a red aluminum housing

Steering stabilizer for ZERO 10X / ECO Speed 10X dampens rapid movements of the steering assembly. Adjust the damper's resistance with the rotary adjustment knob. The red aluminum body, silver sliding rod, and black clamp form a compact assembly for installation on suitable mounts.

Design and dimensions

• Adjustable damping: rotary knob for adjusting resistance.
• Housing material: aluminum.
• Color: red body and black mounting clamp.

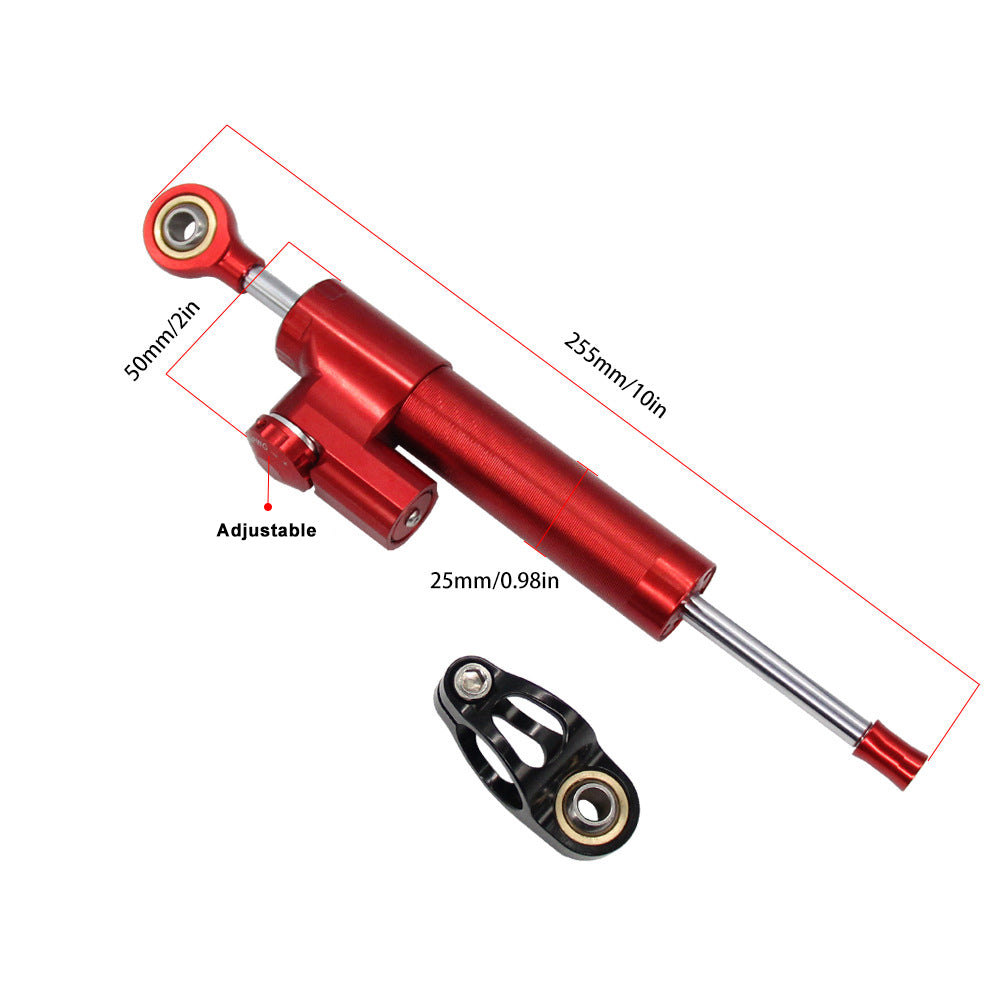

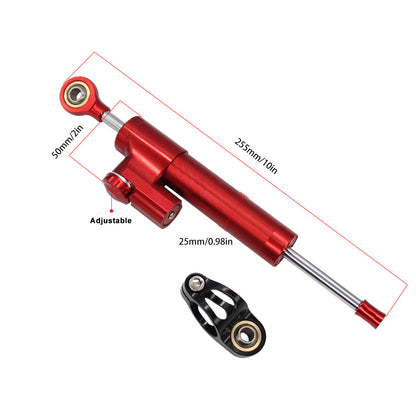

• Total length: approximately 255 mm.
• Cylindrical body diameter: approximately 25 mm.
• Maximum width at the adjustment part: approximately 50 mm.
• Mounting: clamp around the body and mounting lug at the end of the rod.

Fitting to scooter mounts

For installation, you need suitable mounting points or mounts for the ZERO 10X / ECO Speed 10X. Before choosing, compare the mounting method and the space between the frame and the steering assembly. The clamp is used to attach the damper body; suitable brackets are required for the connection to the frame.

Adjustment after installation

Start with low resistance and check the full range of steering movement on a stationary scooter. The rod must move without catching, and the mounts must remain firm. Increase resistance gradually; the handlebars must still allow for easy maneuvering. Assembly and initial adjustment should be performed by a technician who can also verify the travel and position of both mounts.
