160 mm brake disc with 50 mm mounting circle for Dualtron 3

160 mm disc with 50 mm mounting circle

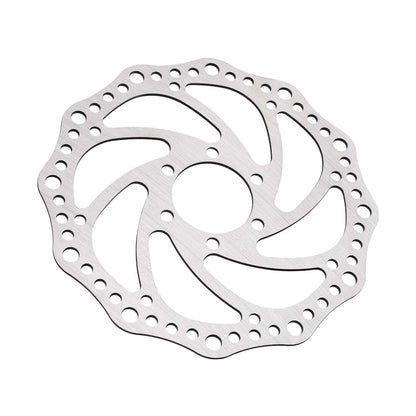

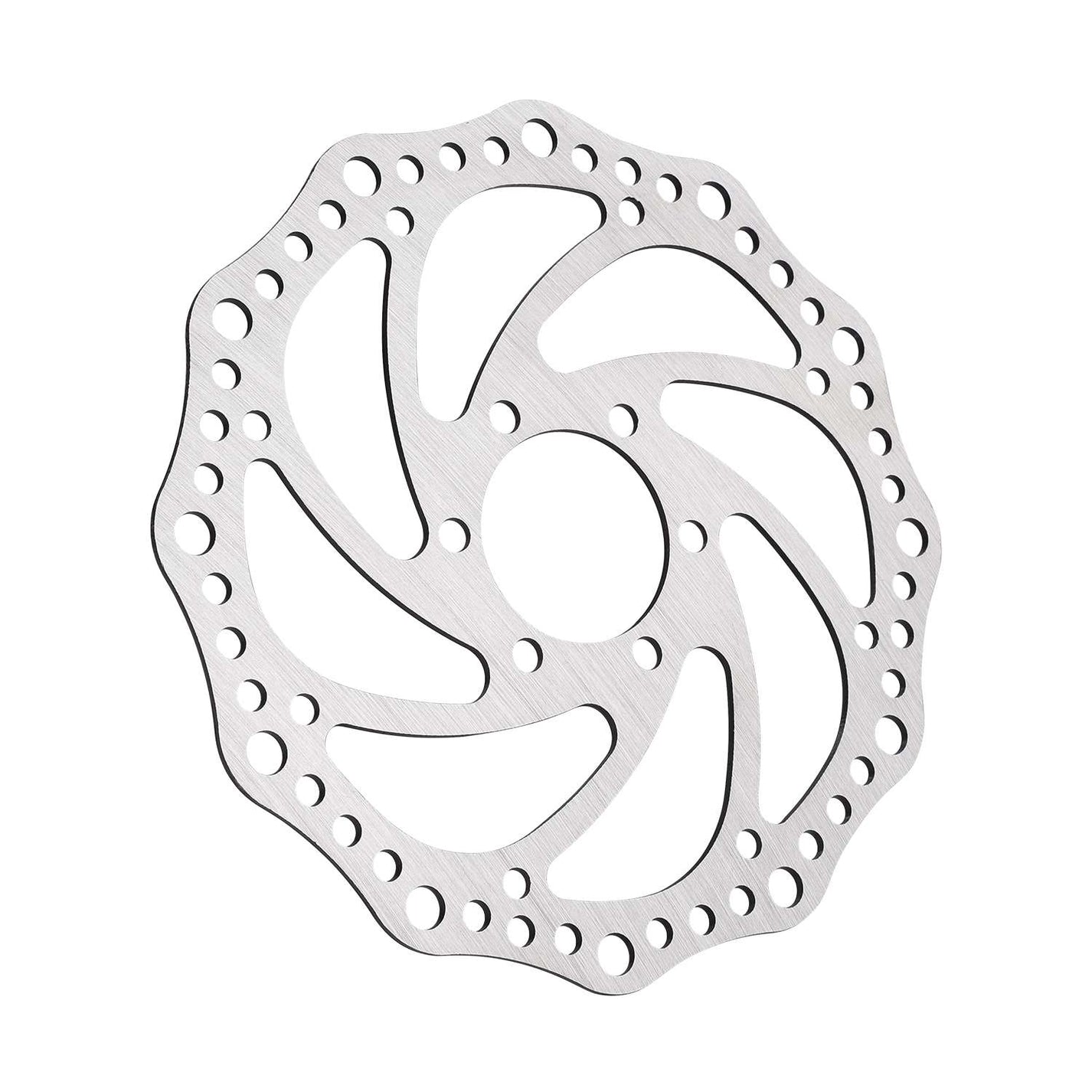

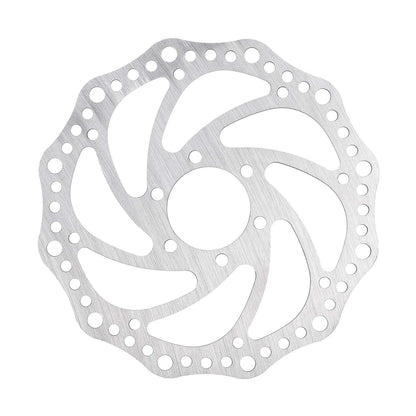

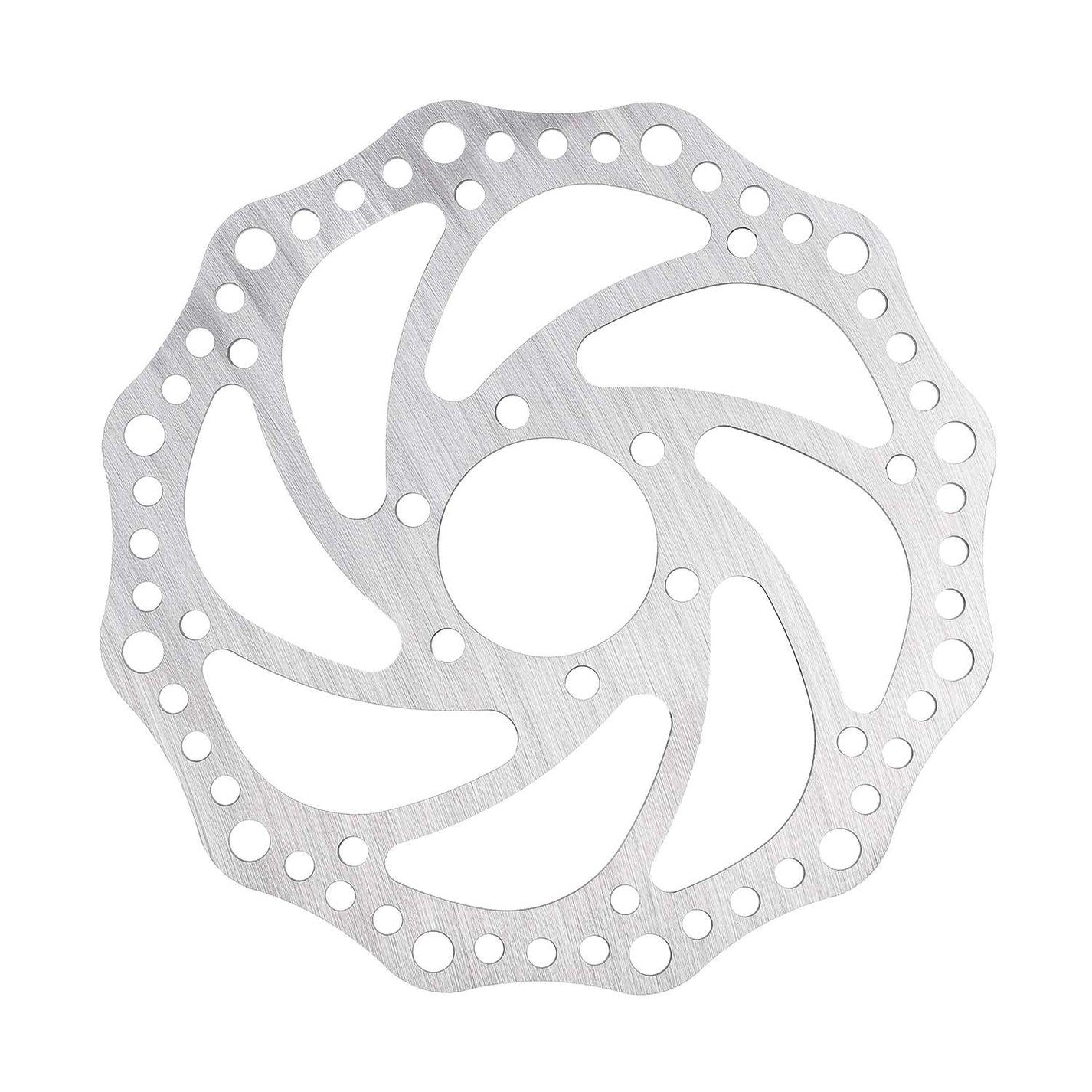

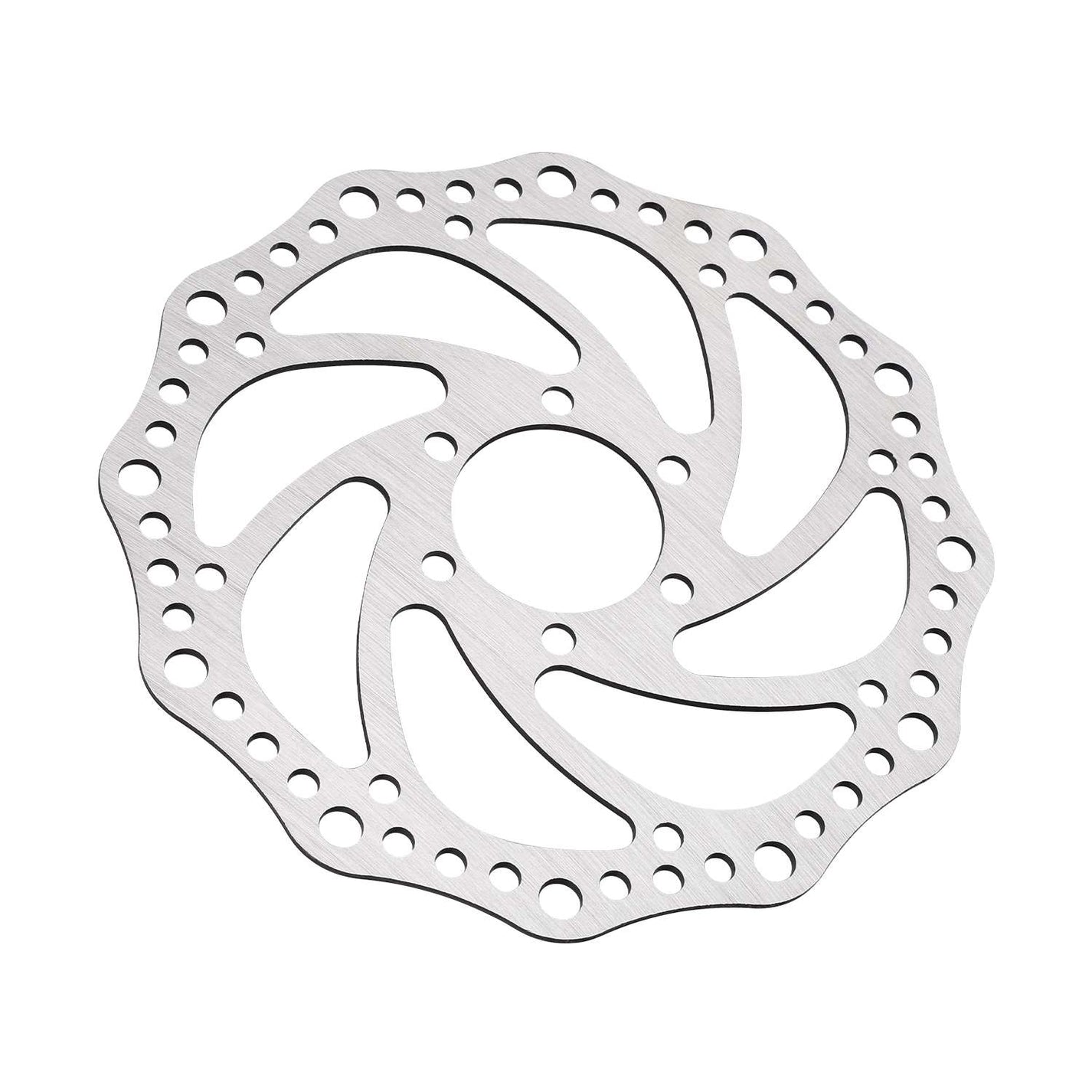

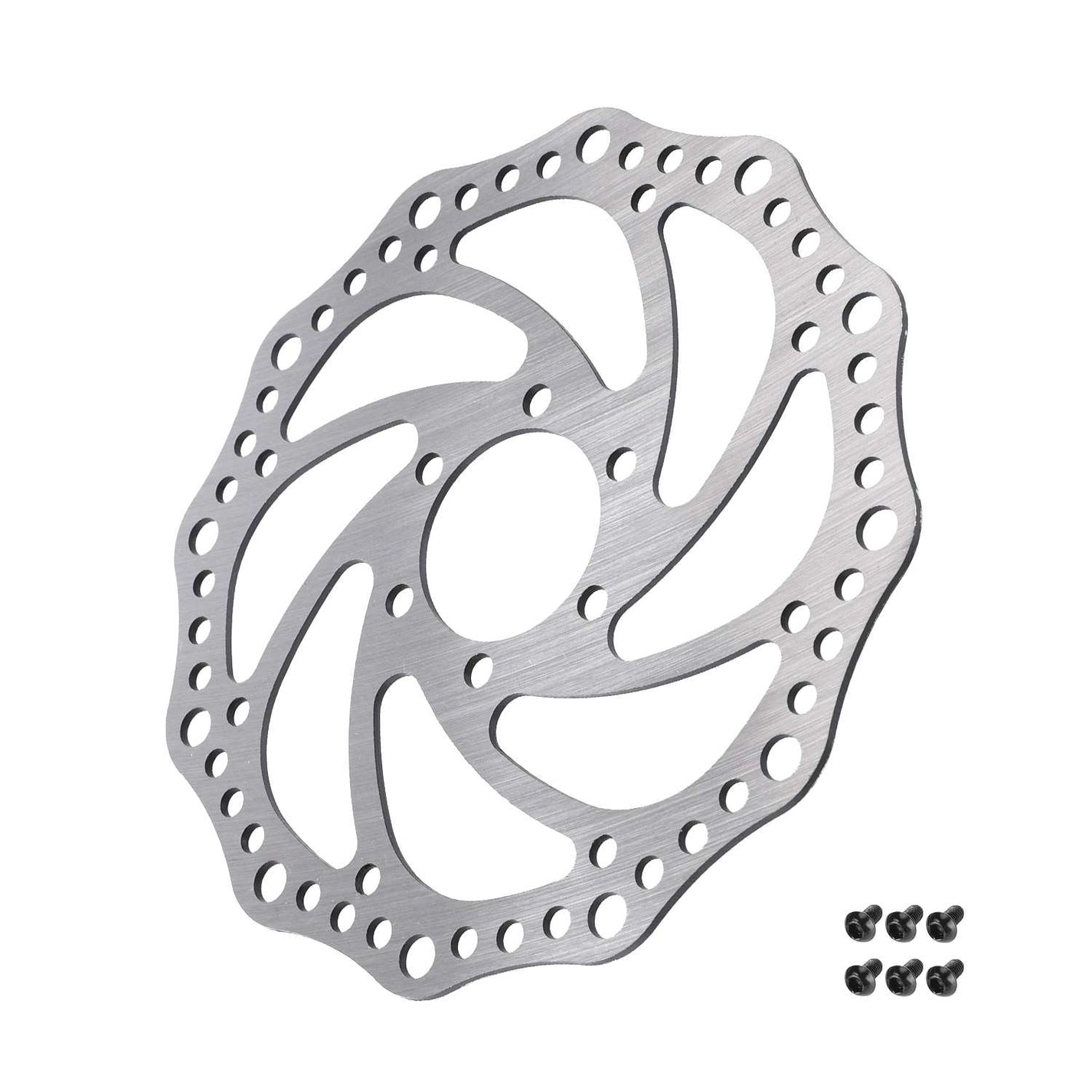

The silver brake disc has six holes on a 50 mm circle and a rounded wavy edge. Openings run along the braking ring; six screws are included.

Features and fitment

• Model: Dualtron 3.
• 160 mm disc; mounting hole circle 50 mm; six screws.

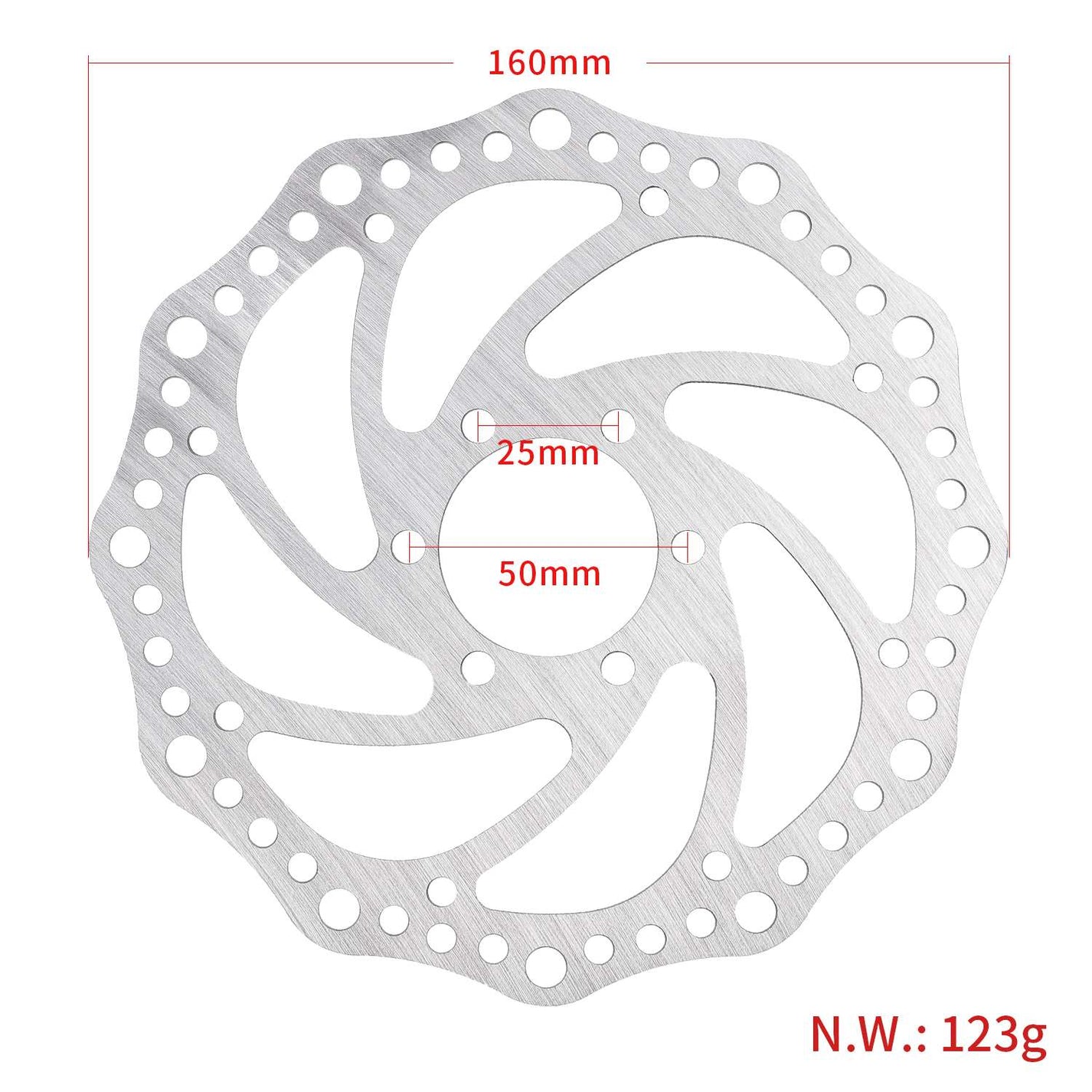

Approximate dimensions

• Disc diameter: 160 mm.
• Mounting circle: 50 mm.
• Distance between adjacent holes: 25 mm.

The distance between adjacent holes is 25 mm. Before ordering, verify this distance on your hub and the allowed disc thickness for your caliper. A six-bolt mount with a 44 mm circle is not the same design.

Disc replacement and alignment

• Replace the disc if there are cracks, permanent deformation, or wear below the minimum thickness. If you hear rubbing, check the caliper alignment first.
• Clean the hub mounting surface and install the disc in the marked rotation direction. Tighten the screws gradually in a cross pattern to the specified torque.
• Keep the braking surface clean and free of oil or grease. After assembly, check for free rotation and braking performance; a new disc and pads require a proper bed-in process.
