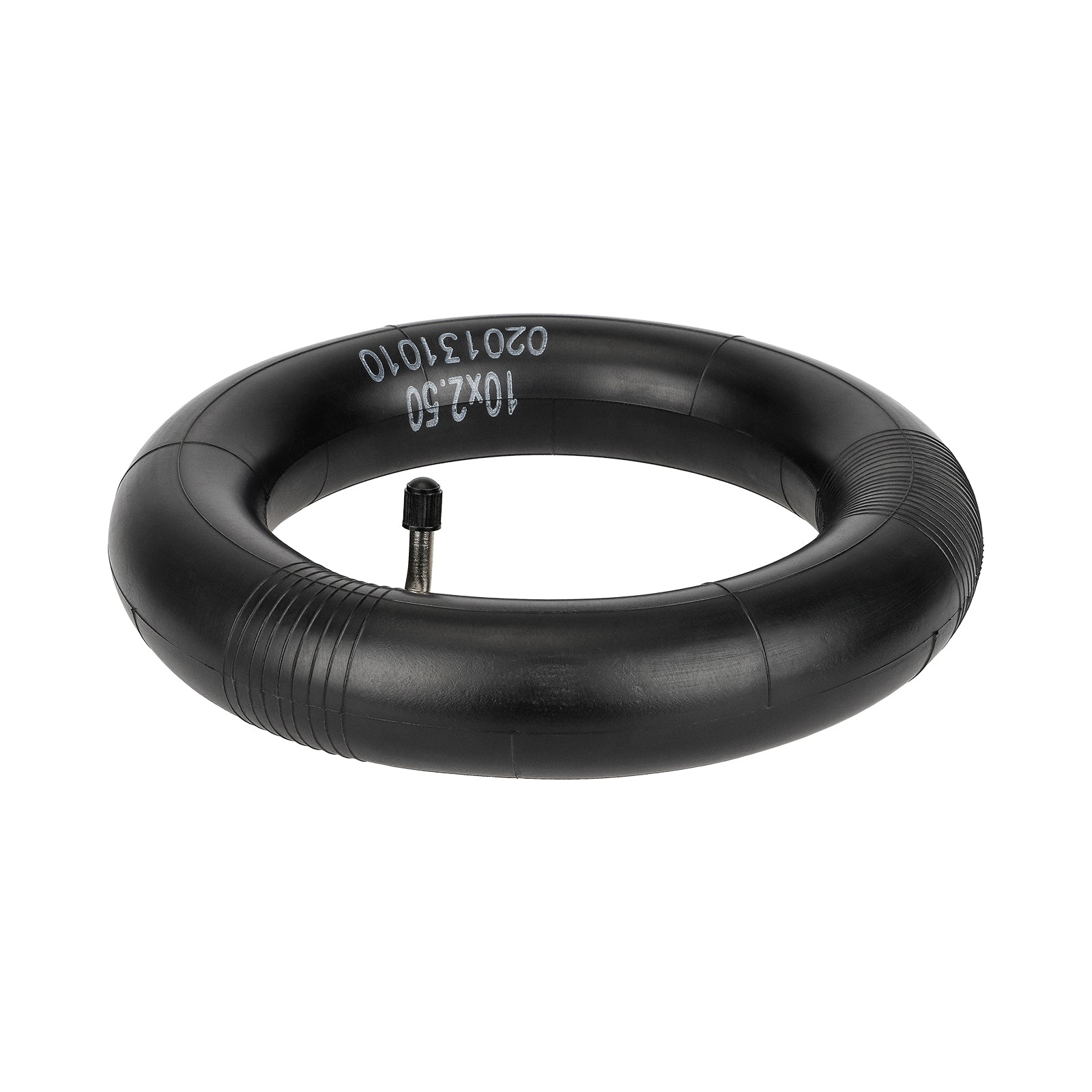

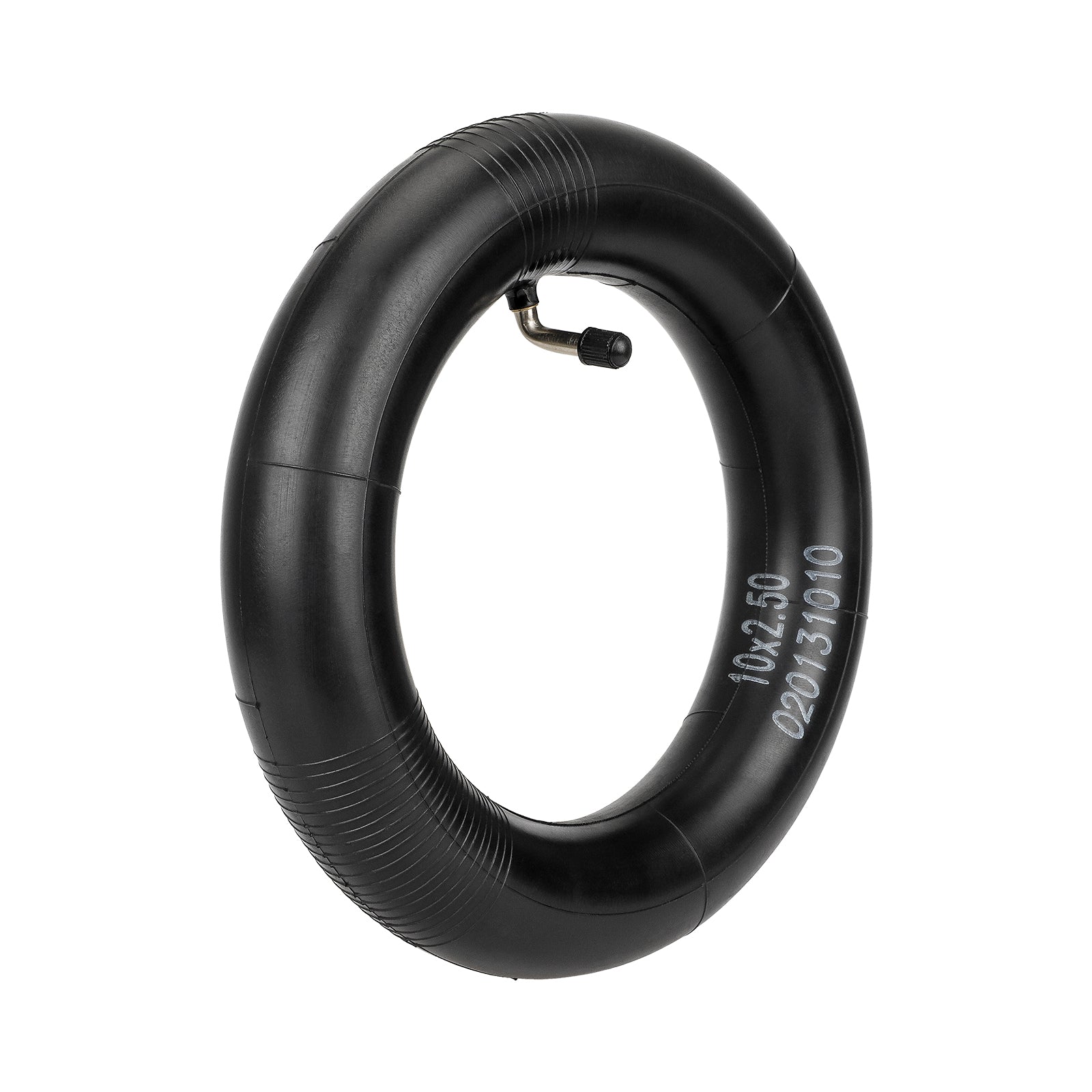

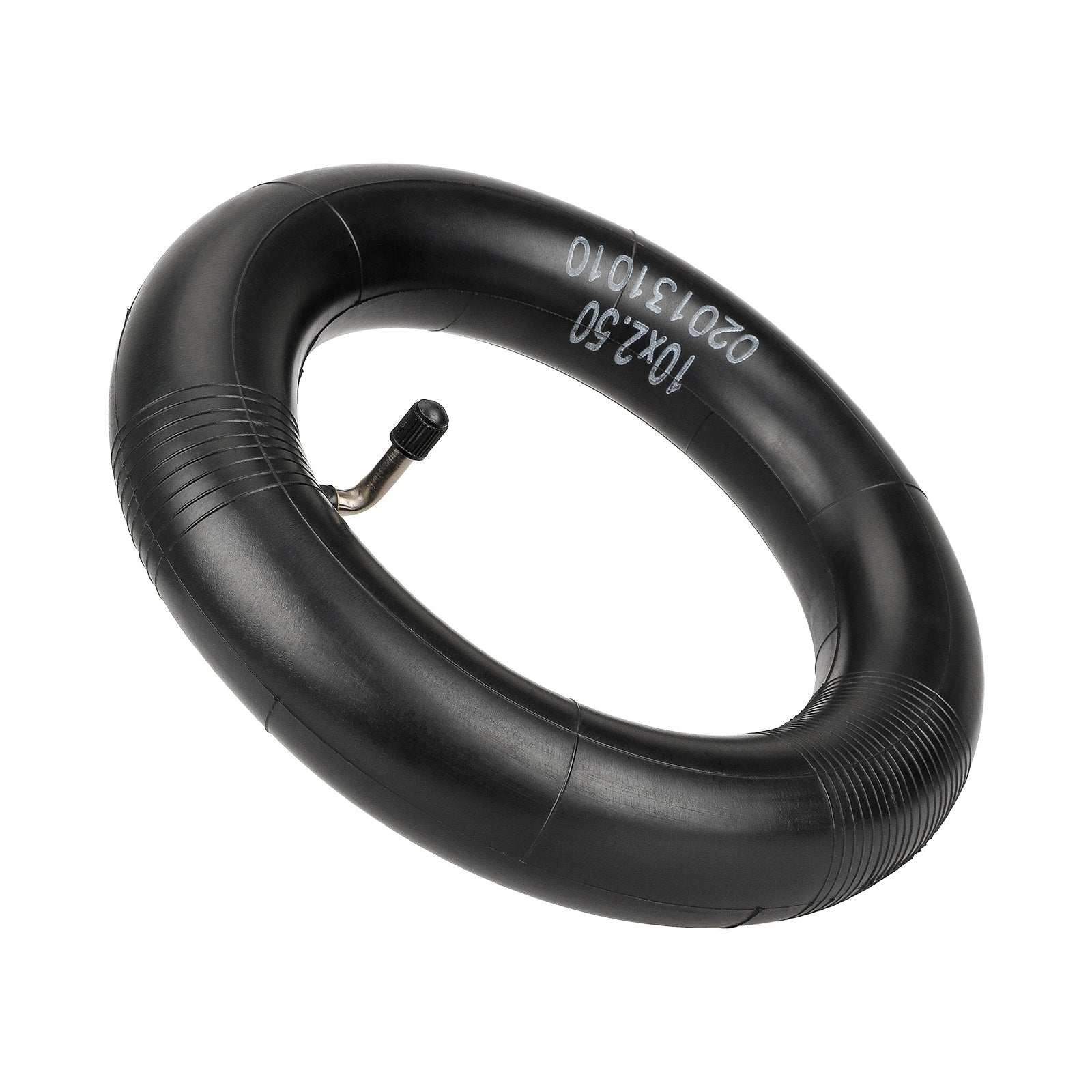

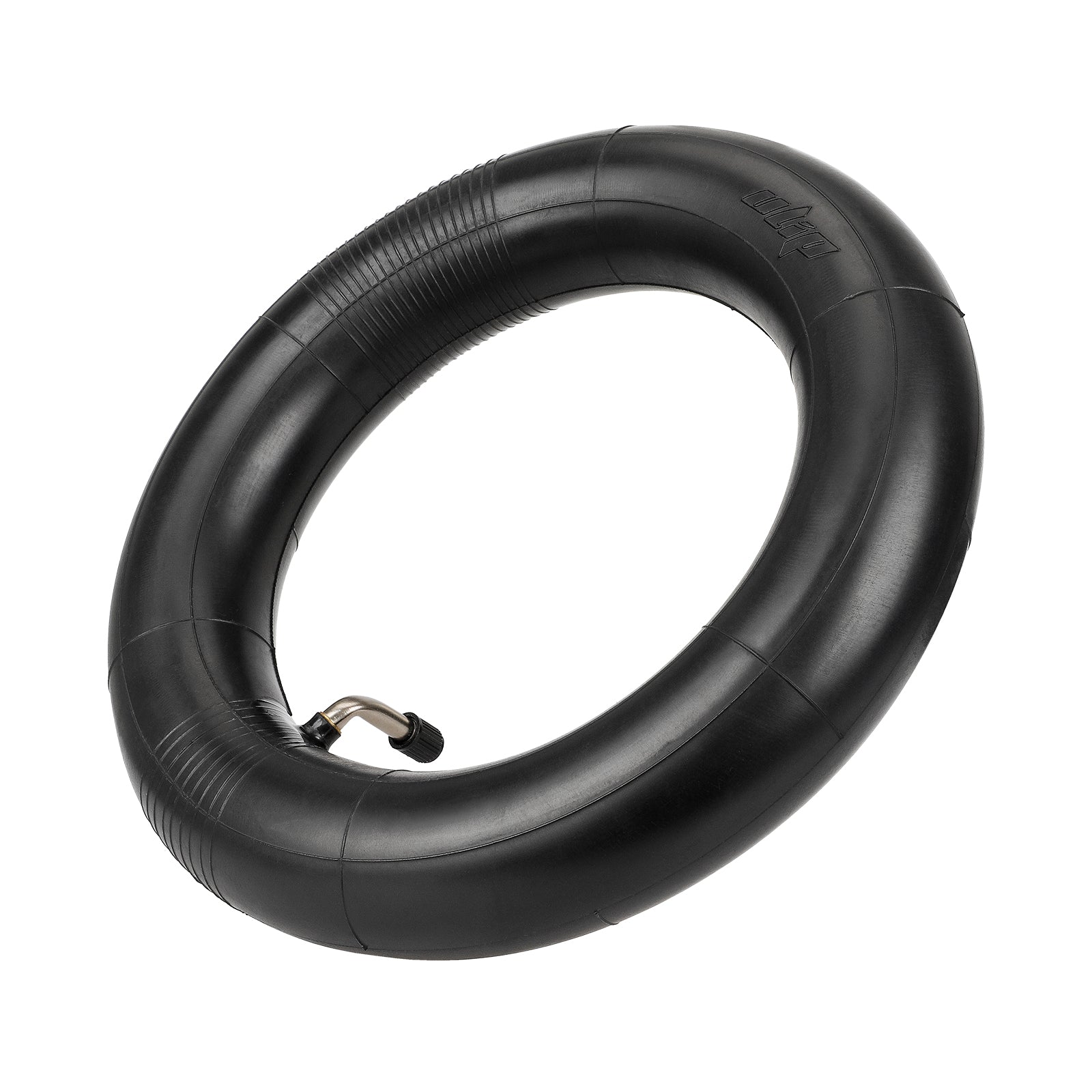

Reinforced 10 × 2.5 inner tube with 90° valve for electric scooter ZERO 10X / ECO Speed 10X

Reinforced ULIP inner tube with a bent valve

The 10 × 2.5 ULIP inner tube features a reinforced design and a metal valve with a 90-degree bend. It is designed for the corresponding ten-inch wheel assembly that uses an inner tube.

Features and fitment

• Model: ZERO 10X / ECO Speed 10X.
• Reinforced 10 × 2.5 ULIP inner tube; 90° bent valve.

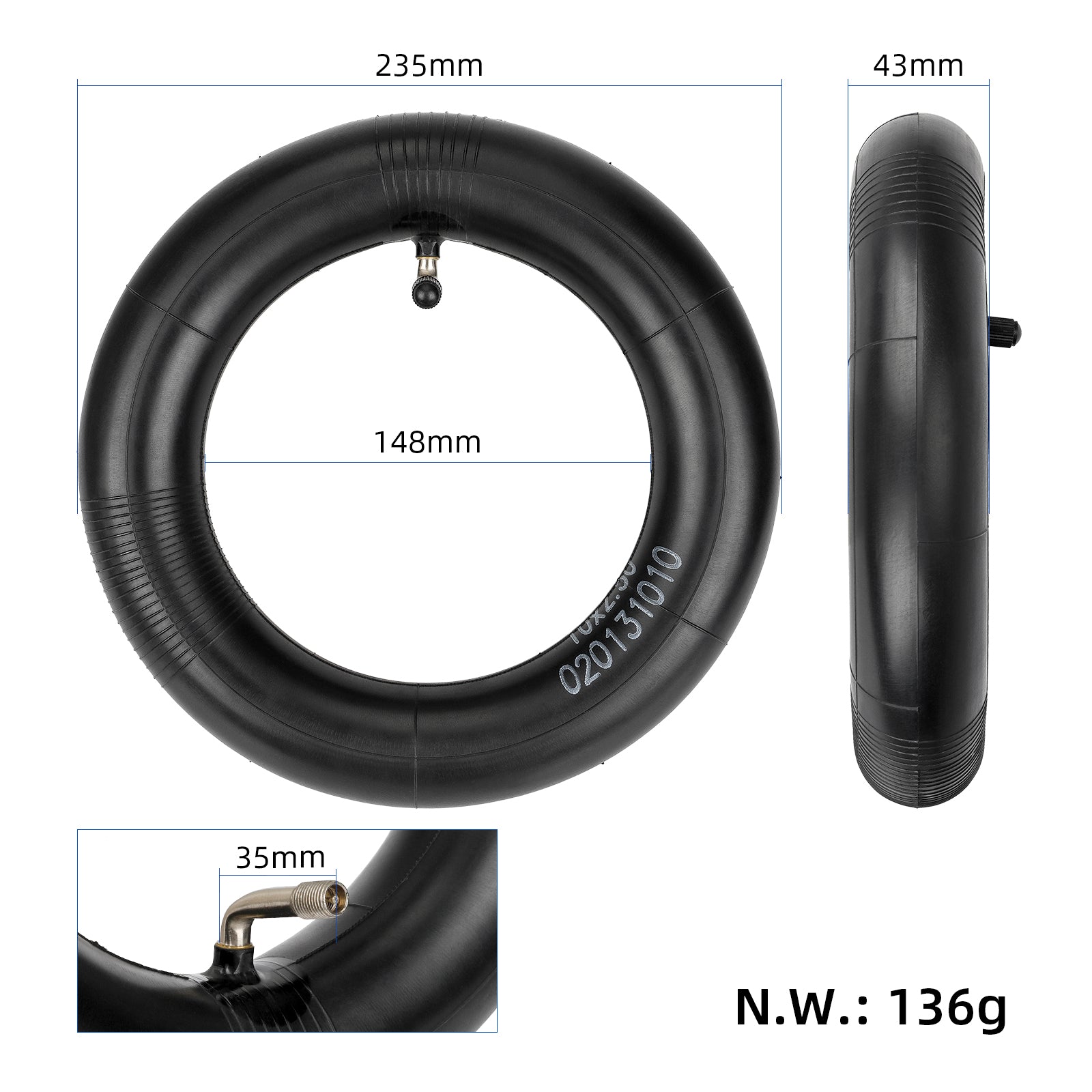

Approximate dimensions

• Outer diameter: 235 mm.
• Inner diameter: 148 mm.
• Width: 43 mm.

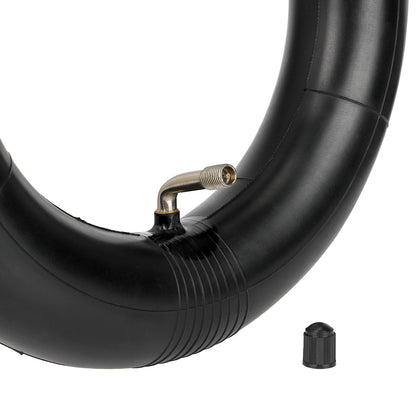

• Bent valve: 35 mm length, 90° angle.

In addition to the tire size, check the direction of the valve and access to it near the motor. The valve should protrude from the rim opening without tension, with enough space to connect a pump.

Replacement without pinching the inner tube

• Before replacing, check the tire or rim for the cause of the puncture. A foreign object, sharp edge, or damaged rim strip can damage the new inner tube immediately.
• Inflate the inner tube slightly, align the valve with the opening, and distribute it evenly inside the tire. When installing the edge, do not pinch it with tire levers.
• Inflate to the pressure allowed for the wheel assembly. Check the valve position and sealing; do not use valve caps to stop leaks.
