NUTT semi-metallic brake pads for Dualtron Eagle Pro

Semi-metallic pads for compatible NUTT calipers

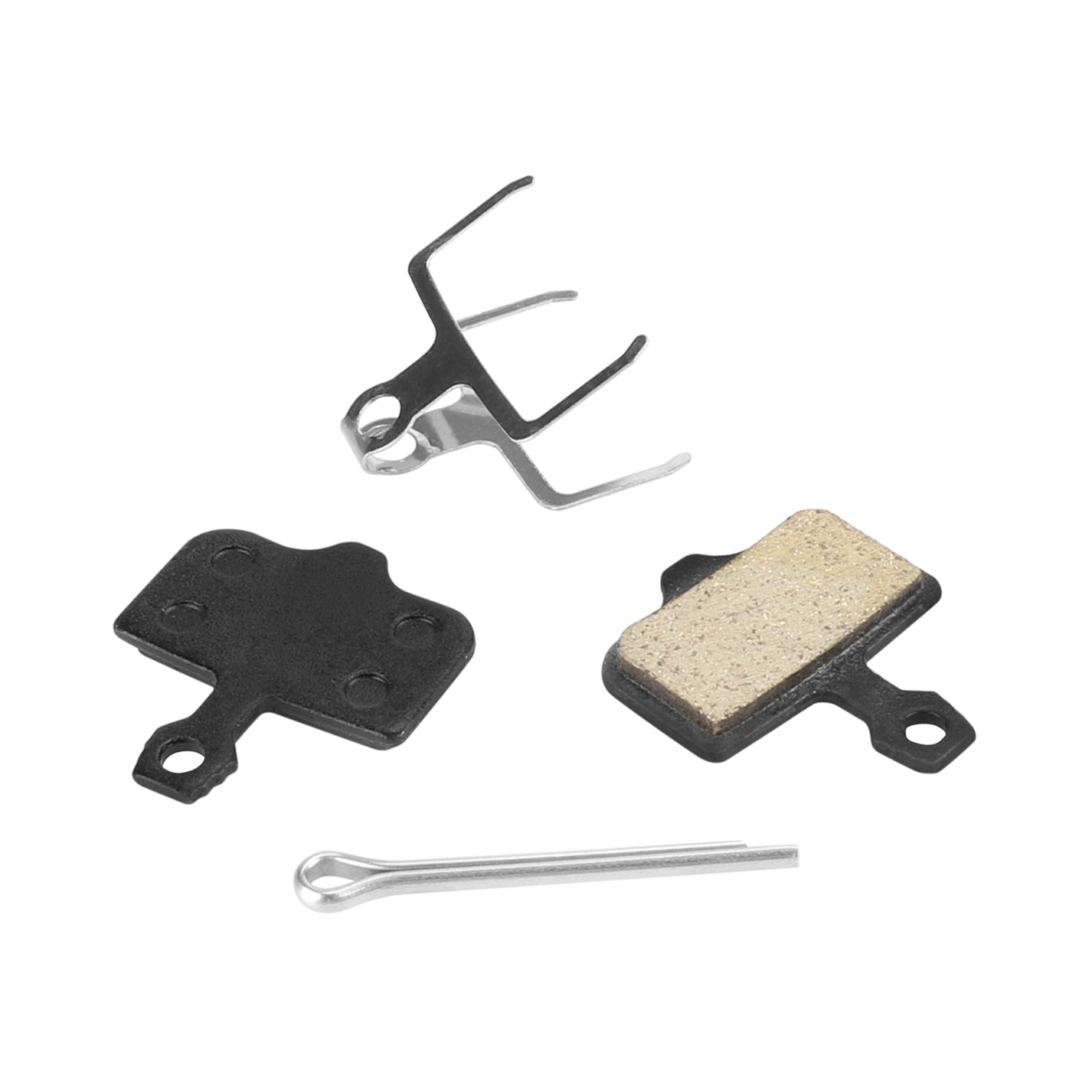

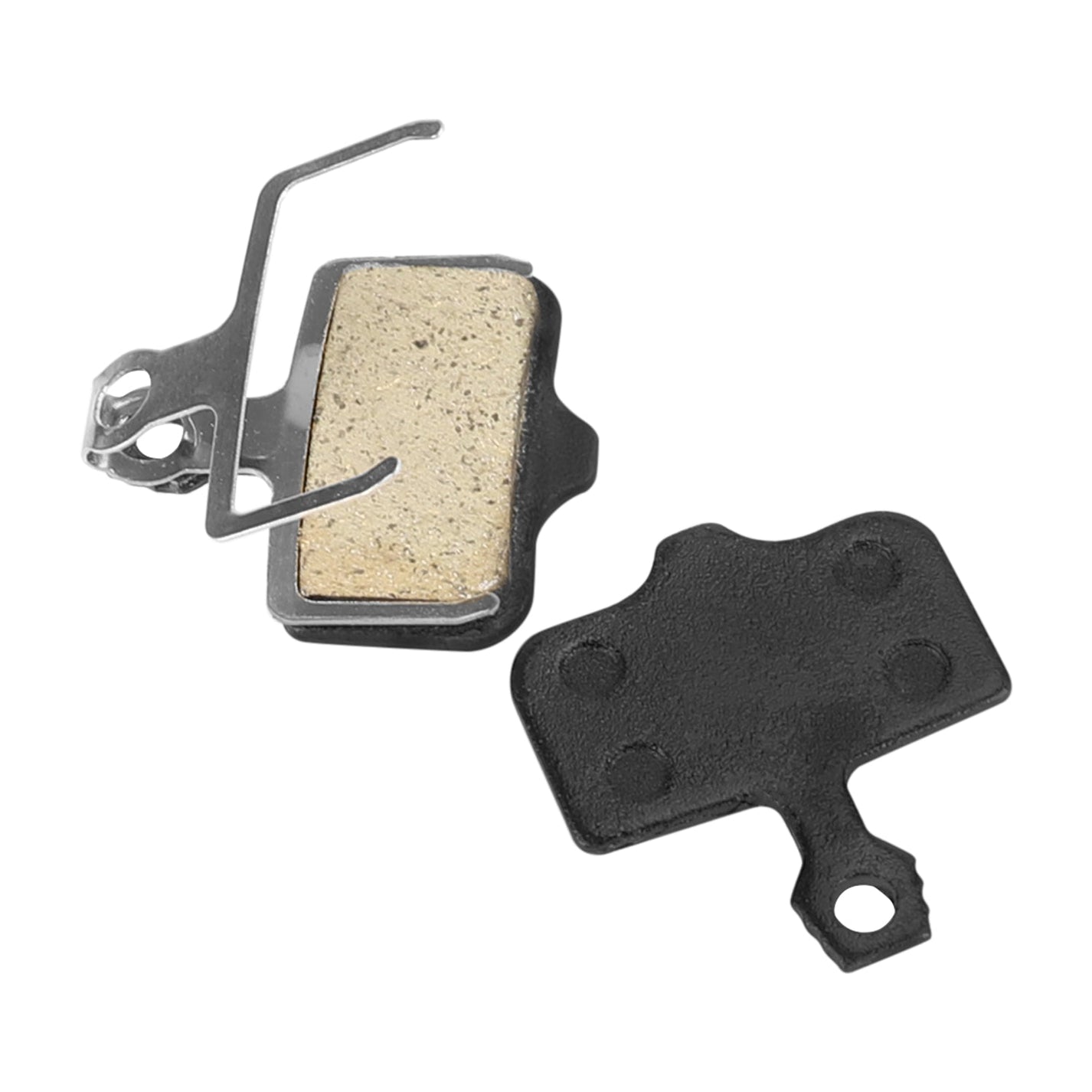

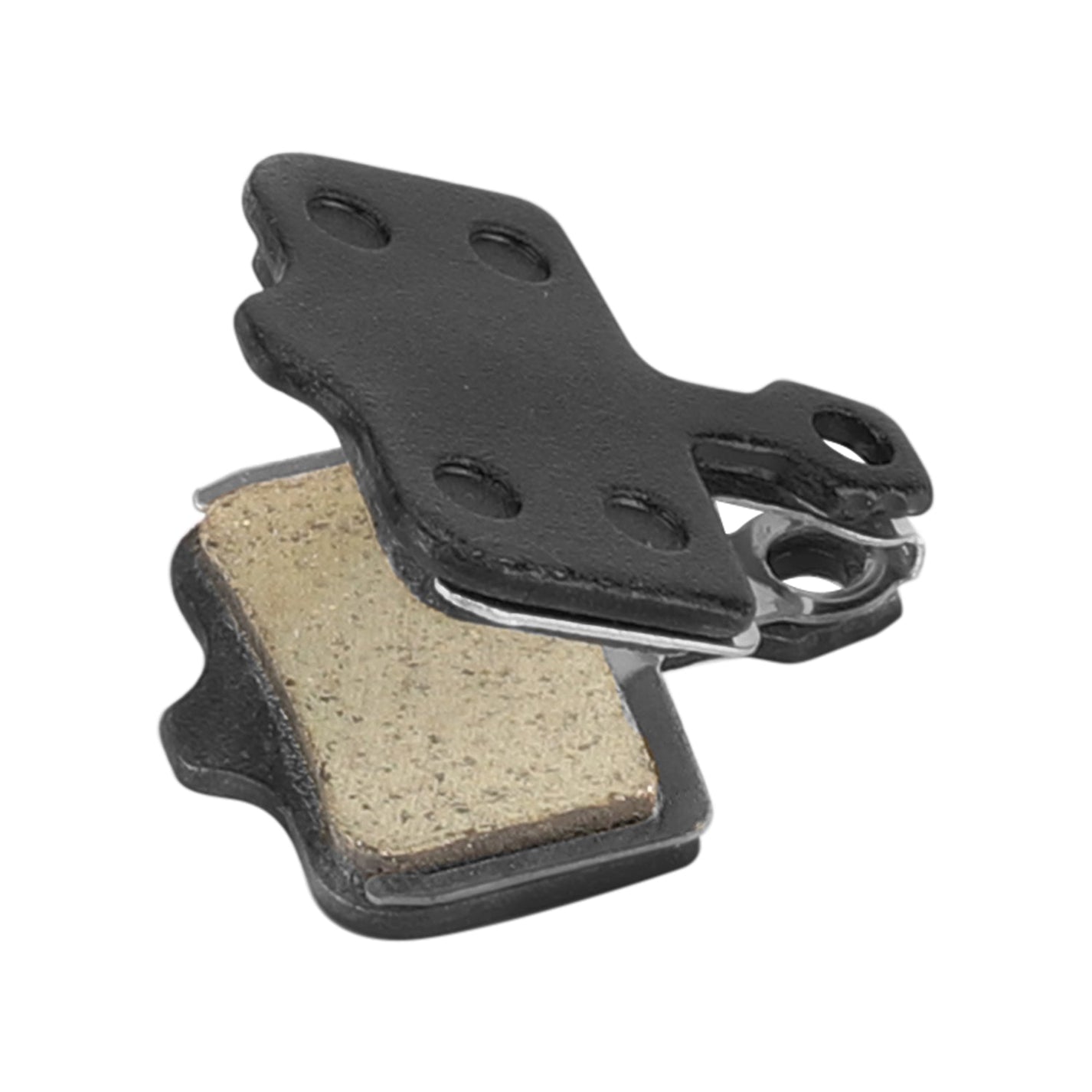

Black backplates with side ears and a rectangular friction surface make up this pair of semi-metallic brake pads. The friction area measures approximately 30 × 17 mm; a spring and cotter pin are included.

Features and fitment

• Model: Dualtron Eagle Pro.
• Brake pad compound: semi-metallic.
• Black pads with a lining width of approx. 30 mm and height of 17 mm.
• Pair with spring and cotter pin; shape for compatible NUTT calipers.

Approximate dimensions

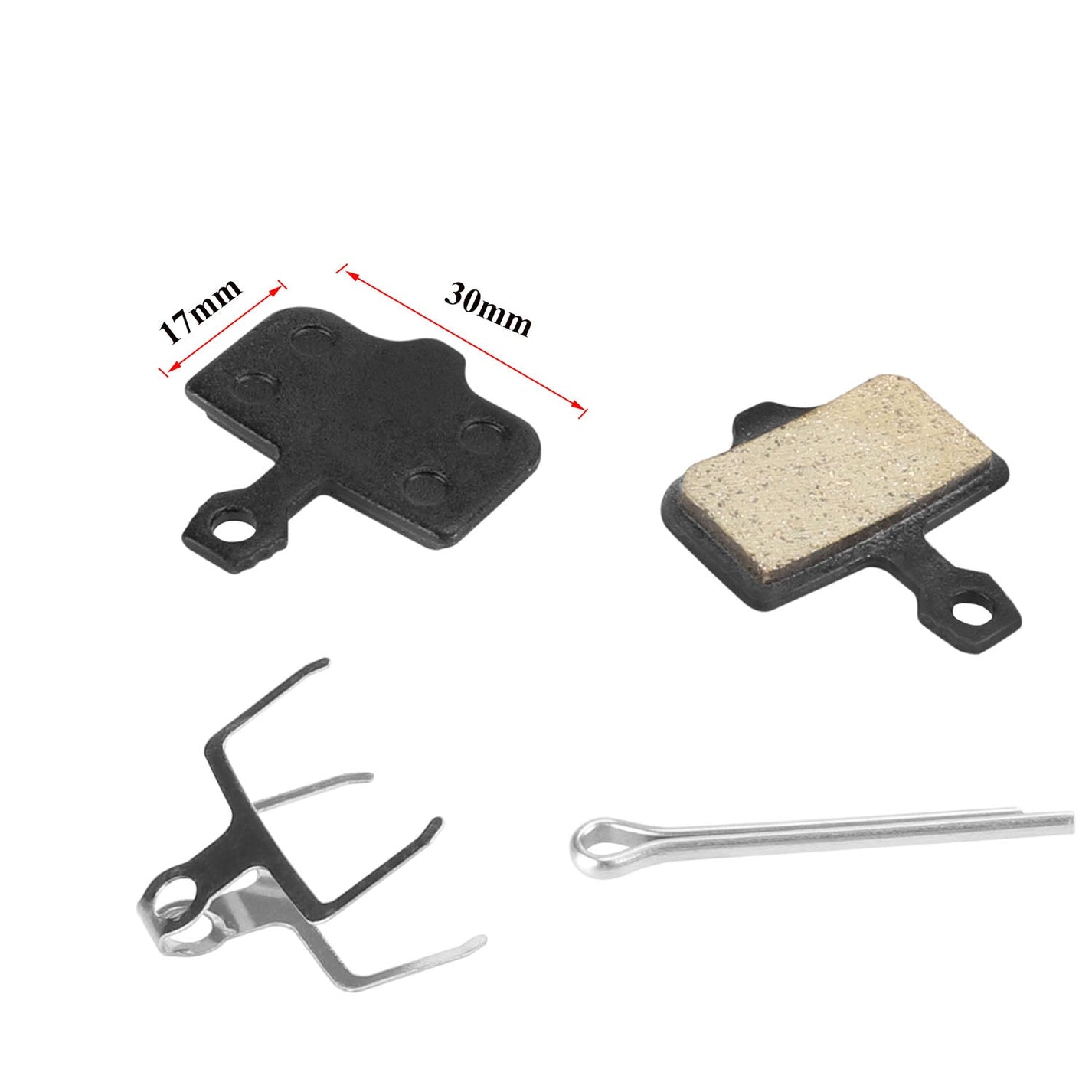

• Friction surface: 30 × 17 mm.

The 30 × 17 mm figure refers to the friction surface, not the entire outline. Before replacing, check the installed caliper and the position of the mounting ears, especially on vehicles with upgraded brakes.

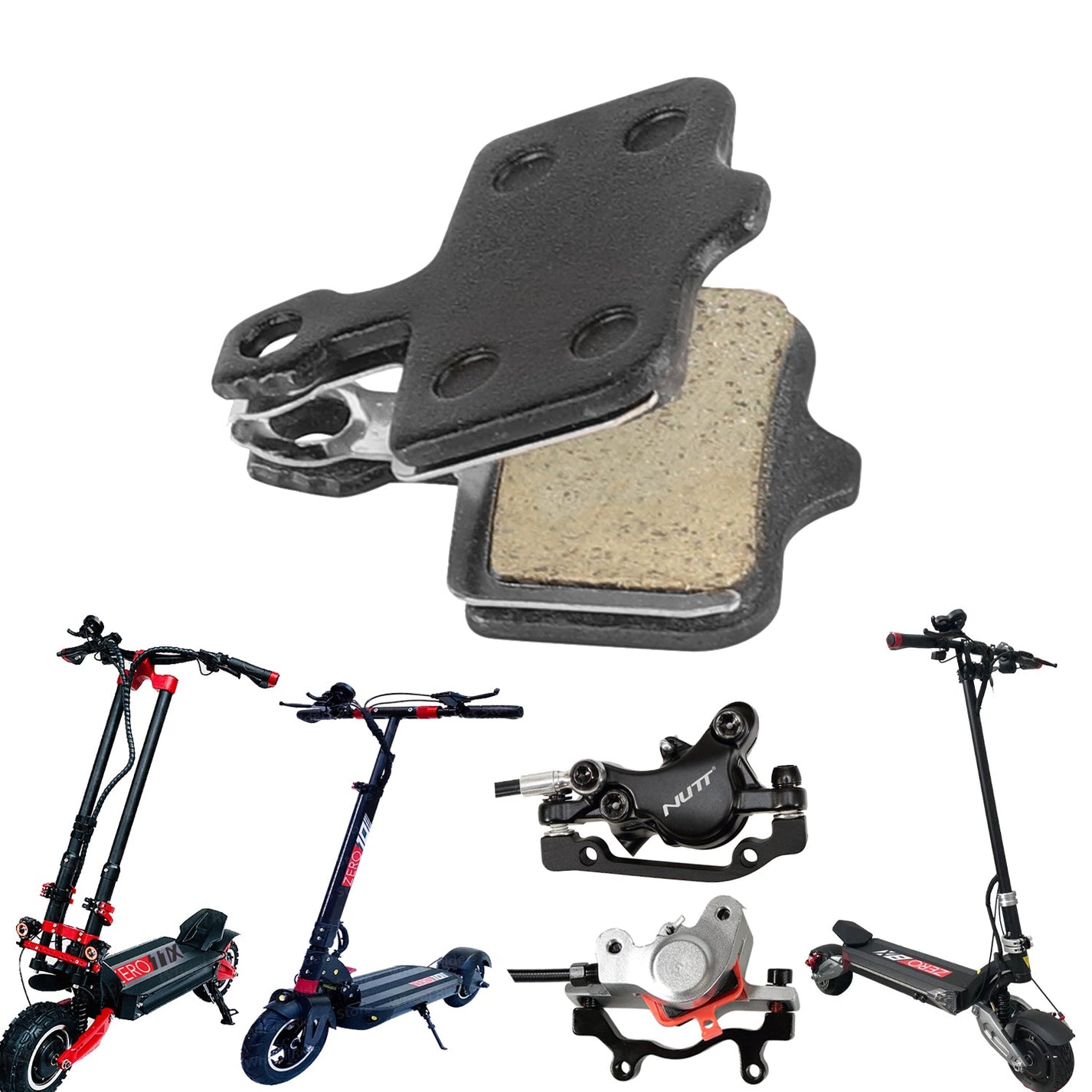

Use applies only to installed NUTT calipers with the corresponding shape and pad mounting.

For this model, it applies to the Upgrade/Limited versions with compatible NUTT hydraulic brakes.

Brake lining

The semi-metallic lining combines metal particles and a resin binder. The mixture represents a compromise between initial bite and thermal load resistance. A clean disc and gradual breaking-in of the new pair are important for consistent braking.

When to replace and how to start

• Inspect the pads if braking performance decreases, wear is uneven, or they are contaminated. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manual.
• Remove the safety clip and the old pair. Prepare space for the new pads according to the procedure for your caliper, then insert the spring, new pair, and safety clip. Do not grease the friction surfaces.
• Check wheel free-spin and lever operation. Break in the new pads with several gradual decelerations in a safe area, without locking the wheel.
