Semi-metallic NUTT brake pads for Dualtron Spider Max

Semi-metallic pads for compatible NUTT caliper

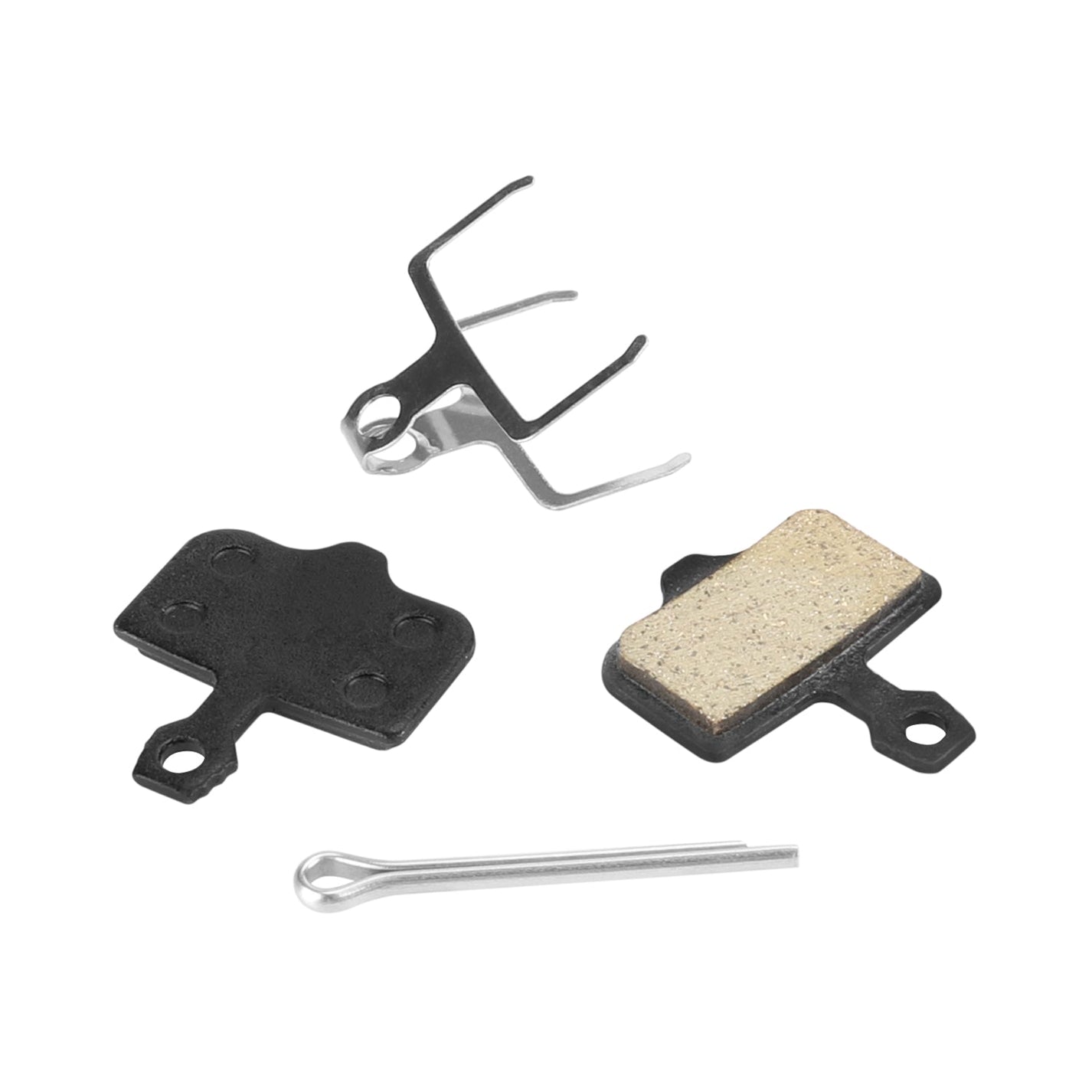

Black holders with side tabs and a rectangular friction surface make up this pair of semi-metallic pads. The friction area measures approximately 30 × 17 mm; a spring and safety pin are included.

Features and fitment

• Model: Dualtron Spider Max.
• Brake compound: Semi-metallic.
• Black pads with a friction surface width of approximately 30 mm and height of 17 mm.
• Pair with spring and split pin; shape for compatible NUTT caliper.

Approximate dimensions

• Friction surface: 30 × 17 mm.

The 30 × 17 mm specification refers to the friction surface, not the overall outline. Before replacing, verify the installed caliper and the position of the mounting tabs, especially for vehicles with upgraded brakes.

Usage applies only to the installed NUTT caliper with the correct shape and pad mounting.

Brake compound

The semi-metallic compound combines metallic particles and a resin binder. The mixture represents a compromise between initial bite and thermal resistance. For consistent braking, a clean disc and gradual bedding-in of the new pair are important.

When to replace and how to start

• Inspect the pads if you notice poor braking performance, uneven wear, or contamination. Always replace both pads in the same caliper; check your brake manual for the minimum allowed thickness.
• Remove the safety pin and the old pair. Prepare the space for new pads according to your caliper's procedure, then insert the spring, new pair, and safety pin. Do not grease the friction surfaces.
• Check for free wheel rotation and lever operation. Bed in the new pads by performing several gradual decelerations in a safe area without locking the wheel.
