NUTT semi-metallic brake pads for Dualtron Thunder 2

Semi-metallic pads for compatible NUTT caliper

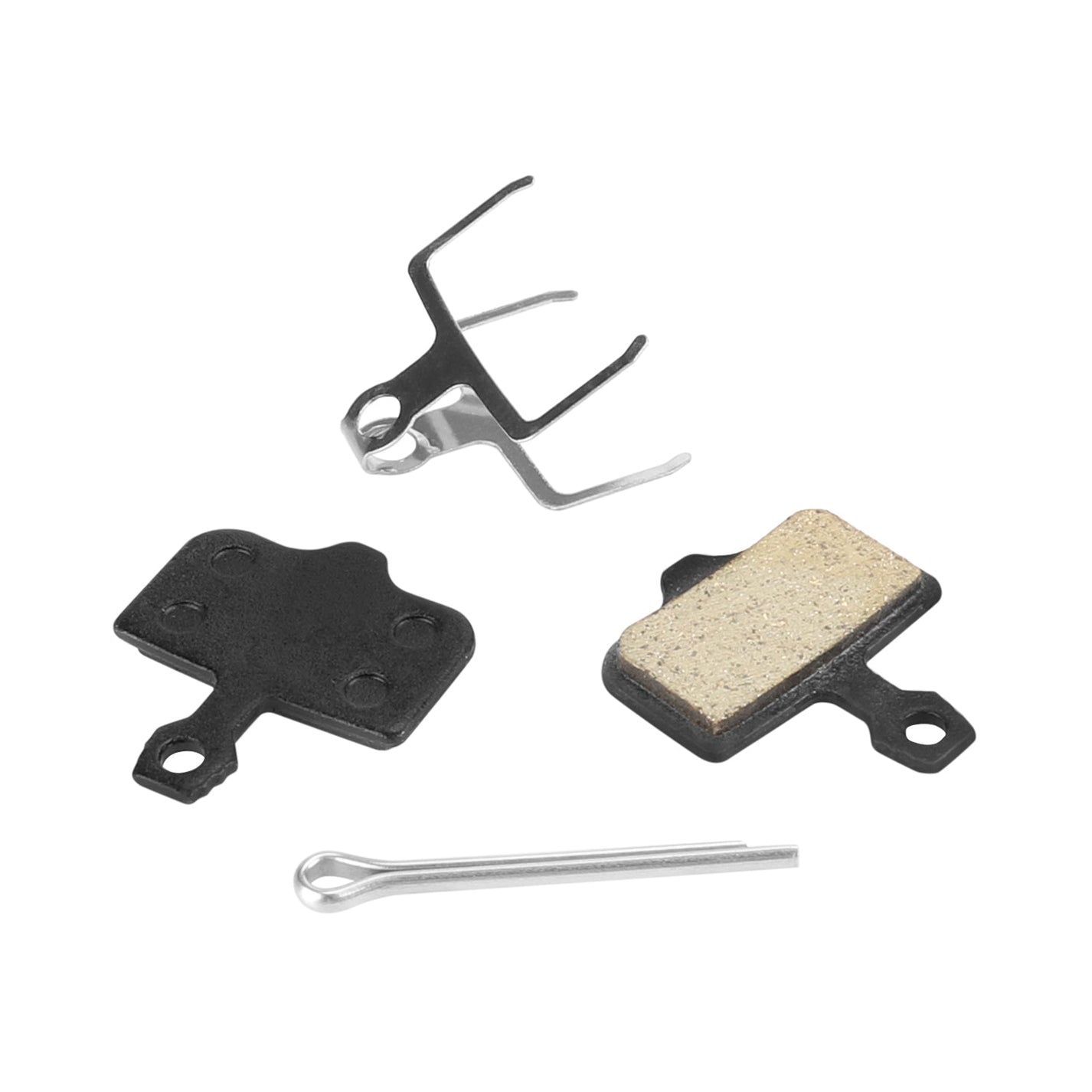

Two black brackets with side lugs and a rectangular friction surface make up a pair of semi-metallic pads. The friction area measures approximately 30 × 17 mm; a spring and safety pin are included.

Features and fitment

• Model: Dualtron Thunder 2.
• Brake pad: semi-metallic.
• Black pads with a lining width of approximately 30 mm and height of 17 mm.
• Pair with spring and cotter pin; shape for compatible NUTT caliper.

Approximate dimensions

• Friction surface: 30 × 17 mm.

The 30 × 17 mm figure refers to the friction surface, not the entire outline. Before replacing, check the installed caliper and the position of the mounting lugs, especially for vehicles with upgraded brakes.

Use applies only to the installed NUTT caliper with the corresponding pad shape and mounting.

Brake pad composition

The semi-metallic pad combines metallic particles and a resin binder. The compound represents a compromise between initial bite and resistance to thermal stress. A clean disc and gradual bedding-in of the new pair are important for even braking.

When to replace and how to start

• Inspect pads in case of poor braking, uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manual.
• Remove the safety pin and the old pair. Prepare the space for new pads according to the procedure for your caliper, then insert the spring, the new pair, and the safety pin. Do not grease friction surfaces.
• Check for free wheel rotation and lever operation. Bed in the new pads with several gradual decelerations in a safe area, without locking the wheel.
