Semi-metallic NUTT brake pads for Kugoo G1

Semi-metallic pads for the corresponding NUTT caliper

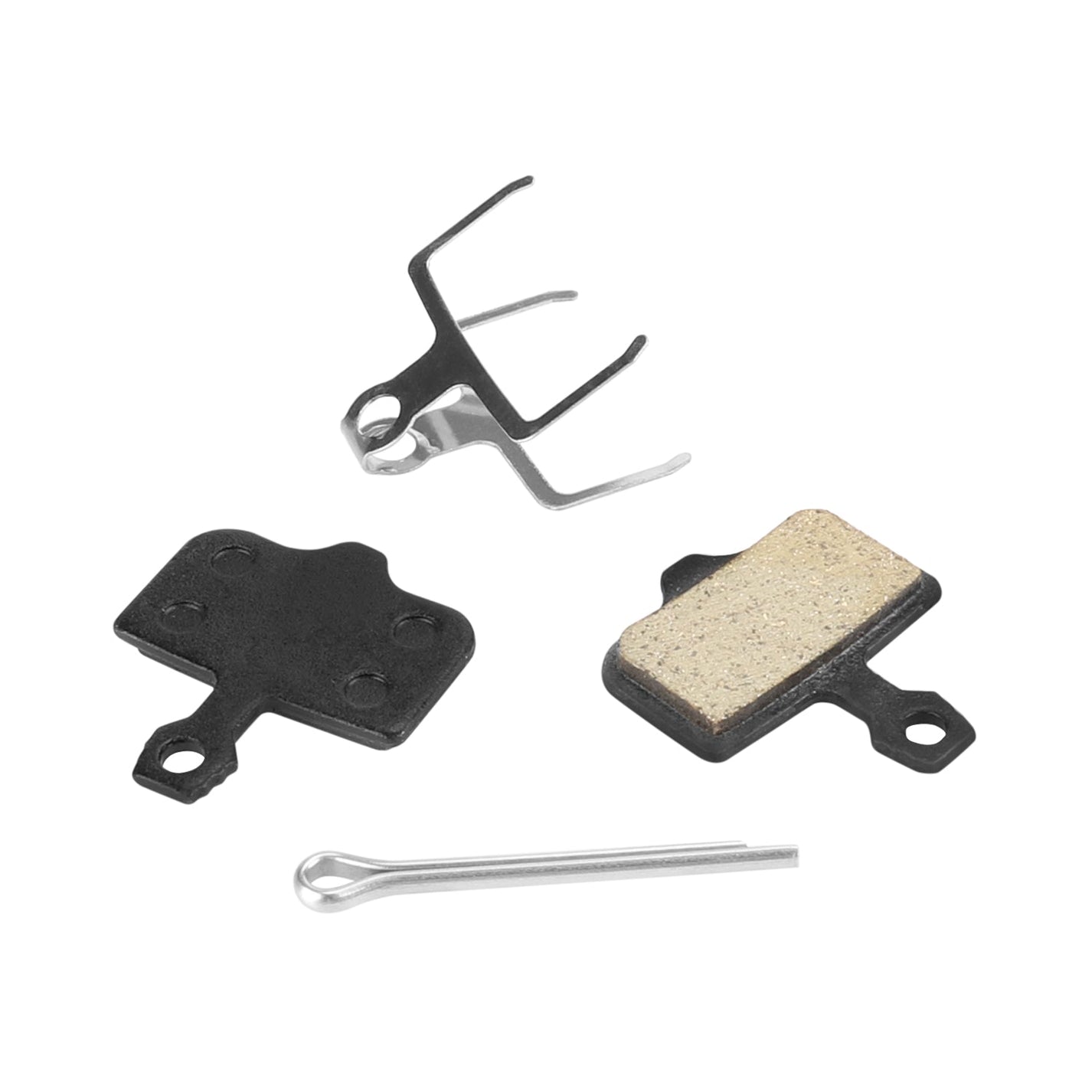

Black backing plates with side tabs and a rectangular friction surface form a pair of semi-metallic pads. The friction area measures approximately 30 × 17 mm; spring and retainer are included.

Features and fitment

• Model: Kugoo G1.
• Brake compound: Semi-metallic.
• Black pads with a friction surface approx. 30 mm wide and 17 mm high.
• Pair with spring and cotter pin; shape for compatible NUTT calipers.

Approximate dimensions

• Friction surface: 30 × 17 mm.

The 30 × 17 mm data refers to the friction surface, not the entire outline. Before replacement, check the installed caliper and mounting tab position, especially for vehicles with upgraded brakes.

Usage applies only to installed NUTT calipers with the correct pad shape and mount.

Brake compound

Semi-metallic compound combines metal particles and resin binder. The mixture represents a compromise between initial bite and thermal load resistance. A clean disc and gradual bed-in of the new pair are important for consistent braking.

When to replace and how to start

• Inspect pads if braking performance drops, uneven wear occurs, or contamination is present. Always replace both pads in the same caliper; check the minimum thickness in the brake manual.
• Remove the retainer and old pads. Clean the caliper, prepare space for new pads, then insert the spring, new pair, and retainer. Do not grease friction surfaces.
• Check wheel rotation and lever feel. Bed in new pads with gradual braking in a safe area, avoiding wheel lock-ups.
