NUTT semi-metallic brake pads for ZERO 10X / ECO Speed 10X

Semi-metallic pads for compatible NUTT calipers

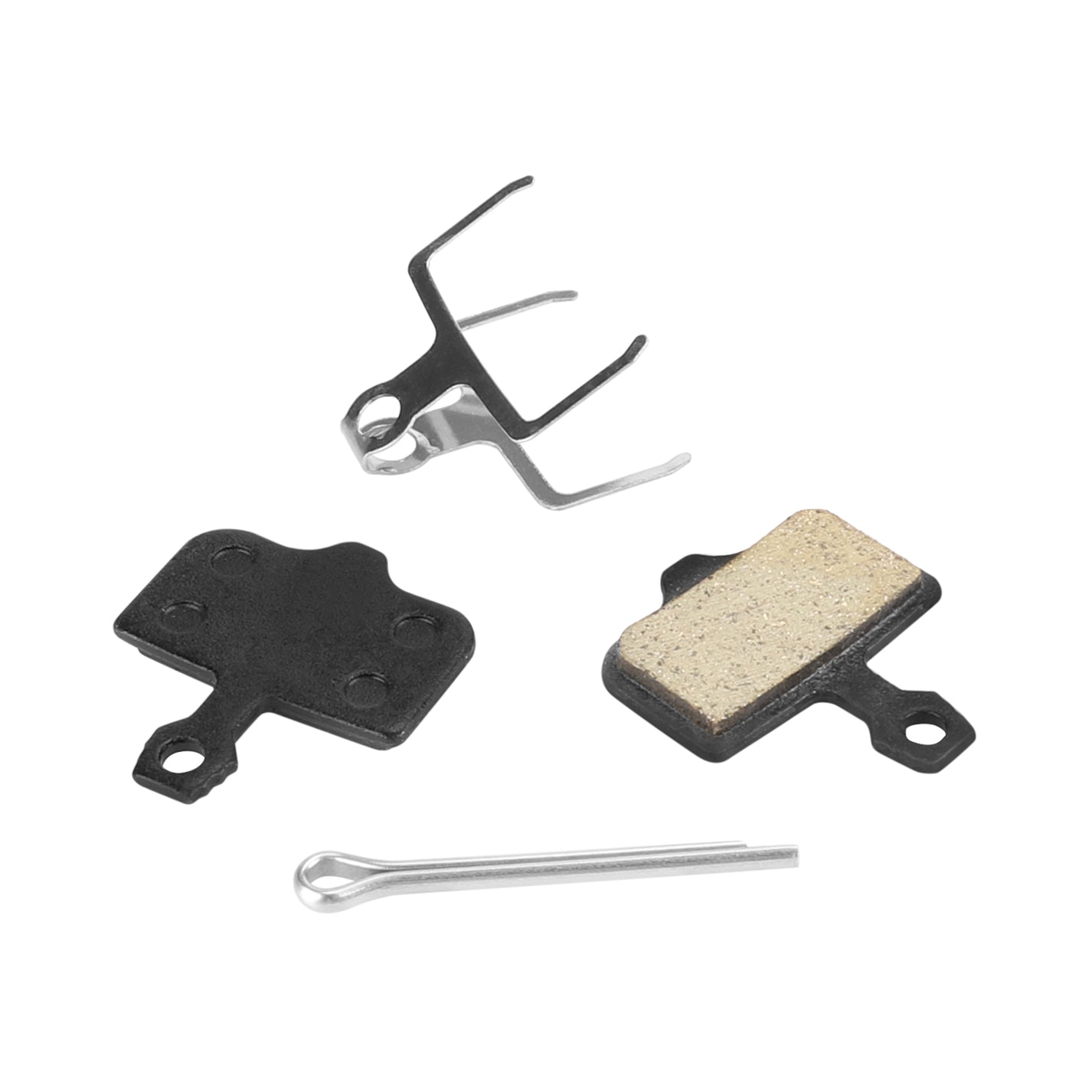

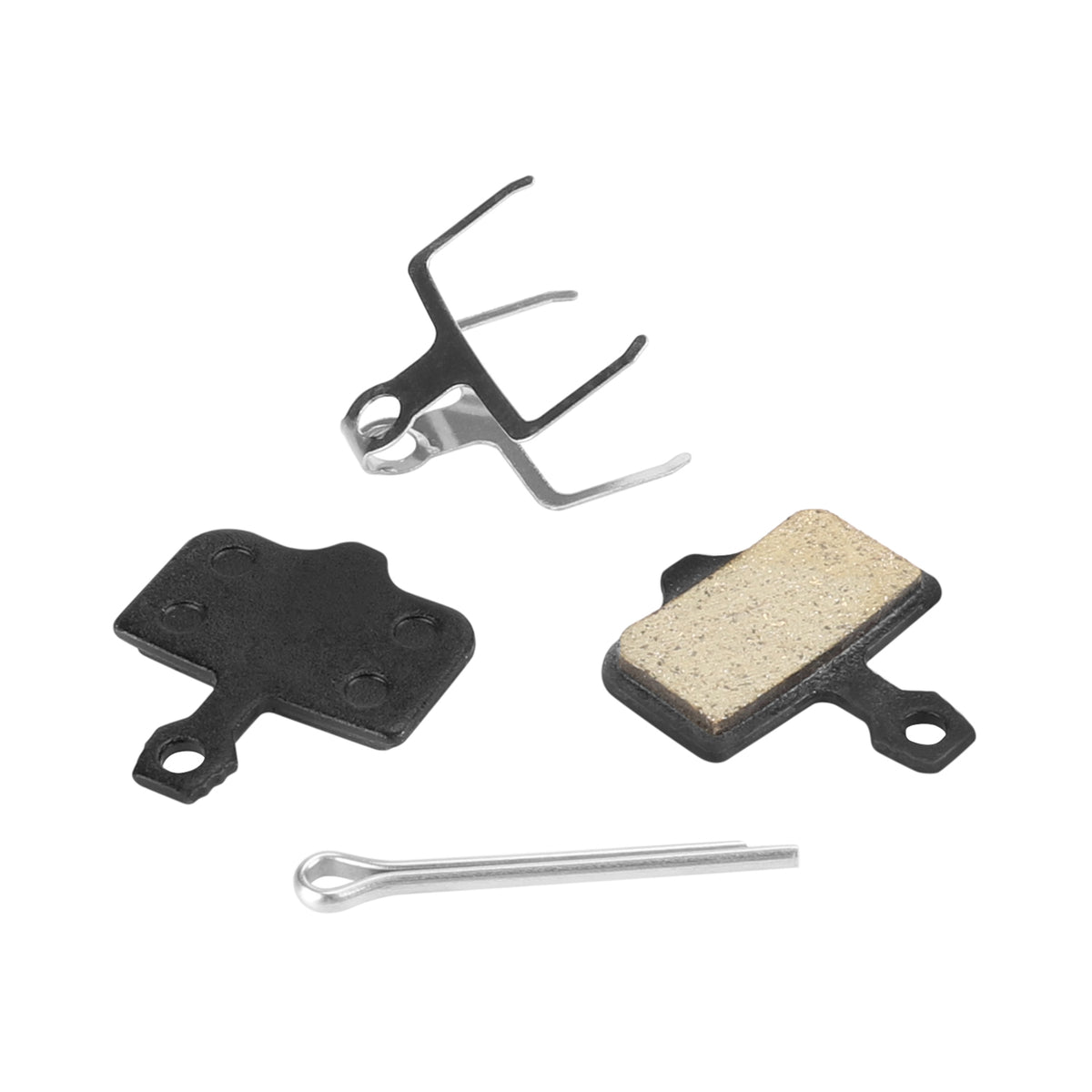

Two black brackets with side lugs and a rectangular friction surface form a pair of semi-metallic pads. The friction area measures approximately 30 × 17 mm; a spring and safety pin are included.

Features and Compatibility

• Model: ZERO 10X / ECO Speed 10X.
• Brake compound: Semi-metallic.
• Black pads with a friction surface width of approx. 30 mm and height of 17 mm.
• Pair with spring and cotter pin; designed for compatible NUTT calipers.

Approximate Dimensions

• Friction surface: 30 × 17 mm.

The 30 × 17 mm specification refers to the friction surface, not the overall outline. Before replacing, please check the installed caliper and the position of the mounting lugs, especially for vehicles with upgraded brakes.

Application applies only to the installed NUTT caliper with the appropriate shape and pad mounting.

Brake Compound

The semi-metallic compound combines metal particles and resin binder. The mixture represents a compromise between initial bite and heat load resistance. For consistent braking, a clean disc and gradual bedding-in of the new pair are important.

When to replace and how to start

• Inspect the pads if braking performance decreases, or if there is uneven wear or contamination. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manufacturer's instructions.
• Remove the safety pin and the old pair. Prepare the space for the new pads according to the procedure for your caliper, then insert the spring, the new pair, and the safety pin. Do not lubricate friction surfaces.
• Check for free wheel rotation and brake lever operation. Bed in the new pads with several gradual stops in a safe area, without locking the wheel.
