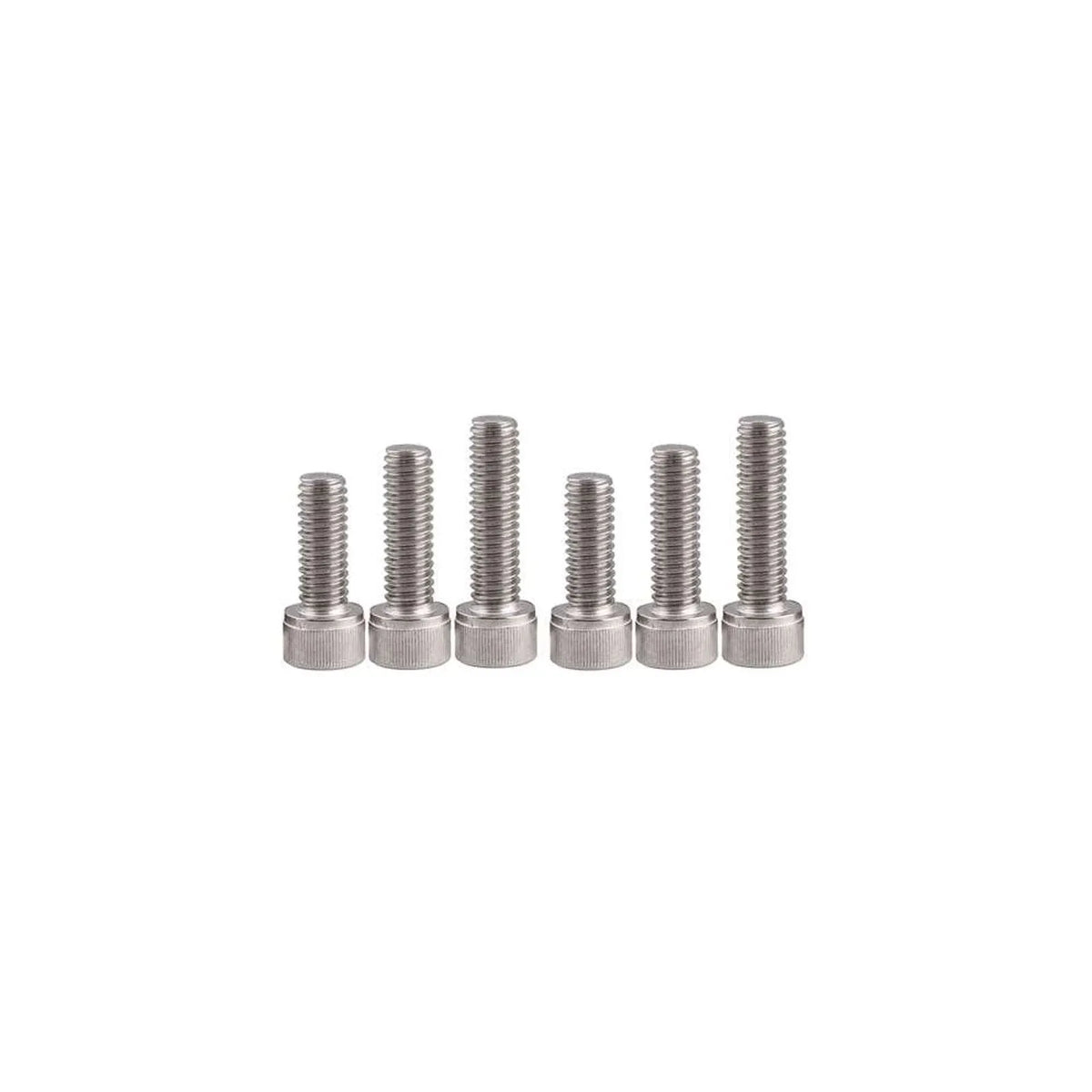

Set of 6 M5 bolts for ULIP 10×3 solid tire assembly

Six M5 screws for a matching solid tire ring

The set includes two each of M5 screws in lengths of 20, 30, and 35 mm. The 201 stainless steel screws are intended for a specific assembly of the ULIP solid tire with a red fastening ring.

Features and fitment

• Six Allen screws in three lengths.
• Two each of M5×20, M5×30, and M5×35 screws.

Approximate dimensions

• M5 screws: lengths 20 mm, 30 mm, and 35 mm.
• Two screws of each length.

Use them only for the corresponding 10 × 3 or 255 × 80 (80/65-6) version. Do not arrange the different lengths arbitrarily; a screw that is too short will not grip enough thread, and one that is too long can hit internal parts.

Correct order of fastening parts

• Before disassembling, note the order and position of the parts. Check the threads and use the appropriate tool that will not damage the head or nut.
• First, tighten the screws or nuts by hand, then use the torque specified in the assembly manual. After assembly, check for secure fastening and free rotation of moving parts.
