Tubeless valve PVR50 with 90-degree angle for electric scooter

Valve PVR50 with 90-degree bend

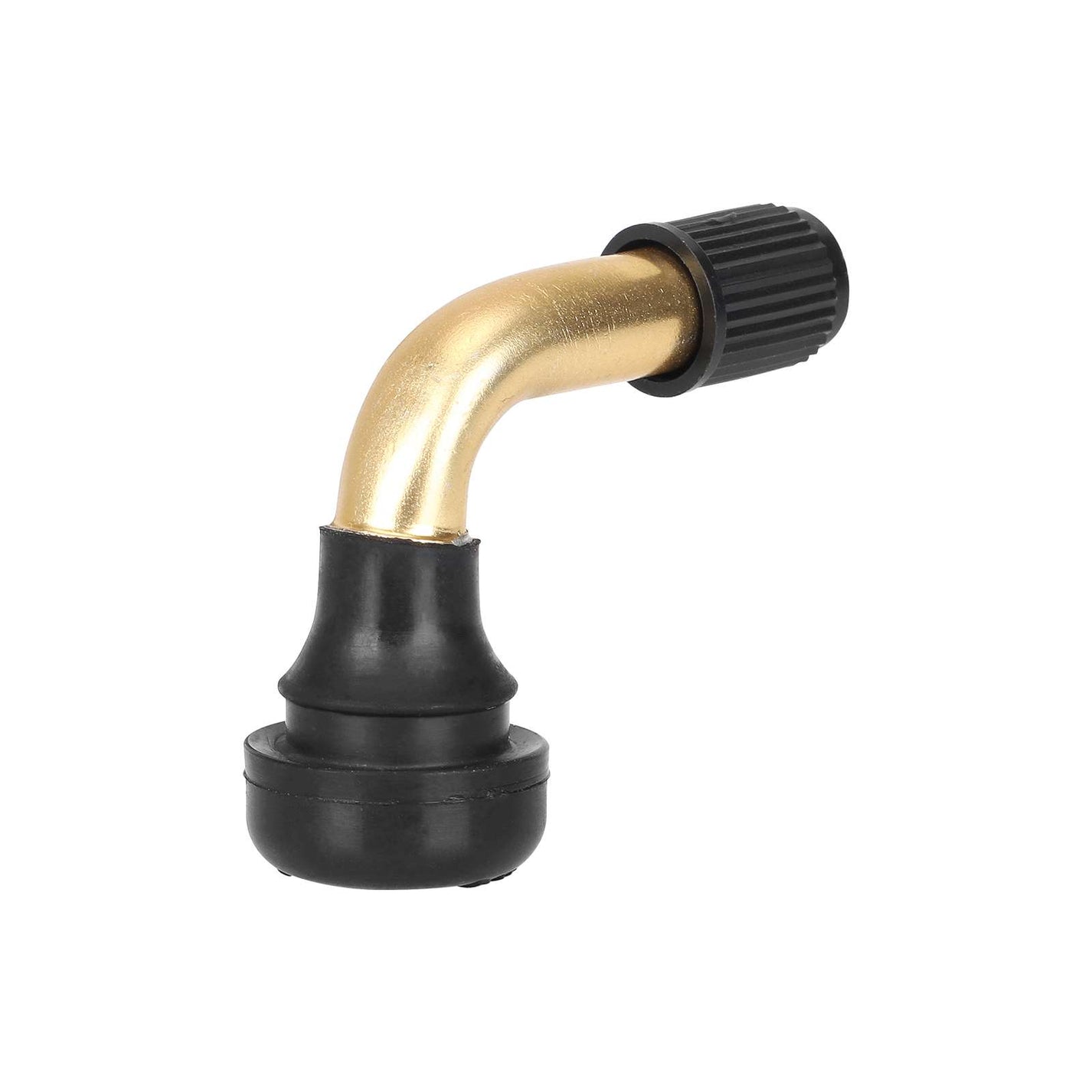

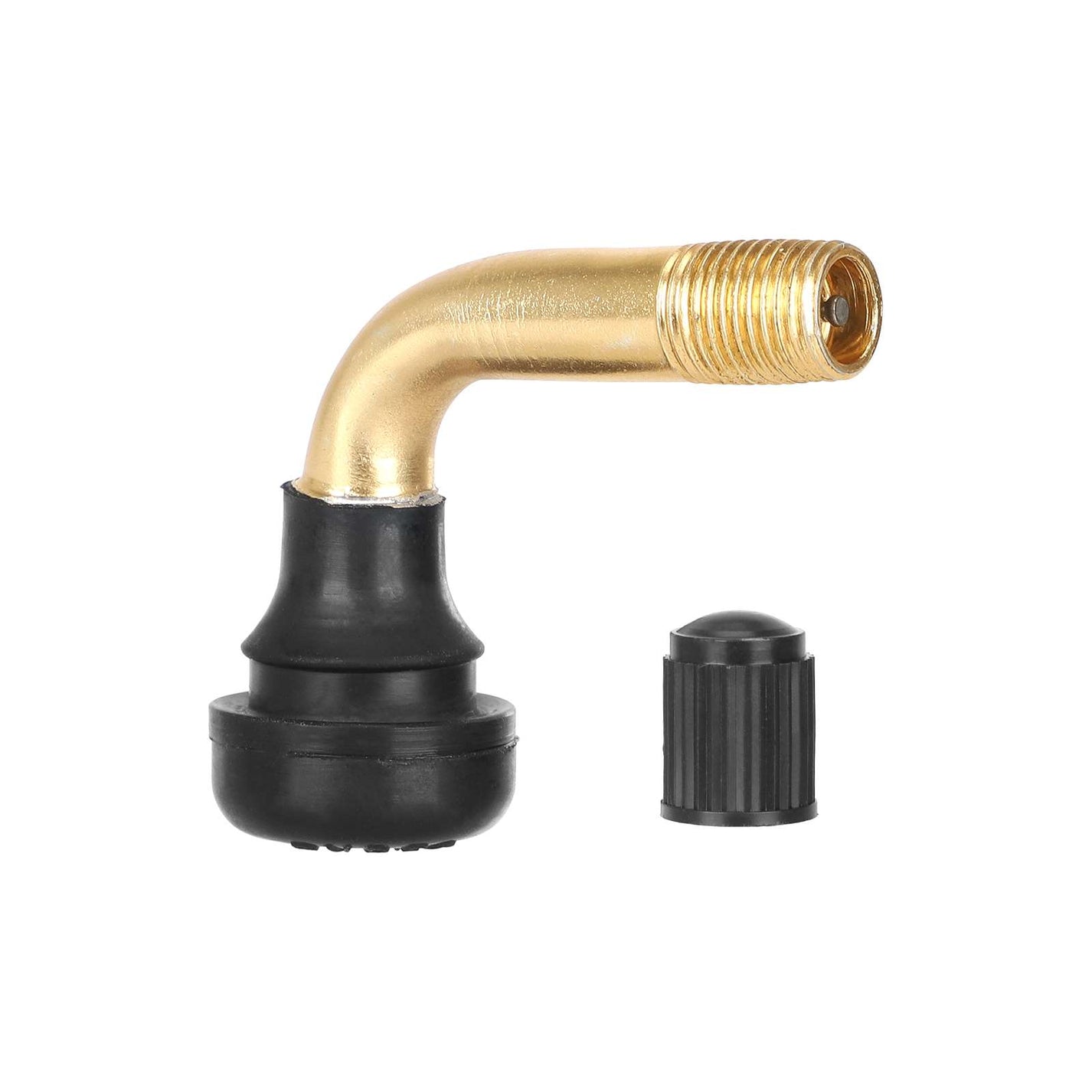

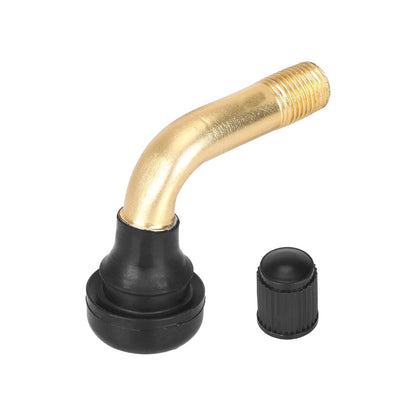

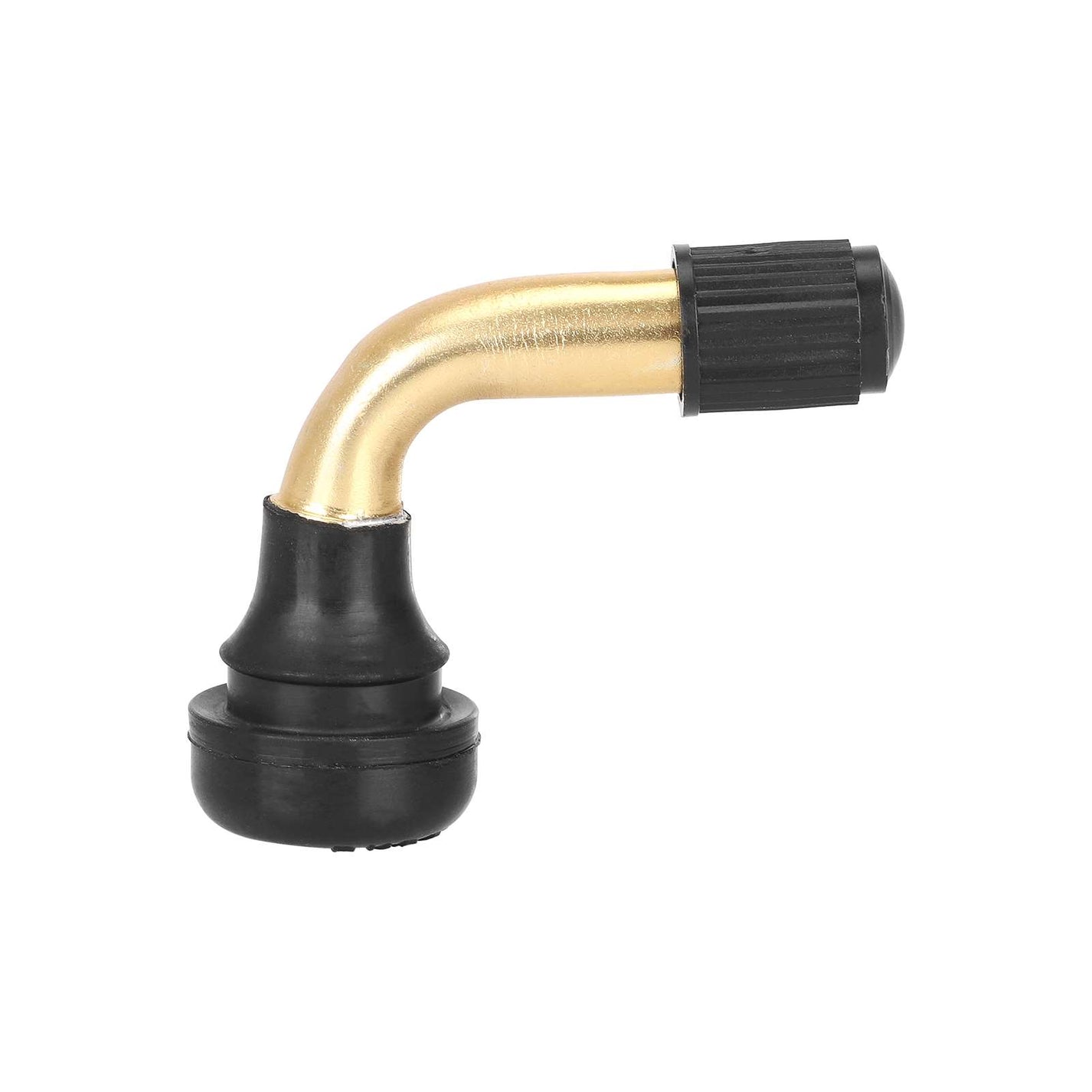

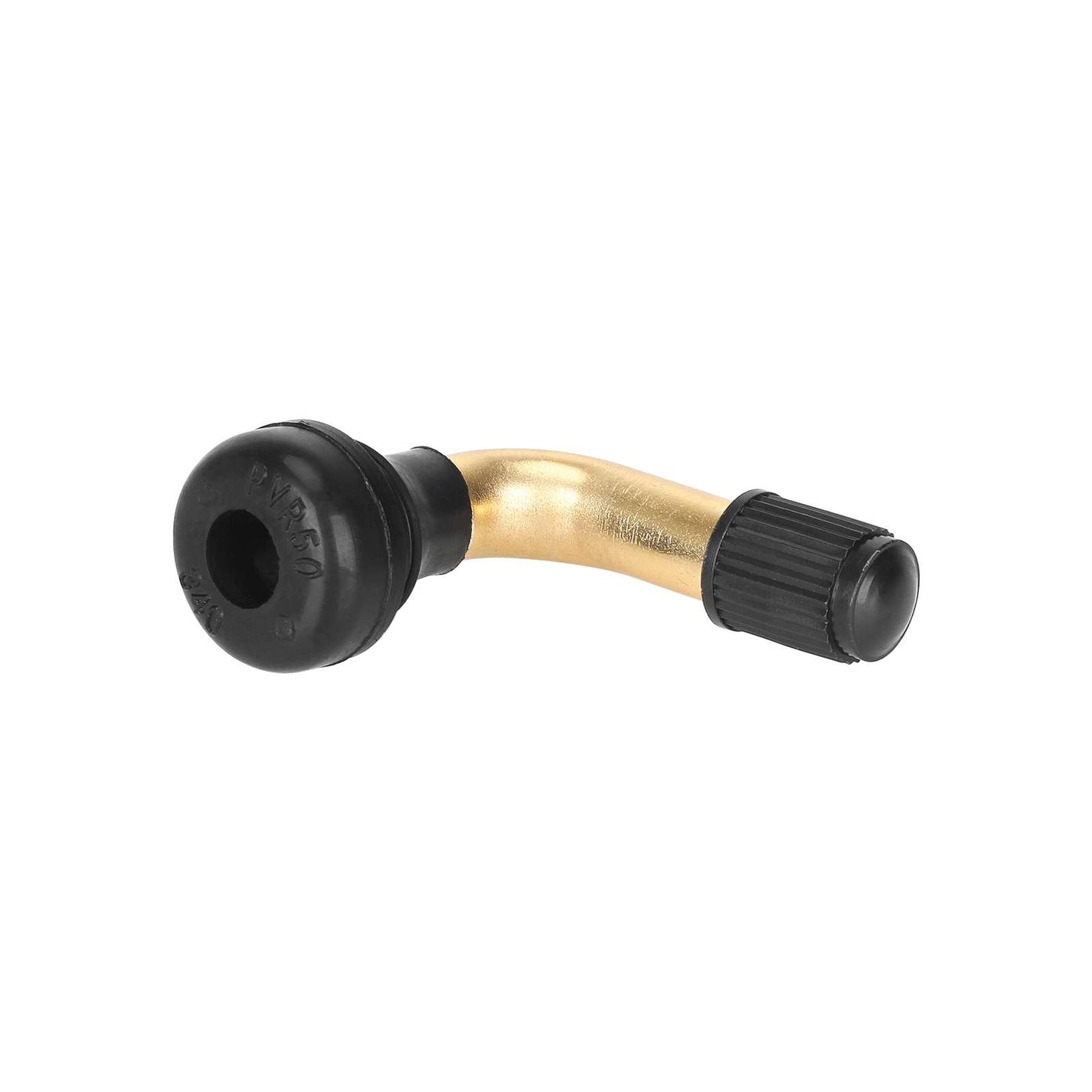

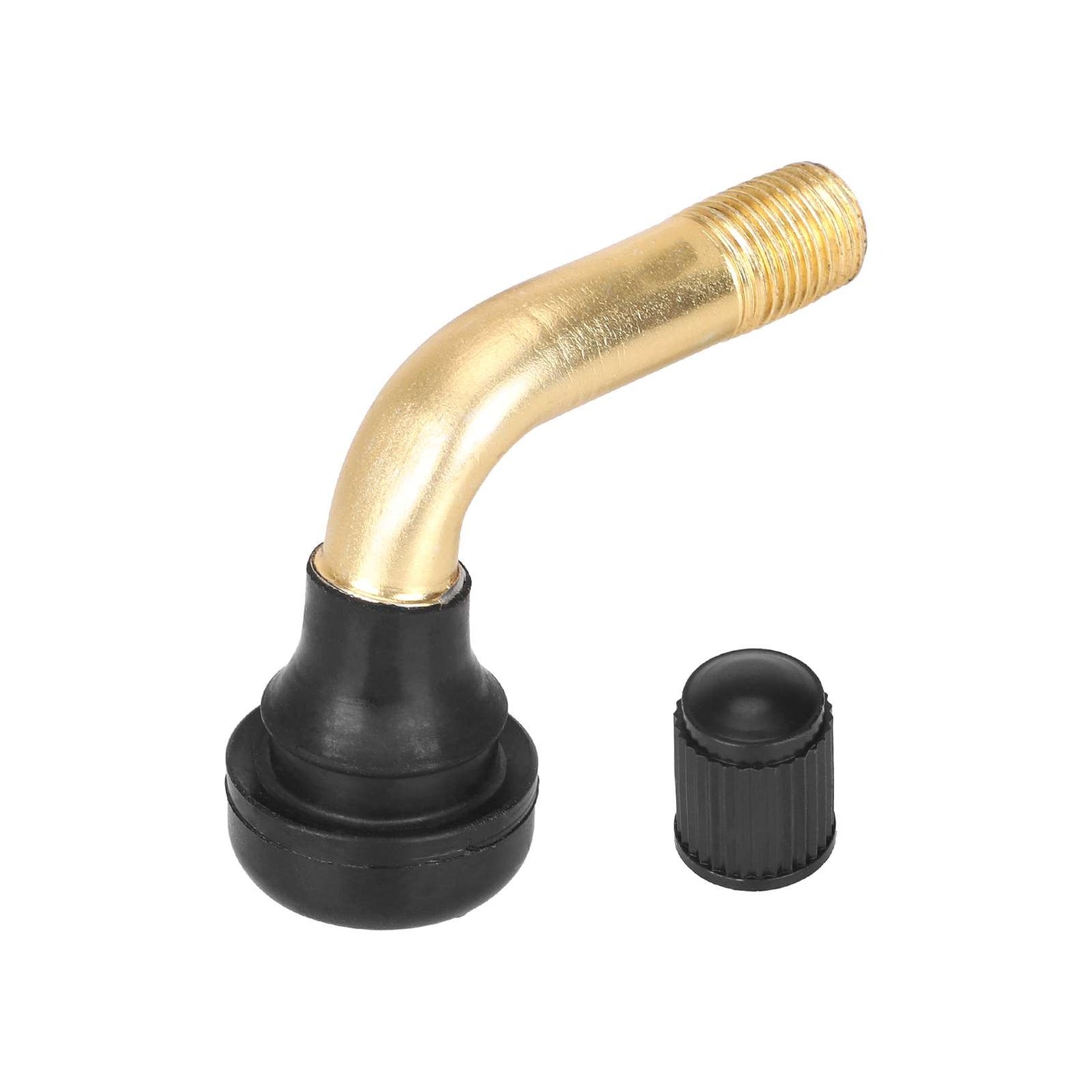

The tubeless valve PVR50 has a metal outlet bent at a right angle and a black rubber base. The shape moves the inflation connector away from the rim surface.

Features and compatibility

• Tubeless valve PVR50 with 90° bend and cap.

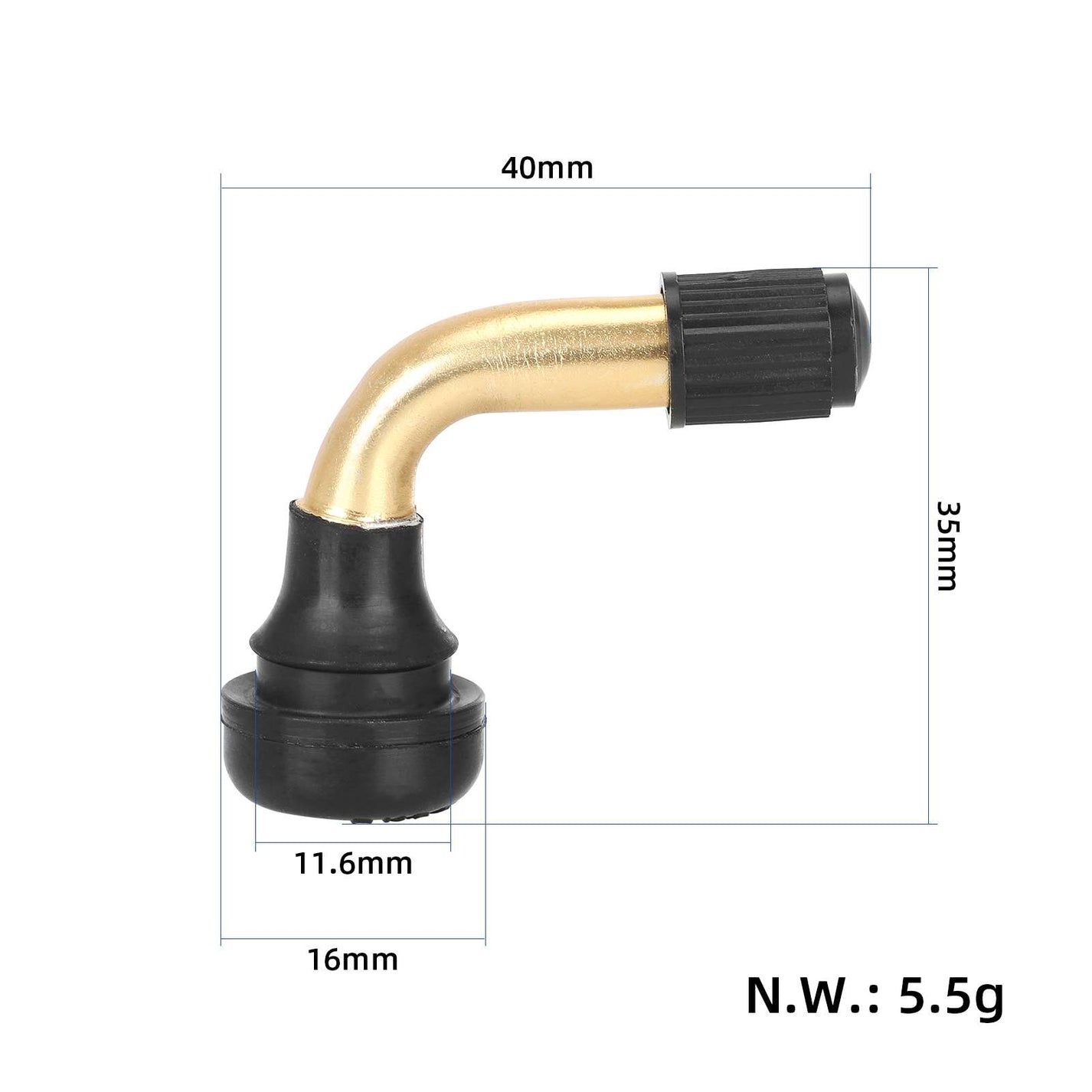

Approximate dimensions

• Valve: 40 × 35 mm.
• Base diameter: 16 mm.
• Clamping part diameter: 11.6 mm.
• Angle: 90°.

The entire valve measures approximately 40 × 35 mm. Check the dimension of the opening and the direction of the outlet so that the cap does not hit the motor or forks while the wheel is spinning.

Replacement and leak check

• Completely deflate the tire and allow access to the valve. Inspect the opening and remove any damaged seal.
• Insert the new valve with a suitable tool, without damaging the sealing part. After refilling, check the seal at the base and core and screw on the cap.
