Original throttle for electric scooter Xiaomi 5 Max GL

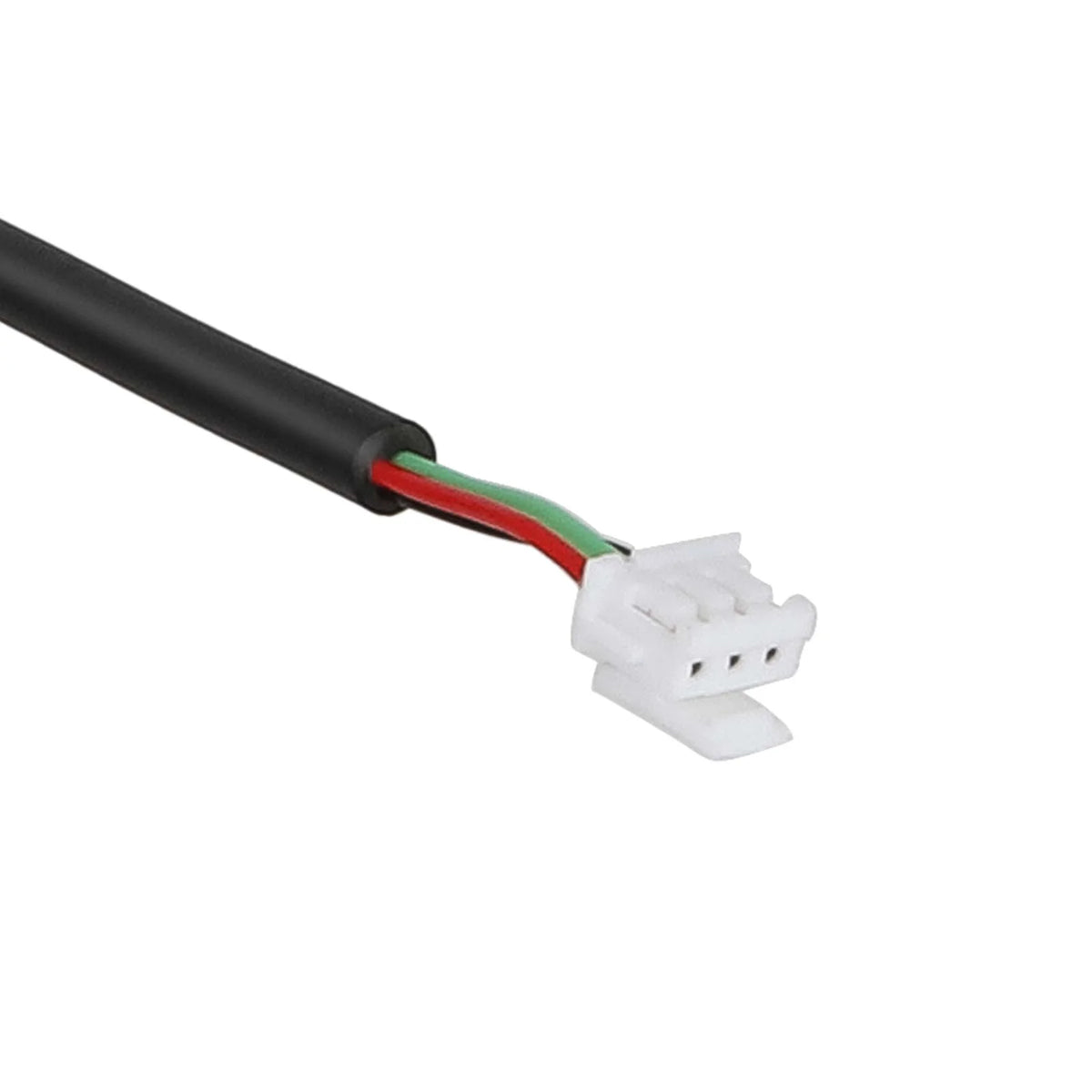

Thumb throttle with a white 3-pin connector

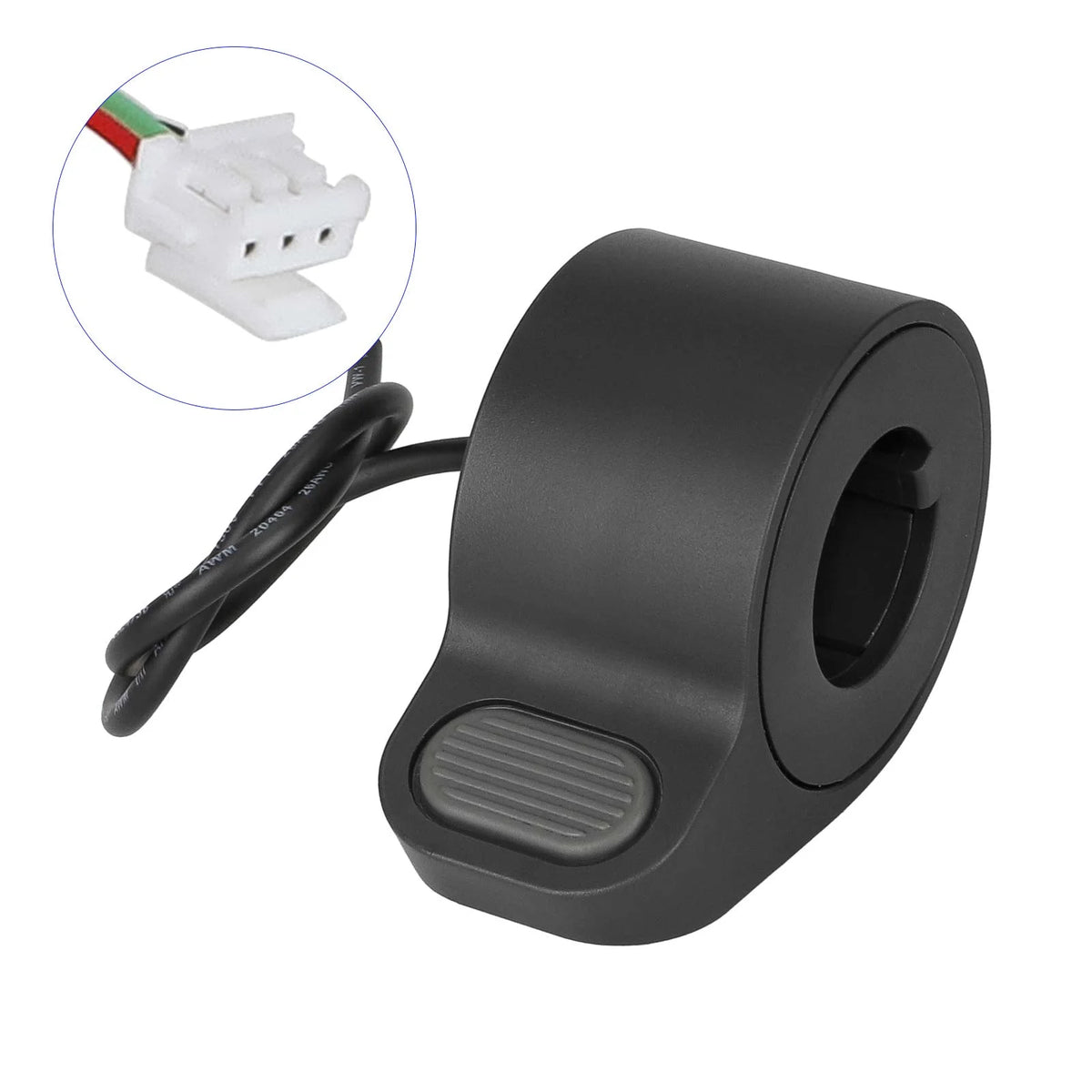

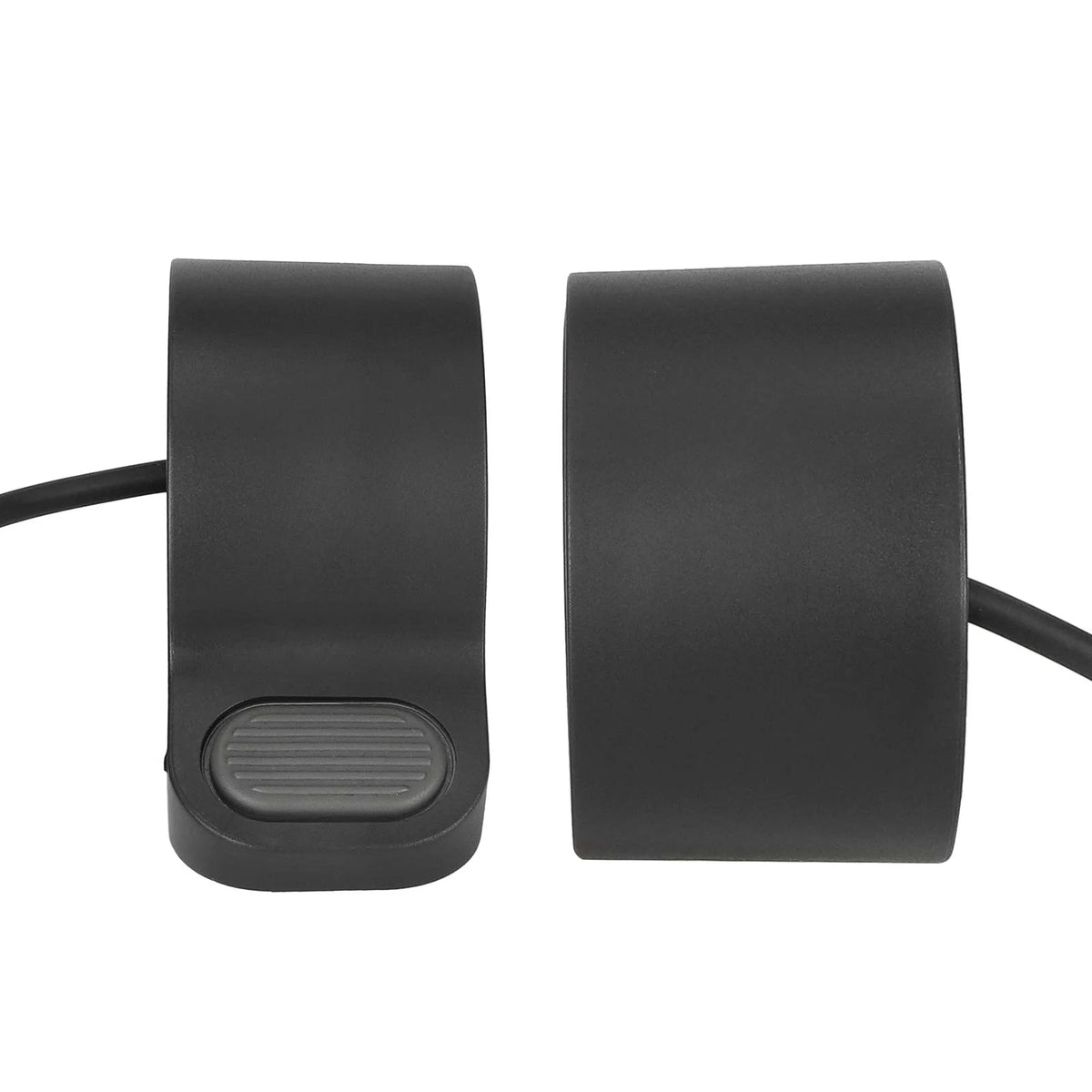

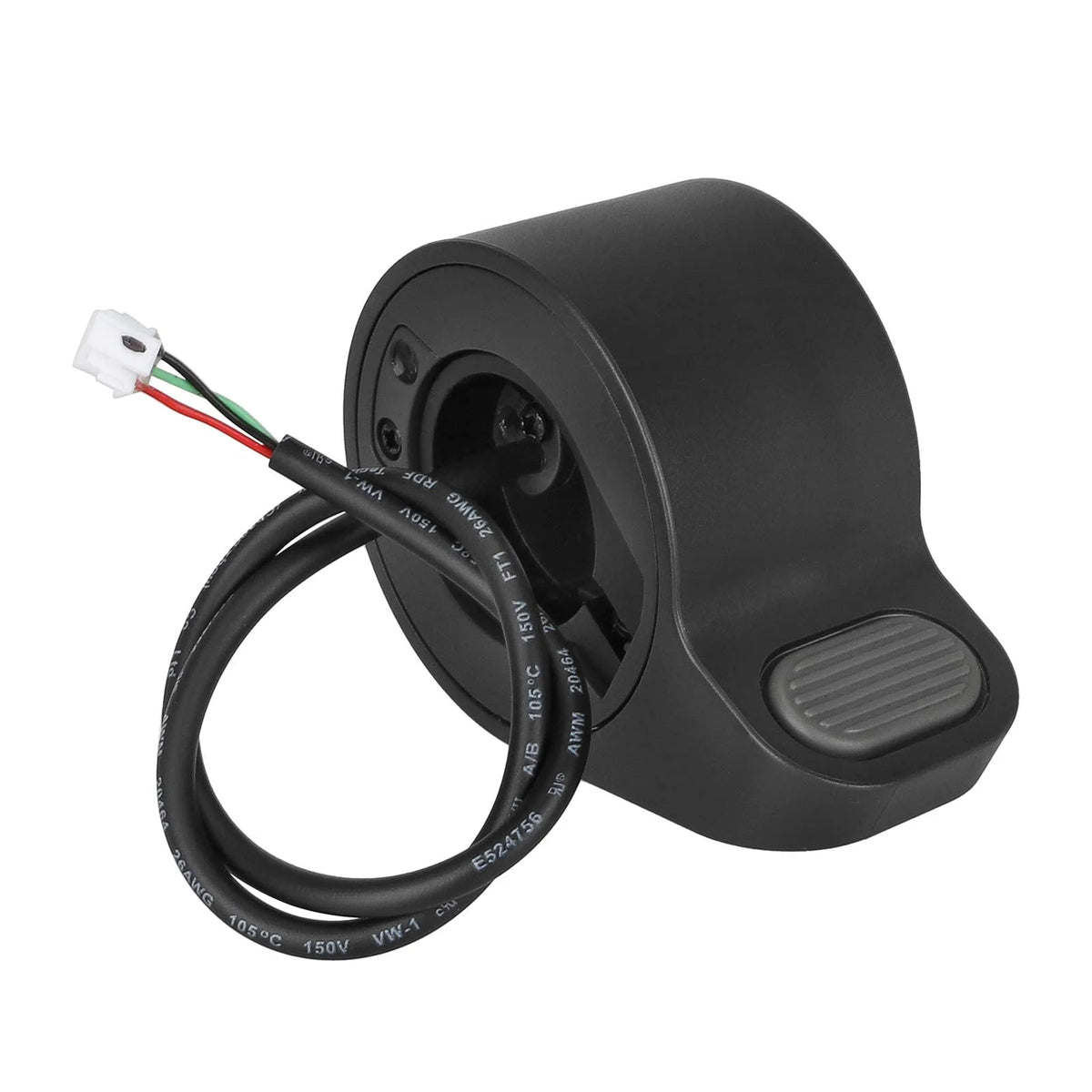

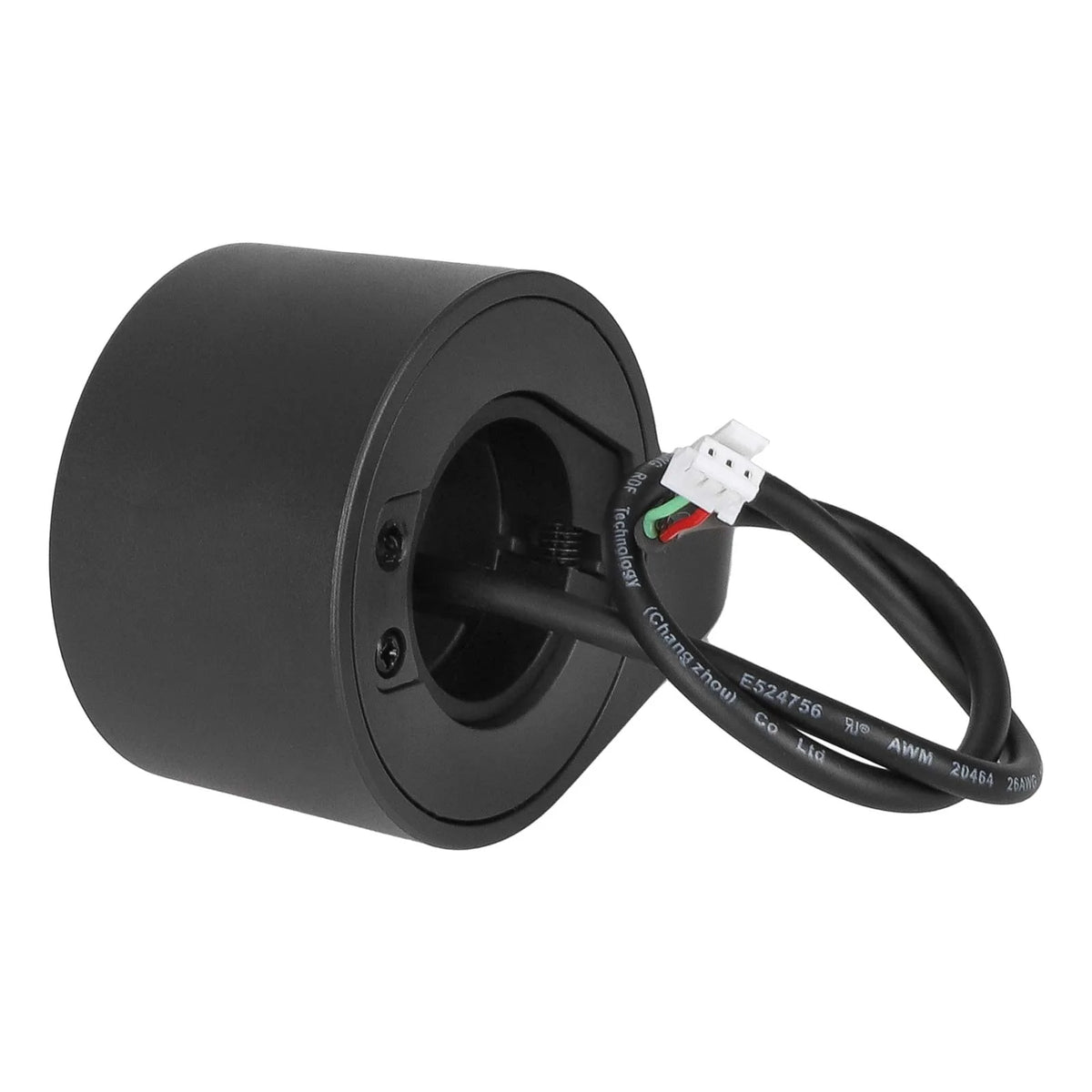

The black throttle lever features a grey non-slip thumb surface and a white 3-pin connector. The compact housing measures approximately 65 × 45 × 28.5 mm.

Features and fitment

• Model: Xiaomi 5 Max GL.
• Thumb throttle with a grey grip surface and white 3-pin connector.
• Cable approx. 26 cm; mount approx. 22.5 mm.

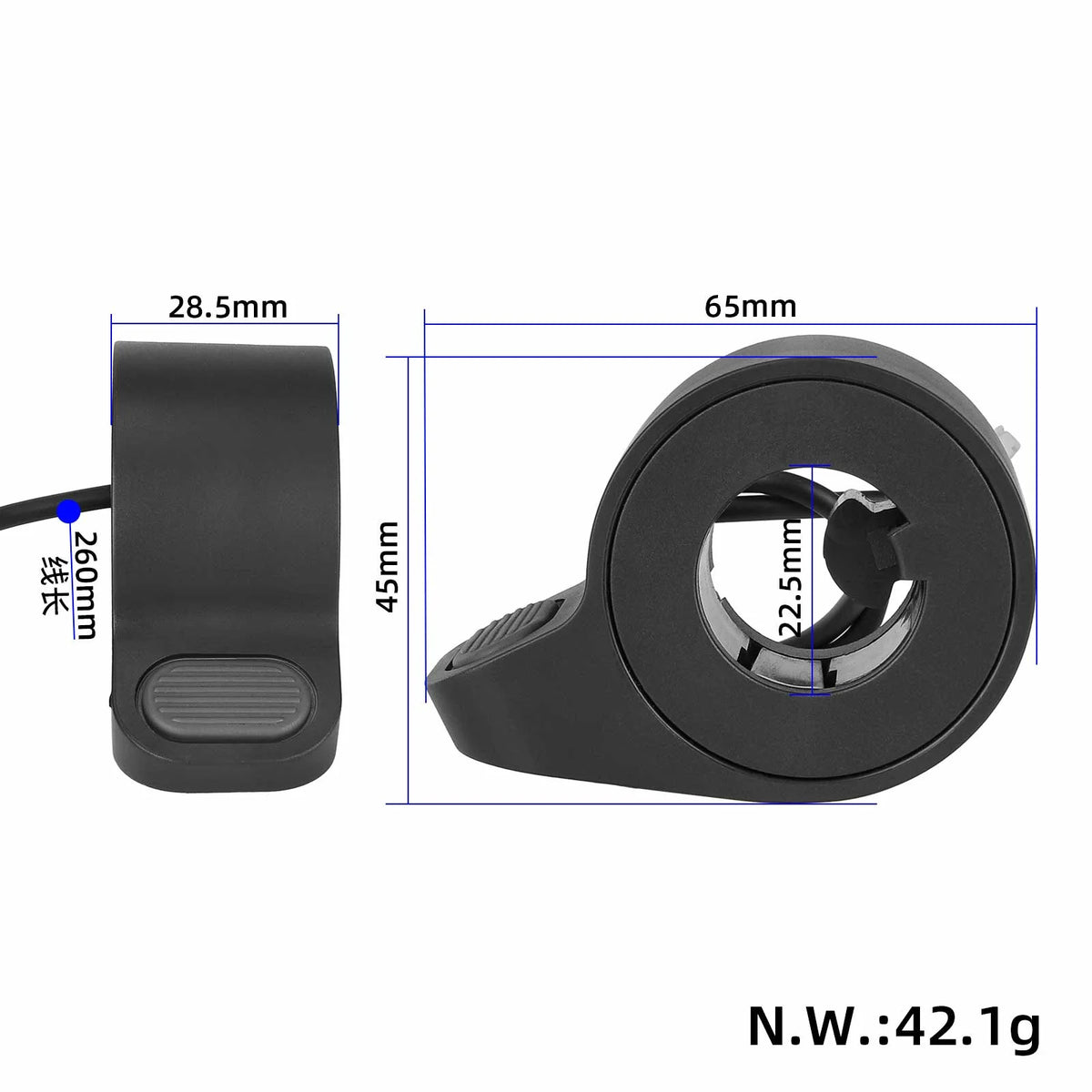

Approximate dimensions

• Lever: 65 × 45 × 28.5 mm.
• Clamp diameter: 22.5 mm.
• Cable length: 260 mm.

The cable length is approximately 26 cm. Before ordering, compare the connector and cable reach; after attachment, verify that the thumb lever returns without sticking and does not hit the adjacent grip.

Installation and response test

• Before replacement, power off the vehicle and disconnect the power supply according to the service procedure. Compare the pins and connect the connector without forcing it.
• Route the cable without tension when turning the handlebars fully. Secure the lever so that the moving part has sufficient clearance and returns immediately after being released.
• Before riding, verify the throttle response and brake cut-off in a controlled environment. Do not use the lever if it sticks or is damaged.
