Original throttle lever for electric scooter Xiaomi 5

Thumb throttle with a white 3-pin connector

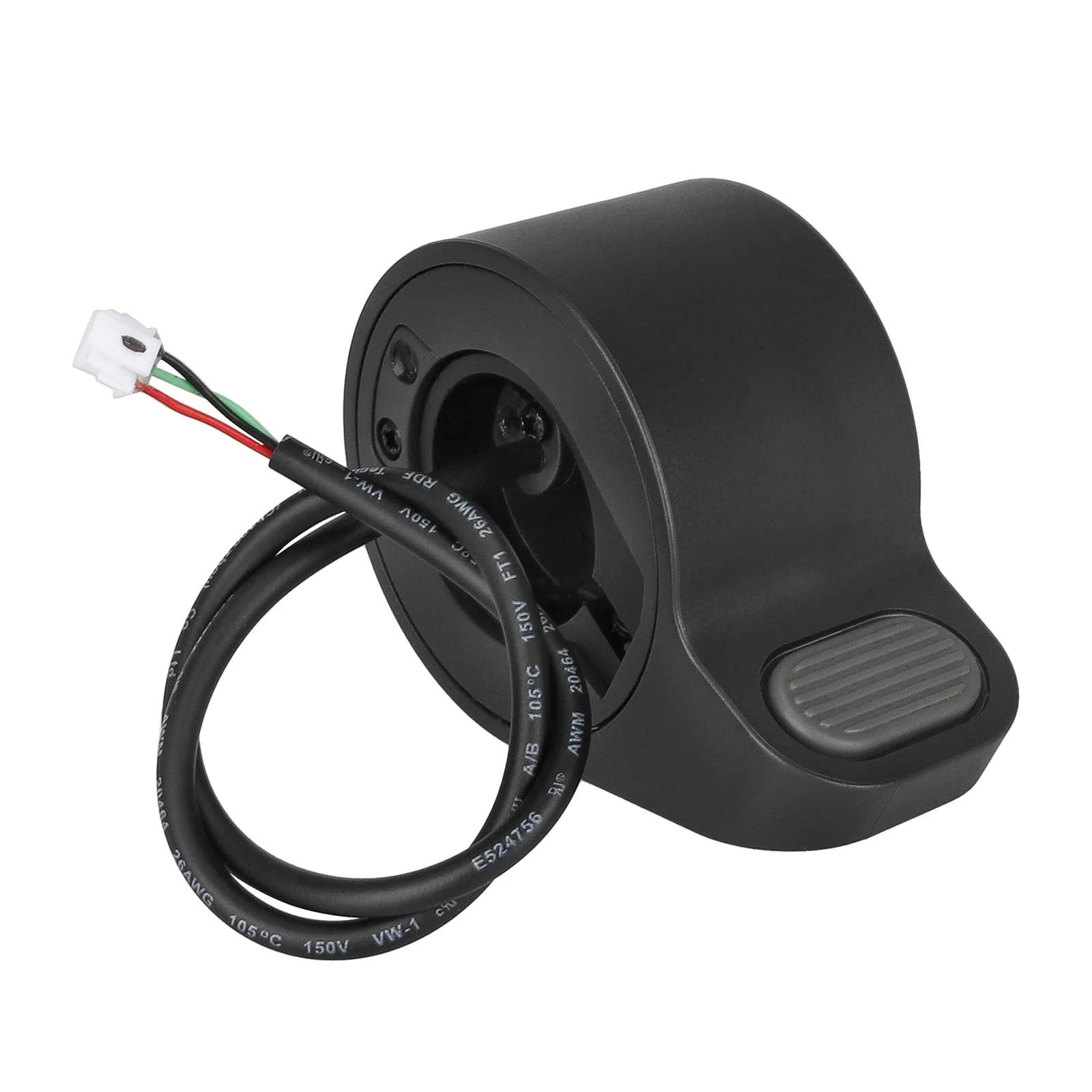

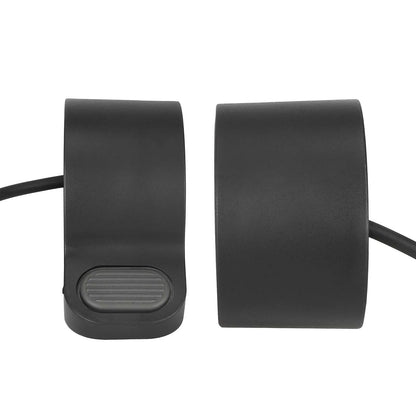

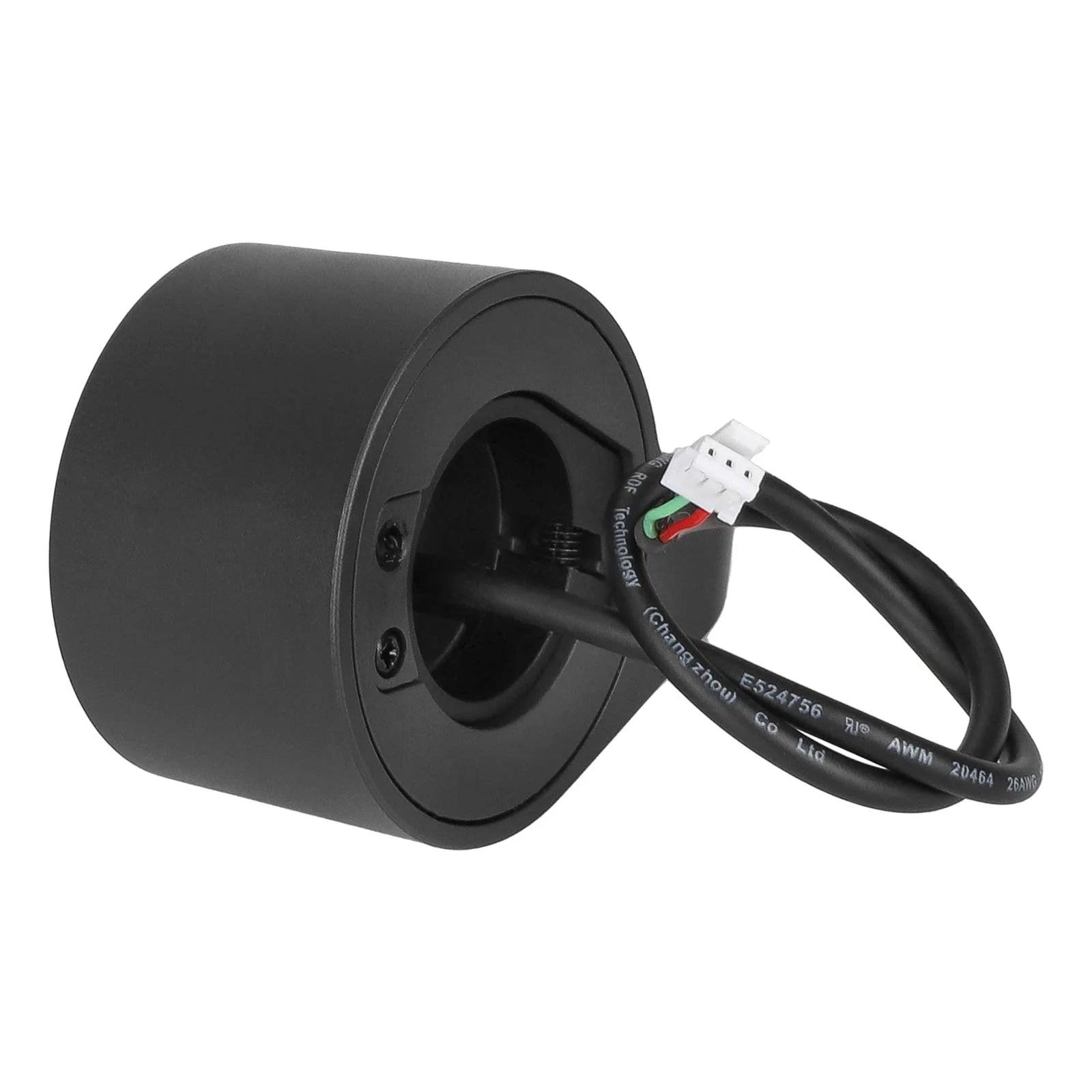

The black throttle lever features a grey non-slip thumb surface and a white 3-pin connector. The compact housing measures approximately 65 × 45 × 28.5 mm.

Features and fitment

• Model: Xiaomi 5.

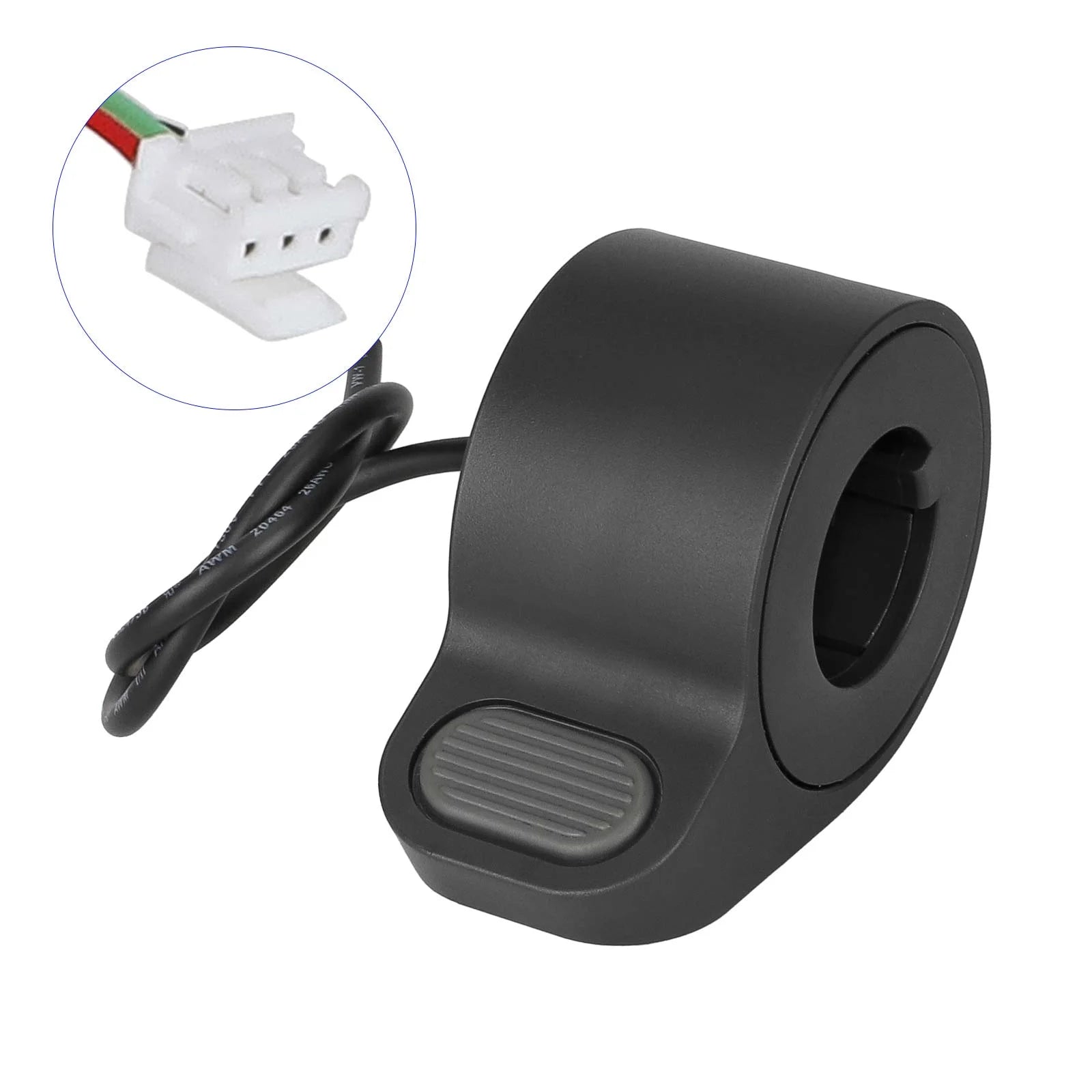

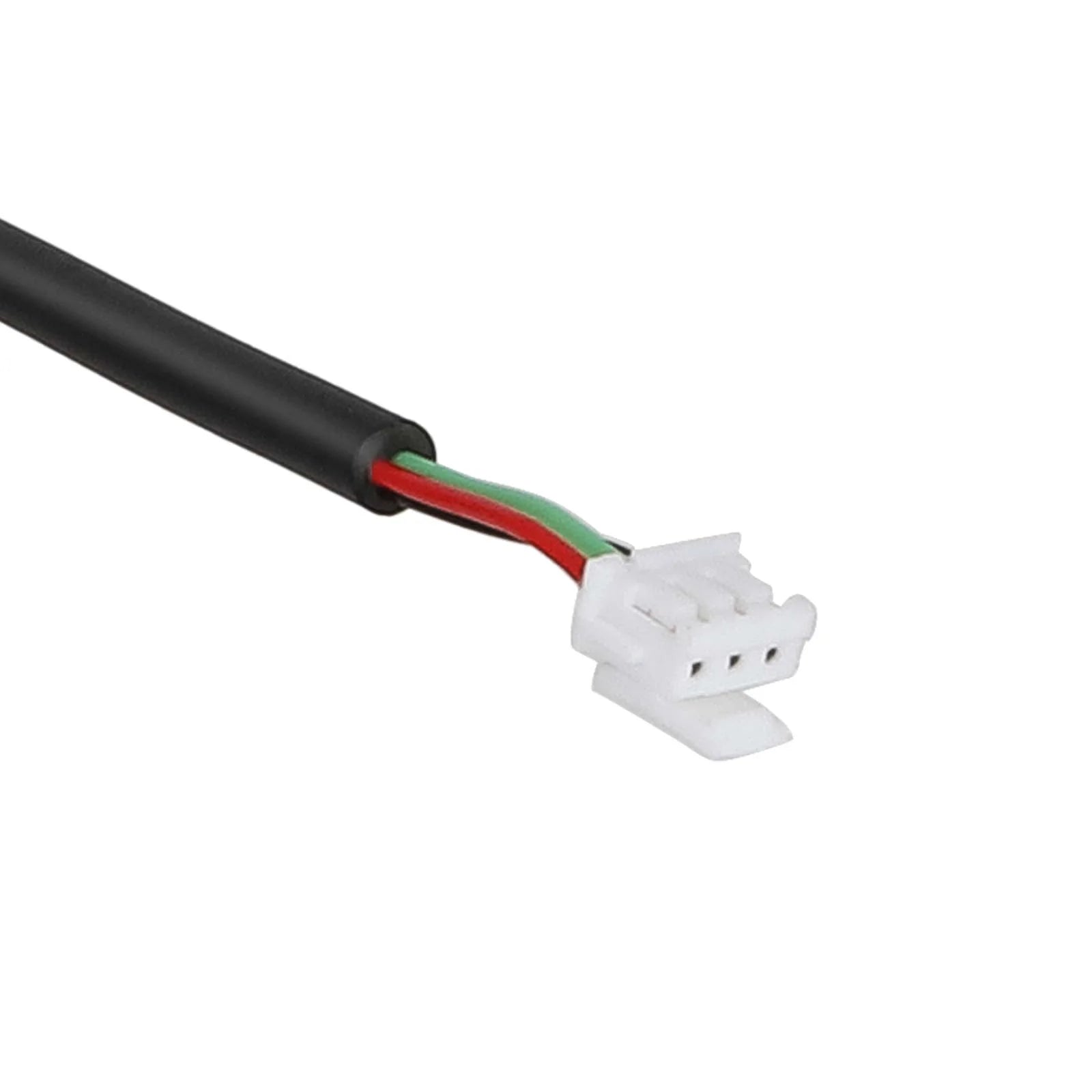

• Thumb throttle with a grey grip surface and white 3-pin connector.
• Cable approximately 26 cm; mount approximately 22.5 mm.

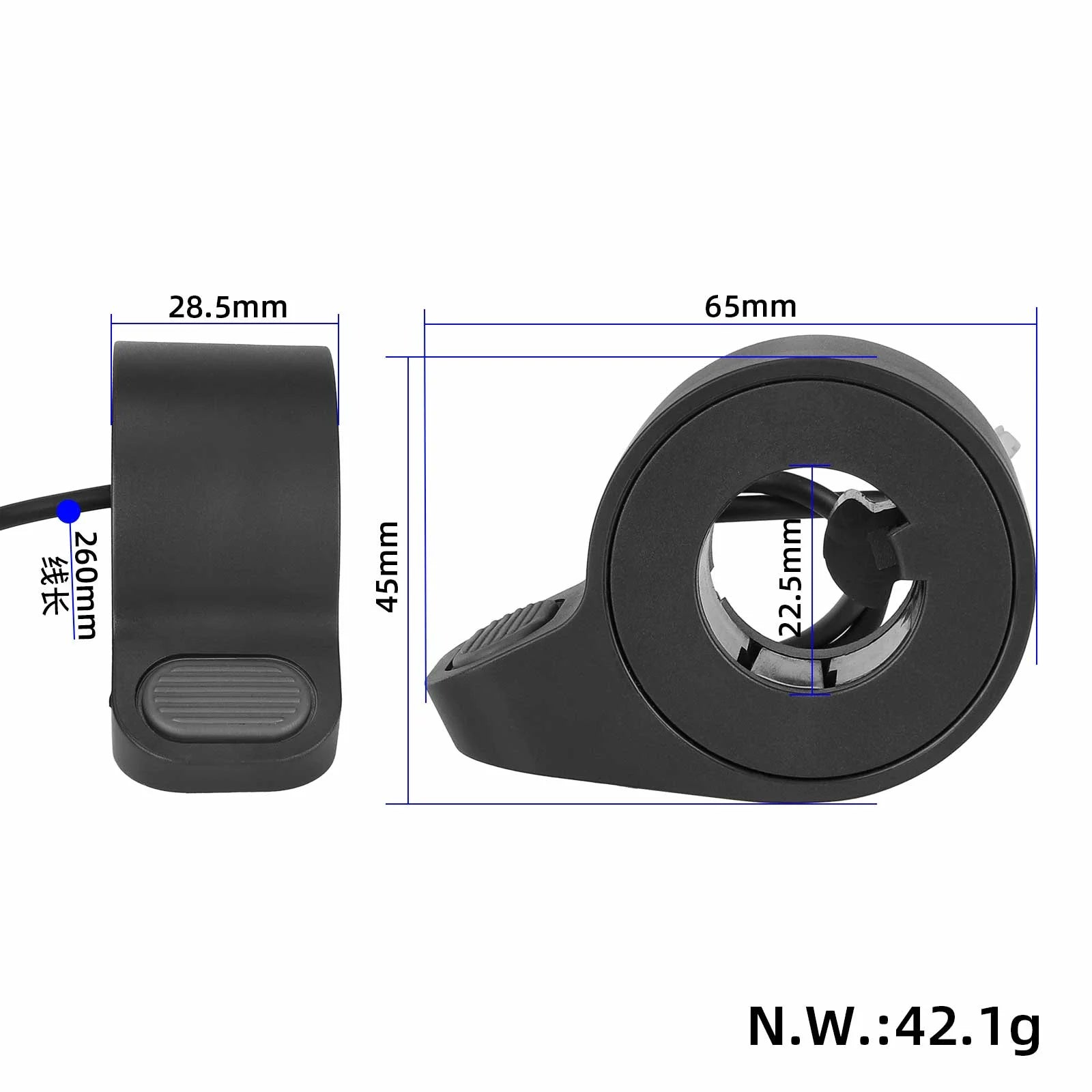

Approximate dimensions

• Lever: 65 × 45 × 28.5 mm.
• Clamp diameter: 22.5 mm.
• Cable length: 260 mm.

The cable length is approximately 26 cm. Before ordering, compare the connector and cable reach; after attachment, check that the thumb lever returns without sticking and does not hit the adjacent grip.

Installation and response check

• Before replacement, switch off the vehicle and disconnect the power supply according to the service procedure. Compare the contacts and plug in the connector without forcing it.
• Route the cable without tension at full handlebar rotation. Secure the lever so that the moving part has enough clearance and returns immediately upon release.
• Before riding, check the throttle response and brake motor cut-off in a controlled environment. Do not use sticking or damaged levers.
