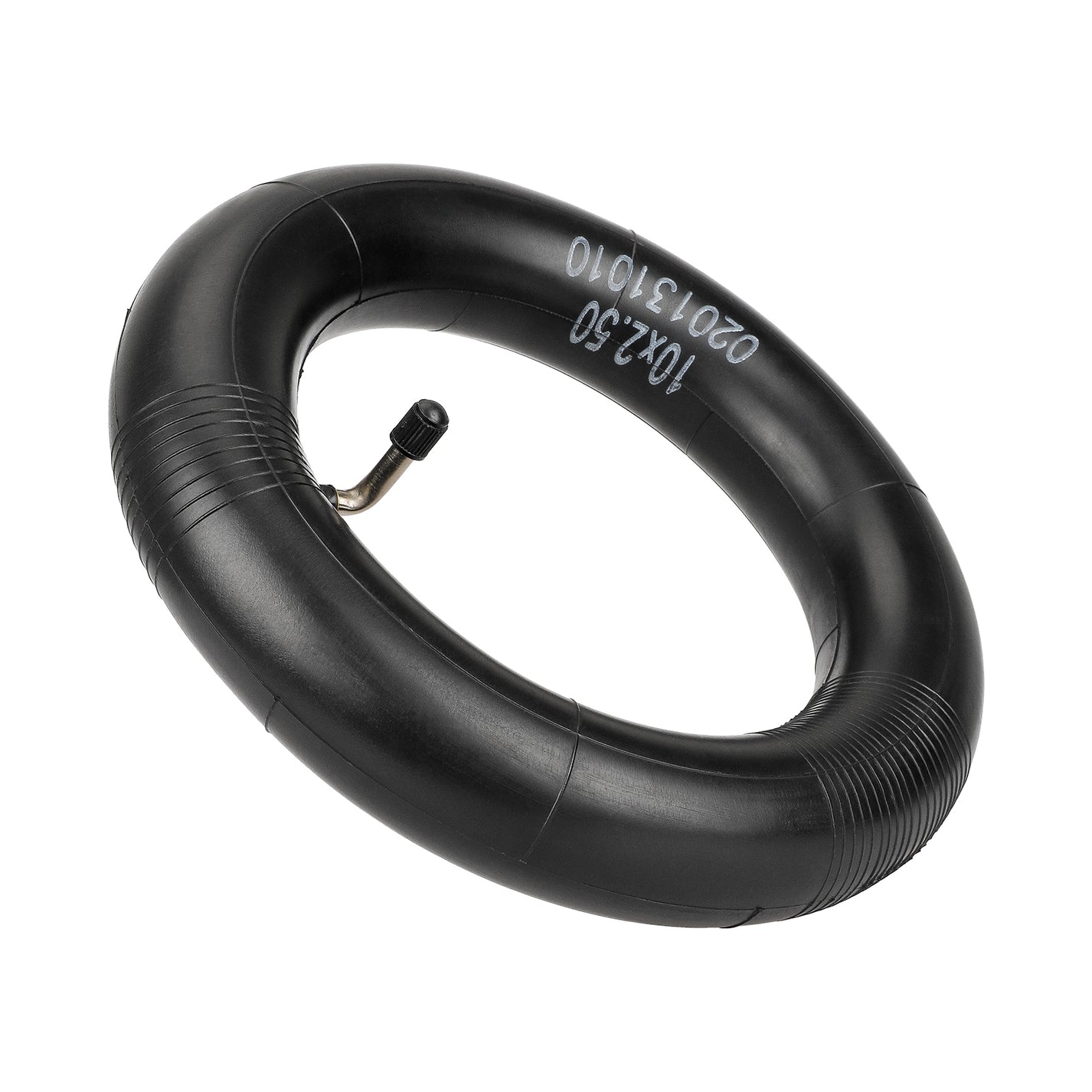

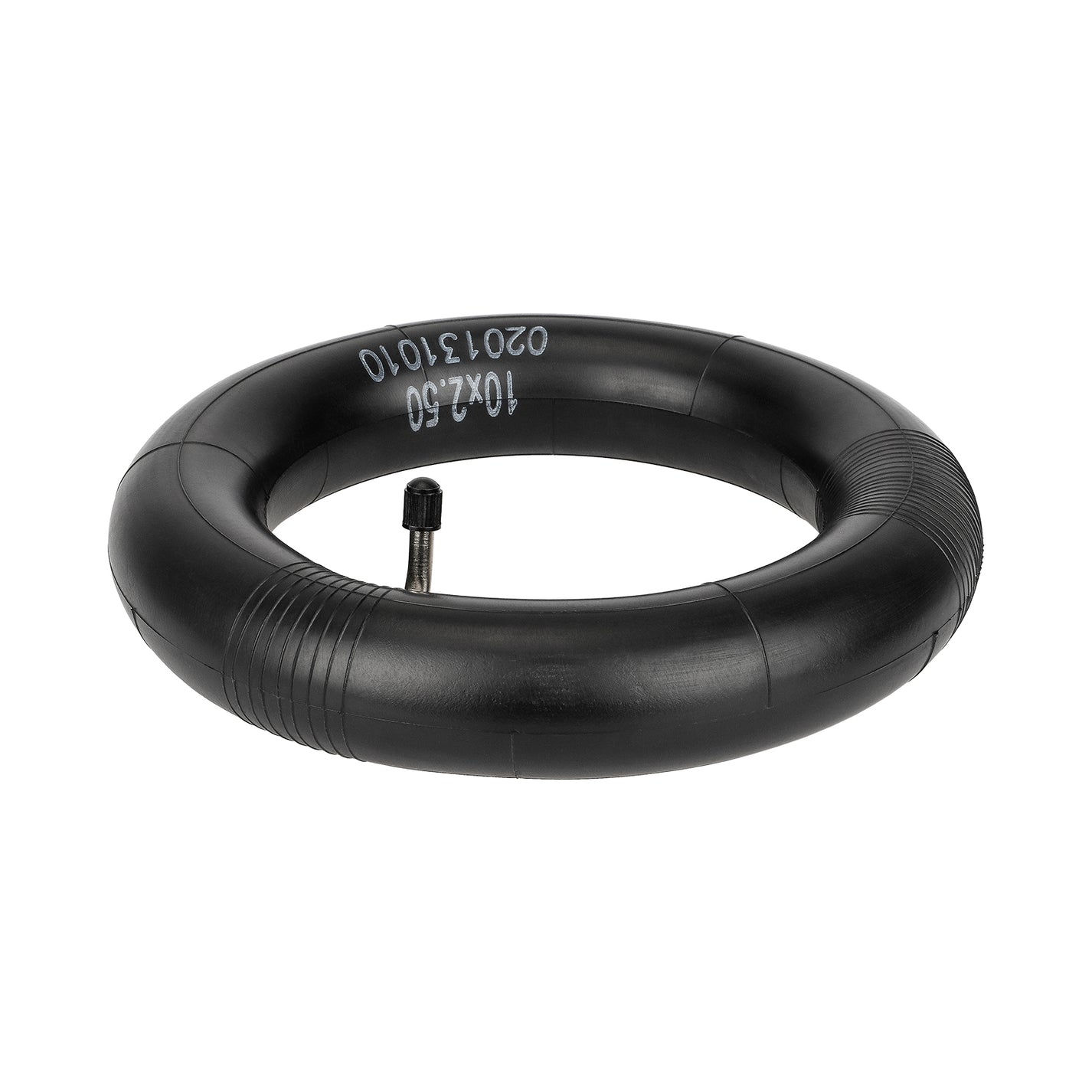

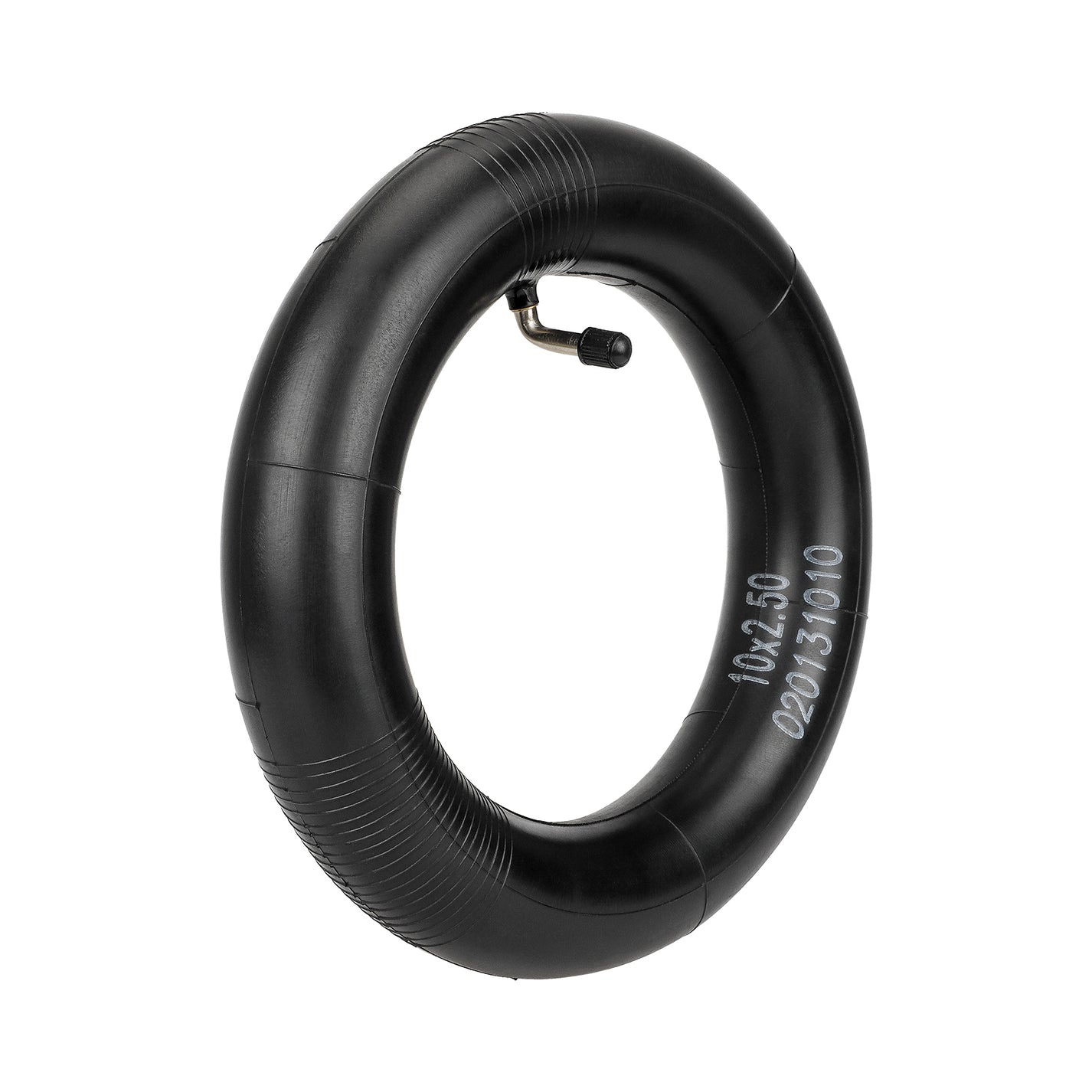

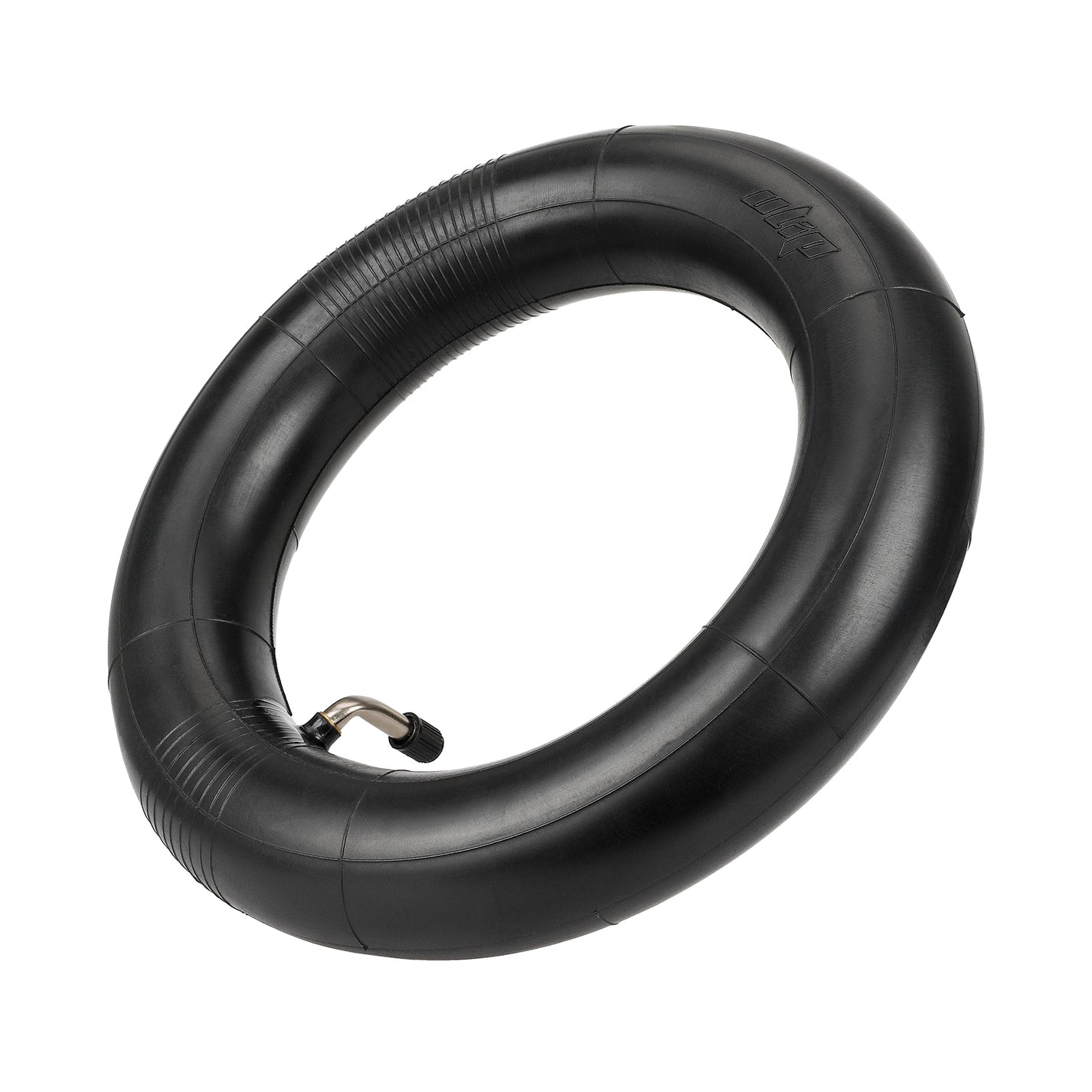

Reinforced 10 × 2.5 inner tube with 90° valve for VSETT 8 electric scooter

ULIP reinforced inner tube with angled valve

The ULIP 10 × 2.5 inner tube features a reinforced design and a metal valve with a 90-degree bend. It is designed for compatible 10-inch wheel assemblies that use an inner tube.

Features and compatibility

• Model: VSETT 8.

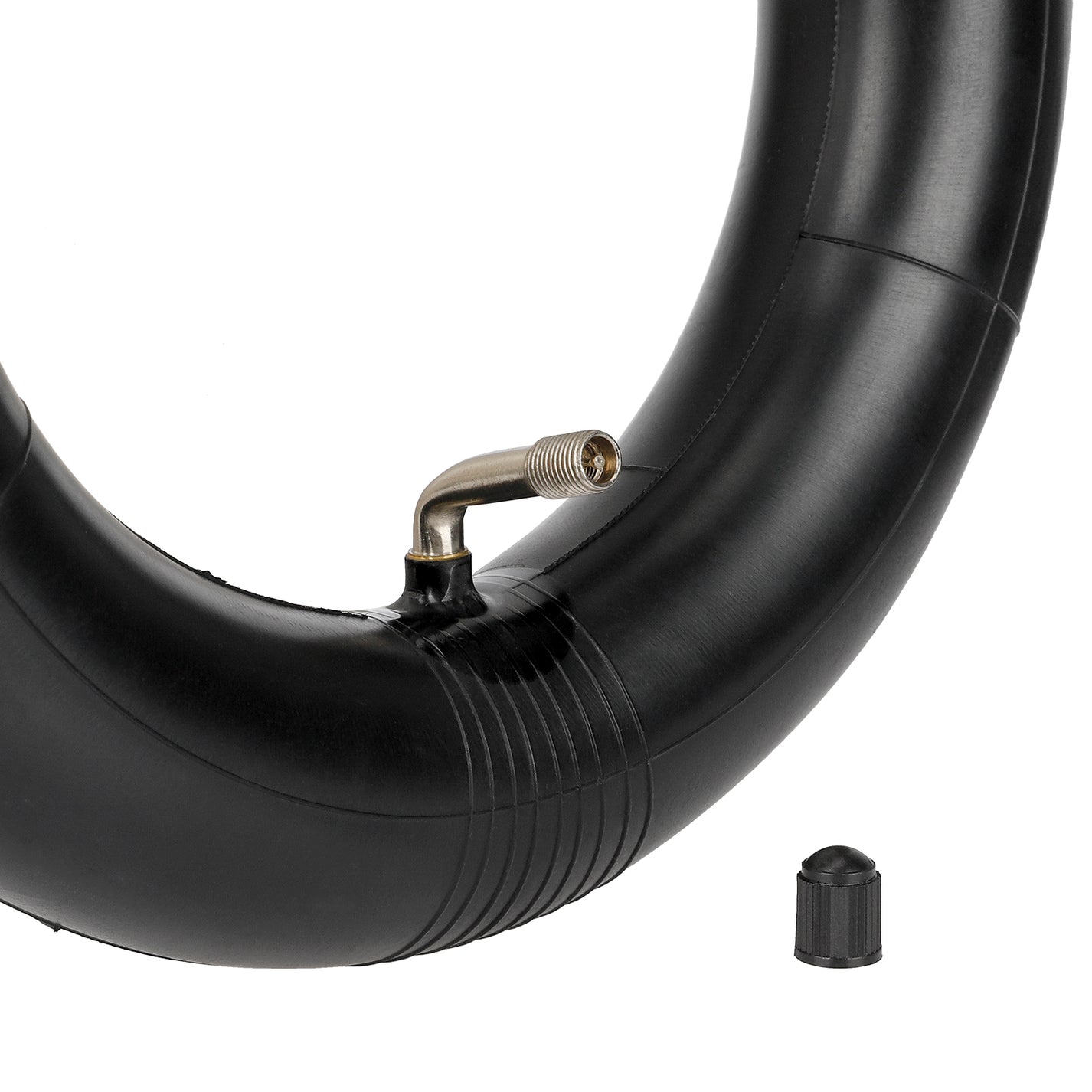

• Reinforced ULIP 10 × 2.5 inner tube; 90° angled valve.

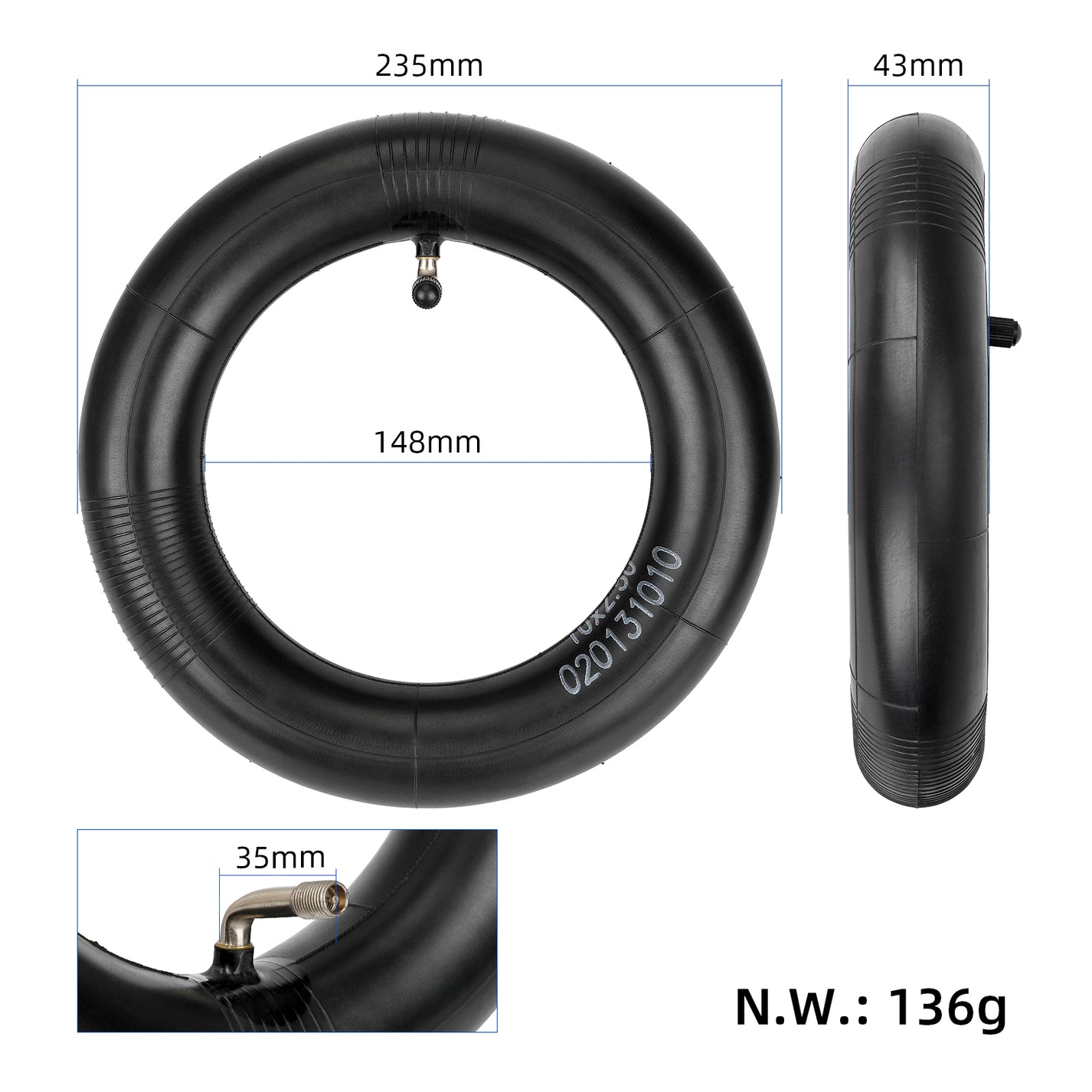

Approximate dimensions

• Outer tube diameter: 235 mm.
• Inner tube diameter: 148 mm.
• Tube width: 43 mm.
• Angled valve: length 35 mm, angle 90°.

In addition to the tire dimension, check the valve orientation and its accessibility relative to the motor. The valve should protrude from the rim opening without tension, with enough clearance to attach a pump.

Replacing without pinching the tube

• Before replacing, find the cause of the puncture in the tire or rim. A foreign object, sharp edge, or damaged rim strip can damage the new inner tube immediately.
• Inflate the tube slightly, align the valve with the opening, and distribute it evenly within the tire. Be careful not to pinch it with mounting tools when seating the tire bead.
• Inflate to the pressure allowed for the wheel assembly. Check the valve position and seal; do not use the valve cap to stop leaks.
