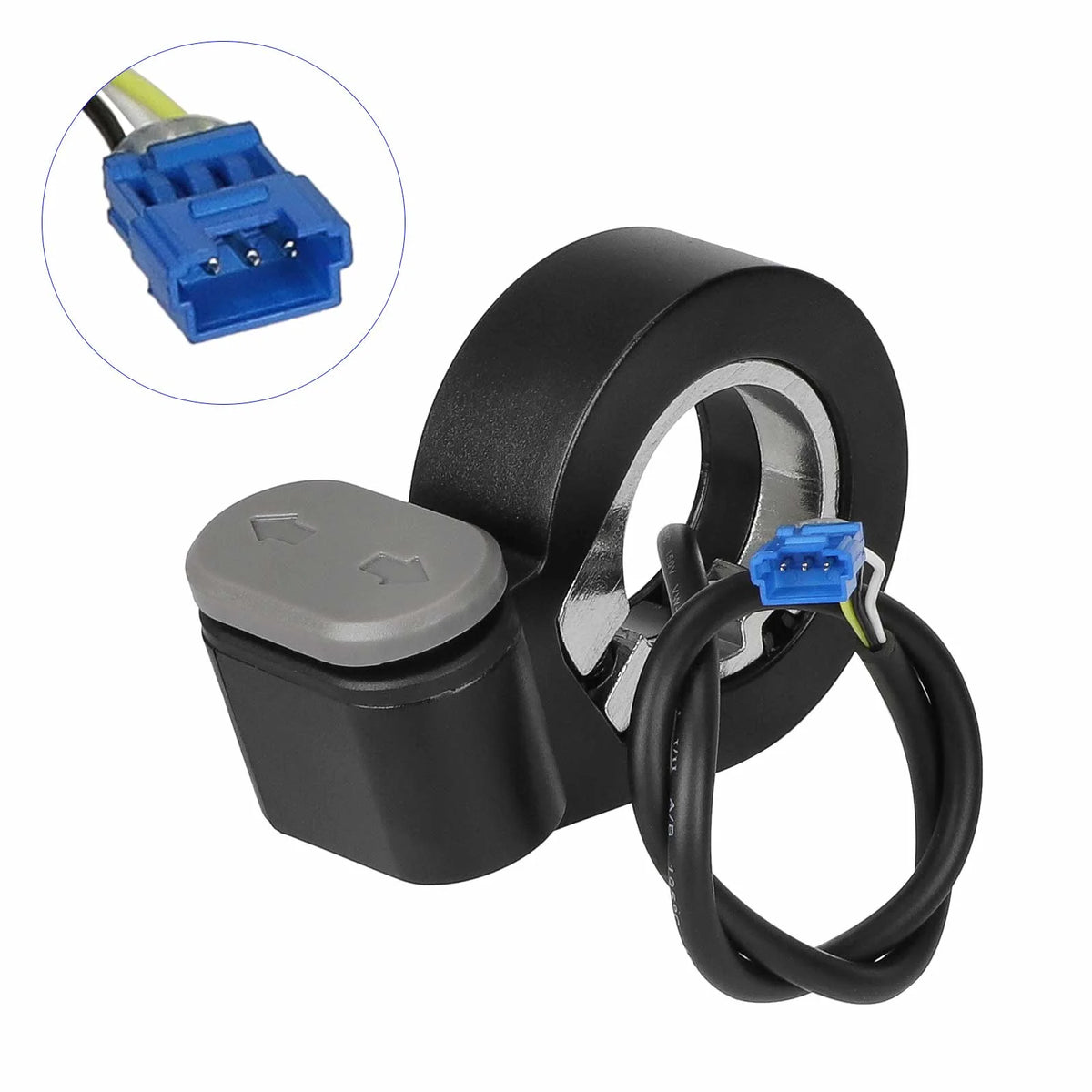

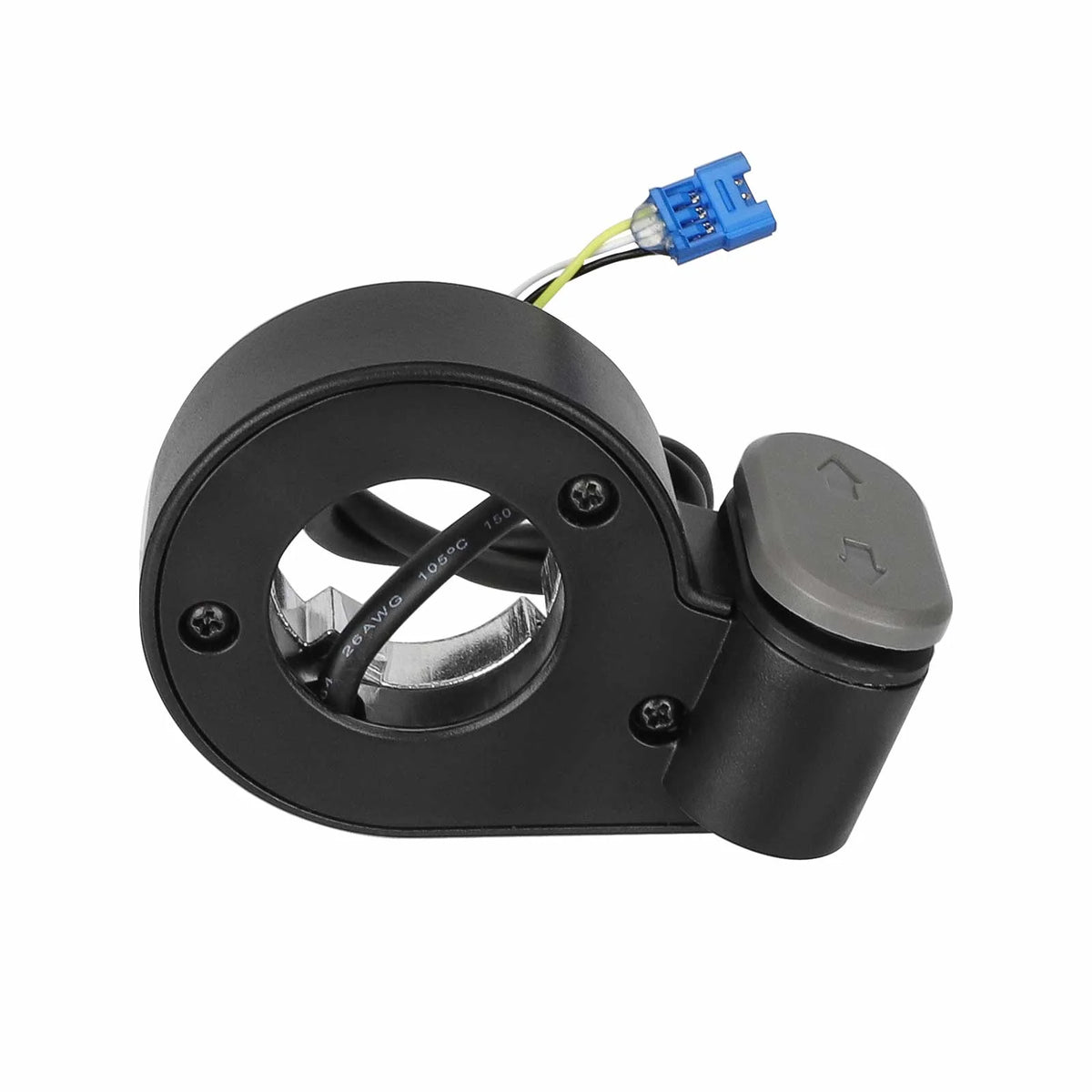

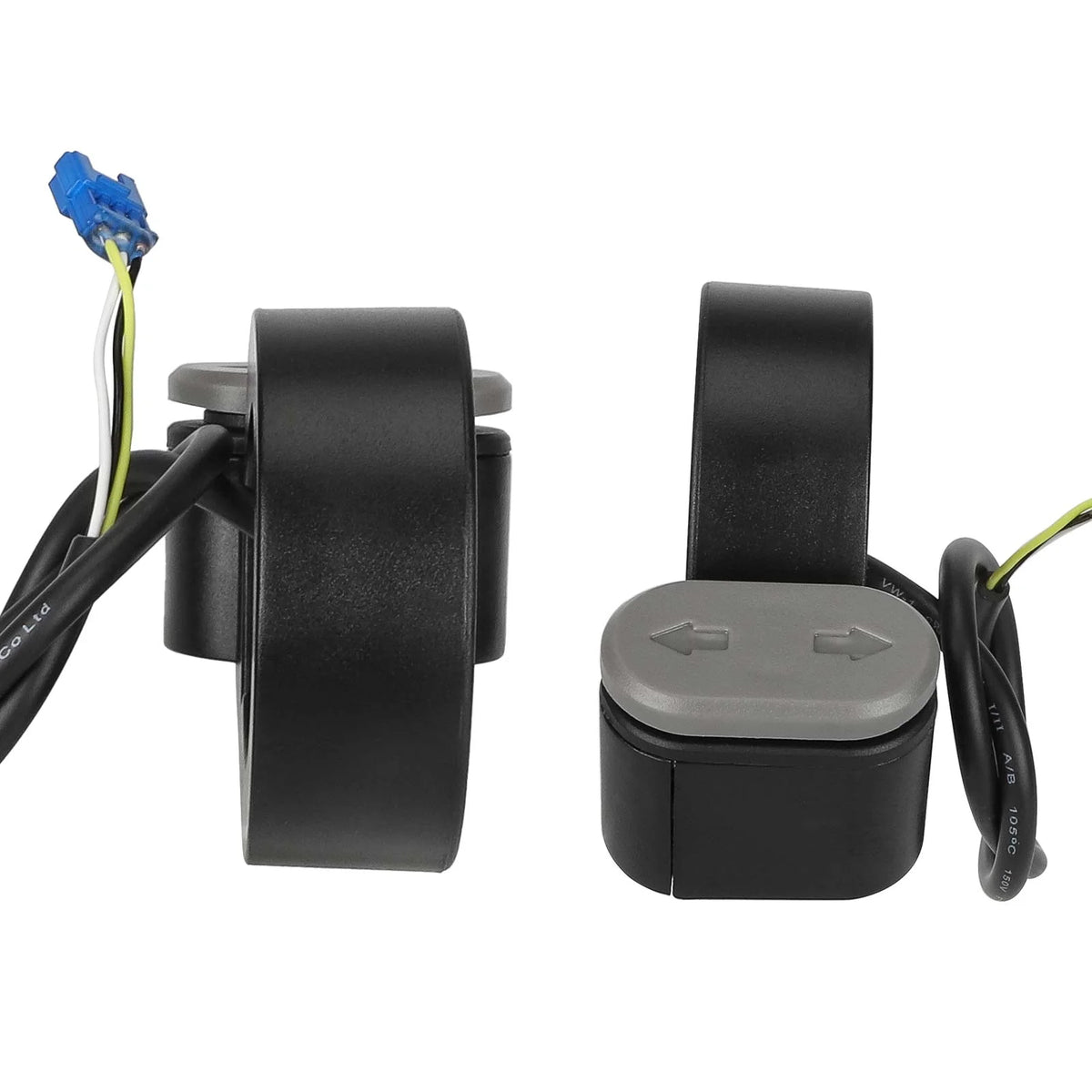

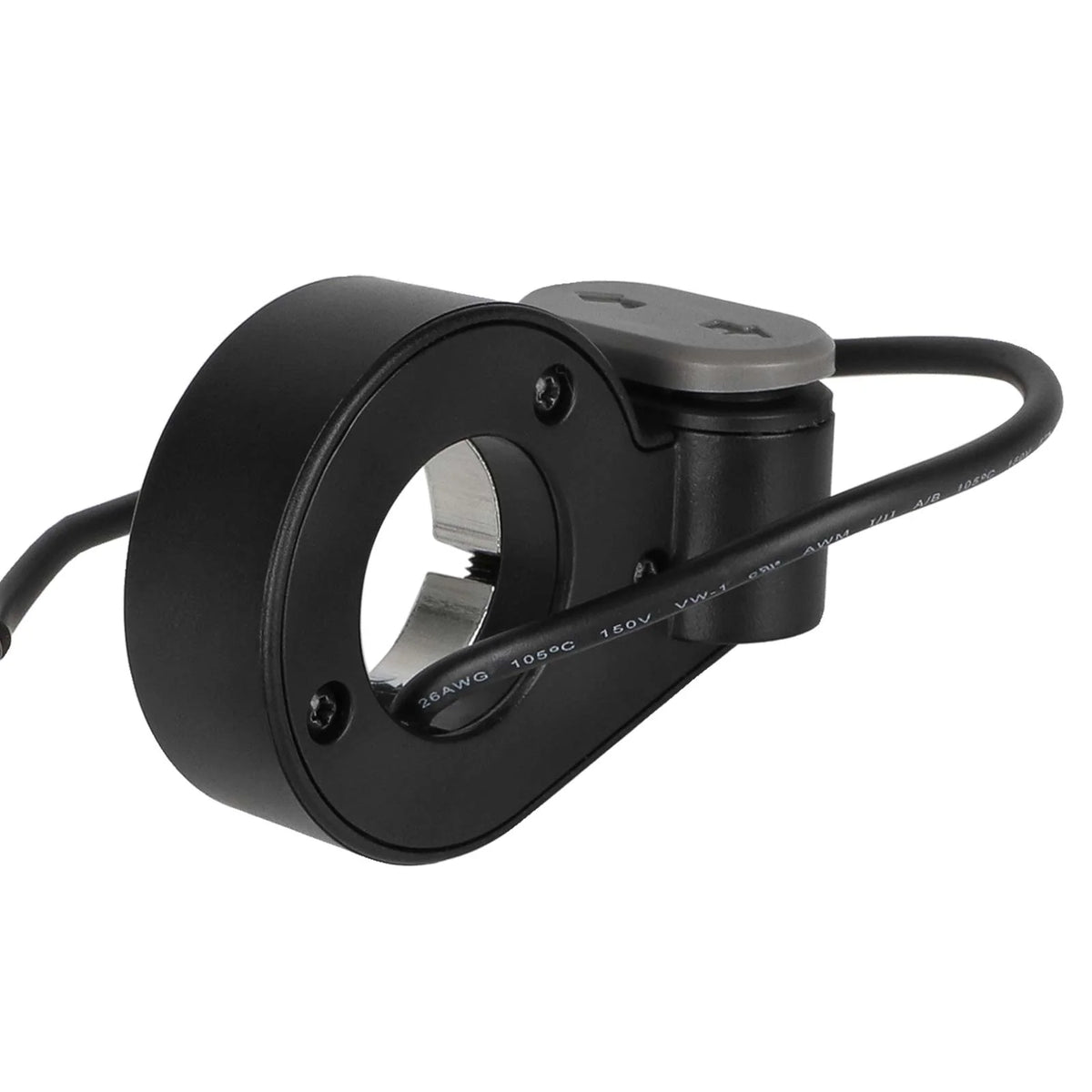

Turn signal switch with a blue connector for Xiaomi 5

Compact turn signal switch for the left side of the handlebar

The black switch has a grey top button with markings for left and right turn. The approximately 24.7 cm long cable ends with a blue three-pin connector.

Features and fitment

• Model: Xiaomi 5.
• Black turn signal switch with a grey button.

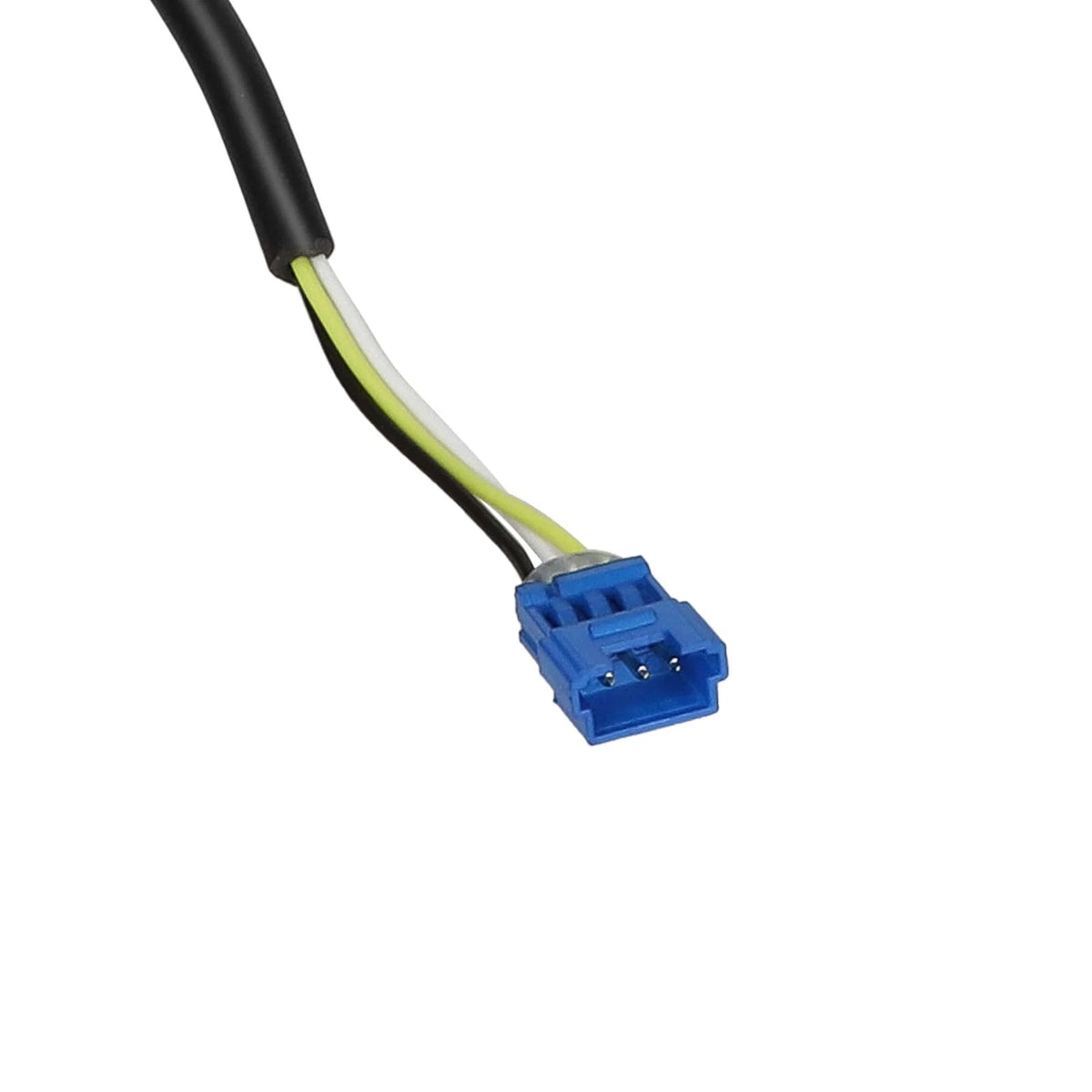

• Blue three-pin connector; cable approx. 24.7 cm.
• Mounting approx. 22.3 mm.

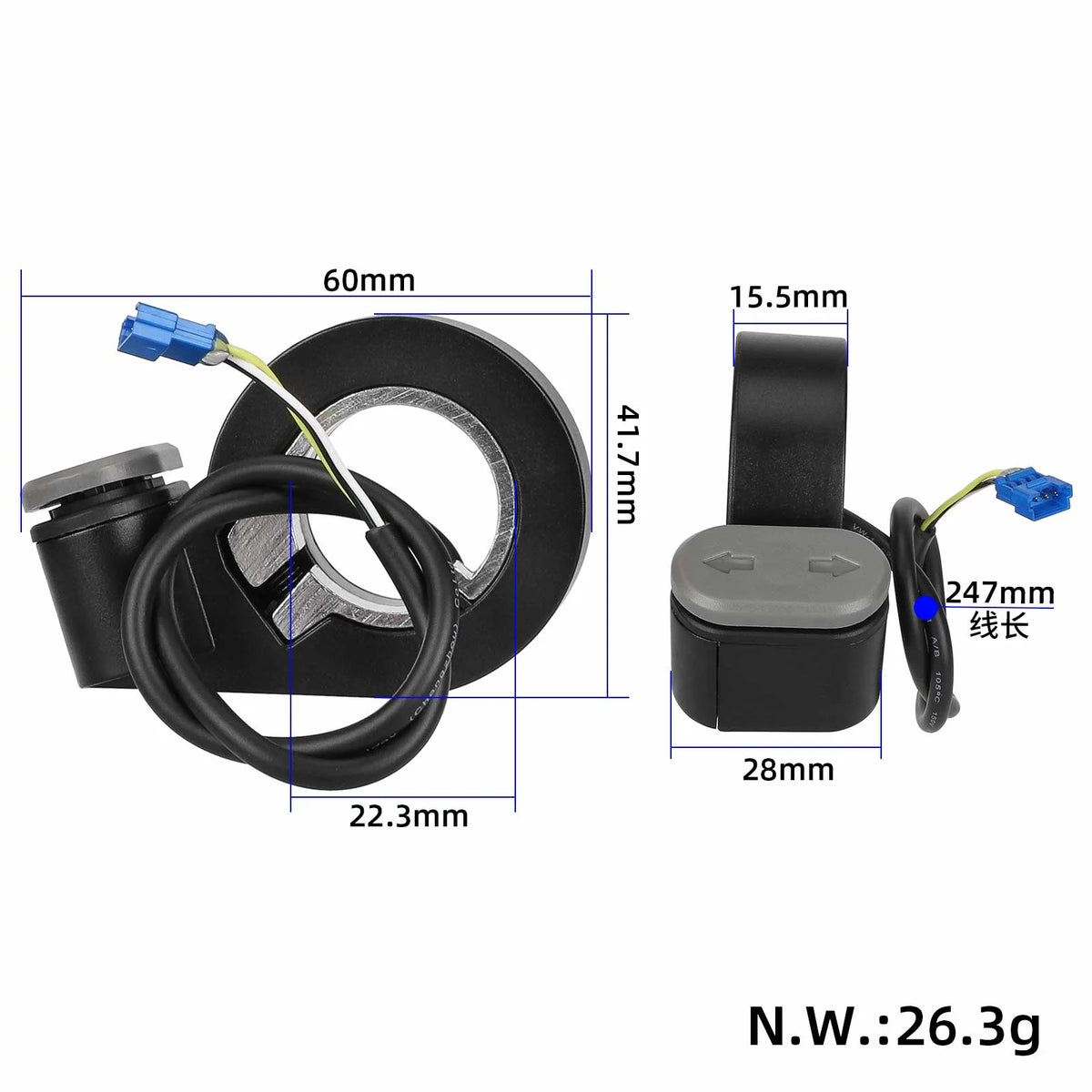

Approximate dimensions

• Switch: 60 × 41.7 × 15.5 mm.
• Button width: 28 mm.
• Clamp diameter: 22.3 mm.
• Cable length: 247 mm.
• Weight: approx. 26.3 g.

Before replacement, compare the connector and wiring layout; install the switch so that the markings are clearly visible and the button is reachable during normal handlebar grip.

Replacement and functional test

• Disconnect vehicle power before replacement. Note the connection and install the new switch in the same intended location without pinching the wiring.
• Check that the turn signal button moves without sticking and that the connector is properly latched. The handlebar must rotate without straining the cable.
• Test left and right turn signals separately before riding. When troubleshooting, also inspect the connector and wiring, as the fault is not necessarily in the switch itself.
