Turn signal switch with blue connector for Xiaomi 5 Max GL

Compact turn signal switch for the left side of the handlebar

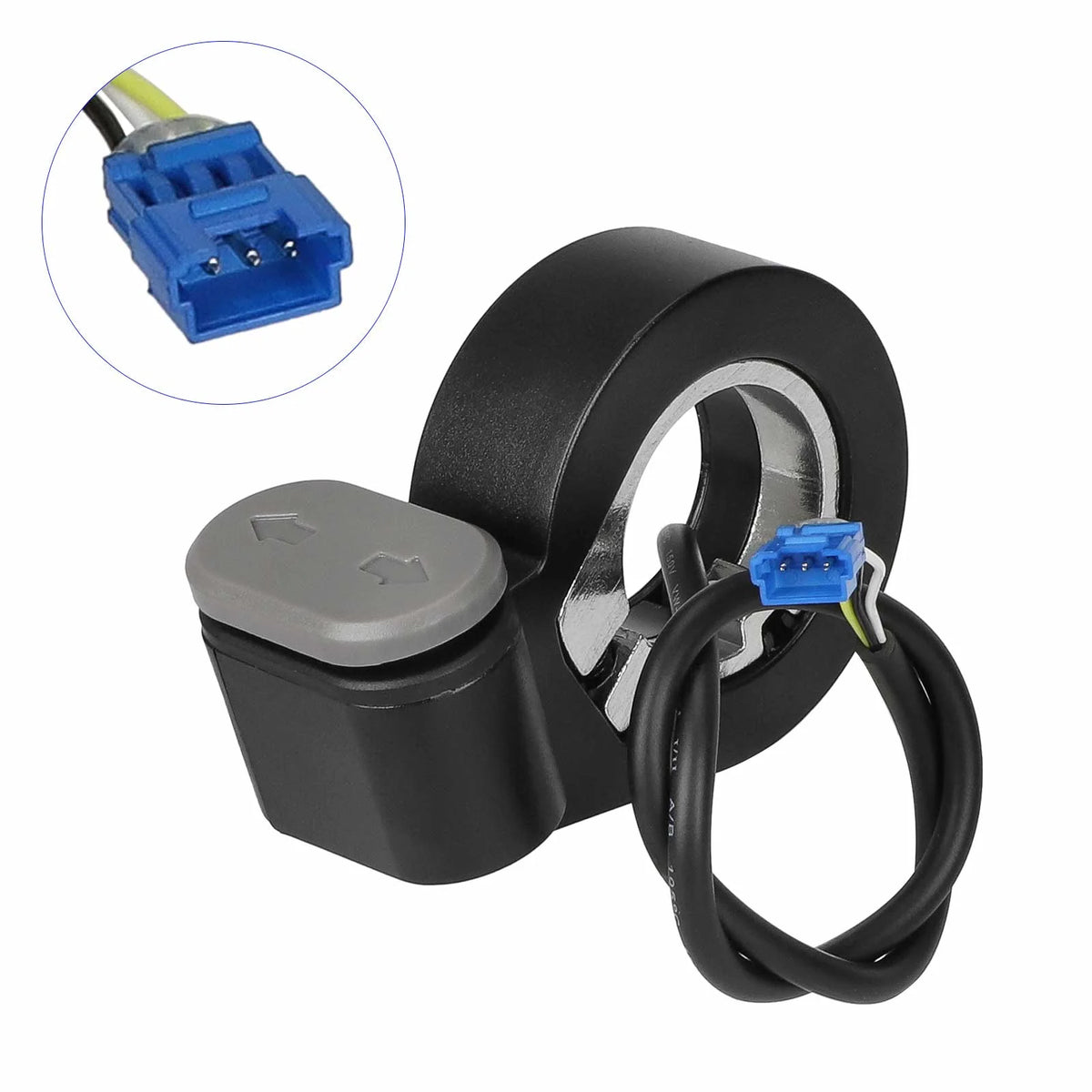

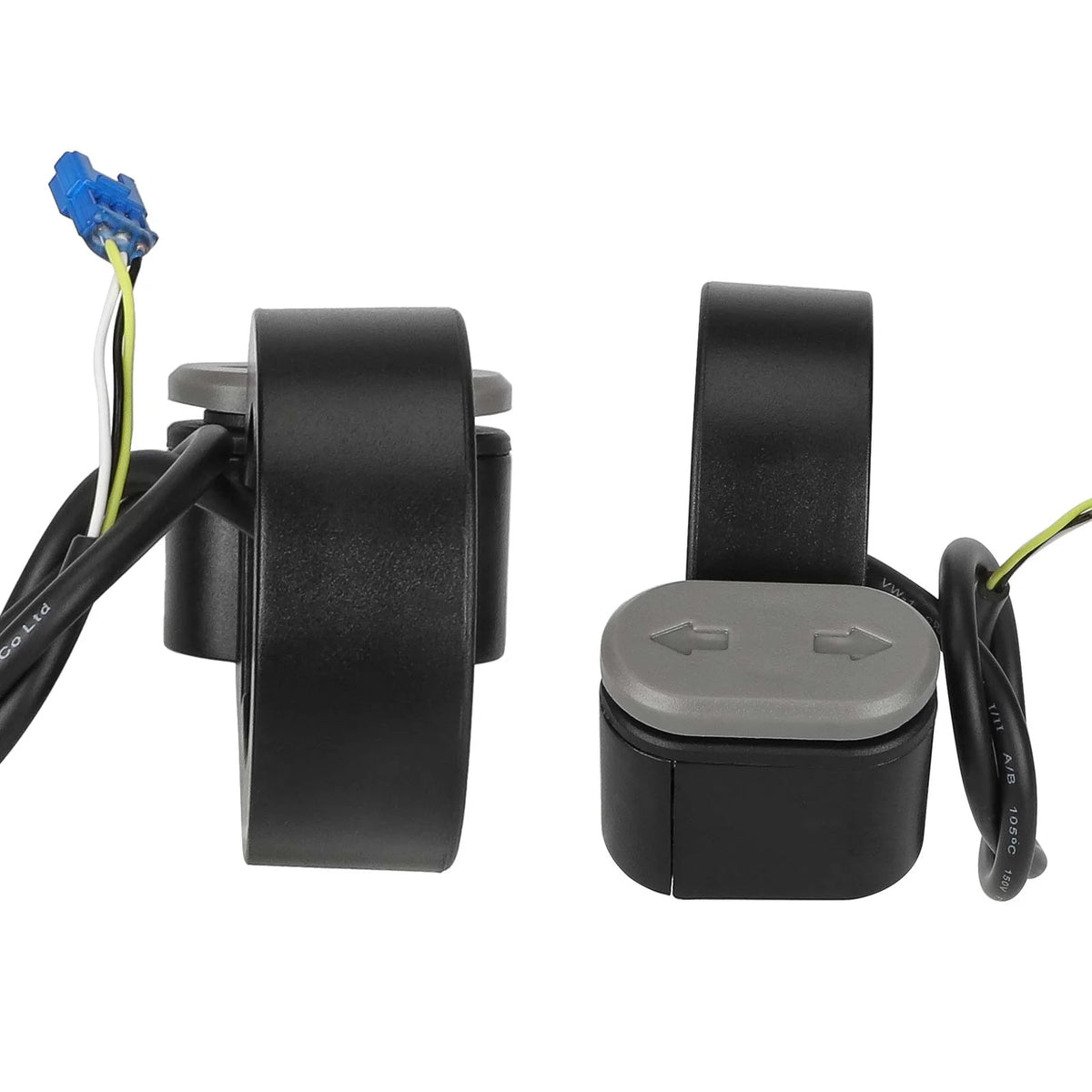

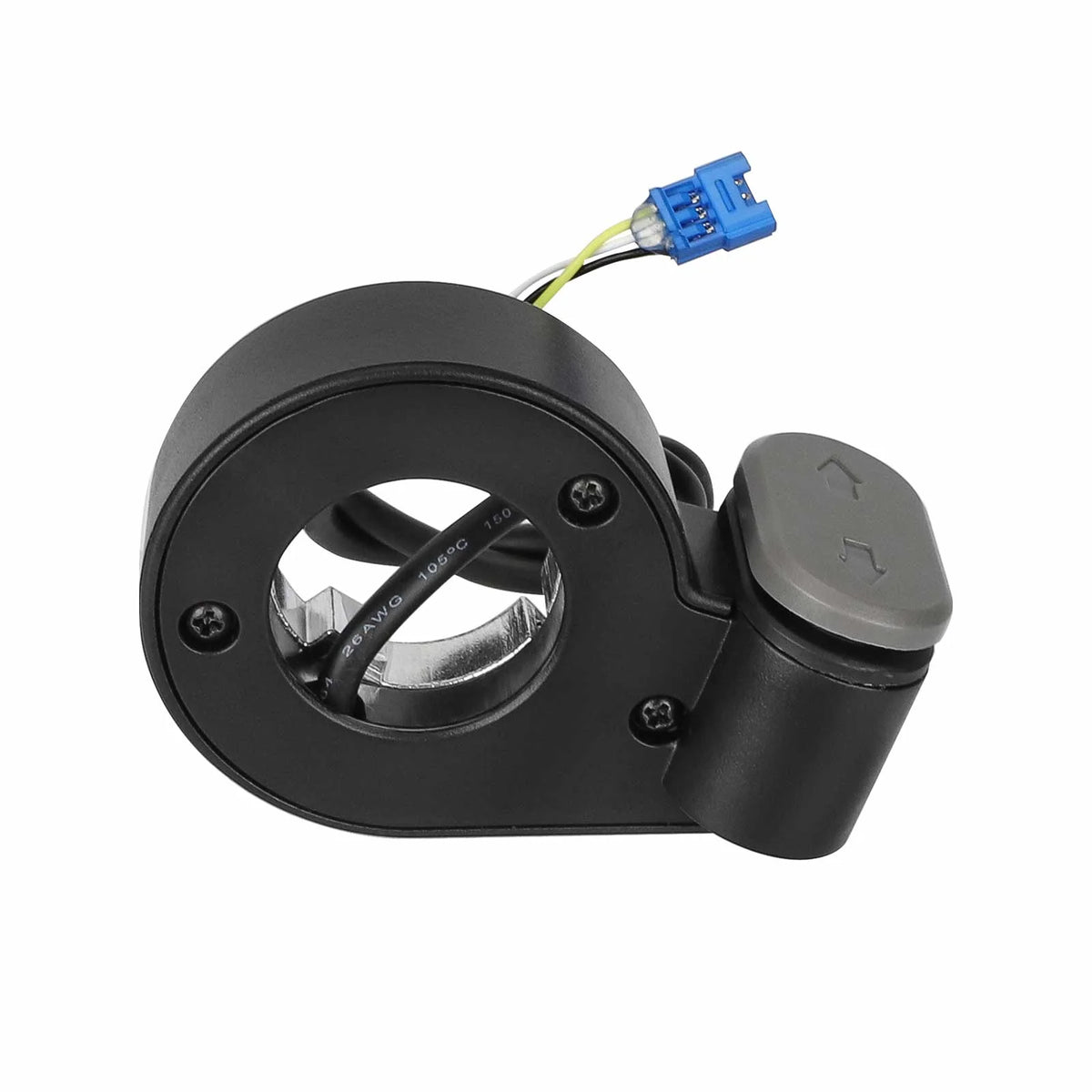

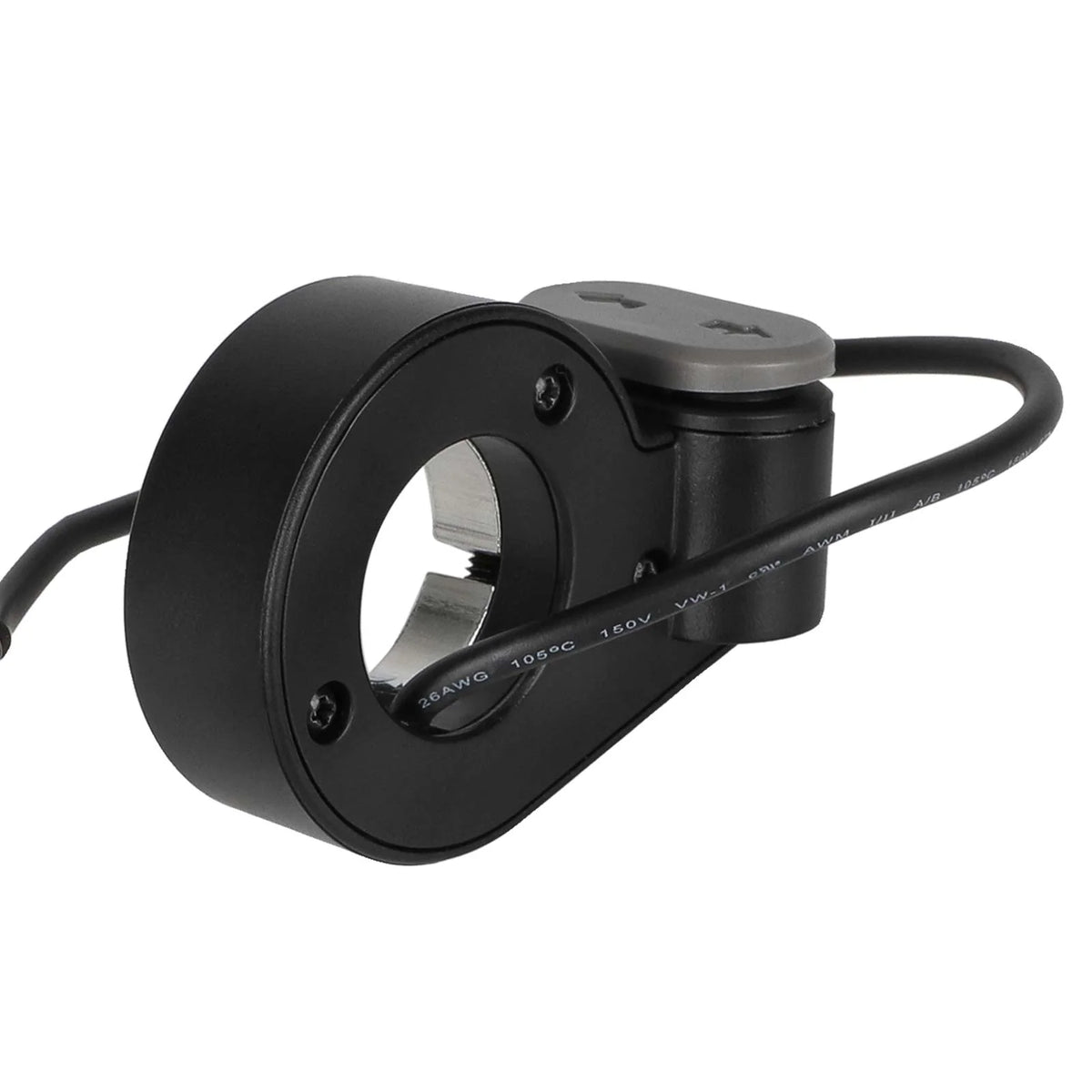

The black switch features a grey top button with left and right direction markings. The approximately 24.7 cm long cable ends with a blue three-pin connector.

Features and fitment

• Model: Xiaomi 5 Max GL.
• Black turn signal switch with a grey button.

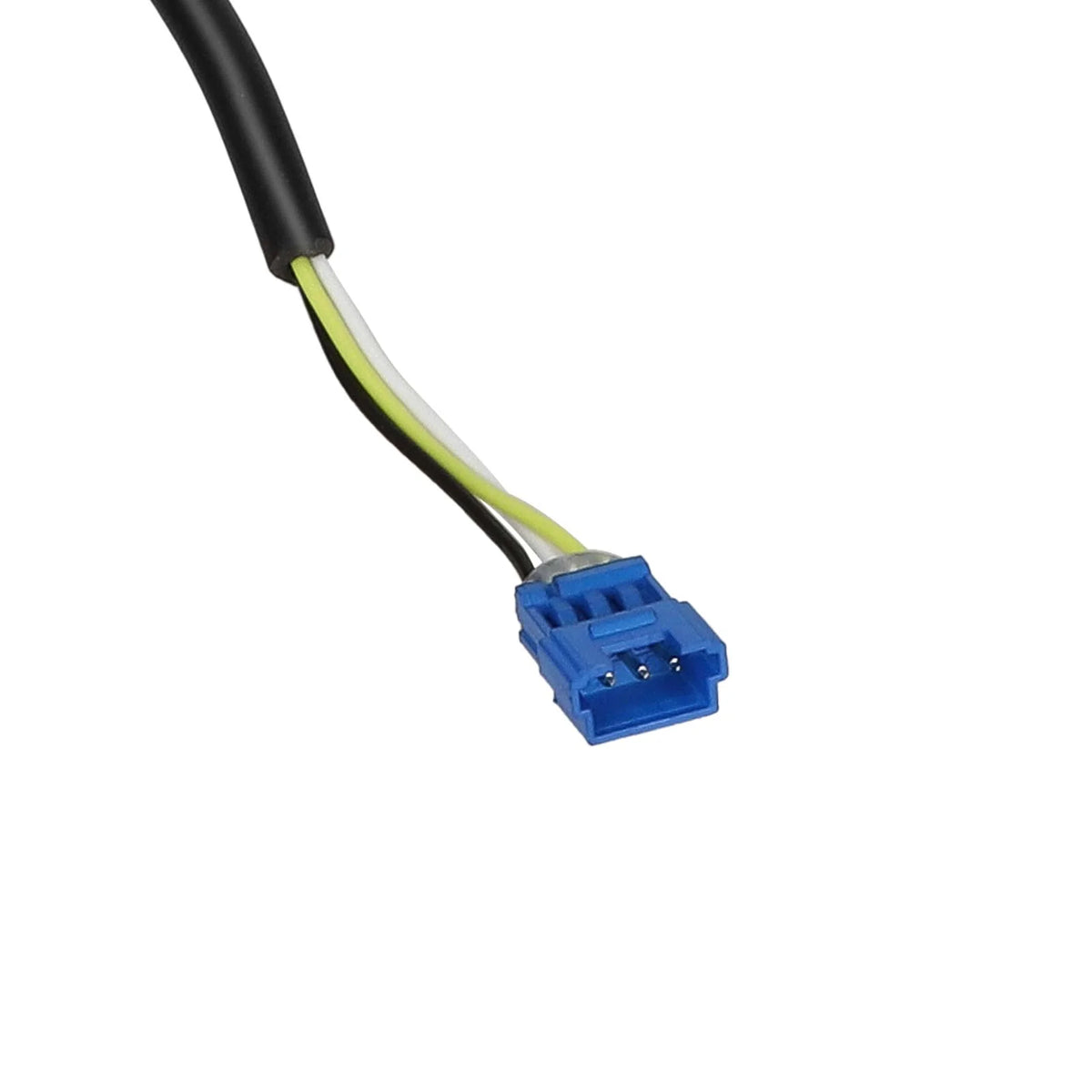

• Blue three-pin connector; cable length approx. 24.7 cm.
• Mounting diameter approx. 22.3 mm.

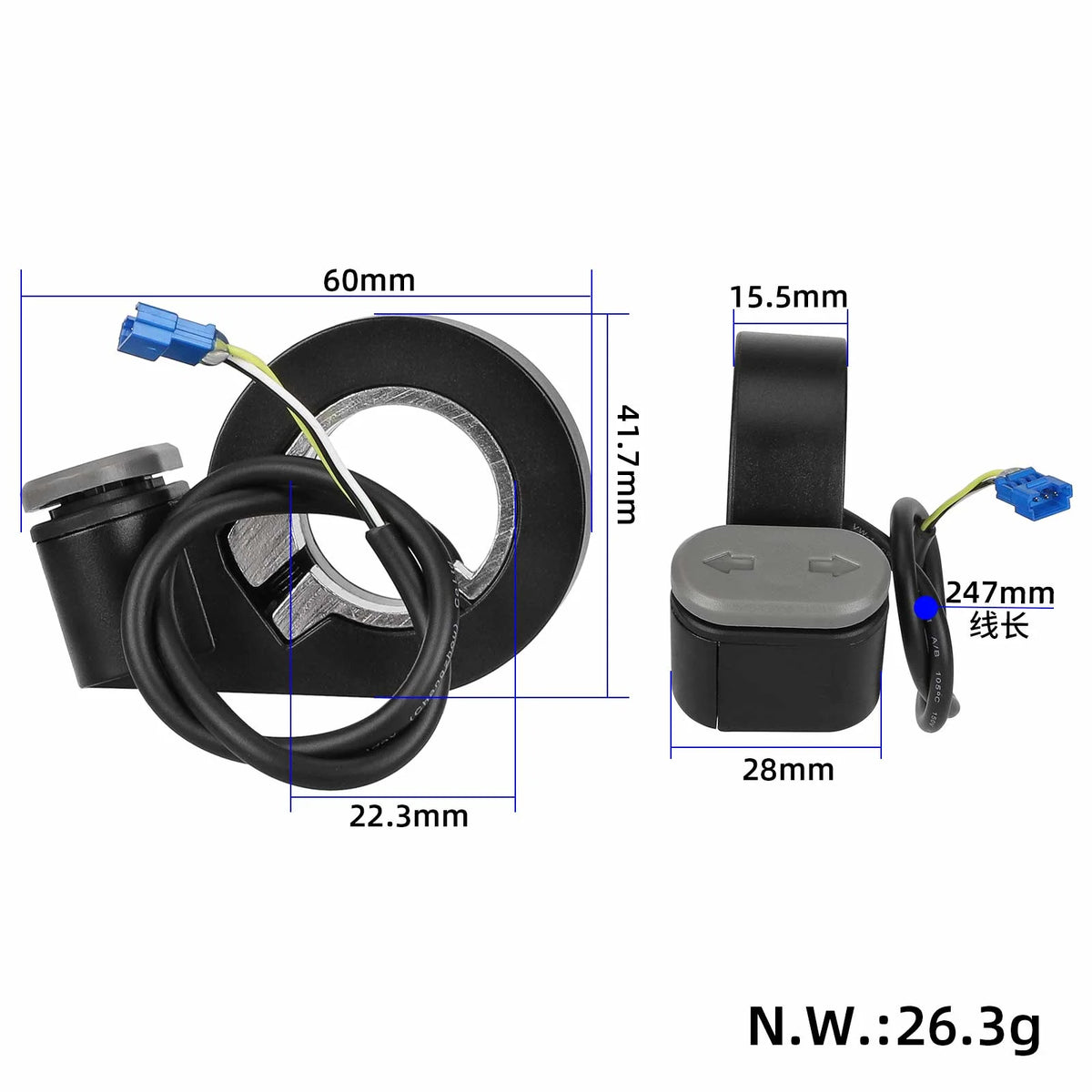

Approximate dimensions

• Switch: 60 × 41.7 × 15.5 mm.
• Button width: 28 mm.
• Clamp diameter: 22.3 mm.
• Cable length: 247 mm.
• Weight: approx. 26.3 g.

Before replacement, compare the connector and wiring layout; install the switch so that the markings are clearly visible and the button is reachable with a standard handlebar grip.

Replacement and functional test

• Disconnect the vehicle power supply before replacement. Note the connection and install the new switch in the same intended location without pinching the wiring.
• Check that the turn signal button moves without sticking and that the connector is properly latched. The handlebar must rotate without straining the cable.
• Before riding, test the left and right turn signals separately. If contact is interrupted, also inspect the connector and wiring, as the fault may not necessarily be in the switch itself.
