ULIP Superior Metal brake pads for electric scooter Xiaomi 3

Superior Metal with characteristic Xtech side hook

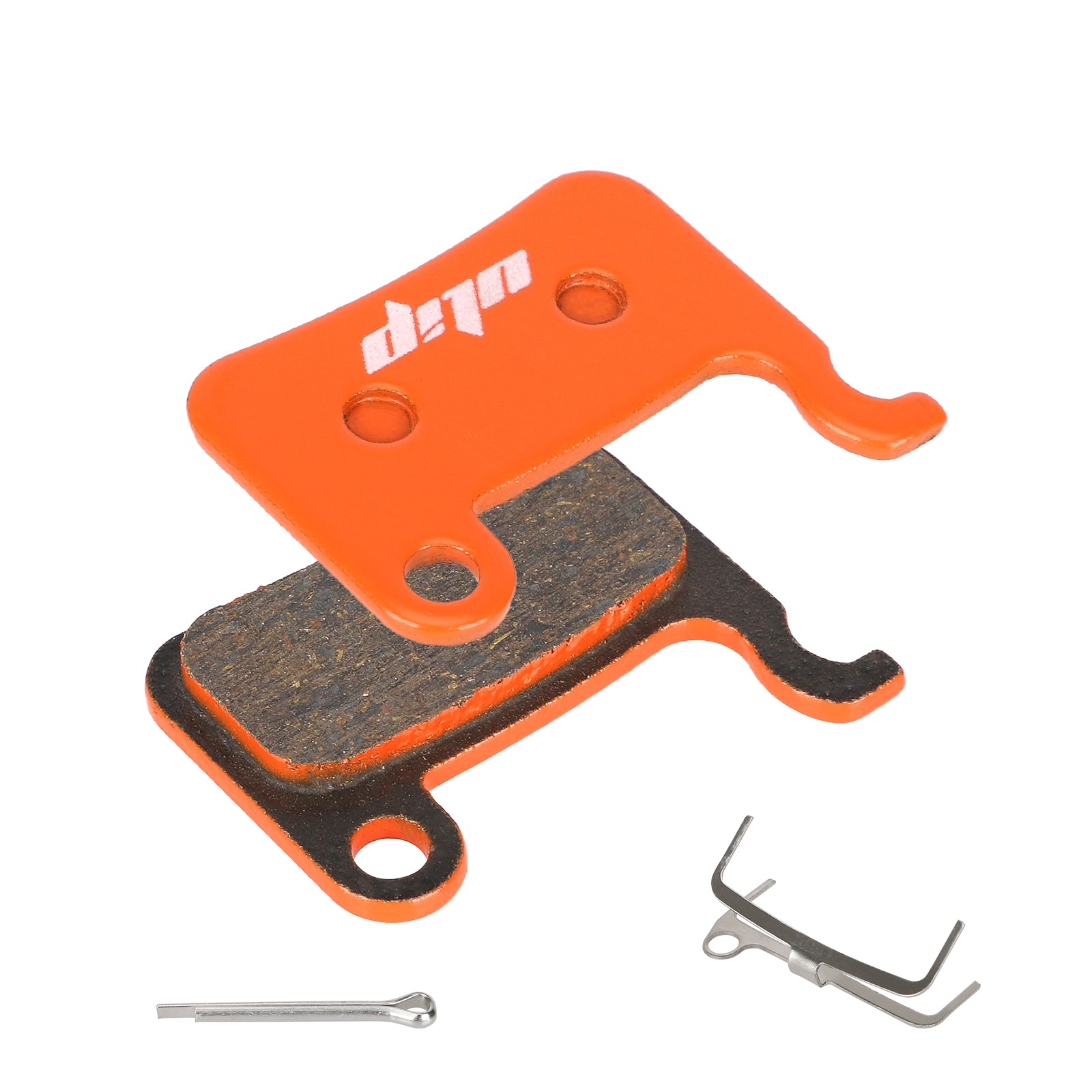

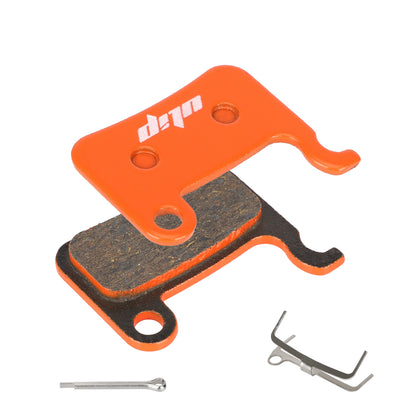

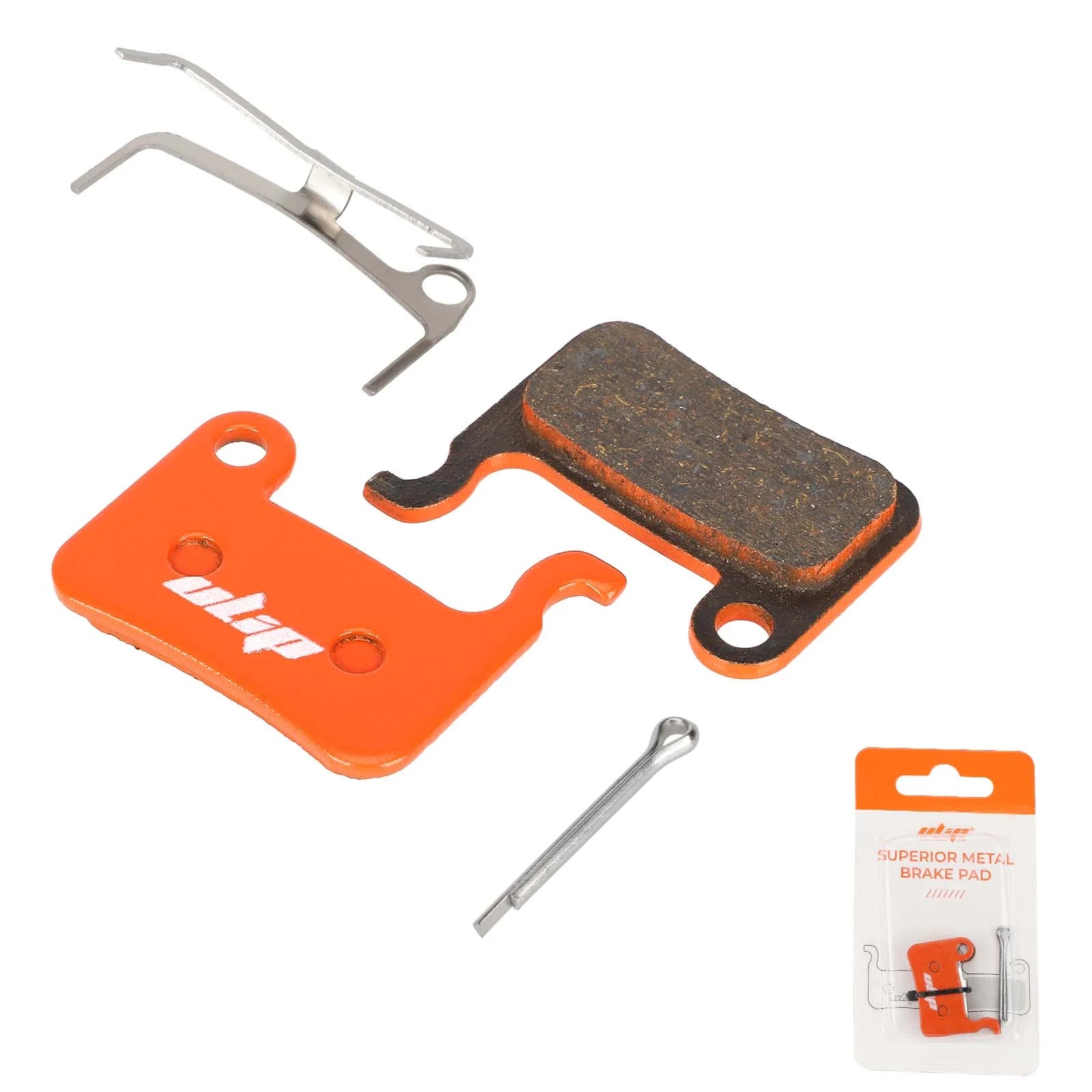

The orange ULIP Superior Metal pads feature a rectangular friction area, a safety pin hole, and a side hook. The multi-metal design is intended for the compatible Xtech brake caliper.

Features and fitment

• Model: Xiaomi 3.
• Brake pad: multi-metal – ULIP Superior Metal.
• ULIP Superior Metal; orange pads for compatible Xtech caliper; pair with spring.

Approximate dimensions

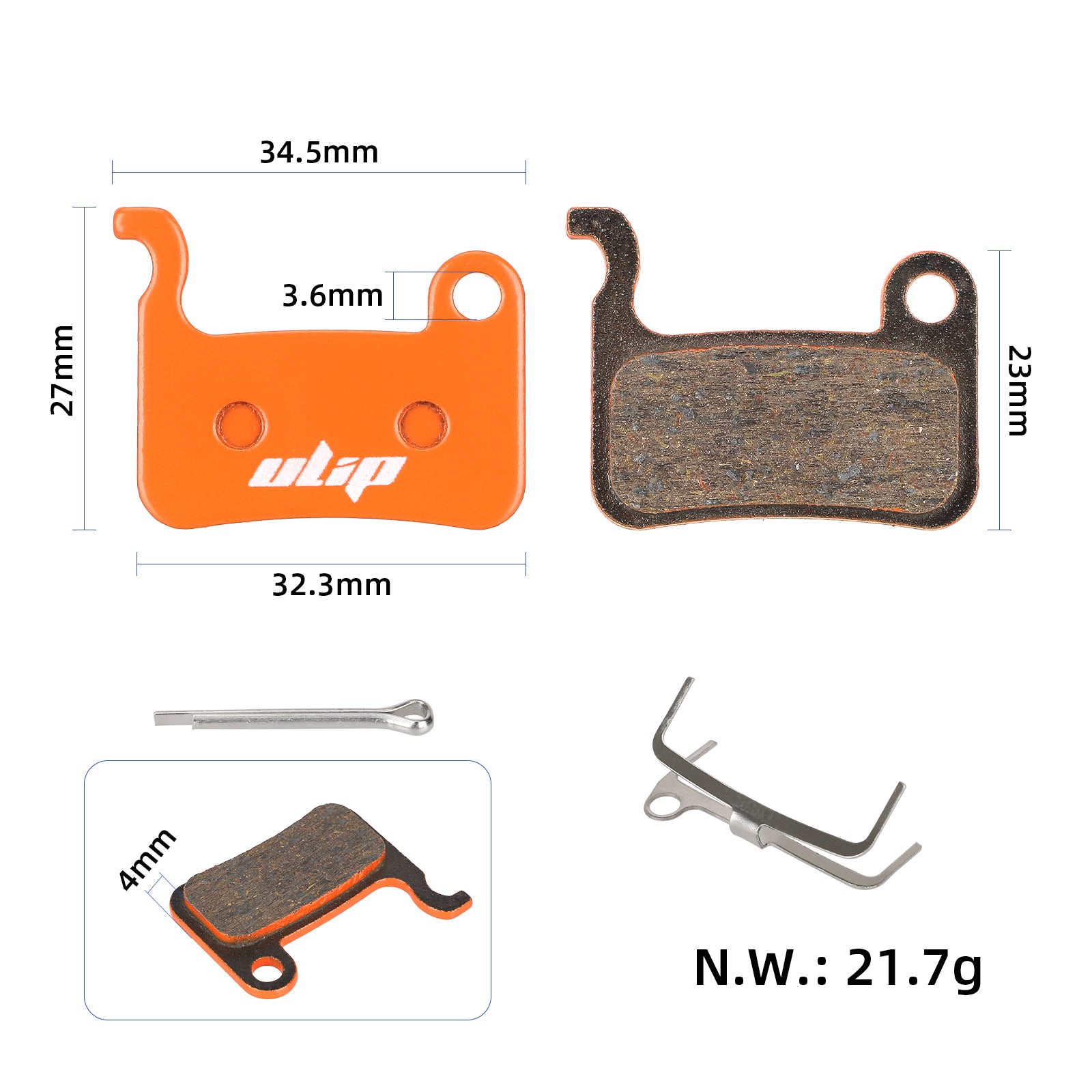

• Pad dimensions: 34.5 × 27 × 4 mm.

Compare the outline of the removed pad and the caliper model. For a vehicle with an upgraded brake, the installed Xtech unit is crucial, as the stock brake may use a different pair. A spring and a cotter pin are included.

Applies when upgrading to a compatible Xtech HB100 caliper. Not an automatic replacement for original pads of all versions of this model.

Brake pad material

The ULIP Superior Metal multi-metal pad combines metallic components and a binder. Metallic pads generally handle heat well during repetitive braking, but they can be louder and wear out the disc more than organic ones. Use a disc that allows metallic pads, and bed in the new pair properly after installation.

When to replace and how to start

• Inspect the pads if braking is poor, there is uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manual.
• Remove the safety pin and the old pair. Prepare space for new pads according to your caliper's procedure, then insert the spring, the new pair, and the safety pin. Do not grease friction surfaces.
• Check wheel rotation and lever operation. Bed in the new pads with several gradual slowdowns in a safe area, without locking the wheel.
