Battery cover with lock and handle for ENGWE Engine Pro 2.0

Battery cover with handle and ignition lock

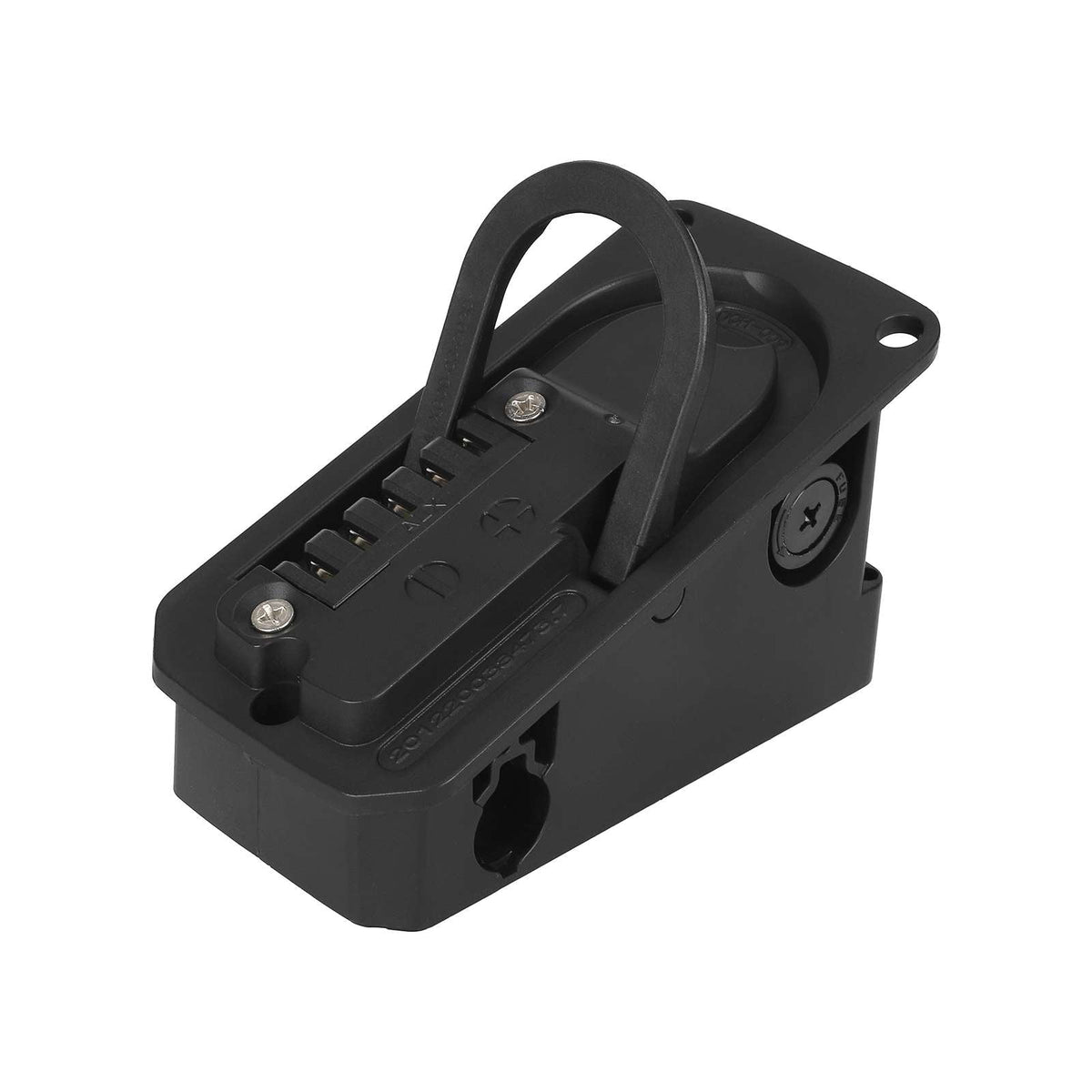

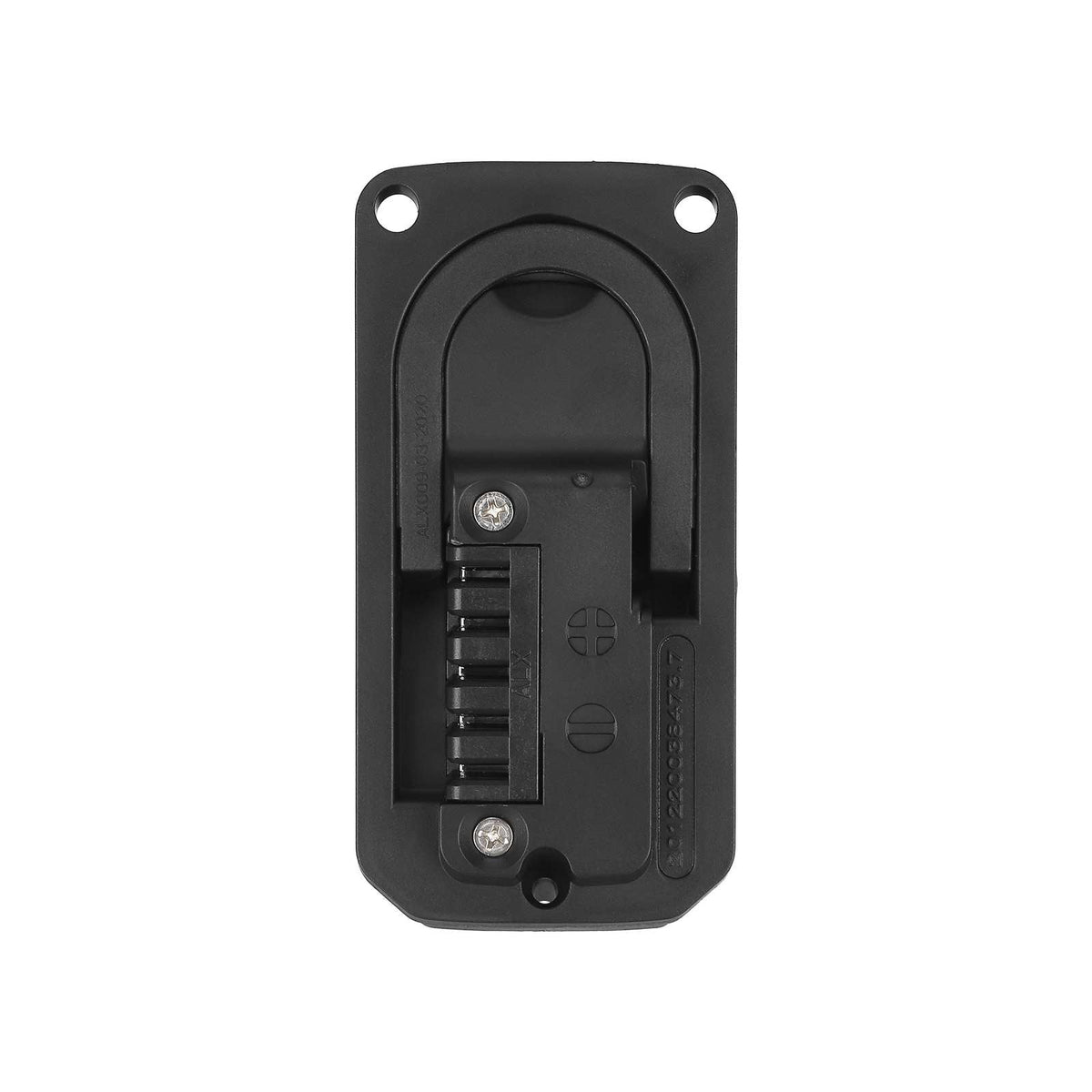

This black top battery cover integrates a retractable handle, a lock, two keys, and electrical wiring. The assembly replaces the corresponding end piece of the battery housing.

Features and fitment

• Model: ENGWE Engine Pro 2.0.

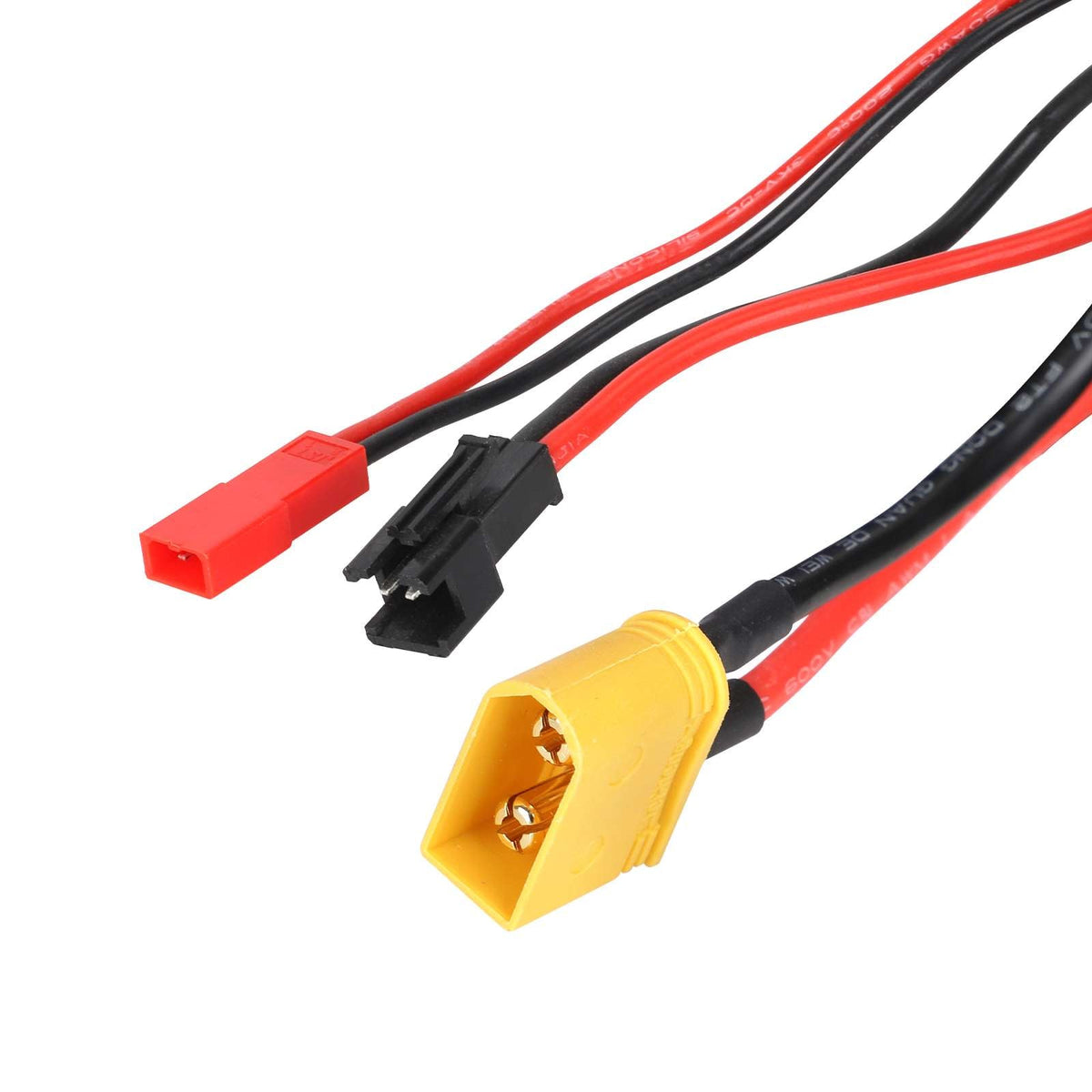

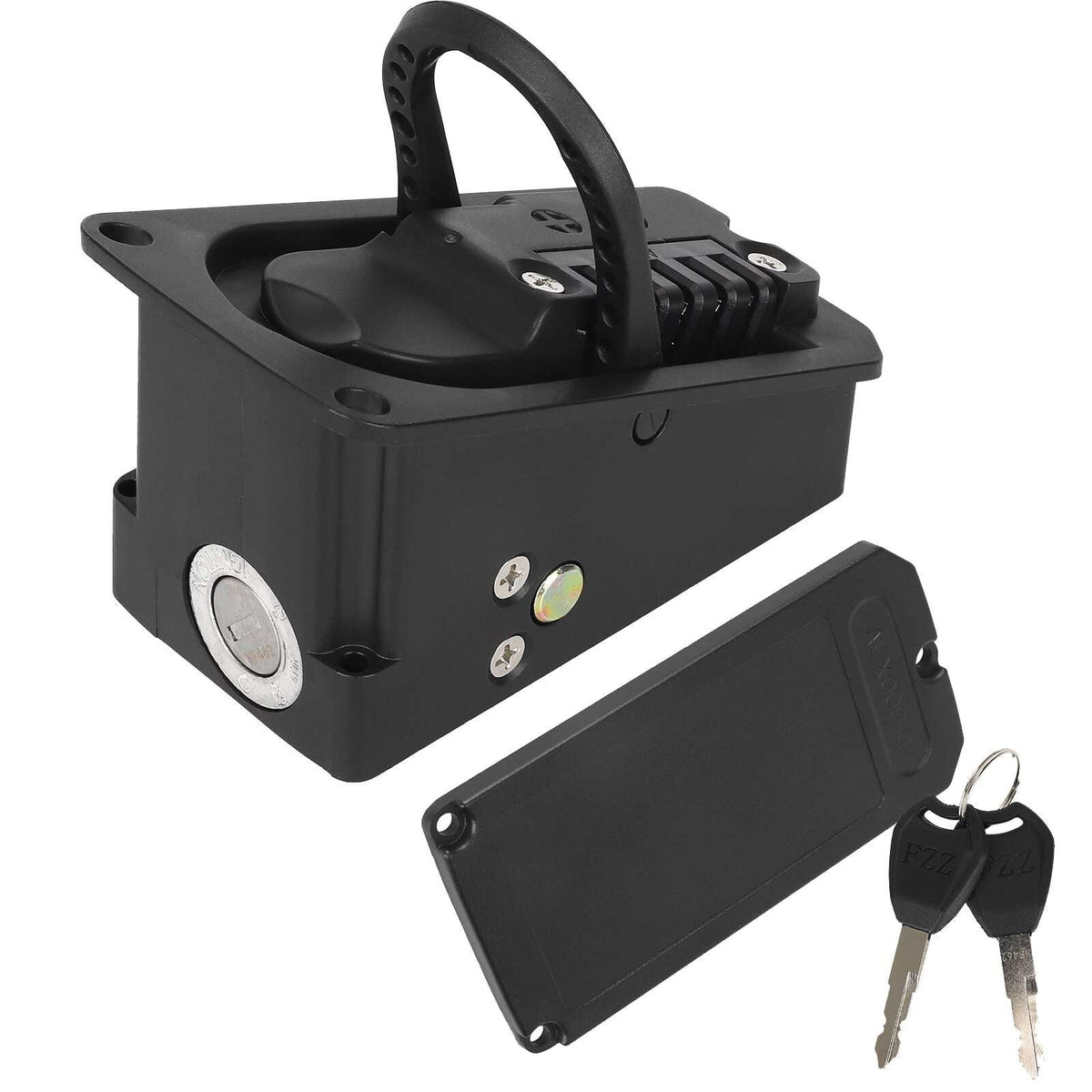

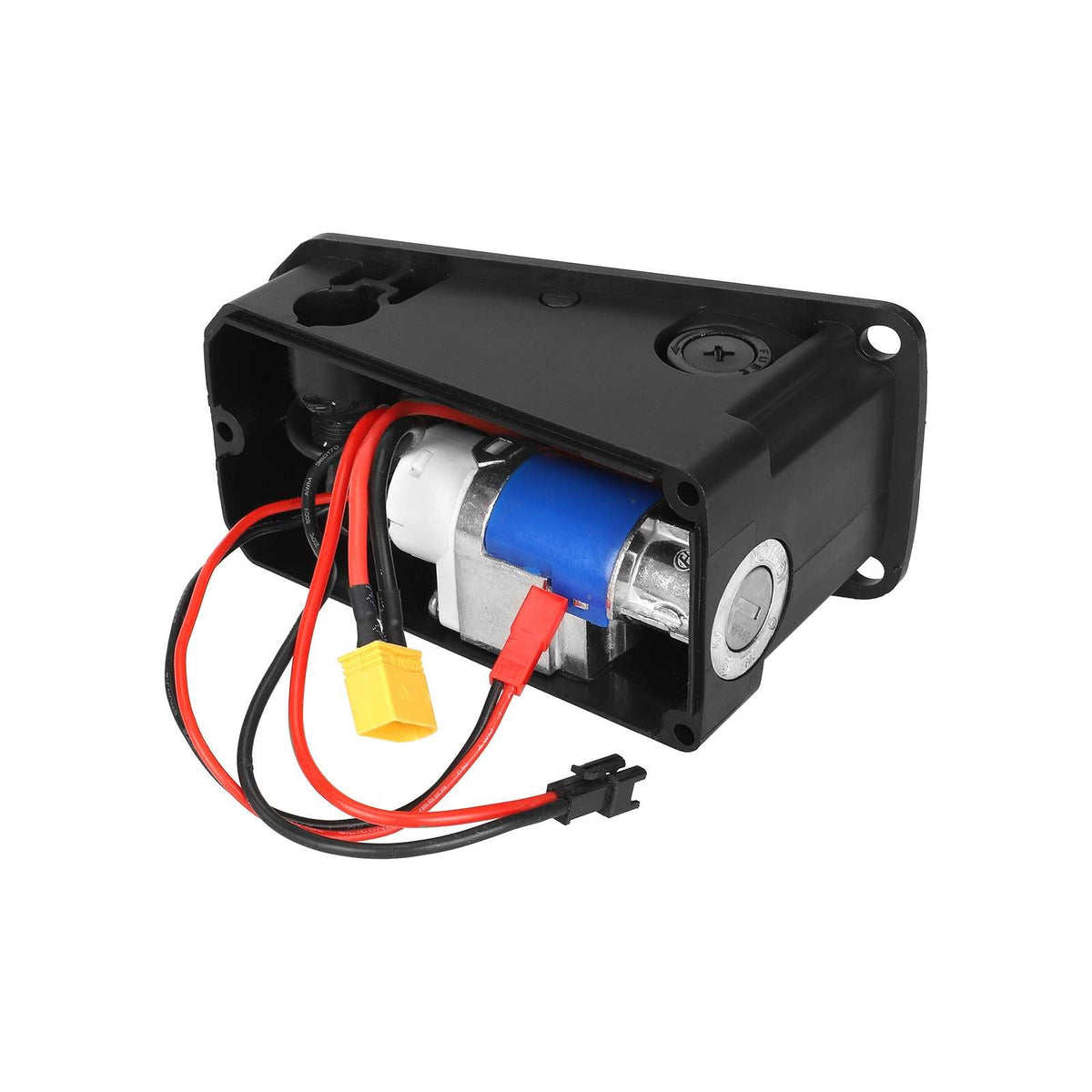

• Top battery cover with handle, lock, two keys, and wiring.

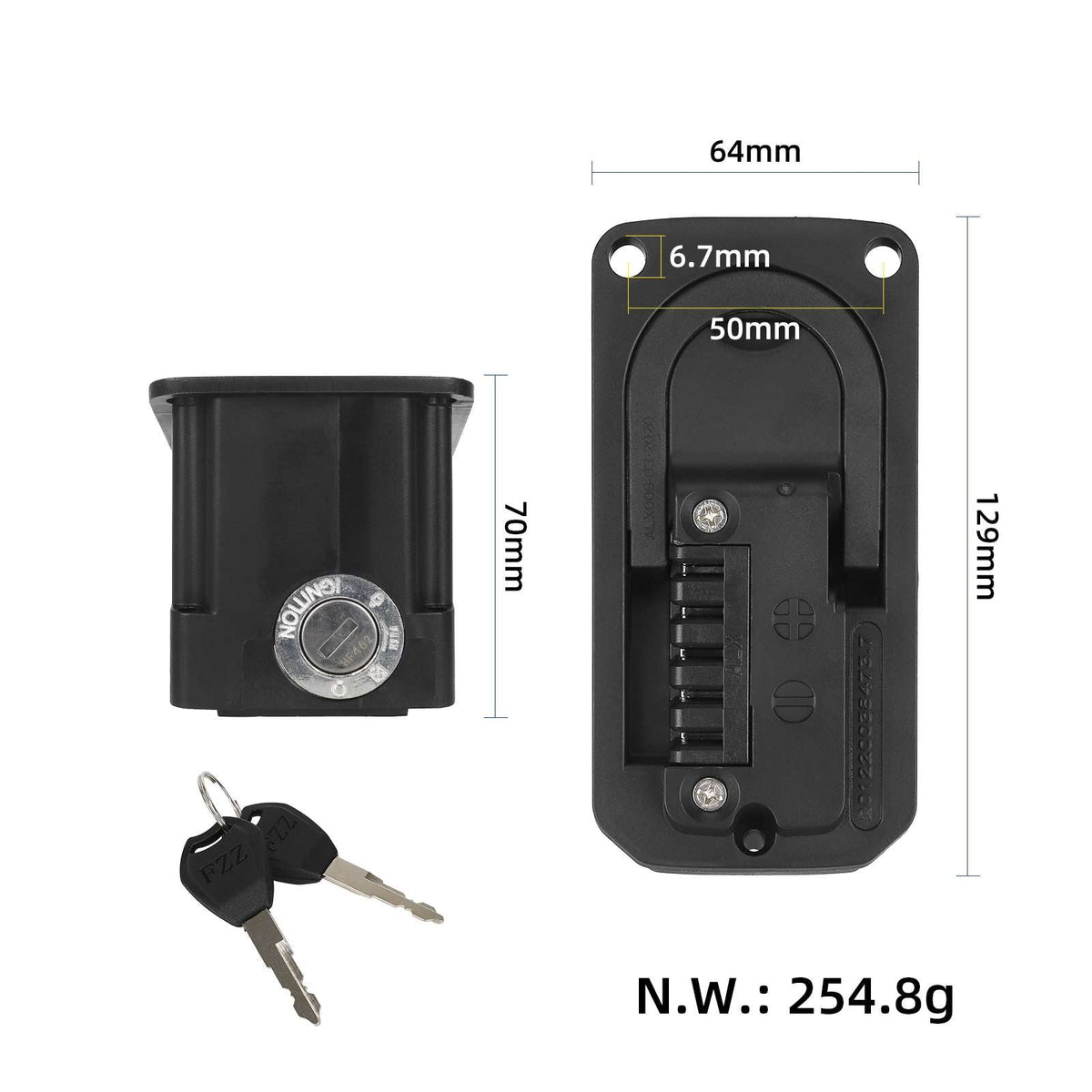

Approximate dimensions

• Cover: 129 × 64 × 70 mm.
• Mounting hole spacing: 50 mm.
• Hole diameter: 6.7 mm.

The top plate measures approximately 132 × 64 mm, the body is about 70 mm high. Check the shape of the battery housing, the holes, the lock function, and all connectors. Working on this requires disconnecting the battery and working without risking a short circuit between its terminals.

Installation and use

Replace the cover only when the battery is disconnected and safely removed. Compare the wiring and mechanical connections; ensure no damage is done to cells or insulation during the procedure. Check the lock and handle seating before using the battery again.
