Organic brake pads for Dualtron Storm with Magura MT5/MT7 caliper

Organic pads for Magura MT5/MT7 brakes

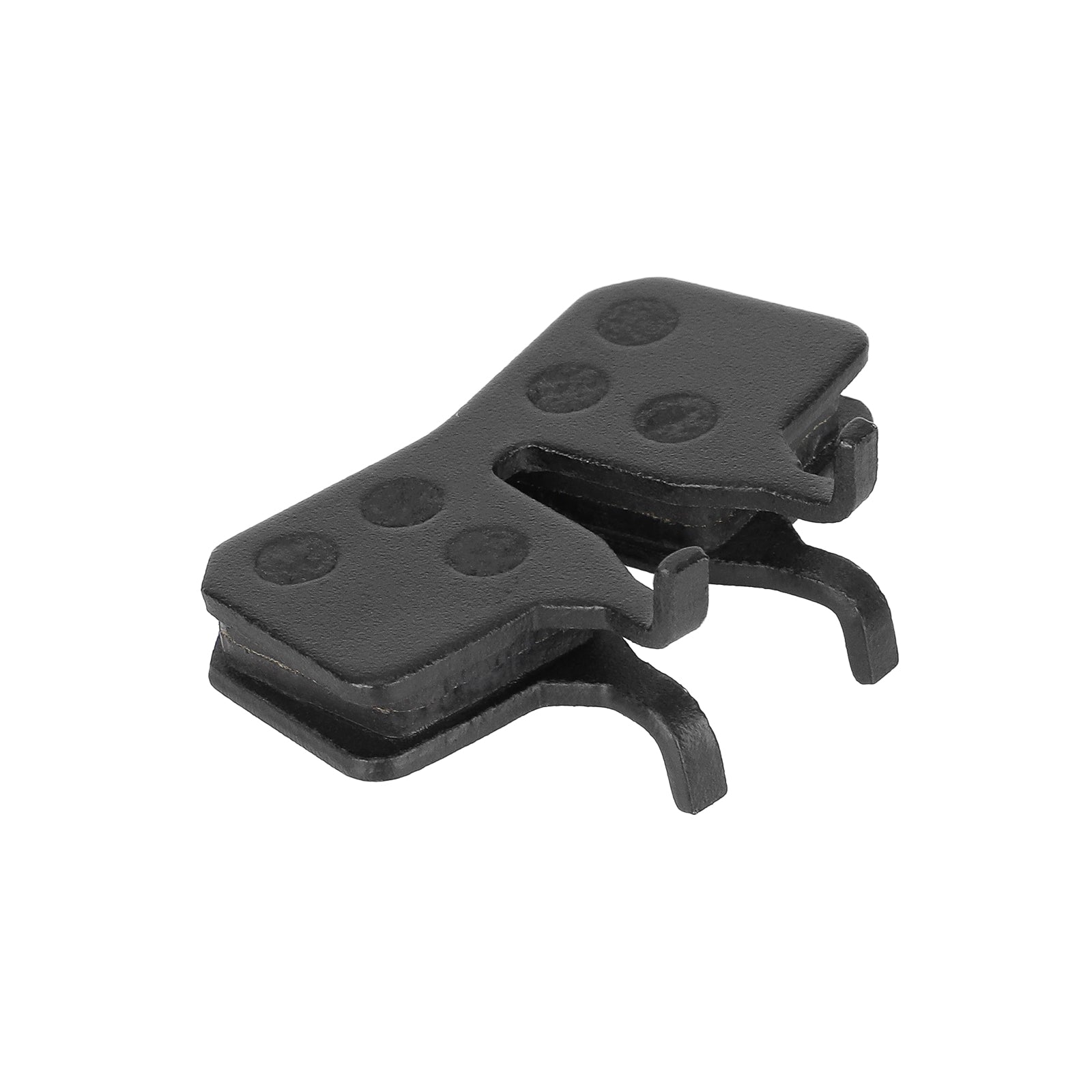

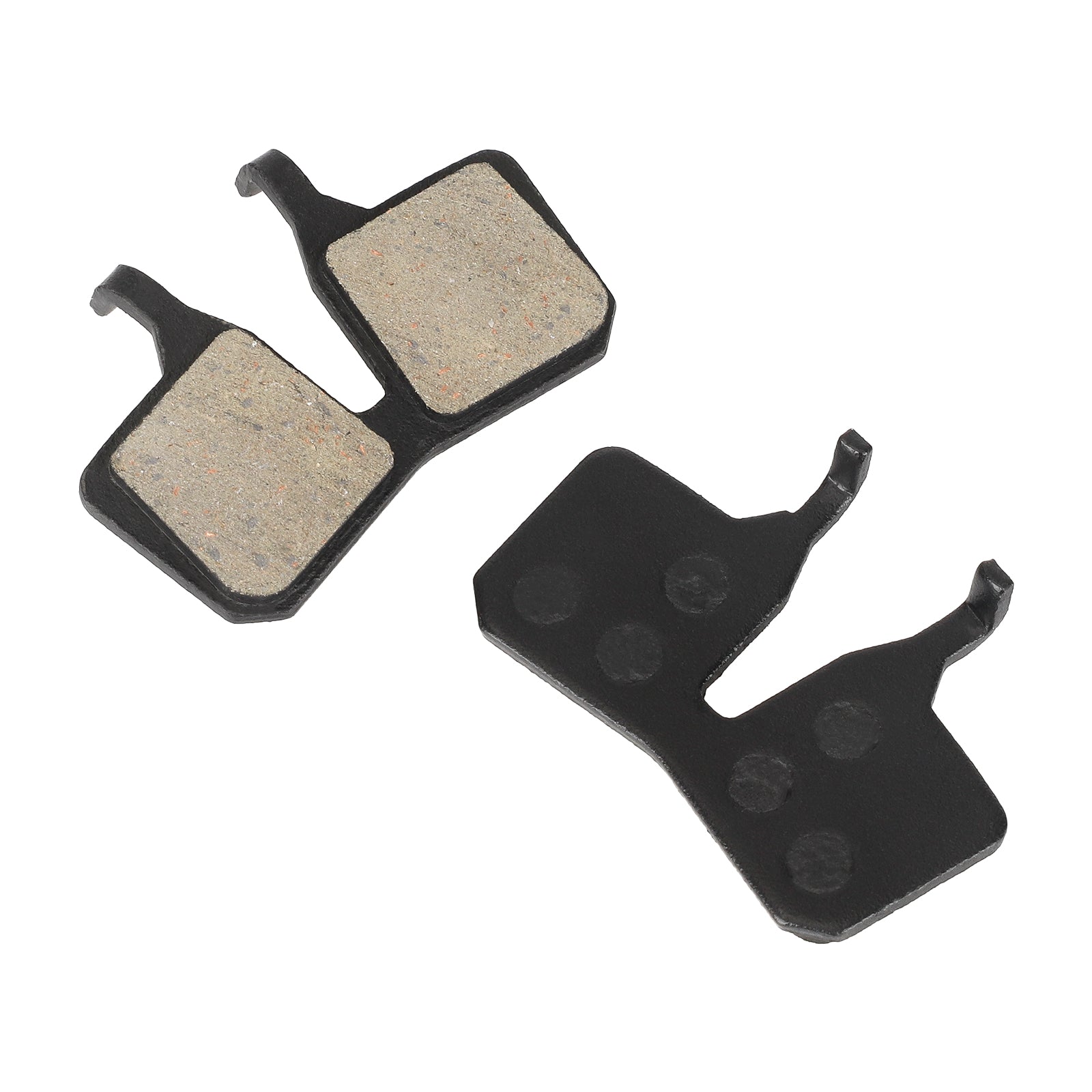

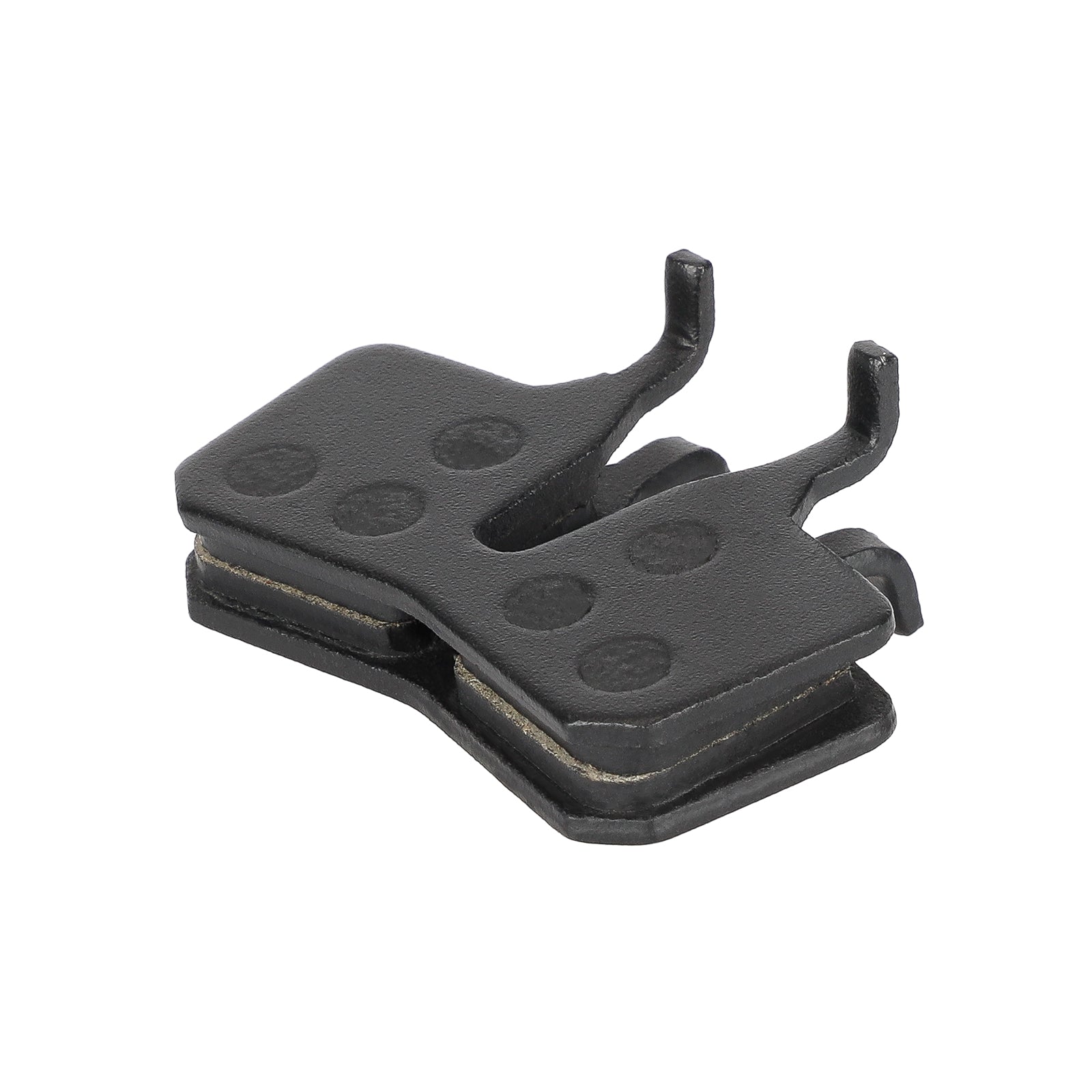

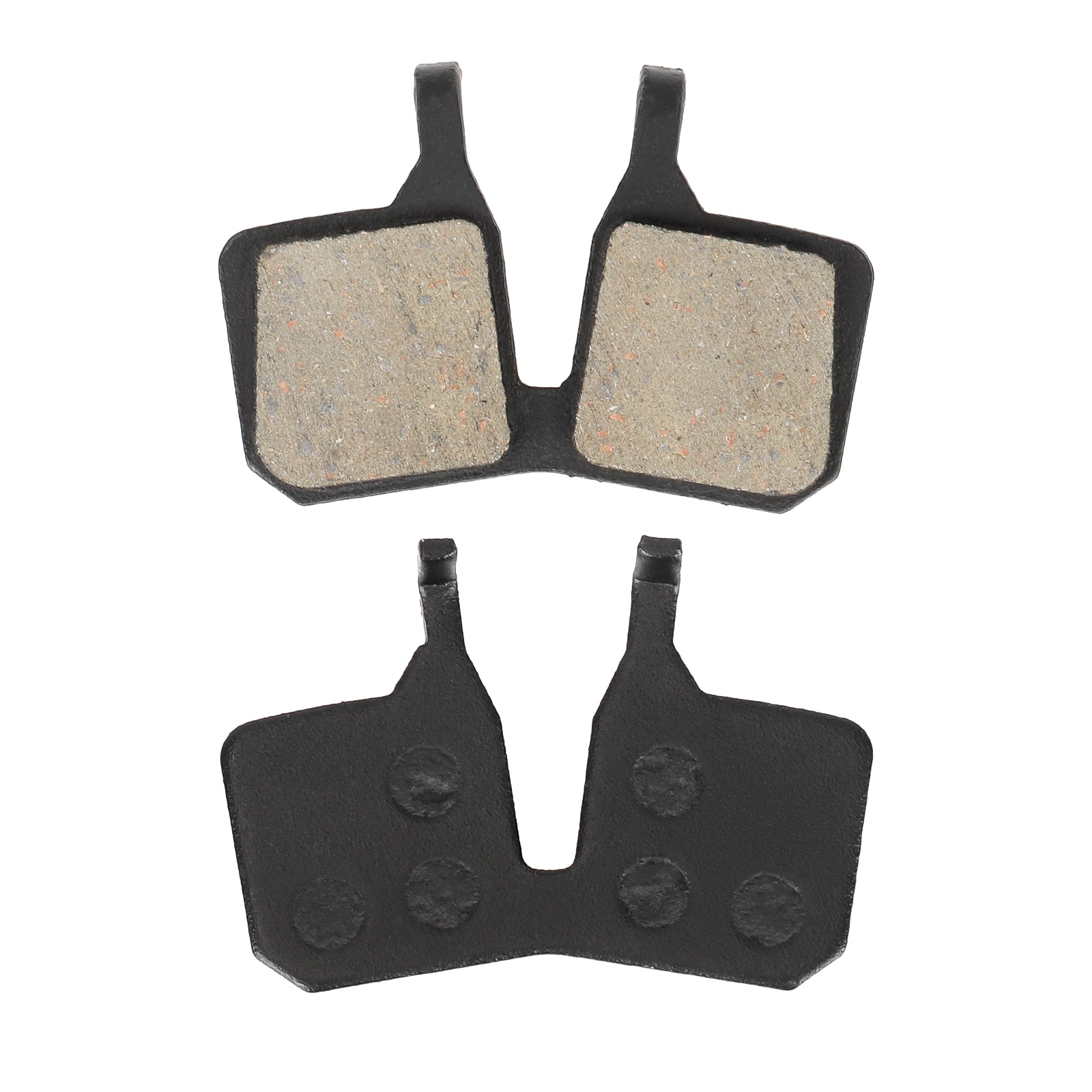

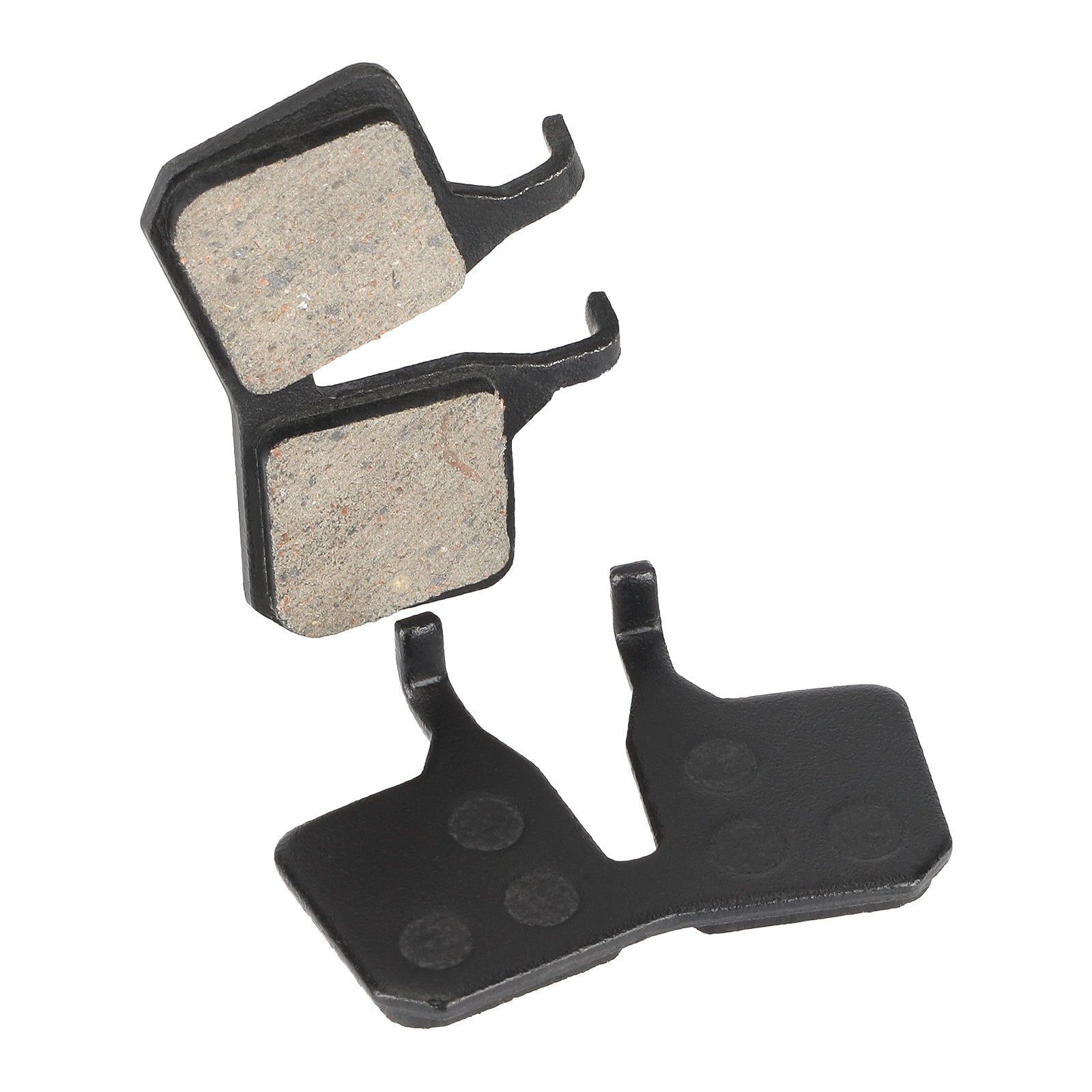

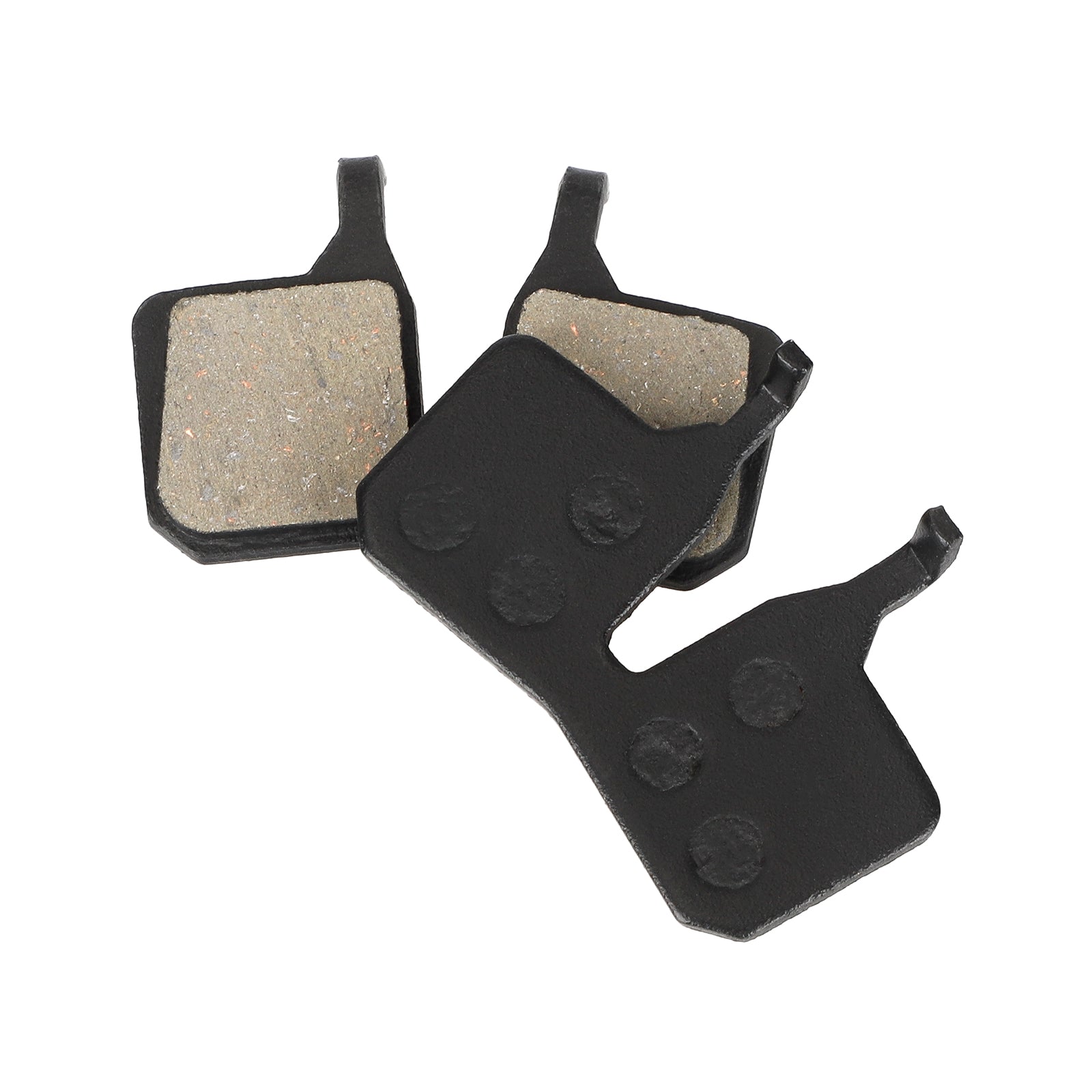

The pair of organic brake pads is designed for the Dualtron Storm electric scooter equipped with a compatible Magura MT5, MT5e, or MT7 caliper. Each black backing plate has two friction zones and an upper mounting tab.

Features and dimensions

• Brake pad: organic, resin-based.
• Vehicle: Dualtron Storm with compatible Magura MT5/MT5e/MT7 brake.
• Two backing plates; two friction surfaces each.
• Black back and extended mounting tabs.

Compatibility is determined by the installed caliper. Before selecting, compare the brake designation, the shape of the old pads, and the mounting method. For modified scooters, consider the specific brake installed; pads for a different standard caliper are not interchangeable just because the vehicle model is the same.

Replacement and bedding-in

• Replace the pair if the lining is worn, damaged, or contaminated with oil. Also check the condition of the disc and the minimum allowable lining thickness according to the brake manual.
• Remove the retaining pin and old pads. After the caliper service procedure, prepare space for the new pair, install the pads with the appropriate spring, and re-secure them. Do not touch the friction surfaces with oily hands.
• Adjust the caliper position or pad gap. Check the lever response and free wheel rotation, then bed in the brakes with several gradual stops on a safe surface.
