Organic brake pads for Dualtron X2 with Magura MT5/MT7 caliper

Organic brake pads for Magura MT5/MT7

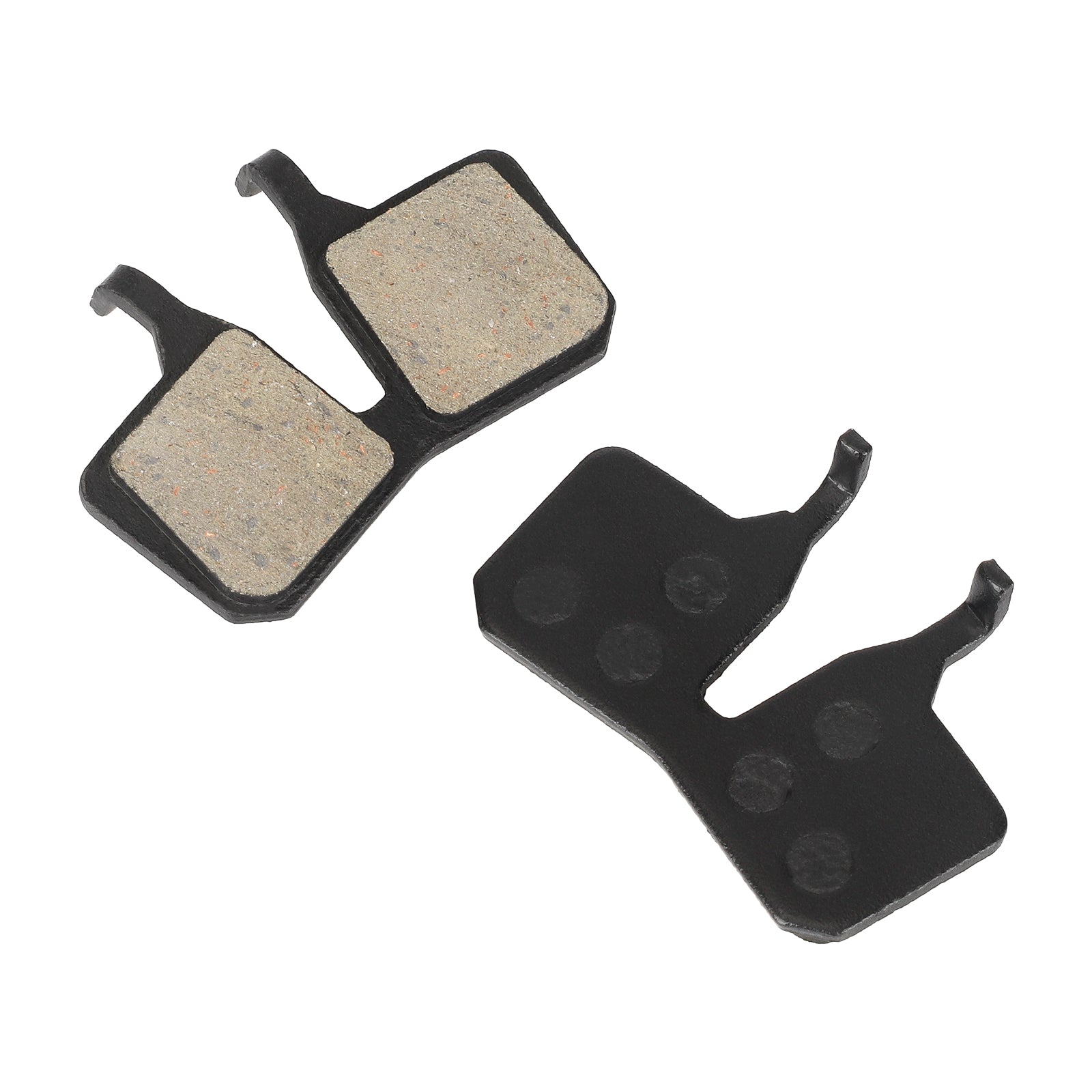

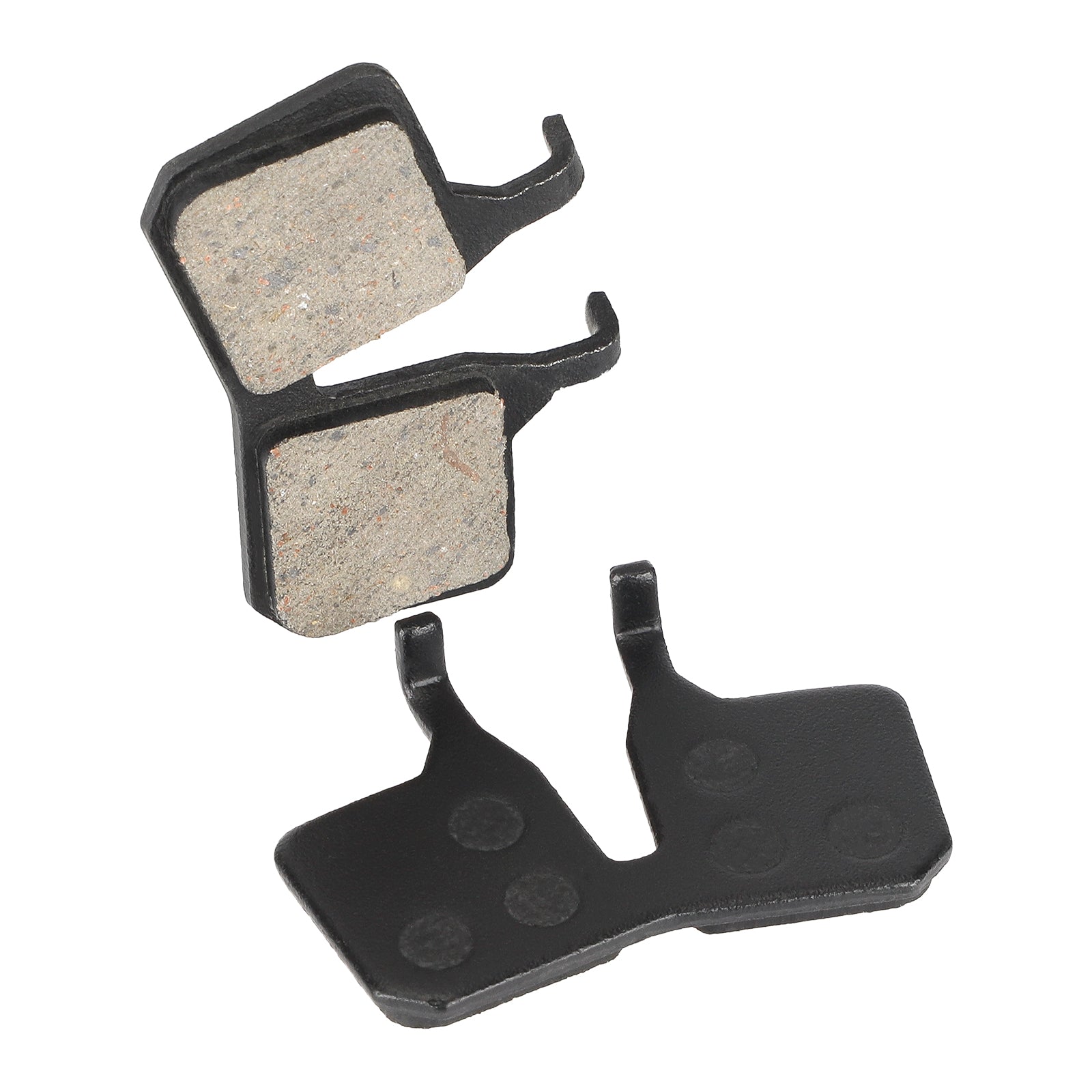

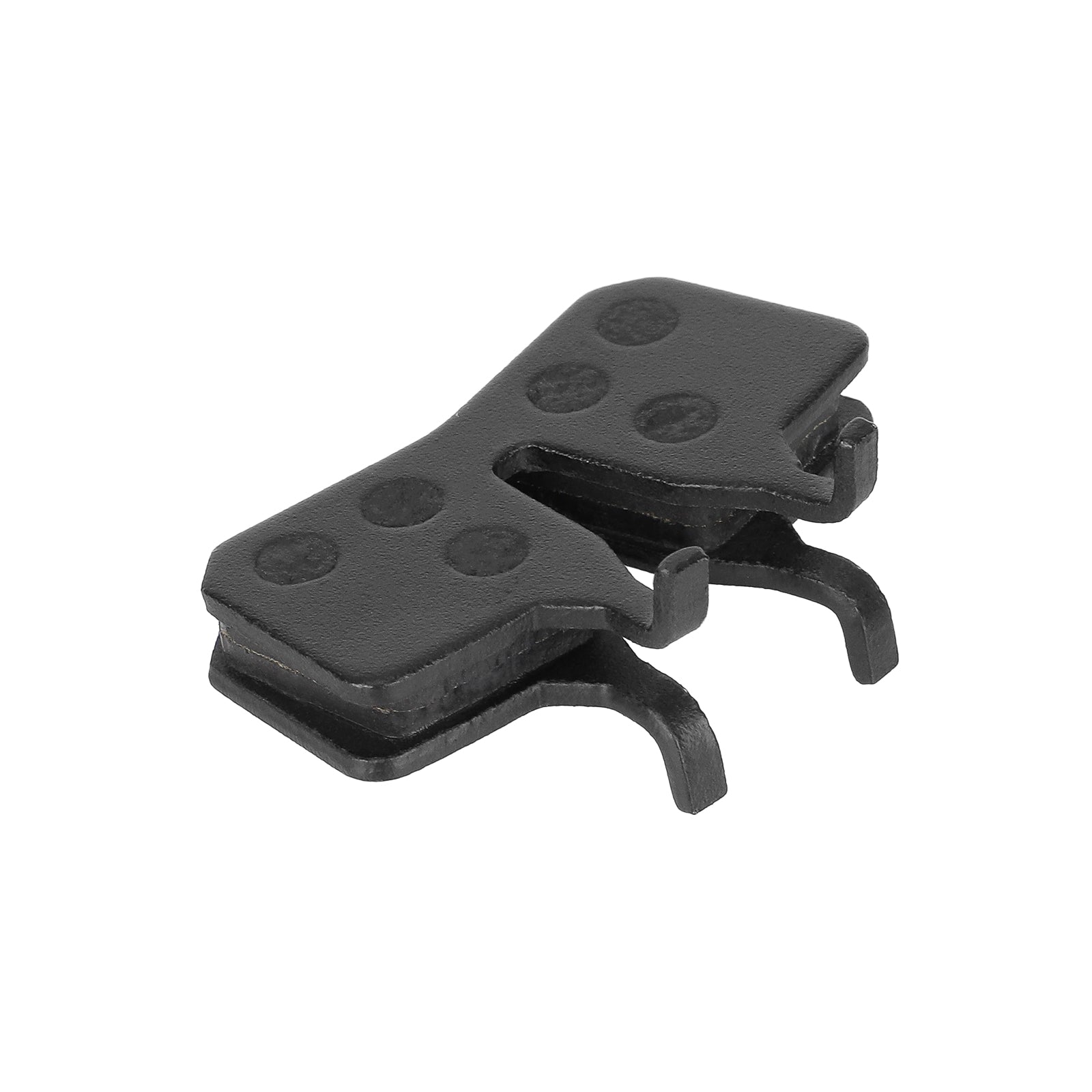

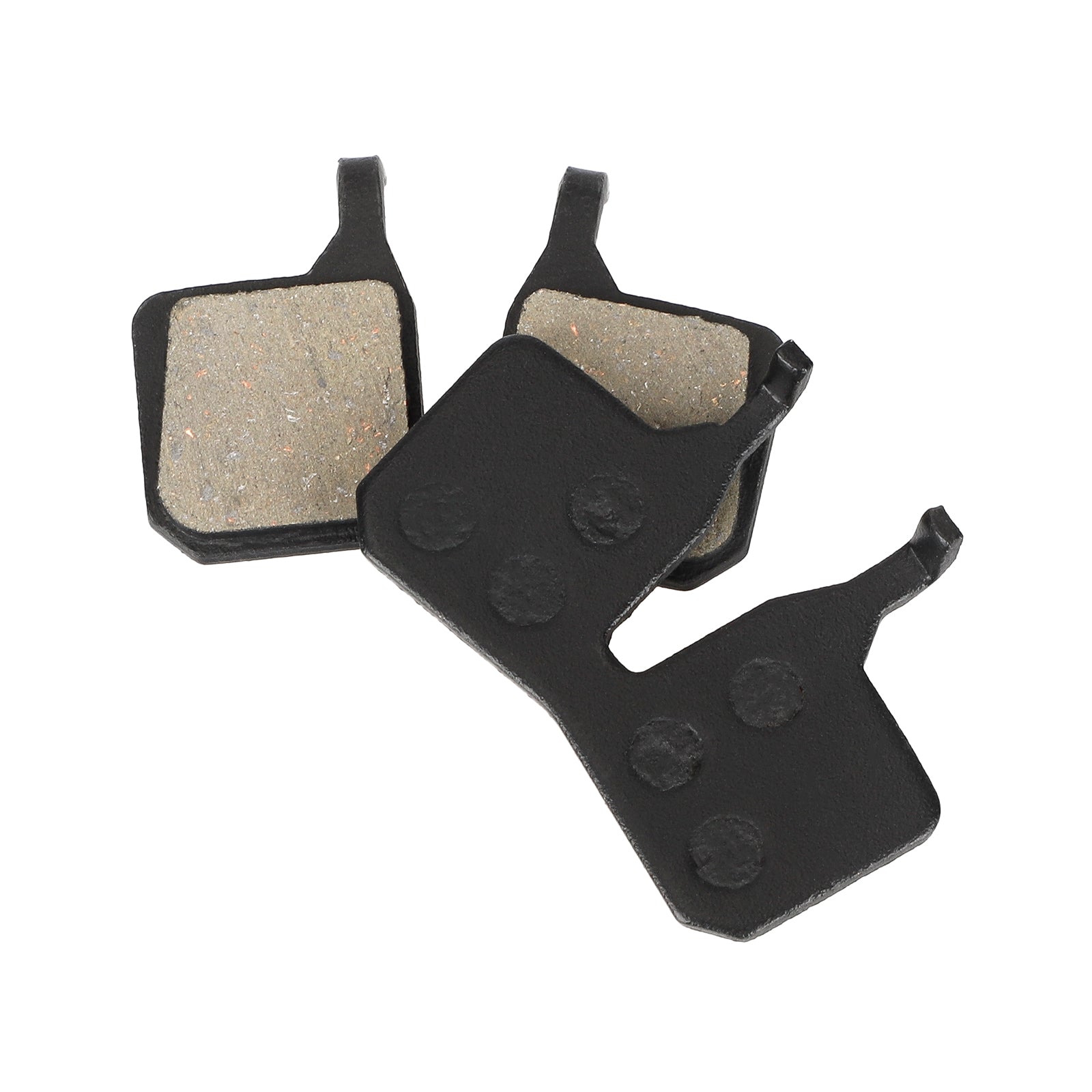

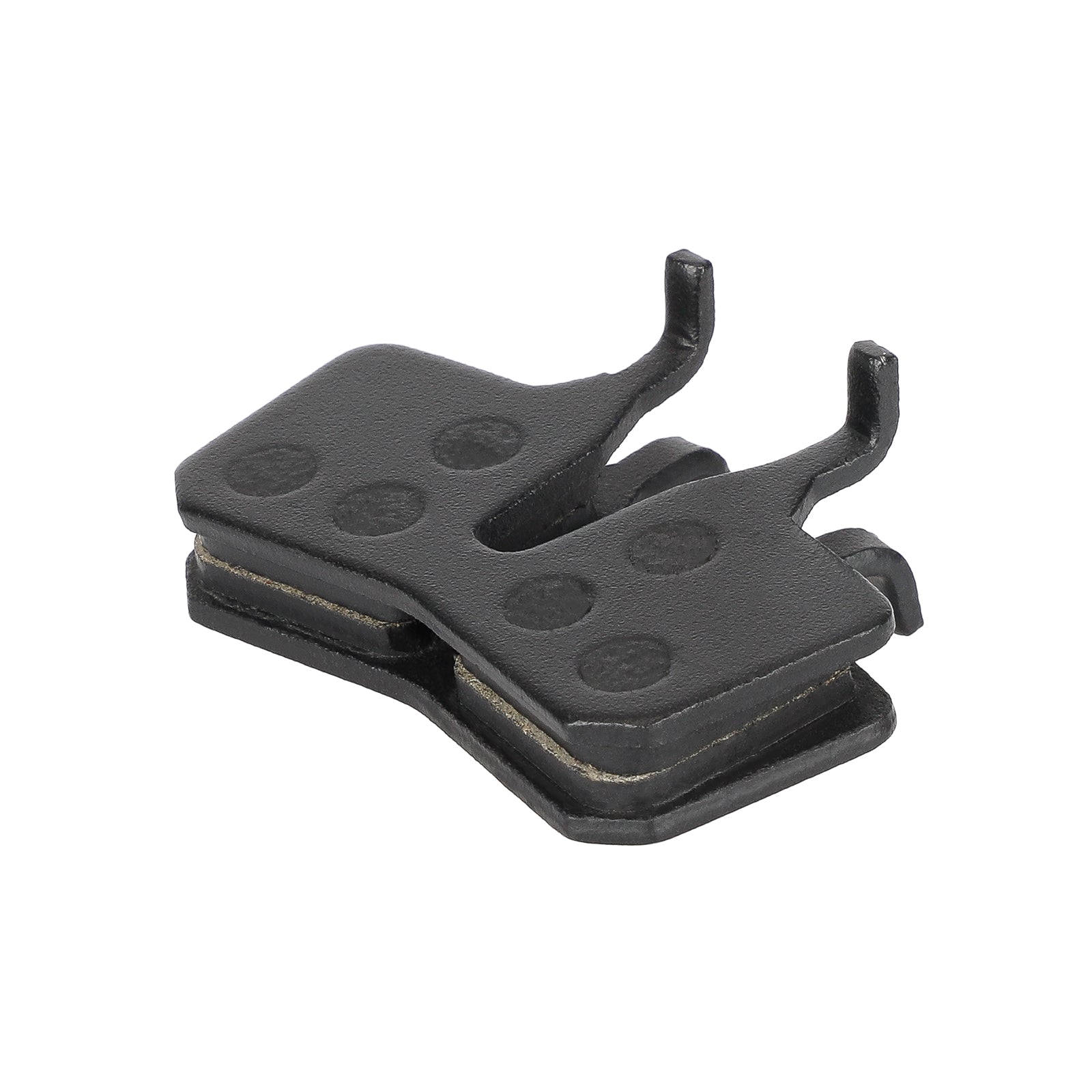

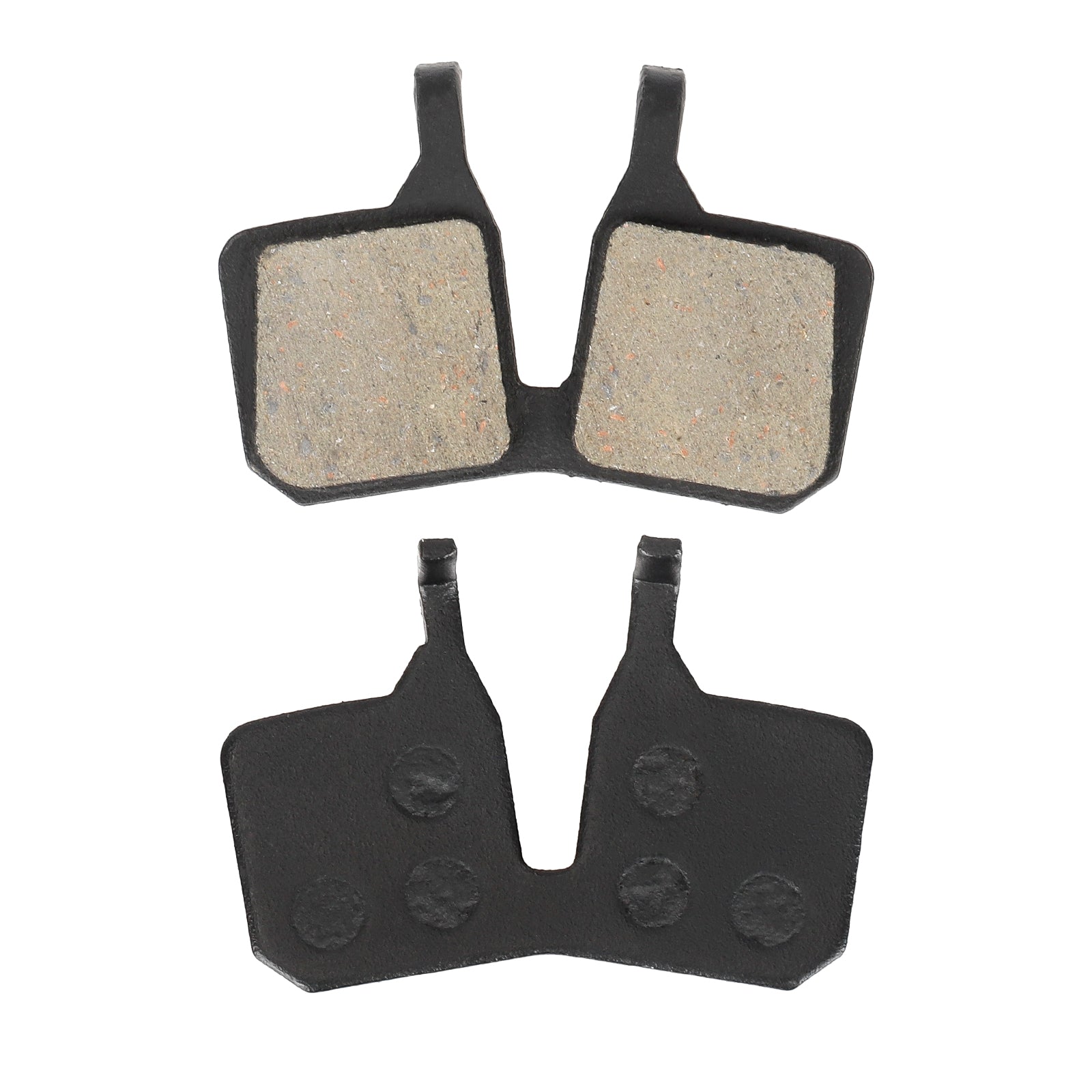

A pair of organic brake pads designed for the Dualtron X2 electric scooter, equipped with a compatible Magura MT5, MT5e, or MT7 caliper. Each black backing plate has two friction areas and an upper mounting tab.

Features and dimensions

• Brake pad: organic, resin-based.
• Vehicle: Dualtron X2 with compatible Magura MT5/MT5e/MT7 brake.
• Two backing plates; two friction surfaces on each.
• Black backing and extended mounting tabs.

Fitment is determined by the installed caliper. Before selecting, compare the brake label, the shape of the old pads, and the mounting method. For a modified scooter, consider the installed brake; pads for a different stock caliper are not interchangeable just because the vehicle model is the same.

Replacement and bedding-in

• Replace the pair if the lining is worn, damaged, or contaminated with oil. Also check the condition of the disc and the minimum allowed lining thickness according to the brake instructions.
• Remove the safety pin and the old pads. After servicing the caliper, prepare space for the new pair, install the pads with the appropriate spring, and re-secure the mounting. Do not touch friction surfaces with greasy hands.
• Adjust the caliper position or pad spacing. Check lever response and wheel rotation, then bed in the brakes with several gradual decelerations on a safe surface.
