Reinforced 10×2.5 inner tube with 90° valve for VSETT 10+ electric scooter

ULIP reinforced inner tube with angled valve

The ULIP 10 × 2.5 inner tube features a reinforced design and a metal valve with a 90-degree bend. Designed for a compatible 10-inch wheel assembly using an inner tube.

Features and fitment

• Model: VSETT 10+.
• ULIP 10 × 2.5 reinforced inner tube; 90° angled valve.

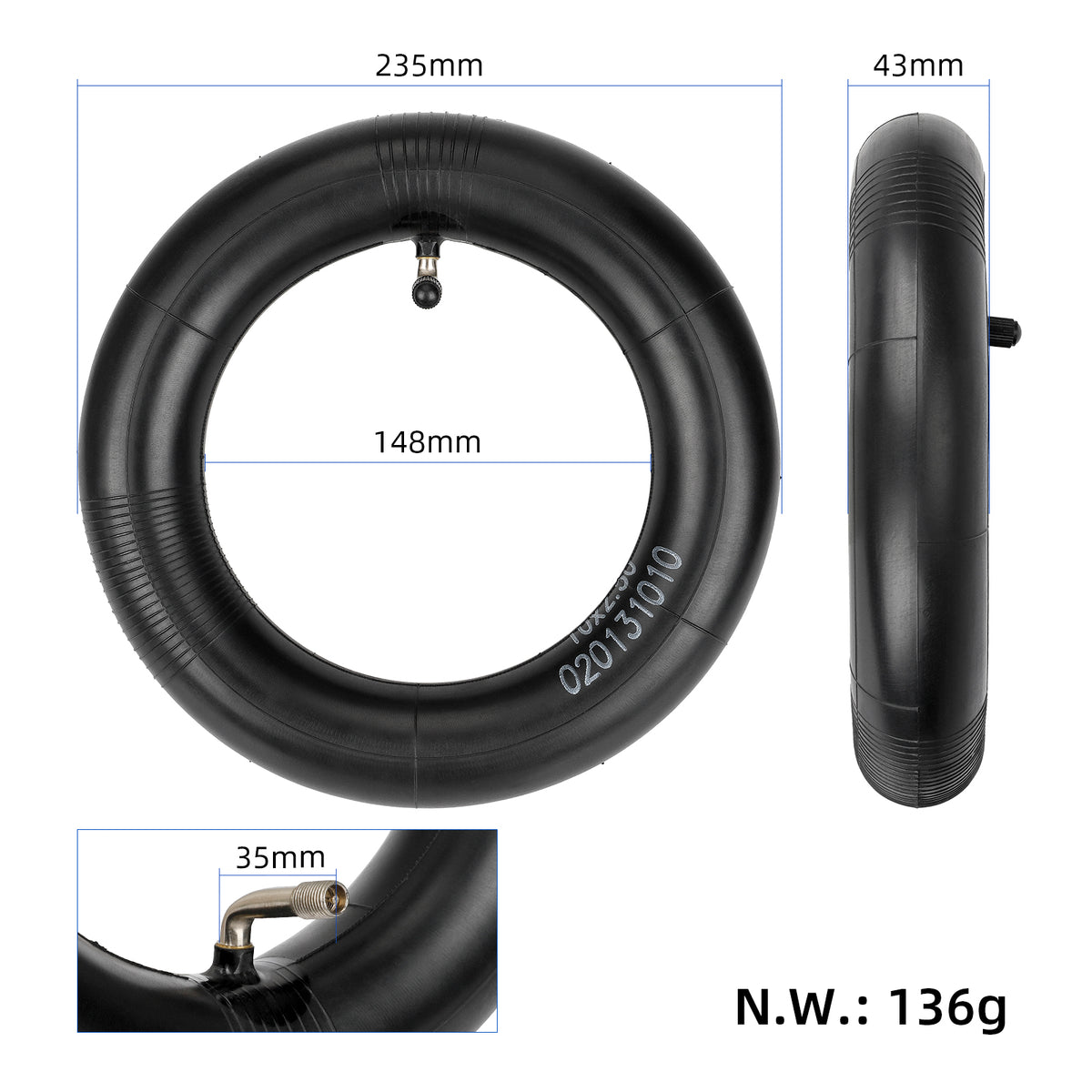

Approximate dimensions

• Inner tube outer diameter: 235 mm.
• Inner tube inner diameter: 148 mm.
• Inner tube width: 43 mm.

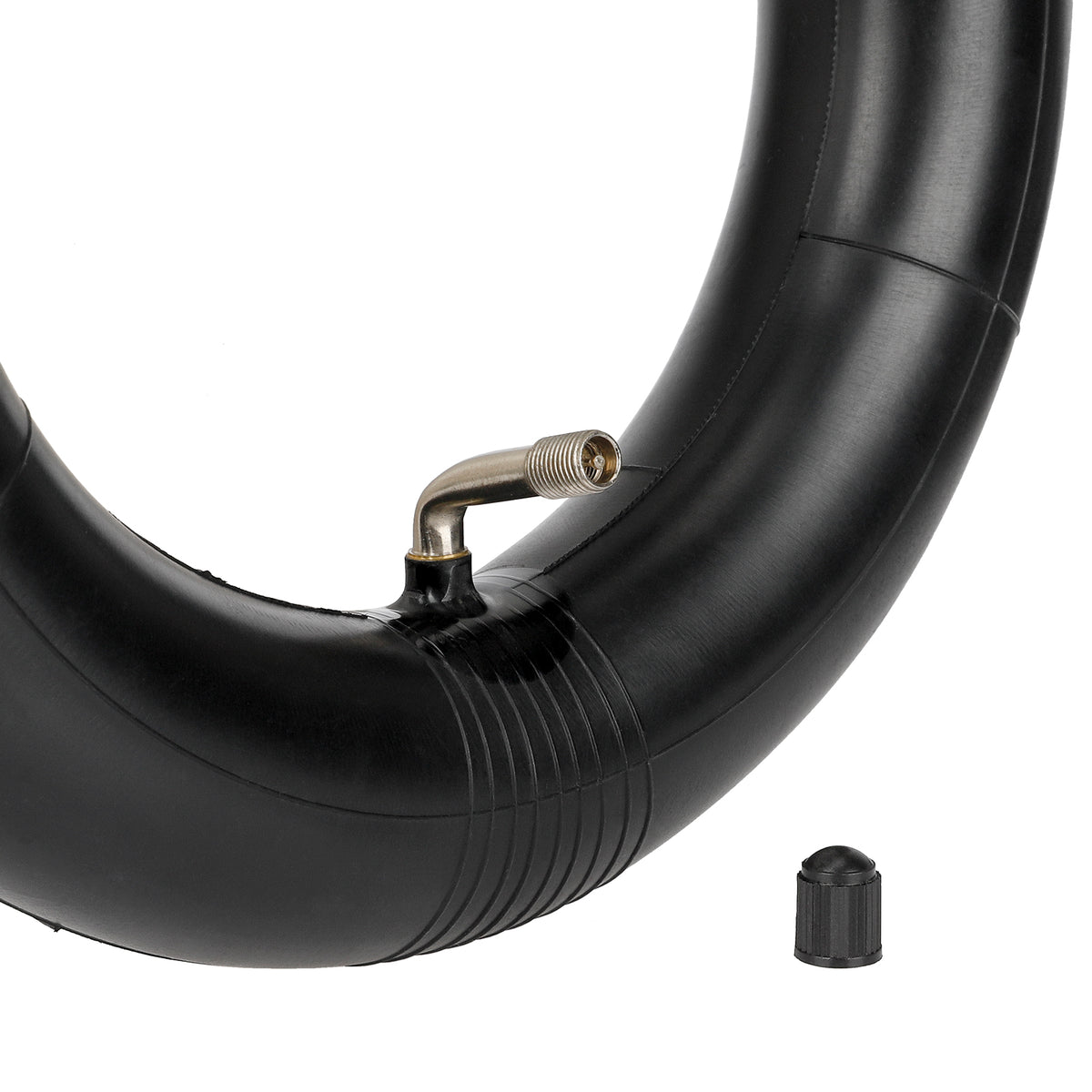

• Angled valve: 35 mm length, 90° angle.

In addition to the tire size, check the valve orientation and accessibility near the motor. The valve should protrude from the rim opening without tension, with sufficient space to connect a pump.

Replacing the inner tube without pinching

• Before replacing, check for the cause of the puncture in the tire or on the rim. Foreign objects, sharp edges, or damaged rim tape can immediately damage a new inner tube as well.
• Slightly inflate the inner tube, align the valve with the opening, and distribute it evenly inside the tire. When installing the bead, do not squeeze it with mounting tools.
• Inflate to the pressure allowed for the wheel assembly. Check the valve position and seal; do not use the valve cap to stop leaks.
