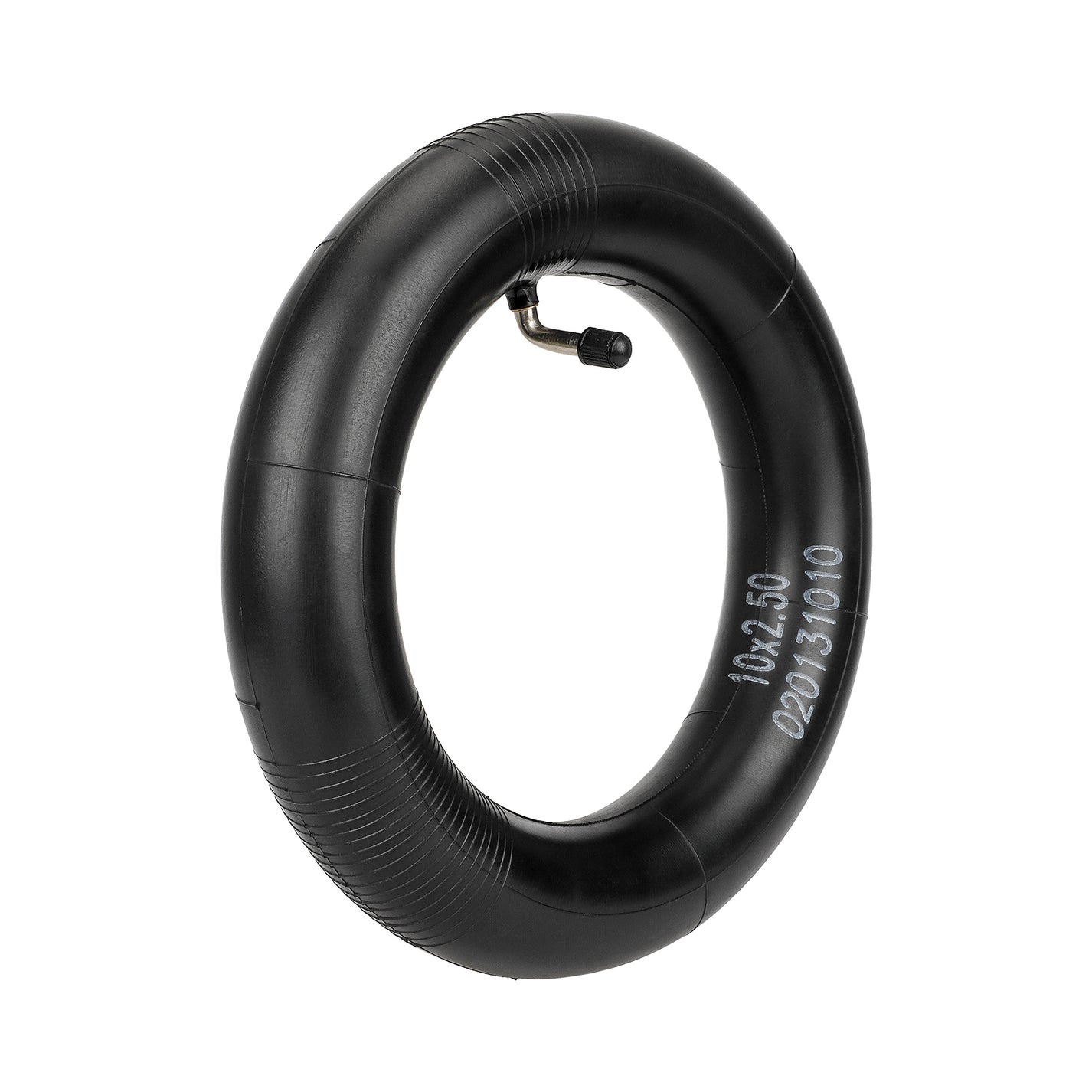

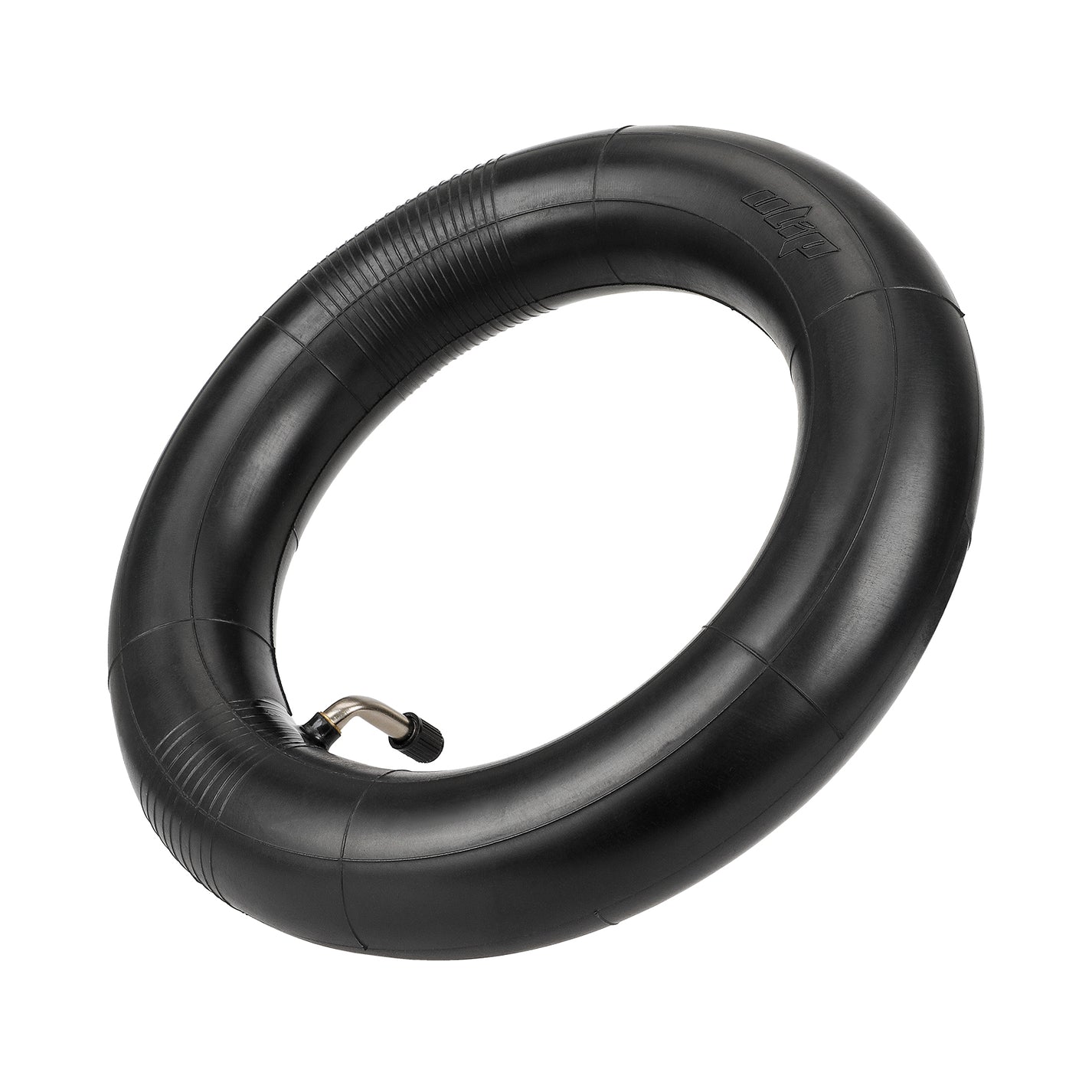

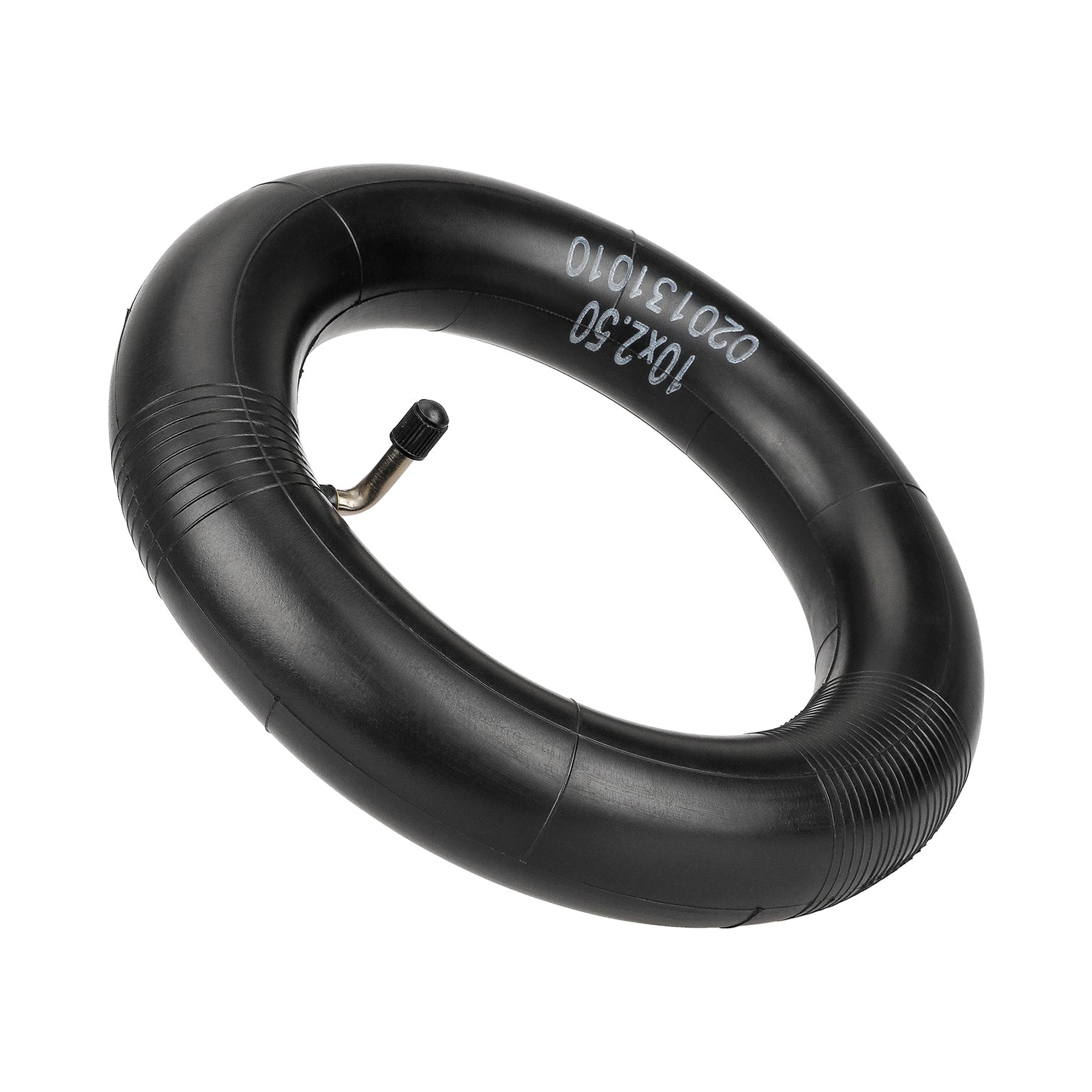

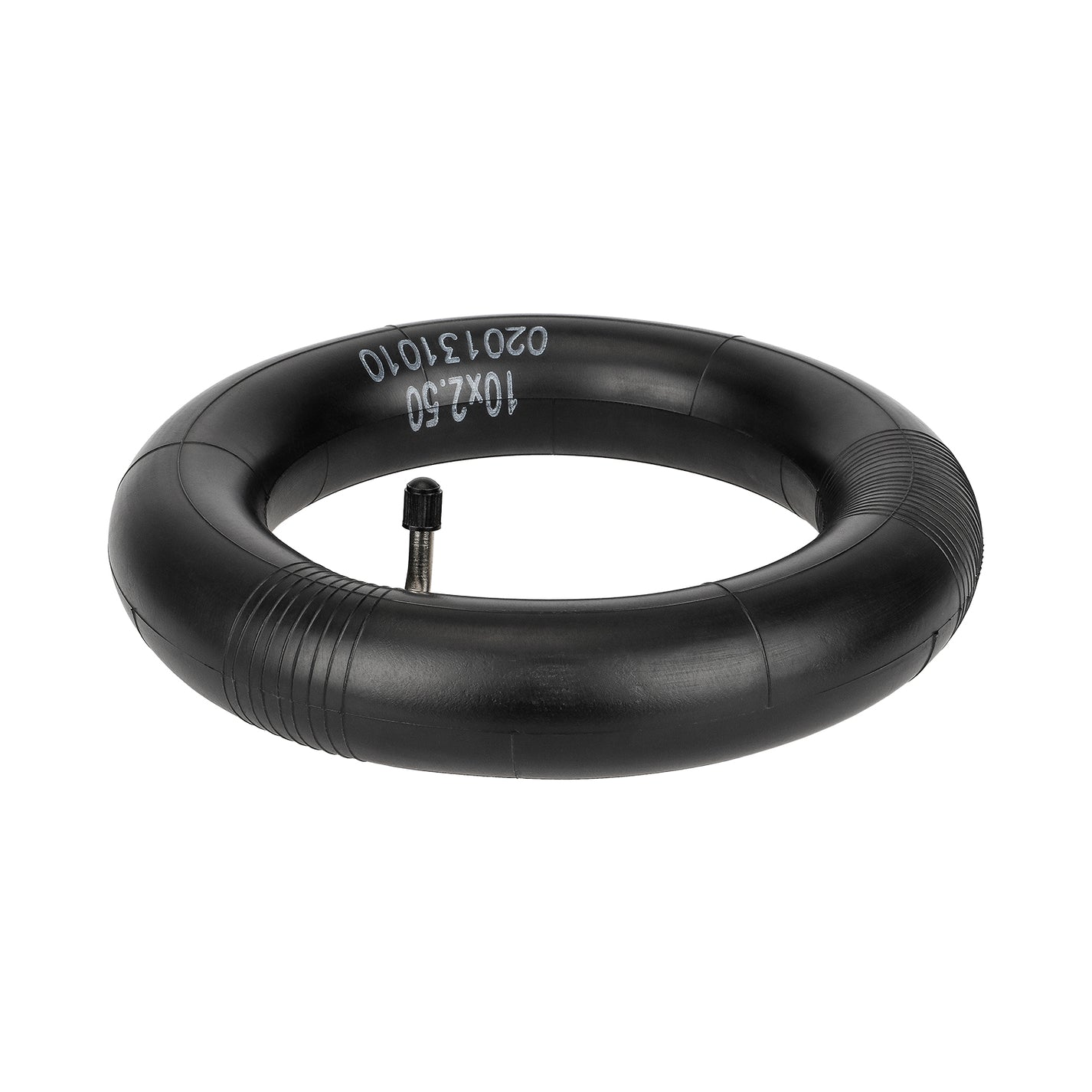

Reinforced 10 × 2.5 inner tube with 90° valve for Kaabo Mantis King GT electric scooter

Reinforced ULIP inner tube with angled valve

The ULIP 10 × 2.5 inner tube features a reinforced design and a metal valve with a 90-degree bend. It is designed for compatible ten-inch wheel assemblies that use an inner tube.

Features and fitment

• Model: Kaabo Mantis King GT.
• Reinforced ULIP inner tube 10 × 2.5; 90° angled valve.

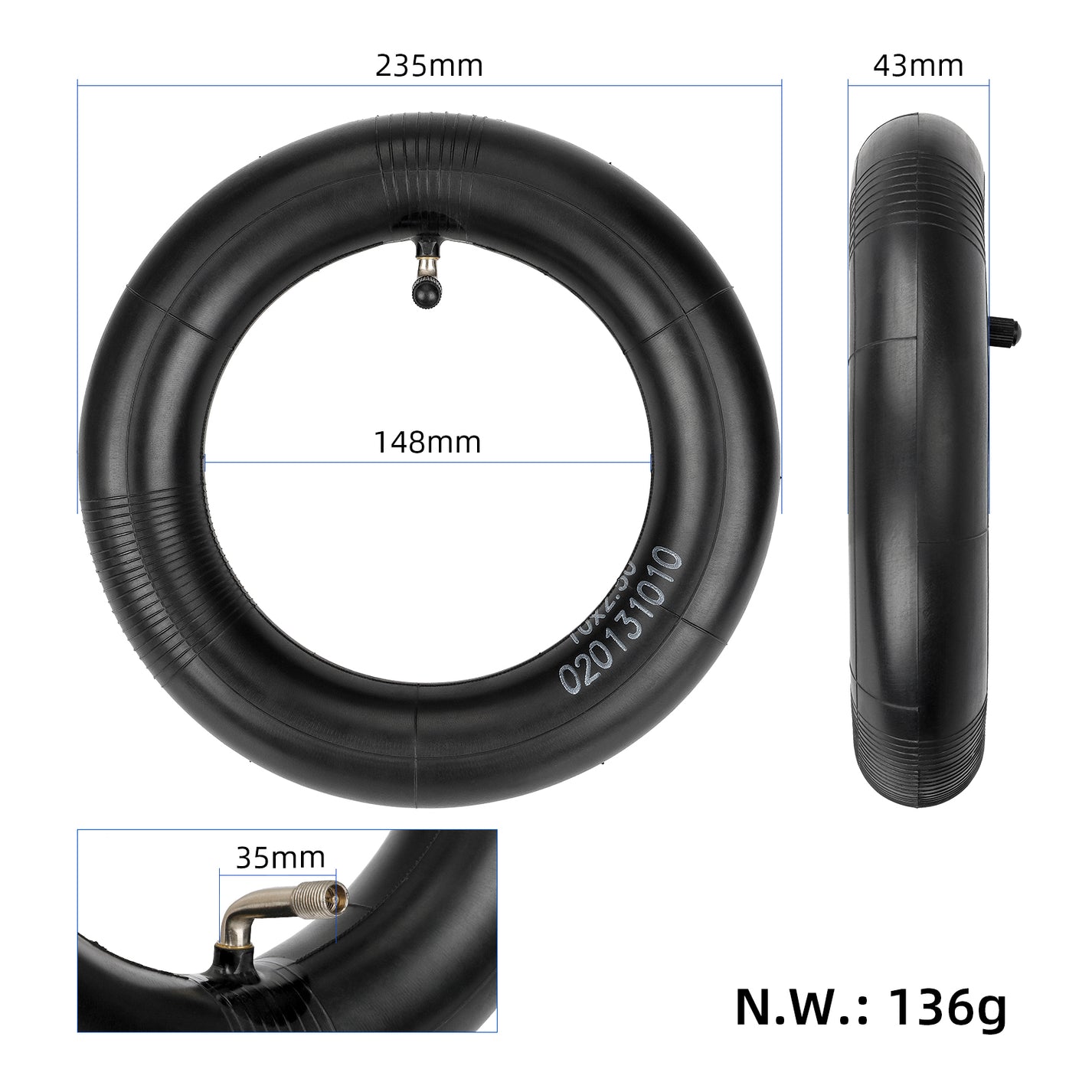

Approximate dimensions

• Outer diameter of inner tube: 235 mm.
• Inner diameter of inner tube: 148 mm.
• Inner tube width: 43 mm.

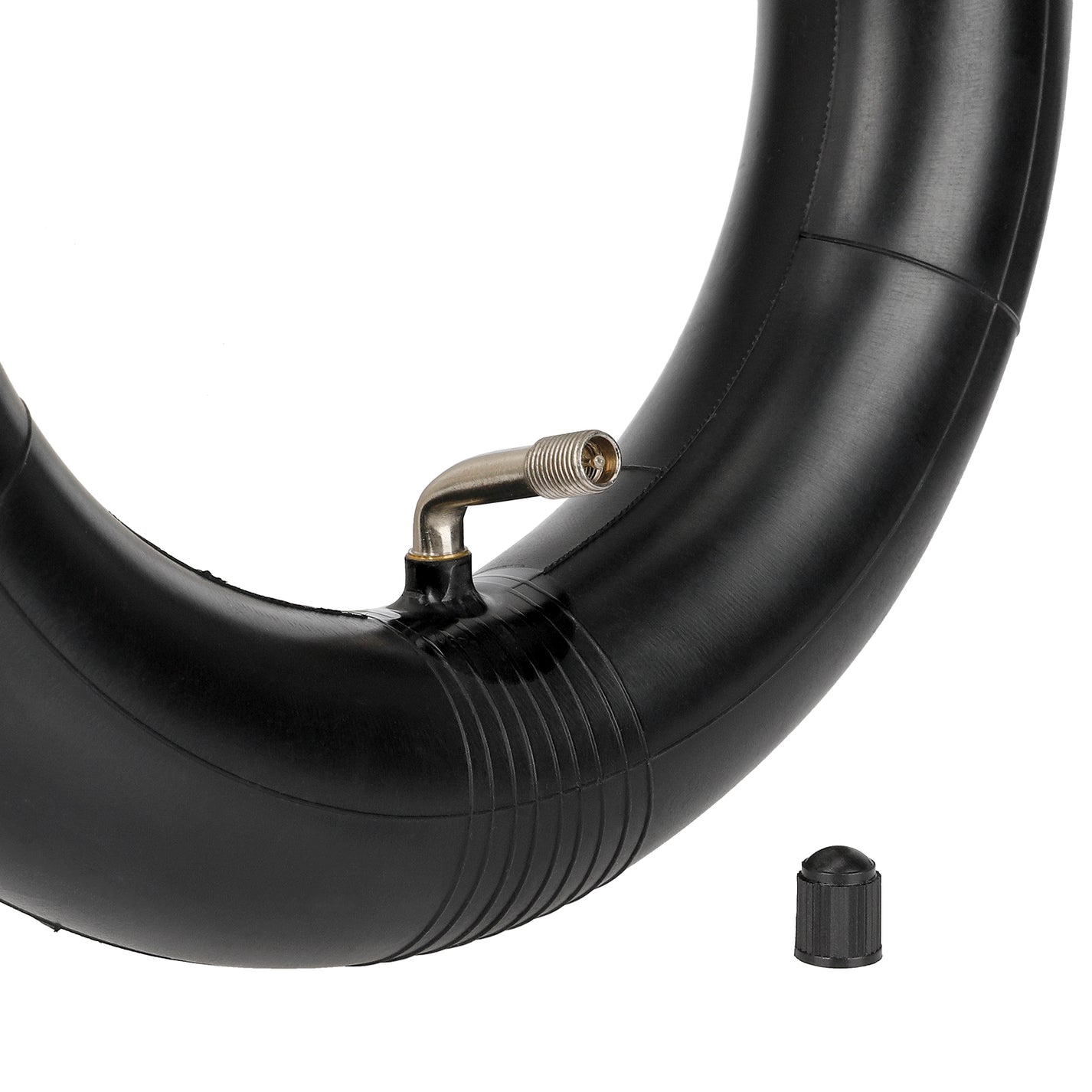

• Angled valve: 35 mm length, 90° angle.

In addition to the tire size, check the valve orientation and accessibility relative to the motor. The valve should protrude from the rim hole without tension, with enough space to connect a pump.

Replacement without pinching the inner tube

• Before replacing, find the cause of the puncture in the tire or on the rim. Foreign objects, sharp edges, or a damaged rim tape can damage the new inner tube immediately.
• Inflate the inner tube slightly, align the valve with the hole, and distribute it evenly inside the tire. When installing the tire bead, be careful not to pinch it with mounting tools.
• Inflate to the pressure allowed for the wheel assembly. Check the valve position and sealing; do not use the valve cap to stop a leak.
