Reinforced 10 × 2.5 inner tube with 90° valve for Kaabo Mantis Pro electric scooter

Reinforced ULIP inner tube with angled valve

The ULIP 10 × 2.5 inner tube features a reinforced design and a 90-degree bent metal valve. It is intended for compatible 10-inch wheel assemblies requiring an inner tube.

Features and compatibility

• Model: Kaabo Mantis Pro.
• Reinforced ULIP 10 × 2.5 inner tube; 90° angled valve.

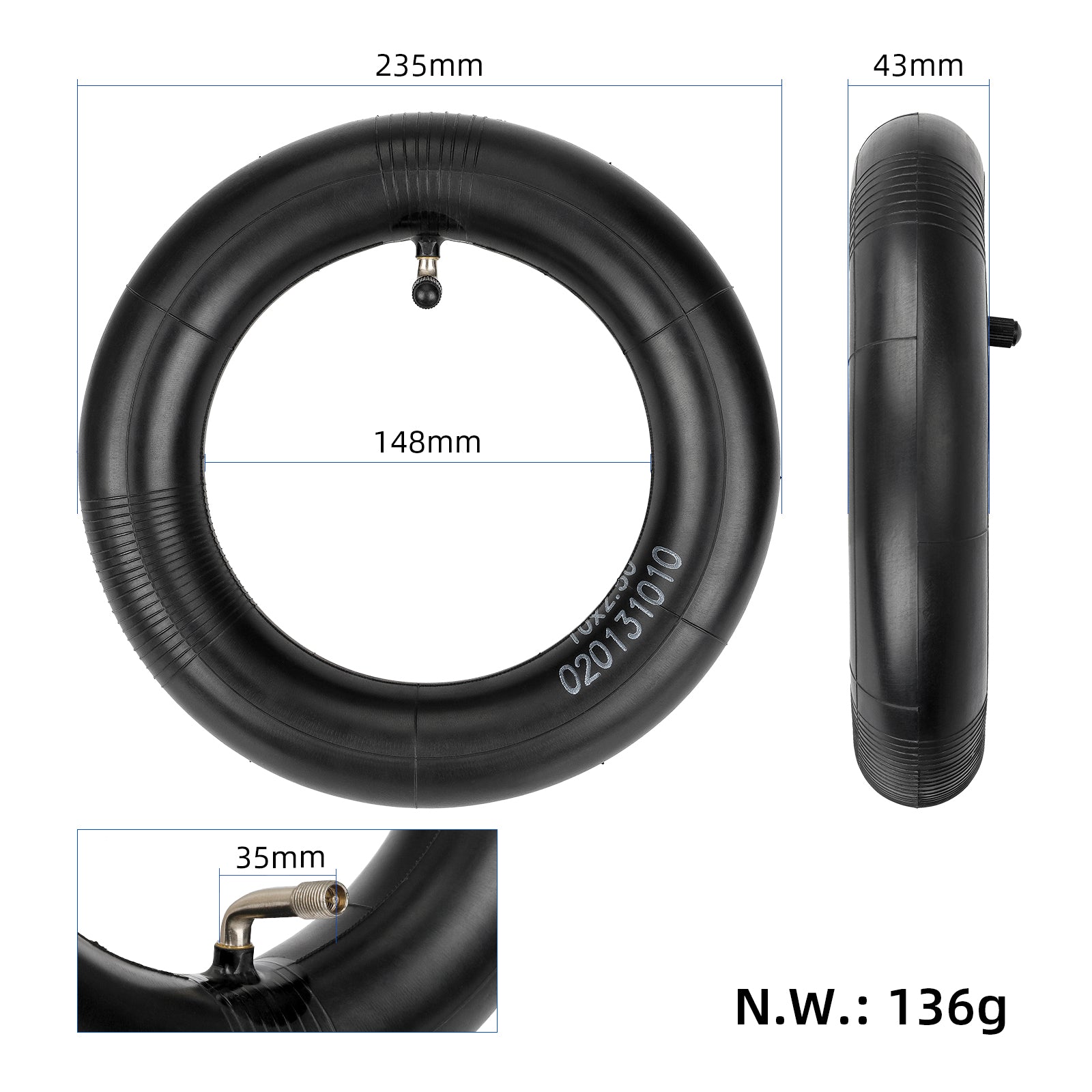

Approximate dimensions

• Outer diameter of inner tube: 235 mm.
• Inner diameter of inner tube: 148 mm.
• Width of inner tube: 43 mm.

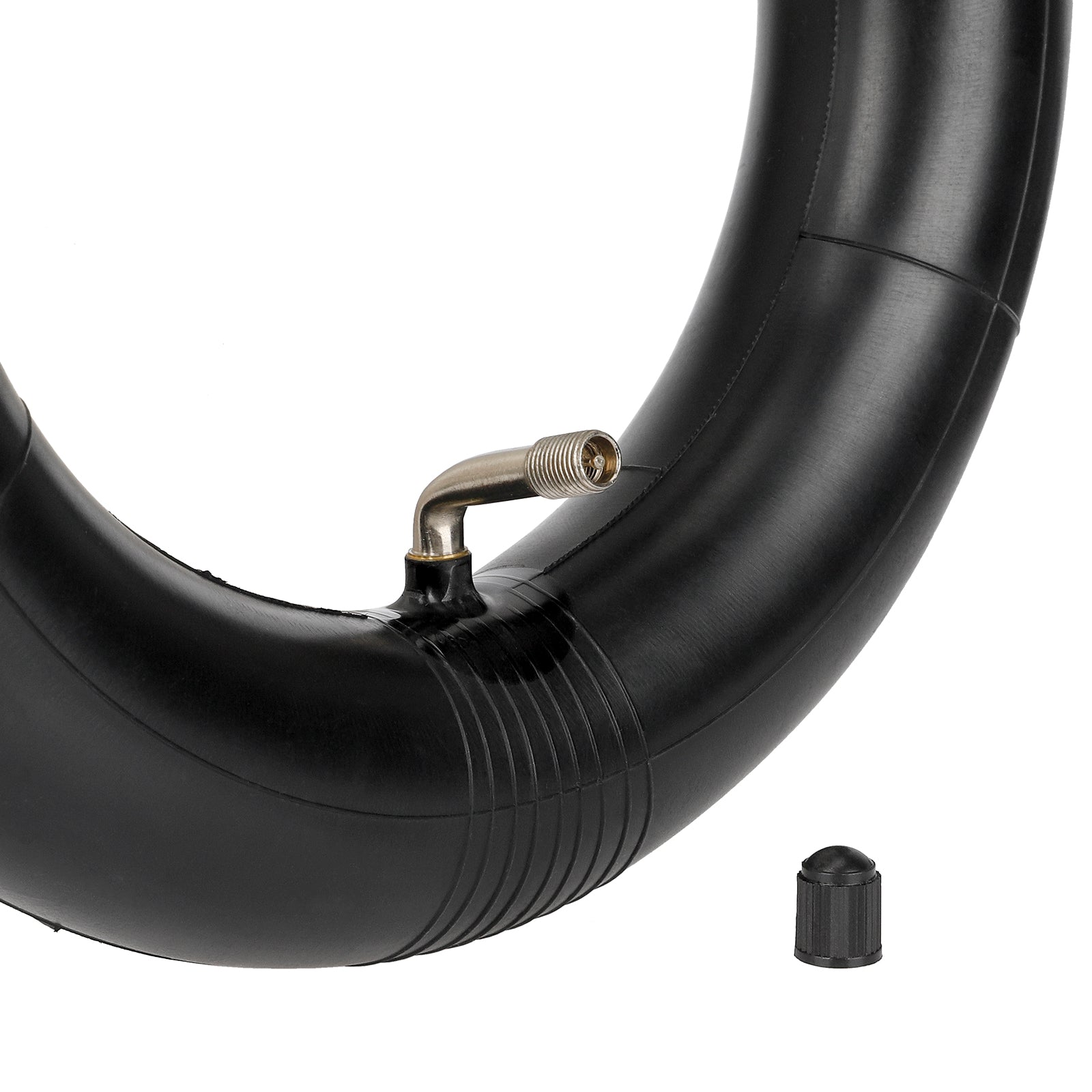

• Angled valve: 35 mm length, 90° angle.

Besides tire dimensions, please check the valve direction and accessibility near the motor. The valve should protrude from the rim hole without tension, leaving enough space to connect a pump.

Replacement without pinching the inner tube

• Before replacement, identify the cause of the puncture in the tire or on the rim. Foreign objects, sharp edges, or damaged rim tape can immediately damage the new inner tube as well.
• Inflate the inner tube slightly, align the valve with the opening, and distribute it evenly inside the tire. When installing the bead, avoid pinching it with mounting tools.
• Inflate to the pressure allowed for the wheel assembly. Check the valve position and sealing; do not use valve caps to stop leaks.
