Semi-metallic NUTT brake pads for Dualtron Storm

Semi-metallic pads for compatible NUTT caliper

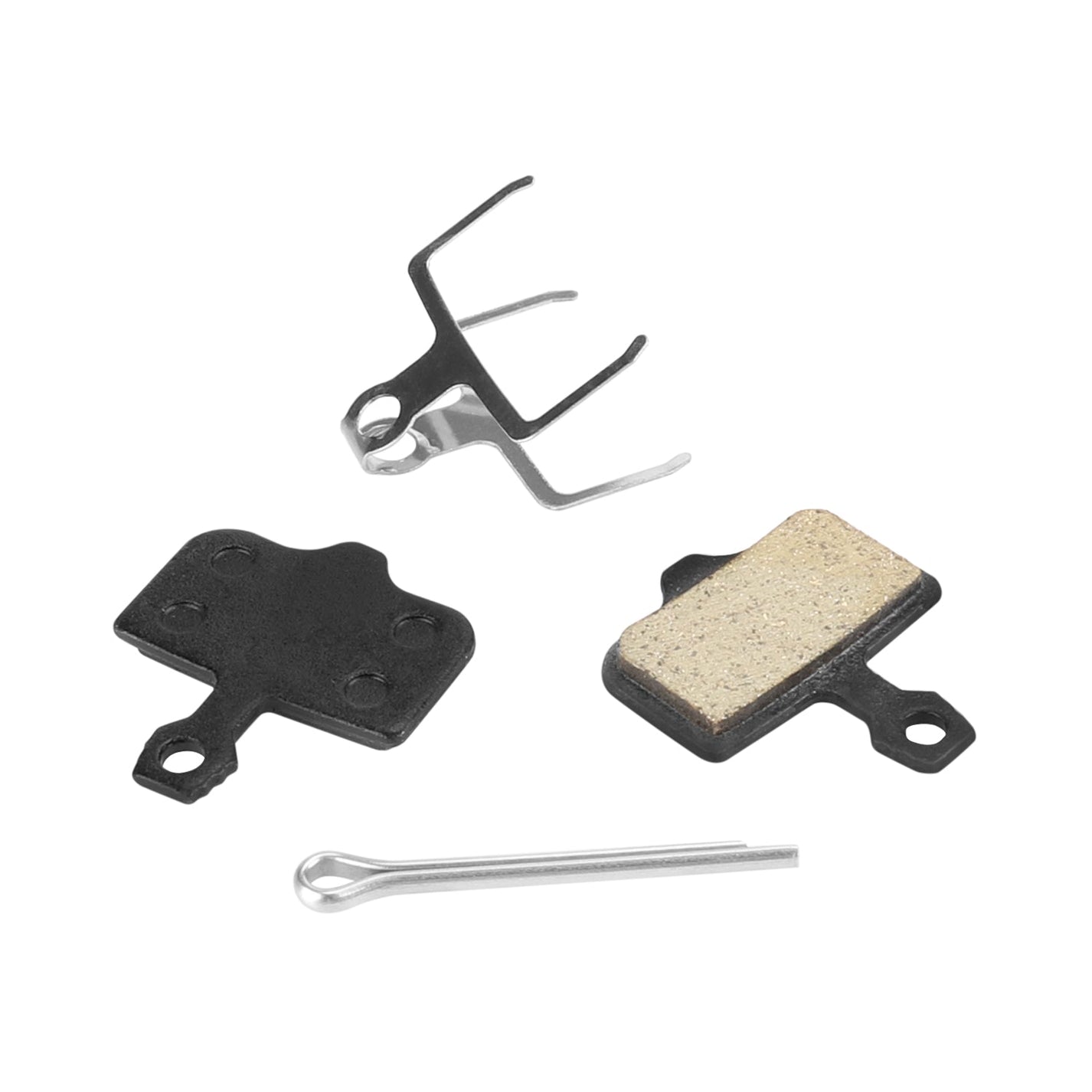

Two black brackets with side lugs and a rectangular friction surface make up this pair of semi-metallic brake pads. The friction area measures approximately 30 × 17 mm; a spring and retaining pin are included.

Features and compatibility

• Model: Dualtron Storm.
• Brake pad: semi-metallic.
• Black pads with a lining width of approximately 30 mm and height of 17 mm.
• Pair with spring and cotter pin; shape for compatible NUTT caliper.

Approximate dimensions

• Friction surface: 30 × 17 mm.

The 30 × 17 mm specification refers to the friction surface, not the entire outline. Before replacing, check the installed caliper and the position of the mounting lugs, especially for vehicles with upgraded brakes.

Use applies only to the installed NUTT caliper with the correct shape and pad mounting.

Brake pad compound

The semi-metallic compound combines metal particles and a resin binder. The mixture represents a compromise between initial grip and resistance to thermal load. A clean disc and gradual bedding-in of the new pair are important for even braking.

When to replace and how to start

• Inspect the pads if there is poor braking, uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowable thickness in the brake manual.
• Remove the retaining pin and old pair. Following the procedure for your caliper, prepare space for the new pads, then insert the spring, the new pair, and the retaining pin. Do not grease the friction surfaces.
• Check for free wheel rotation and lever operation. Bed in the new pads with several gradual stops in a safe area, without locking the wheel.
