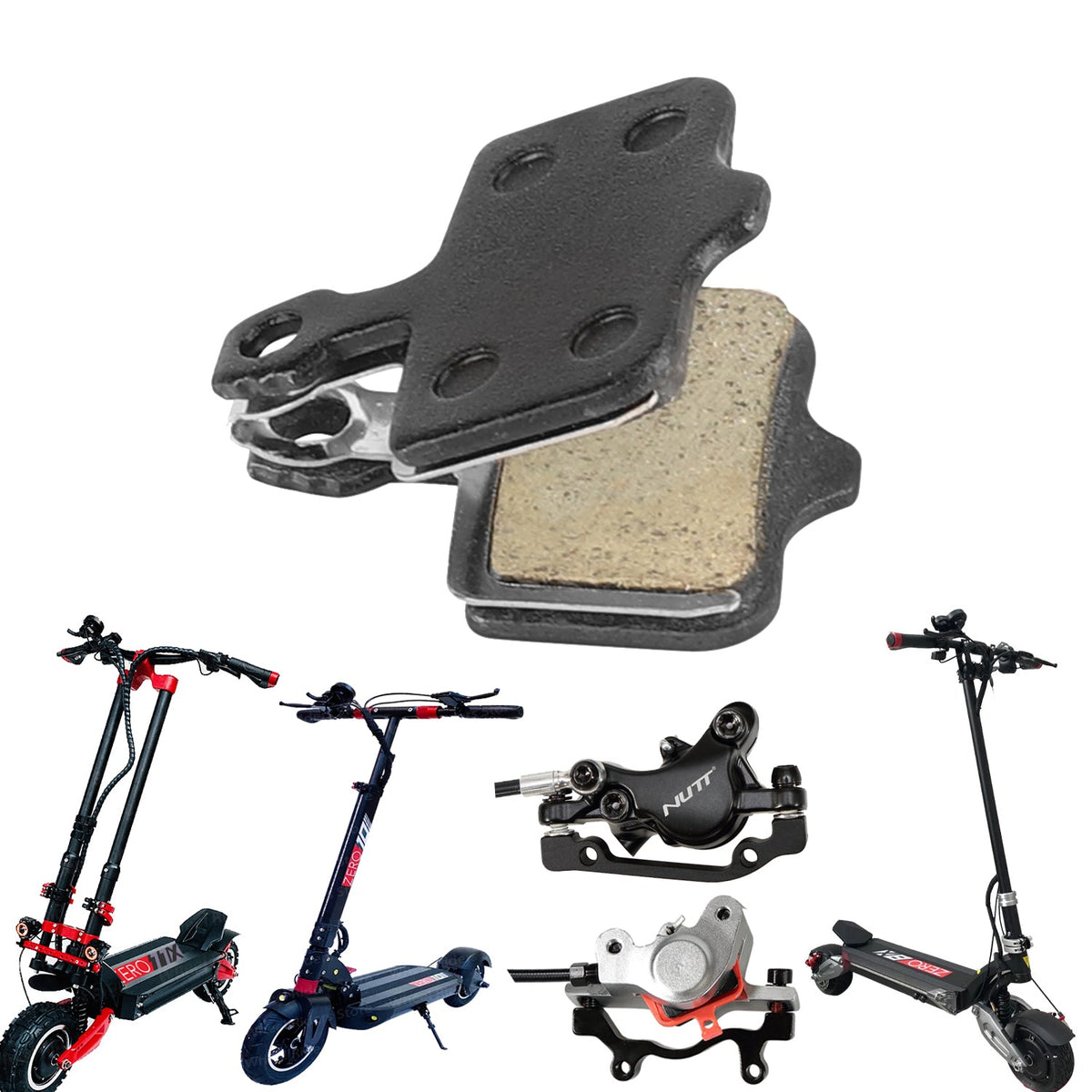

NUTT semi-metallic brake pads for Dualtron X2

Semi-metallic pads for the corresponding NUTT caliper

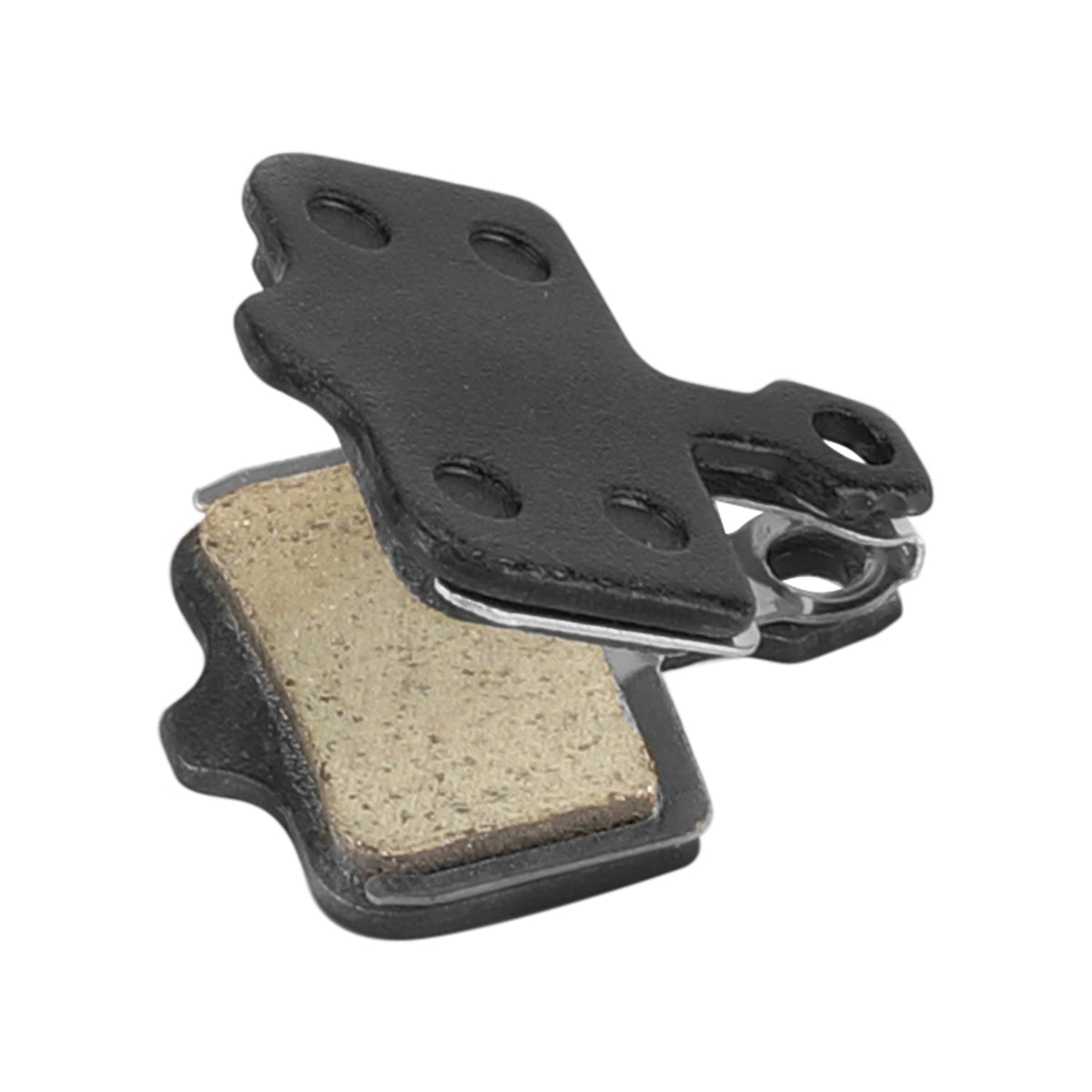

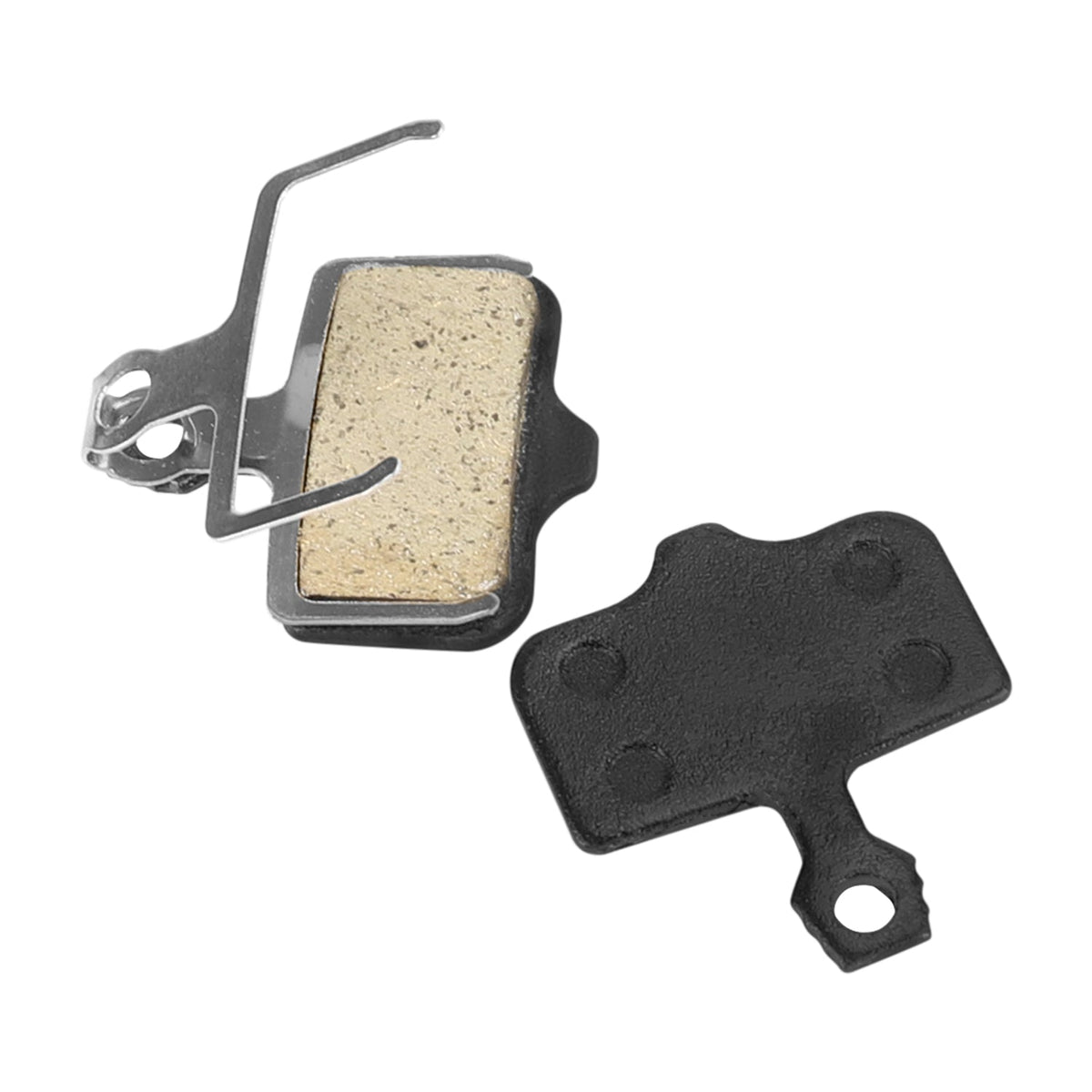

Black backing plates with side tabs and rectangular friction surface make up this pair of semi-metallic brake pads. The friction area measures approximately 30 × 17 mm; a spring and locking pin are included.

Features and fitment

• Model: Dualtron X2.
• Brake pad: semi-metallic.
• Black pads with friction material approximately 30 mm wide and 17 mm high.

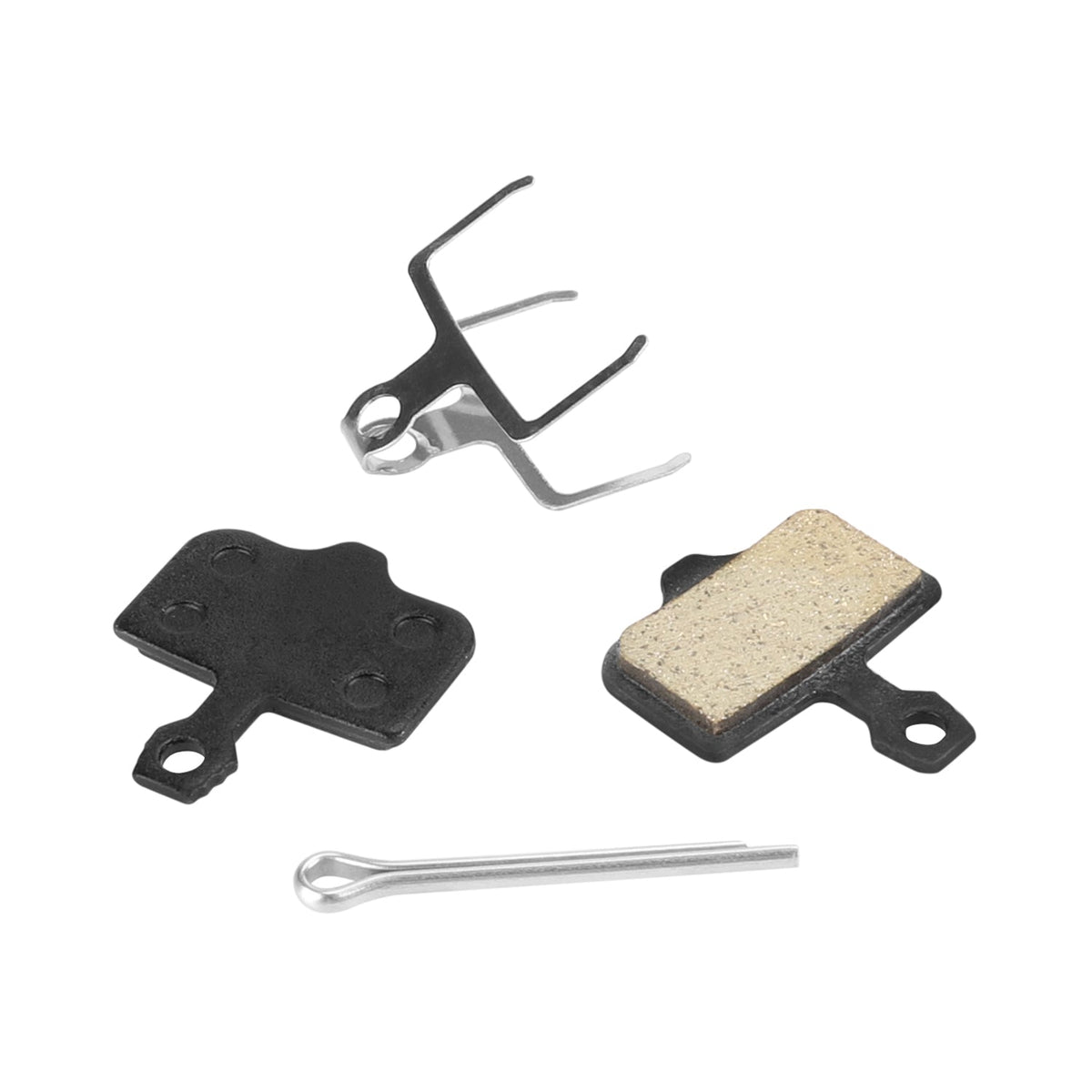

• Pair with spring and cotter pin; shape for matching NUTT caliper.

Approximate dimensions

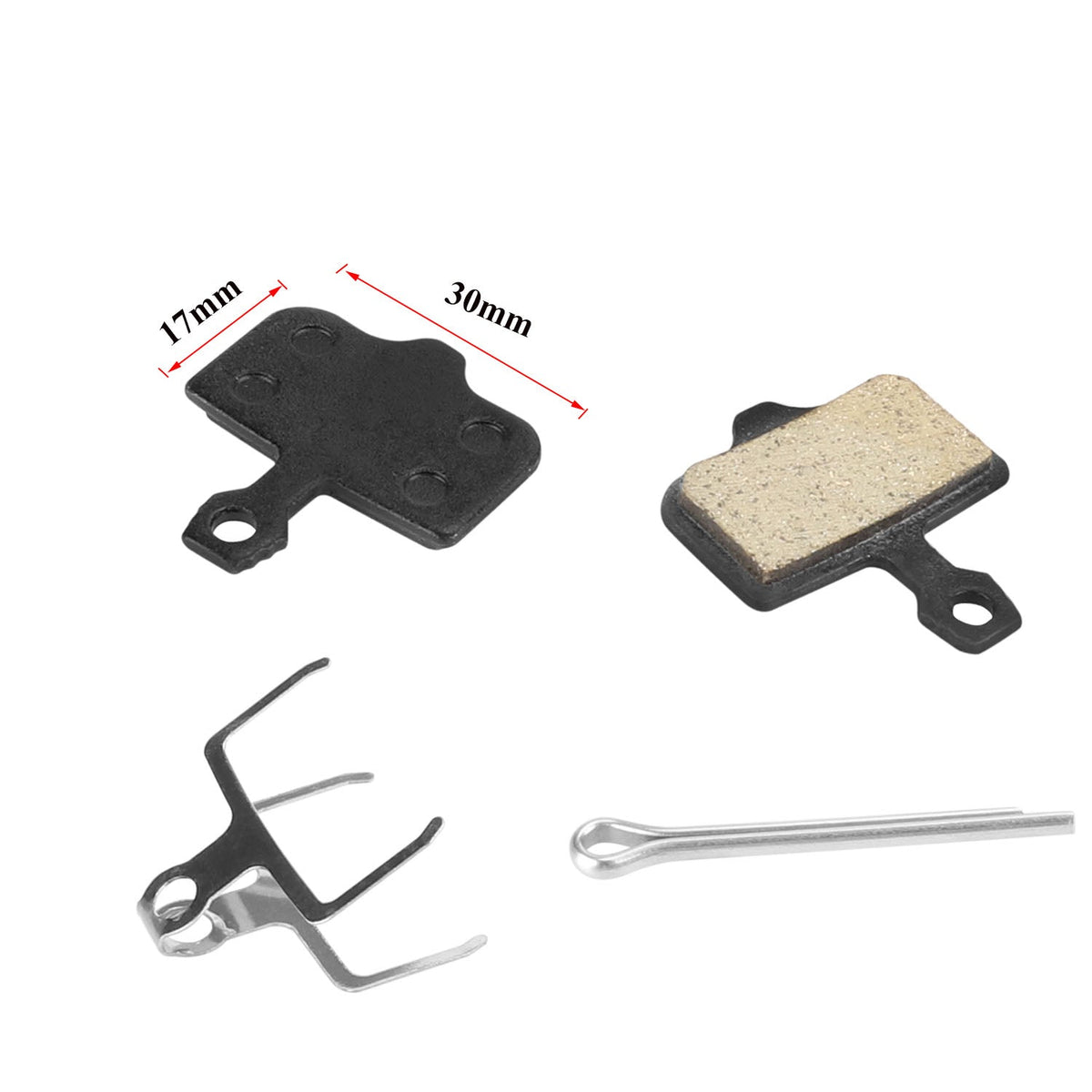

• Friction surface: 30 × 17 mm.

The 30 × 17 mm data refers to the friction surface, not the entire outline. Before replacing, check the installed caliper and the position of the mounting tabs, especially on vehicles with upgraded brakes.

Usage applies only to the installed NUTT caliper with the correct shape and pad mounting.

Brake pad material

Semi-metallic compound combines metal particles with resin binders. This blend is a compromise between initial bite and thermal resistance. A clean disc and gradual bedding-in of the new pair are important for consistent braking.

When to replace and how to start

• Inspect the pads if you notice reduced braking performance, uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowable thickness in the brake manual.
• Remove the safety pin and the old pair. Following the procedure for your specific caliper, prepare space for the new pads, then insert the spring, the new pair, and the safety pin. Do not grease the friction surfaces.
• Check for free wheel rotation and lever feel. Bed in the new pads with several gradual decelerations in a safe location, without locking the wheel.
