ULIP Superior Metal brake pads for ZERO electric scooters

Superior Metal with a central mounting tab

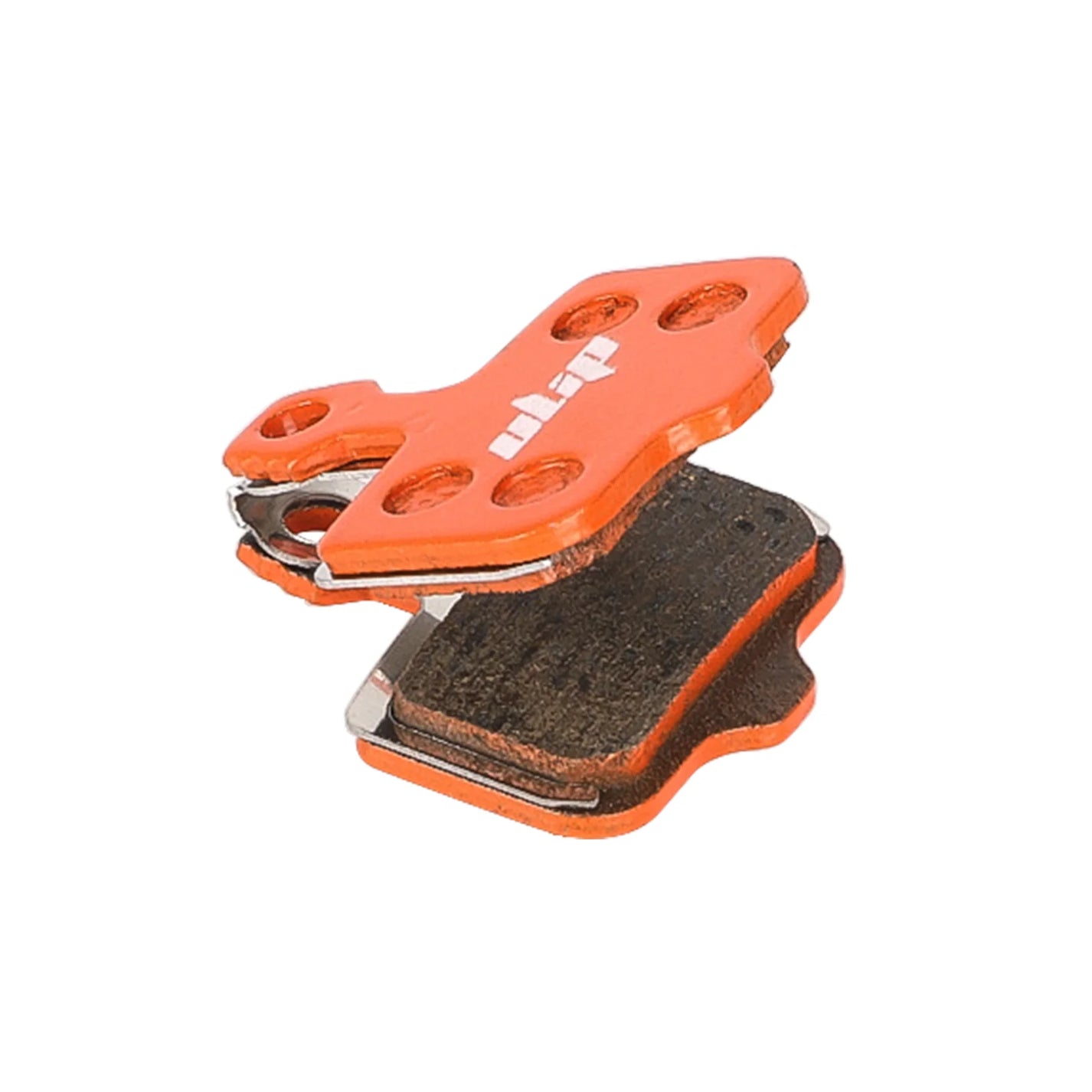

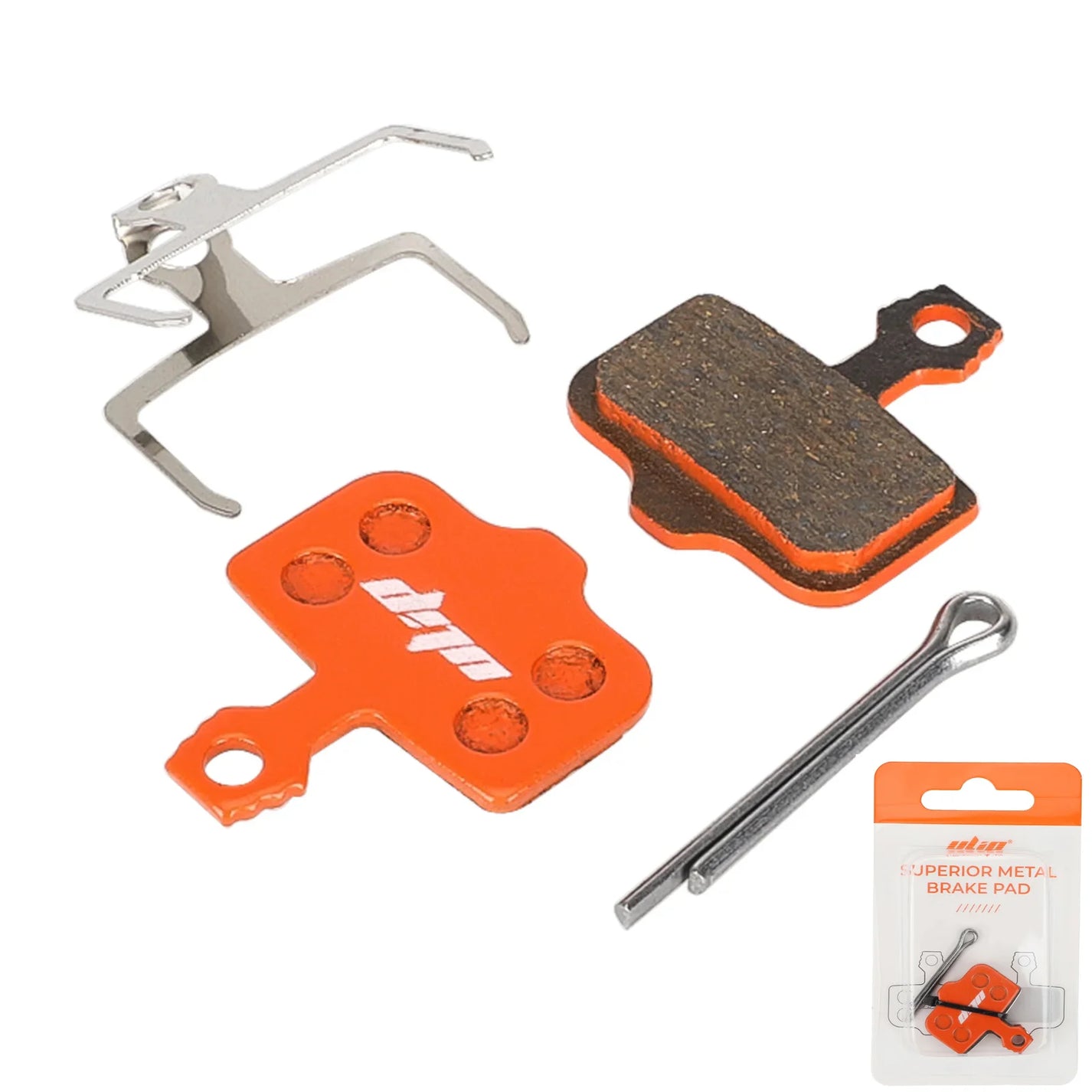

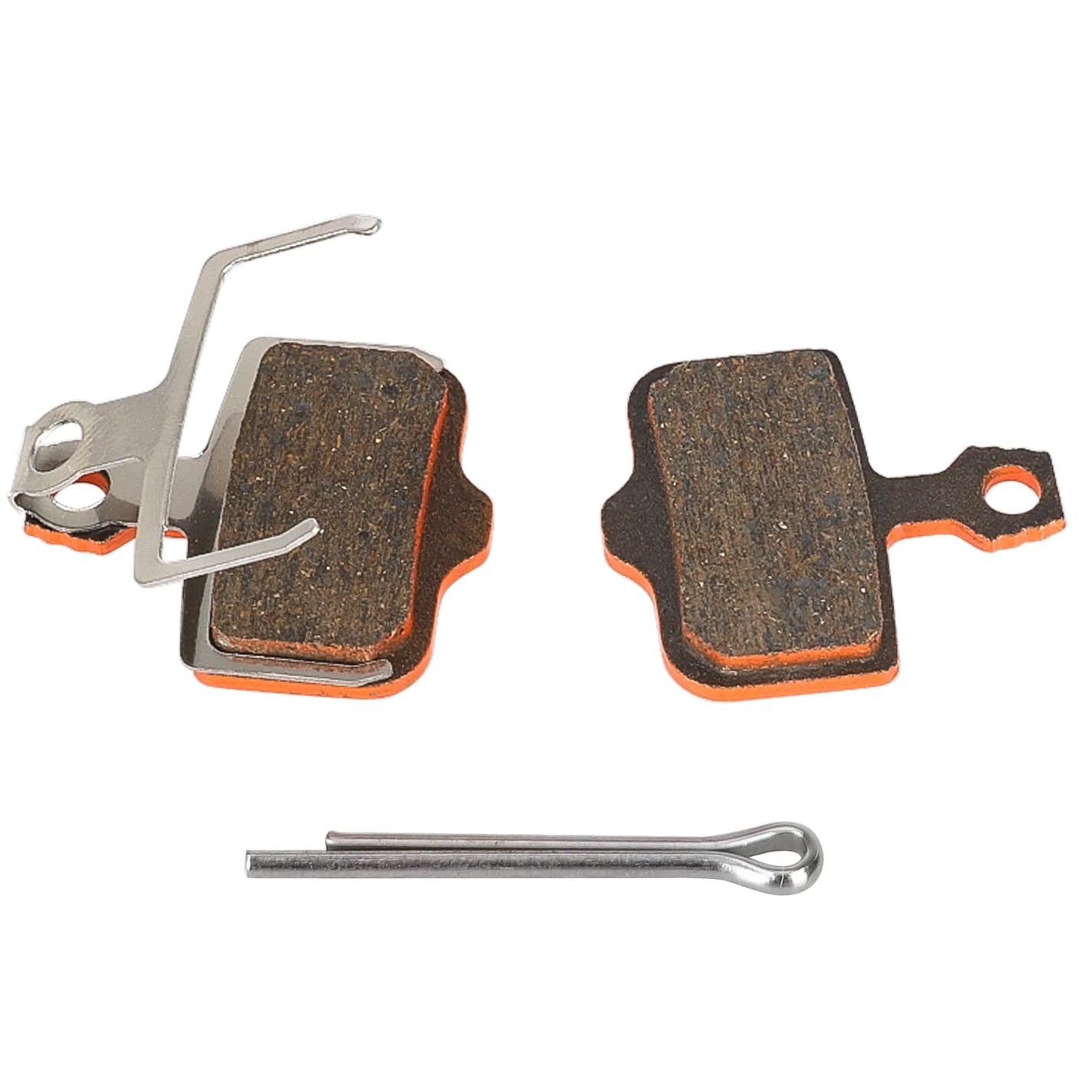

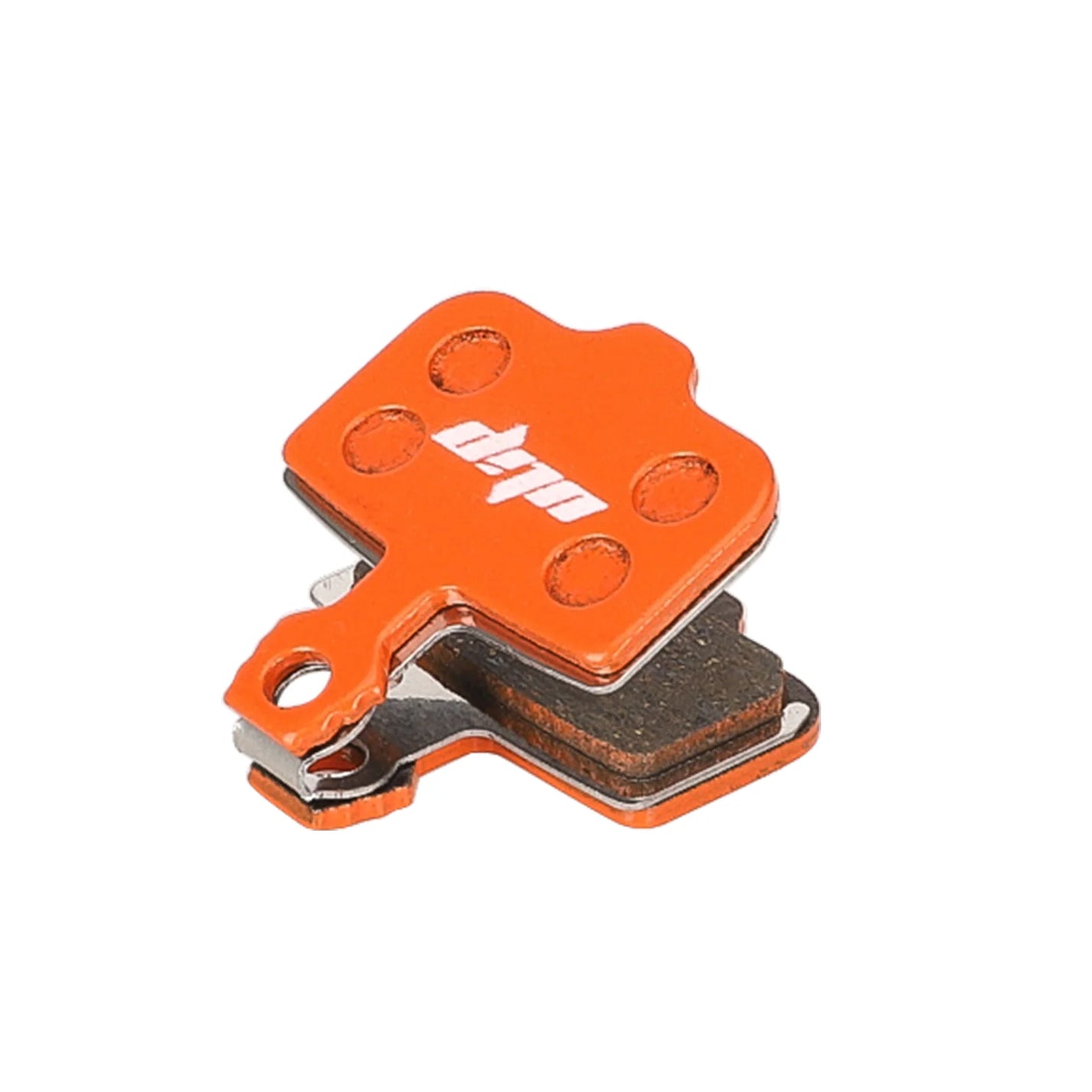

The pair of ULIP Superior Metal pads has orange backings and a multi-metal lining on a wide friction area. The central extended tab features a hole for a safety pin, and the kit includes a spring and cotter pin.

Features and fitment

• Brake lining: multi-metal – ULIP Superior Metal.
• ULIP Superior Metal; orange pads; pair with spring and cotter pin.

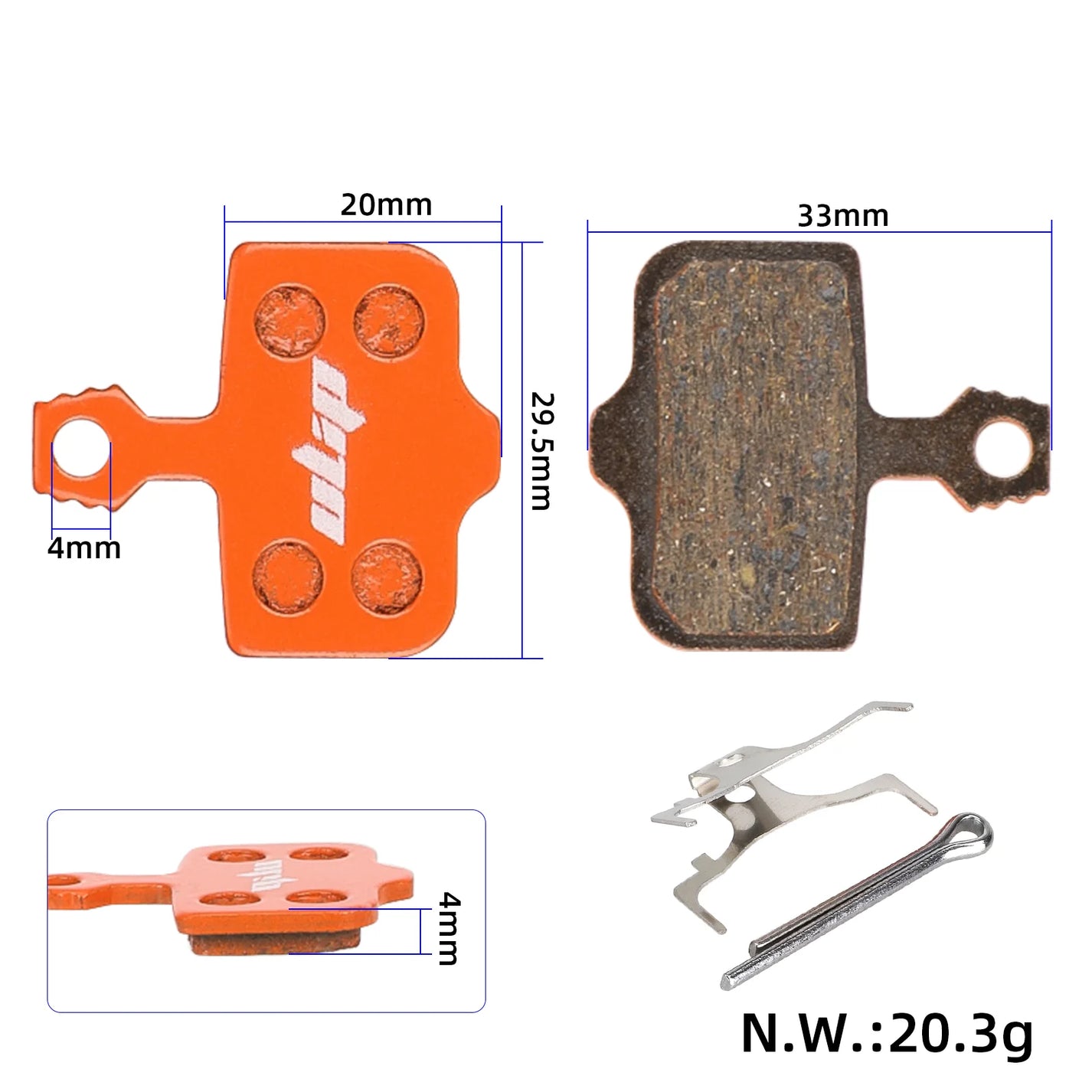

Approximate dimensions

• Pad dimensions: 33 × 29.5 × 4 mm.
• Width of the rectangular part of the backing: 20 mm.
• Diameter of the hole for the safety pin: 4 mm.

Before selecting for a ZERO scooter, compare the specific caliper, the shape of the old pads, and the position of the safety pin.

For the appropriate caliper on a ZERO electric scooter. Compare the overall shape of the old pads and the position of the safety pin.

Brake lining

The ULIP Superior Metal multi-metal lining combines metallic components and a binder. Metallic linings generally handle heat well during repetitive braking, but they may be louder and wear out the disc more than organic ones. Use a disc that allows metal linings, and properly bed-in the new pair after installation.

When to replace and how to start

• Inspect the pads in case of reduced braking performance, uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manual.
• Remove the safety pin and the old pair. Prepare space for the new pads according to the procedure for your caliper, then insert the spring, the new pair, and the safety pin. Do not grease the friction surfaces.
• Check the free rotation of the wheel and the operation of the lever. Bed-in the new pads with several gradual decelerations in a safe area, without locking the wheel.
