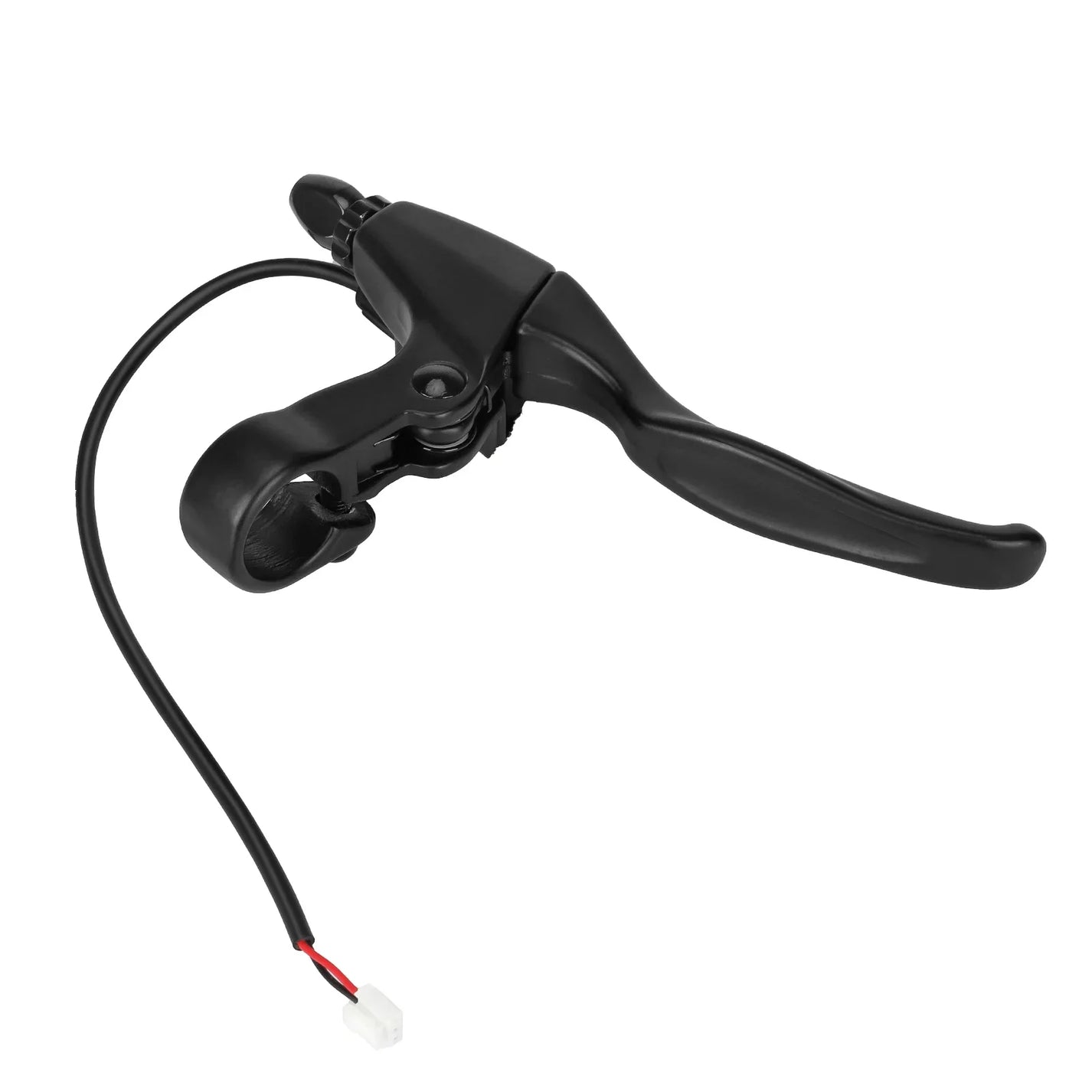

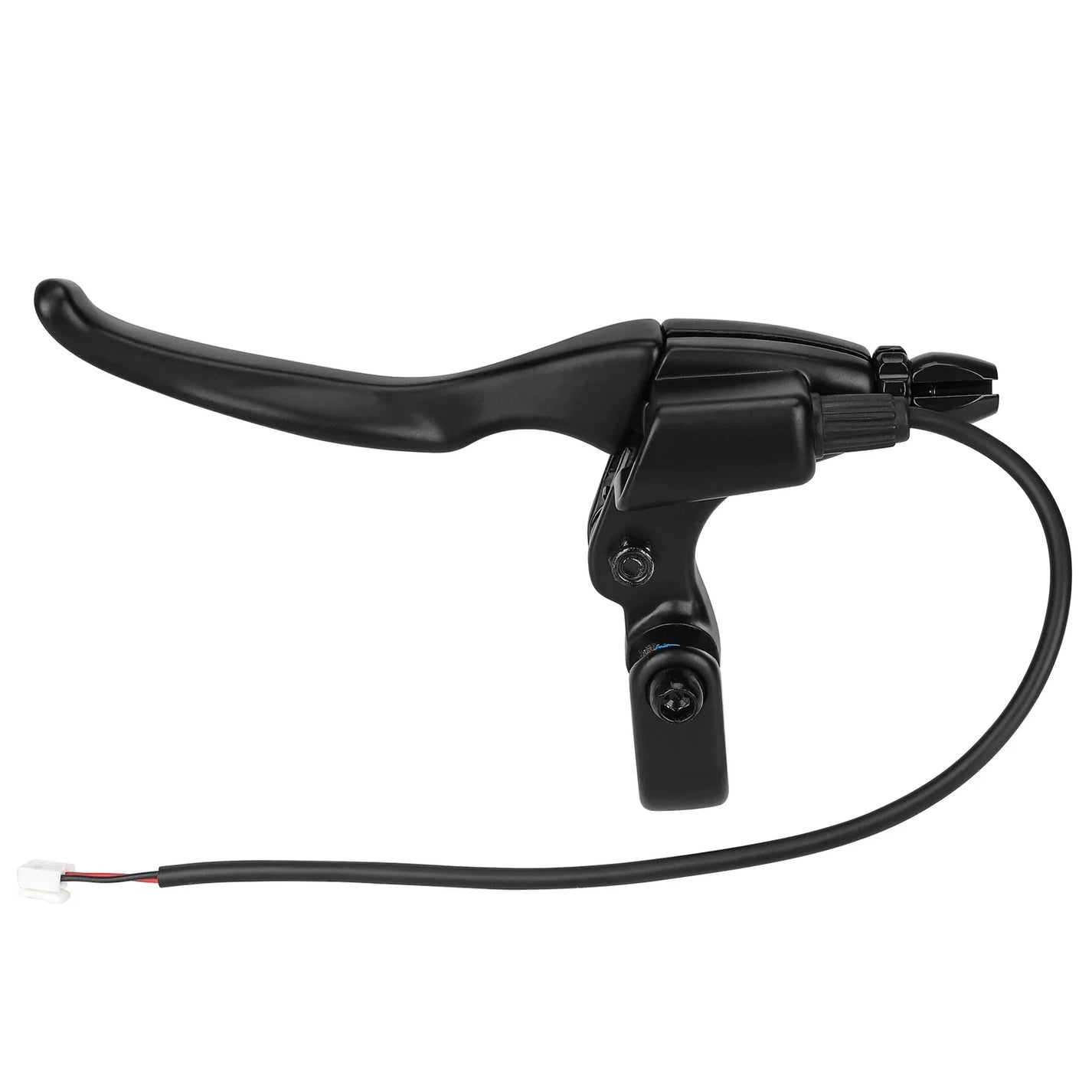

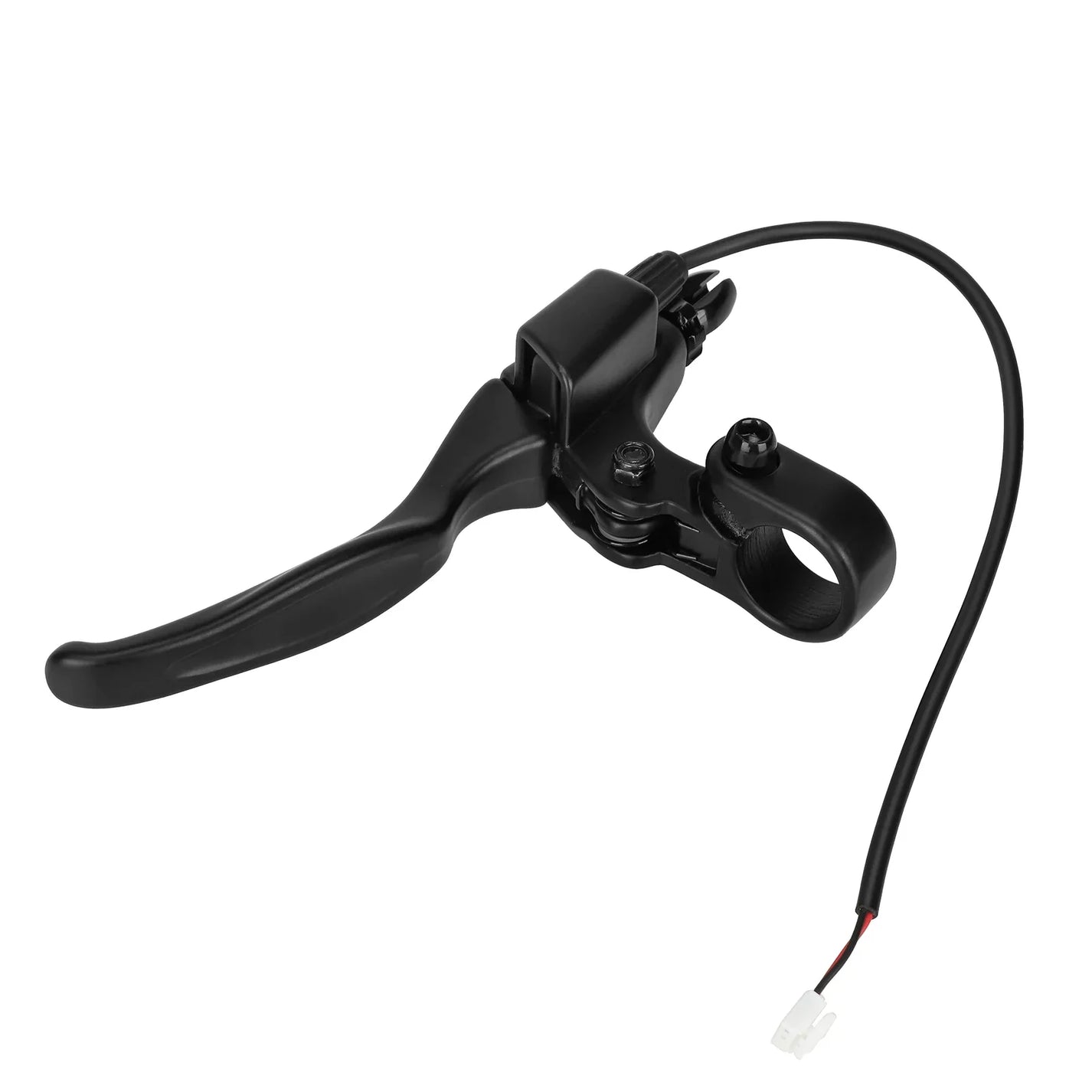

Original right brake lever for KuKirin G2

Right brake lever for cable and brake switch

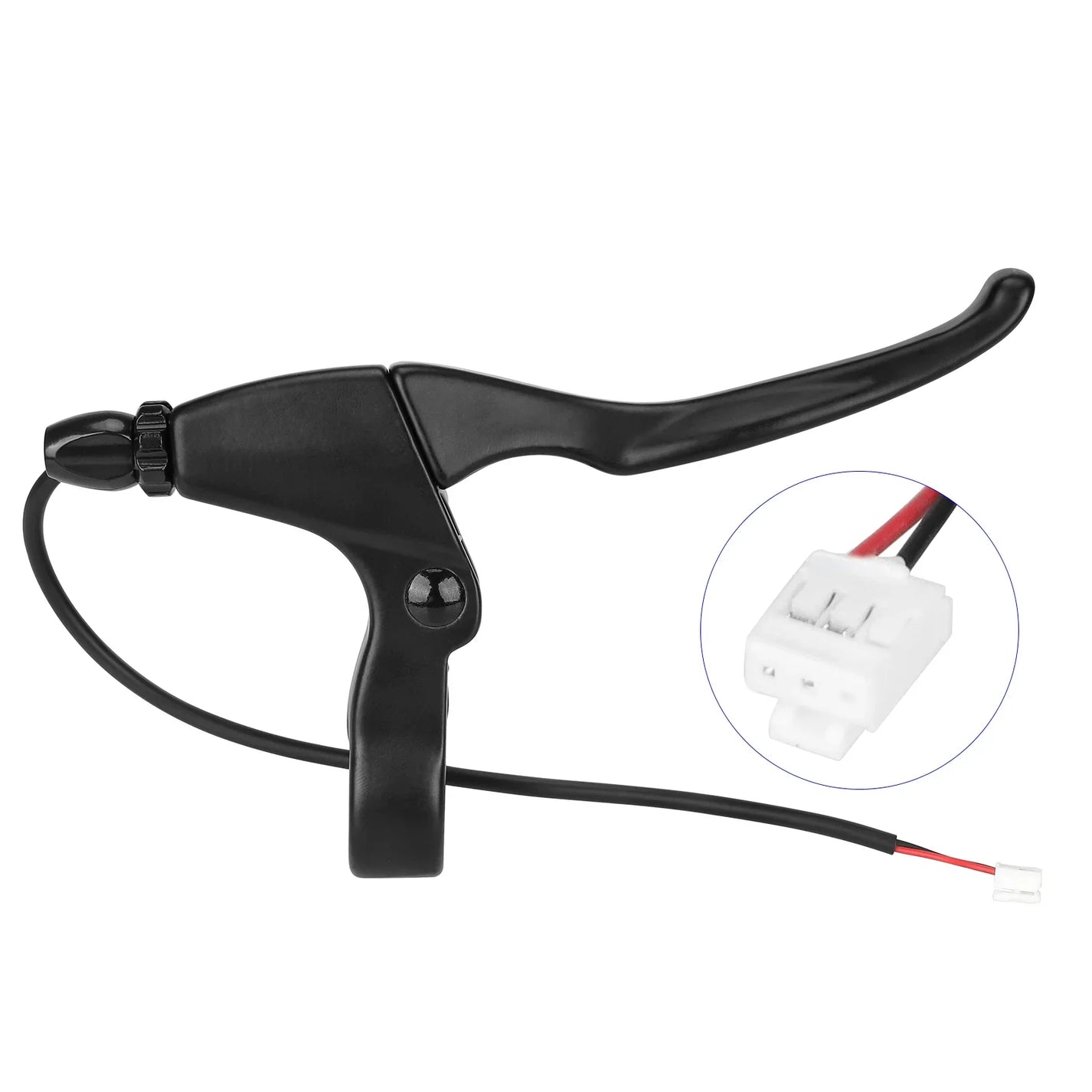

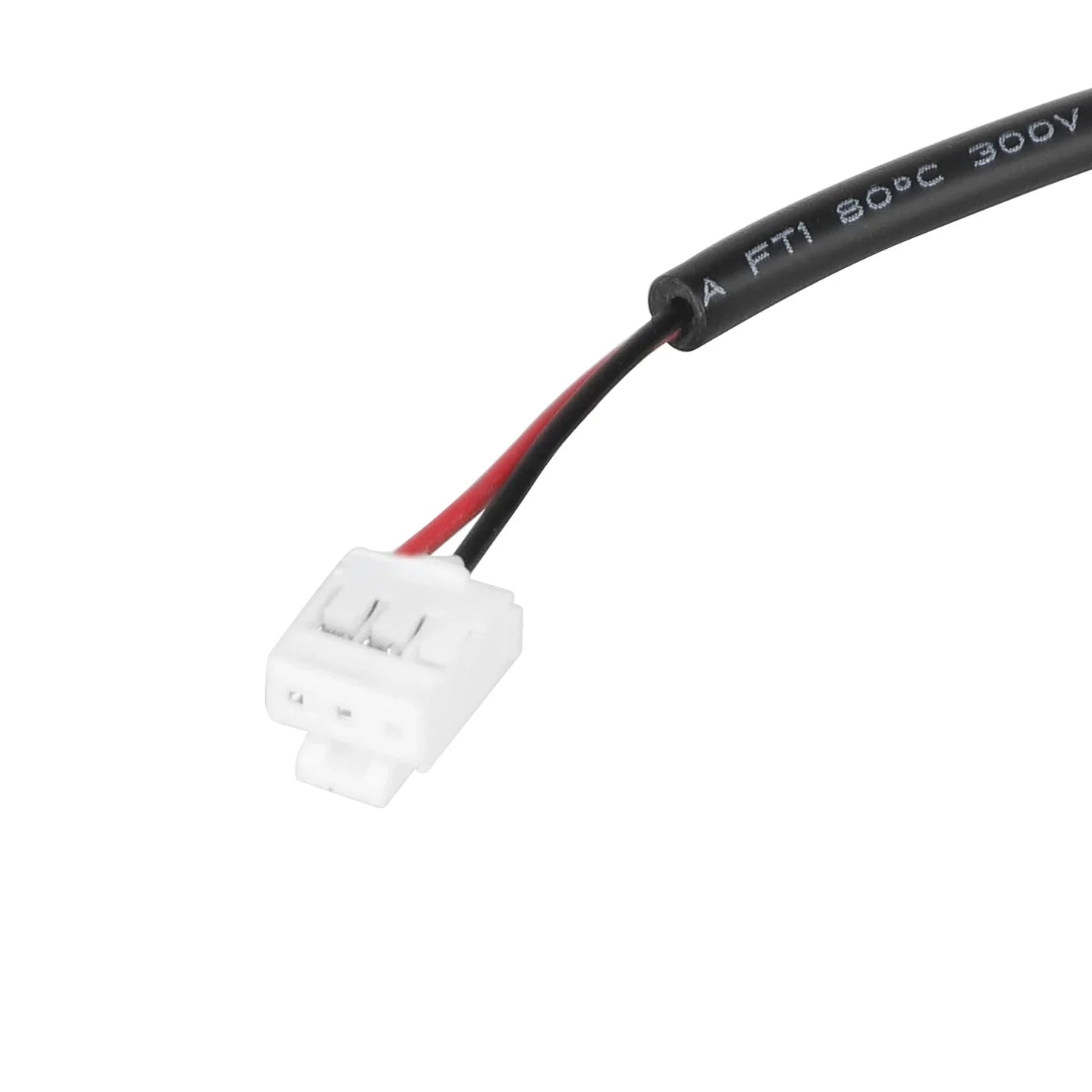

The black right-hand lever has a mounting point for a mechanical cable and a separate electrical output. The approximately 24.5 cm cable ends with a white two-pin connector.

Features and fitment

• Model: KuKirin G2.
• Right black lever for mechanical brake.
• Electrical cable with white connector; approximately 24.5 cm.
• Seat for brake cable and handlebar clamp.

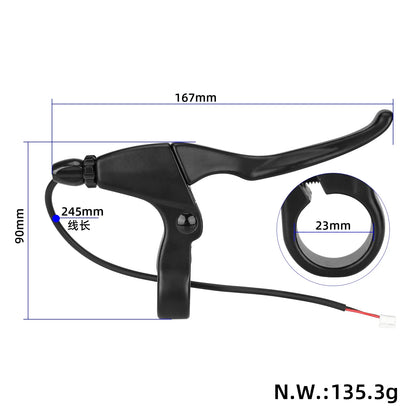

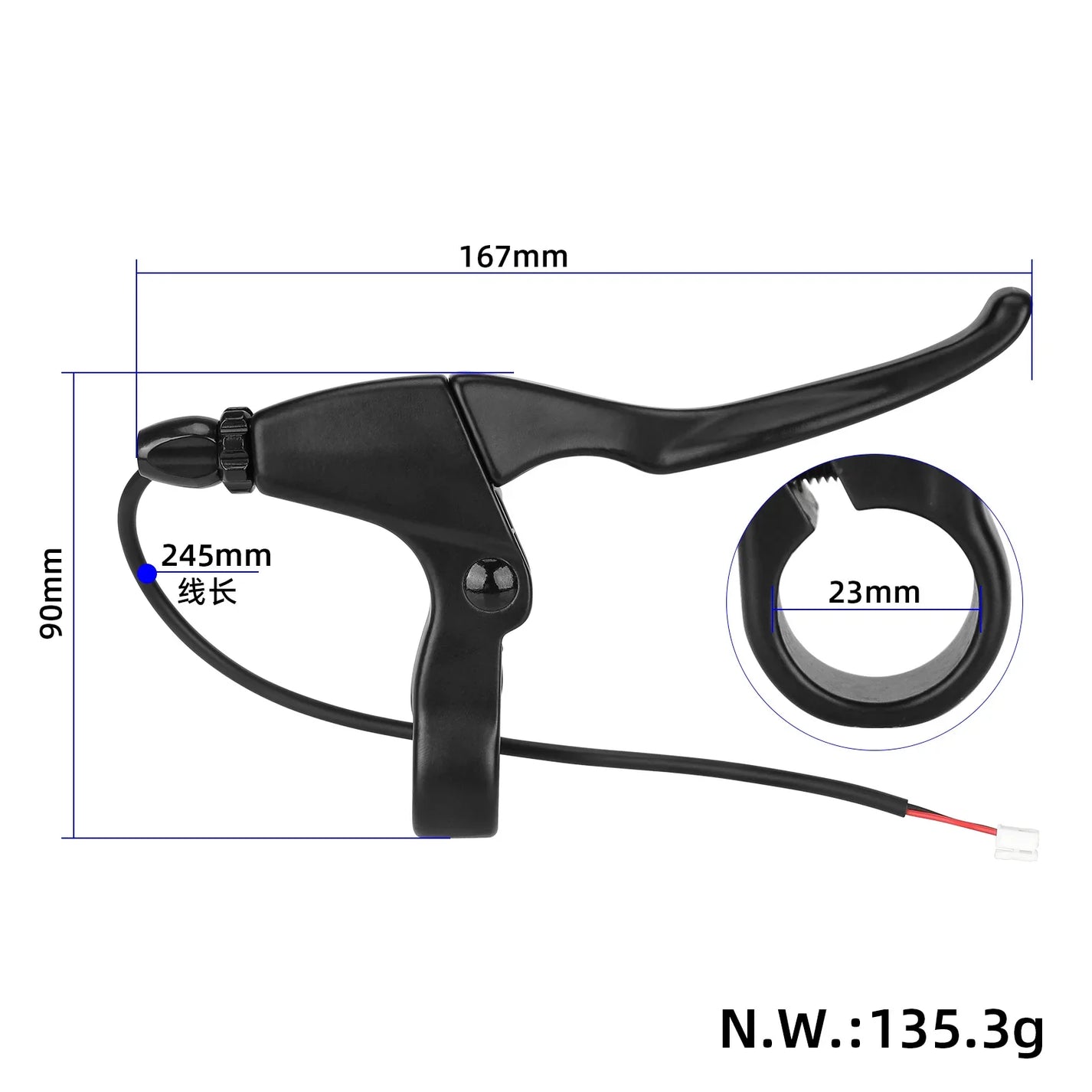

Approximate dimensions

• Lever: 167 × 90 mm.
• Clamp diameter: 23 mm.
• Cable length: 245 mm.

The length of the lever is approximately 167 mm. Compare the mounting side, handlebar mount, and electrical connector; the stroke adjustment must allow for reliable braking without the lever touching the grip.

Correct lever position

• Replace a damaged or bent lever and also check the cable and housing. Before disconnecting the electrical connector, turn off the power.
• Install the lever in an accessible position, connect the cable, and adjust the stroke. Route the electrical cable so that it does not strain when turning the handlebars.
• Check mechanical braking and electrical brake sensing separately. The lever must return freely, and the wheel must not remain braked when the lever is released.
