Brake disc 160 mm with 6 holes for electric scooter KuKirin G2

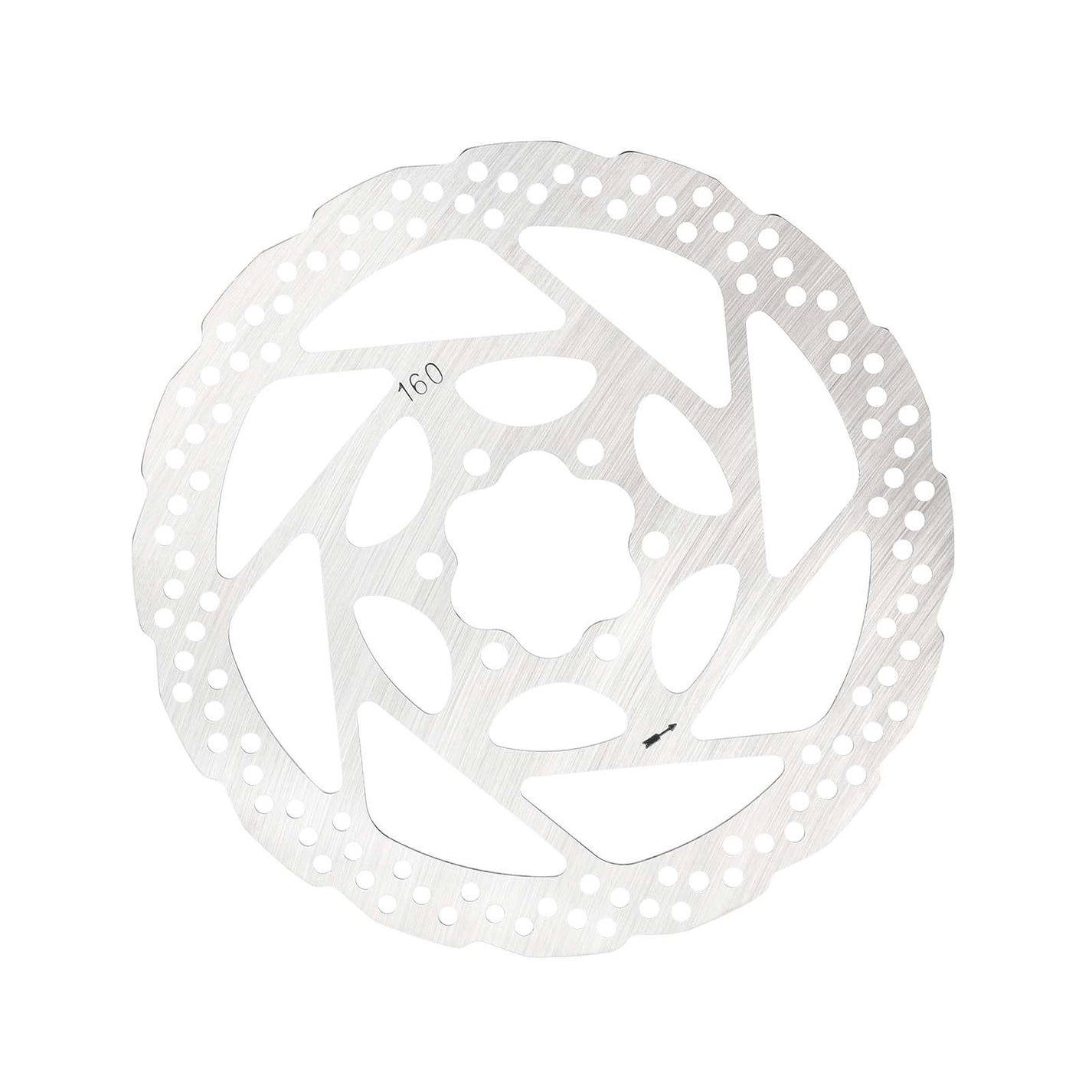

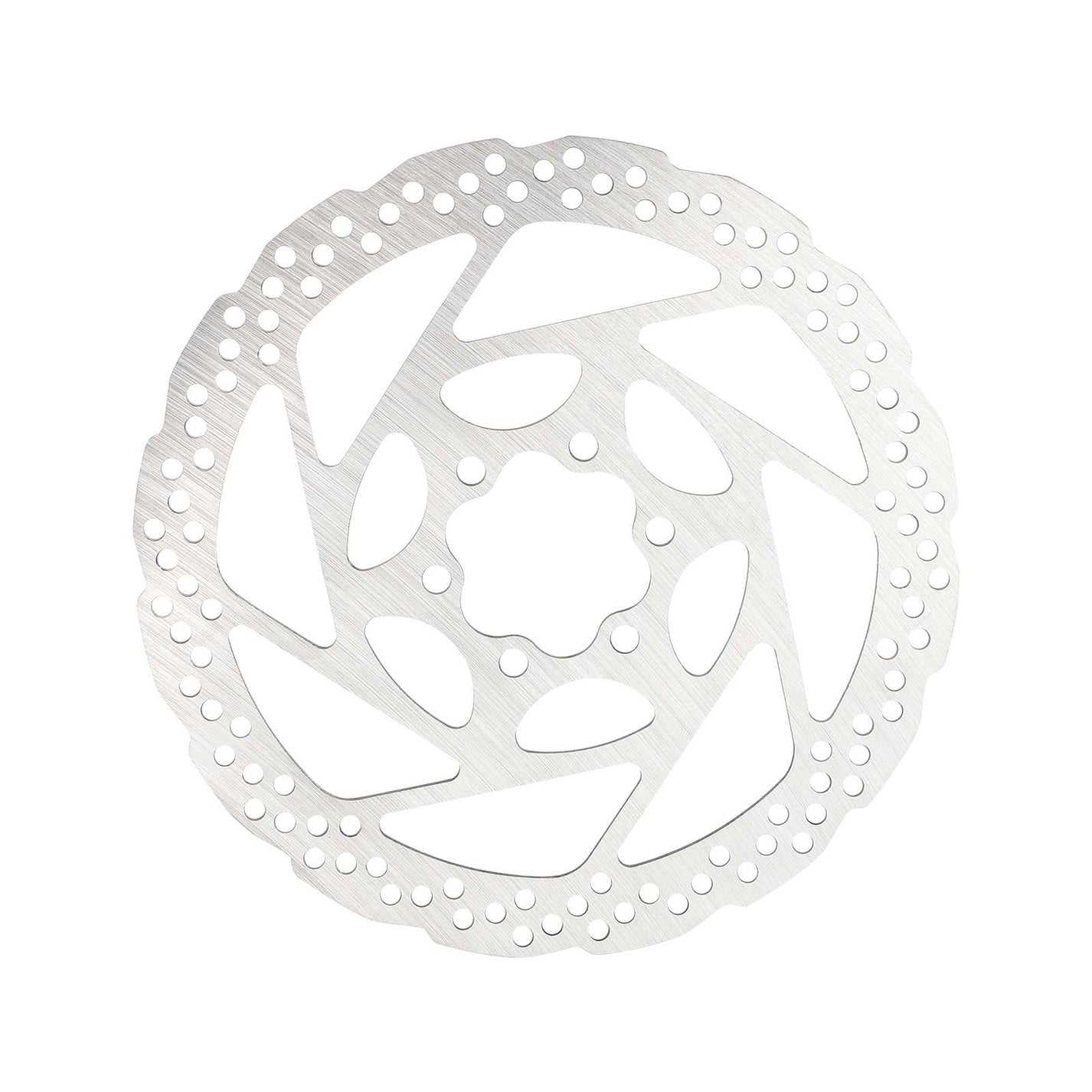

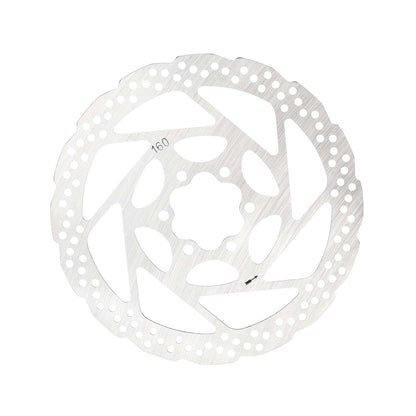

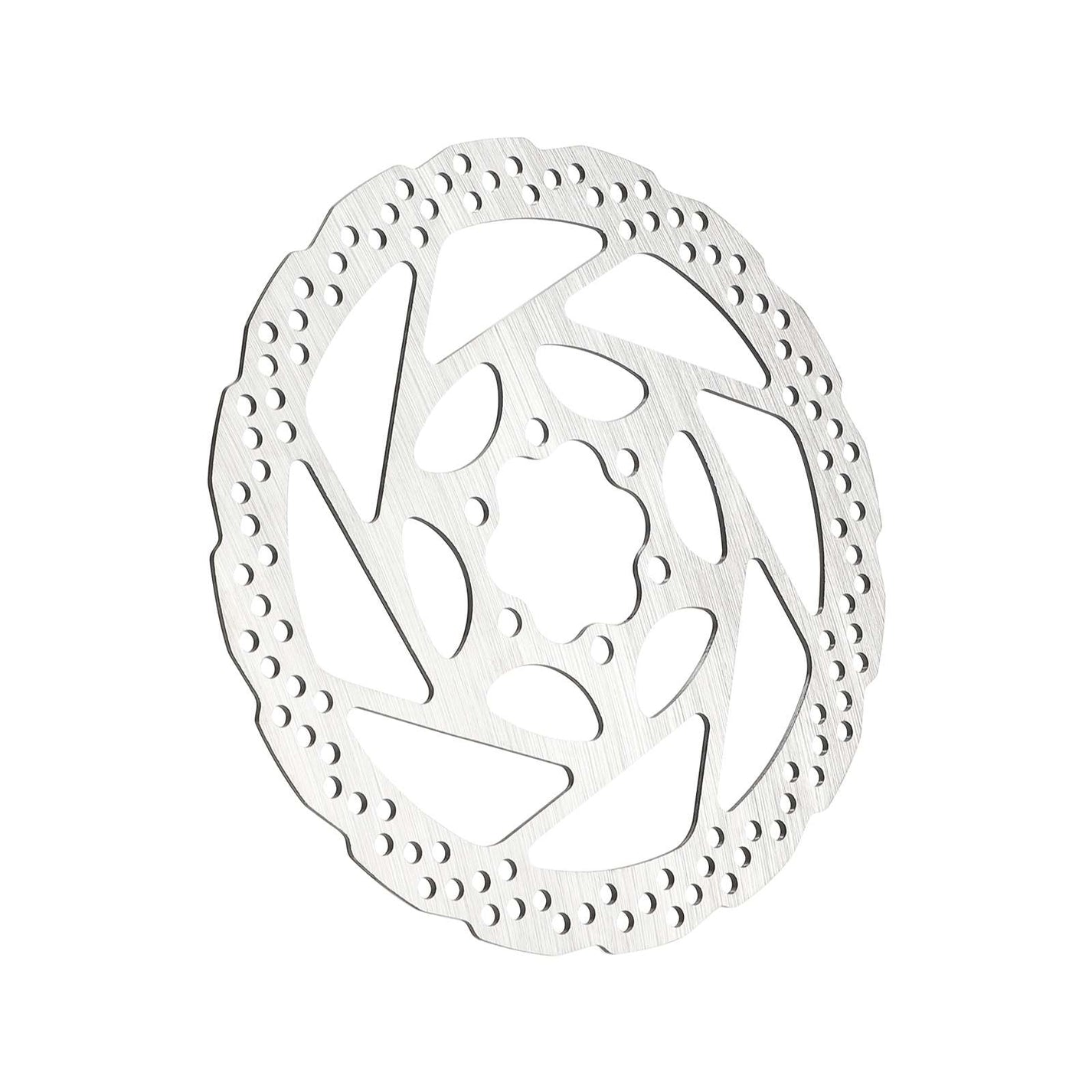

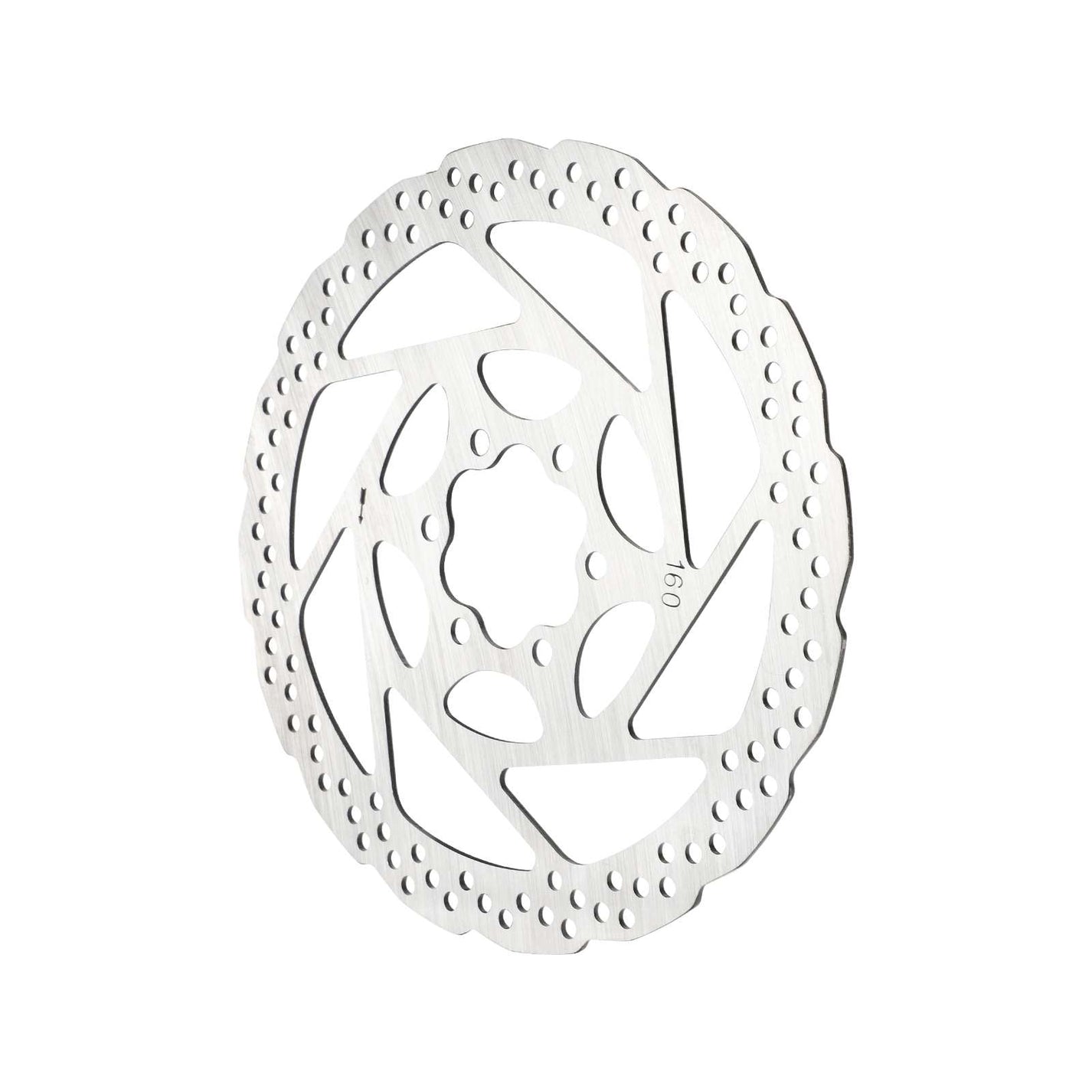

160mm brake disc with perforated braking ring

The brake disc features a 160 mm diameter, six mounting holes, and a silver perforated surface. Six included screws allow for replacement on a compatible six-bolt hub.

Features and fitment

• Model: KuKirin G2.

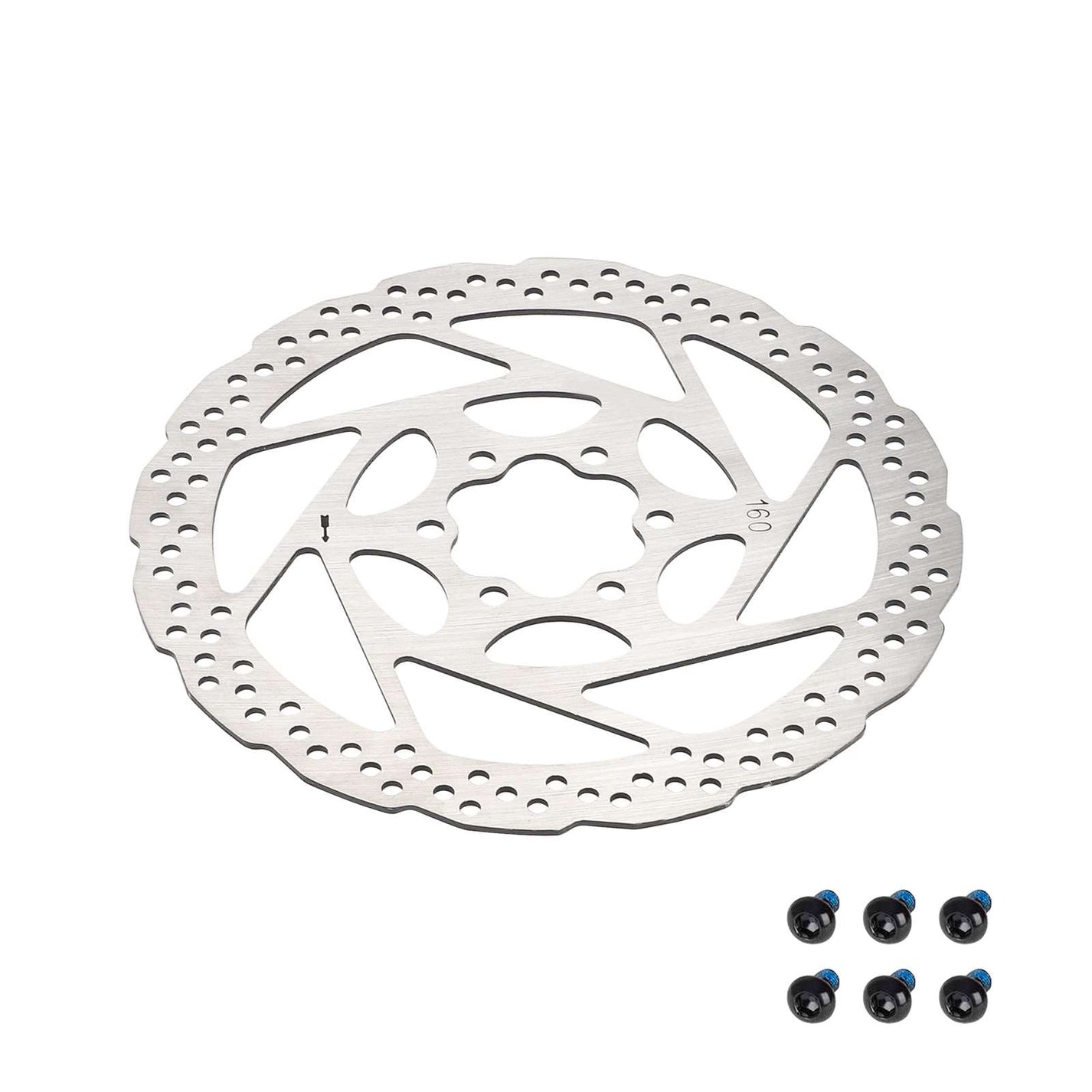

• 160 mm disc; 6 mounting holes; six screws.

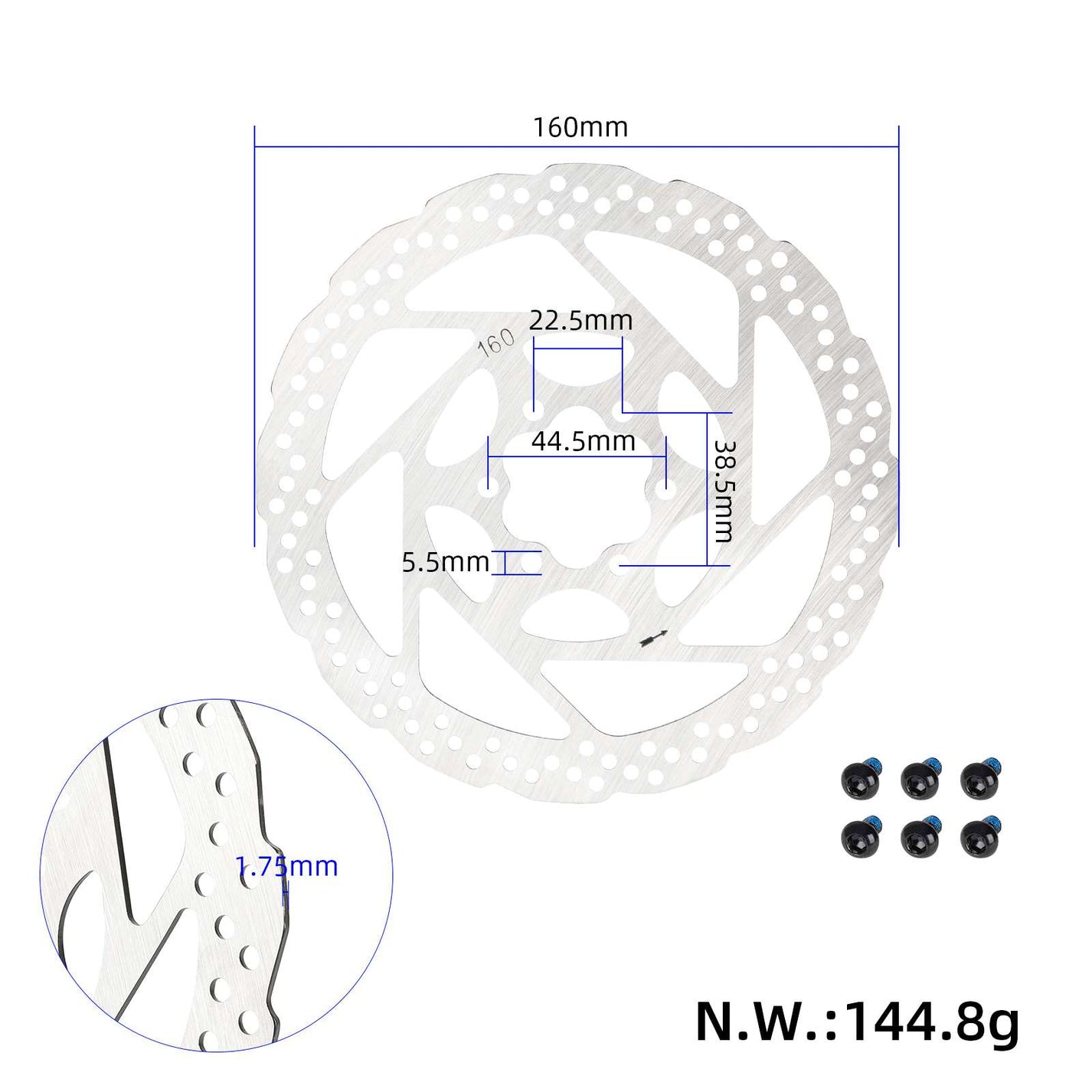

Approximate dimensions

• Disc diameter: 160 mm.
• Thickness: 1.73 mm.
• Bolt circle diameter: 44.5 mm.
• Hole spacing: 22.5 and 38.5 mm.
• Hole diameter: 5.5 mm.

The thickness is approximately 1.73 mm. Compare the mounting pattern and caliper position with your existing disc. After installation, the wheel should rotate without any significant lateral runout of the disc.

Disc replacement and alignment

• Replace the disc if it shows cracks, permanent deformation, or wear below the minimum allowable thickness. If you hear rubbing, first check the alignment of the caliper.
• Clean the hub contact surface and install the disc in the marked direction of rotation. Tighten the bolts gradually in a cross pattern to the specified torque.
• Keep the braking surface clean and free of grease. After assembly, check the free rotation and braking performance; a new disc and pads require a proper bedding-in period.
