Ceramic Brake Pads for KuKirin G2 Max

Orange ceramic pair with round friction part

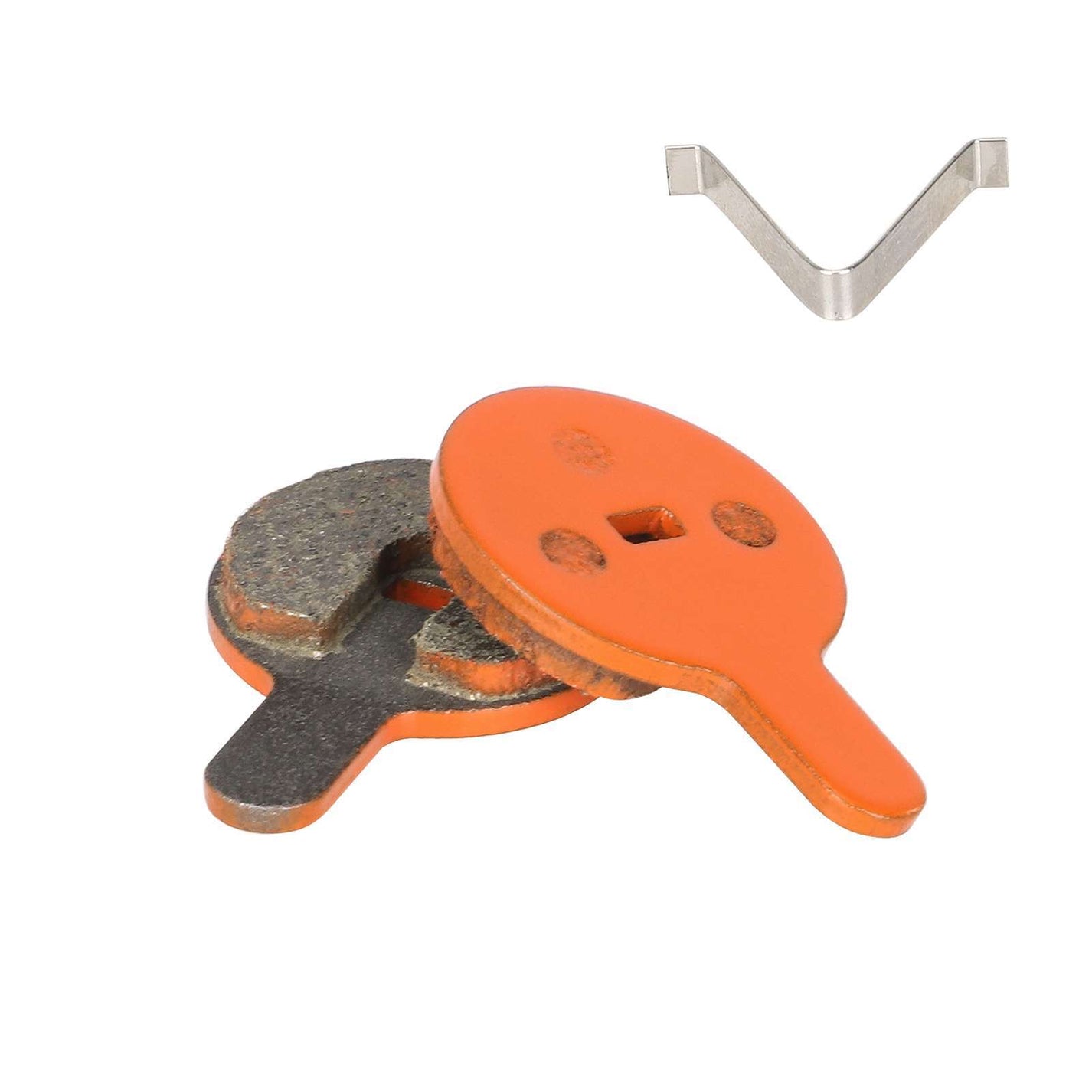

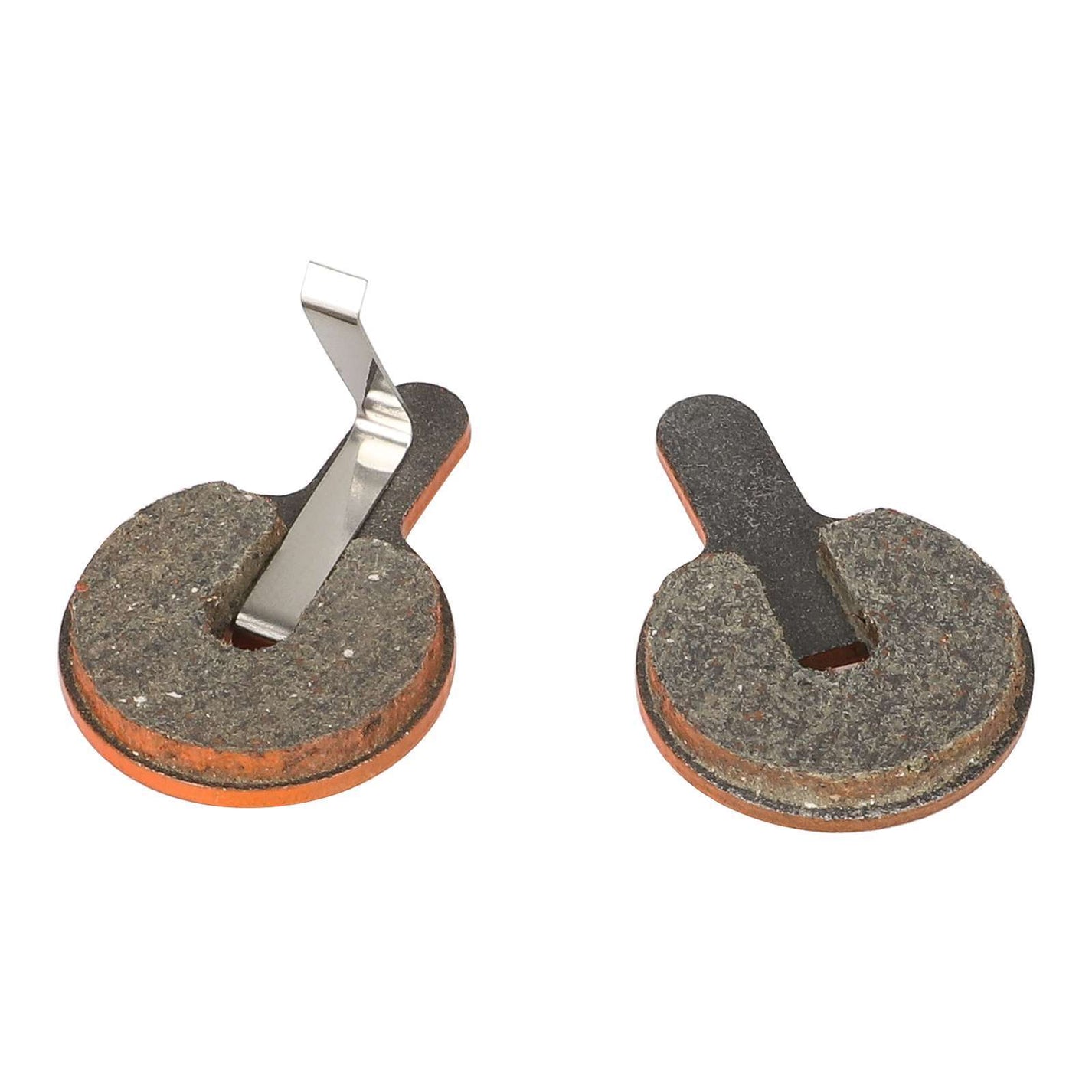

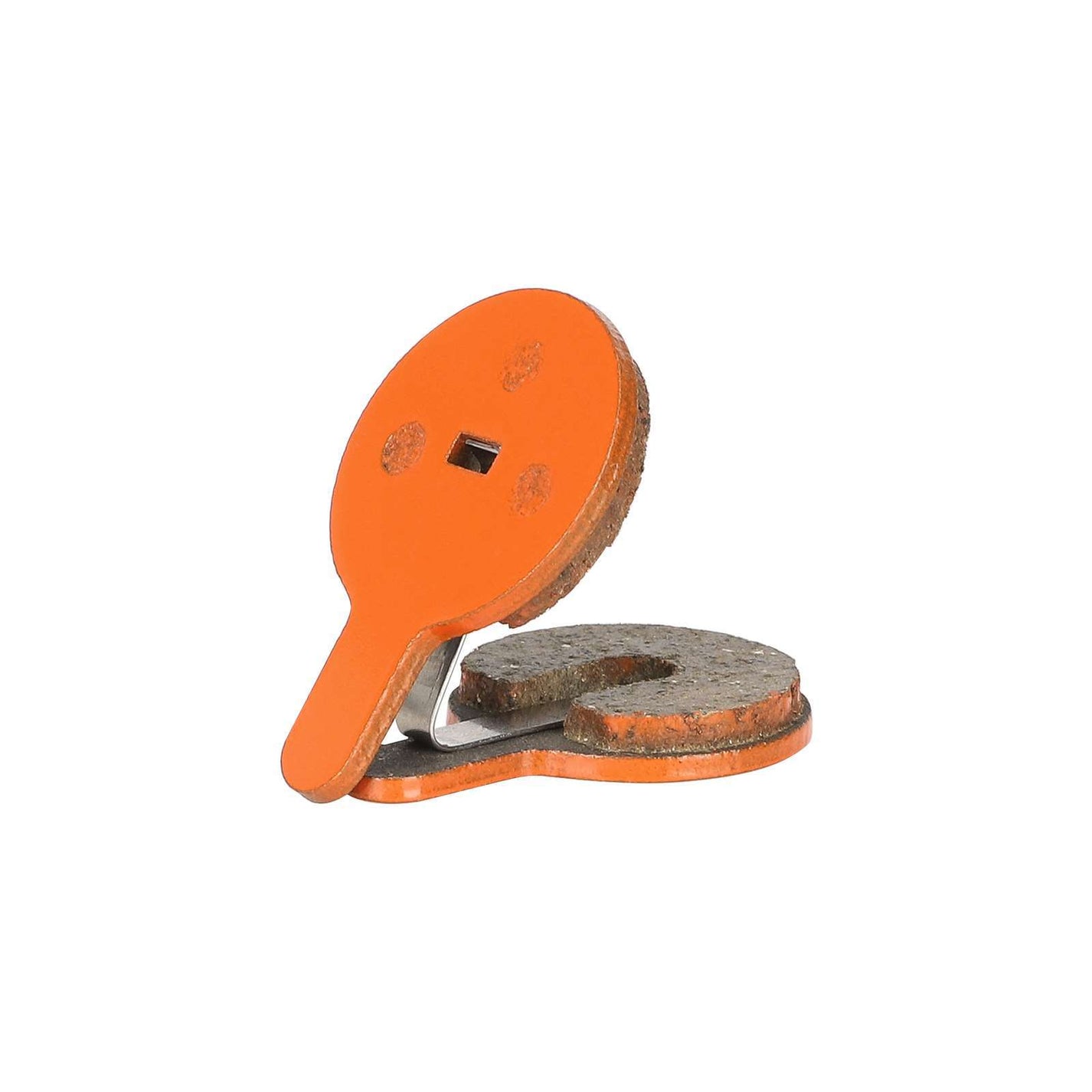

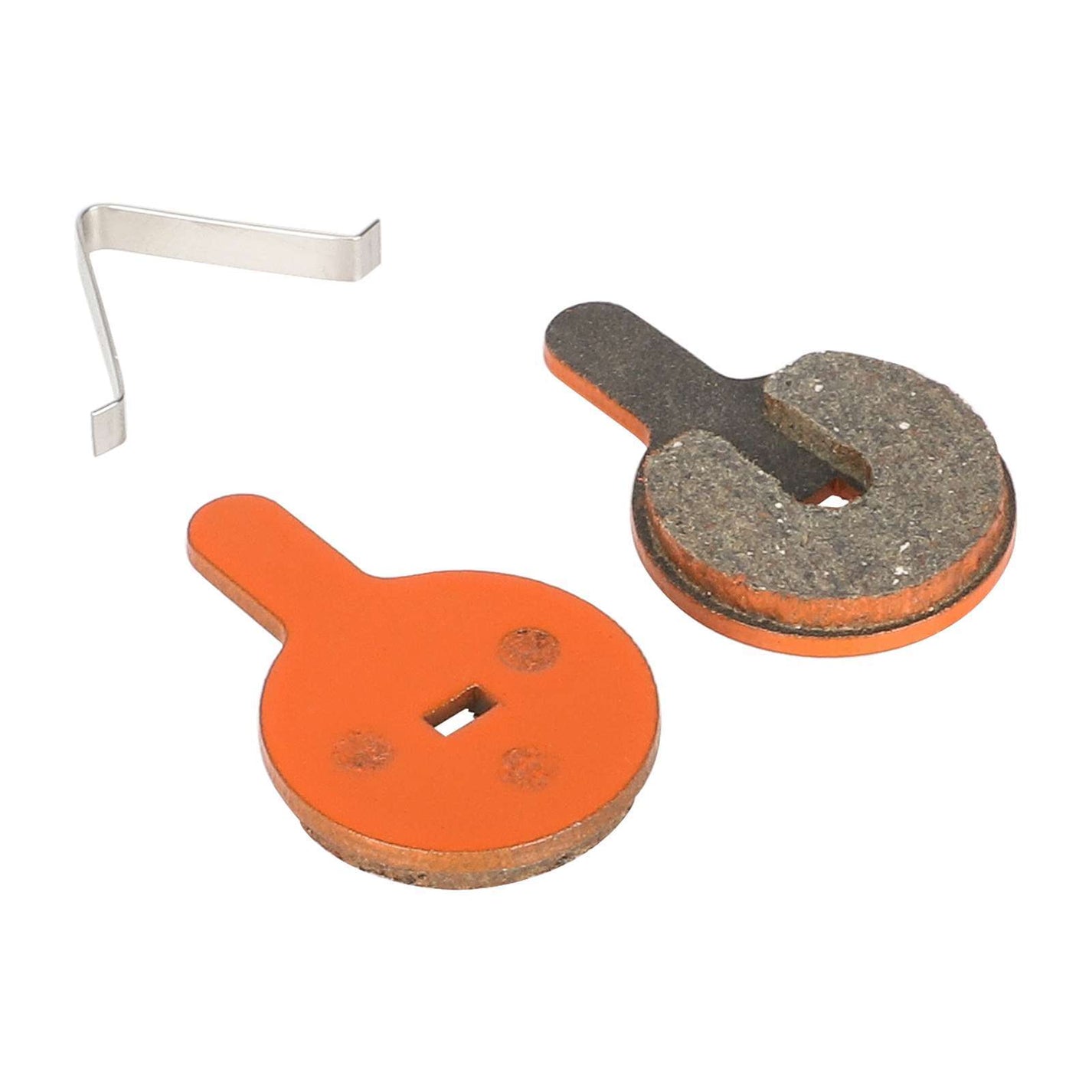

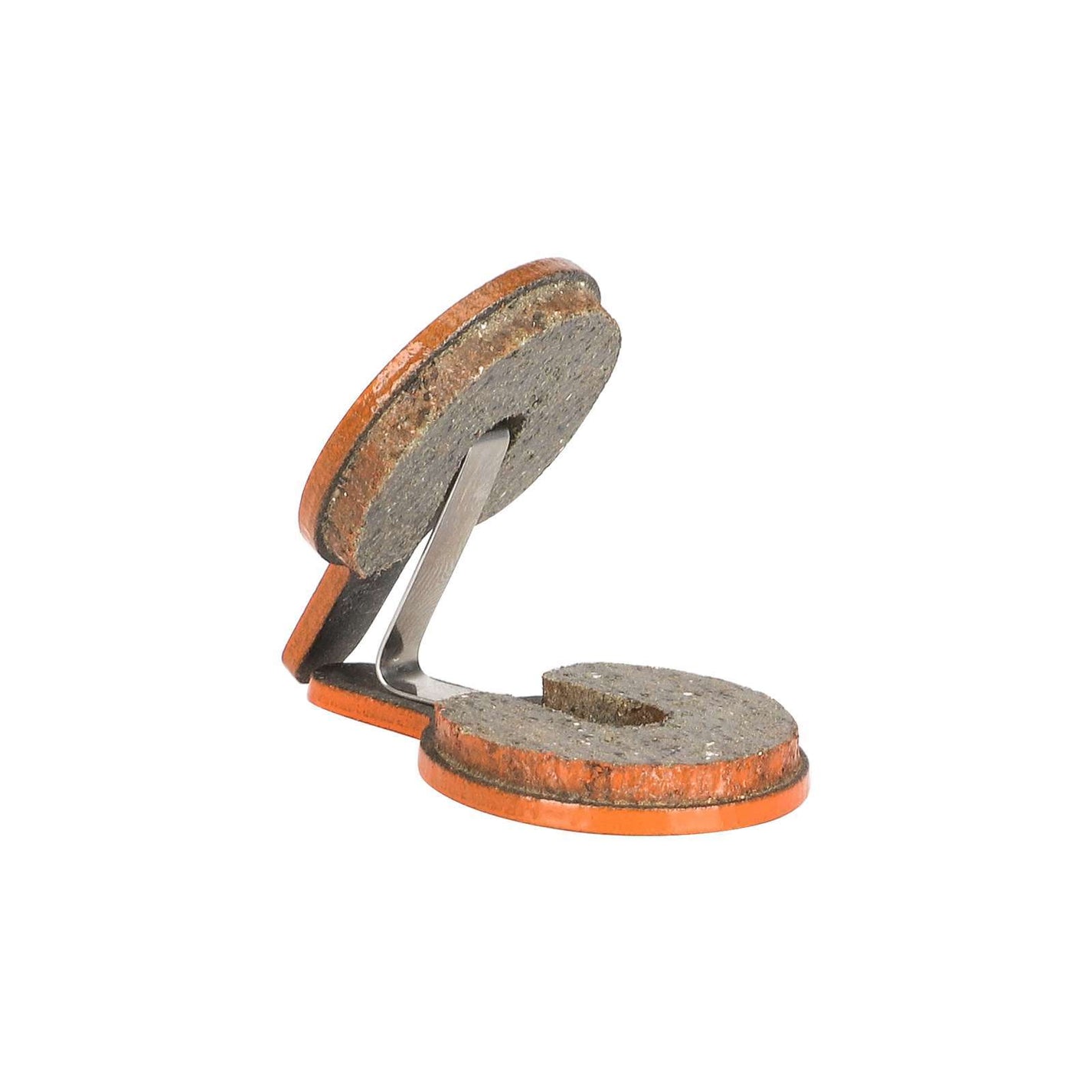

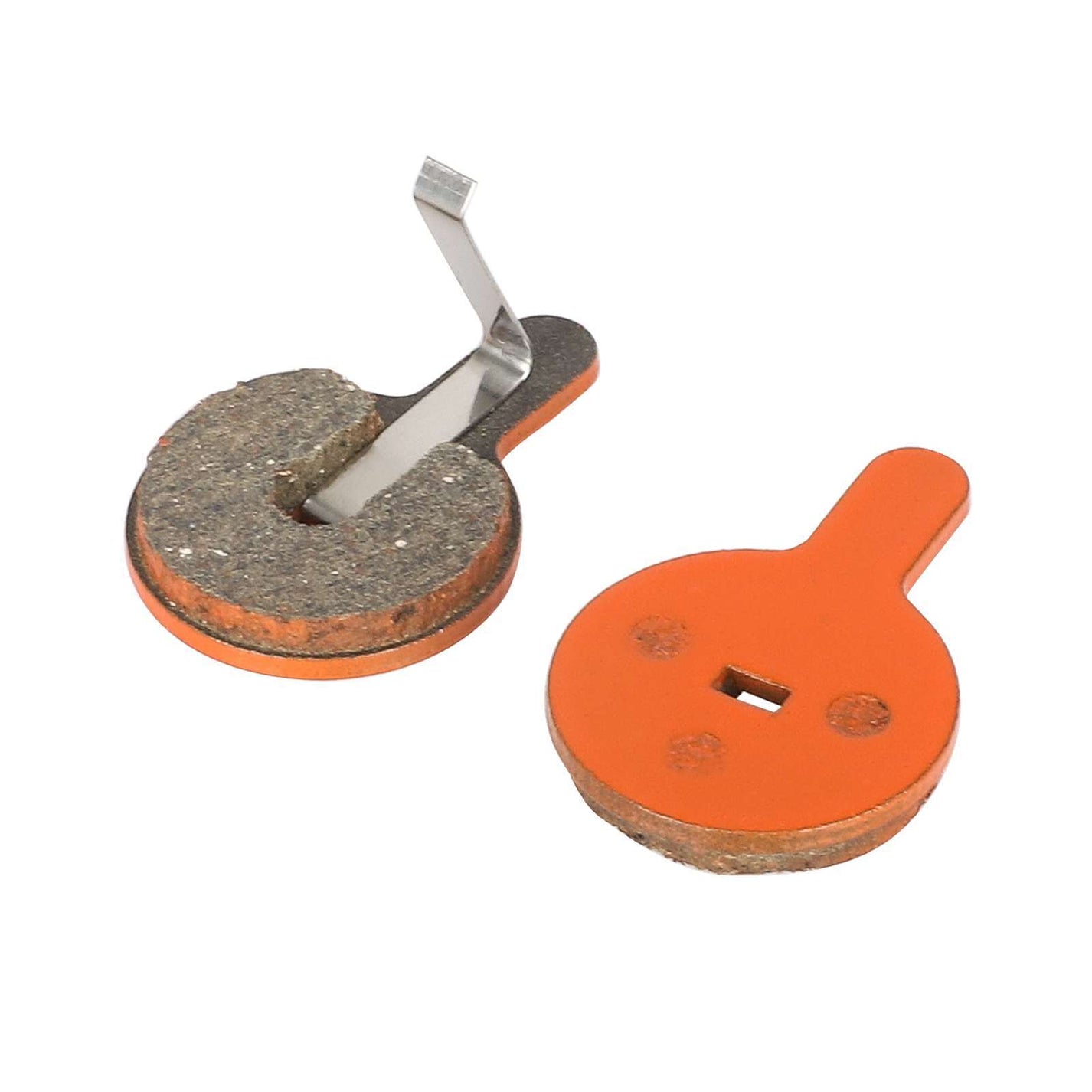

The orange carriers feature a round friction surface, a narrow extended tab, and a rectangular opening. The ceramic pads are complemented by a flat spring installed between them.

Features and fitment

• Model: KuKirin G2 Max.
• Brake pad material: Ceramic.
• Orange backing plates; ceramic compound; approx. 22.3 × 33.3 × 4 mm; pair with spring.

Approximate dimensions

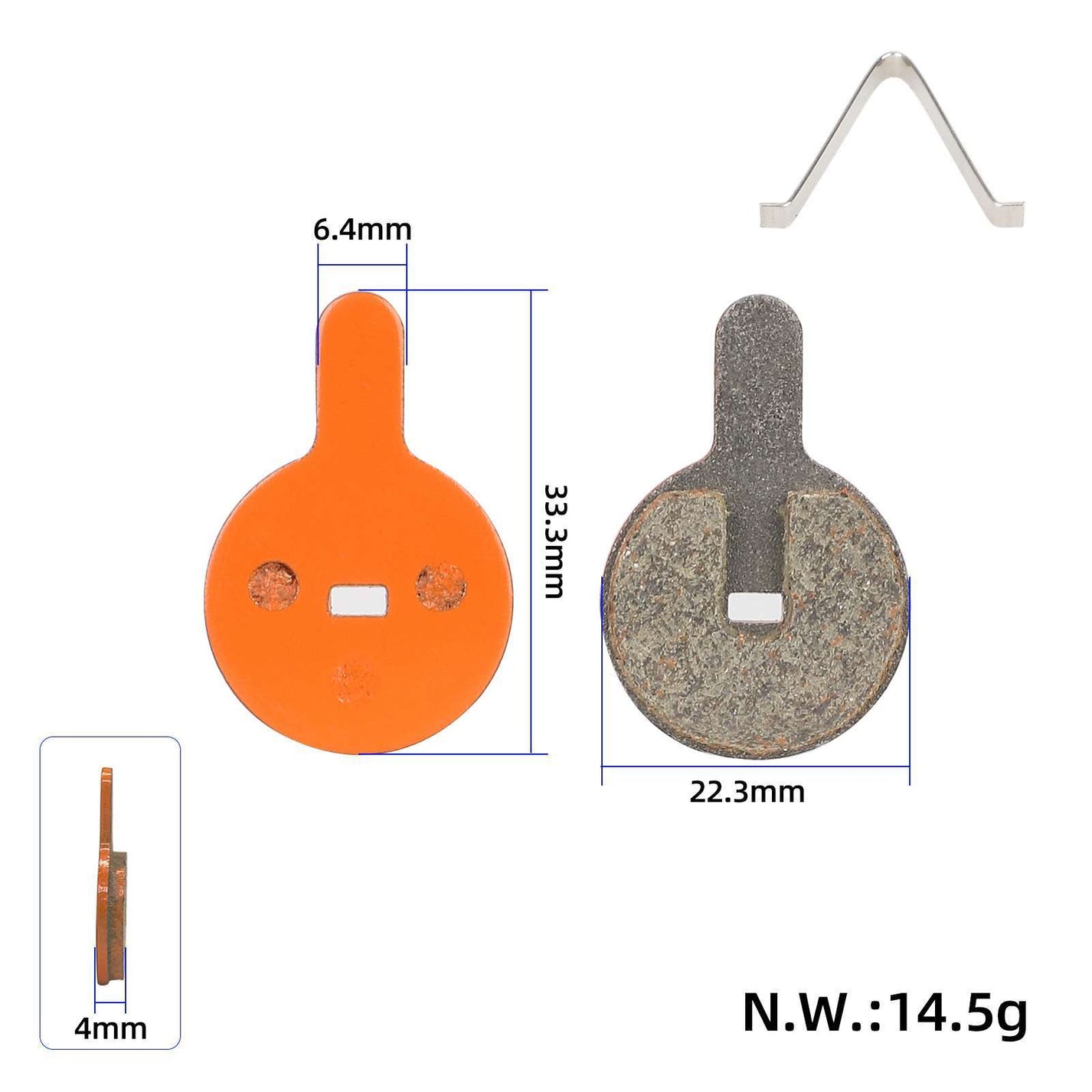

• Pad dimensions: 22.3 × 33.3 × 4 mm.
• Upper tab width: 6.4 mm.

The round friction area is complemented by an upper tab and a lower notch. Compare the outline with your old pair; the tension spring must sit correctly and keep both pads away from the disc.

Brake pad material

The ceramic compound forms the friction surface of the pads. To ensure even contact with the disc, bed in the new pair gradually after installation. Keep the pad clean and dry; oil or grease on the friction surface will reduce braking performance.

When to replace and how to start

• Inspect the pads if braking is poor, wear is uneven, or they are contaminated. Replace both pads in the same caliper; check the minimum thickness in the brake manual.
• Follow the mechanical caliper instructions to remove the old pair and release the adjustment for the new pads. Install both pads and the tension spring, then adjust the clearance to the disc. Do not grease the friction surfaces.
• Check the wheel's free rotation and brake lever function. Bed in the new pads with several gradual stops in a safe area, without locking the wheel.
