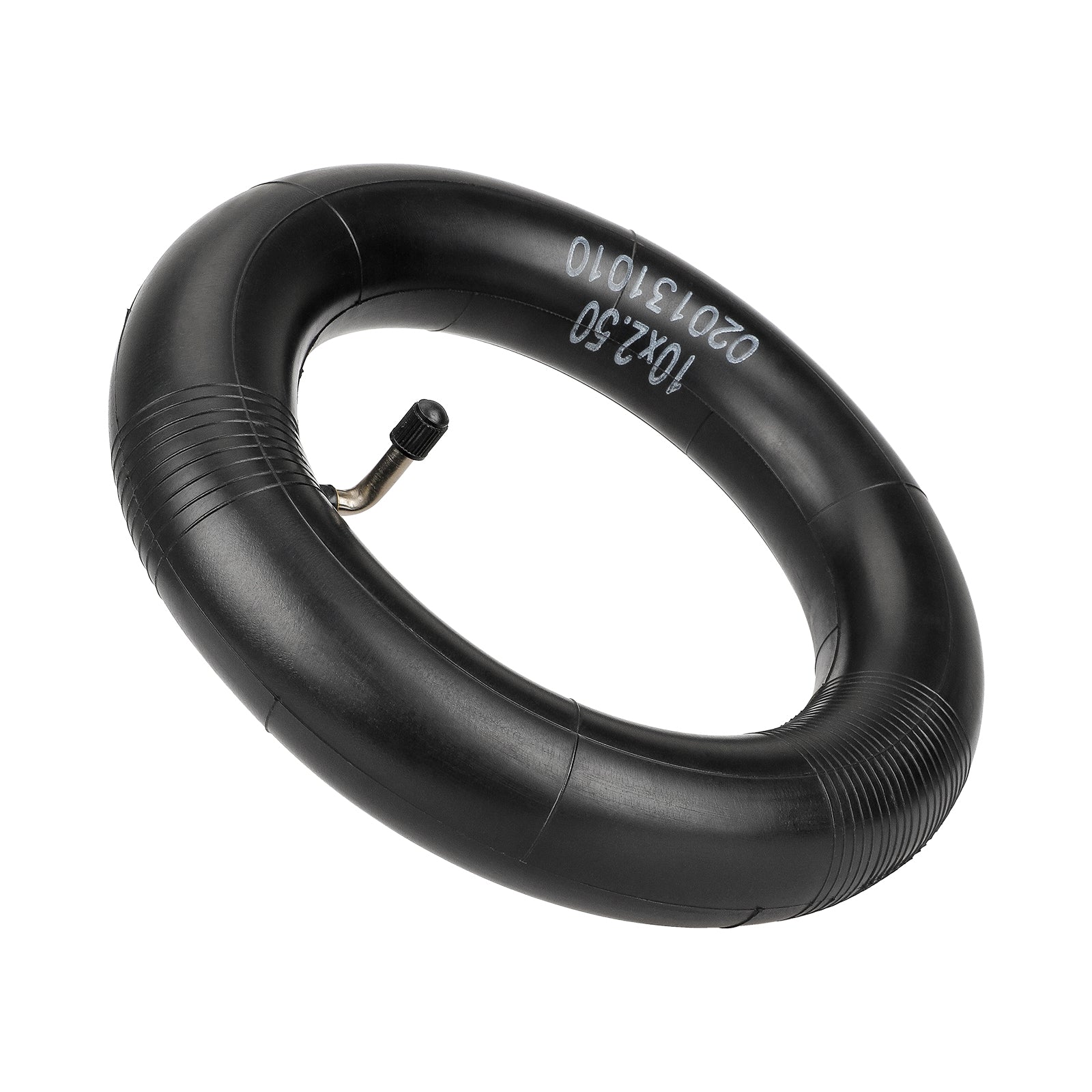

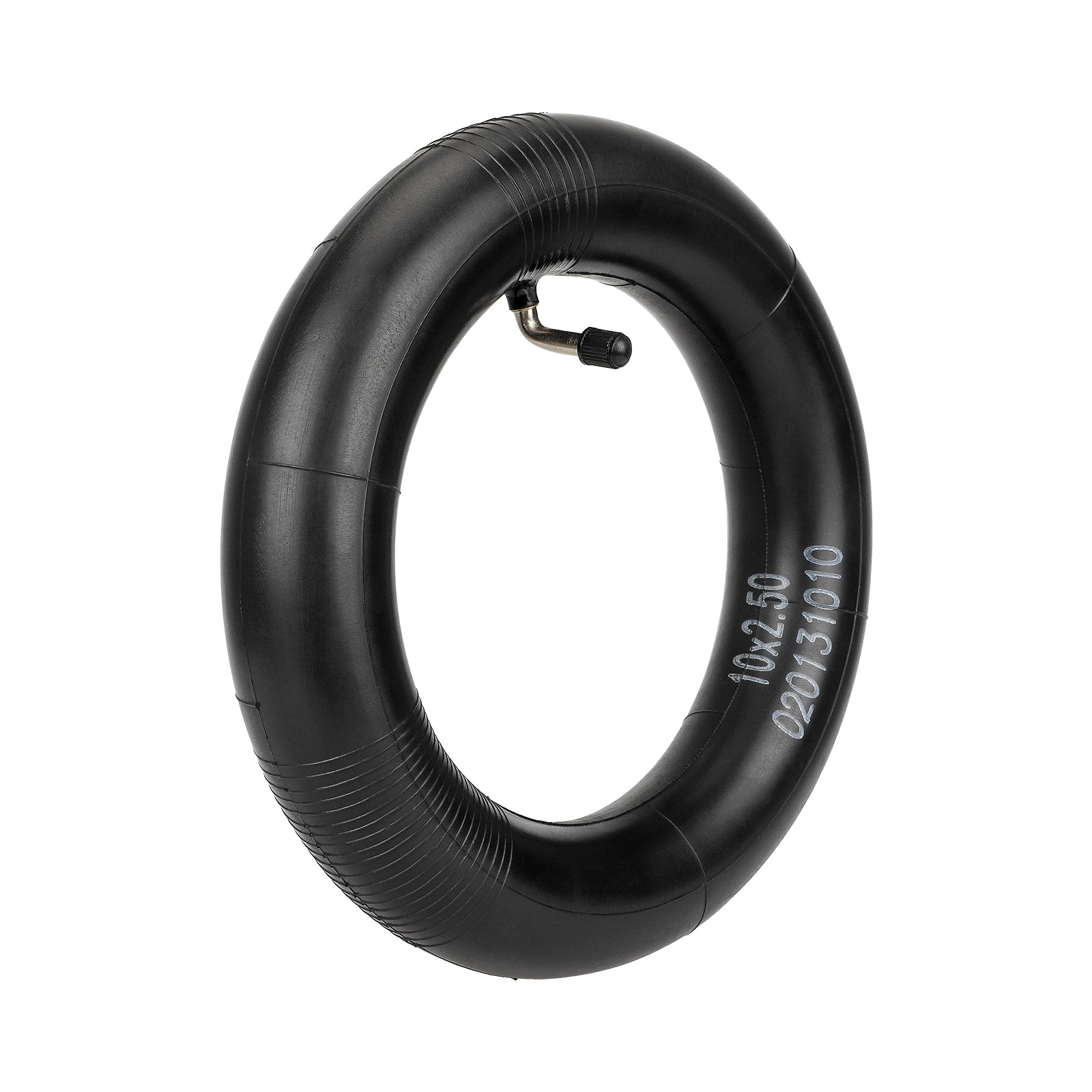

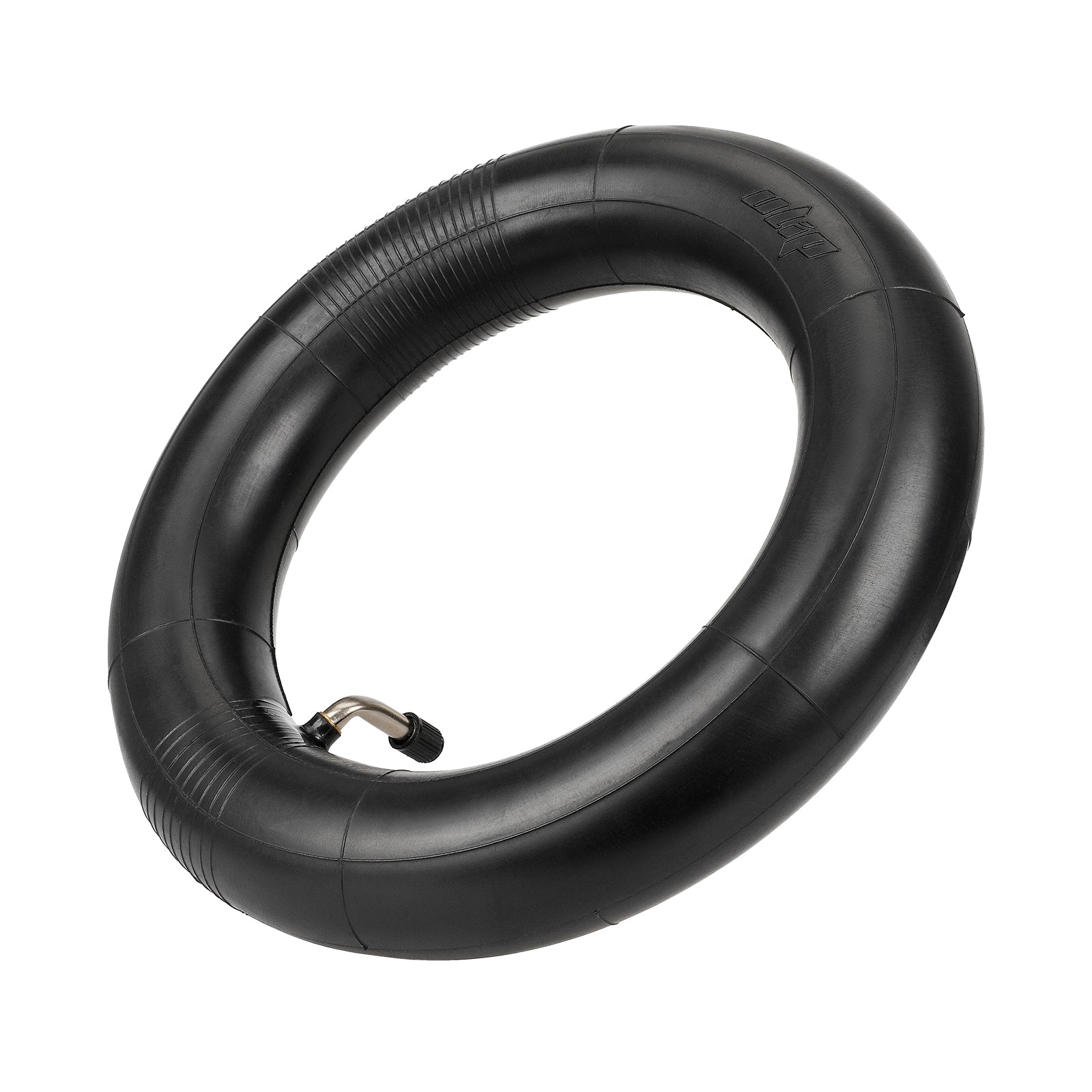

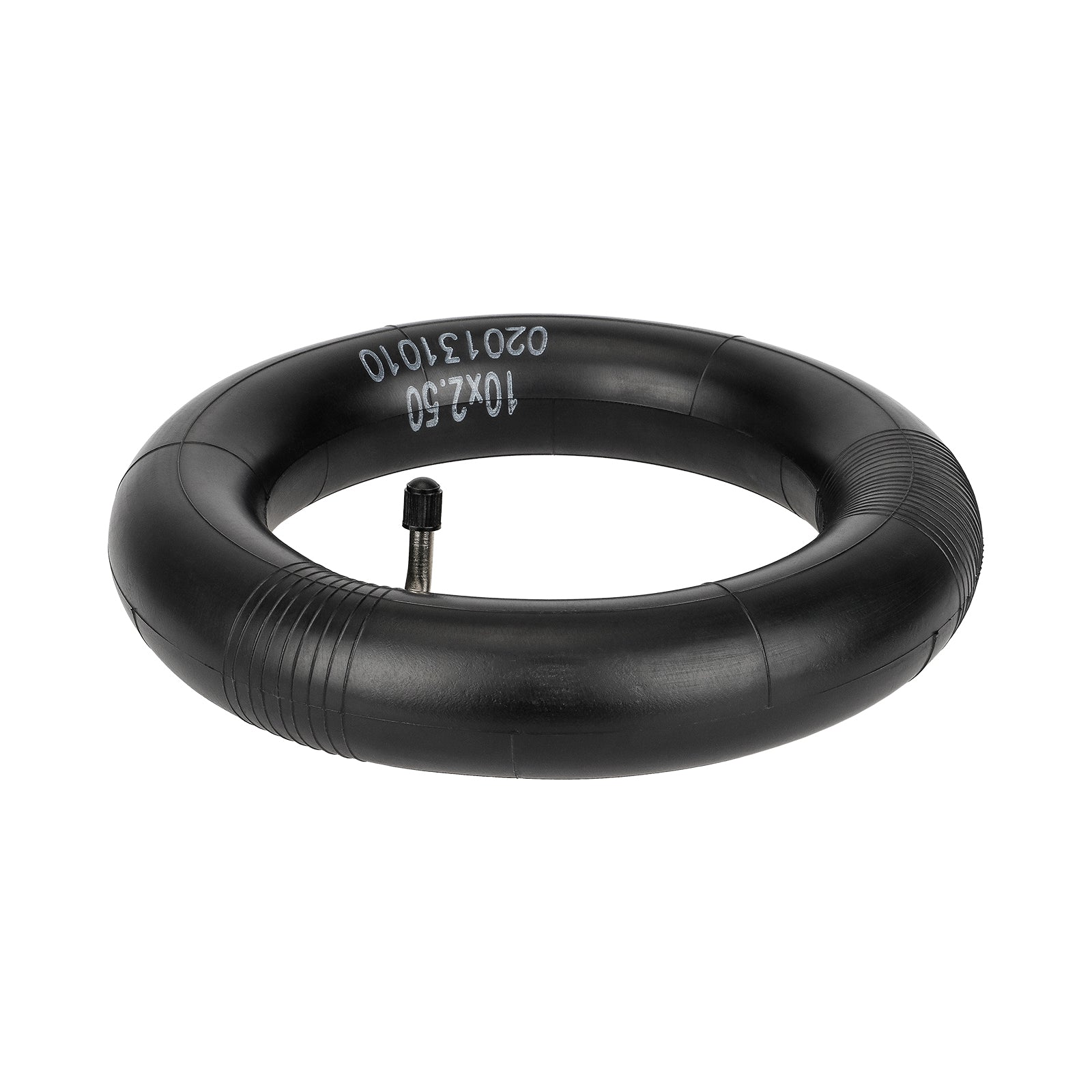

Reinforced 10 × 2.5 inner tube with 90° valve for ZERO 8X electric scooter

Reinforced ULIP inner tube with bent valve

The 10 × 2.5 ULIP inner tube features a reinforced design and a metal valve with a 90-degree bend. It is intended for compatible ten-inch wheel assemblies requiring an inner tube.

Features and fitment

• Model: ZERO 8X.
• Reinforced ULIP inner tube 10 × 2.5; bent valve 90°.

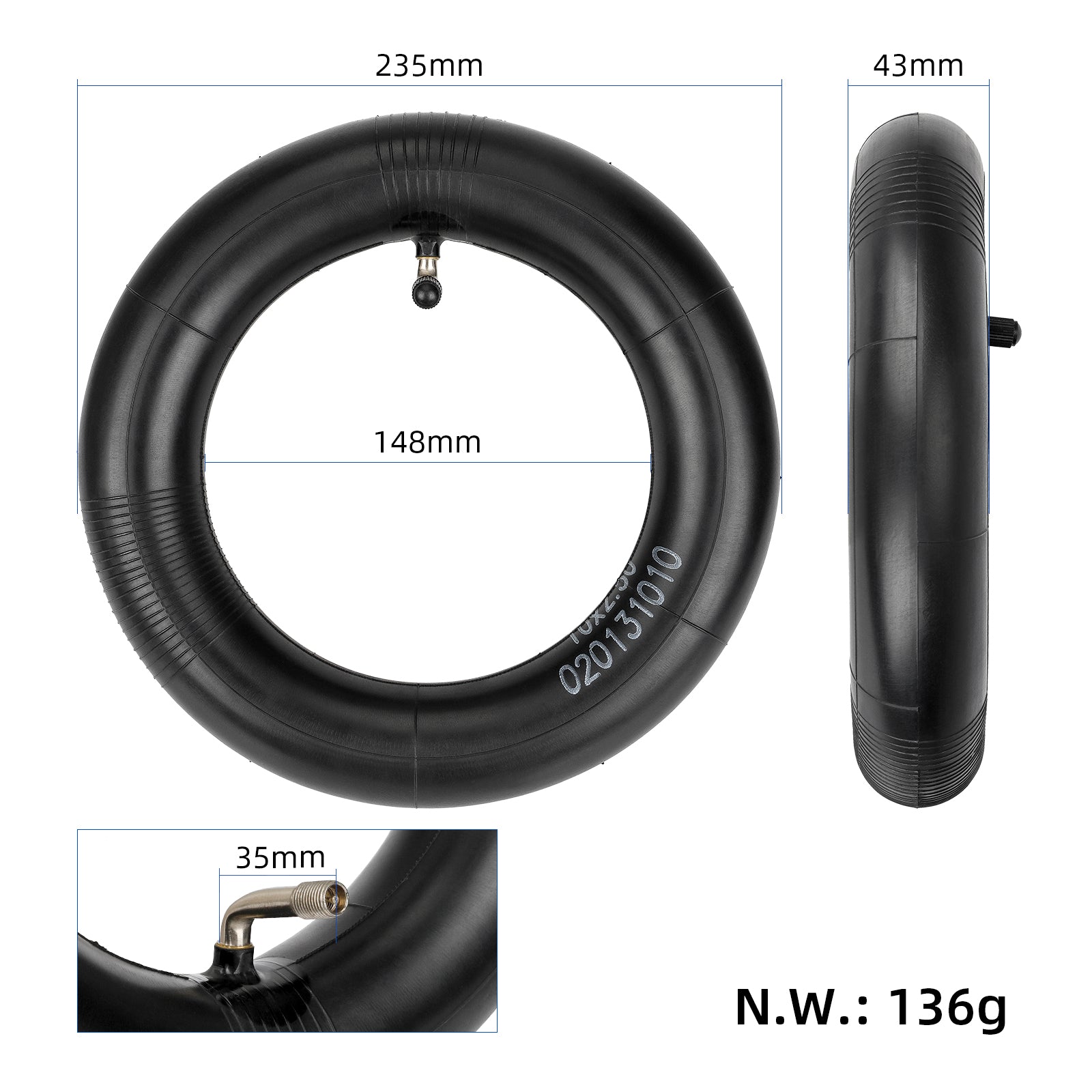

Approximate dimensions

• Outer tube diameter: 235 mm.
• Inner tube diameter: 148 mm.
• Tube width: 43 mm.

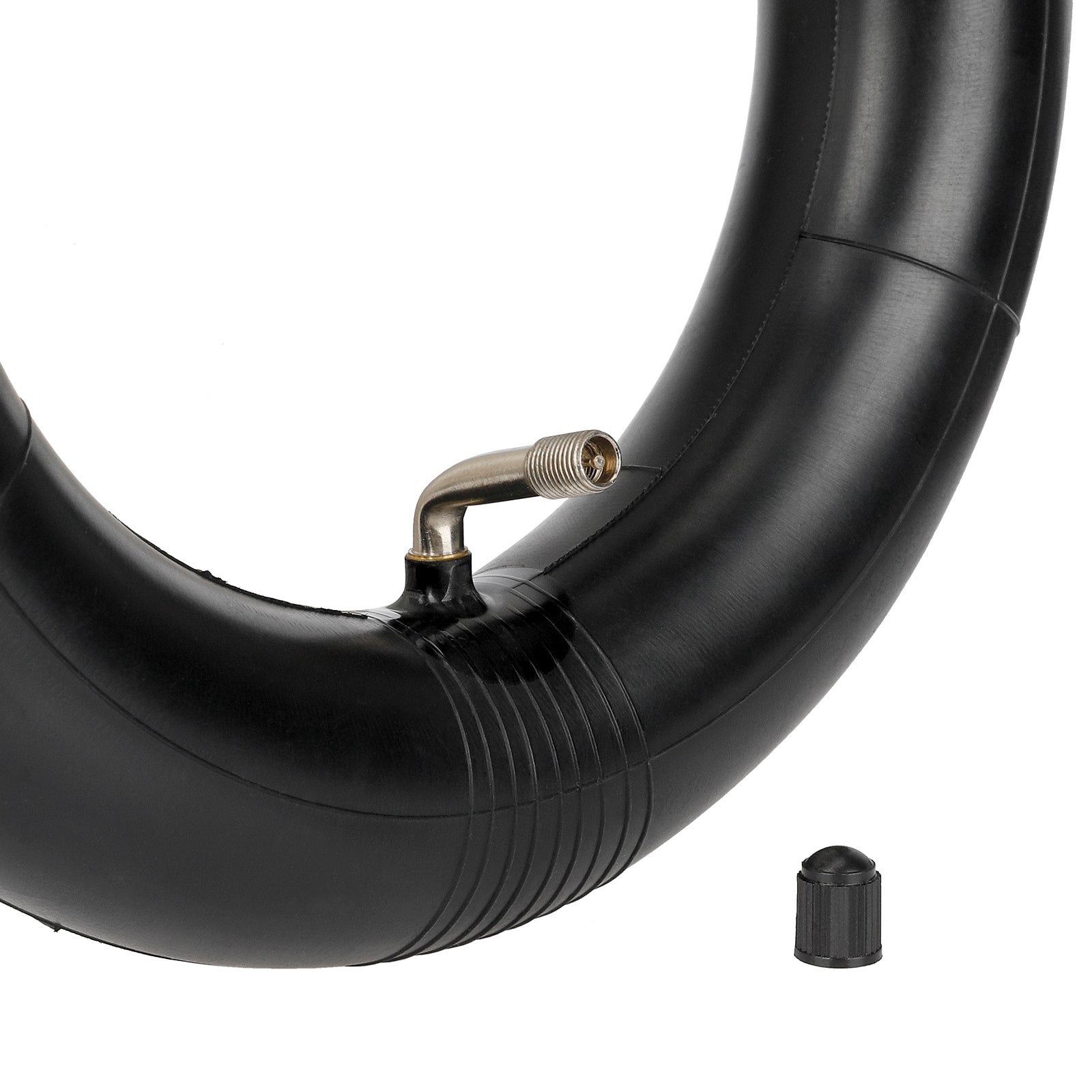

• Bent valve: 35 mm length, 90° angle.

In addition to tire dimensions, verify the valve orientation and accessibility near the motor. The valve should protrude from the rim opening without tension, with sufficient space to connect a pump.

Installation without pinching the tube

• Before replacing, find the cause of the puncture in the tire or rim. A foreign object, sharp edge, or damaged rim tape can immediately damage the new inner tube.
• Inflate the tube slightly, align the valve with the opening, and distribute it evenly inside the tire. When seating the edge, do not pinch it with mounting tools.
• Inflate to the pressure allowed for the wheel assembly. Check the valve position and sealing; do not use the valve cap to stop leaks.
