Semi-metallic NUTT brake pads for Apollo Ghost

Semi-metallic pads for corresponding NUTT caliper

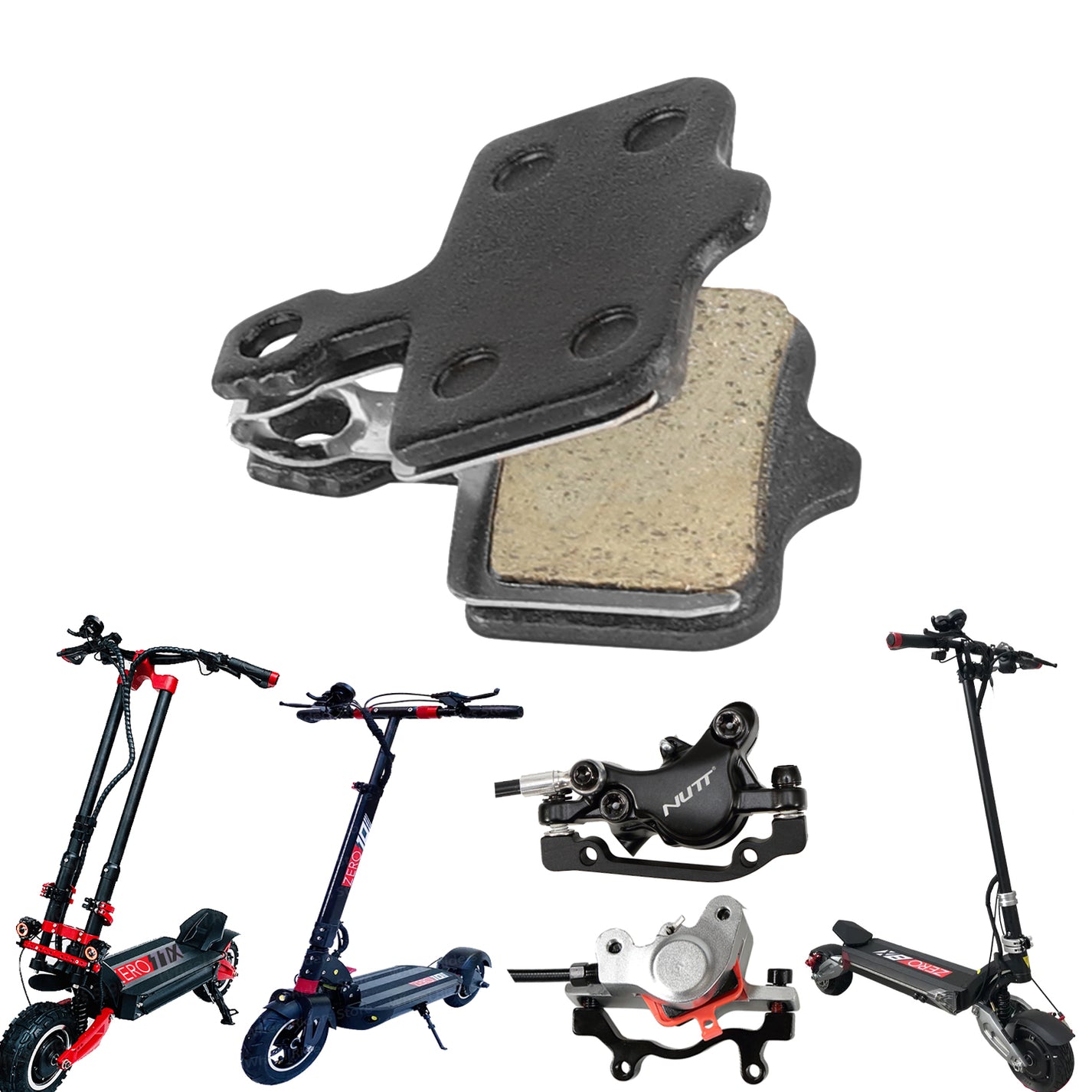

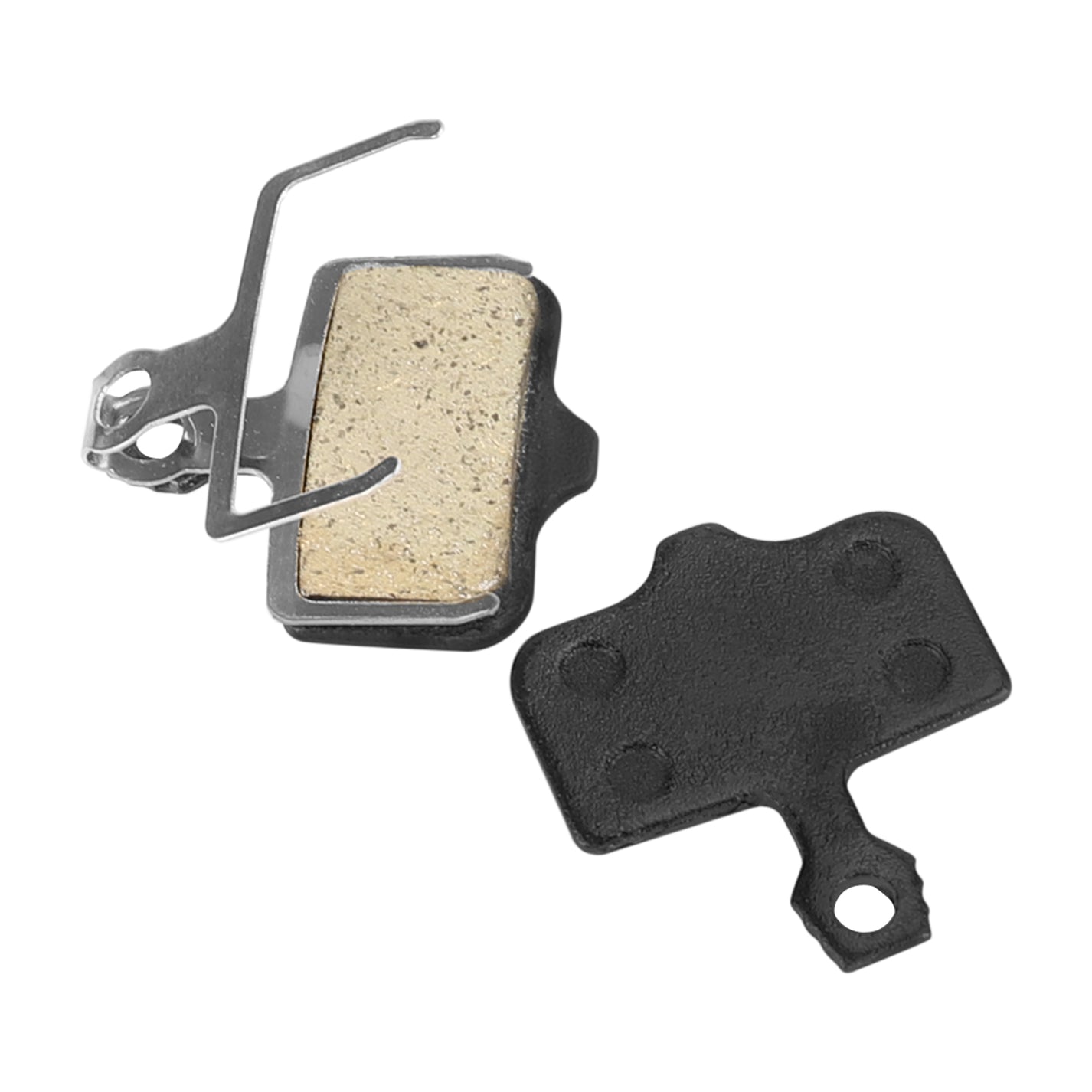

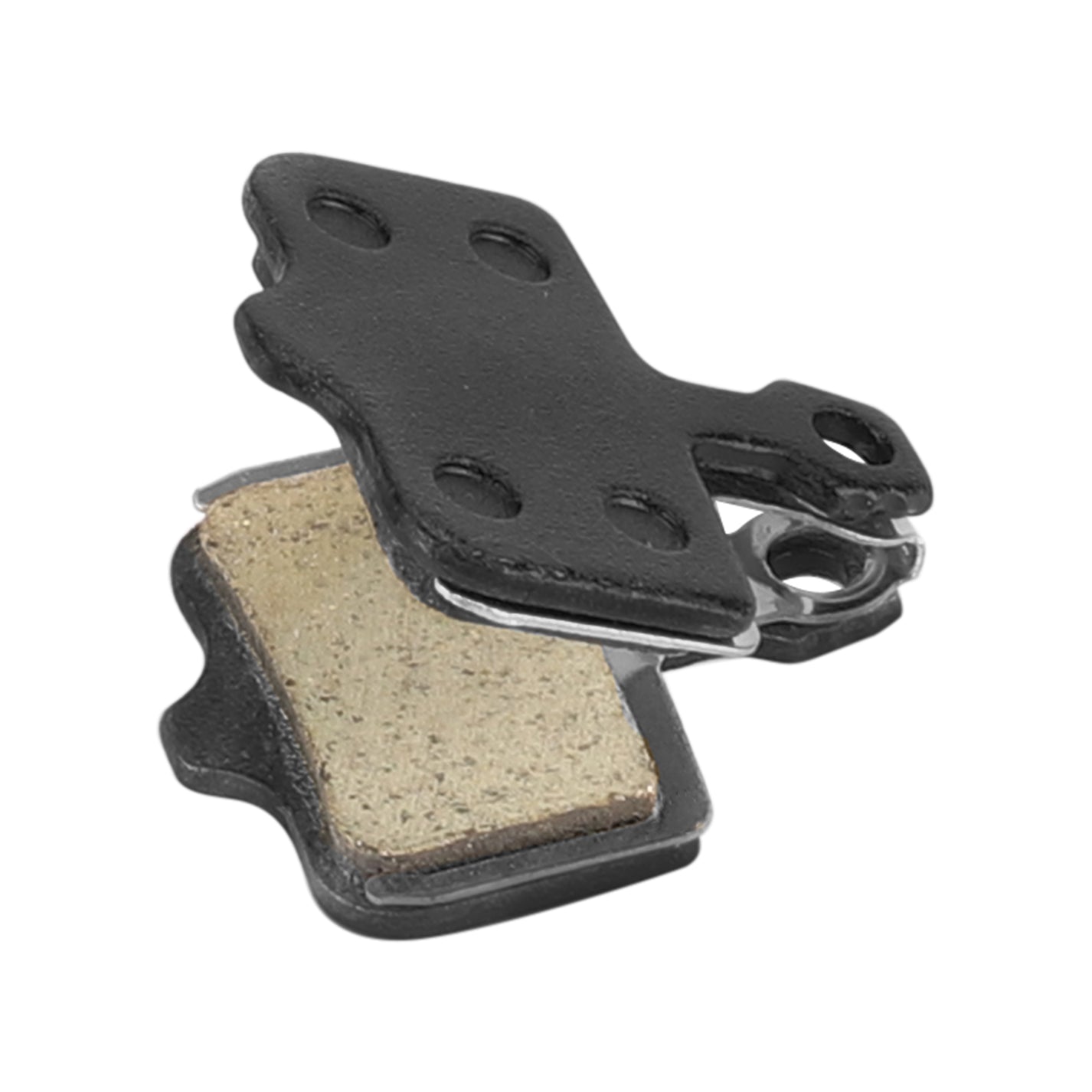

Black backplates with side tabs and a rectangular friction surface make up this pair of semi-metallic pads. The friction area measures approximately 30 × 17 mm; a spring and safety pin are included.

Features and fitment

• Model: Apollo Ghost.
• Brake pad material: Semi-metallic.
• Black pads with a friction area approx. 30 mm wide and 17 mm high.

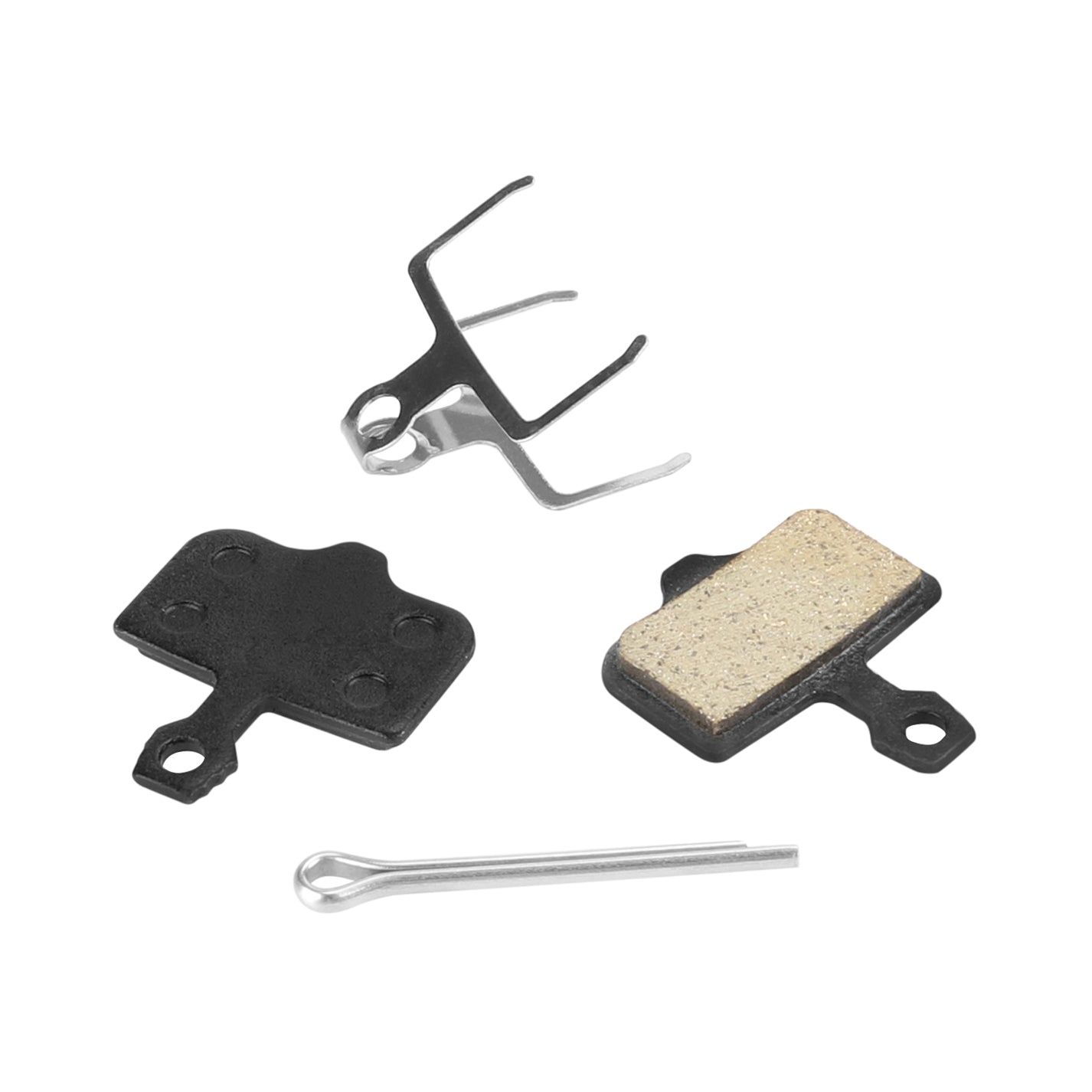

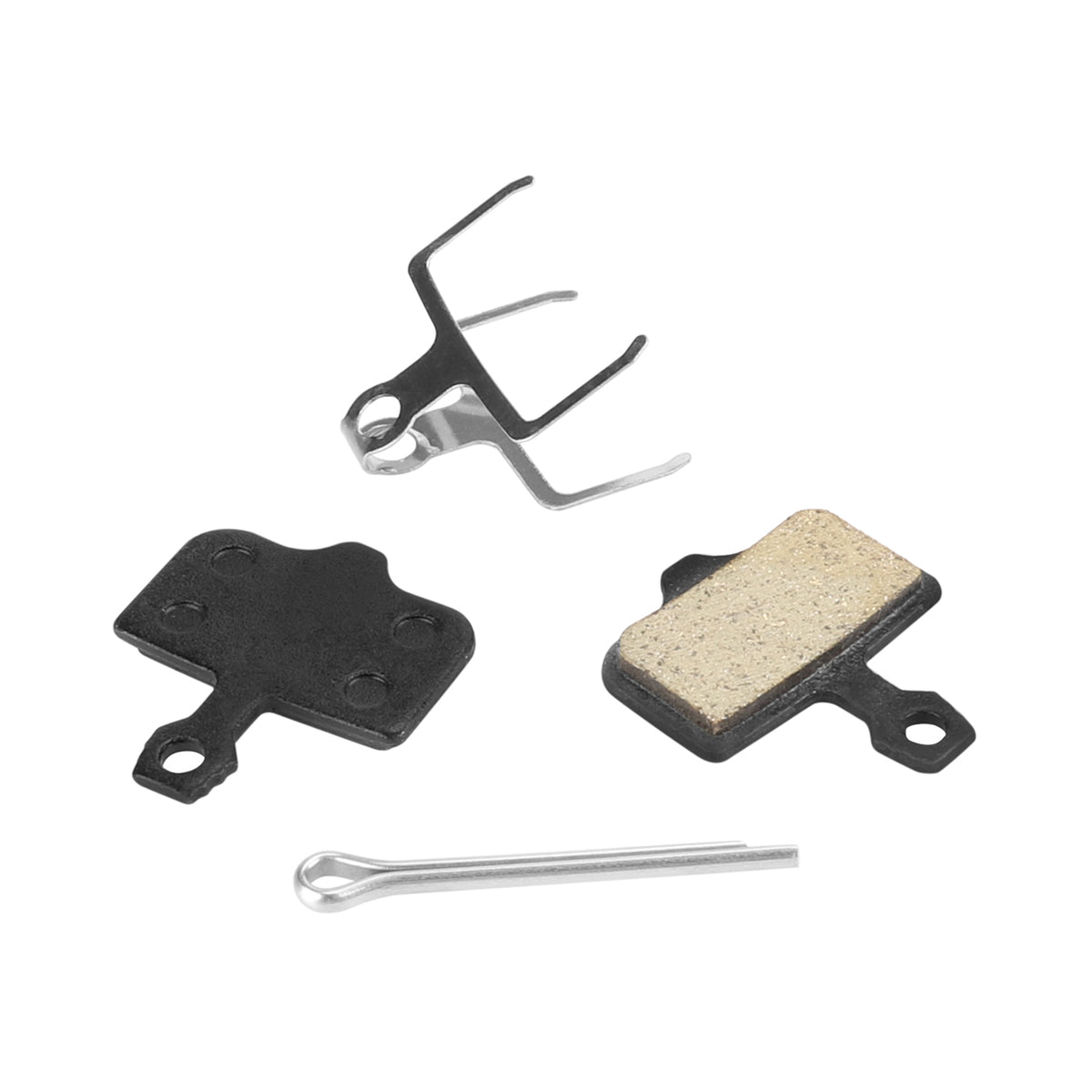

• Pair with spring and split pin; shaped for the corresponding NUTT caliper.

Approximate dimensions

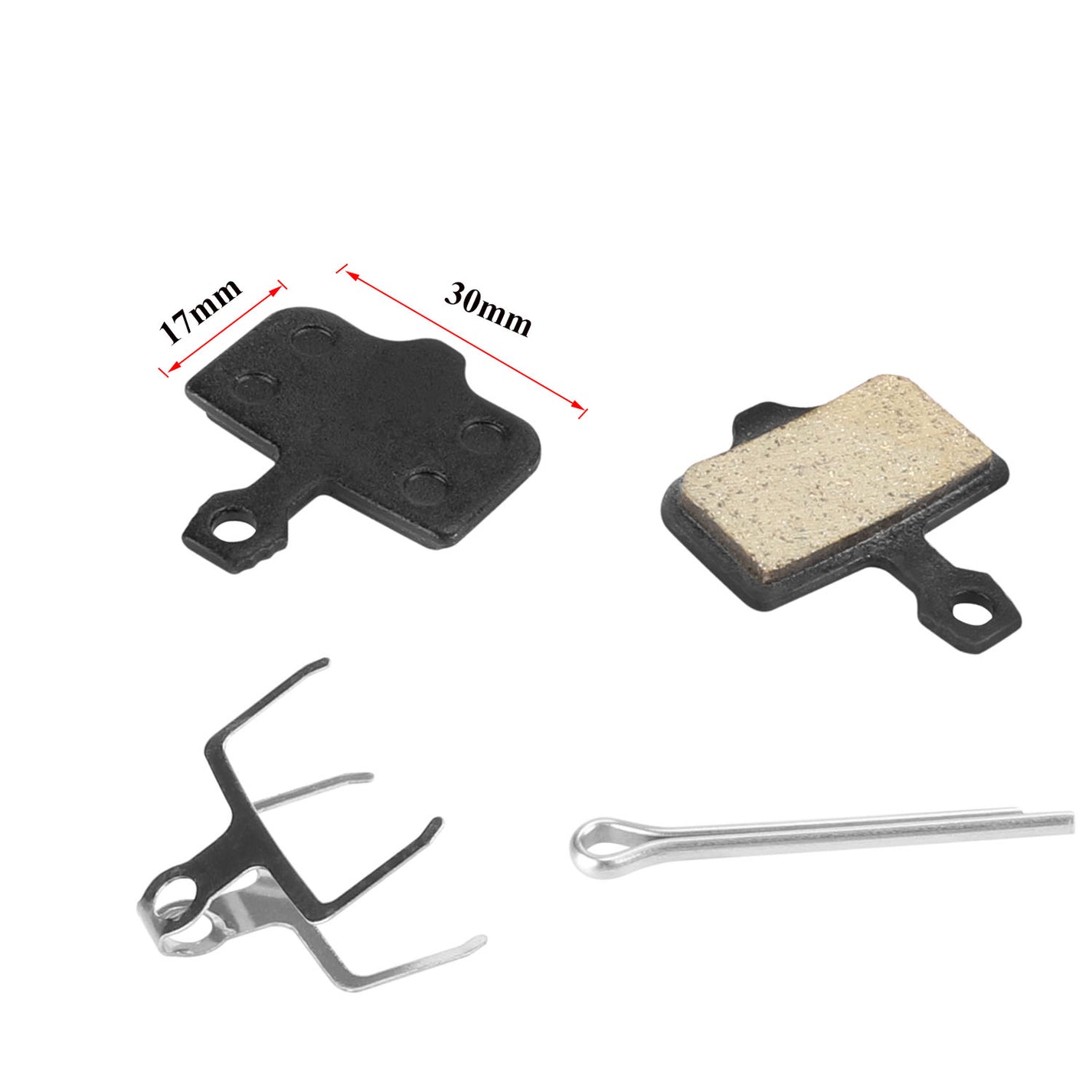

• Friction surface: 30 × 17 mm.

The 30 × 17 mm figure refers to the friction surface, not the overall outline. Before replacing, check the installed caliper and the position of the mounting tabs, especially for vehicles with upgraded brakes.

Use applies only to the installed NUTT caliper with the corresponding shape and pad mount.

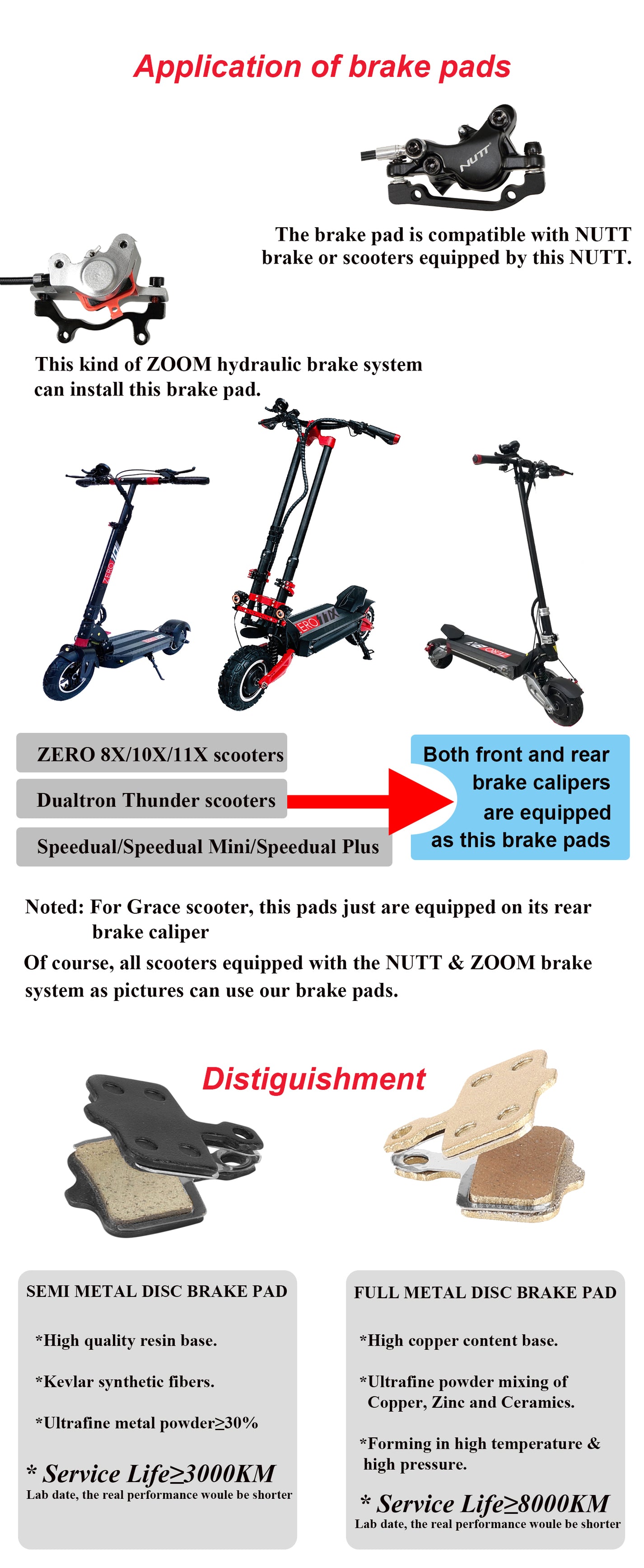

Brake pad material

The semi-metallic compound combines metal particles and a resin binder. The compound represents a compromise between initial bite and resistance to thermal stress. For even braking, a clean disc and gradual break-in of the new pair are important.

When to replace and how to start

• Inspect pads if braking performance decreases, wear is uneven, or they are contaminated. Replace both pads in the same caliper; check the minimum thickness in the brake manual.
• Remove the safety device and the old pair. Prepare the space for new pads according to your caliper's procedure, then insert the spring, the new pair, and the safety device. Do not grease the friction surfaces.
• Check wheel clearance and lever operation. Break in the new pads with several gradual stops in a safe area without locking the wheel.
