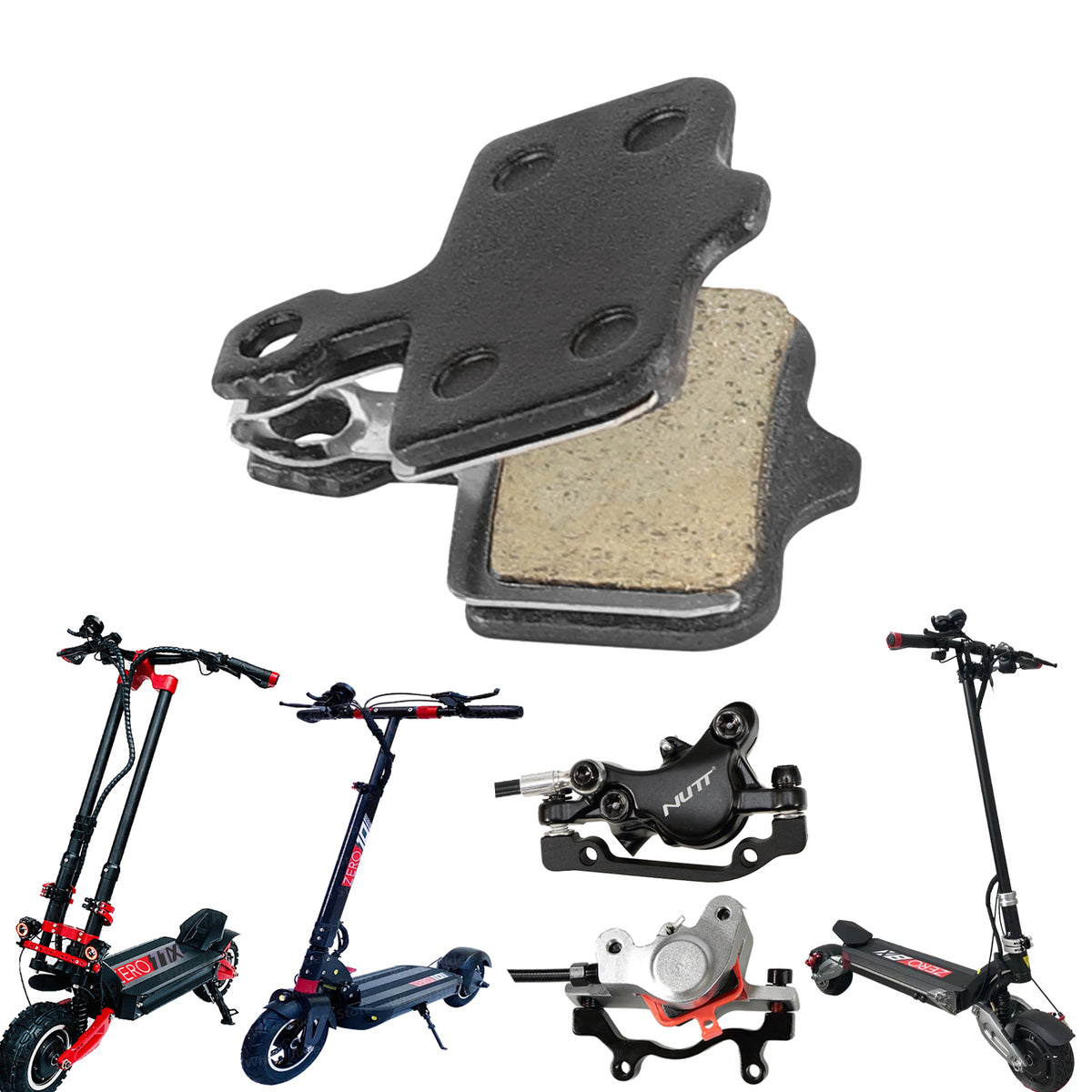

Semi-metallic brake pads for NUTT for Apollo Phantom

Semi-metallic pads for compatible NUTT calipers

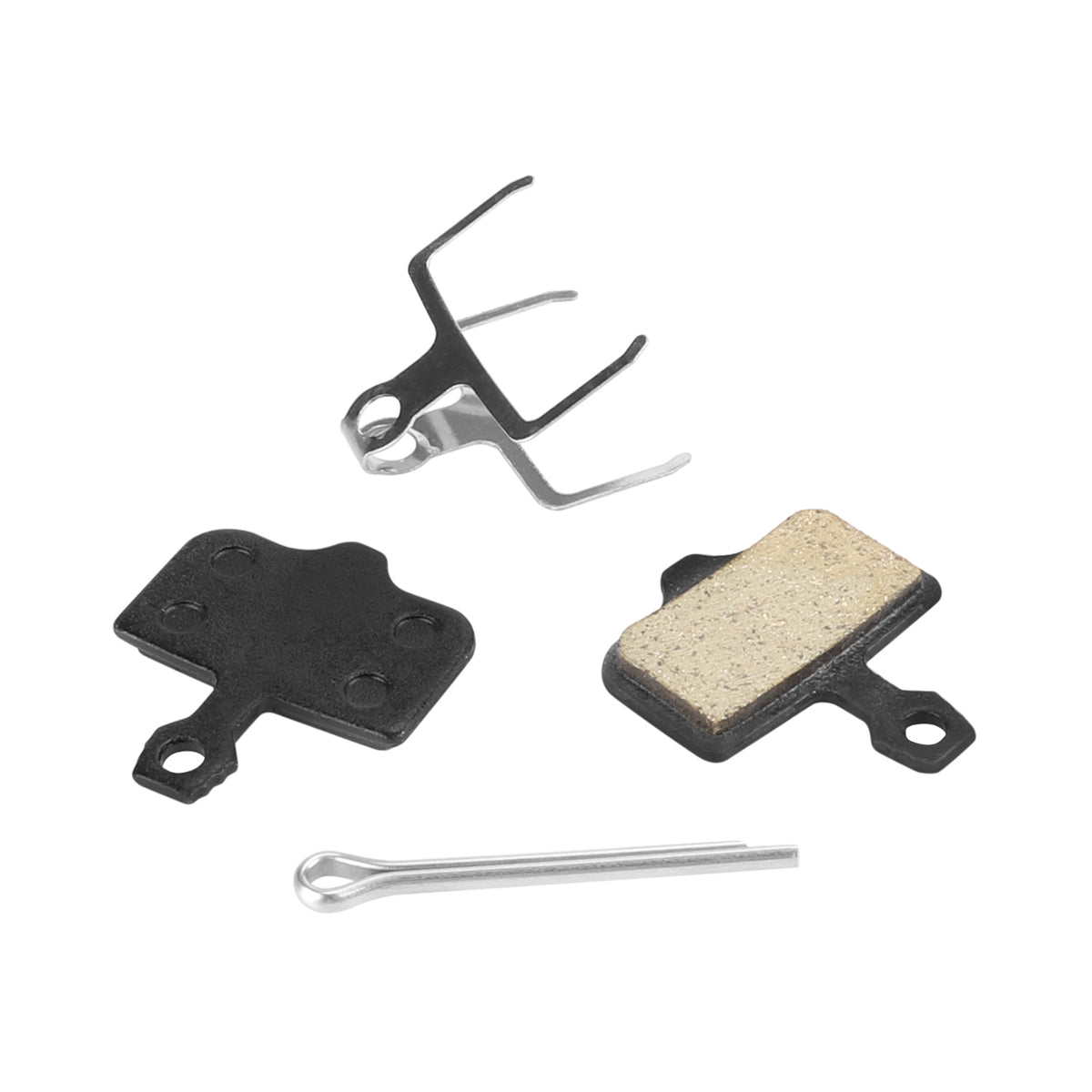

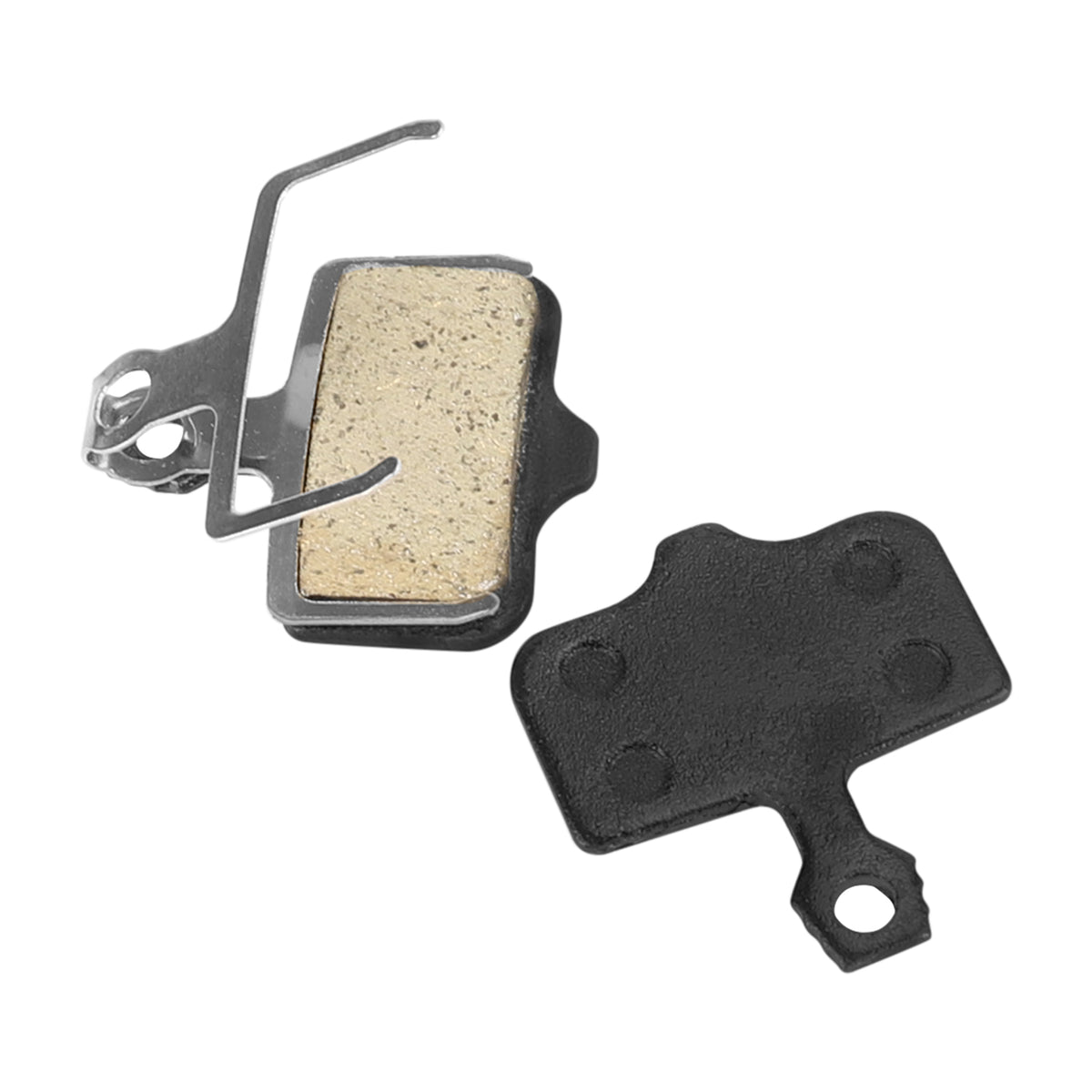

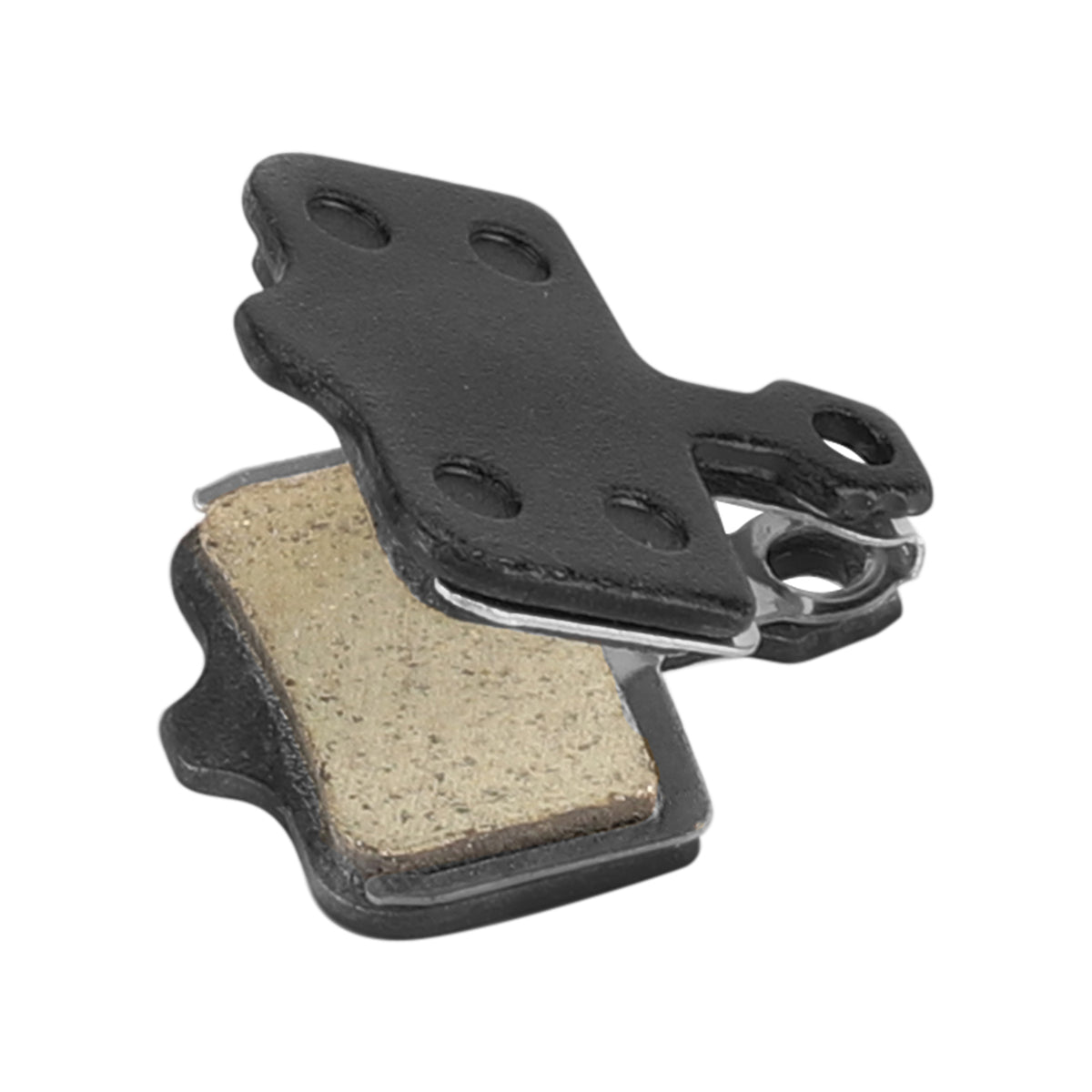

Black backing plates with side tabs and a rectangular friction surface make up this pair of semi-metallic pads. The friction zone measures approximately 30 × 17 mm; a spring and retaining clip are included.

Features and fitment

• Model: Apollo Phantom.
• Brake liner: semi-metallic.
• Black pads with a lining approximately 30 mm wide and 17 mm high.
• Pair with spring and cotter pin; design for compatible NUTT caliper.

Approximate dimensions

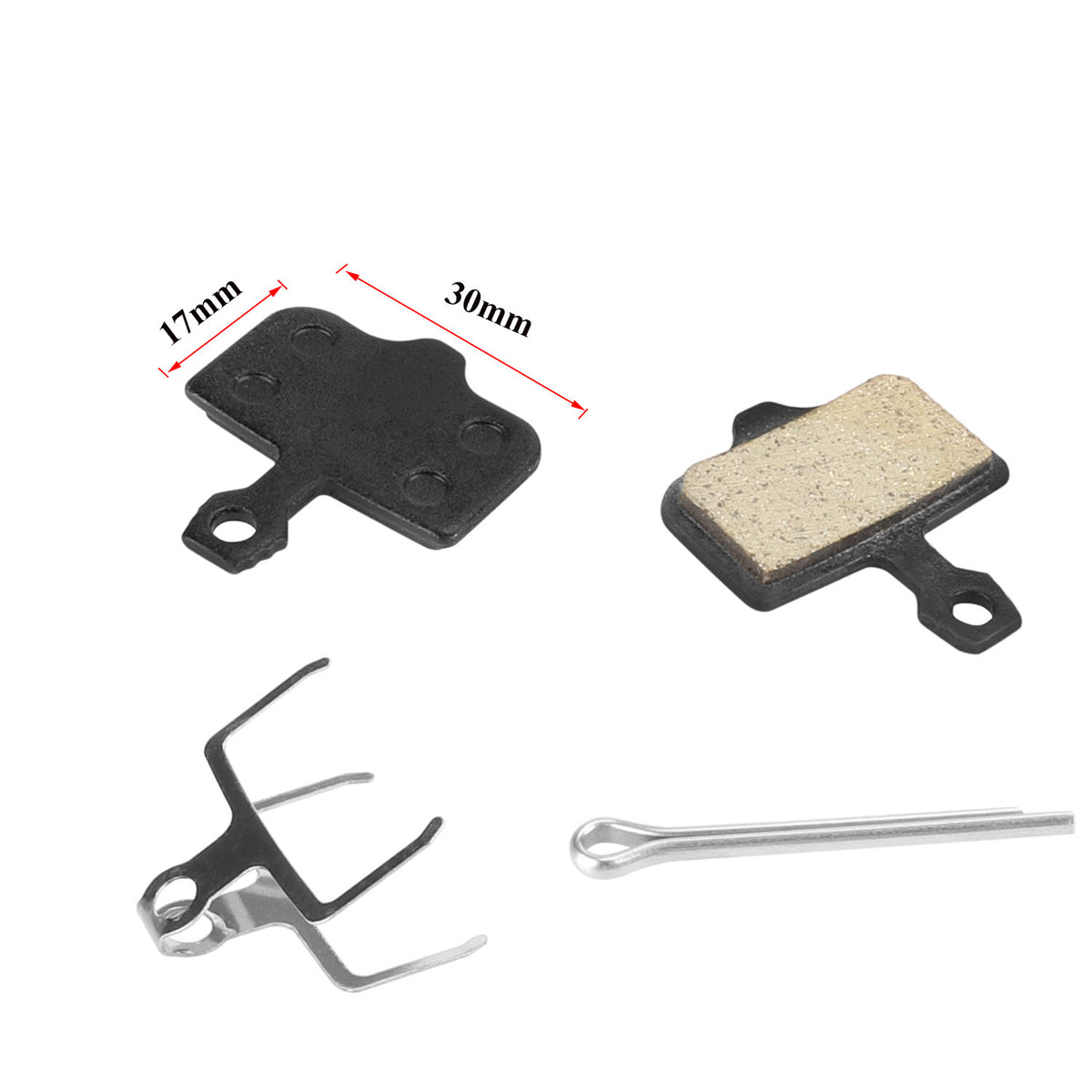

• Friction surface: 30 × 17 mm.

The 30 × 17 mm specification refers to the friction surface, not the entire outline. Before replacement, verify the installed caliper and the position of the mounting tabs, especially for vehicles with upgraded brakes.

Usage applies only to the installed NUTT caliper with the compatible pad shape and mounting.

Brake pad liner

The semi-metallic liner combines metal particles with resin binder. The compound represents a compromise between initial bite and resistance to thermal stress. For even braking, a clean disc and gradual bedding-in of the new pair are important.

When to replace and how to get started

• Inspect the pads if braking performance decreases, uneven wear occurs, or if there is contamination. Replace both pads in the same caliper; check your brake manual for the minimum allowed thickness.
• Remove the retaining clip and the old pair. Following the procedure for your specific caliper, prepare the space for new pads, then insert the spring, the new pair, and the retaining clip. Do not grease the friction surfaces.
• Check that the wheel spins freely and verify brake lever operation. Bed in the new pads with several gradual stops in a safe area without locking the wheel.
