NUTT semi-metallic brake pads for NAMI Burn-E 2

Semi-metallic pads for compatible NUTT caliper

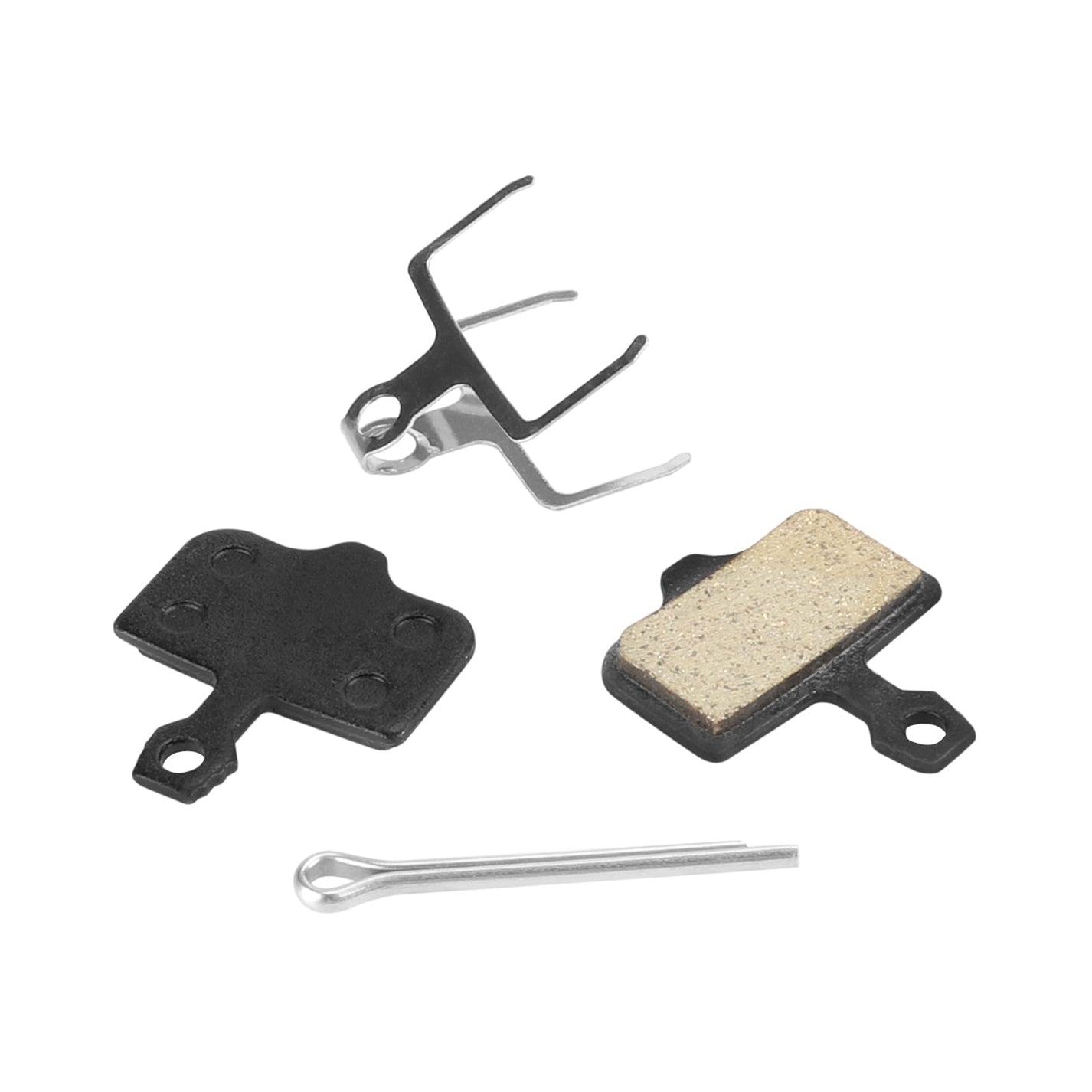

Two black brackets with side lugs and a rectangular friction surface make up this pair of semi-metallic pads. The friction area measures approximately 30 × 17 mm; a spring and a retaining clip are included.

Features and fitment

• Model: NAMI Burn-E 2.
• Brake pad type: semi-metallic.
• Black pads with a friction material measuring approximately 30 mm in width and 17 mm in height.
• Pair with spring and cotter pin; designed for the compatible NUTT caliper.

Approximate dimensions

• Friction surface: 30 × 17 mm.

The 30 × 17 mm figure refers to the friction surface, not the overall outline. Before replacing, check the installed caliper and the position of the mounting lugs, especially for vehicles with upgraded brakes.

Usage applies only to the installed NUTT caliper with the corresponding pad shape and mount.

Brake pad compound

The semi-metallic compound combines metal particles and resin binder. The mixture represents a compromise between initial bite and resistance to thermal stress. For consistent braking, a clean disc and gradual bedding-in of the new pair are important.

When to replace and how to start

• Inspect the pads in case of reduced braking performance, uneven wear, or contamination. Replace both pads in the same caliper; check the minimum allowed thickness in the brake manual.
• Remove the retaining clip and the old pair. Prepare the space for new pads according to the procedure for your caliper, then insert the spring, the new pair, and the retaining clip. Do not grease the friction surfaces.
• Check for free wheel rotation and lever operation. Bed in the new pads with several gradual decelerations in a safe location without locking the wheel.
