NUTT semi-metallic brake pads for NAMI Burn-E

Semi-metallic pads for compatible NUTT calipers

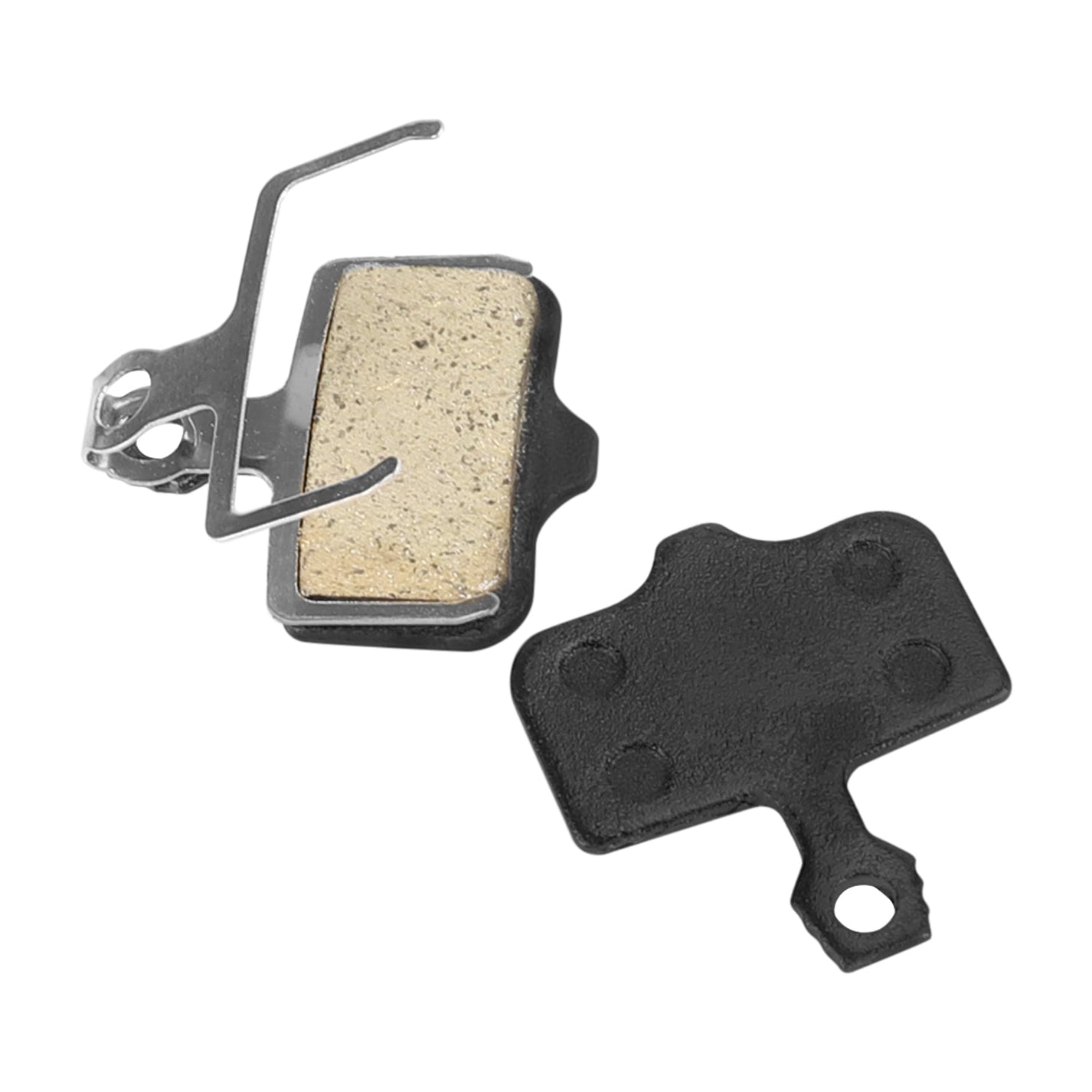

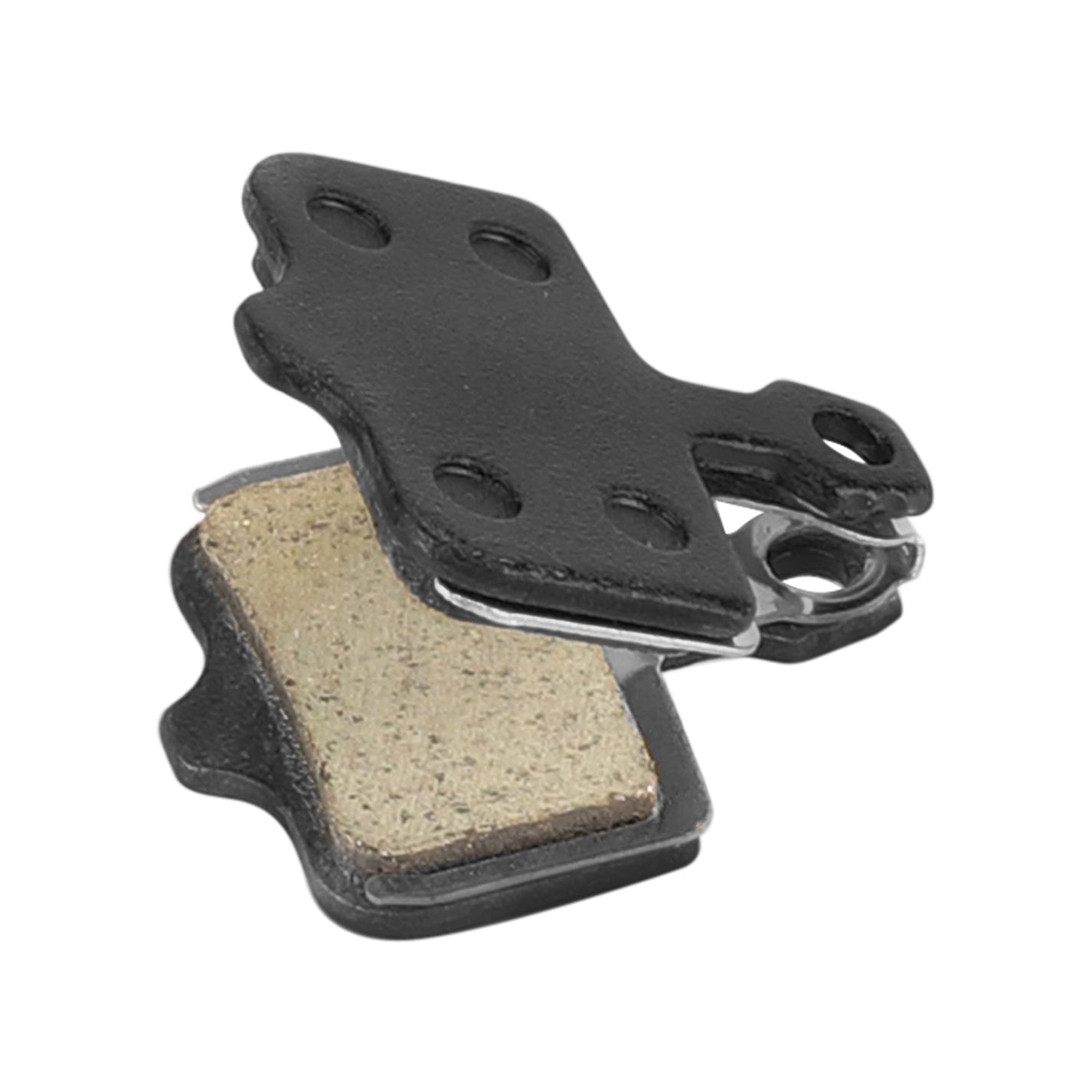

These semi-metallic pads come in a pair with black backing plates featuring side tabs and a rectangular friction surface. The friction area measures approximately 30 × 17 mm; a spring and a retaining pin are included.

Features and compatibility

• Model: NAMI Burn-E.
• Brake pad: semi-metallic.
• Black pads with a friction surface width of approx. 30 mm and height of 17 mm.

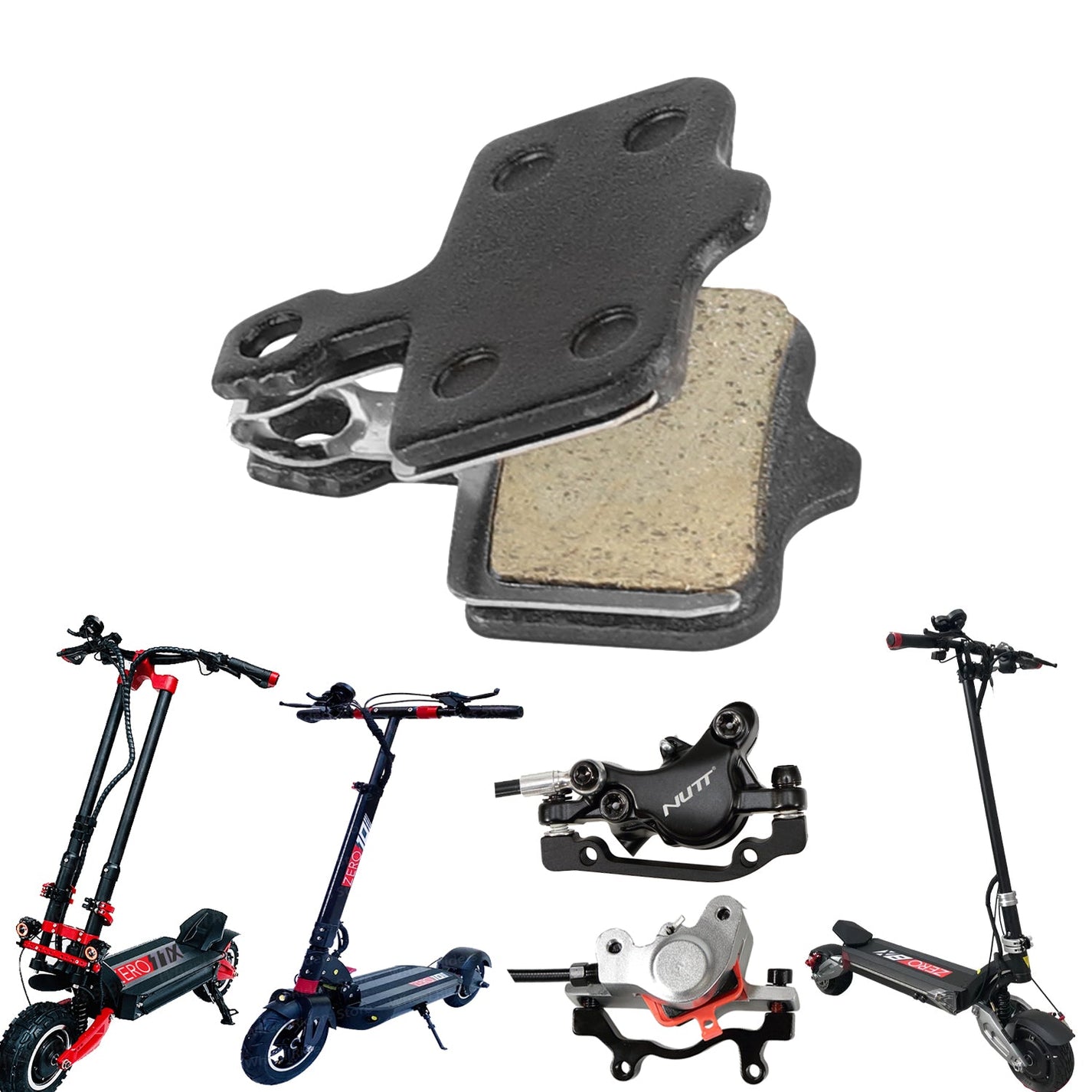

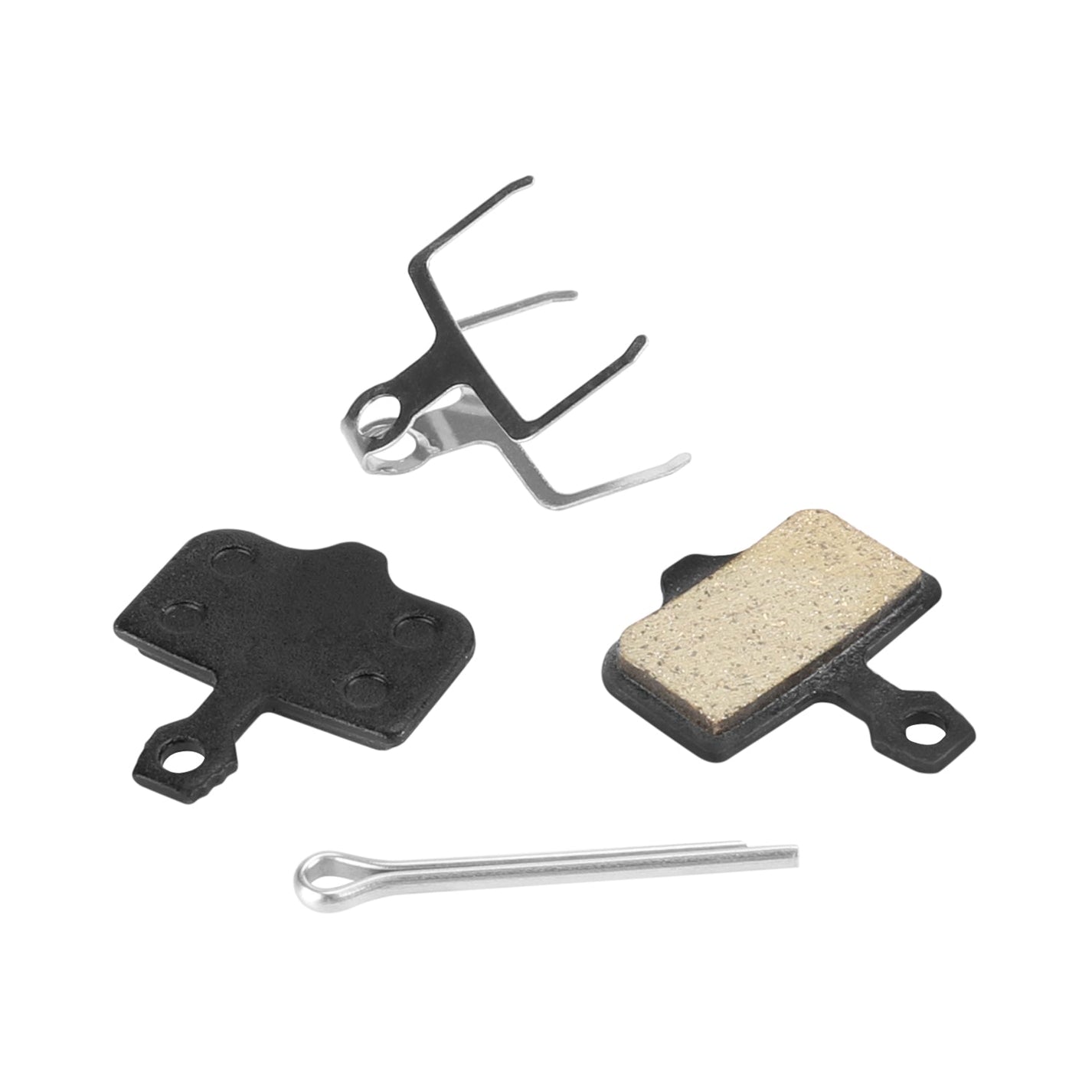

• Pair with spring and cotter pin; shape for compatible NUTT calipers.

Approximate dimensions

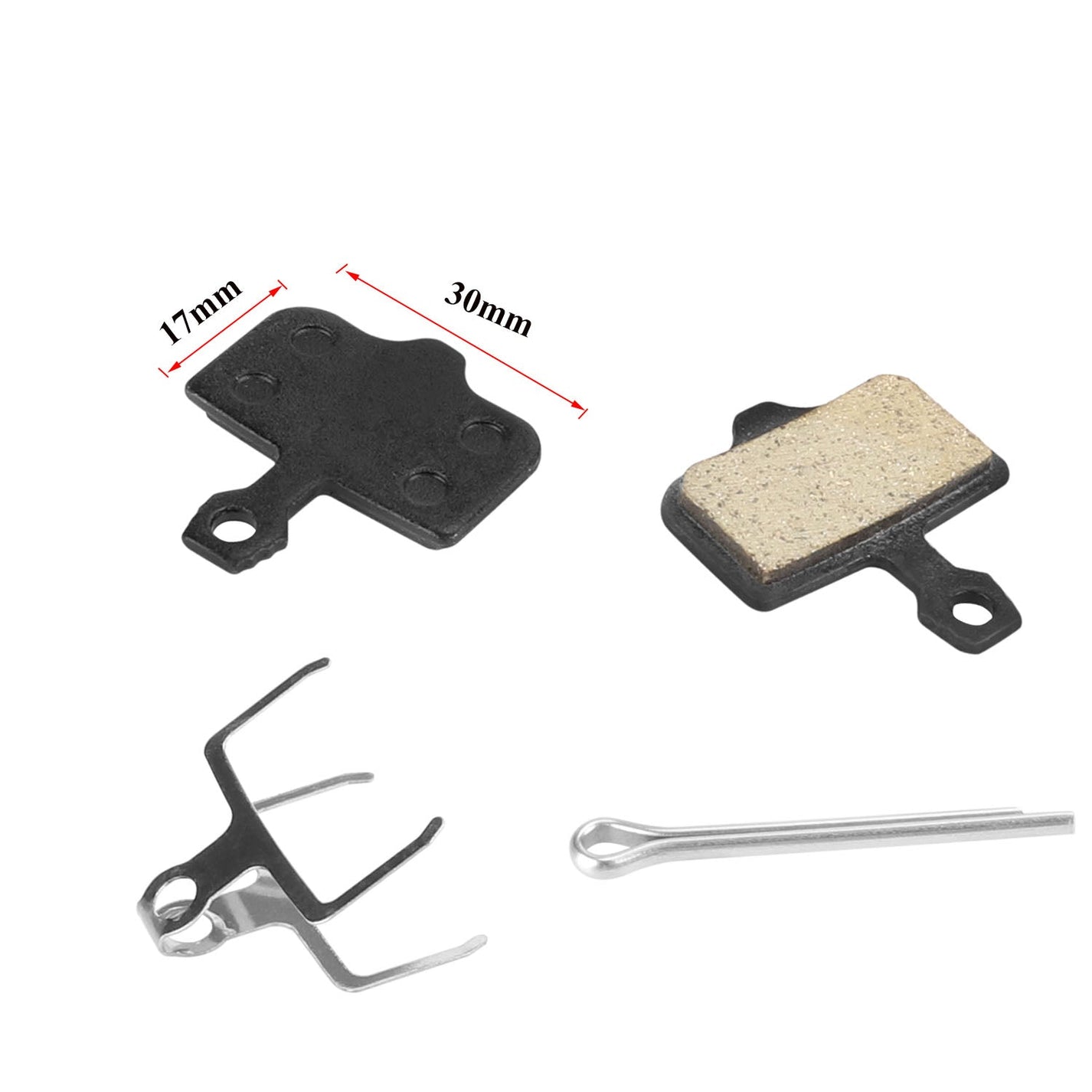

• Friction surface: 30 × 17 mm.

The 30 × 17 mm specification refers to the friction surface, not the overall outline. Before replacing, check the installed caliper and the position of the mounting tabs, especially for vehicles with upgraded brakes.

Usage applies only to installed NUTT calipers with the correct shape and mounting.

Brake pad material

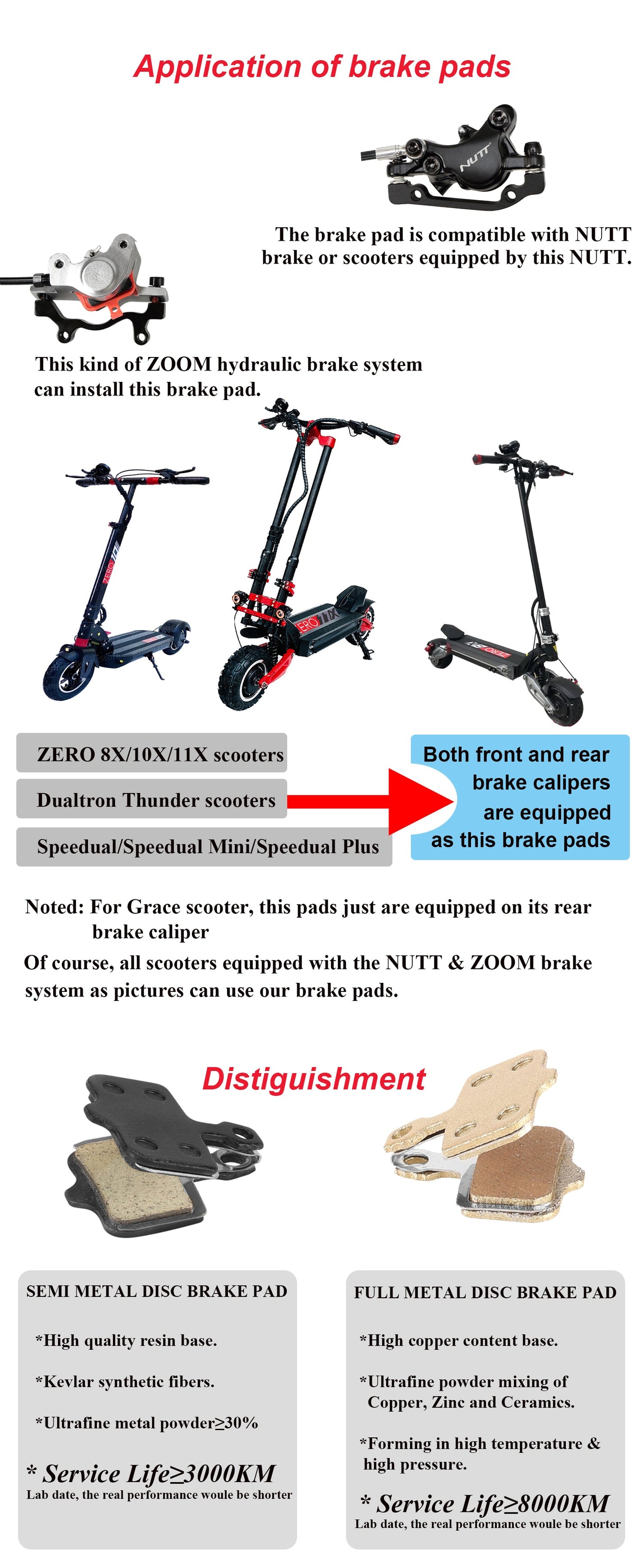

The semi-metallic compound combines metal particles and a resin binder. This mixture represents a compromise between initial bite and thermal resistance. A clean disc and the gradual bedding-in of the new pair are important for smooth braking.

When to replace and how to start

• Inspect pads if braking performance decreases, or if there is uneven wear or contamination. Replace both pads in the same caliper; check the minimum allowable thickness in the brake manual.
• Remove the safety pin and the old pair. Prepare the space for new pads according to the procedure for your caliper, then insert the spring, the new pair, and the safety pin. Do not grease friction surfaces.
• Check for free wheel movement and lever operation. Bed in the new pads with several gradual decelerations in a safe location, without locking the wheel.
