4-button switch for electric scooter KuKirin M4 Max

Four clearly marked buttons for lights and signaling

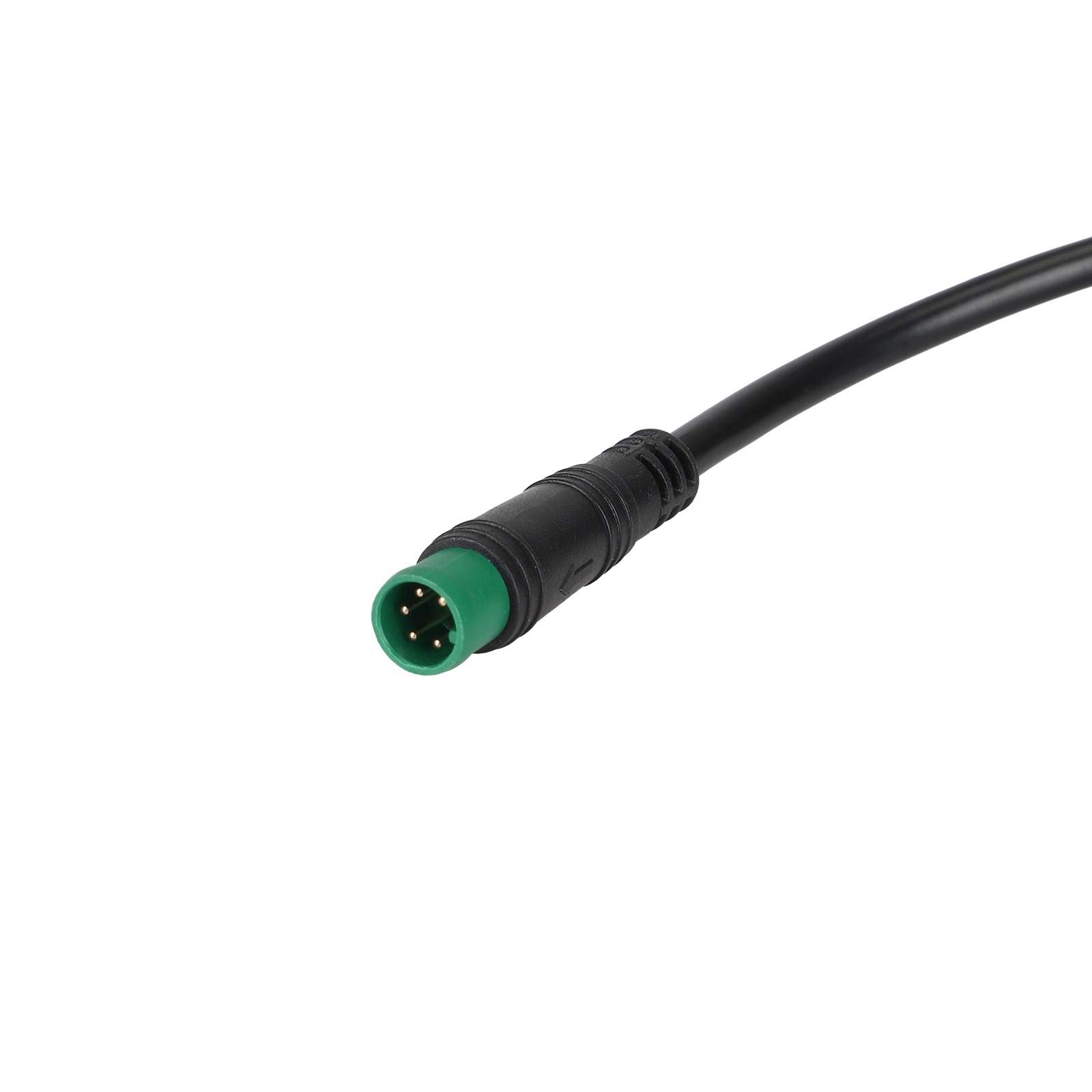

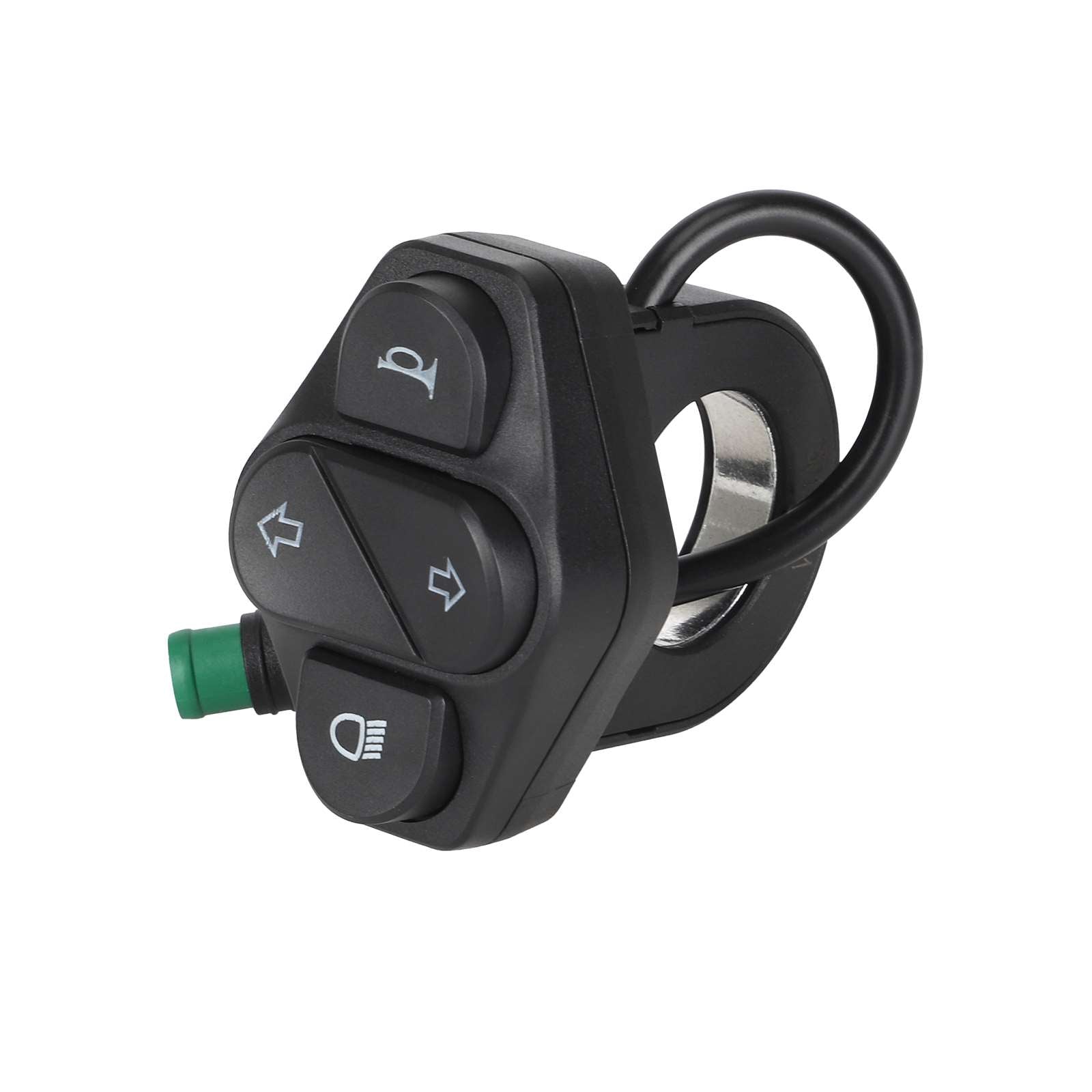

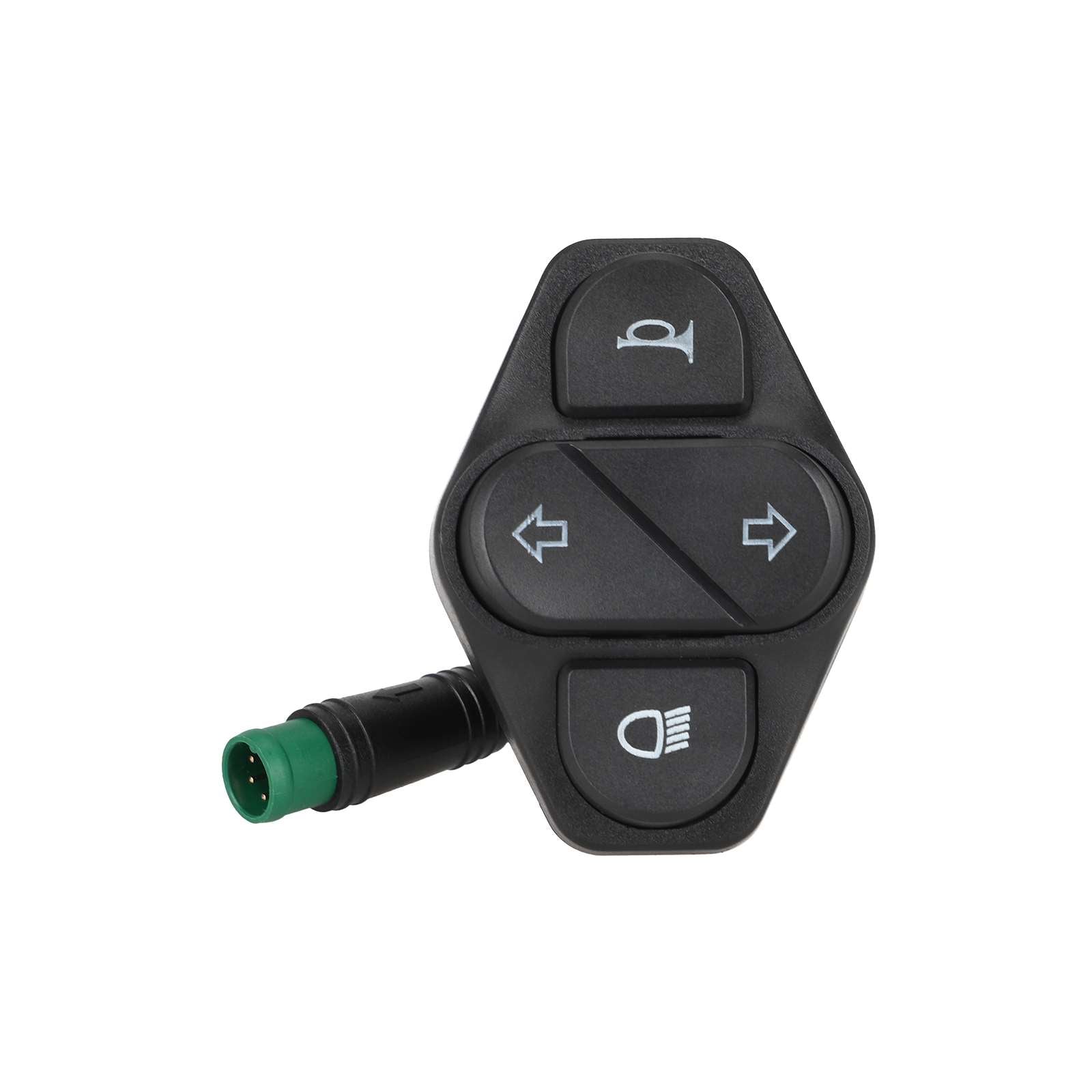

The black switch features a light button on top, left and right turn signals in the middle, and a horn at the bottom. It connects via a green five-pin connector.

Features and Compatibility

• Model: KuKirin M4 Max.
• Four buttons for horn, left/right signal, and light; green 5-pin connector.

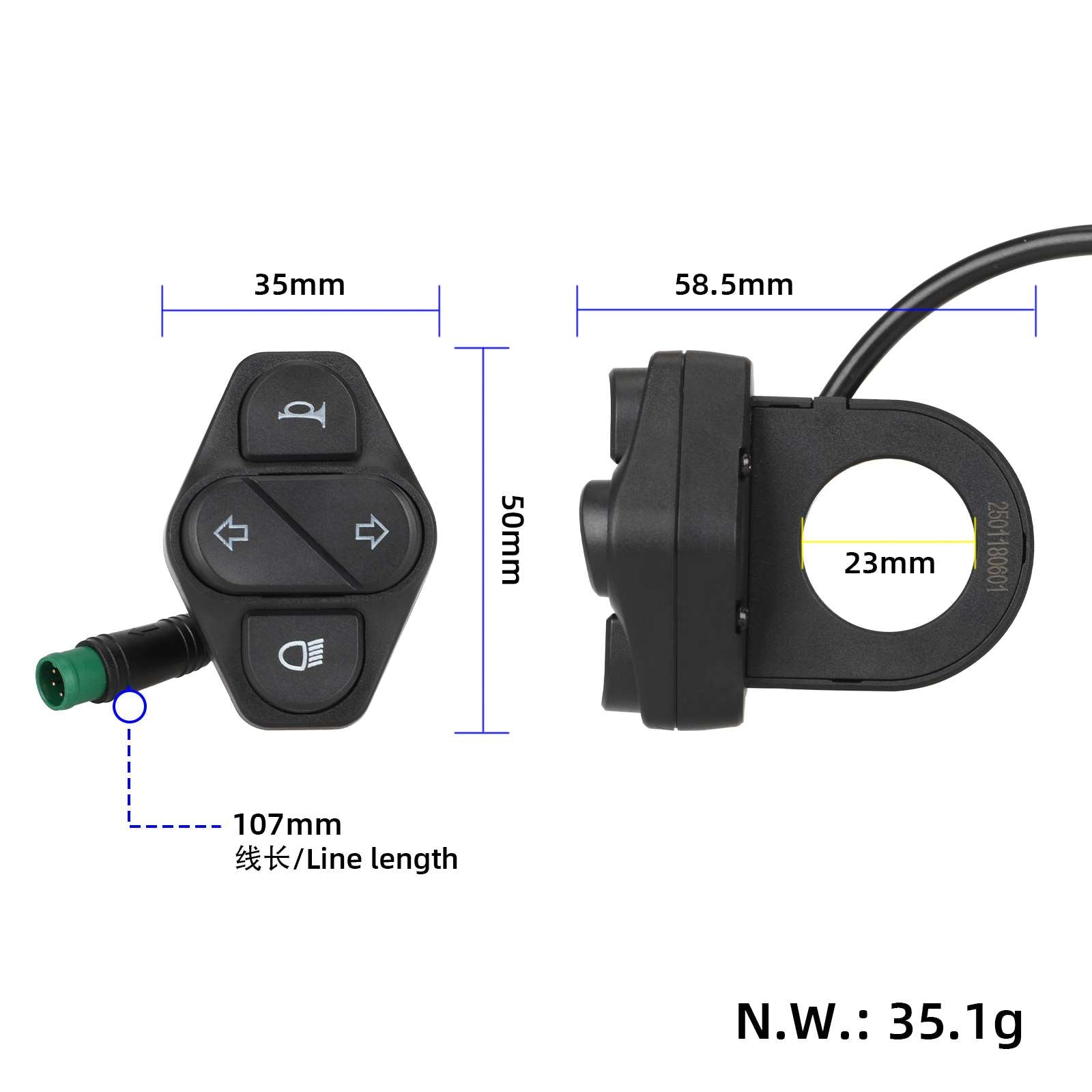

Approximate Dimensions

• Switch with clamp: 58.5 × 50 × 36.1 mm.
• Button housing height: 21.7 mm.
• Lower clamp part thickness: 10.2 mm.
• Mount: 22.5 mm.
• Cable: 10.5 cm.
• Cable diameter: 4 mm.

The mount is approximately 22.5 mm wide, and the cable is 10.5 cm long. Compare the connector and the wiring of all functions. Install the unit within thumb reach without obstructing the brake lever.

Replacement and Functional Testing

• Before replacement, disconnect the vehicle power. Note the connections and install the new switch in the same intended location without pinching the wiring.
• Check that the buttons or switch operate without sticking and that the connector is properly engaged. The handlebars must be able to turn without stretching the cable.
• Test every function individually before riding. When contact is interrupted, check the connector and wiring as well, as the fault is not necessarily in the switch itself.
