6-pin cable between display and controller for electric scooter KuKirin M4 Pro

Display and controller connection via one cable harness

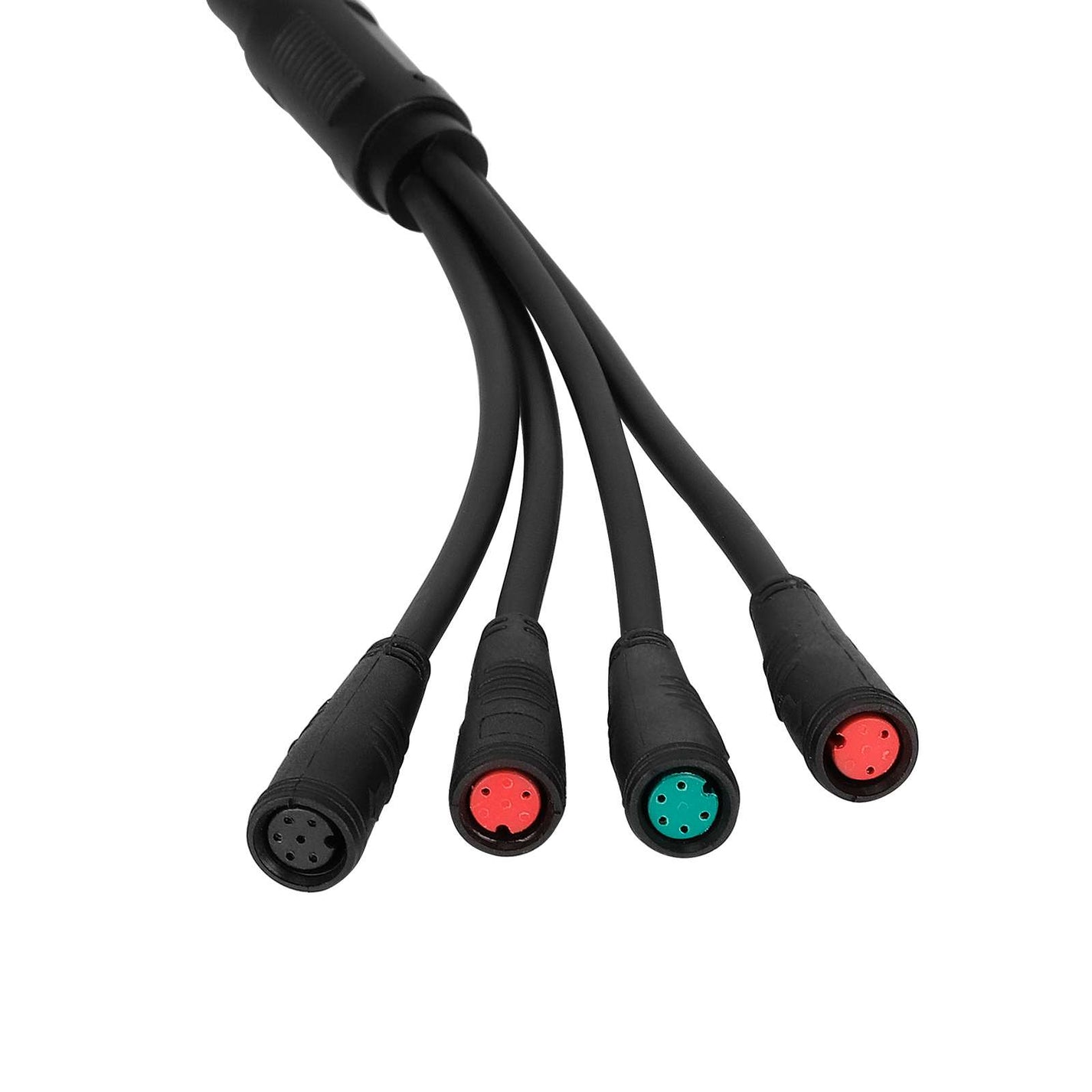

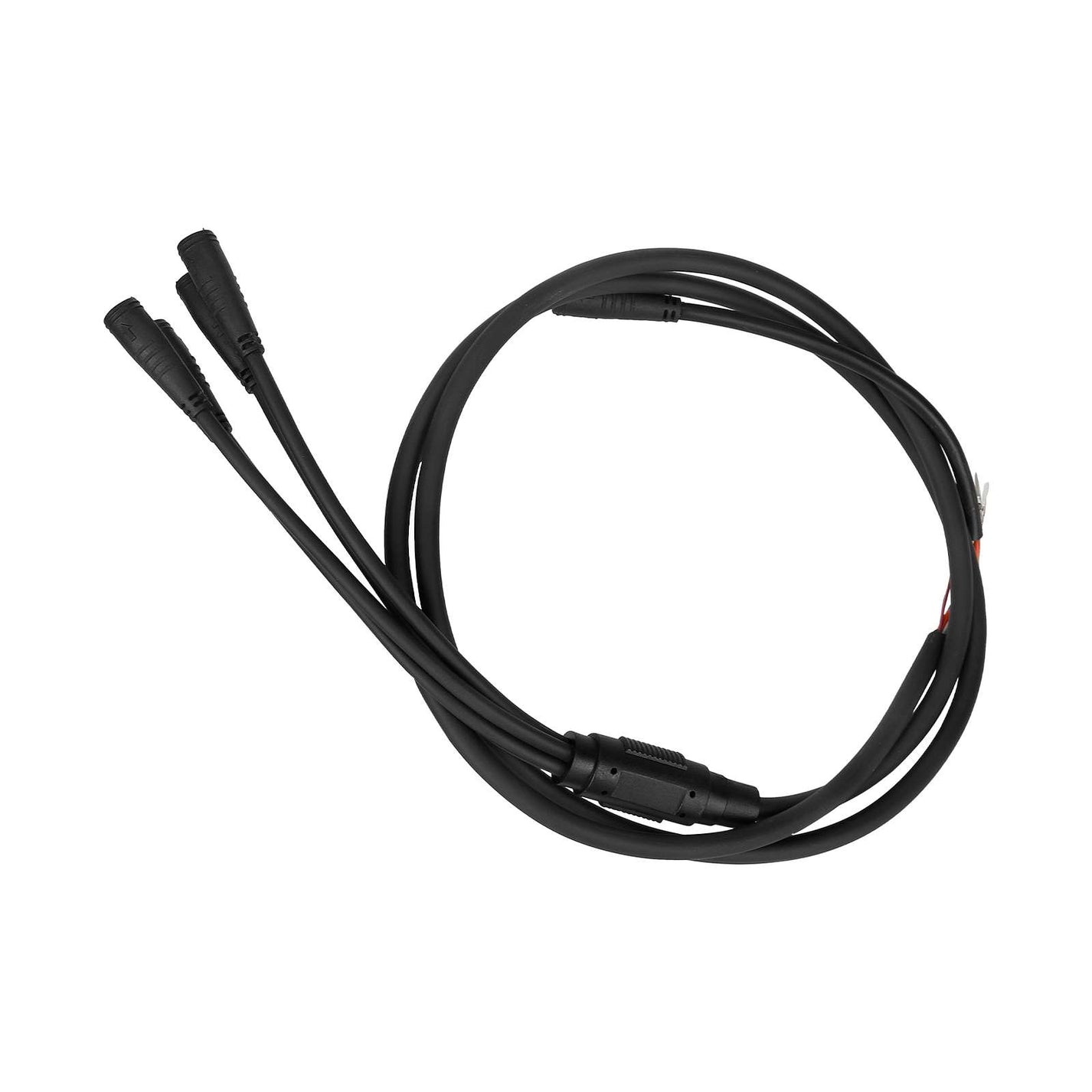

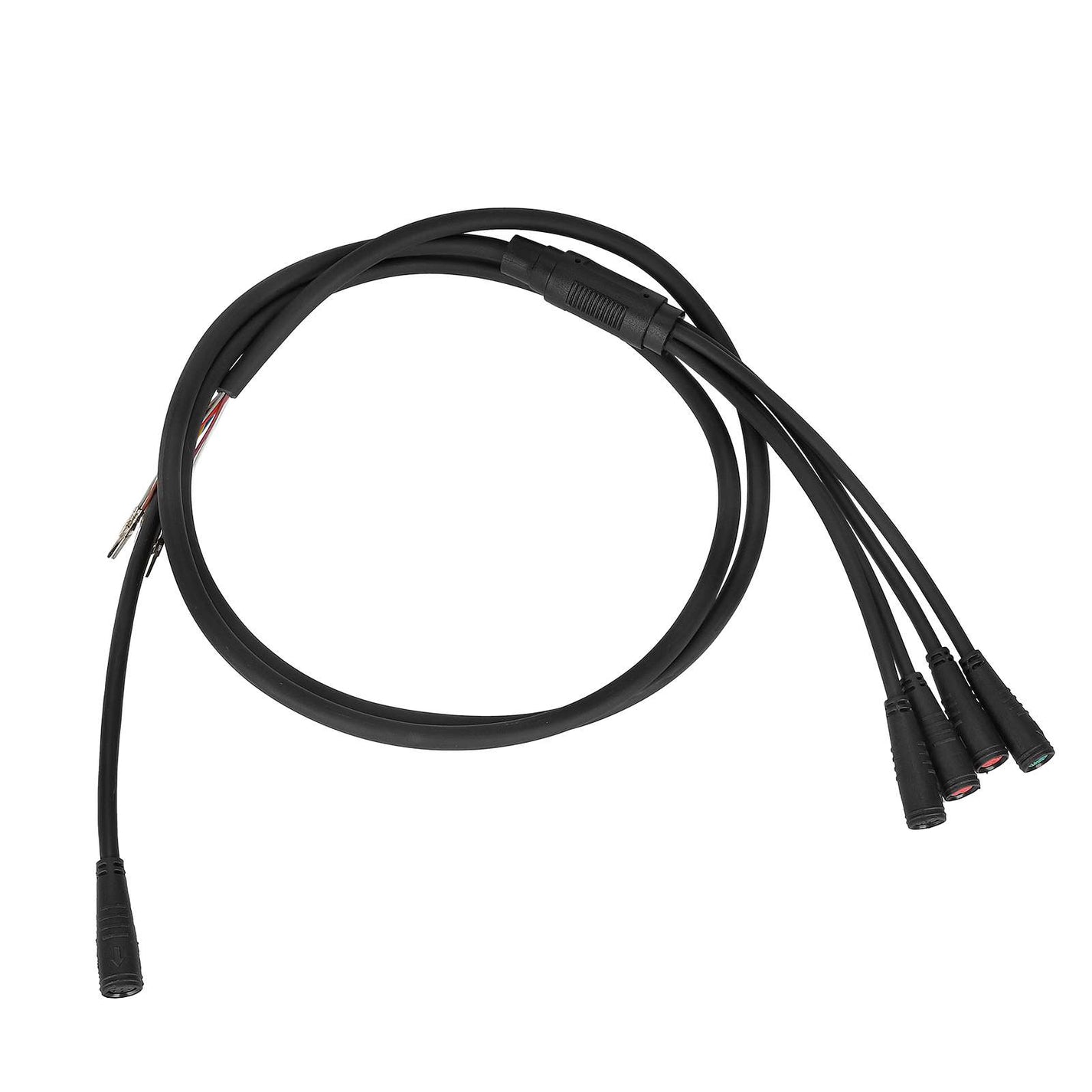

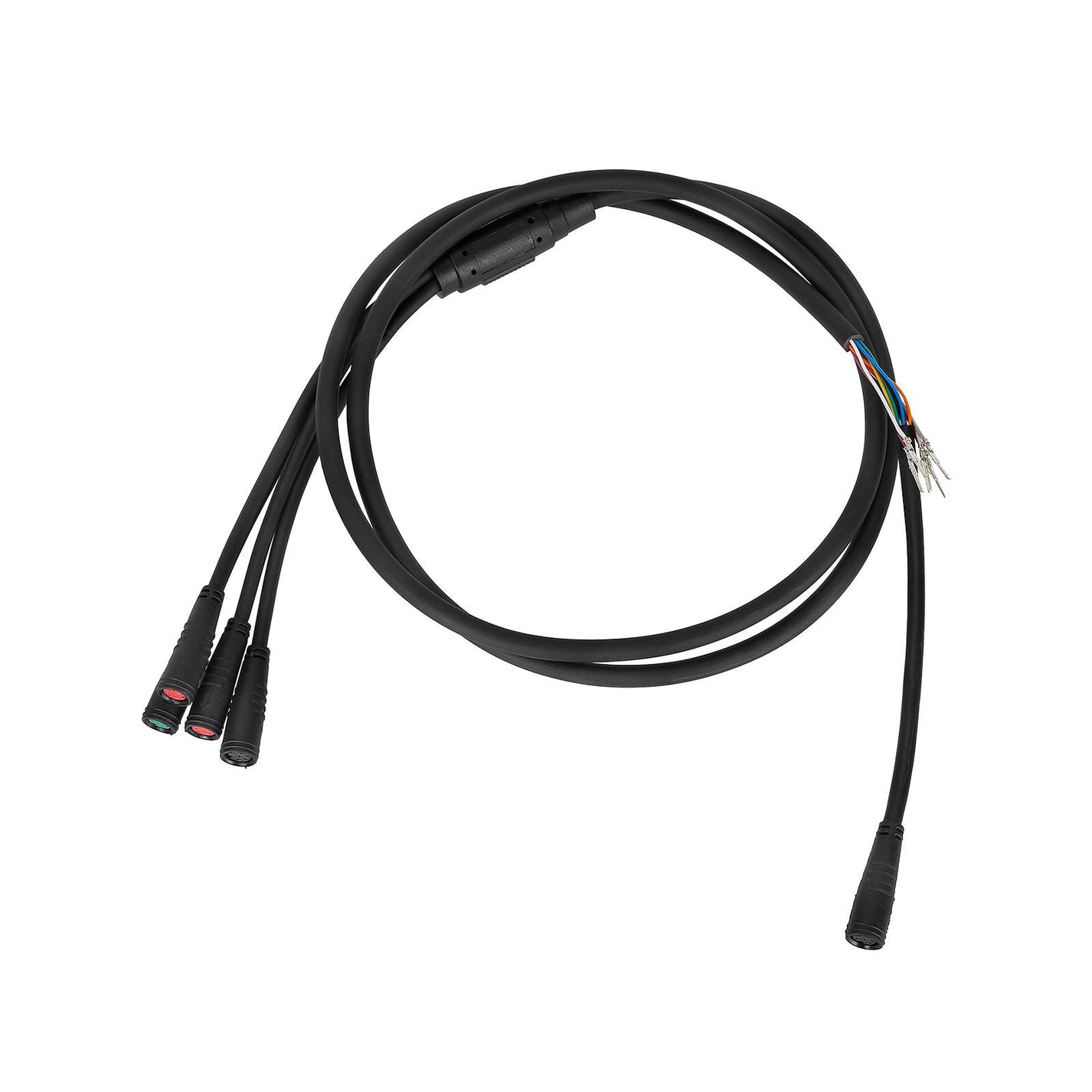

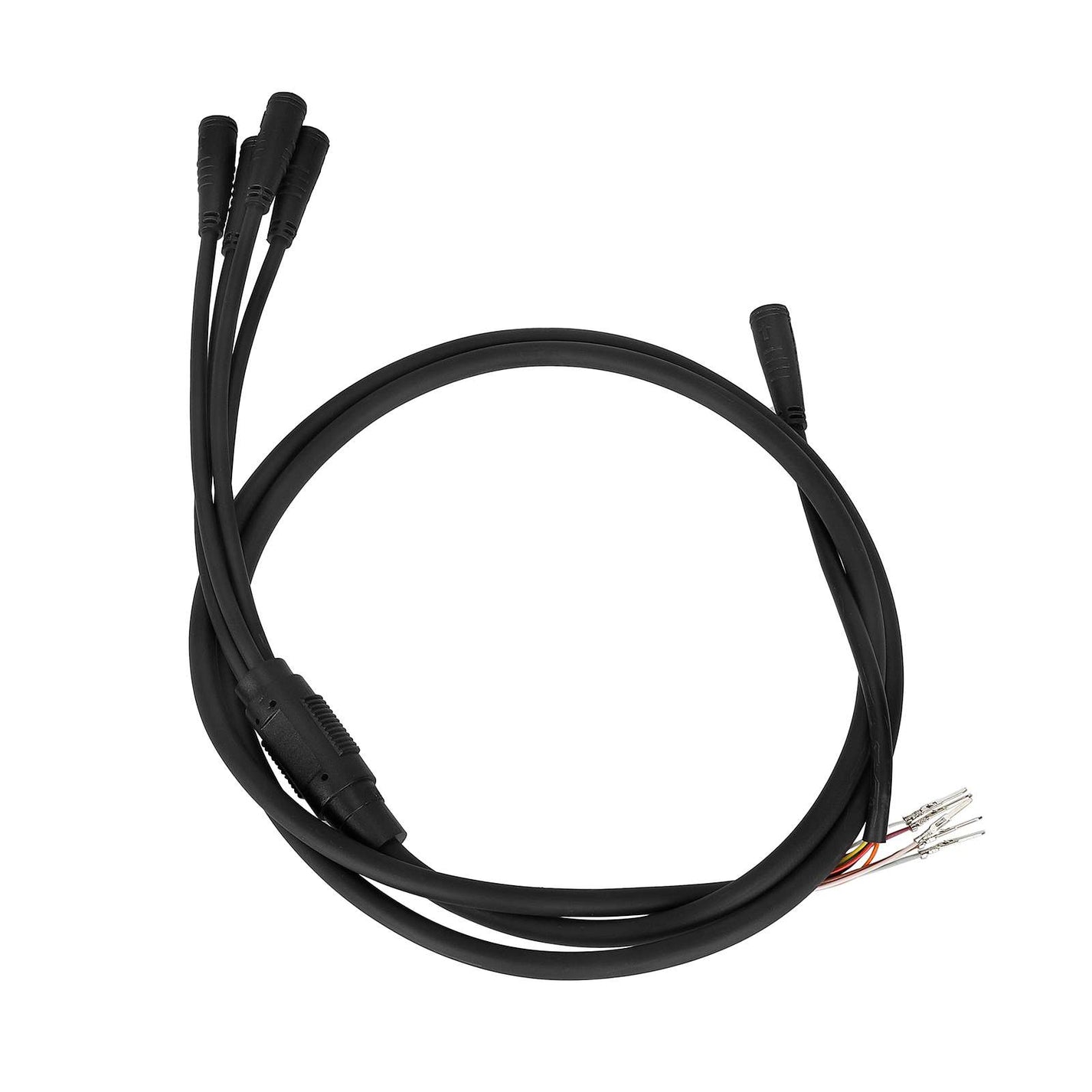

The black cable harness features a long main line and several shorter branches with colored connectors. The six-pin connector is for the appropriate display, and the other branches are for control element connections.

Features and compatibility

• Model: KuKirin M4 Pro.

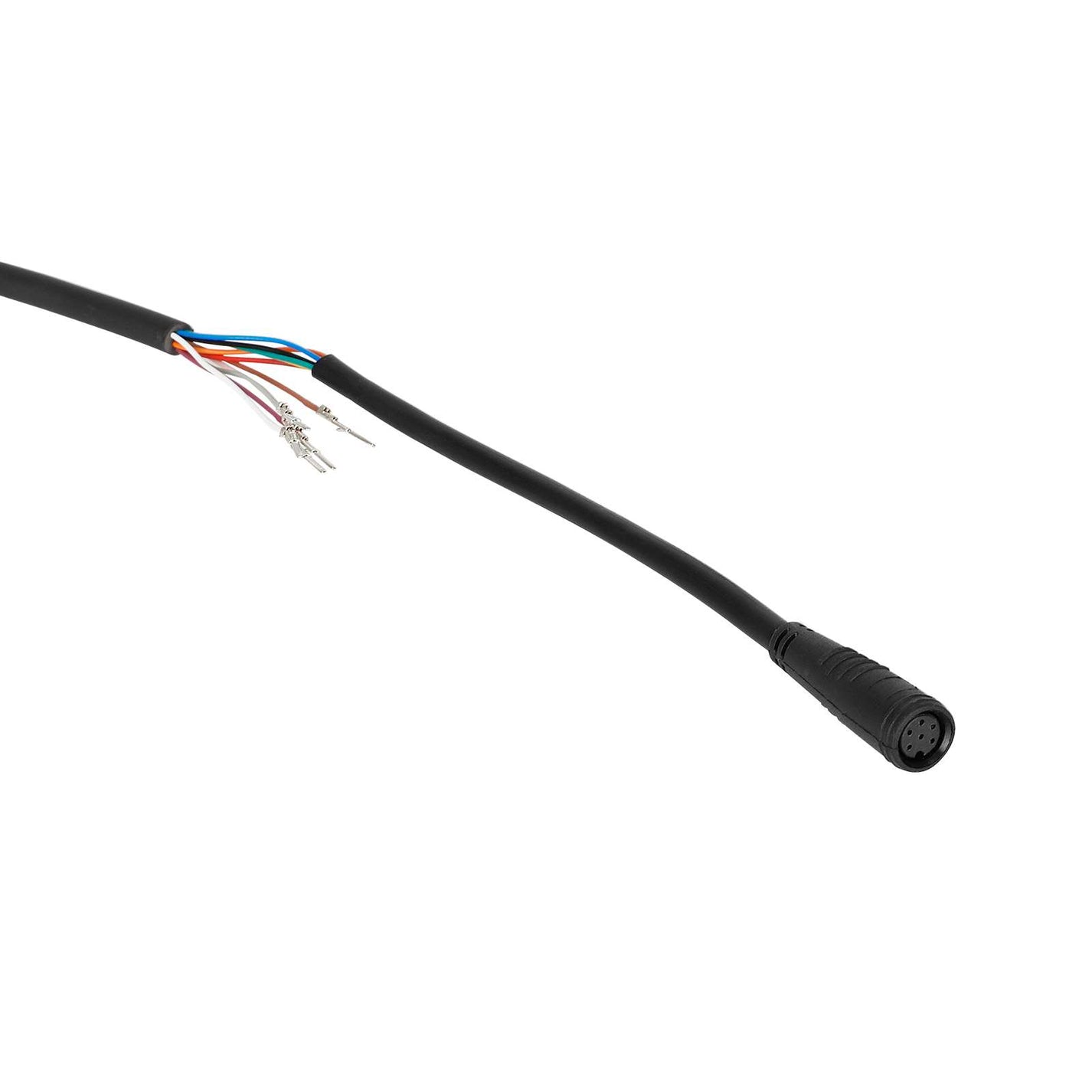

• Black cable harness with multiple branches and colored connectors; 6-pin connector for the display.

Before removal, mark each branch and compare the number of pins and their layout. Route the cable along the existing path, with enough slack for steering and folding.

Connection and wiring protection

• Before starting, disconnect the power supply according to the device's instructions. Compare the shape of the connectors, the polarity or signal layout, and the condition of the contacts.
• Connect the joints without forcing them and protect them based on the mounting location. Route the cable away from sharp edges and moving parts.
• Check that the wiring is not being pinched when steering or folding. Check polarity and signal contact layout before turning on.
