Original right rear brake caliper for the Electric Scooter KuKirin G2

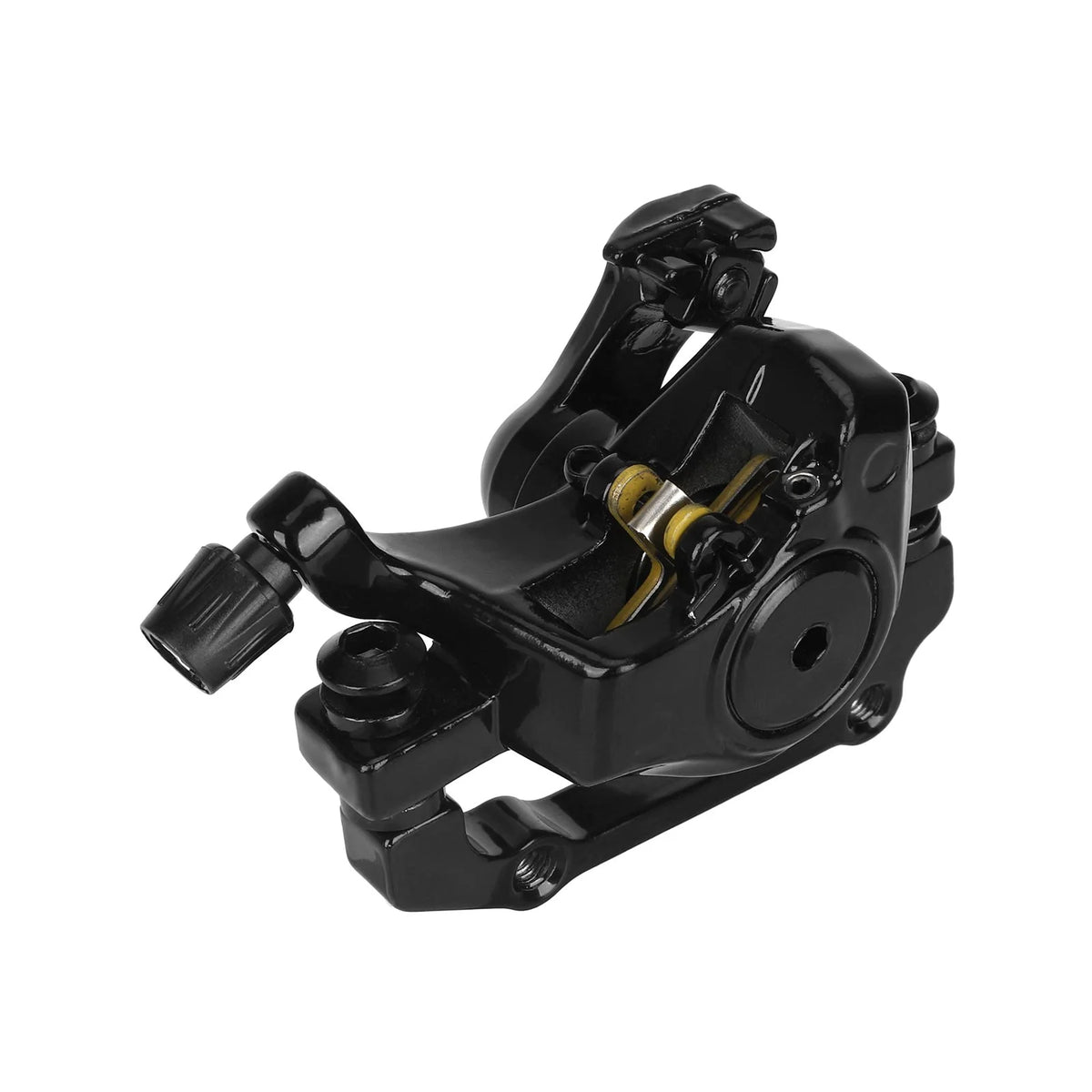

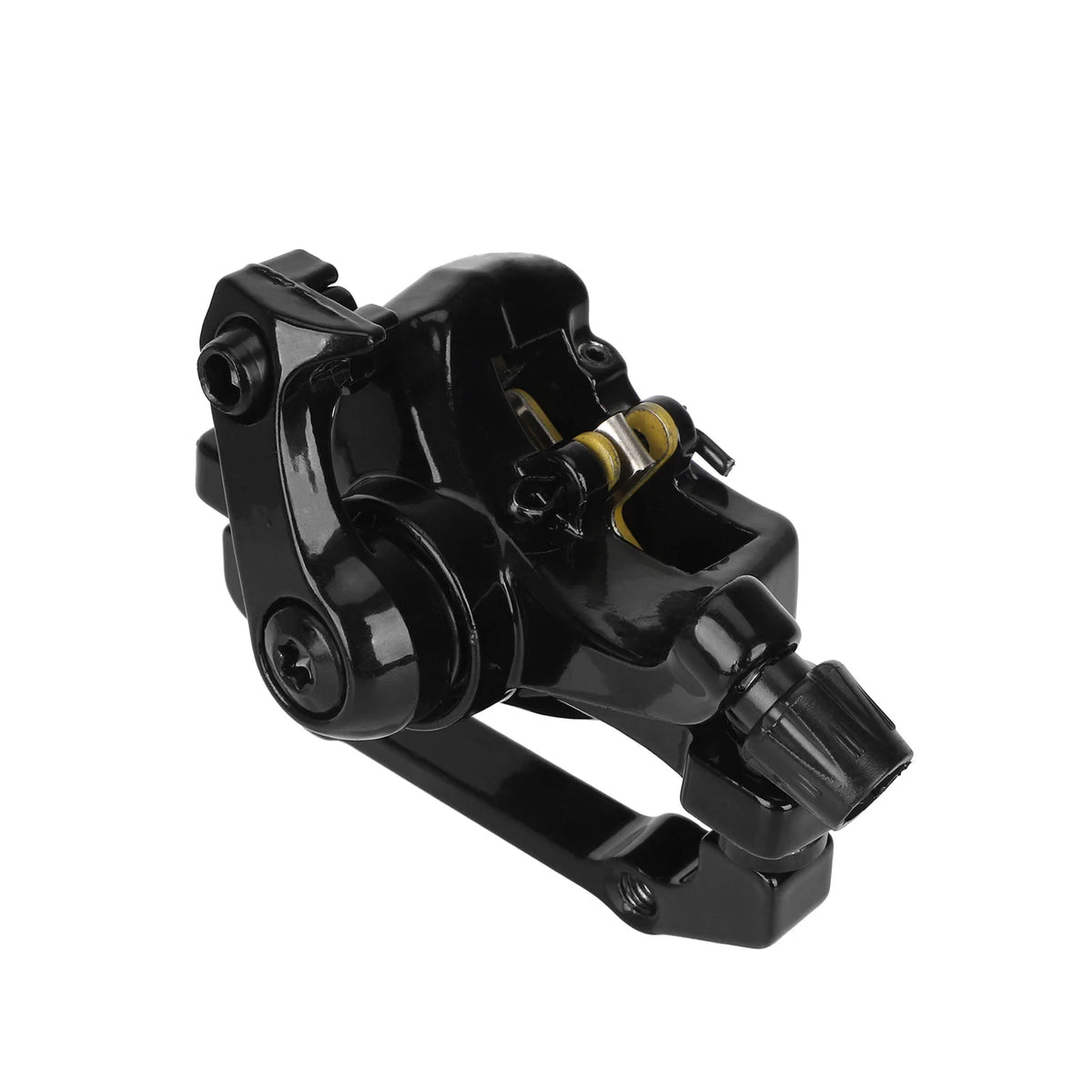

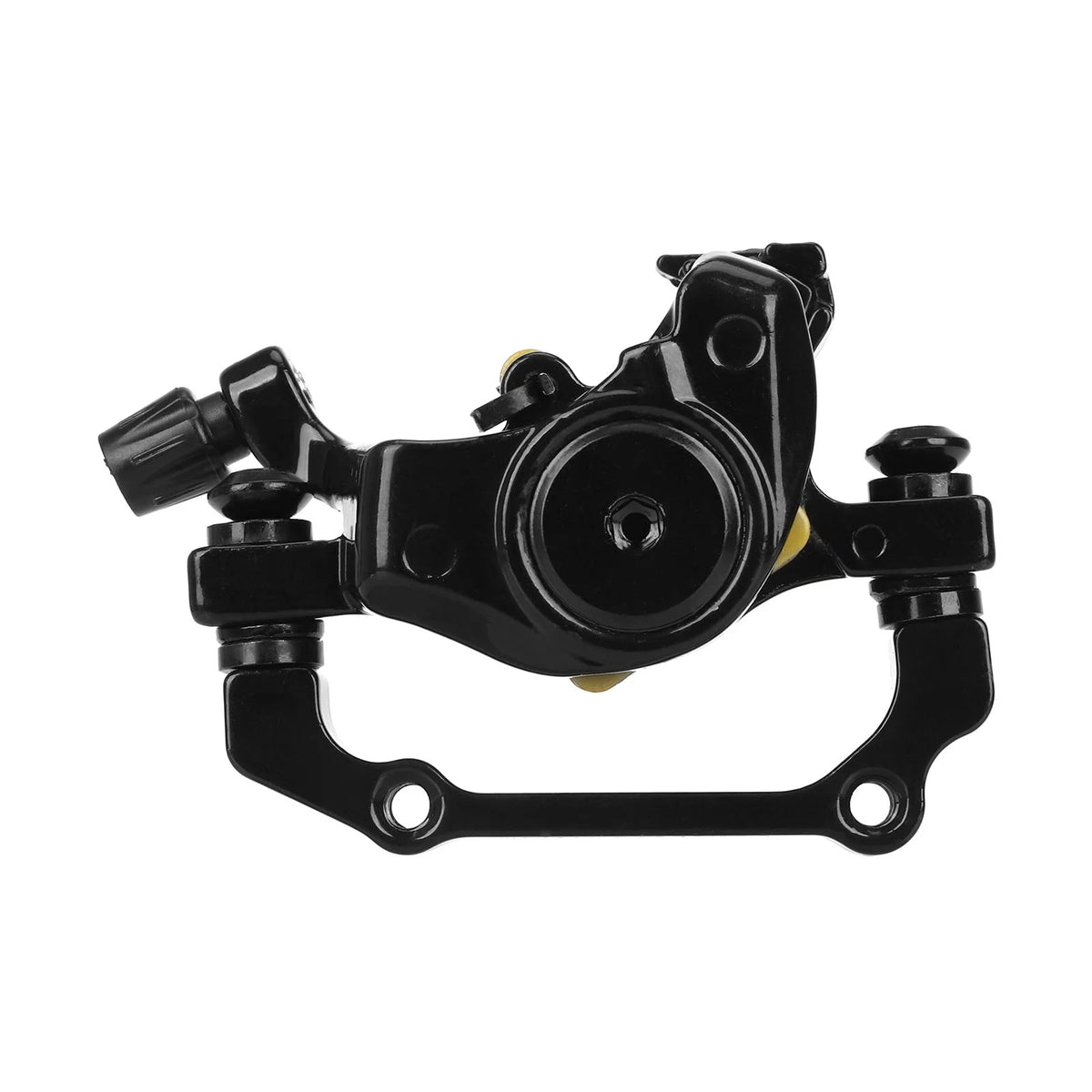

Right rear mechanical brake caliper

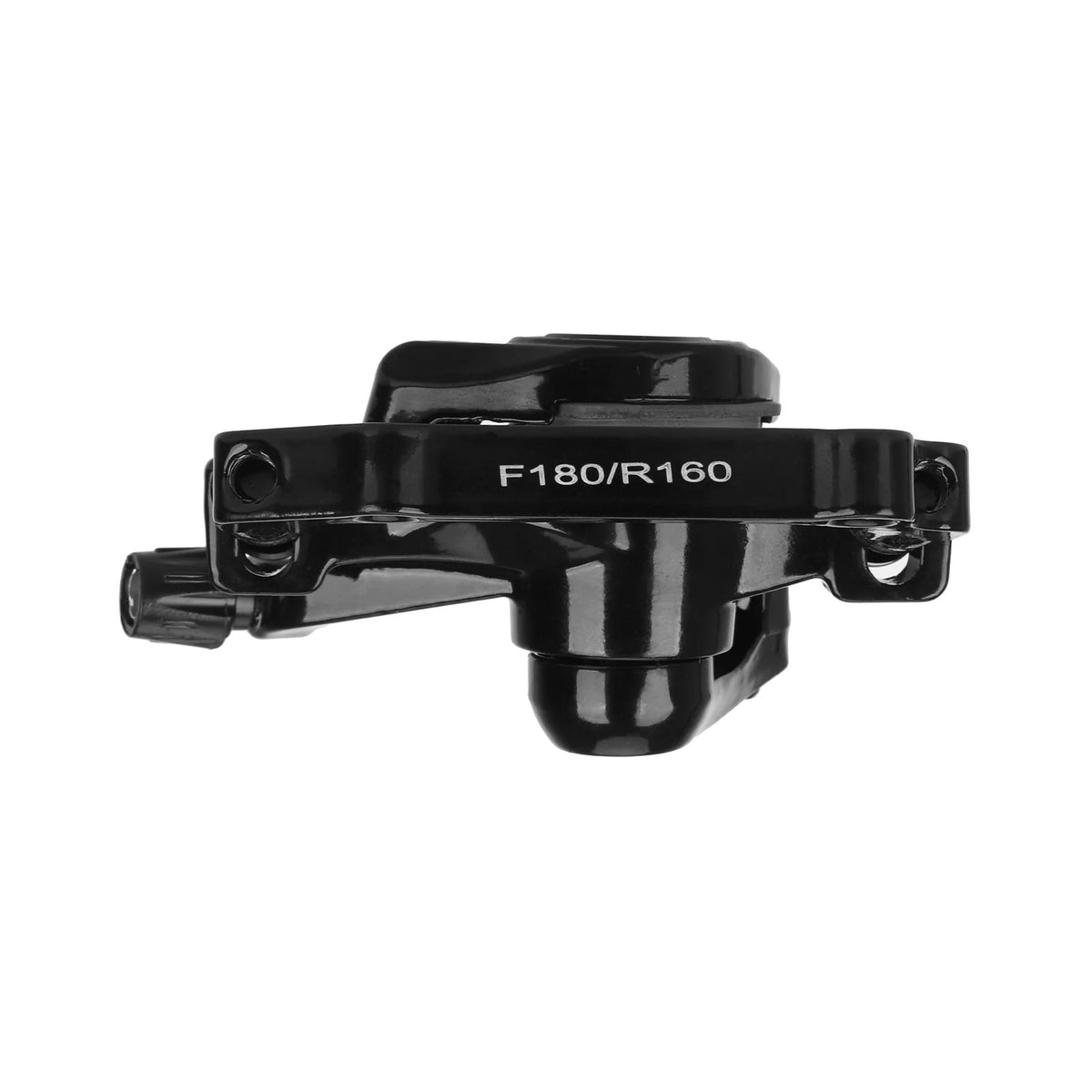

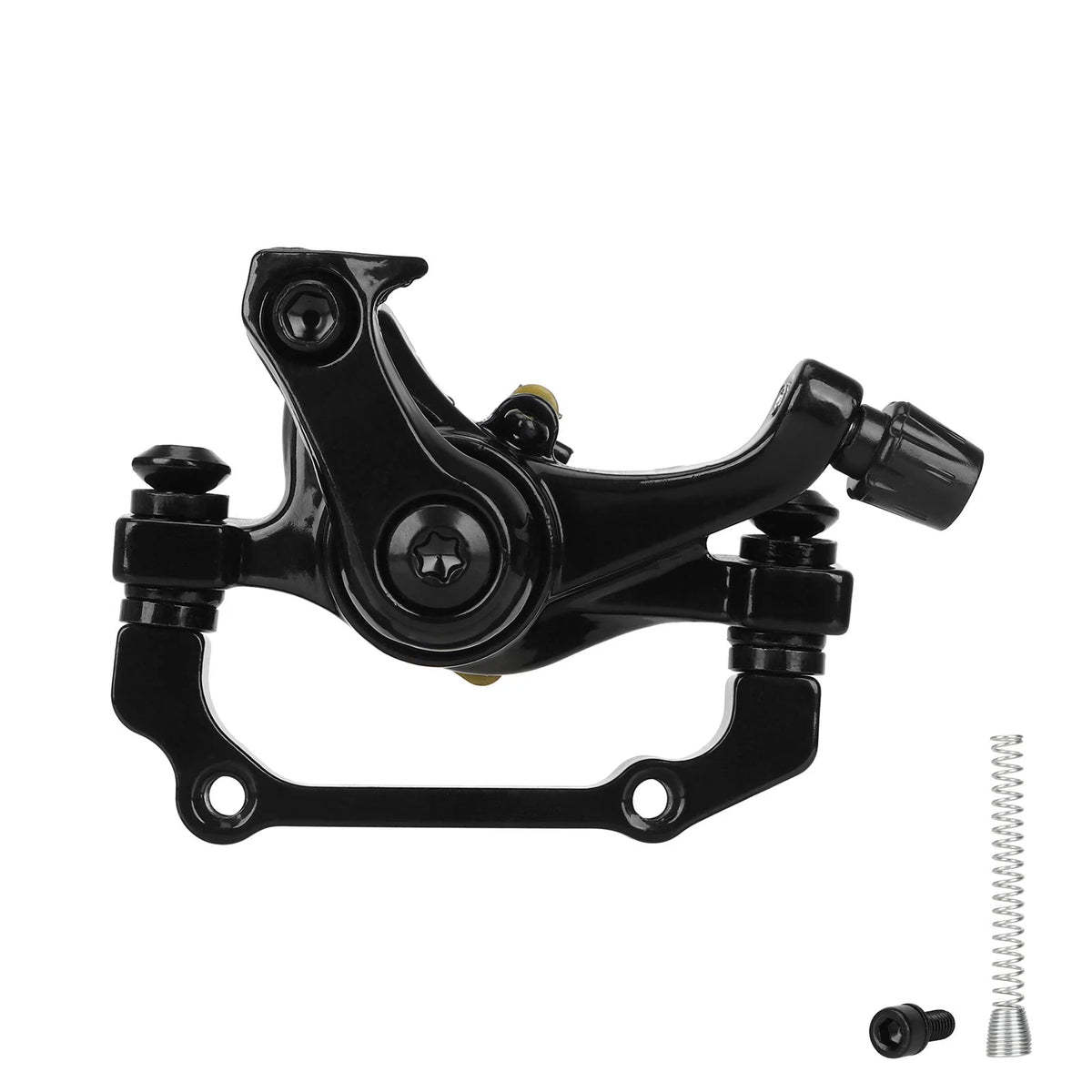

This black rear brake caliper is designed for installation on the right side of the wheel assembly. It includes a return spring, cable adjustment port, and F180/R160 adapter.

Features and fitment

• Model: KuKirin G2.
• Black mechanical cable caliper; right rear version; mounting elements included.

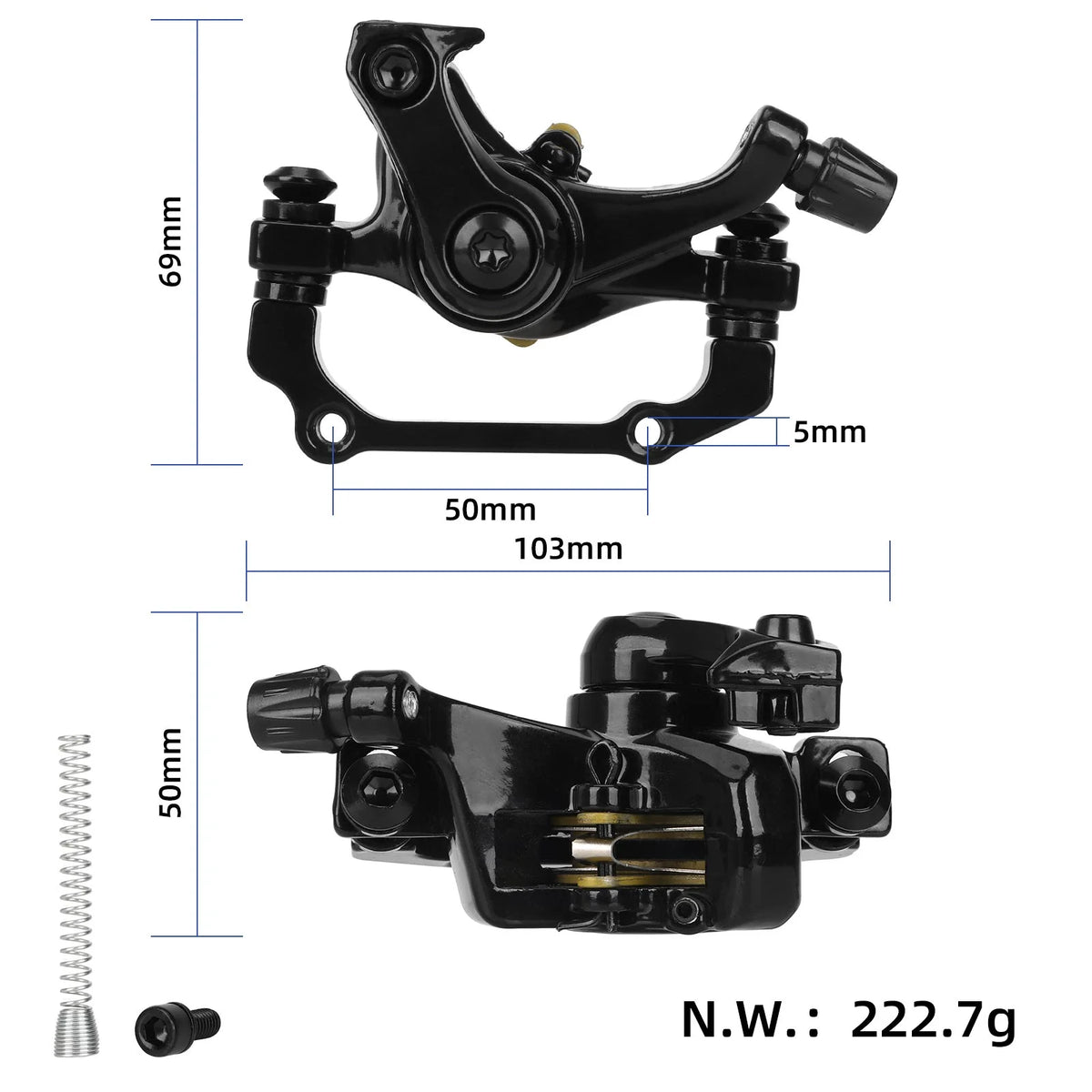

Approximate dimensions

• Caliper with adapter: 103 × 69 × 50 mm.
• Mounting hole spacing: 50 mm.
• Hole diameter: 5 mm.

Cable pull direction, disc side, and mounting points must match. A mirror-image front caliper is not automatically a direct replacement.

Mechanical brake adjustment

• Replace the caliper if it is damaged or its mechanism cannot be properly adjusted. Worn pads or a bent disc do not necessarily mean the caliper is faulty.
• Align it with the disc on the appropriate adapter, connect the cable, and adjust the pad position and lever travel according to the instructions. Tighten the bolts to the specified torque.
• The brake must engage before the lever touches the handlebar. Check the mechanism return, wheel free rotation, and the gradual break-in of new pads.
