Horn and turn signal switch for electric scooter KuKirin G2

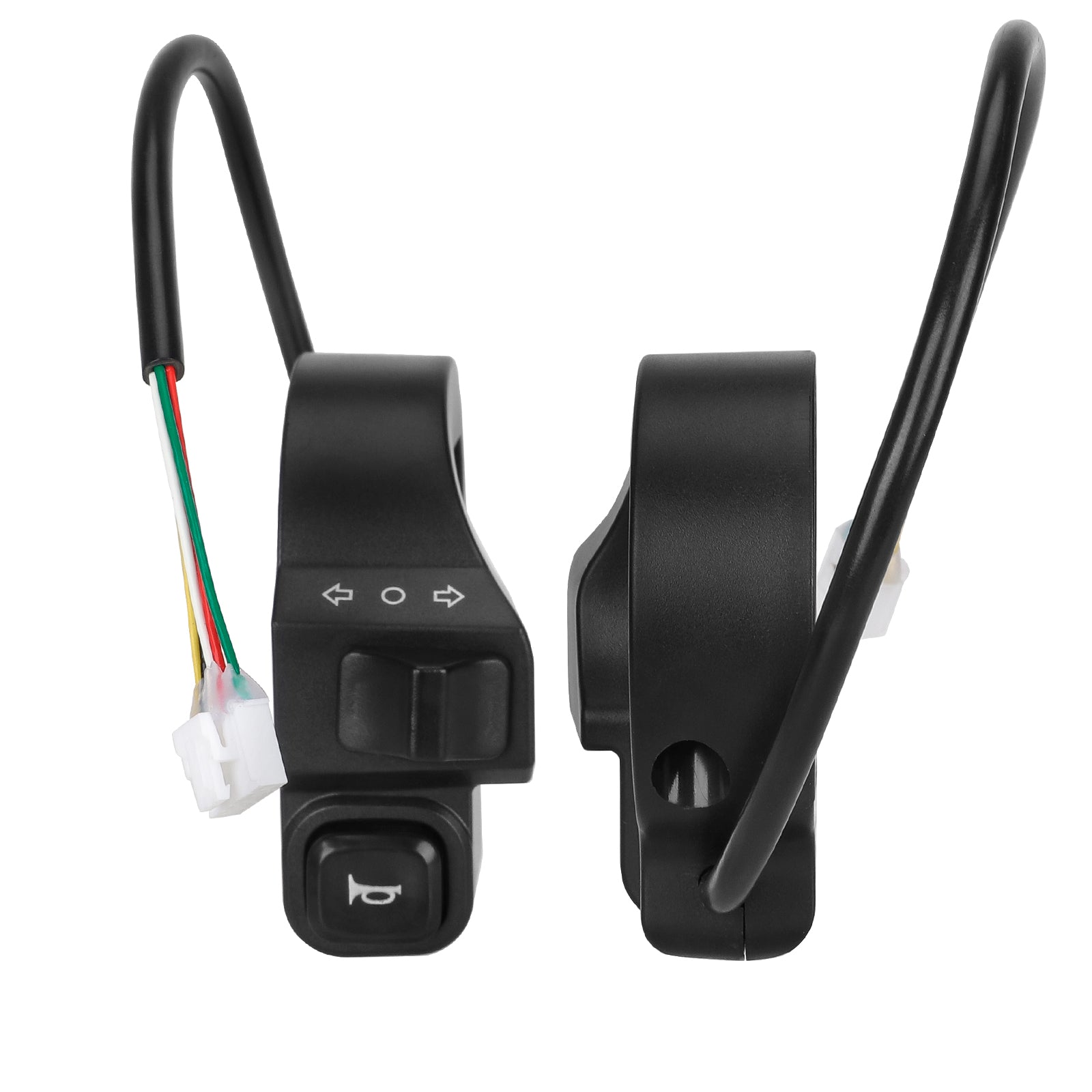

Turn signals and horn under left thumb

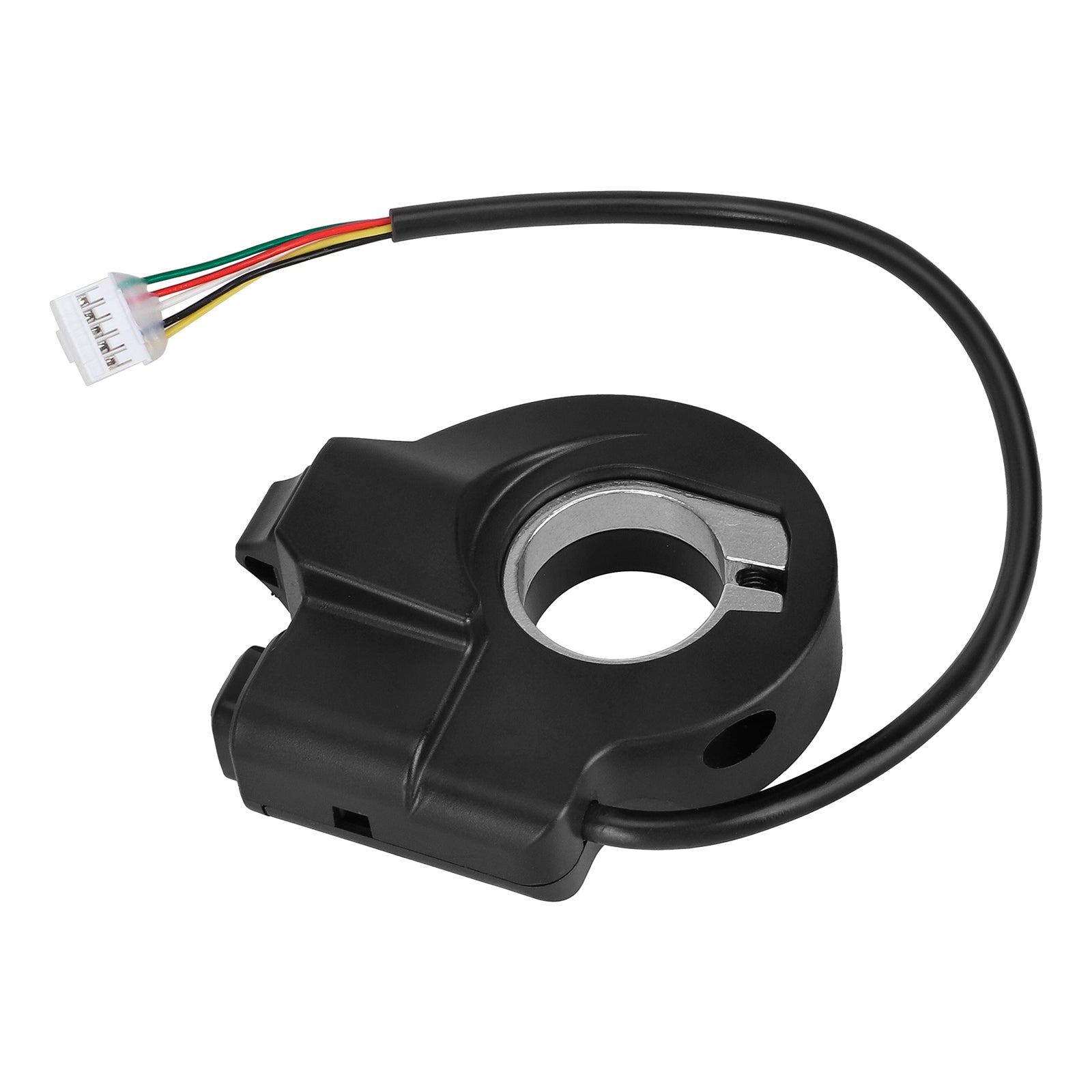

The black switch combines selection for left or right turn signals and a separate horn button. The mount has a diameter of approx. 22.5 mm, and the cable measures approx. 22 cm.

Features and fitment

• Model: KuKirin G2.

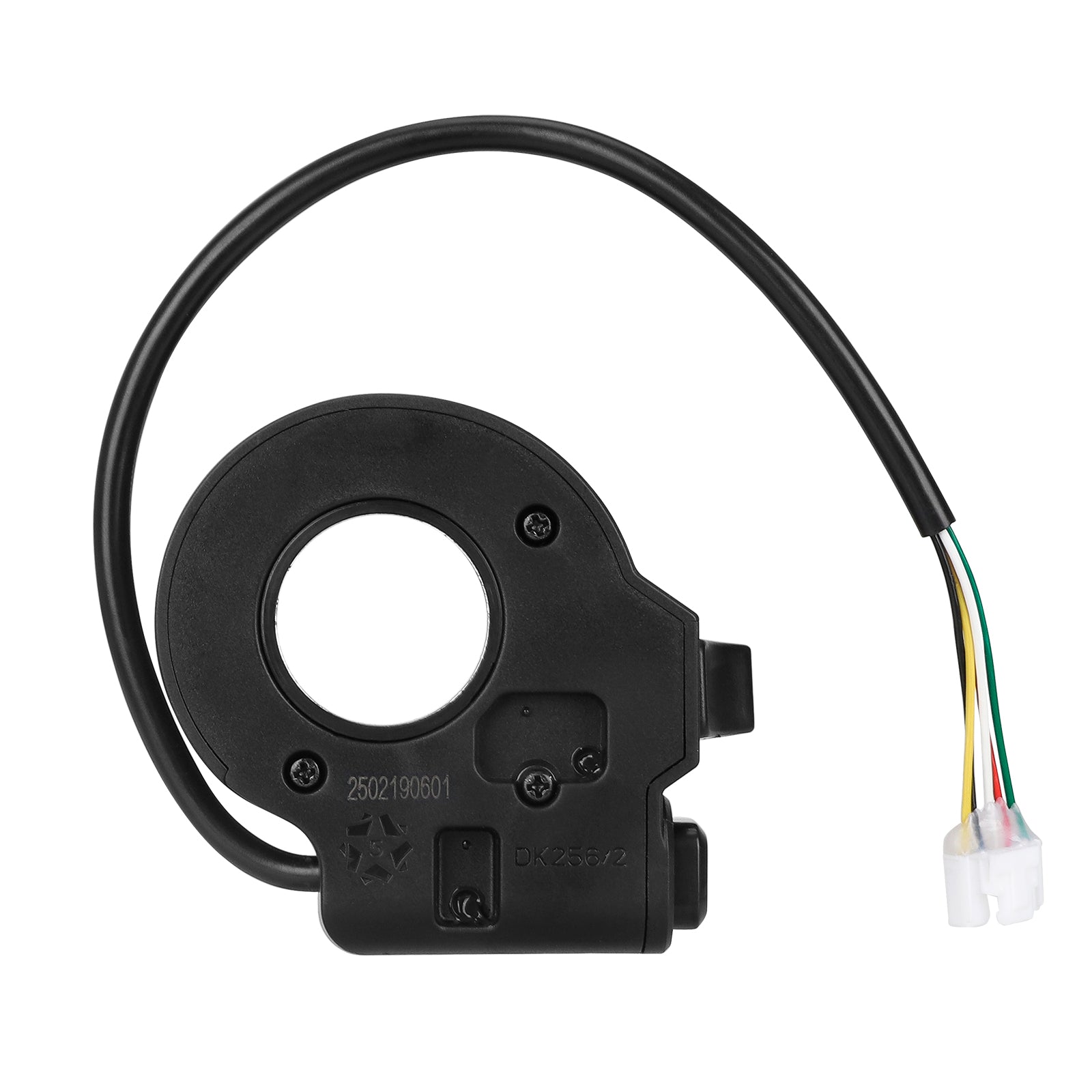

• Horn and turn signal switch in a black housing.
• Clamp and white multi-pin connector; cable approx. 22 cm.

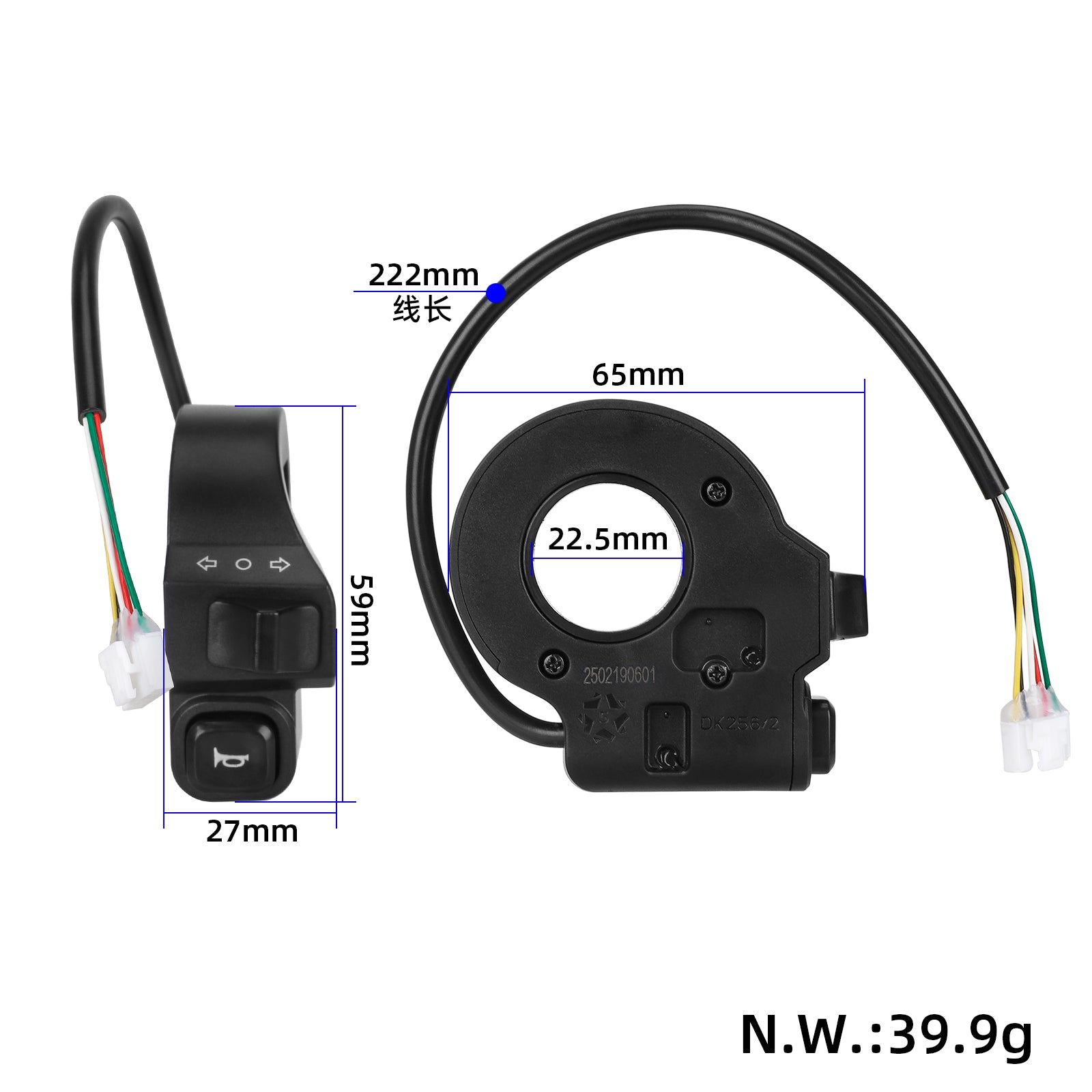

Approximate dimensions

• Switch: 65 × 59 × 27 mm.
• Clamp diameter: 22.5 mm.
• Cable length: 222 mm.

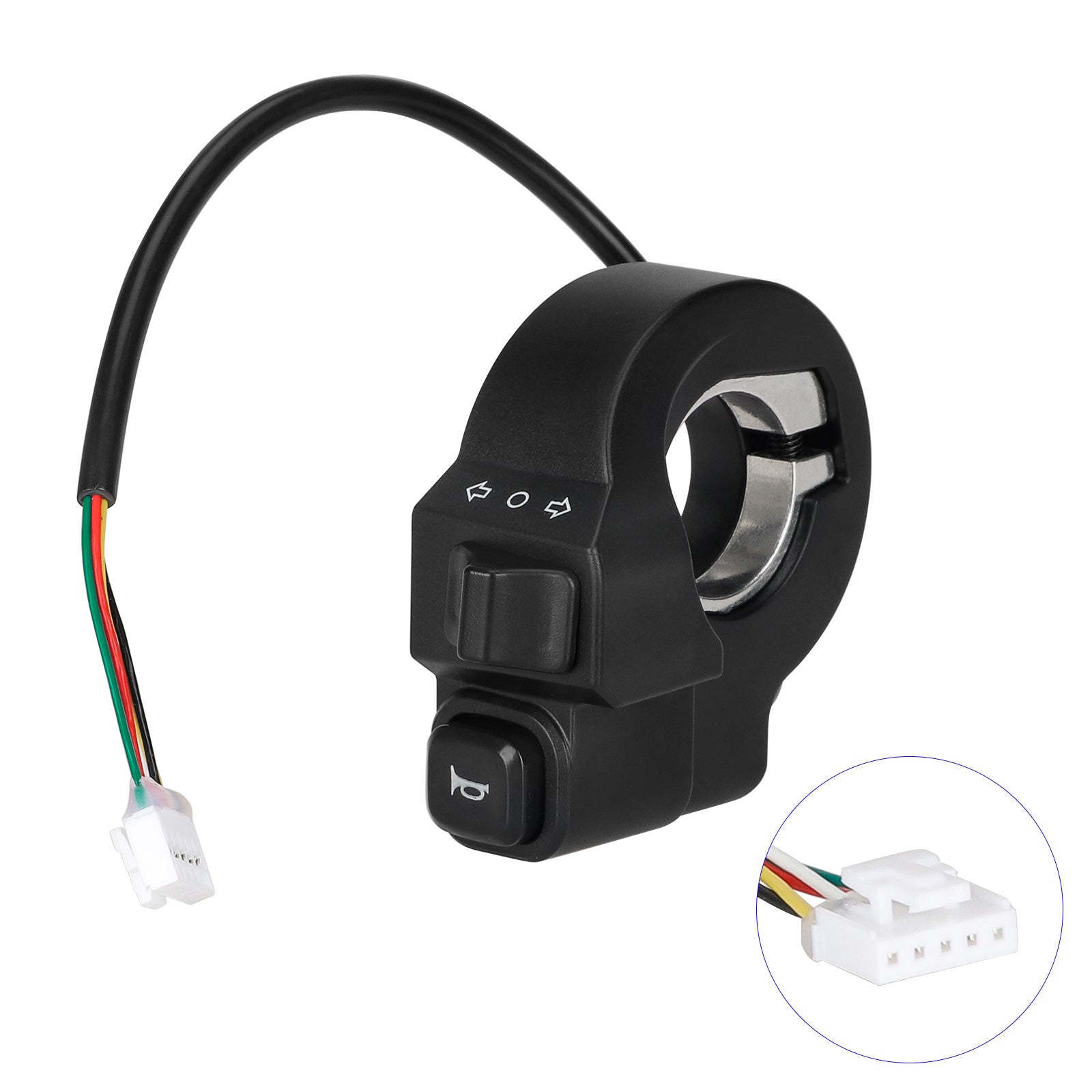

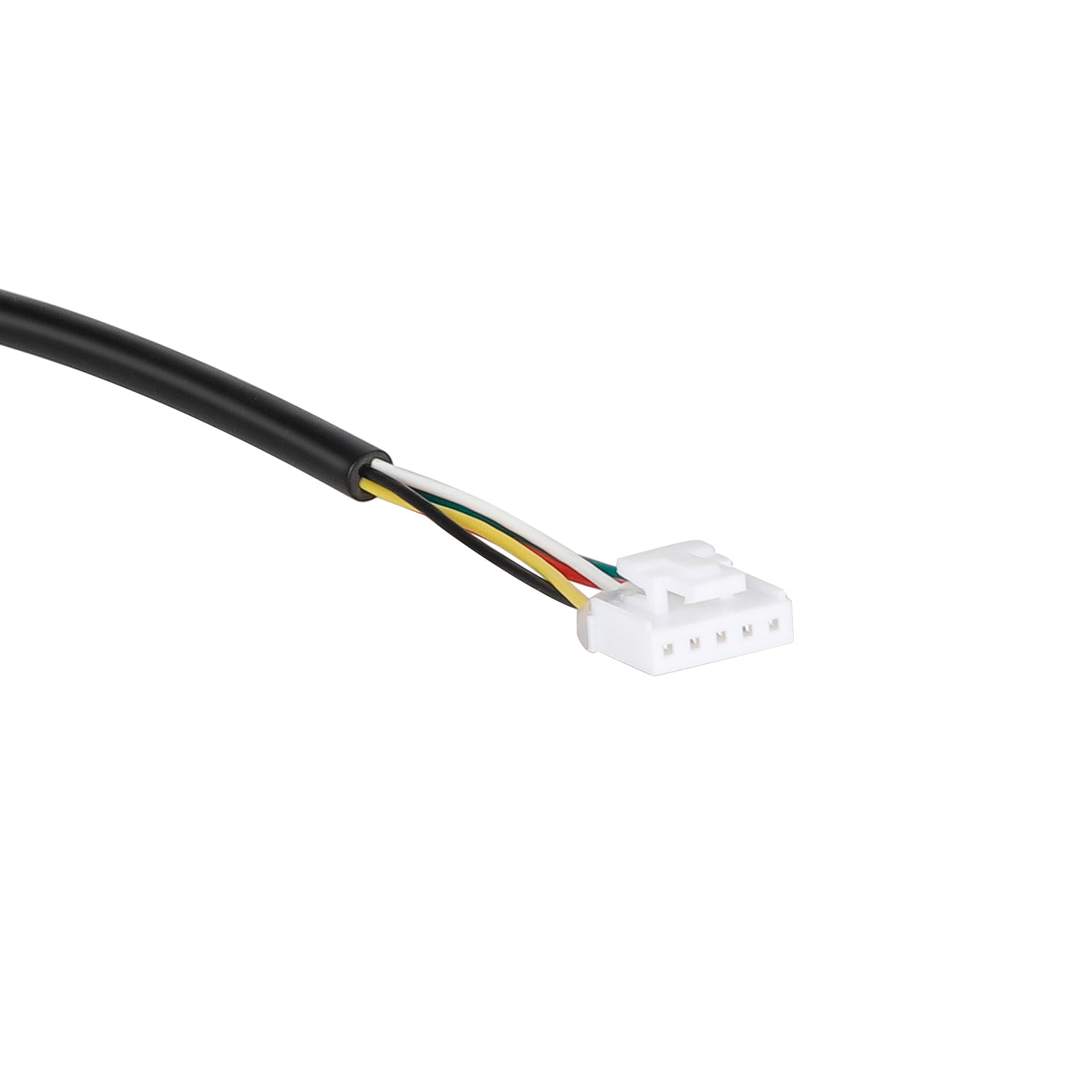

There is a white multi-pin connector at the end. Check the number of pins and wire layout before replacement; install the switch so it remains accessible without letting go of the handlebar and does not hinder braking.

Replacement and function test

• Disconnect the vehicle's power before replacing. Note the connection and install the new switch in the same intended location without pinching the wiring.
• Check that the buttons or switch operate without sticking and that the connector is properly latched. The handlebar must rotate without straining the cable.
• Test each function individually before riding. When contact is intermittent, inspect the connector and wiring as well, as the fault may not necessarily be in the switch itself.
