Horn and turn signal switch for KuKirin G3 electric scooter

Turn signals and horn under left thumb

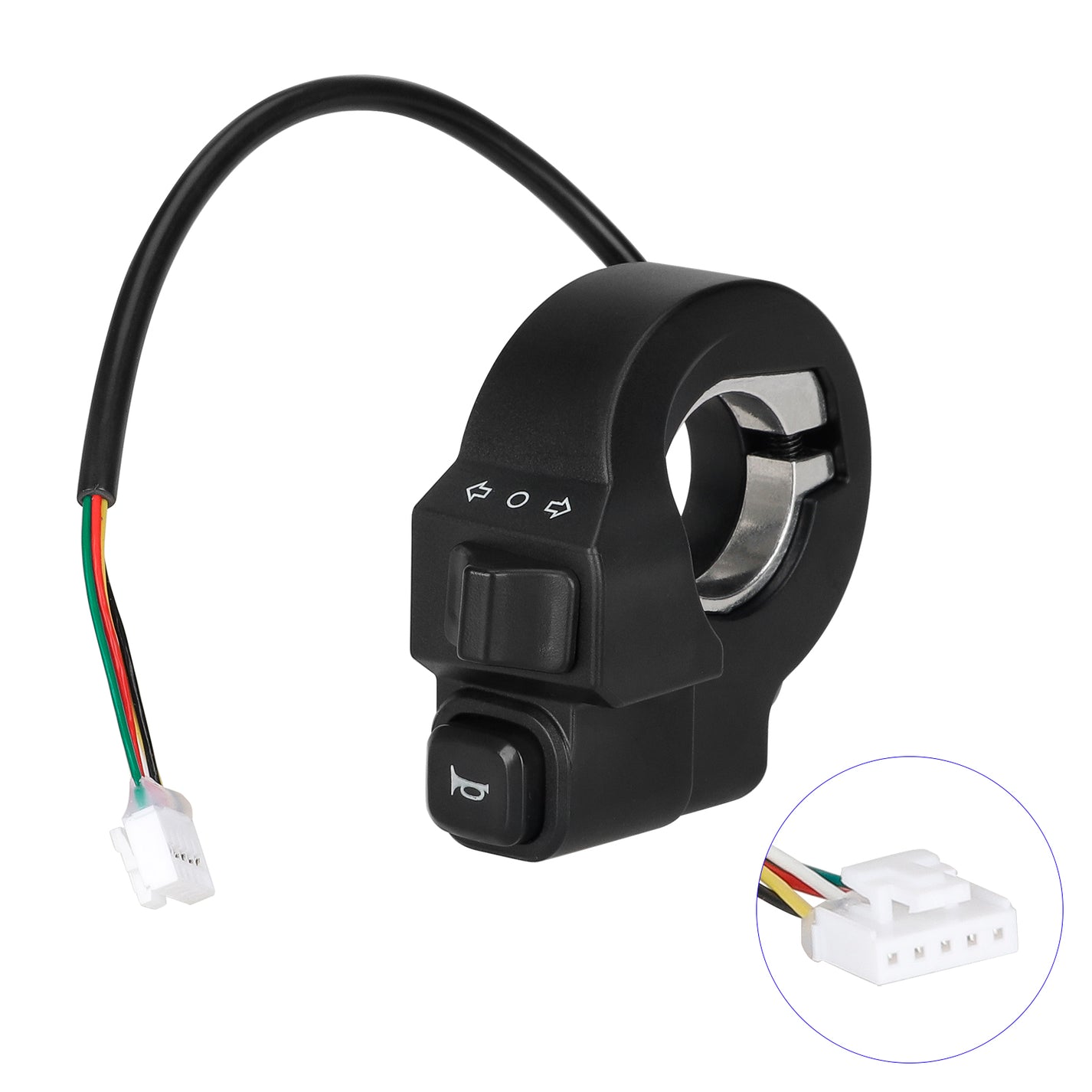

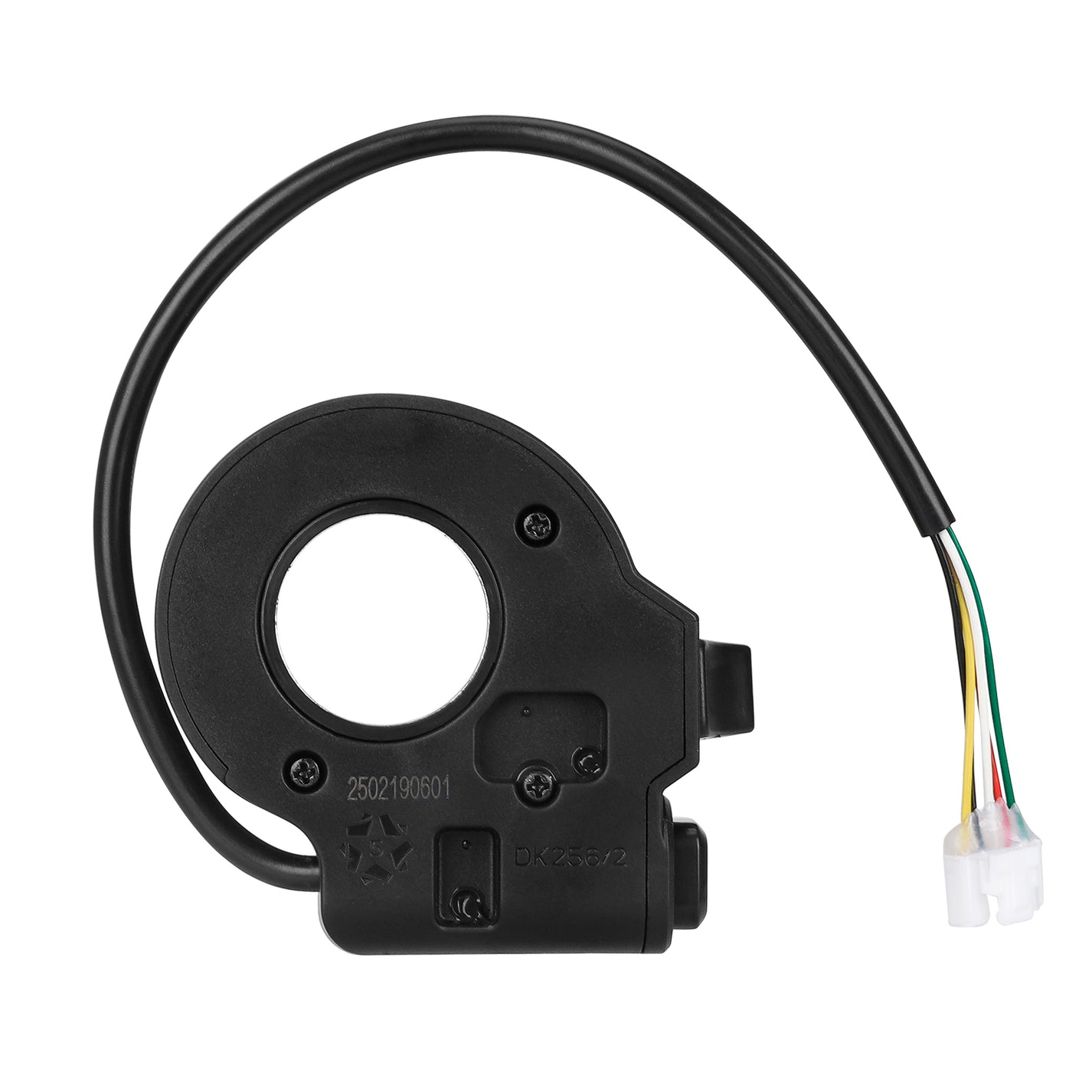

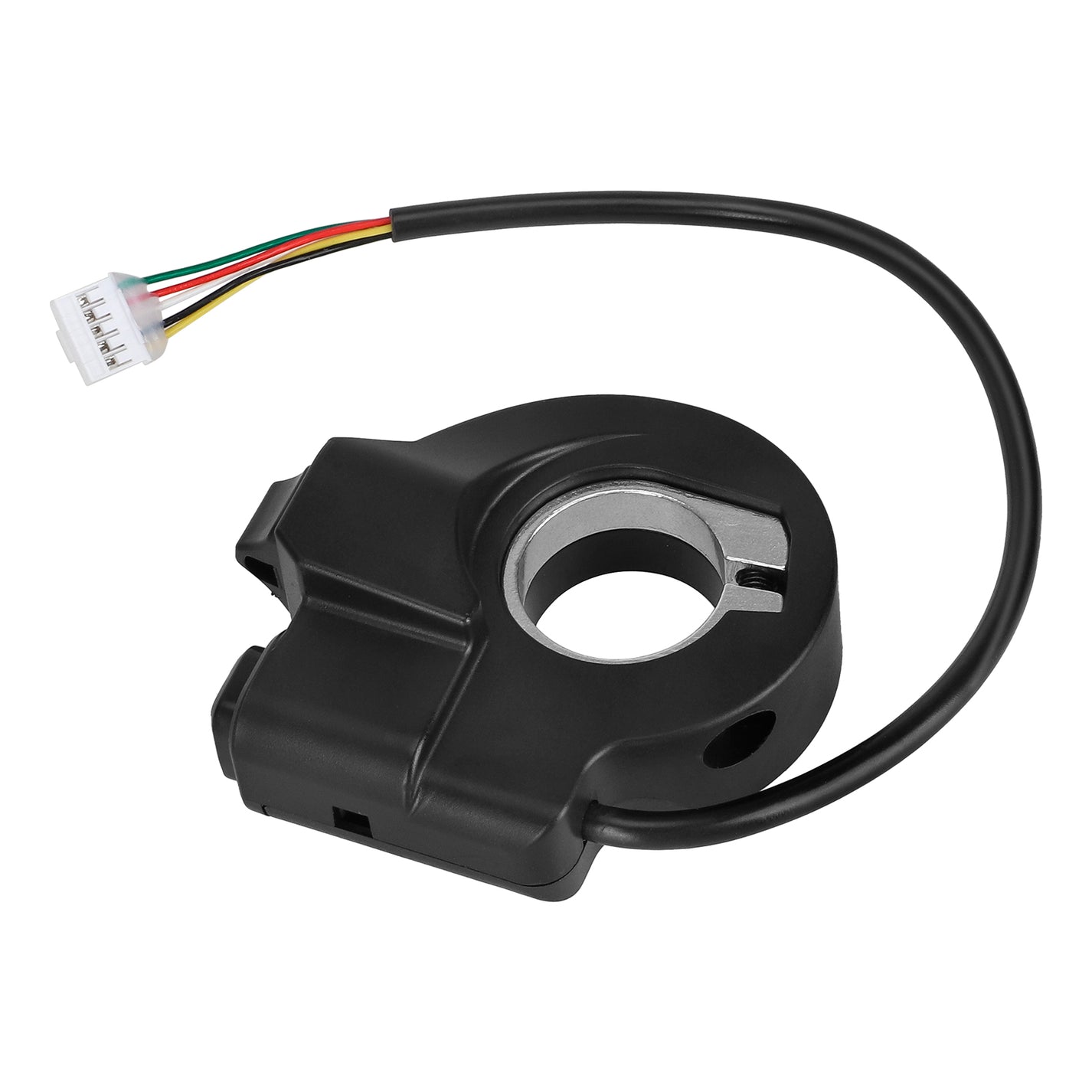

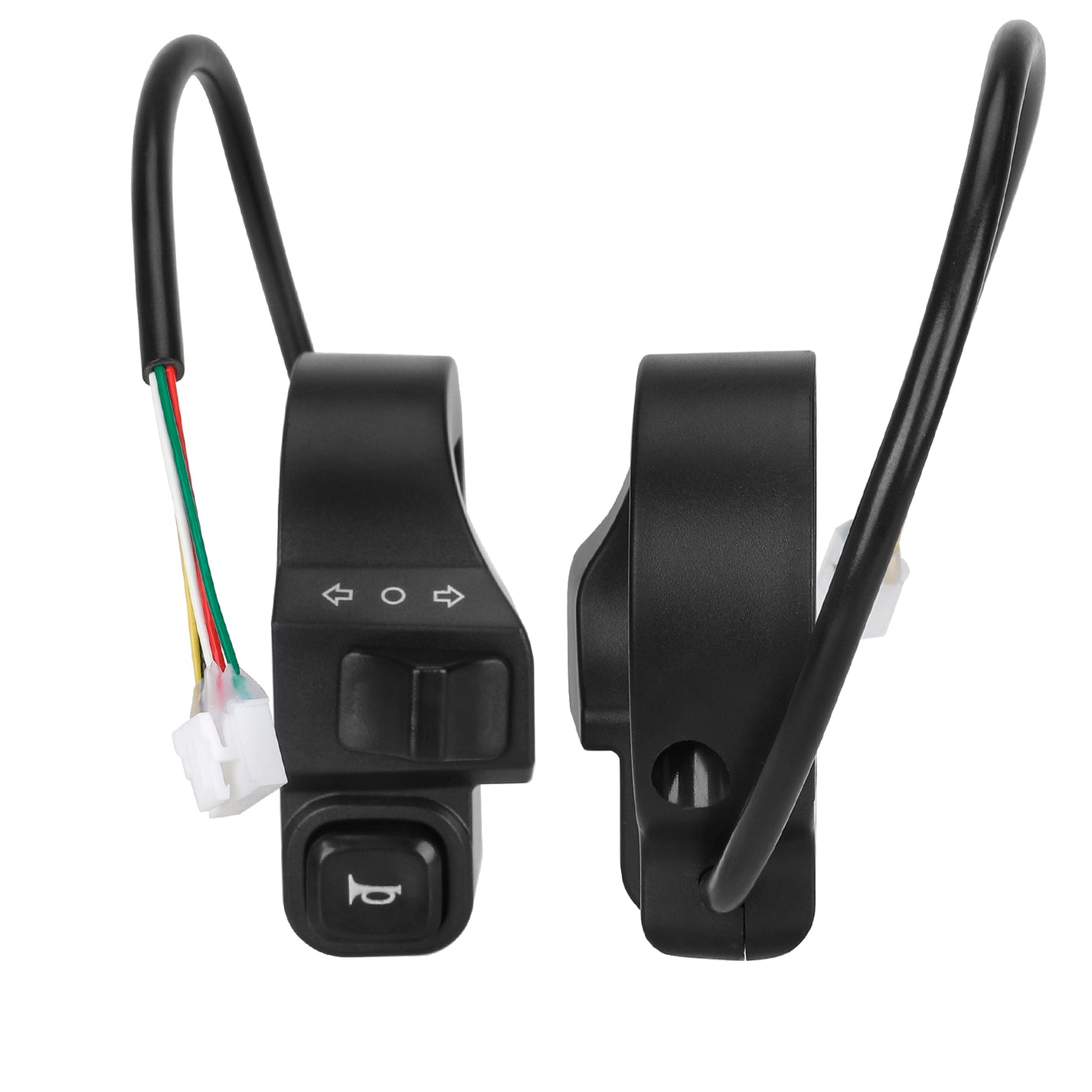

The black switch combines left and right turn signal selection and a separate horn button. The mounting has a diameter of approximately 22.5 mm, and the cable measures approximately 22 cm.

Features and fitment

• Model: KuKirin G3.
• Horn and turn signal switch in a black housing.
• Clamp and white multi-pin connector; cable approximately 22 cm.

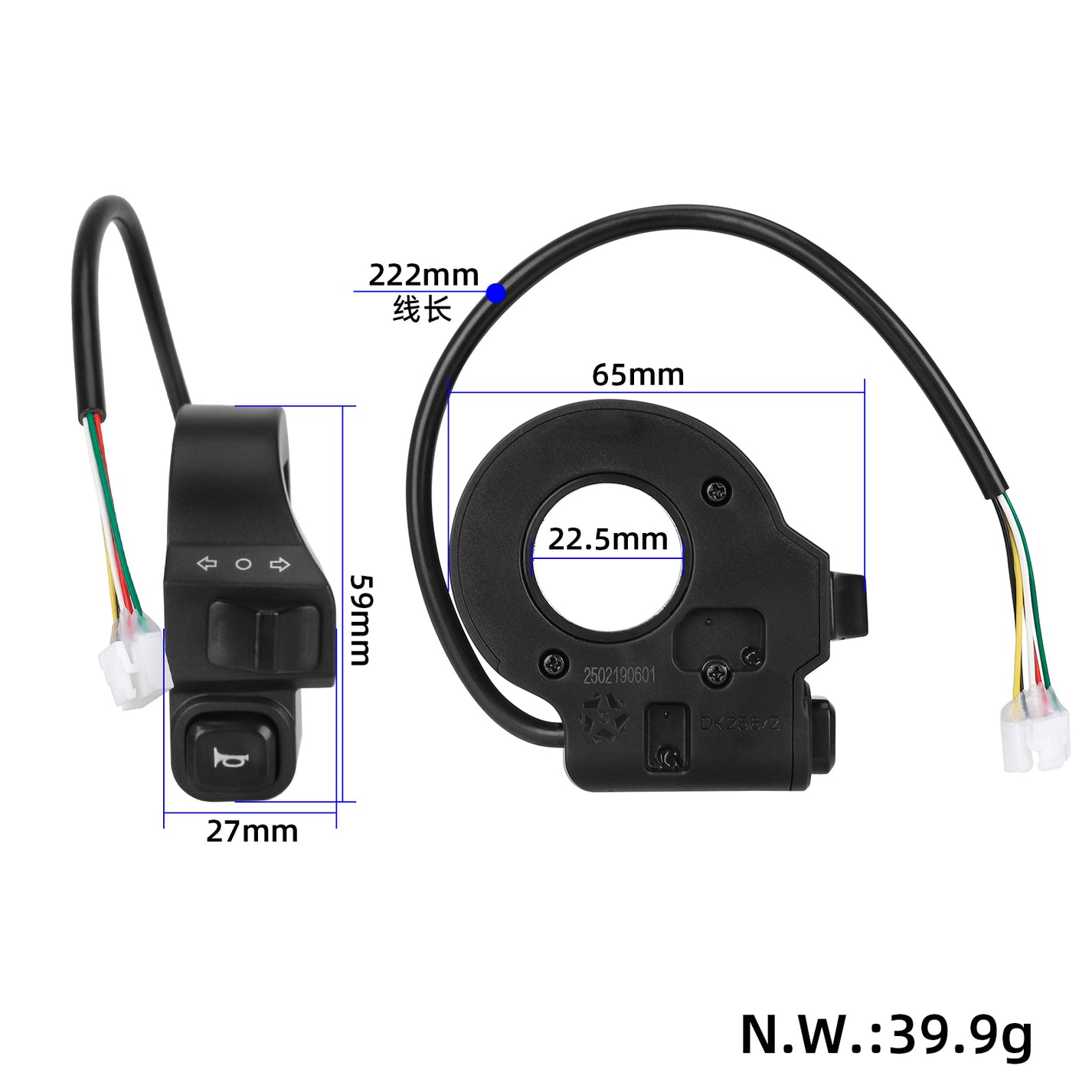

Approximate dimensions

• Switch: 65 × 59 × 27 mm.
• Clamp diameter: 22.5 mm.
• Cable length: 222 mm.

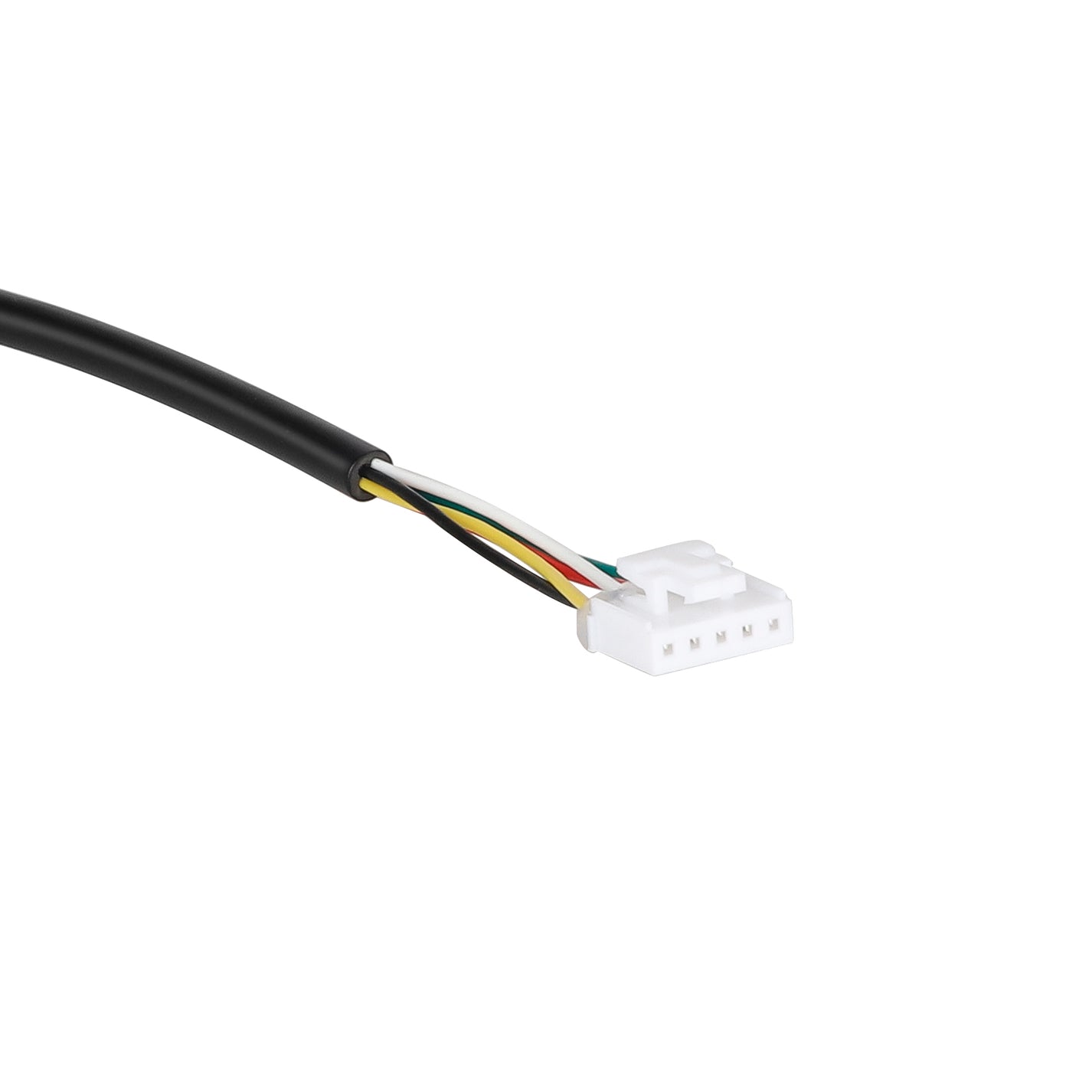

There is a white multi-pin connector at the end. Before replacement, check the number of pins and the wire arrangement; install the switch so it is reachable without releasing the handlebar and does not interfere with braking.

Replacement and function test

• Before replacement, disconnect vehicle power. Note the connections and install the new switch in the same designated place without pinching the wiring.
• Check that the buttons or switch operate without binding and that the connector is properly latched. The handlebar must turn without straining the cable.
• Test each function individually before riding. When experiencing contact issues, also check the connector and wiring, as the fault may not necessarily be in the switch itself.
