Left and right rear fender bracket for KuKirin G2 Master

Two brackets for a steadier rear fender

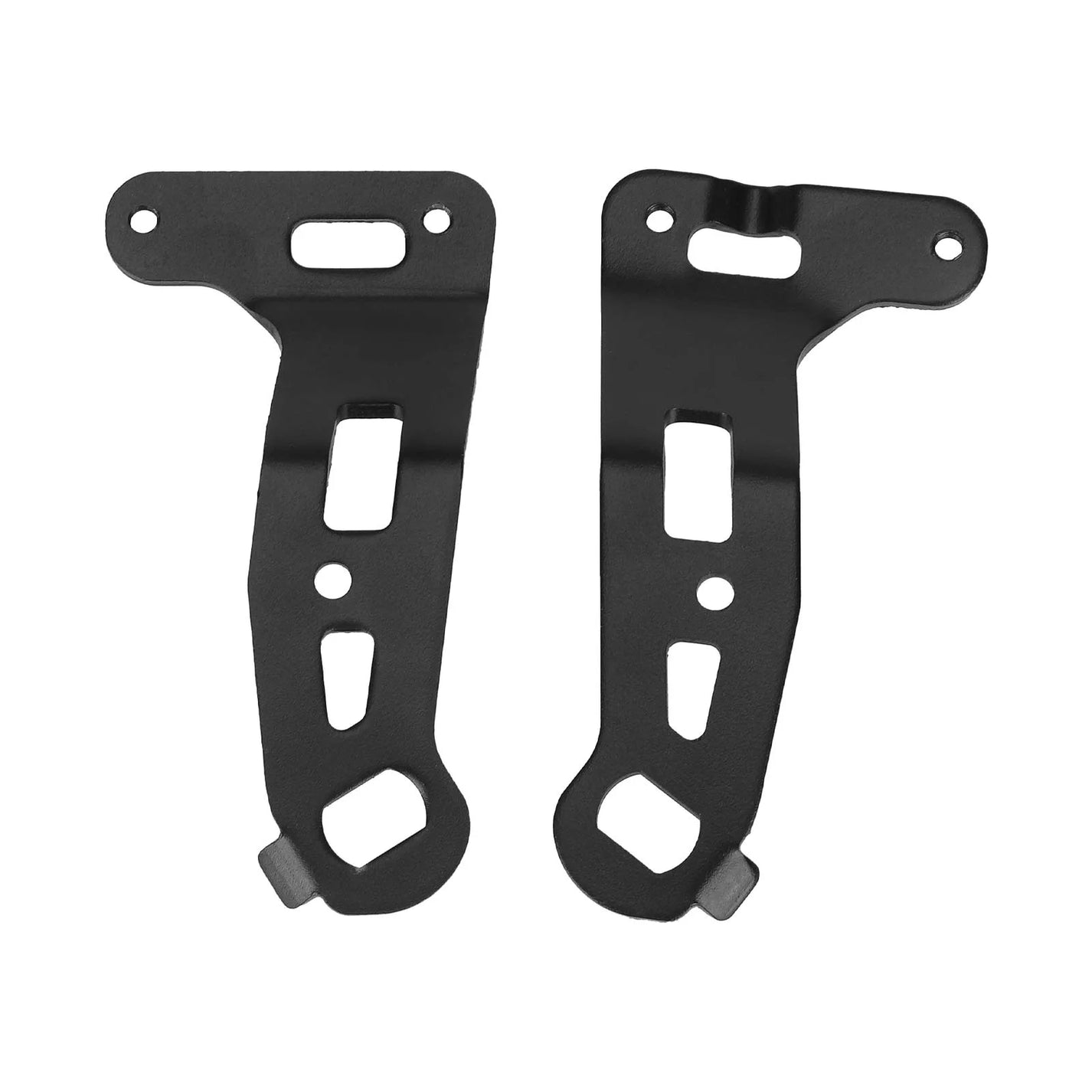

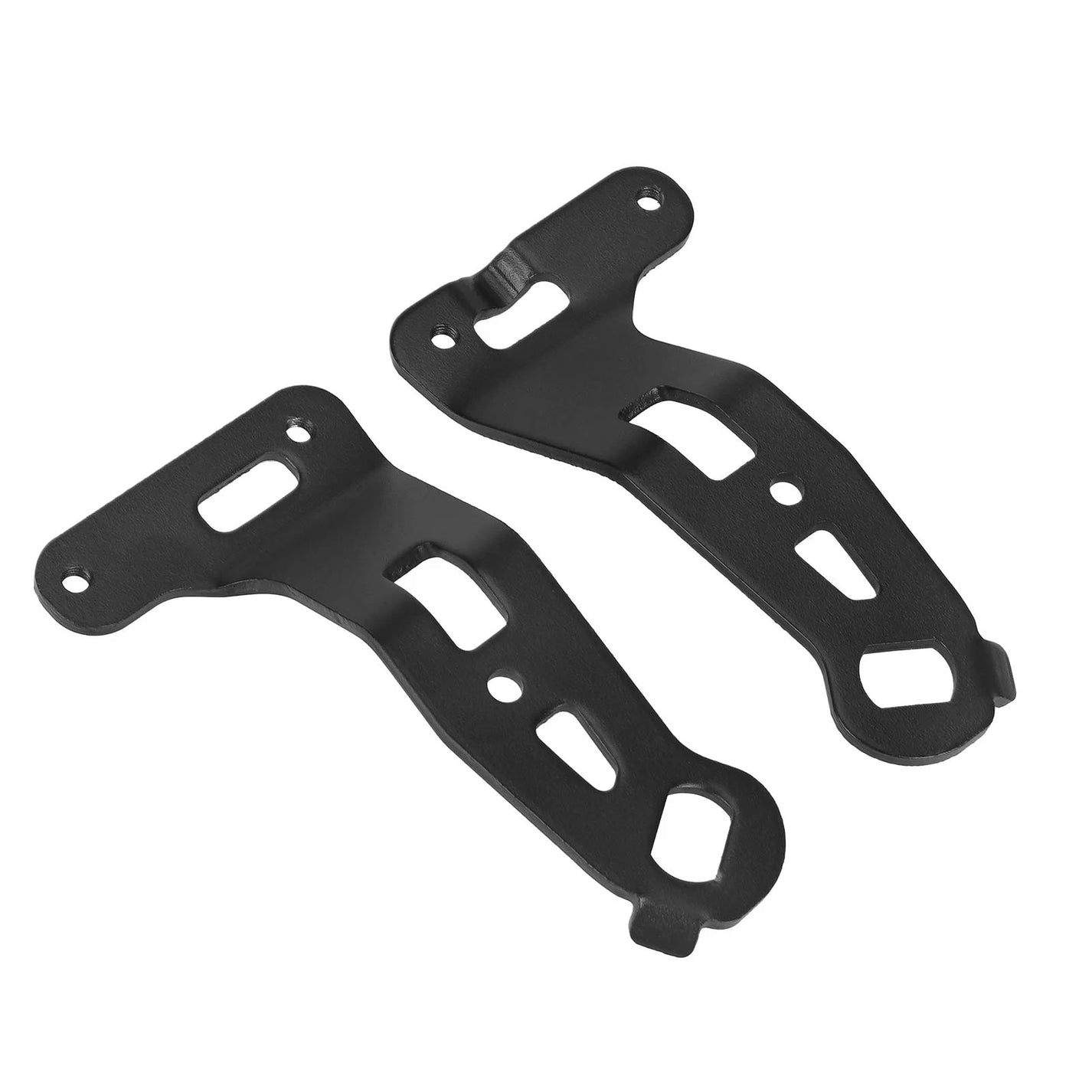

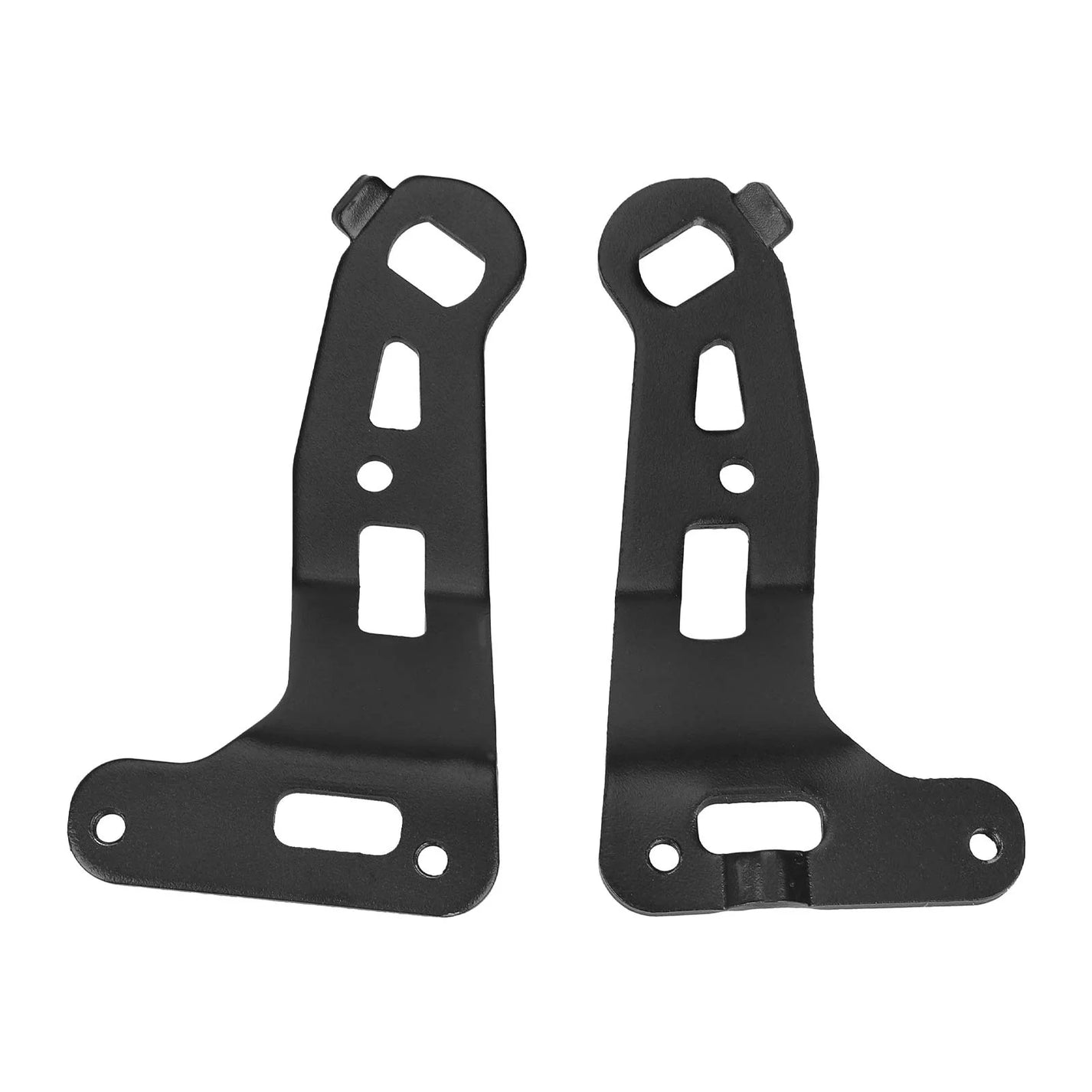

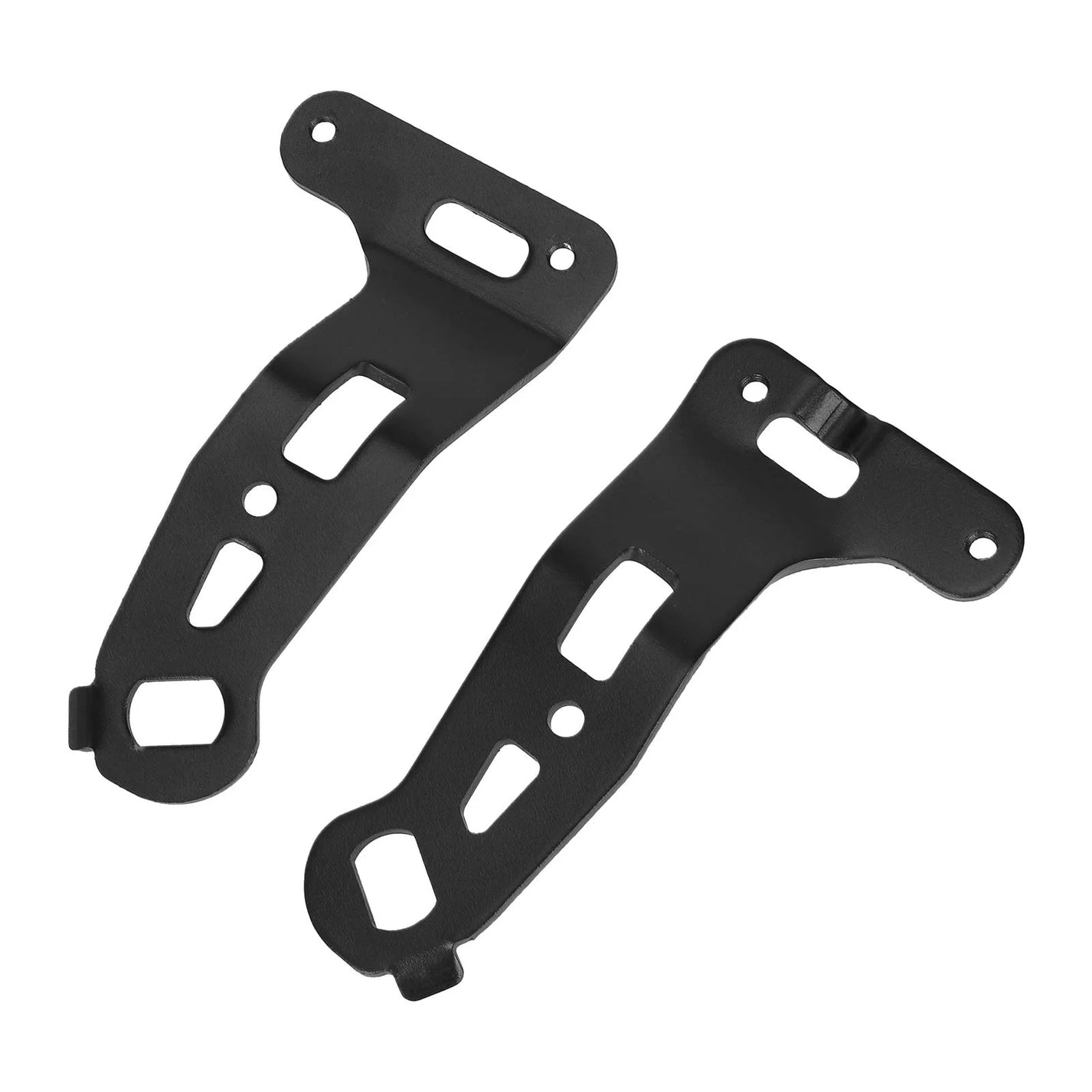

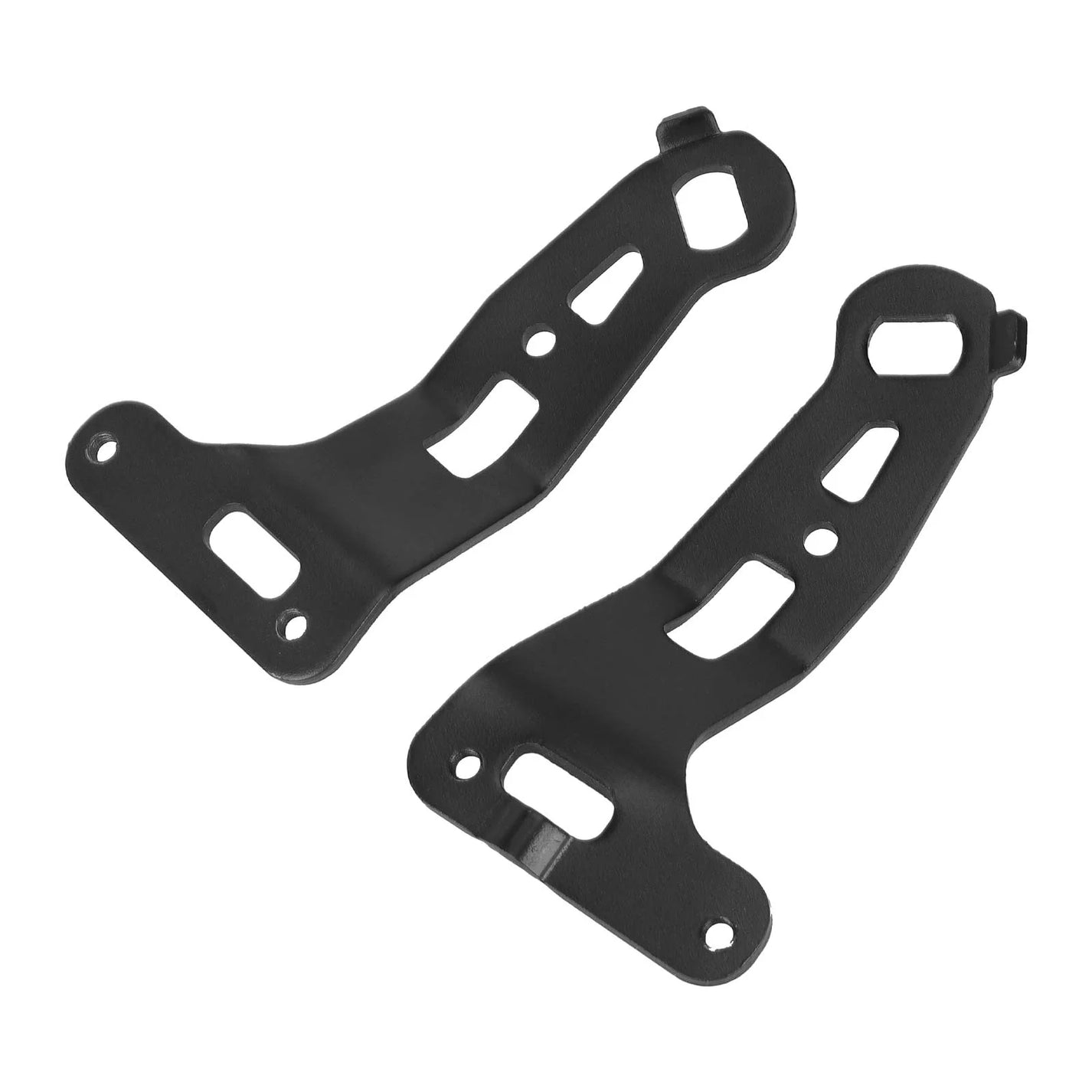

A pair of black brackets supports the rear fender on both sides of the wheel. The shaped arms connect the fender to the vehicle mounting points, reducing its free play.

Features and fitment

• Model: KuKirin G2 Master.
• Pair of black metal rear fender brackets; left/right side.

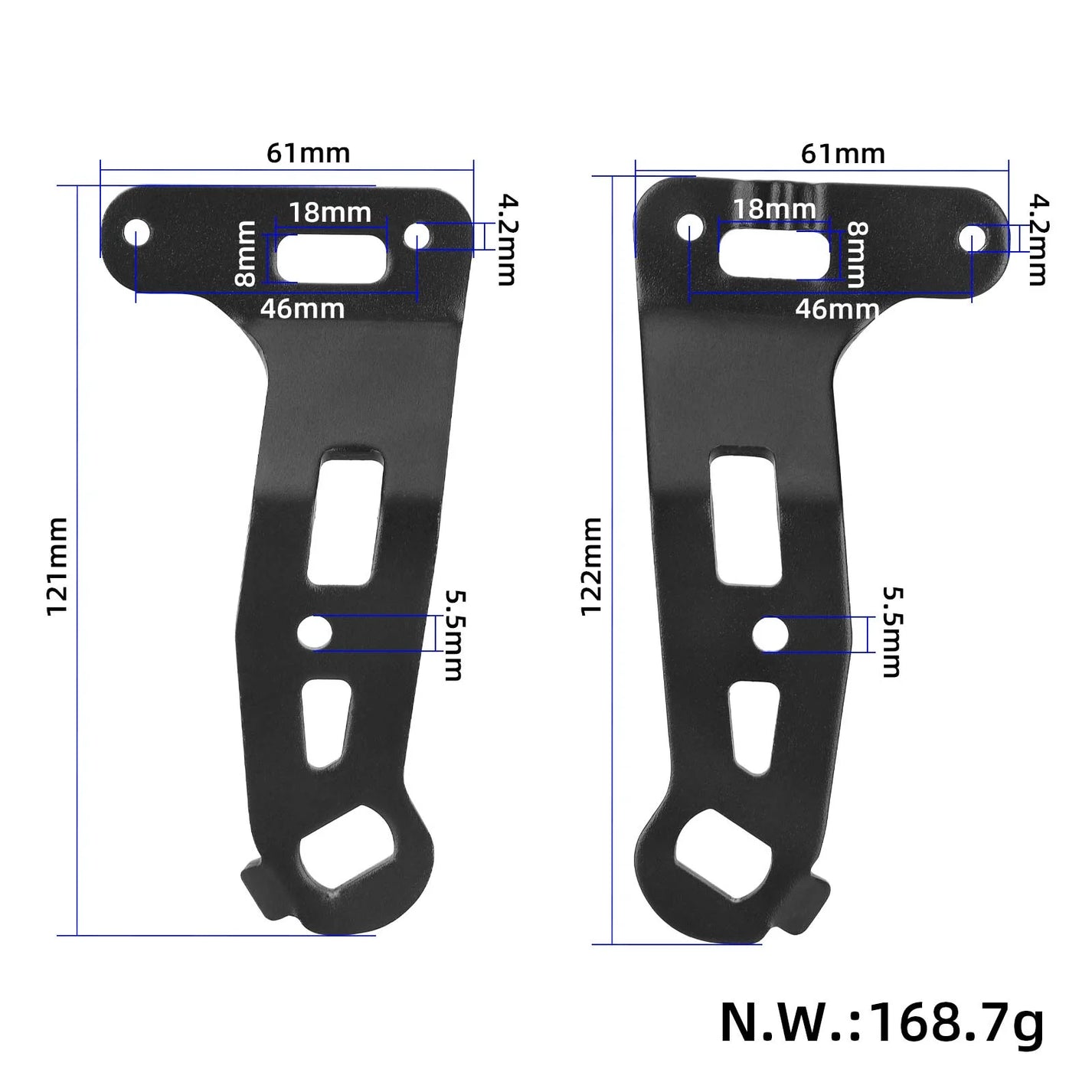

Approximate dimensions

• Left bracket length: 121 mm.
• Right bracket length: 122 mm.
• Top width: 61 mm.
• Upper hole spacing: 46 mm.
• Upper hole diameter: 4.2 mm.
• Central top opening: 18 × 8 mm.
• Lower round hole diameter: 5.5 mm.

The arms measure approximately 121 and 122 mm, respectively. Compare the hole layout, clearance from the tyre, and the installation side. Do not repair a cracked bracket by drilling additional holes into weakened material.

Installation without rubbing against the wheel

• Remove the damaged part and check the condition of the mounting points. Tighten the bolts evenly to avoid cracking the housing or bending the bracket.
• Rotate the wheel and check the tyre clearance around the entire circumference. On a suspended vehicle, there must be enough clearance even when the suspension is active.
• Check the mounting after the first ride. Do not use the fender as a lifting handle or as a footrest.
