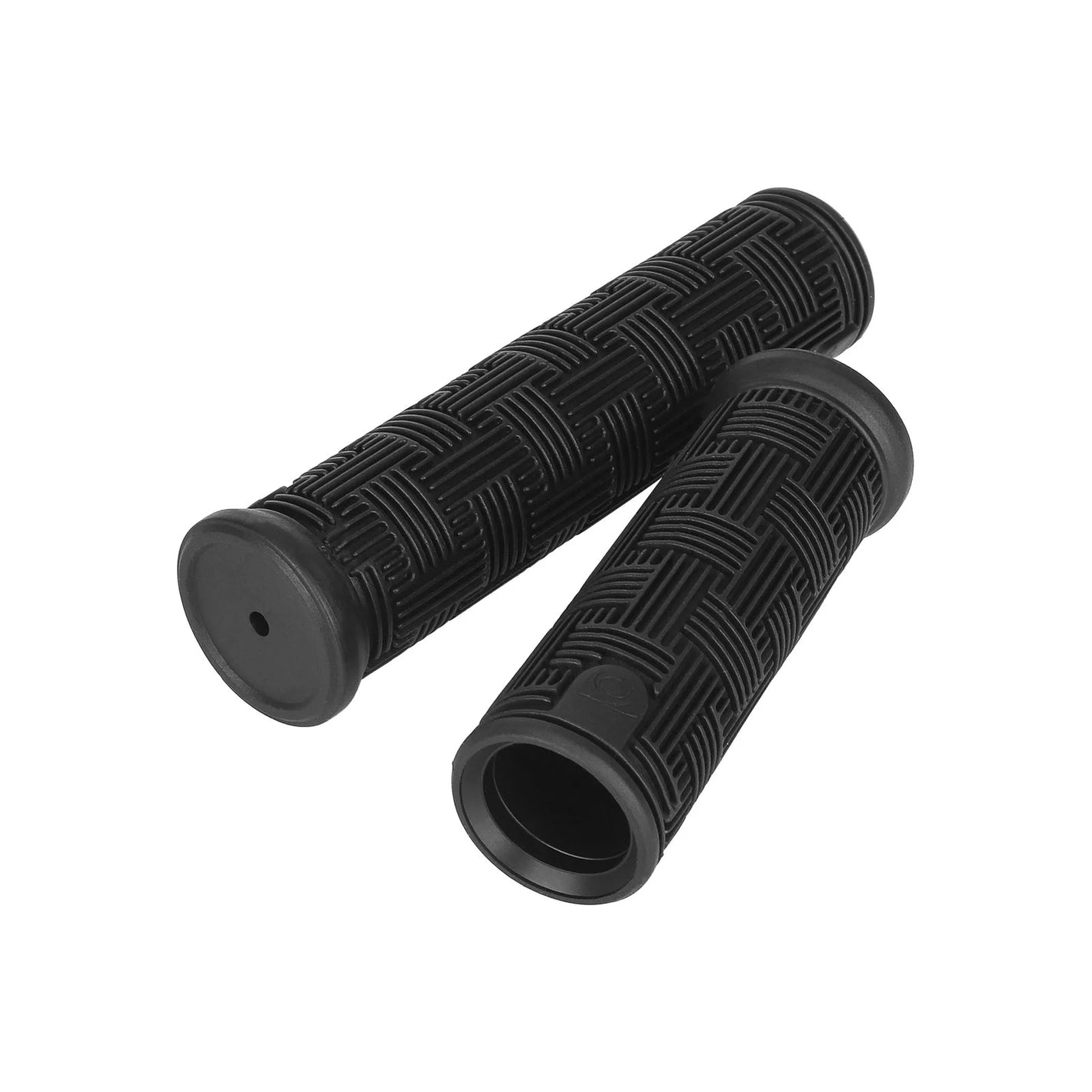

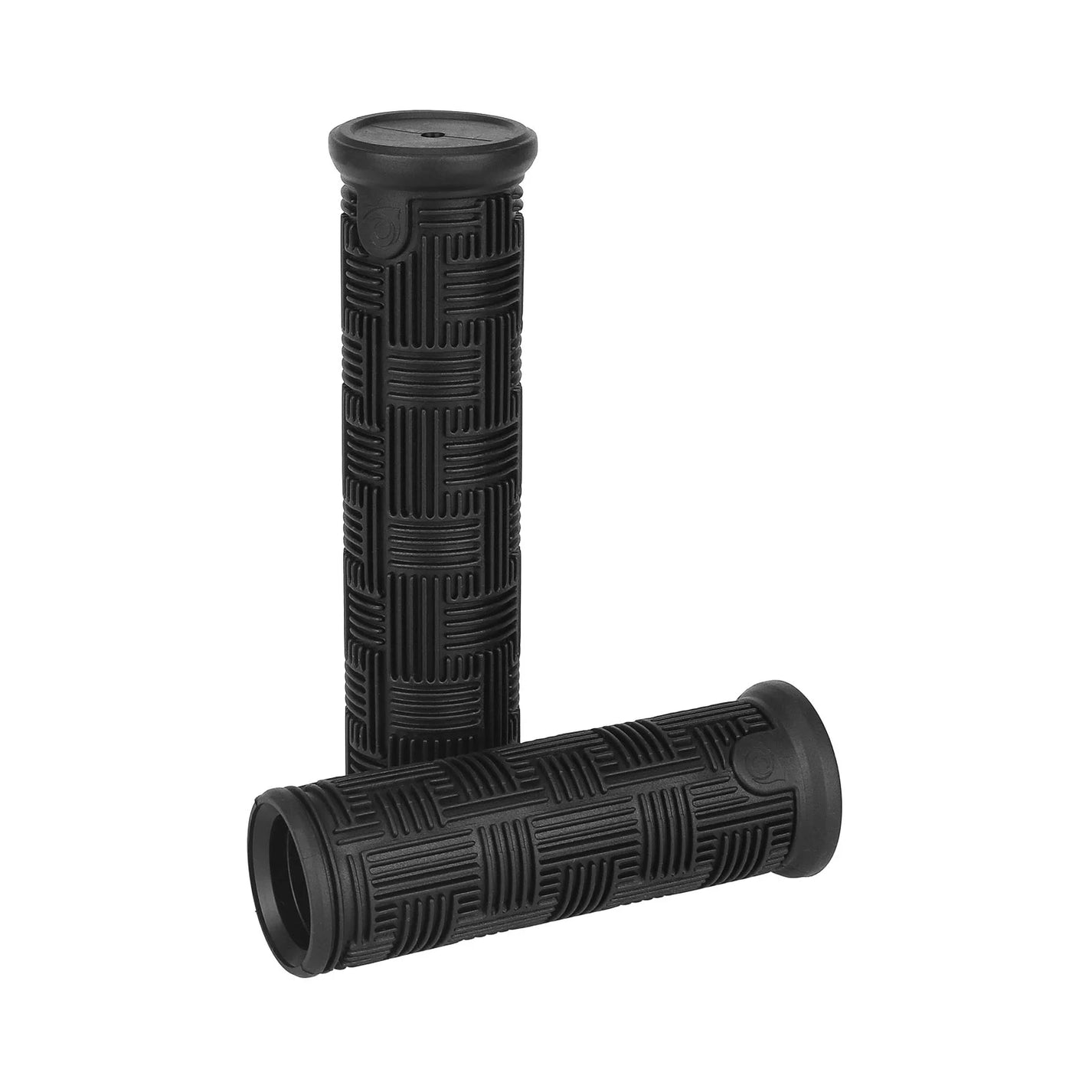

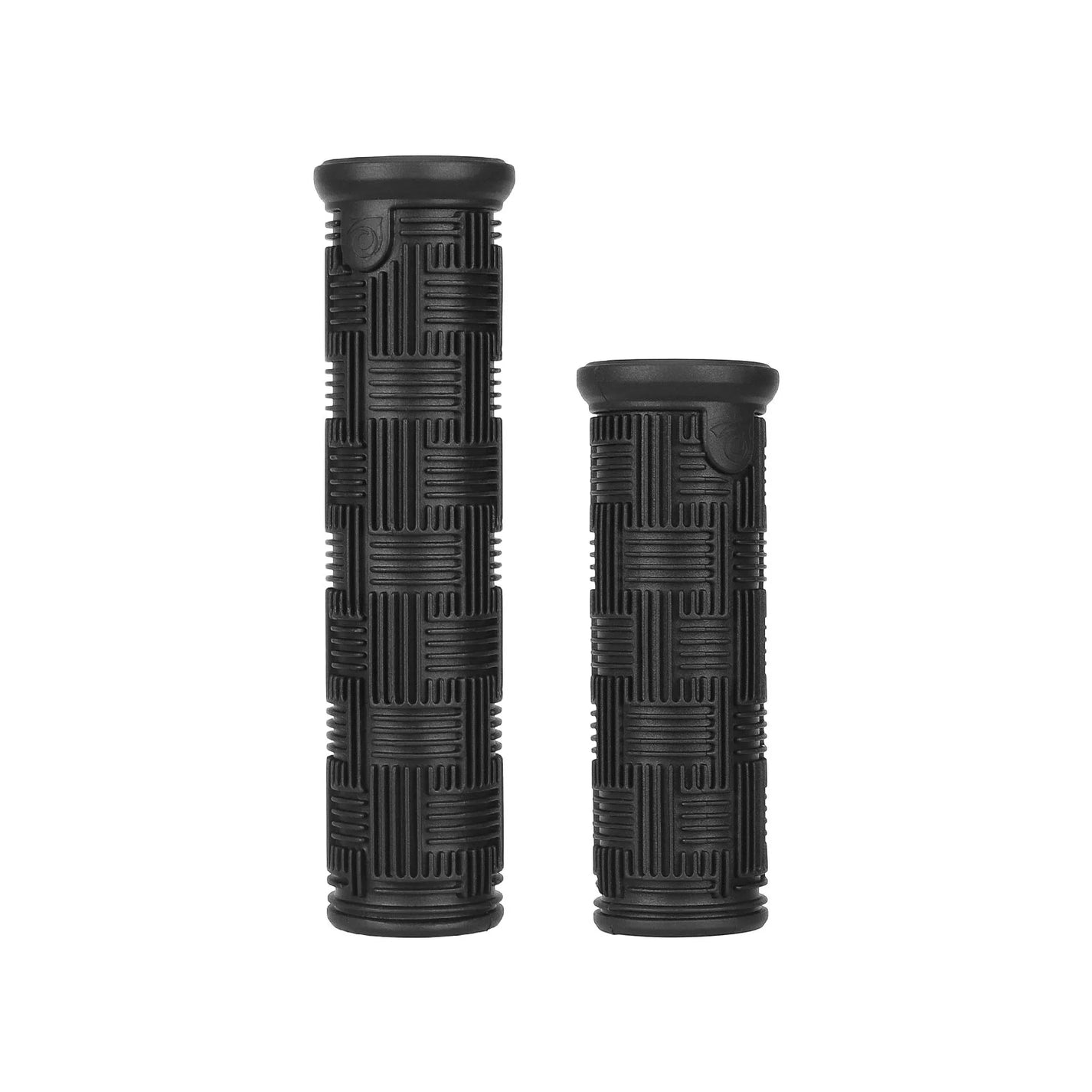

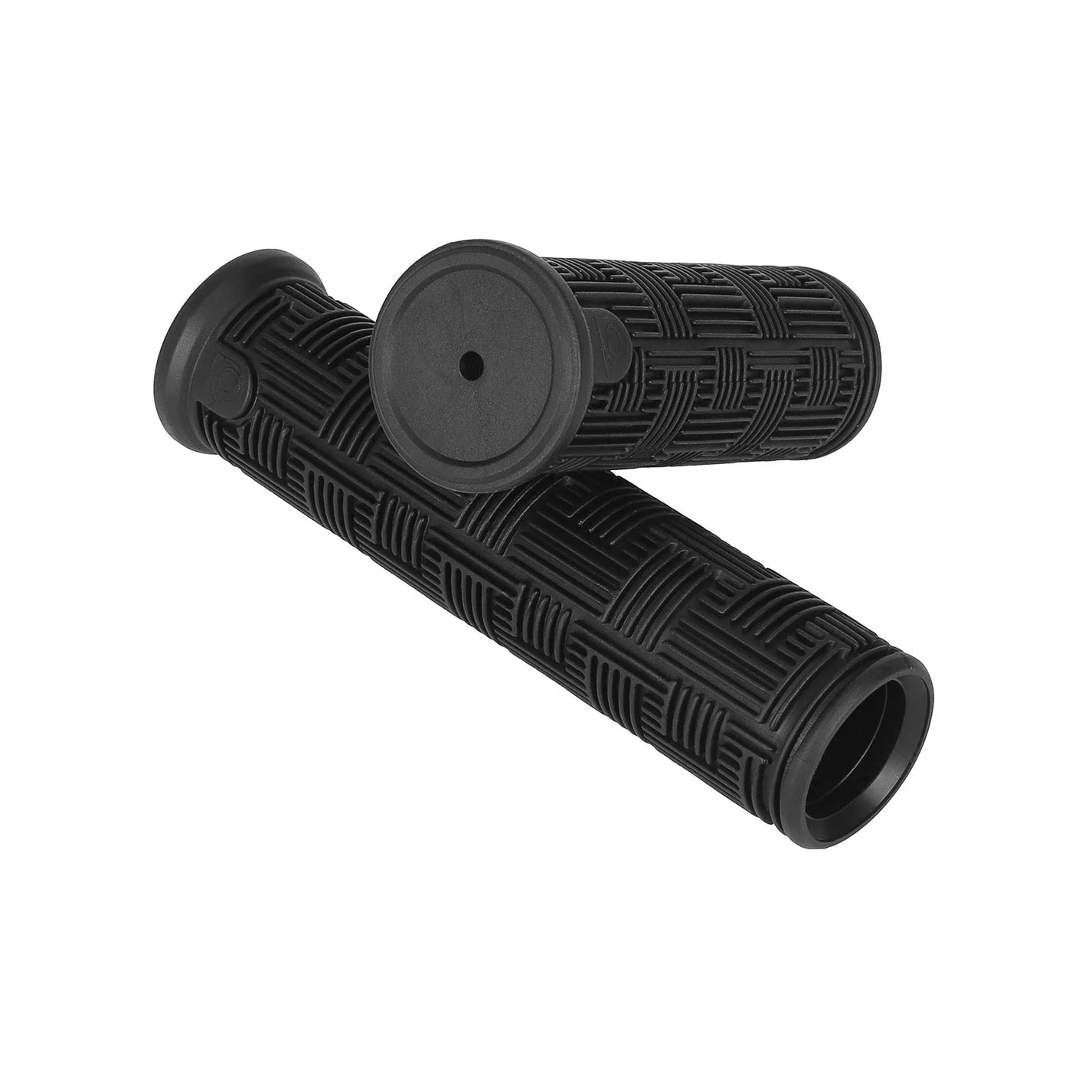

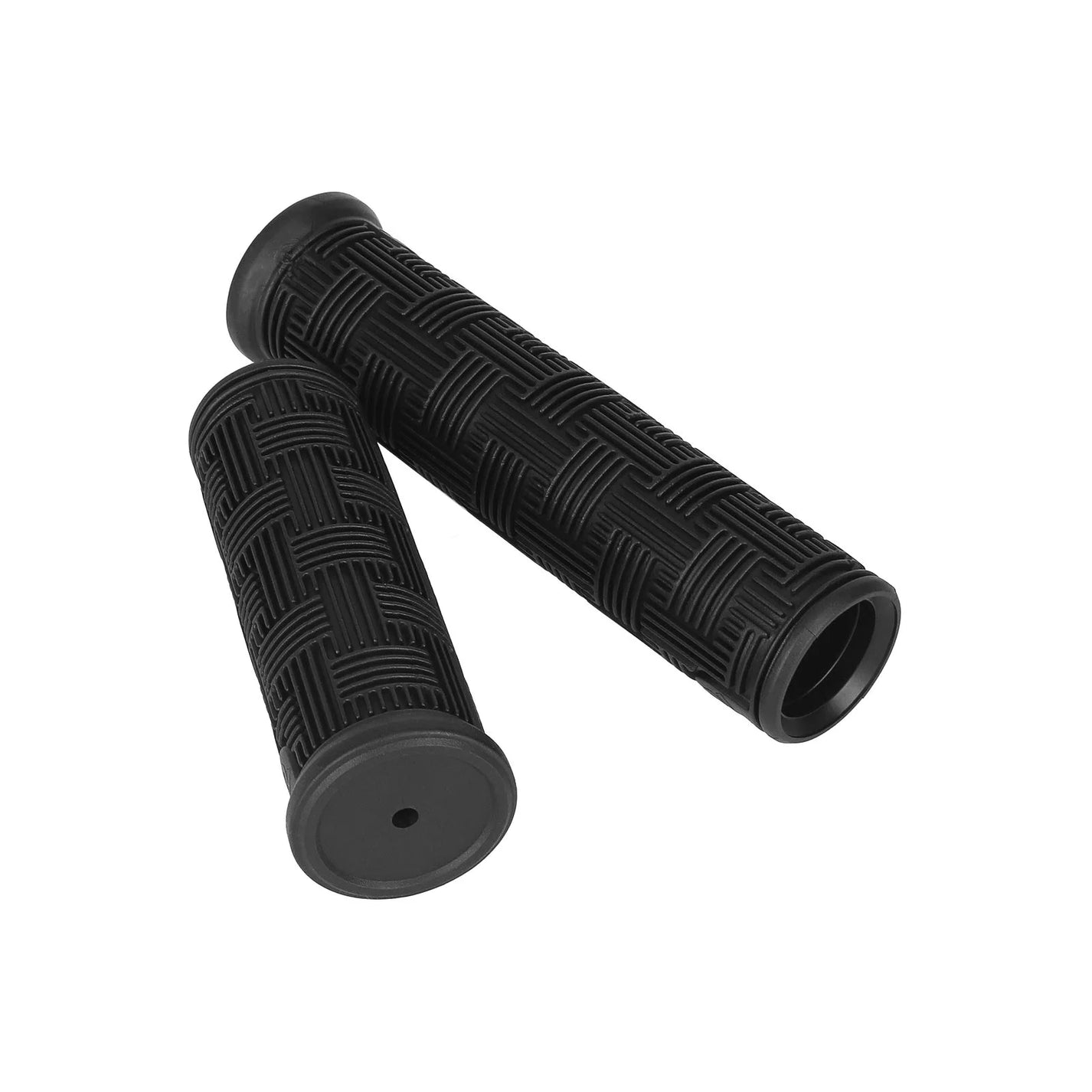

Pair of black 125 mm and 92 mm grips for KuKirin G4

Longer and shorter black grips for asymmetric handlebars

The pair of rubber grips consists of one approximately 125 mm long grip and one 92 mm short grip. Both have a textured surface and an extended outer rim.

Features and Compatibility

• Model: KuKirin G4.
• Set of two black grips of different lengths.
• Longer grip approx. 125 mm, shorter approx. 92 mm.
• Relief grip surface and extended ends.

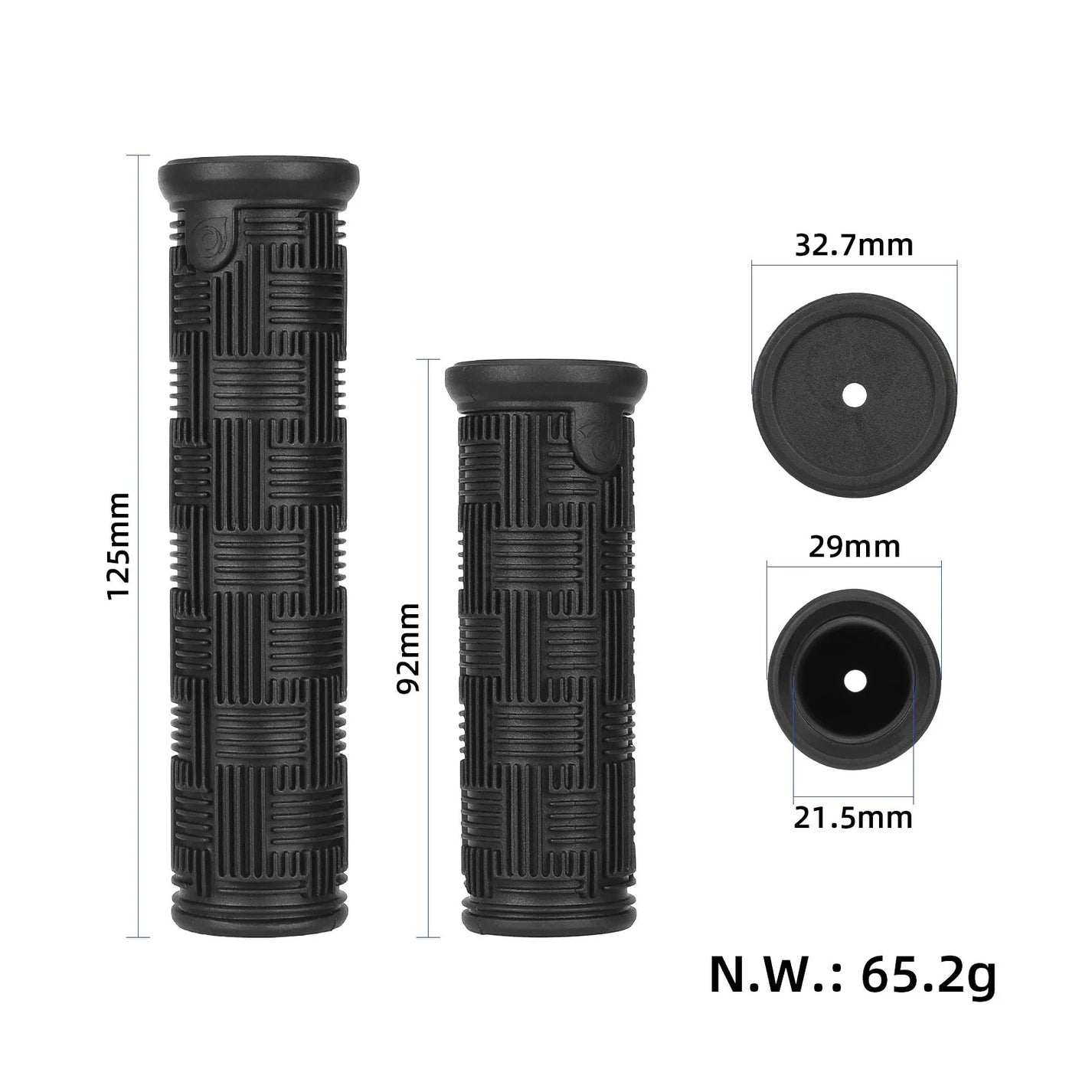

Approximate Dimensions

• Grip lengths: 125 mm and 92 mm.
• Outer diameter: 29 mm.
• Outer edge diameter: 32.7 mm.
• Inner diameter: 21.5 mm.

The shorter grip leaves room for a suitable twist throttle. Before replacing, compare the available length on both sides of the handlebar; after installation, the grips should not rotate or rub against the throttle.

Adjusting Support and Grip

• Remove the old grips, then clean and dry the handlebars. Before fixing, check that the new grip is fully seated on the intended part of the tube.
• Adjust the position for a relaxed wrist and reach to the brake lever. Tighten clamping components, where present, according to instructions and ensure the grip does not rotate.
• Check the free return of the throttle. Replace torn, hardened, or slippery grips; do not apply lubricants to the grip surface.
