Silver M14 motor axle nut with three washers for KuKirin G4

Silver M14 nut with washers for motor axle

The set includes one silver M14 nut and three washers. One washer features a tab for placement in the corresponding slot on the motor axle mount.

Features and fitment

• Model: KuKirin G4.
• Motor axle nut with three washers; silver metal finish; 14 mm nominal design.

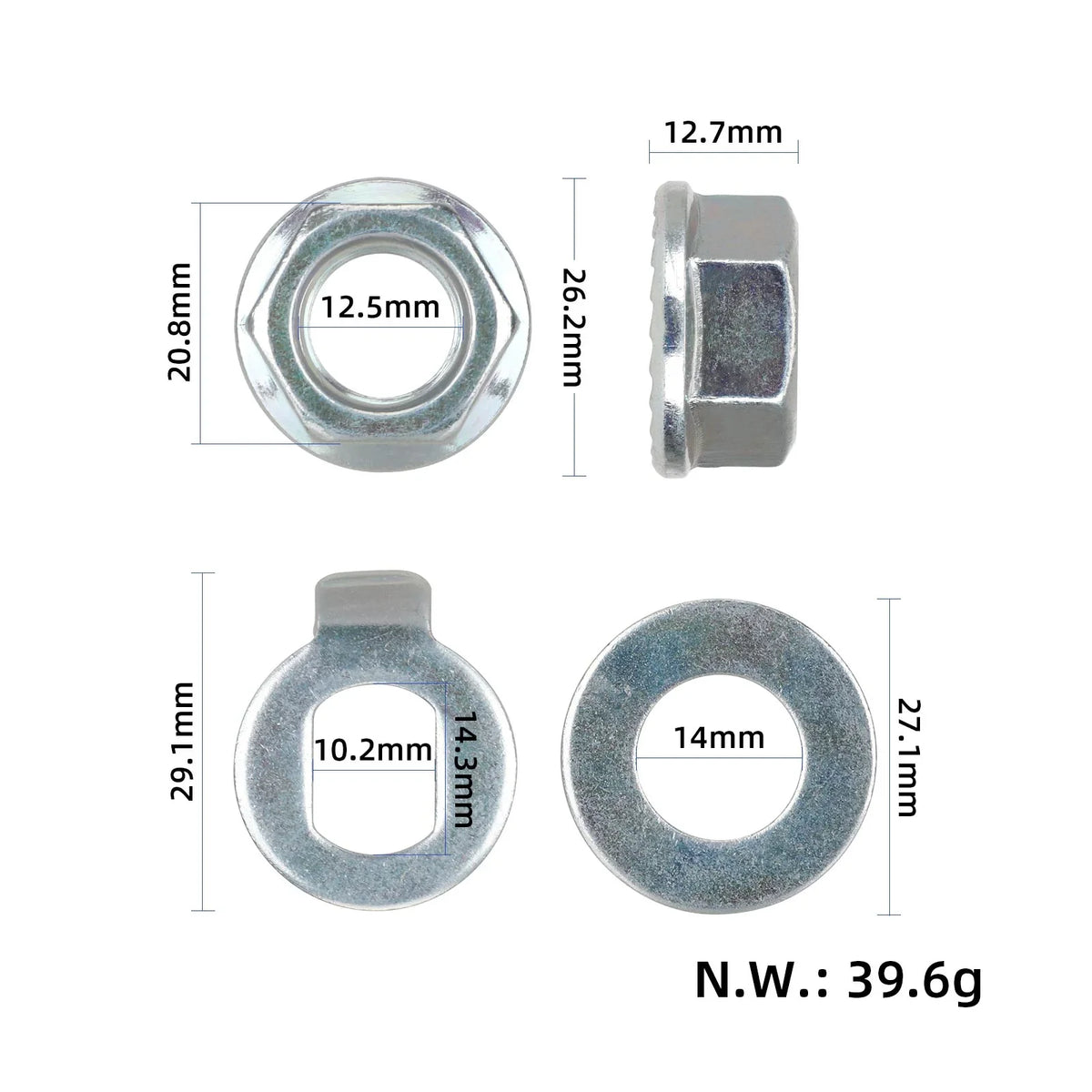

Approximate dimensions

• M14 Nut: width across flats 20.8 mm, flange diameter 26.2 mm, height 12.7 mm.
• Nut thread inner opening: 12.5 mm.
• Washer with tab: total height 29.1 mm, opening 10.2 × 14.3 mm.
• Round washer: outer diameter 27.1 mm, inner diameter 14 mm.

Screw or motor axle are not part of the set. When replacing, keep the prescribed order of the washers, check the thread and the position of the tab, and tighten the nut according to the assembly instructions for the wheel unit.

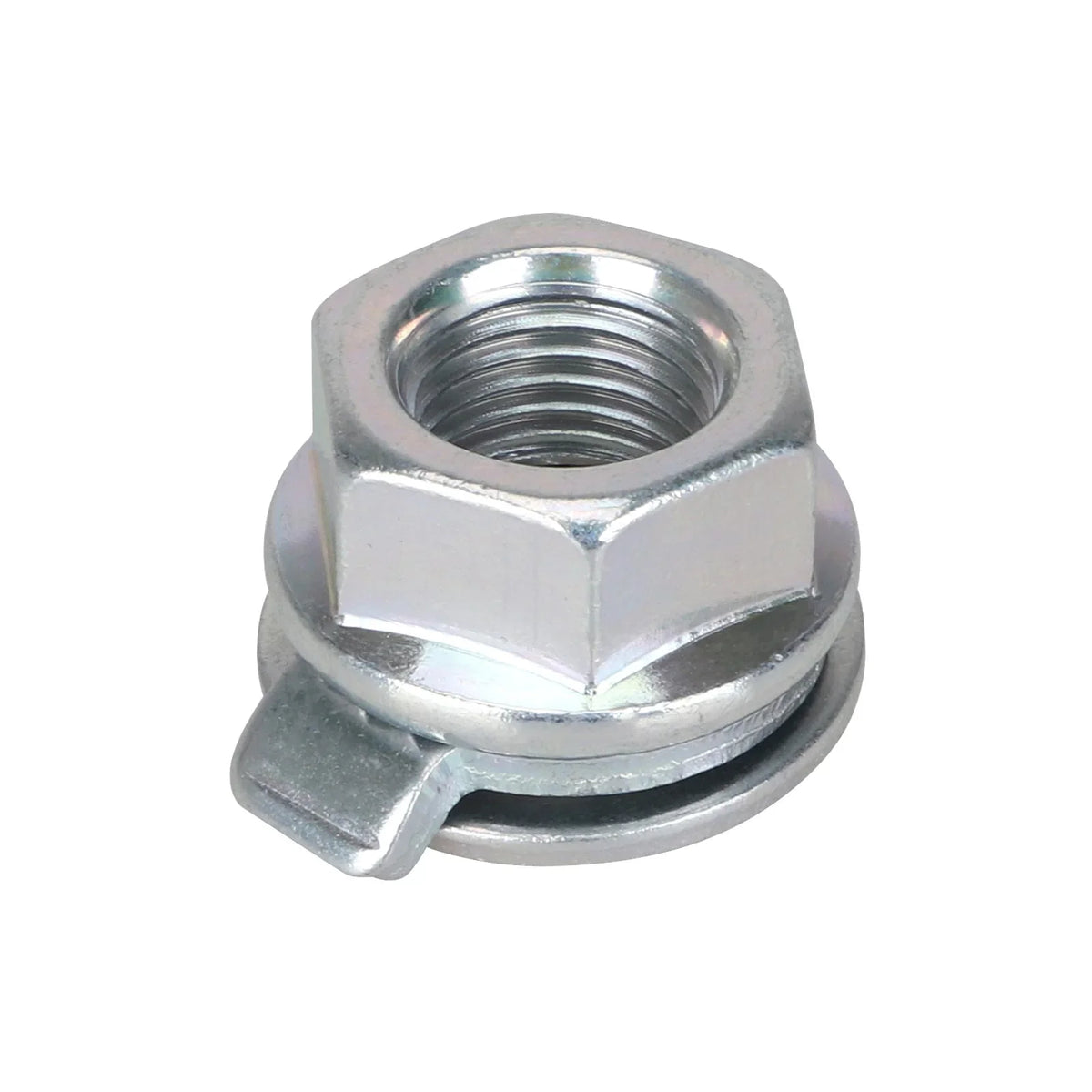

Correct order of fastening parts

• Before disassembling, record the order and position of the parts. Inspect the threads and use appropriate tools that will not damage the head or the nut.
• Tighten the screws or nut by hand first, then use the torque specified in the assembly manual. After assembly, check for secure fastening and free rotation of moving parts.
